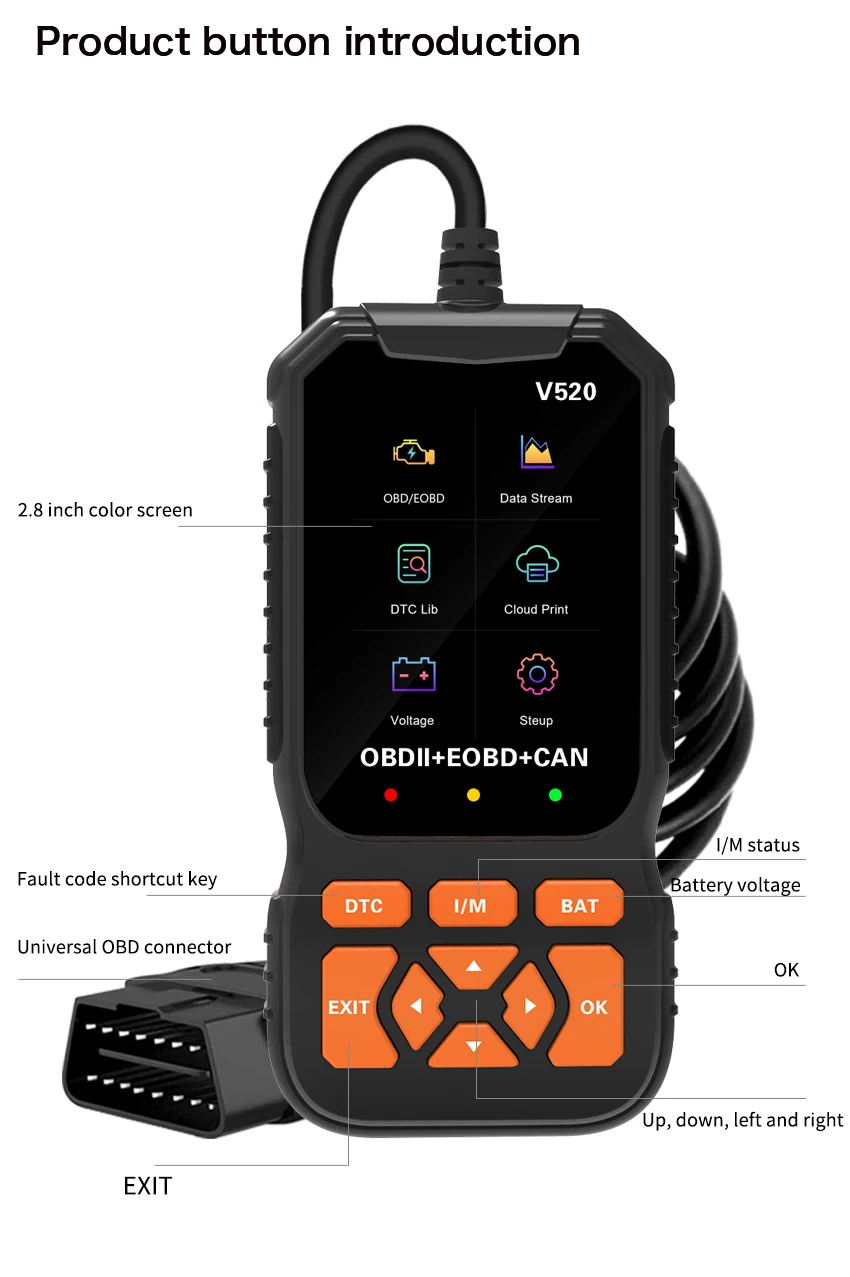

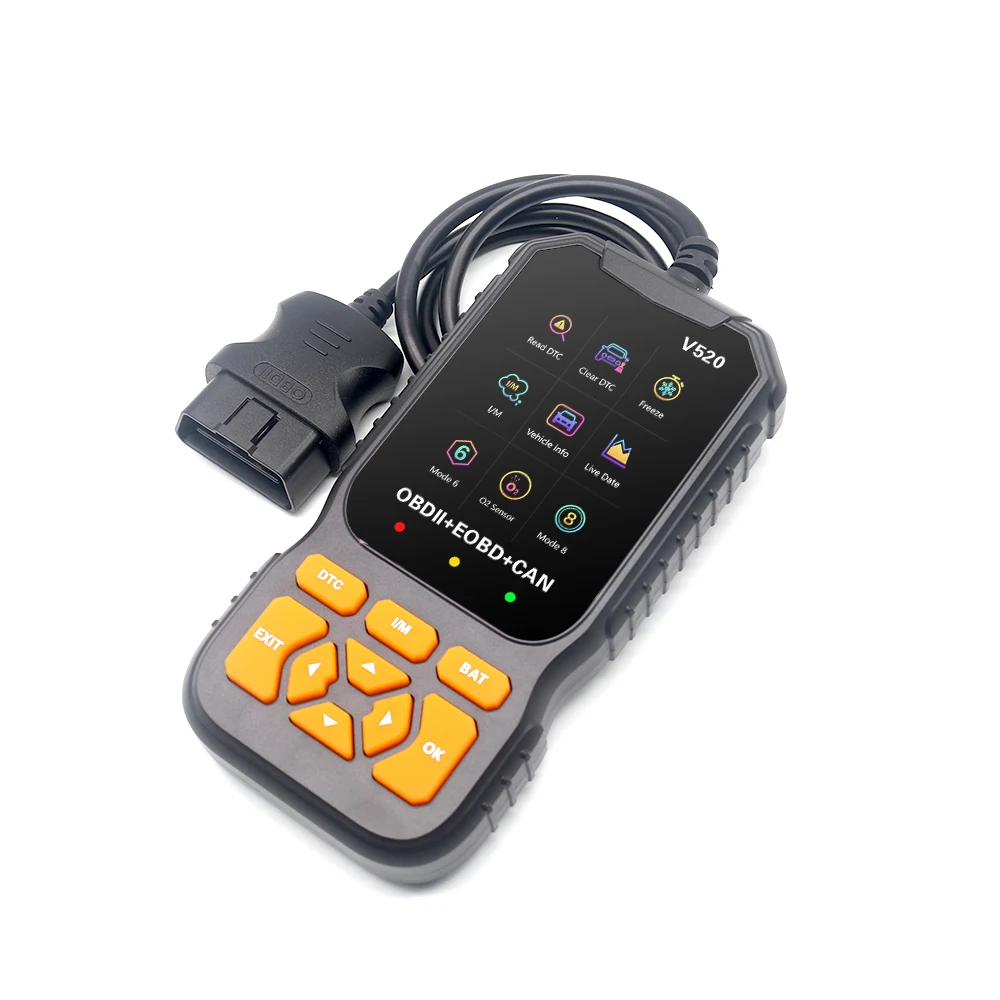

Complete Vehicle OBD2 Scan and Engine Code Reading Diagnostic Device
- Category: >>>
- Supplier: Hunan Edsun Electrical Science And Technology Co. Ltd.
Share on (1601030718087):
Product Overview
Description
Product Description
Technical Features | Parameters | Supported Protocols |

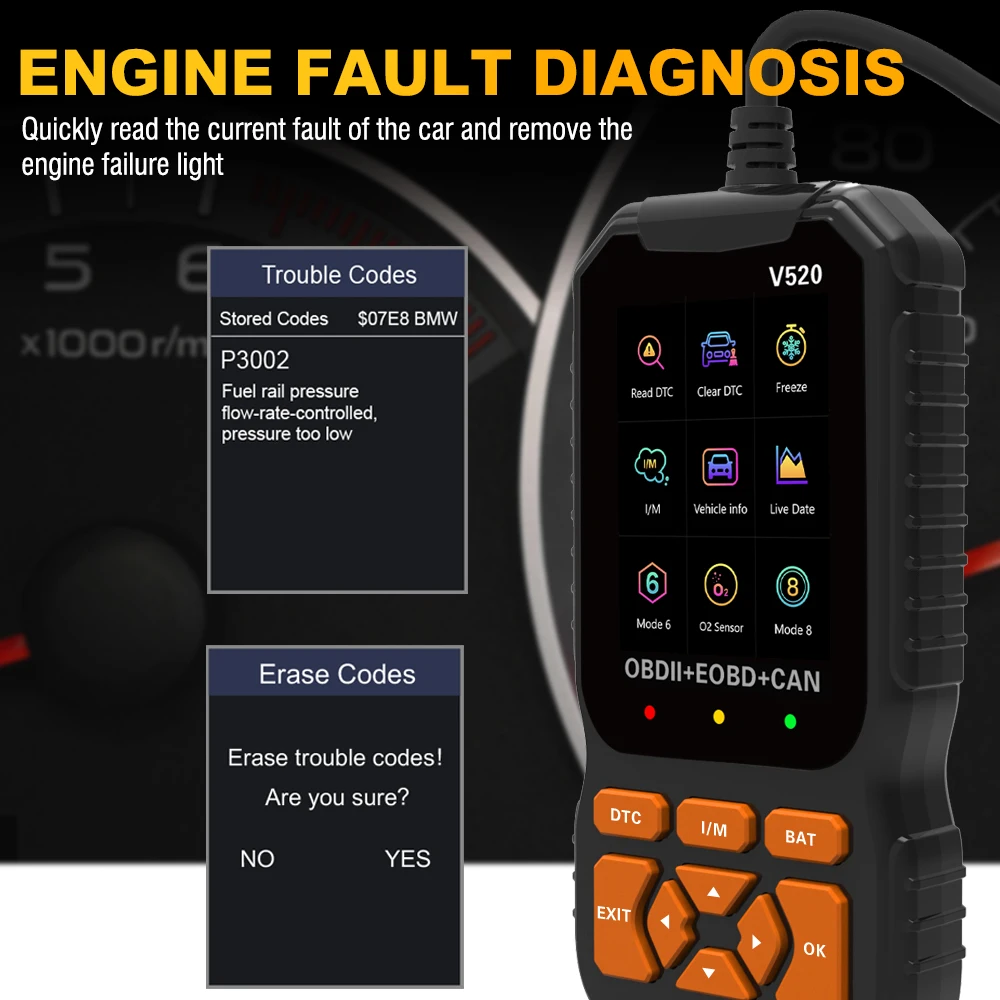

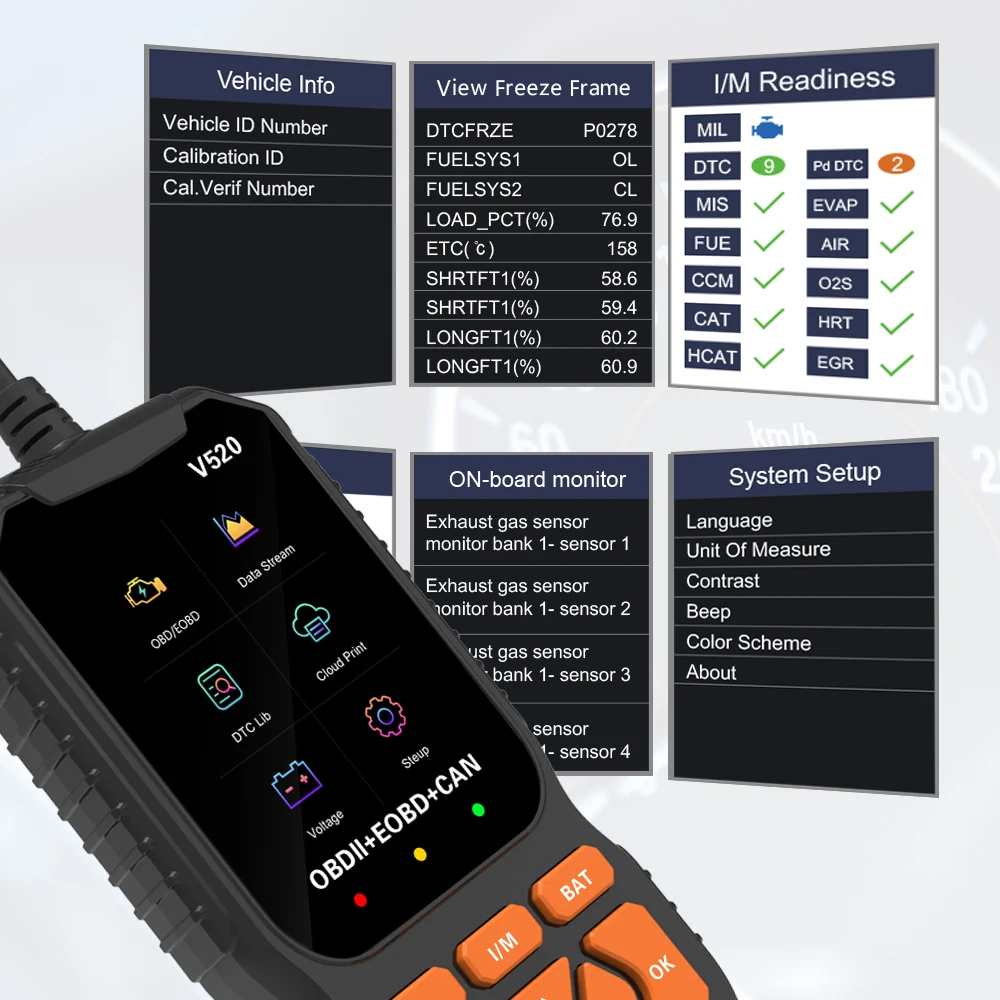

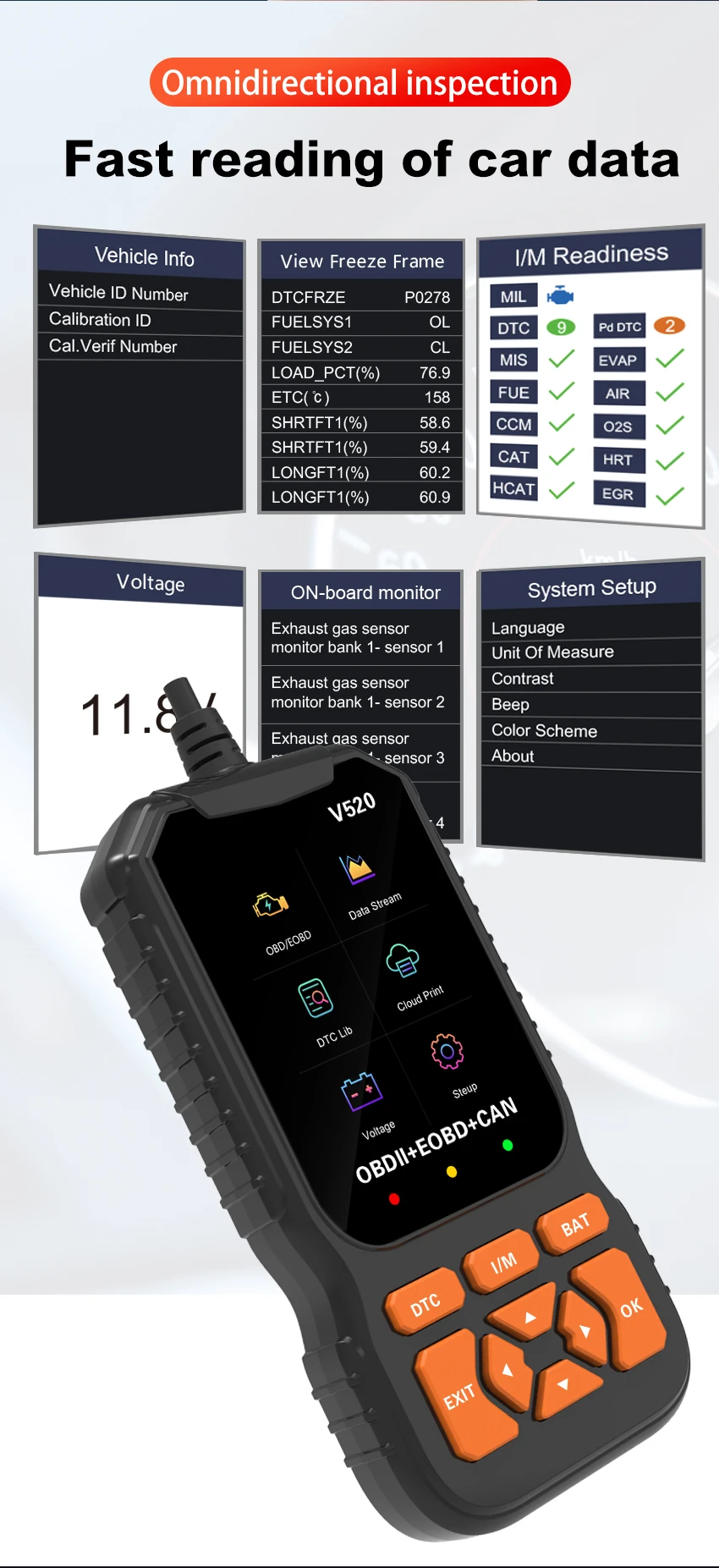

1.Automobile engine fault diagnosis 2.Automotive engine fault clearing 3. Automotive Fault Freeze Frame 4.Vehicle I/M Ready Status 5.Vehicle information reading 6. Automobile real-time data flow 7.Car battery voltage reading 8.Mode 6 test 9.Oxygen sensor test 10.Mode 8 test 11.Fault code inquiry 12.Cloud printing function 13.Dual UI mode 14.Fault code library 35901 items 15. Color screen 2.8 inches 16.English, German, French, Spanish, Italian, Russian, Dutch, Chinese, Japanese, Portuguese | 1.Working voltage: DC 9V~16V 2. Operating current: 36mA~54mA 3. Standby current: 40mA 4.Operating environment: -30～70℃ 5.Storage Temperature: -30~70℃ 6. External dimension: 171*85*28mm 7.Product weight: 230g (including color box 304g) 8.Package size: 200*130*43mm 9.Carton quantity: 40pcs | 1. SAE J1850 PWM (41.6Kbaud) 2. SAE J1850 VPW (10.4Kbaud) 3. ISO9141-2(5 baud init, 10.4Kbaud) 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 250 Kbaud) |
Why Choose Us
Rich product experience
about 11years specilied in power supply engineering.
Professional R&D team
have a professional team and extensive cooperation with universities.
Quality assurance
have a strict quality management system and our products have passed ISO,CQC certification.
Attentive service
providing lifetime technical service and at least 12-month warranty and we accept OEM and ODM services.
Company Profile
HUNAN EDSUN ELECTRICAL SCIENCE AND TECHNOLOGY CO.,LTD, established in 2011 and located in CHANGSHA CITY,HUNAN PROVINCE. EDSUN is a professional company engaged in the manufacture of auto parts &accessories such as Portable ev charger,car jump starter,car battery charger,car air inflator,car charger,car vacuum cleaner.ppf car films,car reversing camera,car parking sensor.. Along with its rapid development recent years, we have the production workshop and research laboratory around 2000 square meters, 6 cycle production lines and 6 cycle test lines. Our company has registered the trademarks of "EDSUN, DURANT, LECHELANCHE", owned 10 software copyrights, 9 utility model patents and 3 invention patents with highly reputation in domestic and overseas. At the same time, we are dedicated to strict quality control and thoughtful customer service and obtained I S O 9 0 0 1, I S O 4 5 0 0 1, I S O 1 4 0 0 1 , 3 A class and CE certificates. And our company even has established extensive cooperation and further communication with colleges, universities, and research institutions, it has formed a school-enterprise scientific research alliance to achieved great results.
FAQ
A) How could I get a sample?
You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
B)What can you buy from us?
jump starter,ev charger,car tyre inflator,car battery charger,car vacuum cleaner.ppf car films,car reversing camera ,car parking sensor.
C)Why should you buy from us not from other suppliers?
we can provide affordable prices, reliable quality, customized service, professional after-service.
D)What services can we provide?
MOQ:One sample order is available.
Delivery terms:EXW, FOB, CIF.
Packing:standard export packing,including instructions and certificate.
OEM/ODM is available.
Shipment:Express（Fedex, DHL, UPS &TNT）or forwarder
Warranty:At least one year free repair for quality warranty, and lifetime free online after-service
E)How can we guarantee quality?
Strict detection during production.
Strict sampling inspection on products before shipment and intact product packaging ensured.
You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
B)What can you buy from us?
jump starter,ev charger,car tyre inflator,car battery charger,car vacuum cleaner.ppf car films,car reversing camera ,car parking sensor.
C)Why should you buy from us not from other suppliers?
D)What services can we provide?
MOQ:One sample order is available.
Delivery terms:EXW, FOB, CIF.
Packing:standard export packing,including instructions and certificate.
OEM/ODM is available.
Shipment:Express（Fedex, DHL, UPS &TNT）or forwarder
Warranty:At least one year free repair for quality warranty, and lifetime free online after-service
E)How can we guarantee quality?
Strict detection during production.
Strict sampling inspection on products before shipment and intact product packaging ensured.
