Ready To Ship Building Material 89 LGS Light Gauge Steel Framing Roll Forming Machines for House Construction
- Category: >>>
- Supplier: Botou Golden Integrity Roll Forming Machine Co. Ltd.Botou Ltd.
Share on (1601032433105):
Product Overview
Description
Product Description

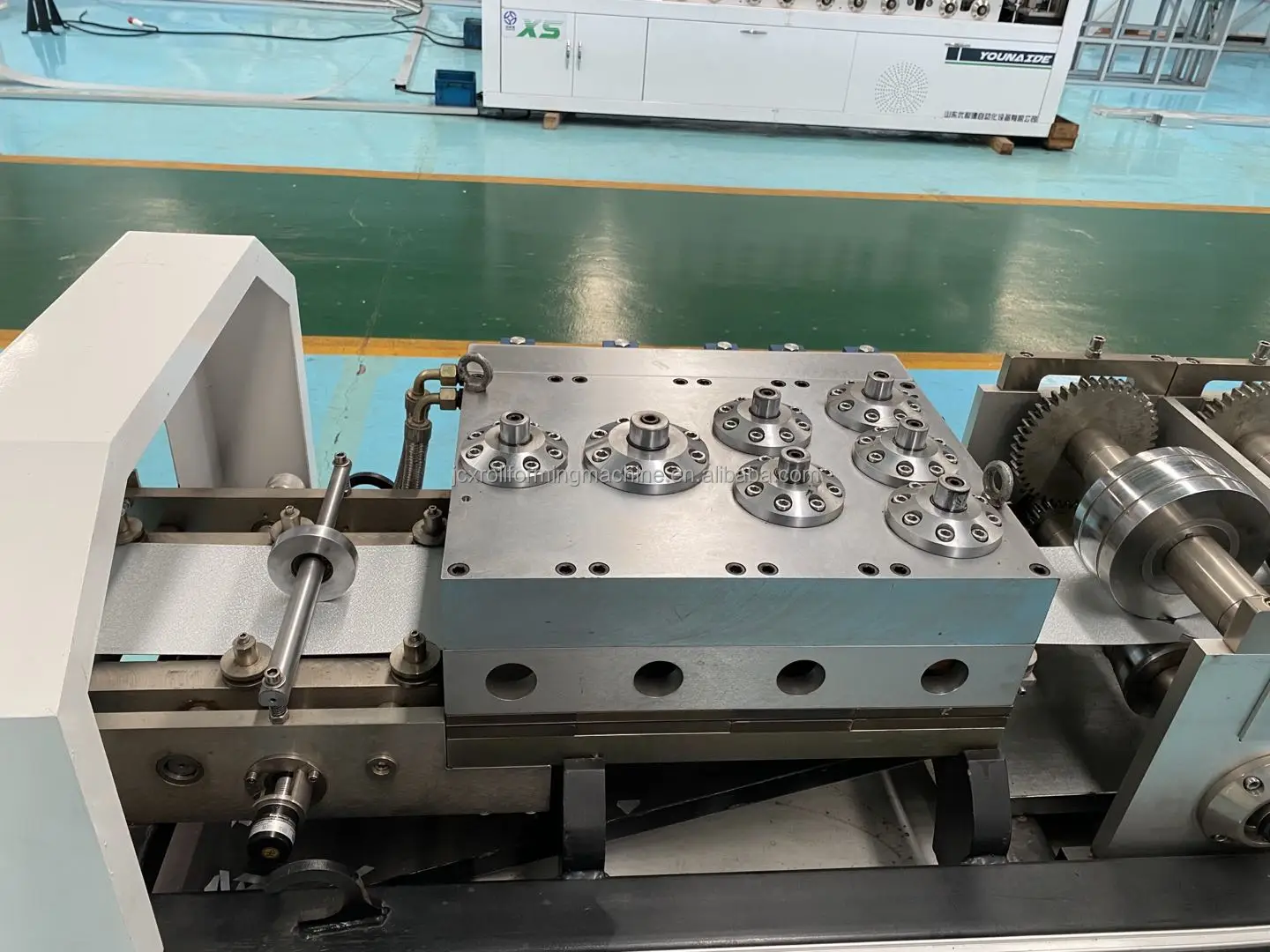

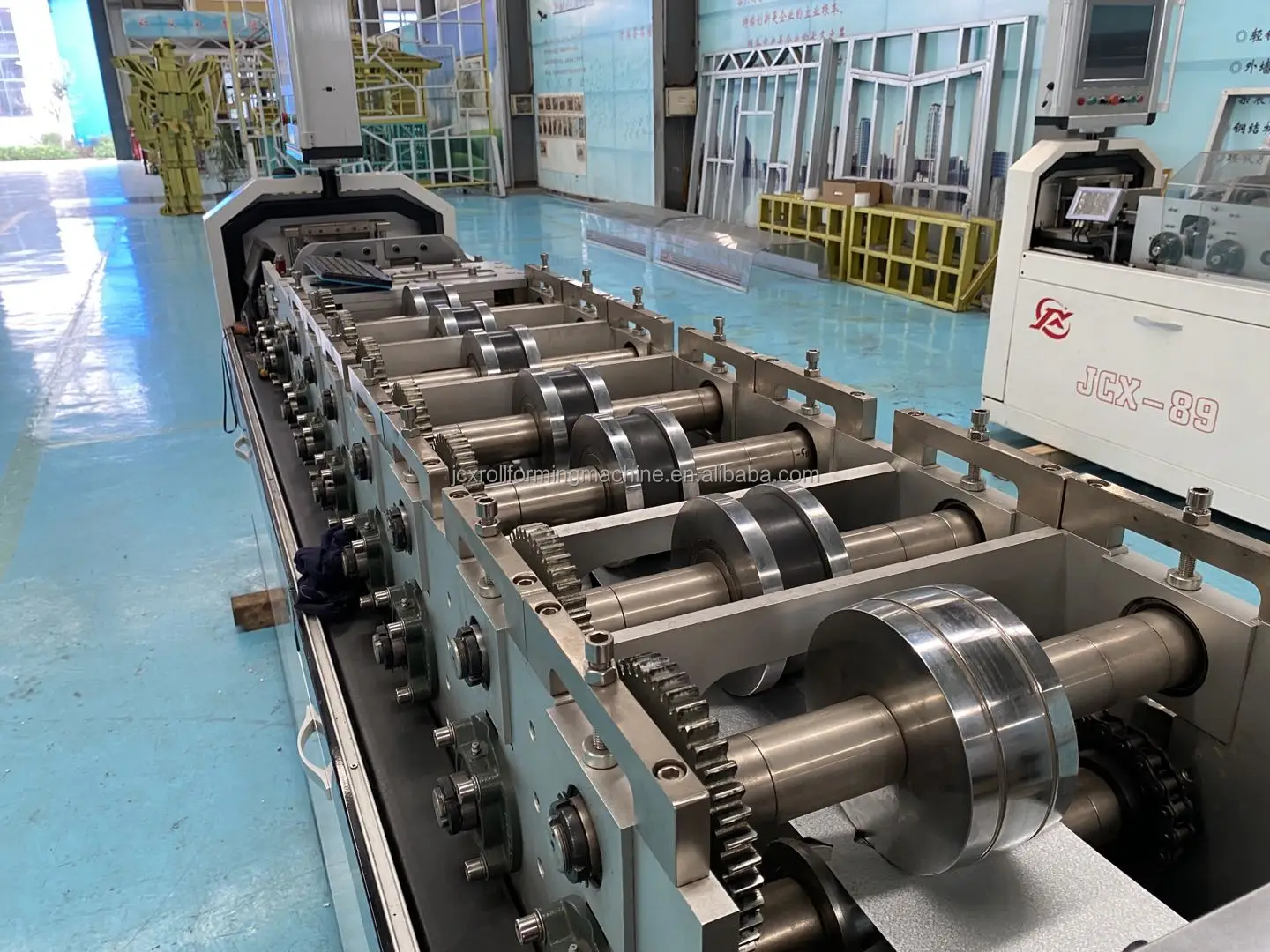

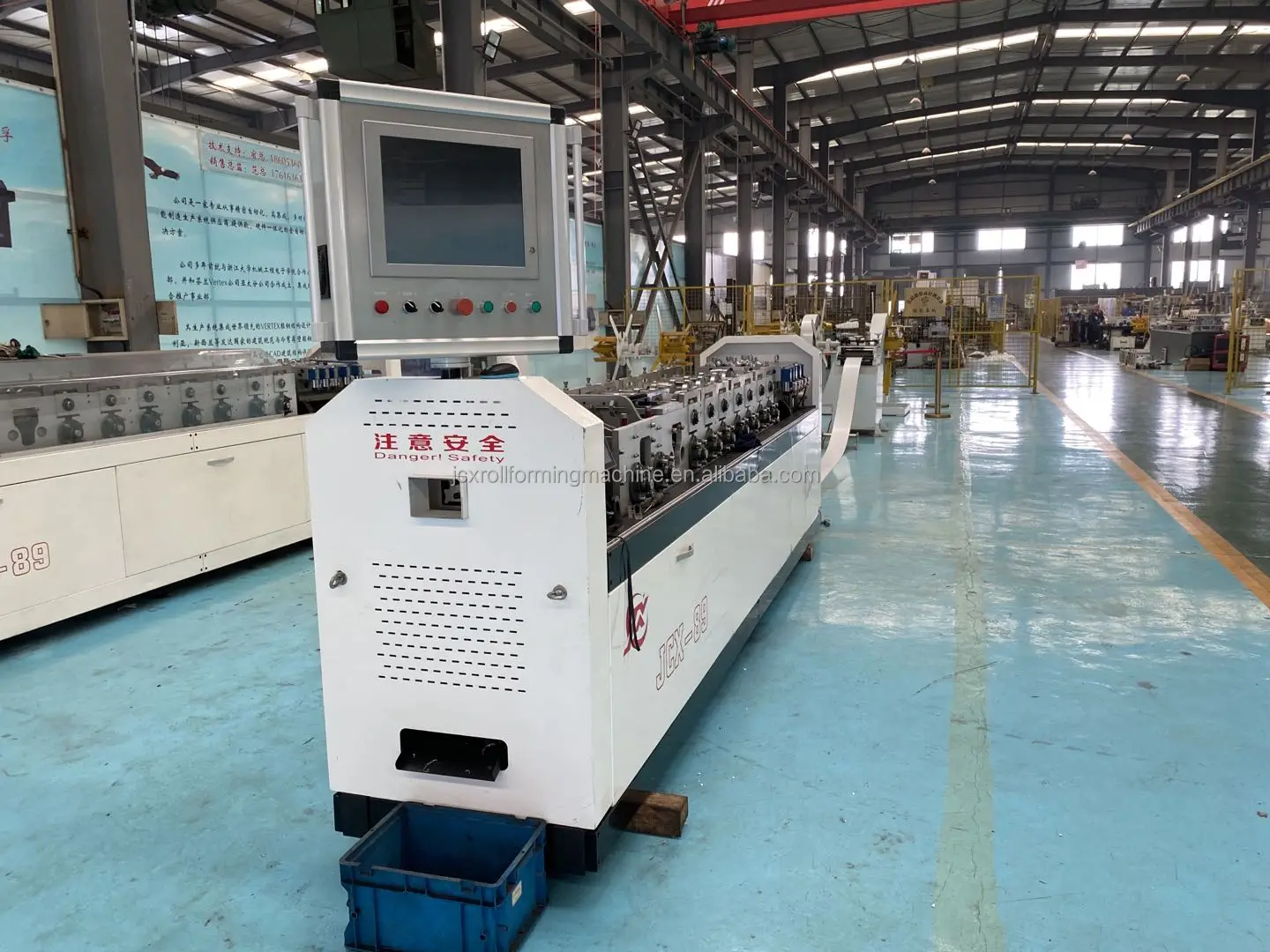

C89 Light Gauge Steel House Lgs Framing Roll Forming Machine for Villa
Our light gauge steel house framing is an innoviated machine with vertex BD program.
Highlight of our machine
1)less power consumption(7.5kw servo motor power,5.5kw hydraulic pump)high productivity,:total line speed 50 meters/minute(punching speed:15 meters/minute),great breakthrough of traditional machine concept,machine will not be stuck while
forming,less rollers,but can make perfect product.
Easy to transport.
2)one encoder is used by the whole line,to control main machine and printer.only one signal is accepted to make sure punching and length accuracy.
3)we use synchronous drive to make sure that cutting,web rib,notch cutting are more precision.
Our light gauge steel house framing is an innoviated machine with vertex BD program.
Highlight of our machine
1)less power consumption(7.5kw servo motor power,5.5kw hydraulic pump)high productivity,:total line speed 50 meters/minute(punching speed:15 meters/minute),great breakthrough of traditional machine concept,machine will not be stuck while
forming,less rollers,but can make perfect product.
Easy to transport.
2)one encoder is used by the whole line,to control main machine and printer.only one signal is accepted to make sure punching and length accuracy.
3)we use synchronous drive to make sure that cutting,web rib,notch cutting are more precision.
Working flow and layout of C89 C140 LGS Light Gauge Steel Villa House Structure Roll Forming Machine Villa Steel Frame Forming
Machine Parameter of C89 C140 LGS Light Gauge Steel Villa House Structure Roll Forming Machine Villa Steel Frame Forming Machine
SPECIFICATIONS FOR C89 LIGHT GAUGE STEEL FRAMING MACHINE | ||
Profile Size | 89 x 41 MM | |
Material Thickness | 0.75 - 1.2 MM ( G345 - G550 Zinc Plated, Aluminumzinc plated ) | |
Material Width | 182 MM | |
Design Software | Vertex BD | |
Profile Type | 1*C shape, 1*U Shape | |
Maximum Line Velocity | 2800 M / H | |
General Production Efficiency | 300 - 700 M /H | |
Double-head Decoiler | Max load 2 Tons ; | |
Main Unit Power | 7.5 Kw | |
Hydraulic Power | 5.5 KW | |
Equipment Total Power | 13 Kw | |
Hydraulic Cylinder Volumn | 100 L | |
Adjustment of Oil Pressure | Computer setting | |
Main Unit Remote Control | Standard | |
Punching Dies | Dimple,Chamber cut,Web Notch,Lip Cut,Service Hole,Swage,Shear,Bolt hole | |
Product Accuracy | 0.5 MM | |
Inkjet Printer | Special | |
Machine Size | 4000 x 800 x 1200 MM | |
Machine Weight | 2000 Kgs ---3000Kgs | |
