Roll Forming Machine Steel Tile Sheet Round Wave Corrugated Machine Thin Metal Barrel Drum Type 0.14 0.45 Mm Thickness
- Category: >>>
- Supplier: Cangzhou Yousheng Roll Forming Machine Co. Ltd.
Share on (1601032550009):
Product Overview
Description
4 Meter Length 0.14-0.45mm thick Barrel Type Corrugated Iron Sheet Making Machine

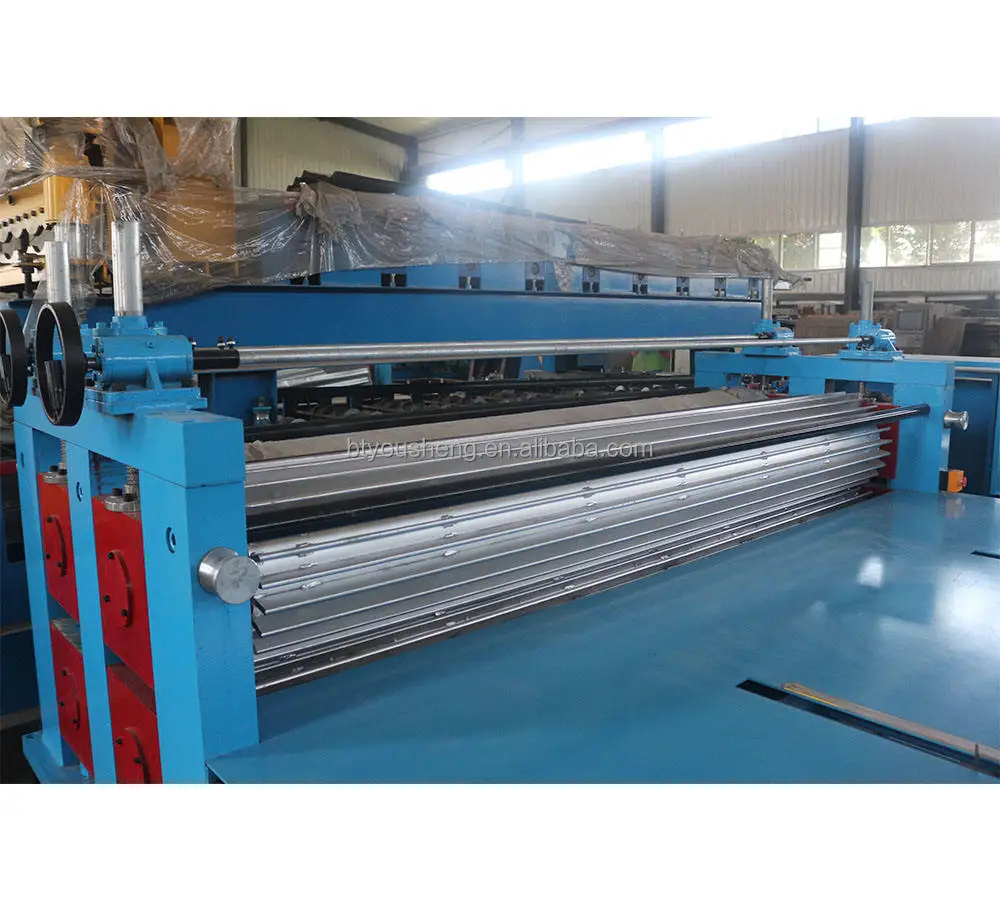

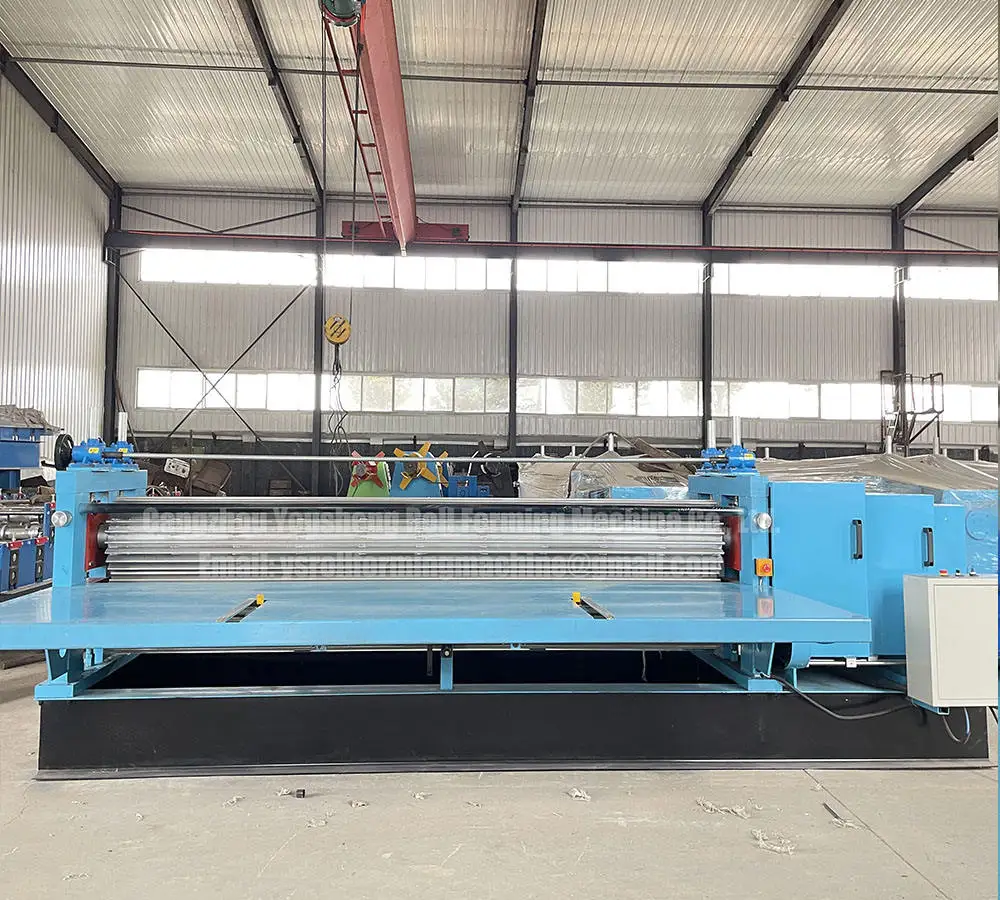

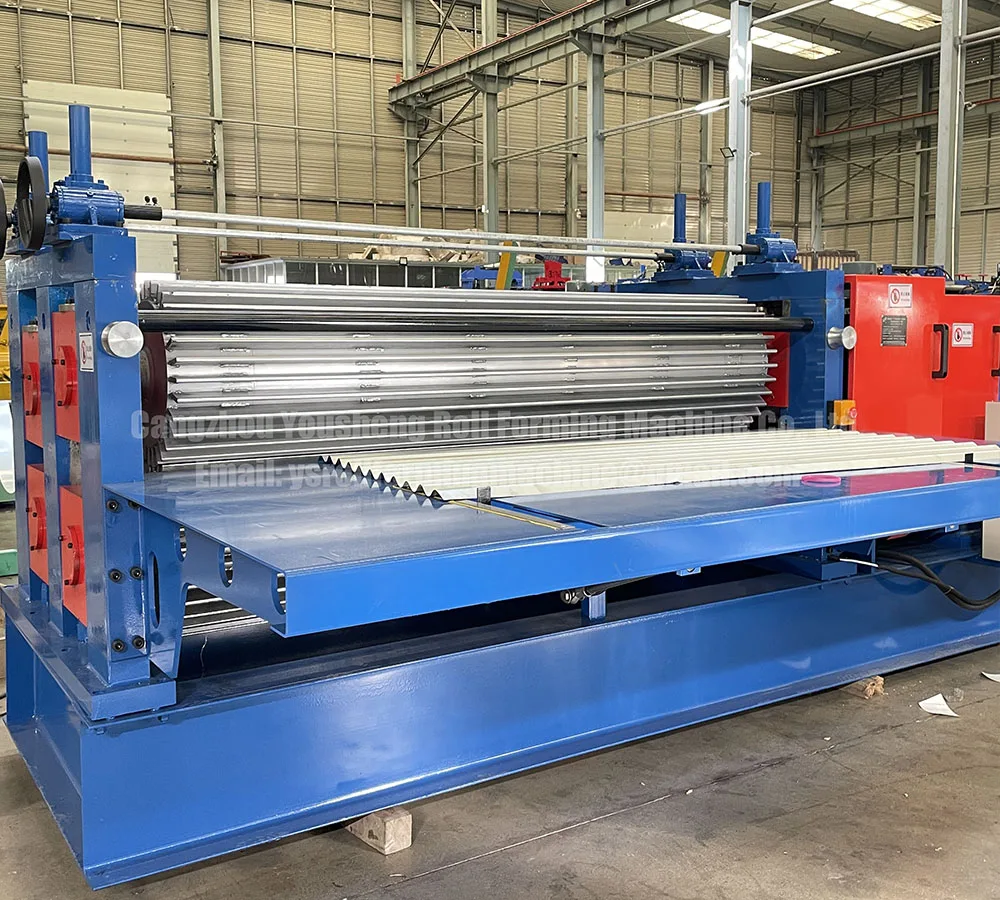

Barrel corrugated forming machine is a brand-new corrugating forming machine. It updates the traditional roll forming method and is suitable for rolling high-strength steel with a thickness of 0.1-0.5 mm. The plates produced by it are very thin, but the hardness of the plates is very high.
The length of the machine is limited to the plate, but the width is unlimited, you can customize the size and length you want.
The drawings are for reference, we can also customize the machine according to your requirements.
No | Item | Data |
1 | Roller size | 350-400mm |
2 | Weight | About 5 tons |
3 | Feed width | 914 1200 1250 mm |
4 | Power | 7.5KW |
5 | Color | Blue / Customized |
6 | Speed | 4 pieces /min |
7 | Voltage | 380v, 50hz, 3 phase |
8 | Raw material | Galvanized coils Tensile G550-750 Mpa |
9 | Thickness | 0.13-0.35mm |
In the production workshop, our workers are welding the frame, we use 350 H steel for the frame of the machine, and the machine is polished to get a smooth surface.
We have professional assembly workers, fine grinding and welding.
Every detail of the machine has been carefully handled and processed.

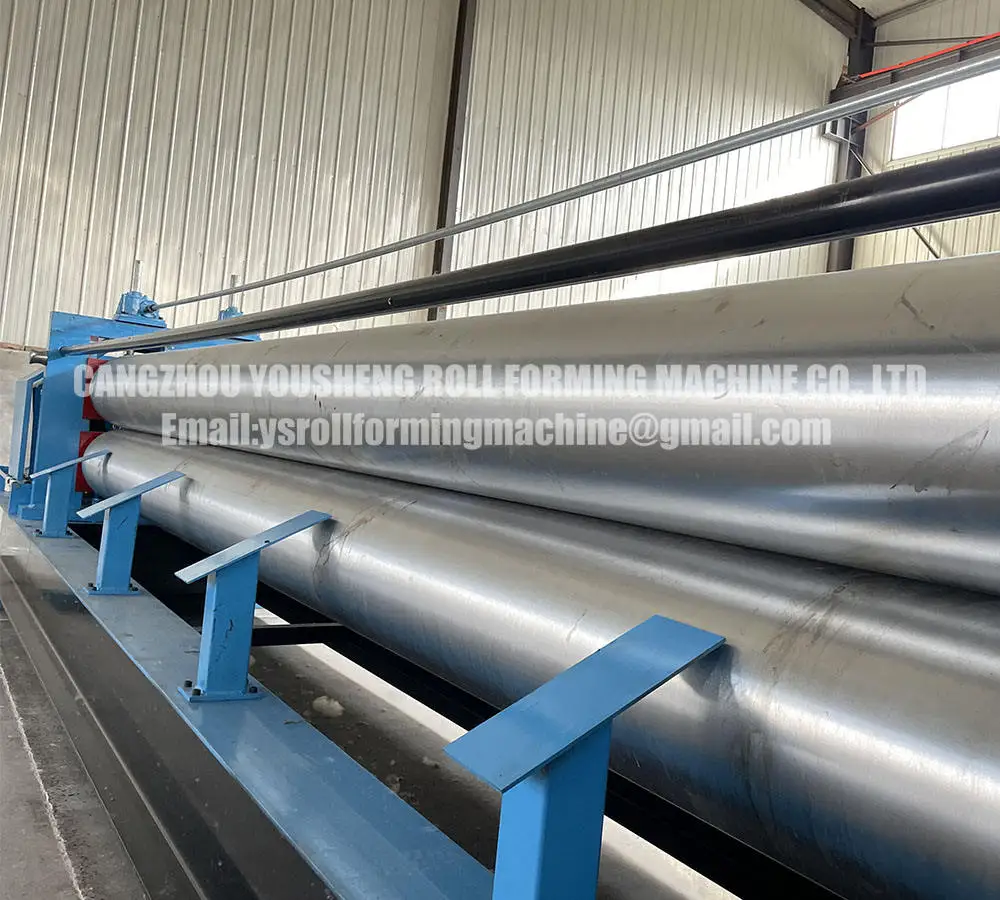

Rolling shafts of different lengths are surface polished, and the material of the solid shaft mainly ensures that the machine will not deform for a long time.
Machine mounted chains and other accessories.

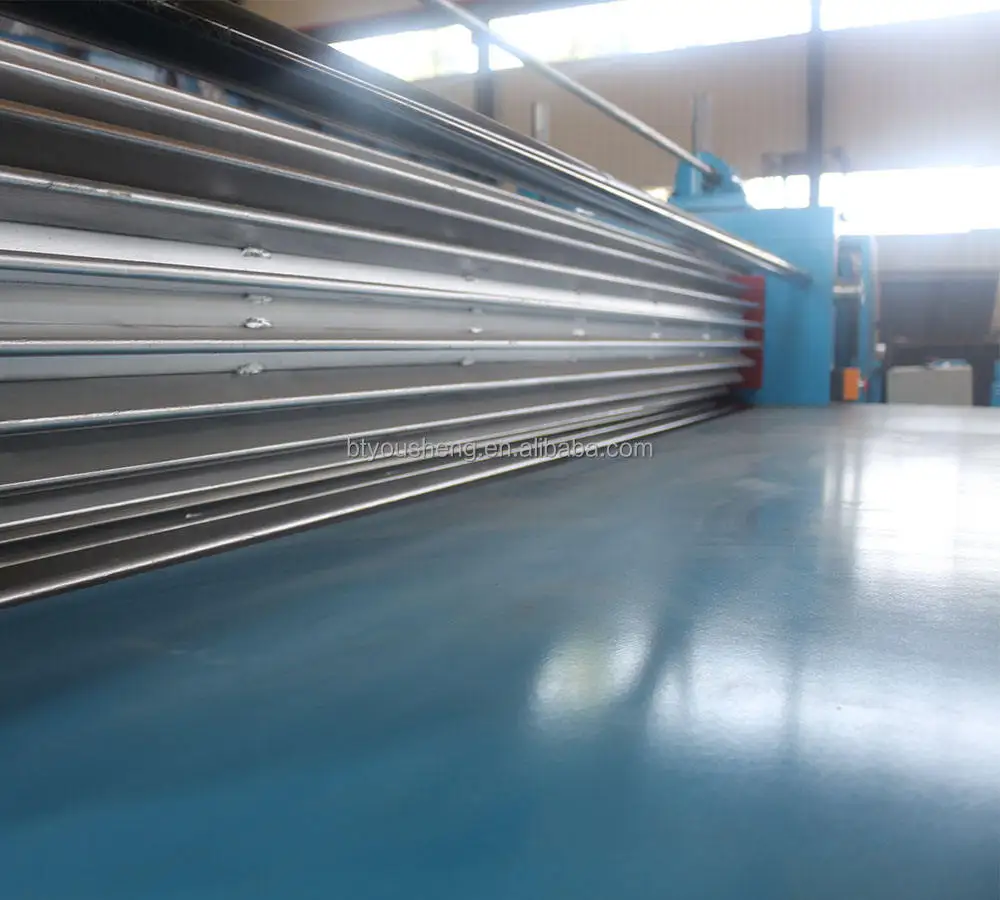

Rolled roof panel profiles for lapping and display
We use 10mm oil wire rope to reinforce the machine to ensure the stability of the machine during transportation.
Q: What's your payment term?
-30% by TT for the advance payment at order
-70% will be paid after inspection in China before shipment.
Q: How to repair the machine during the warranty period?
Q: What kind of after-sales service do you provide?
- 24 months from the date of loading by the seller, during the warranty period, we provide lifetime free technical support and repair consultation.
Q: How can you quickly solve your after-sales problems?
- You need to contact your salesman, and the salesman will give feedback to the technical department in time to solve your problem quickly.
-30% by TT for the advance payment at order
-70% will be paid after inspection in China before shipment.
Q: How to repair the machine during the warranty period?
- During the warranty period of the machine, we will buy and send you free accessories for non-artificially damaged parts.
Q: What kind of after-sales service do you provide?
- 24 months from the date of loading by the seller, during the warranty period, we provide lifetime free technical support and repair consultation.
Q: How can you quickly solve your after-sales problems?
- You need to contact your salesman, and the salesman will give feedback to the technical department in time to solve your problem quickly.
Q:Are you a trading company or a factory?
- We have indoor and outdoor production workshops, which are real processing and production plants, including roller processing workshops, assembly workshops, spraying workshops and so on.
Q:How many days is the lead time of the machine?
- Since our machines are all customized products, please consult your salesman when placing an order.
