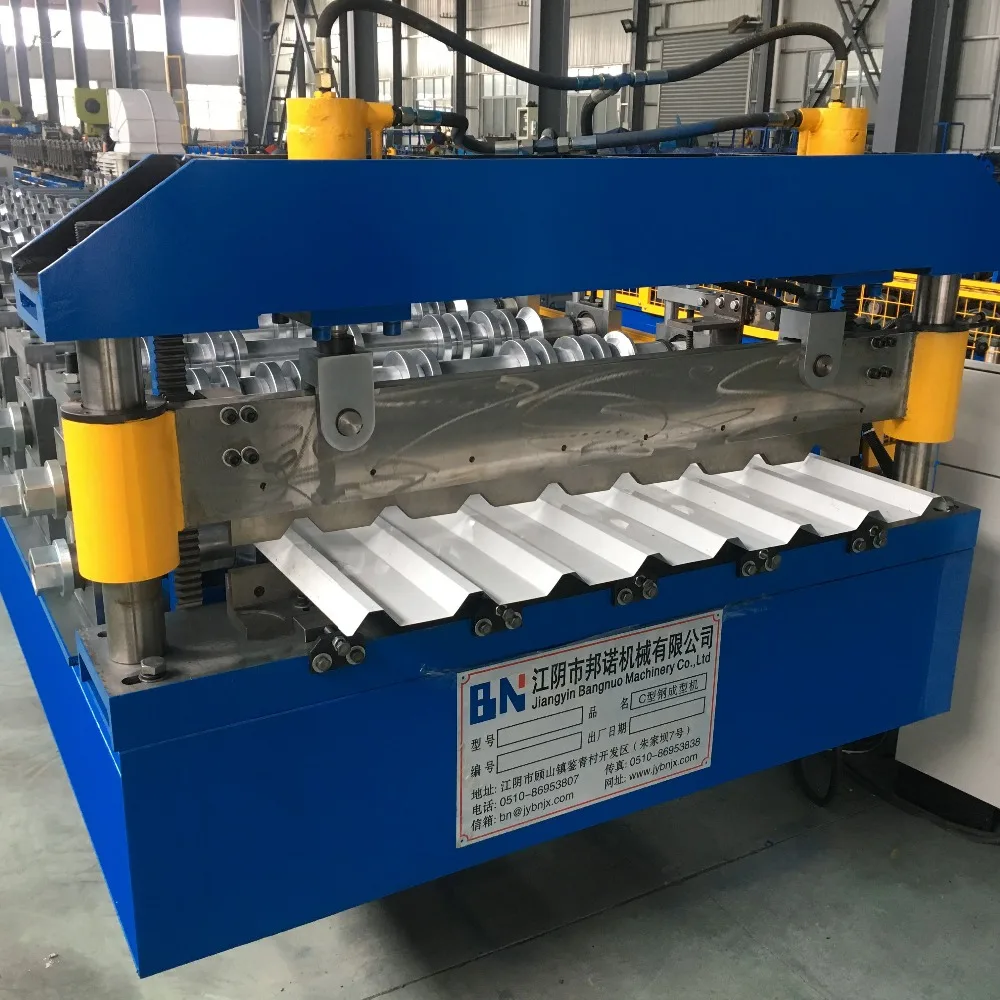

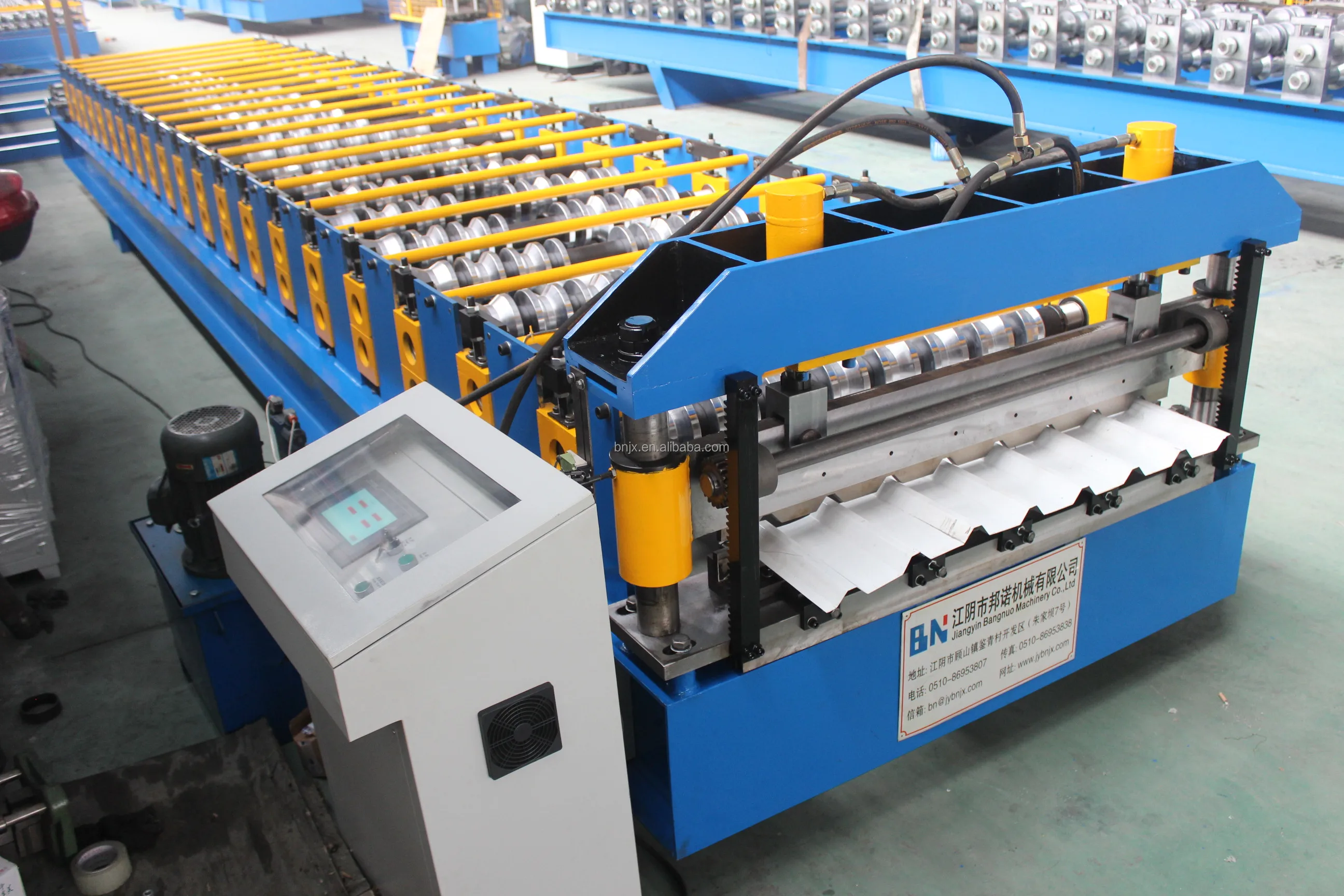

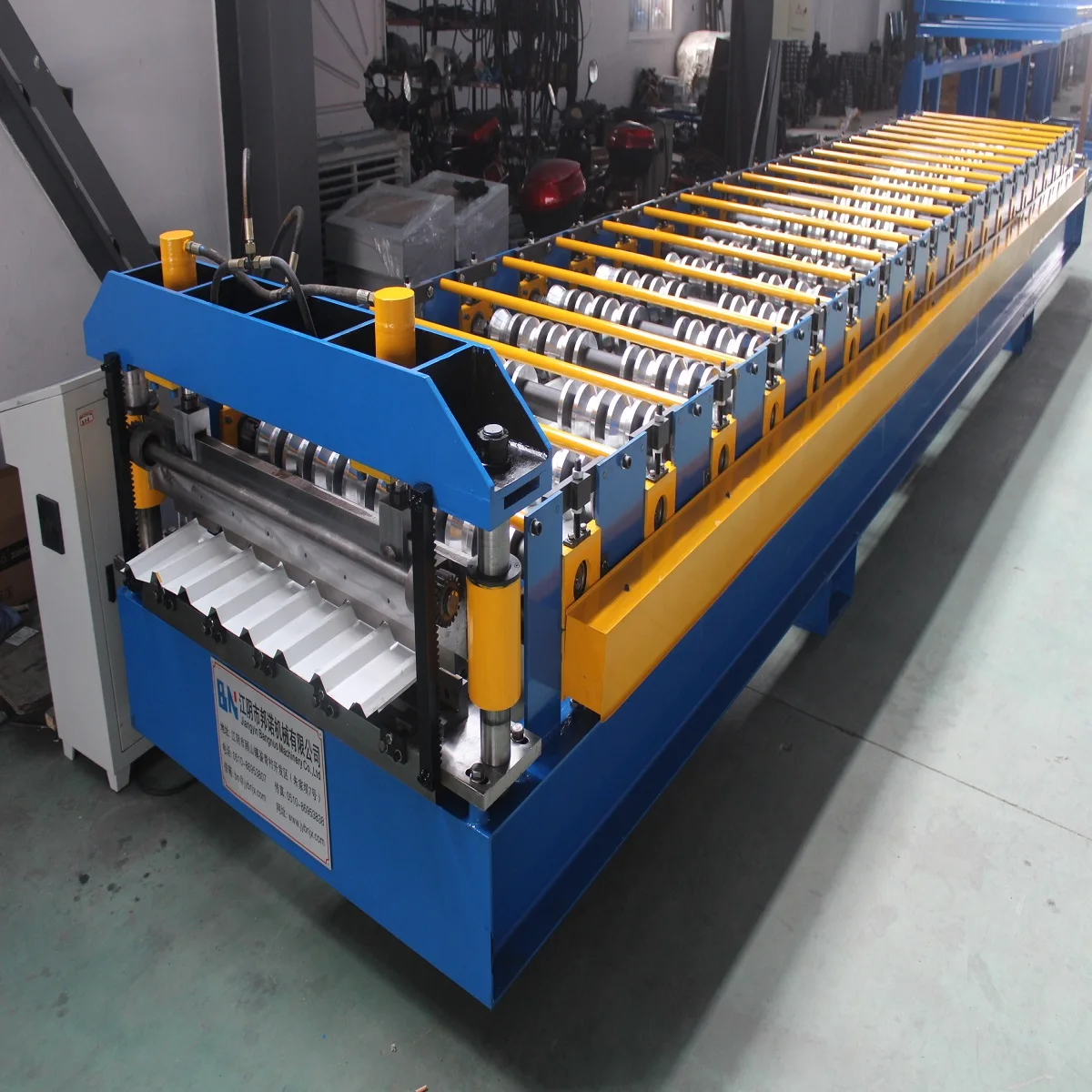

Steel Profile Metal Roofing Making Machine Construction Sheet Roof Cold Roll Forming Equipment
- Category: >>>
- Supplier: Jiangyin Bangnuo Machinery Co. Ltd.Jiangyin Ltd.
Share on (1601038909391):
Product Overview
Description
Working speed | 10-20 m/min（Shear time is not included） |
Pressed plate thickness | 0.3-0.8mm |
Control mode | Siemens PLC |
Discharging rack | 5T manual decoiler |
Number of molding passes | 22 lanes |
Roll material | After finishing, the surface of 45# steel is chrome plated. |
Shaft material and diameter | 45# Steel finishing，Shaft diameter is￠70mm |
Main engine power | 7.5kw |
Power of hydraulic station | 3kw |
Hydraulic pressure | 12Mpa |
Scissors material | Cr12Mov， quench HRC 58-62℃ |
Length tolerance | 3m±1.5mm |
Voltage | 380V, 50HZ,3 phase（According to customer requirements can be adjusted） |
Transmission mode | 1.0 inch single row chain |

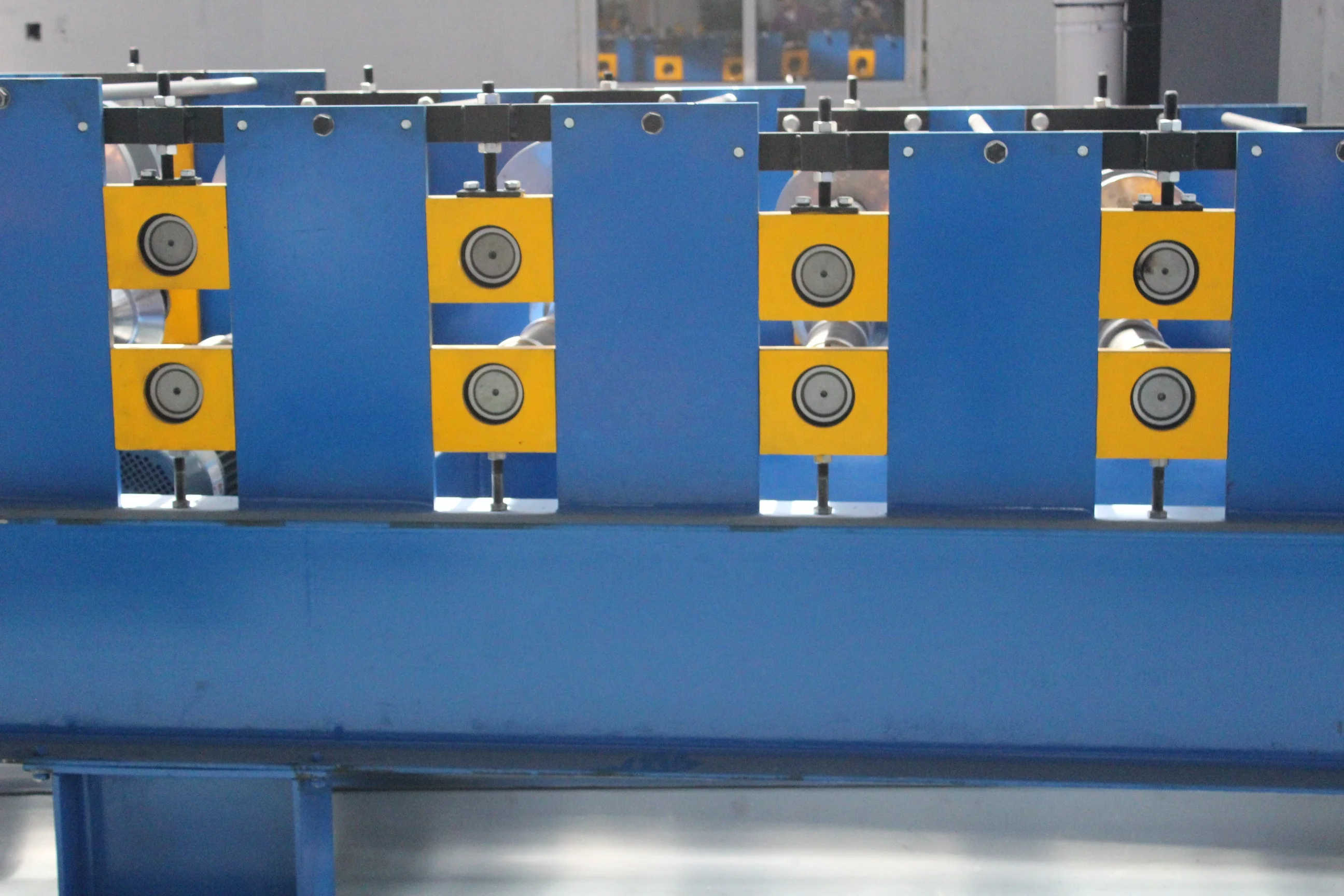

Equipment form | Guide pillar structure |
Equipment color | Company color |
Equipment size | L*W*H— 10.5m*1.8m*1.0m |
Date of delivery | 80 days |
Payment method | 30% advance charge，70% pay off on delivery |

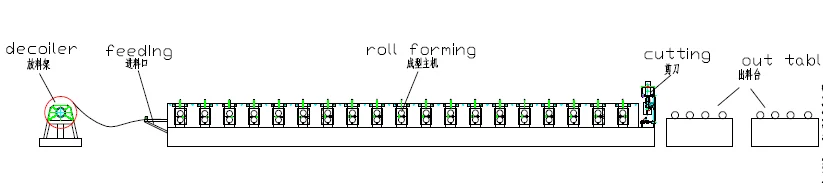

5T manual discharging rack | 1 set |
Molding machine | 1 set |
Post-shear structure | 1 set |
Control cabinet | 1 set |
Hydraulic station | 1 set |
Discharge table | 2 sets |
Jiangyin Bangnuo Machinery Co.. Ltd. is a professional manufacturer dedicated Color light steel constructio,C,Z steel equipment and rolling, bending molding equipment enterprises. with the design and manufacture of various types of steel sheet thickness roll forming production line strength.
Company specializing in the production of Dagong machines, floor plate machine, guardrail plate machine, corrugated tile machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine,glazed tile machine.
1.Q: Are you a manufacturer or trading company?
A: We are a production and trading company.
2. Q: What information do you need before you make a suggestion?
A: You need to provide the thickness of the material, the size range of the material or profile drawing, your special requirements.
3.Q: What is the minimum order quantity?
A:One
4.Q: Do you provide overseas installation and debugging?
A: Overseas machine installation and worker training services are optional.
5.Q: Can you manufacture this machine according to my design or prototype?
A: Yes, we have an experienced team who can make the most suitable design and production plan for the machine you want to order.
6. Q: How does your factory do in terms of quality control?
A: It is strict in terms of quality control. Quality control complies with international CE certification & SGS certification. Each machine must undergo operational testing before being packaged for shipment.
7. Q: How can I trust your machine to paste test run before shipping?
A: We have recorded a test video for your reference.We welcome you to visit our factory and test the machine yourself.
8. Q: How is our after-sales service?
A: We provide online technical support and provide overseas services by skilled technicians.
9. Q: What should I do if I just start a business?
A: Contact us immediately, we provide free pre-sales consulting services. We can also help you solve material (steel coil) procurement, worker training, and international market prices.
10. Q: Can I come to your factory to inspect the machine on site? What should I bring when visiting your factory?
A: We are a manufacturer and we welcome customers to visit our factory. For special product design and development, we ask that you bring a piece of test material that you can perform on-site testing on our machines.
A: We are a production and trading company.
2. Q: What information do you need before you make a suggestion?
A: You need to provide the thickness of the material, the size range of the material or profile drawing, your special requirements.
3.Q: What is the minimum order quantity?
A:One
4.Q: Do you provide overseas installation and debugging?
A: Overseas machine installation and worker training services are optional.
5.Q: Can you manufacture this machine according to my design or prototype?
A: Yes, we have an experienced team who can make the most suitable design and production plan for the machine you want to order.
6. Q: How does your factory do in terms of quality control?
A: It is strict in terms of quality control. Quality control complies with international CE certification & SGS certification. Each machine must undergo operational testing before being packaged for shipment.
7. Q: How can I trust your machine to paste test run before shipping?
A: We have recorded a test video for your reference.We welcome you to visit our factory and test the machine yourself.
8. Q: How is our after-sales service?
A: We provide online technical support and provide overseas services by skilled technicians.
9. Q: What should I do if I just start a business?
A: Contact us immediately, we provide free pre-sales consulting services. We can also help you solve material (steel coil) procurement, worker training, and international market prices.
10. Q: Can I come to your factory to inspect the machine on site? What should I bring when visiting your factory?
A: We are a manufacturer and we welcome customers to visit our factory. For special product design and development, we ask that you bring a piece of test material that you can perform on-site testing on our machines.
Warmly welcome customers to visit our factory
