RC Car Brushless Motor 1030KV/1300KV/1450KV/1500KV/1600KV/1850KV/2200KV/2500KV For 1/8th Cars Fast RC Car

Share on (1601040690698):


Price:$48.00 - $60.00

Quantity:


Product Overview

Description


 RC Car Brushless Motor 1030KV/1300KV/1450KV/1500KV/1600KV/1850KV/2200KV/2500KV For 1/8th Cars Fast RC Car

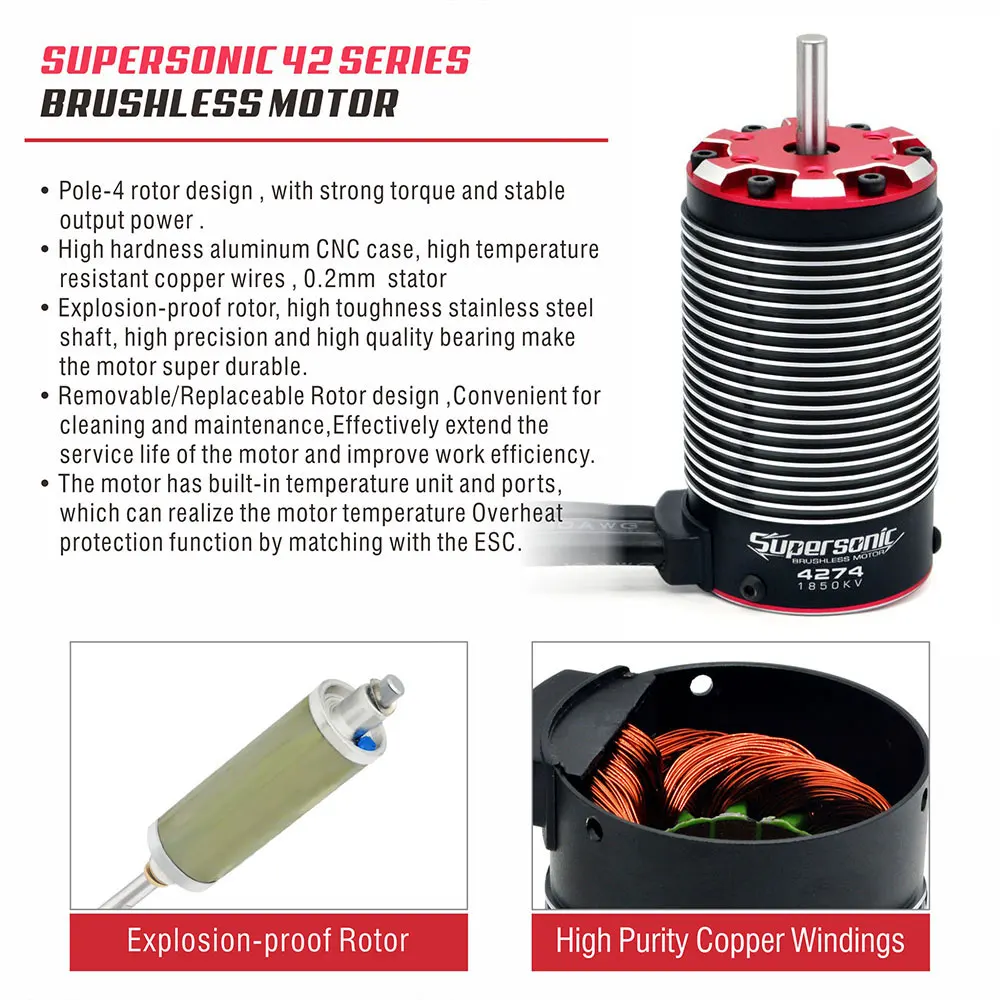

Features:



>Pole-4 rotor design , with strong torque and stable output power .

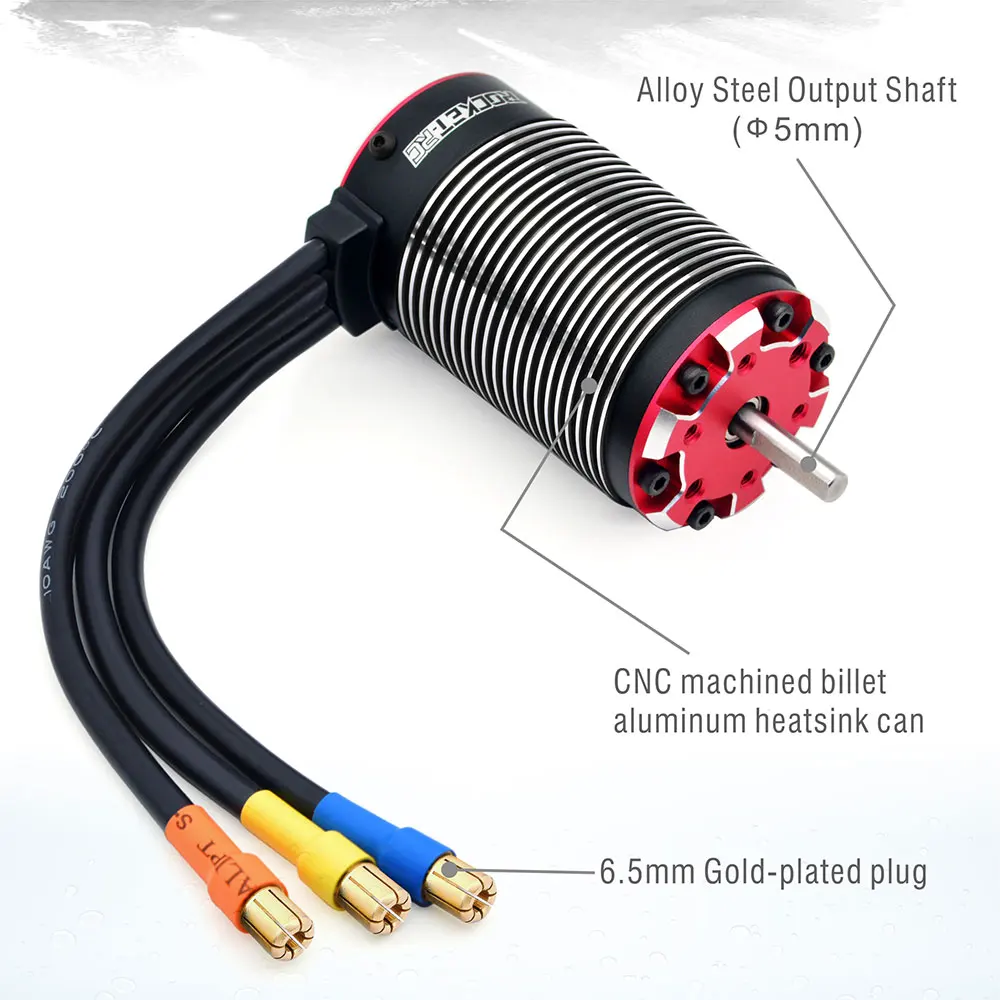

>High hardness aluminum CNC case, high temperature resistant copper wires , 0.2mm stator.
>Explosion-proof rotor, high toughness stainless steel shaft, high precision and high quality bearing make the motor super
durable.

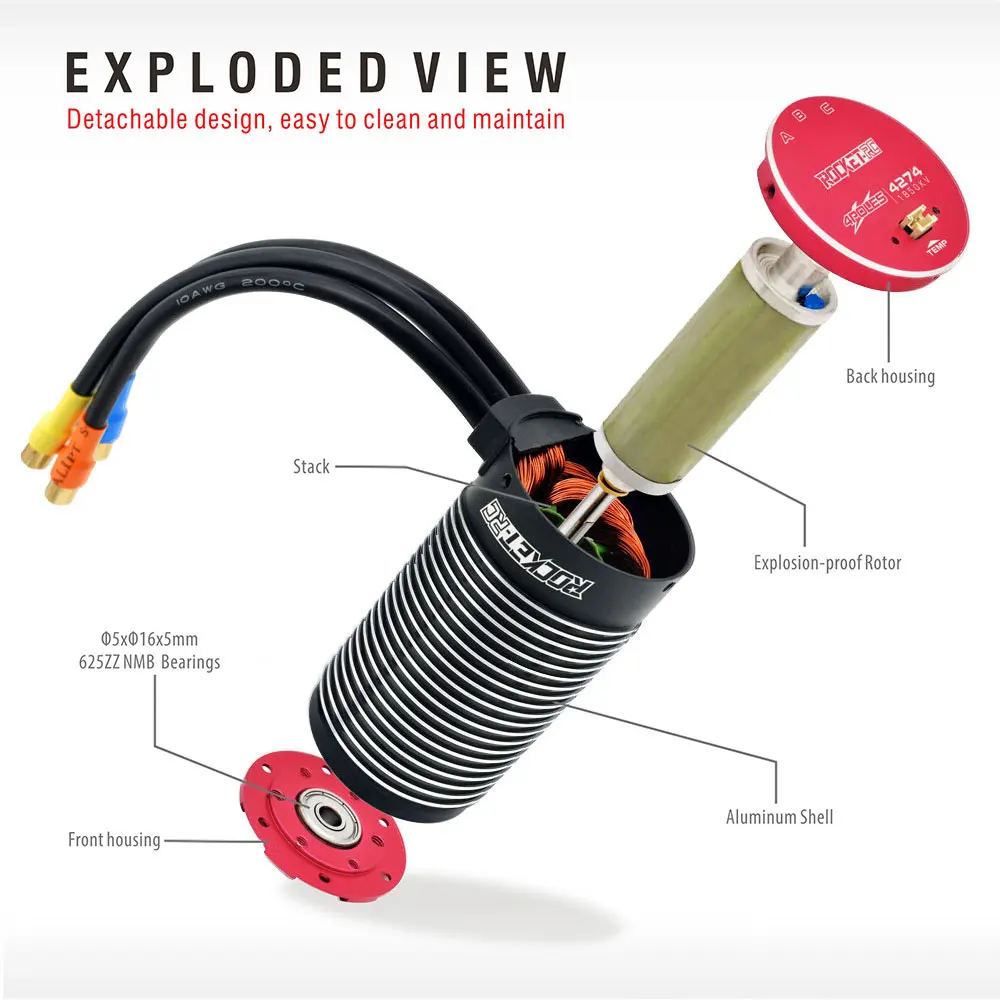

>Removable/Replaceable Rotor design, Convenient for cleaning and maintenance, Effectively extend the service life of the motor and
improve work efficiency.

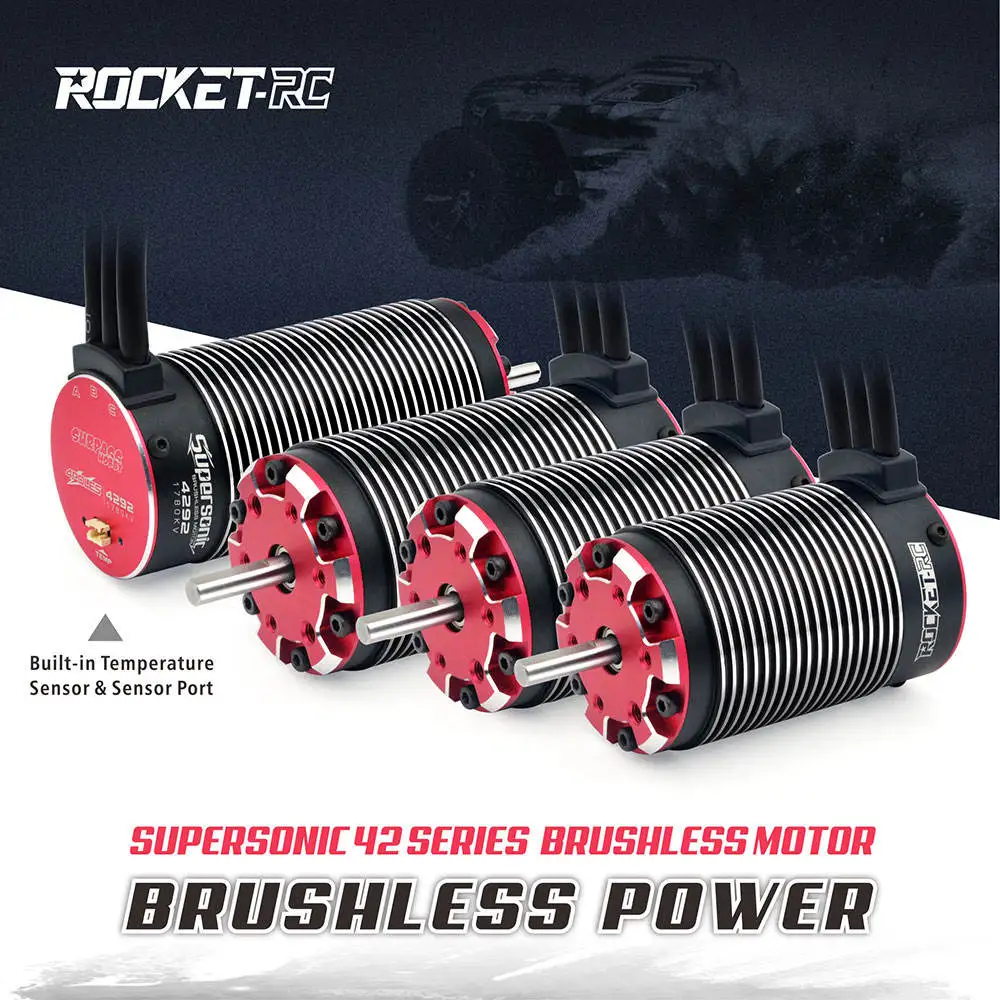

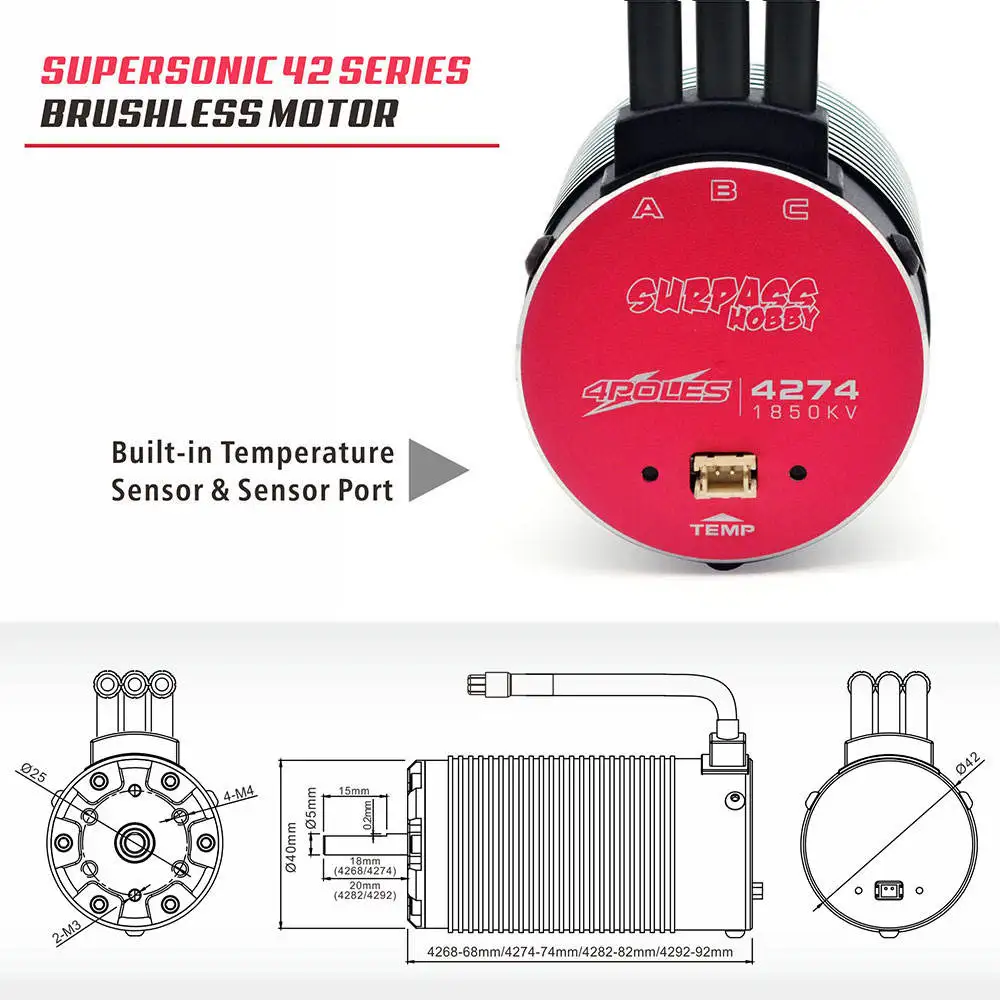

>The motor has built-in temperature unit and ports, which can realize the motor temperature overheat protection function by
matching with the ESC.

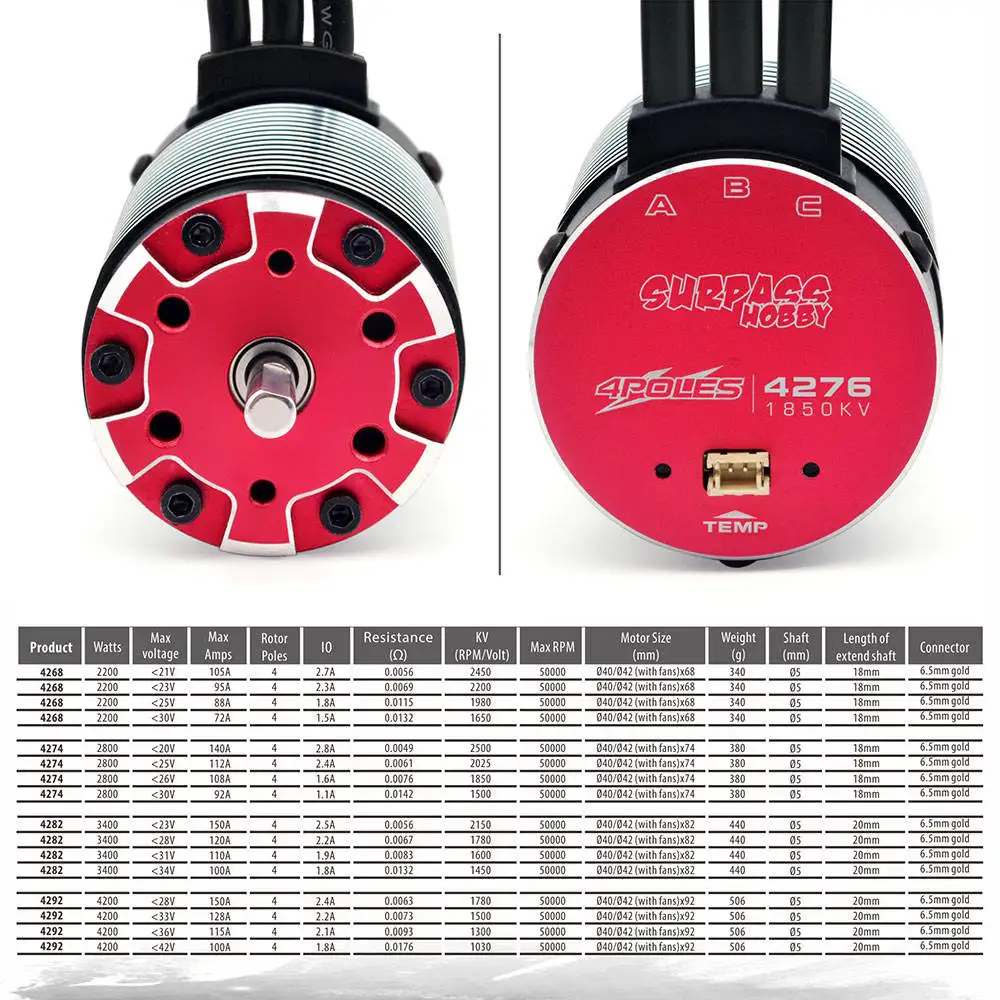

Model


Supersonic 4268 Brushless motor


KV(RPM/Voltage)


2450kv /2200kv /1980kv / 1650kv


Max Voltage


21V/23V/25V/30V/


Max Amps


105A/95A/88A/72A


IO


2.7A/2.3A/1.8A/1.5A


Resistance


0.0056/0.0069/0.0115/0.0132


Max RPM


50000


Motor size


42mmx68mm


Weight(g)


340g


Shaft


5mm


Watts


2200w























































Model

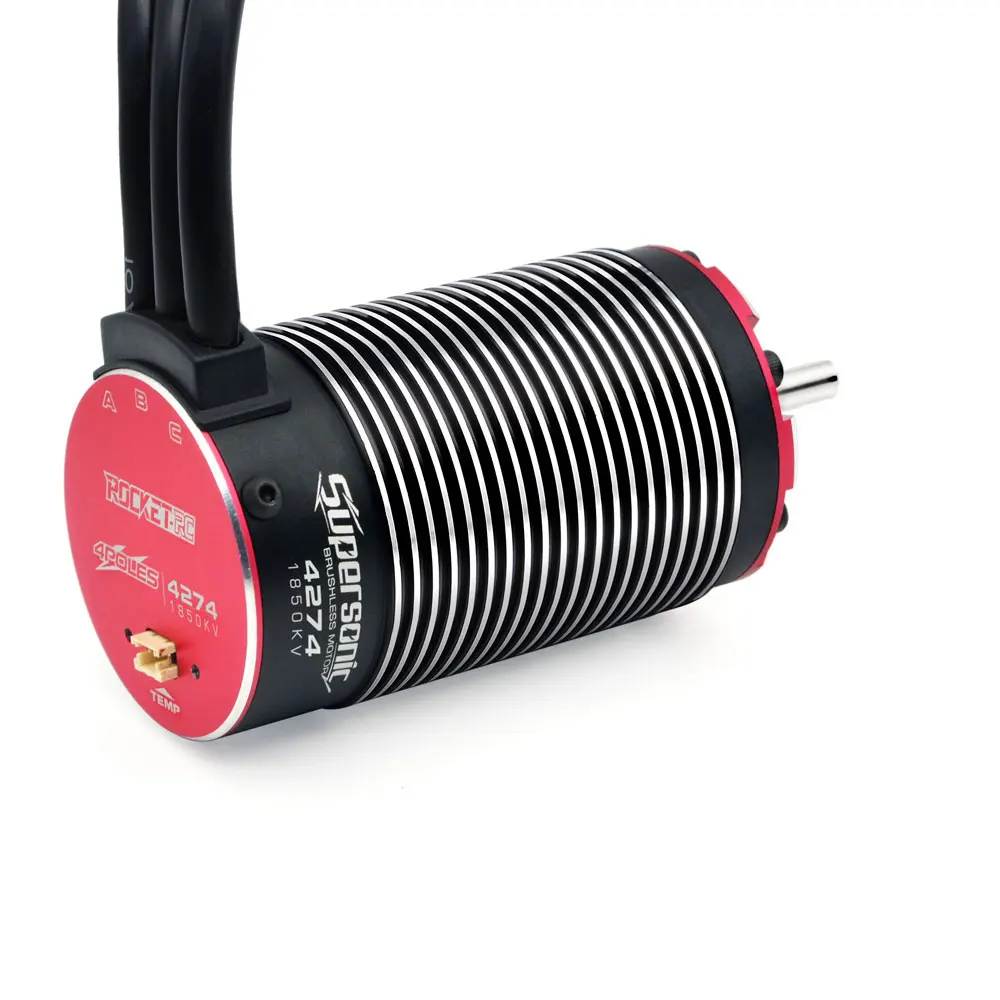

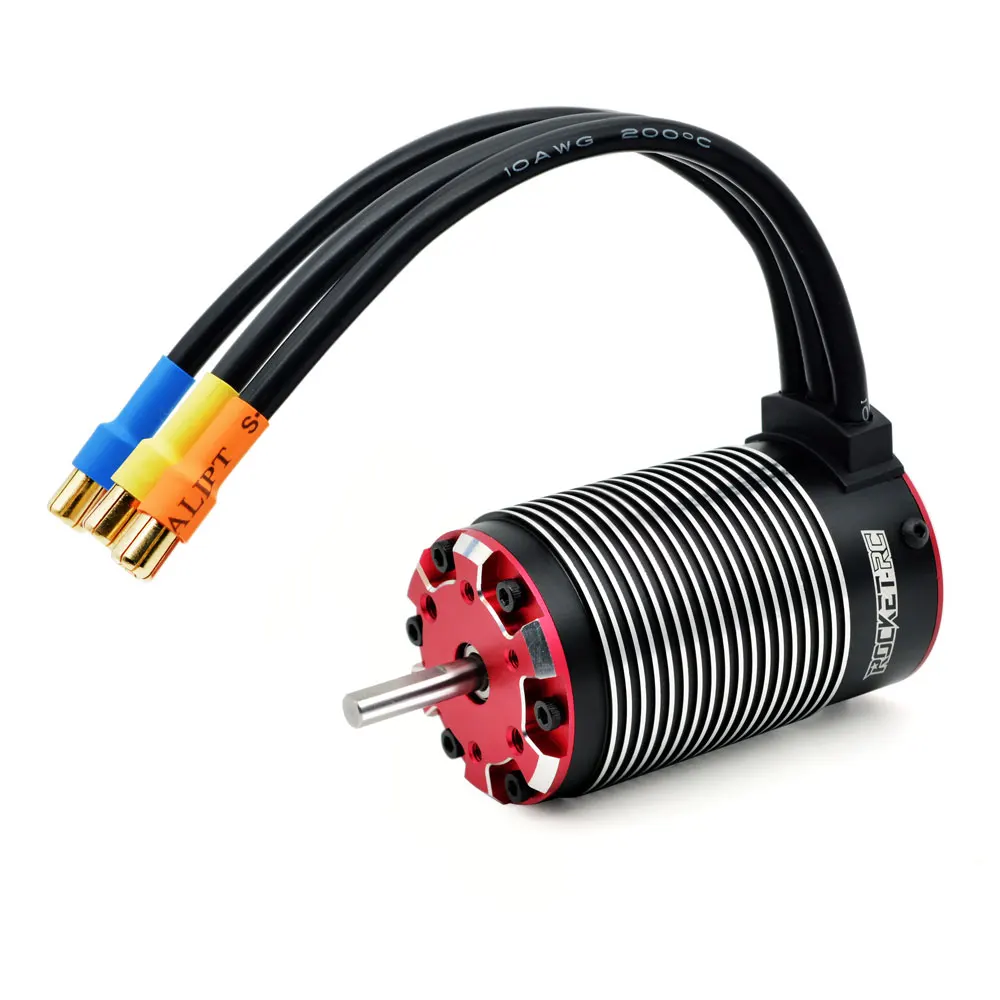

Supersonic 4274  Brushless Motor


KV(RPM/Voltage)


2500kv/2025kv/1850kv/1500kv


Max Voltage


20V/25V/26V/30V


Max Amps


140A/112A/108A/92A


IO


2.8A/2.4A/1.6A/1.1A


Resistance


0.0049/0.0061/0.0076/0.0142


Max RPM


50000


Motor Size


42mmx74mm


Weight(g)


380g


Shaft


5mm


Watts


2800w
