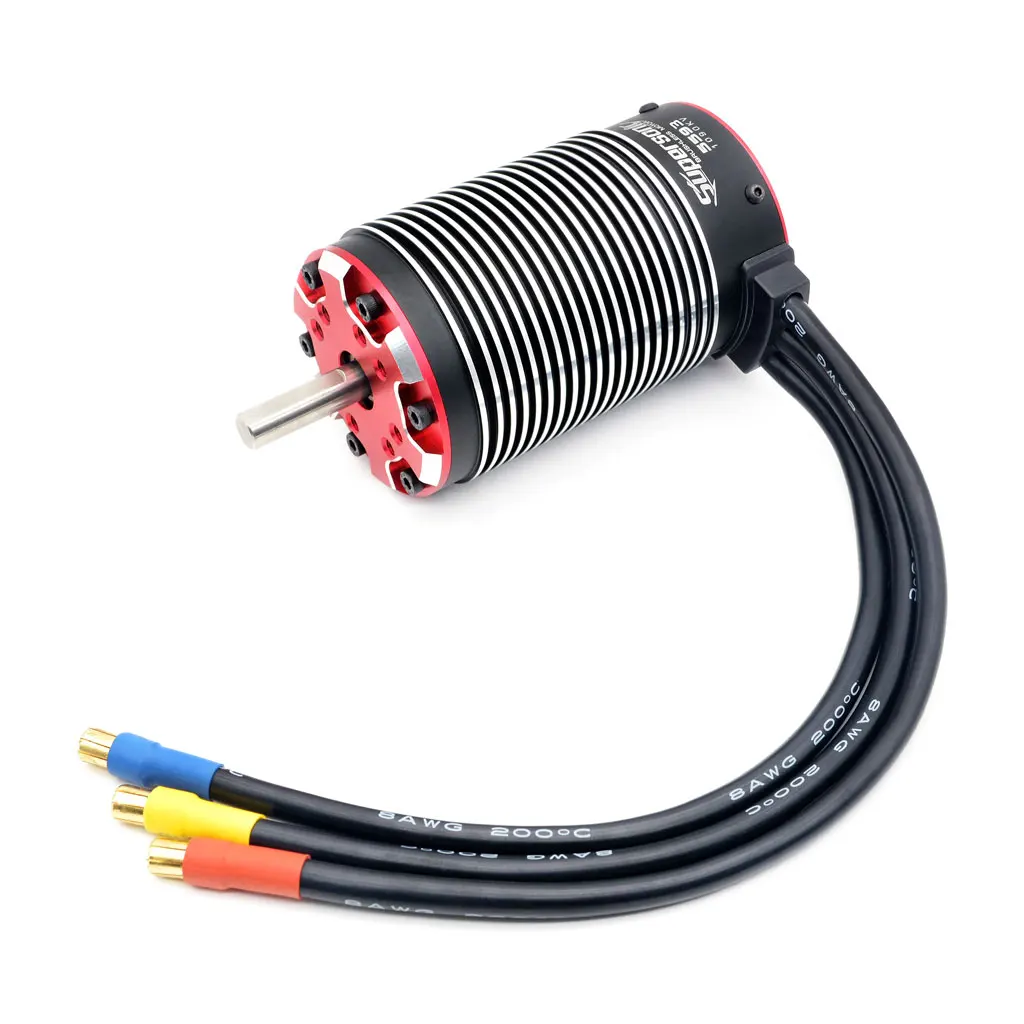

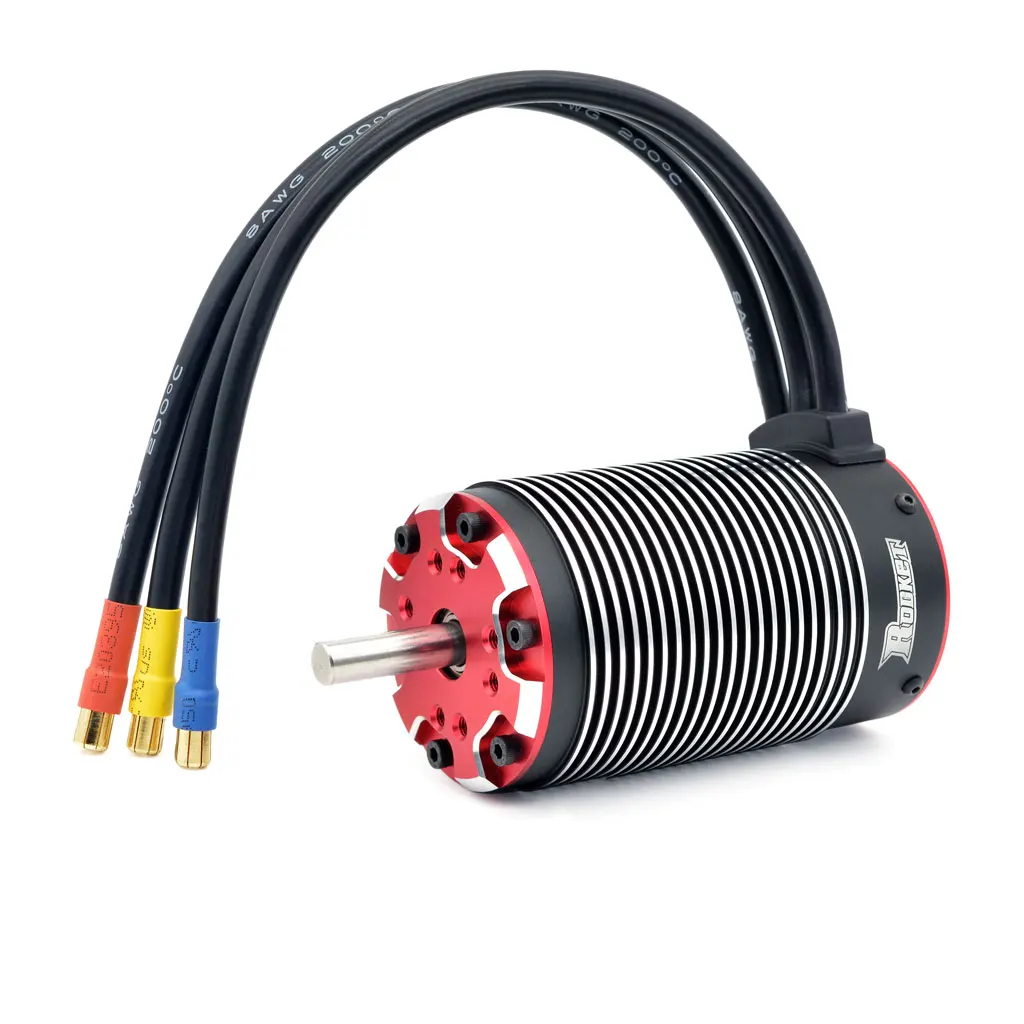

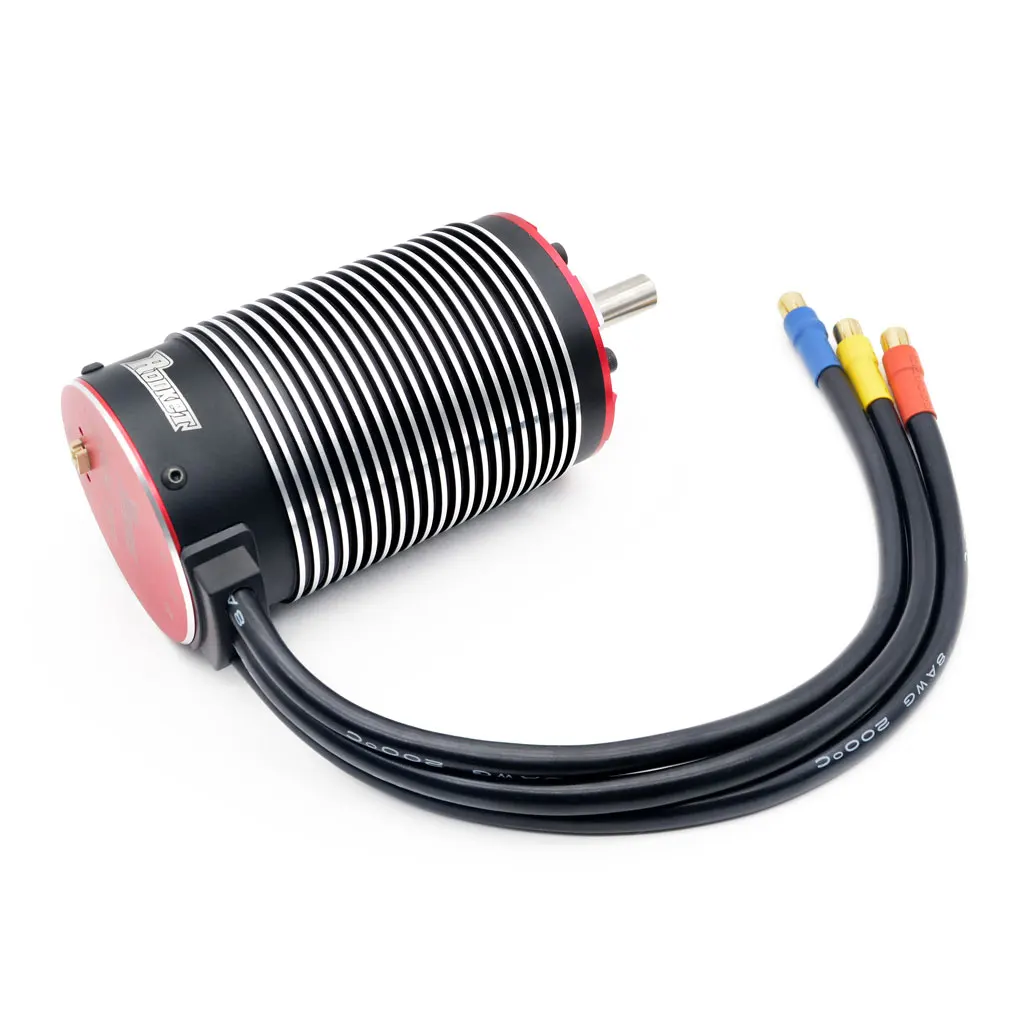

Rocket RC 5593 680KV/880KV/1090KV Brushless DC Motor w/Temp Port for 1/5th 1/6th 1/7th RC Buggy Baja Car

Product Overview

Description

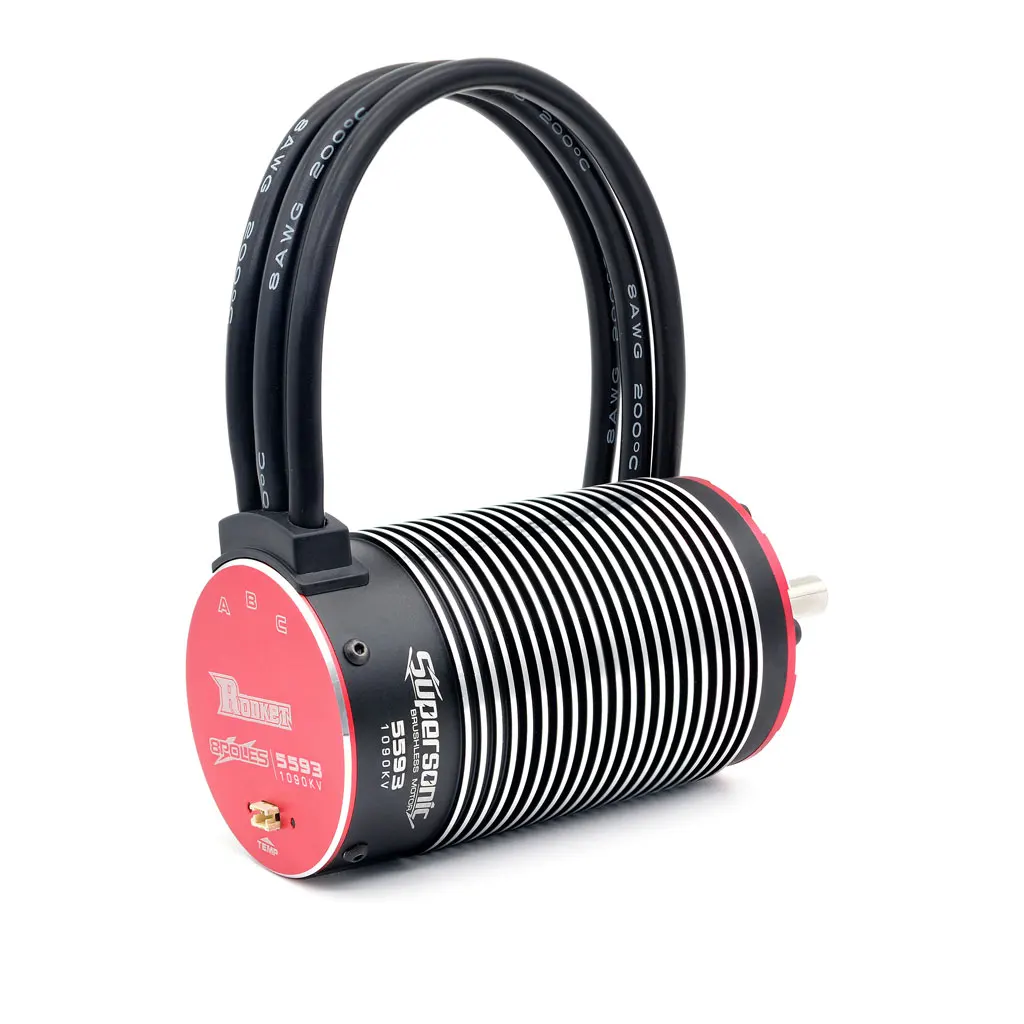

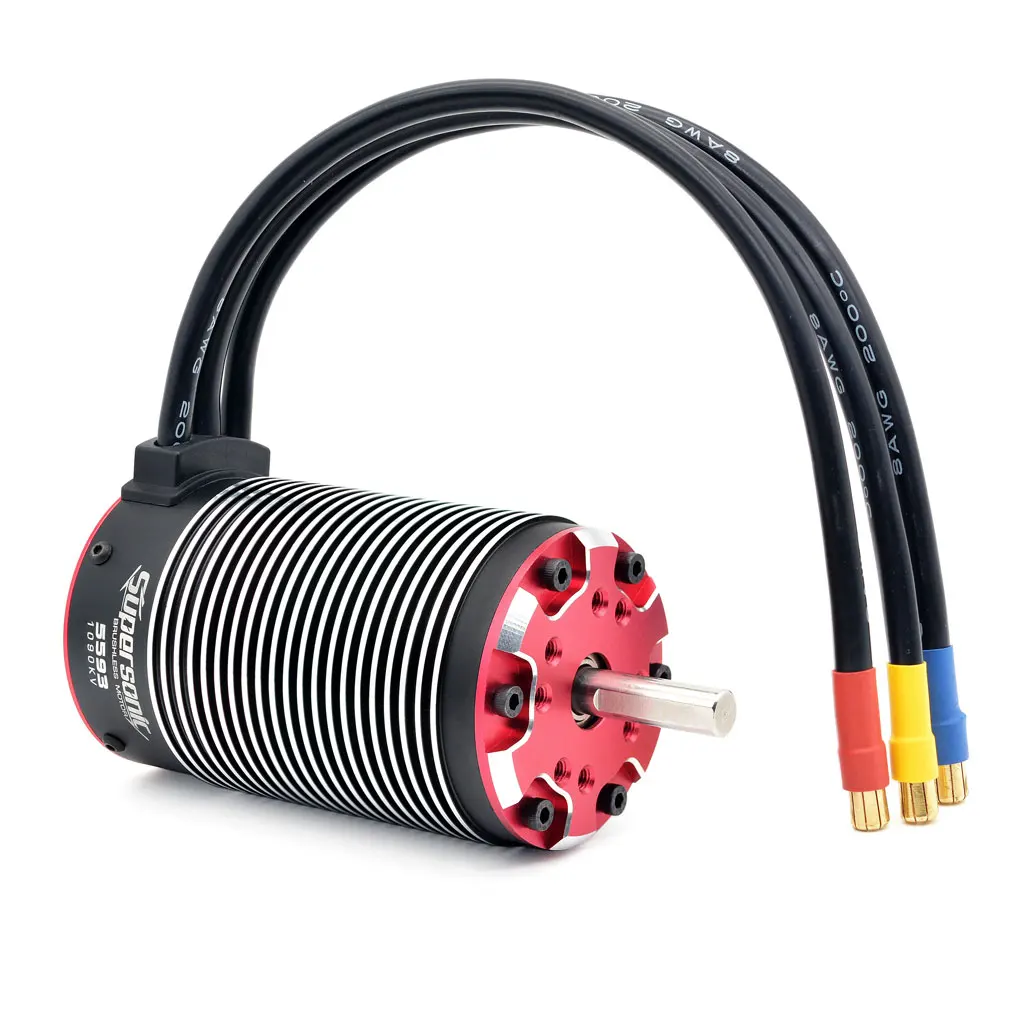

Rocket-RC 5593 680KV/880KV/1090KV Brushless DC Motor w/Temp Port for 1/5th 1/6th 1/7th RC Buggy Baja Car

FEATURES

1. Pole-8 rotor design , with strong torque and stable output power

2. High hardness aluminum CNC case, high temperature resistant copper wires , 0.2mm stator

3. Explosion-proof rotor, high toughness stainless steel shaft, high precision and high quality bearing make the motor super durable.

4. Removable/Replaceable Rotor design/Convenient for cleaning and maintenance,/Effectively extend the service life of the motor and improve work efficiency.

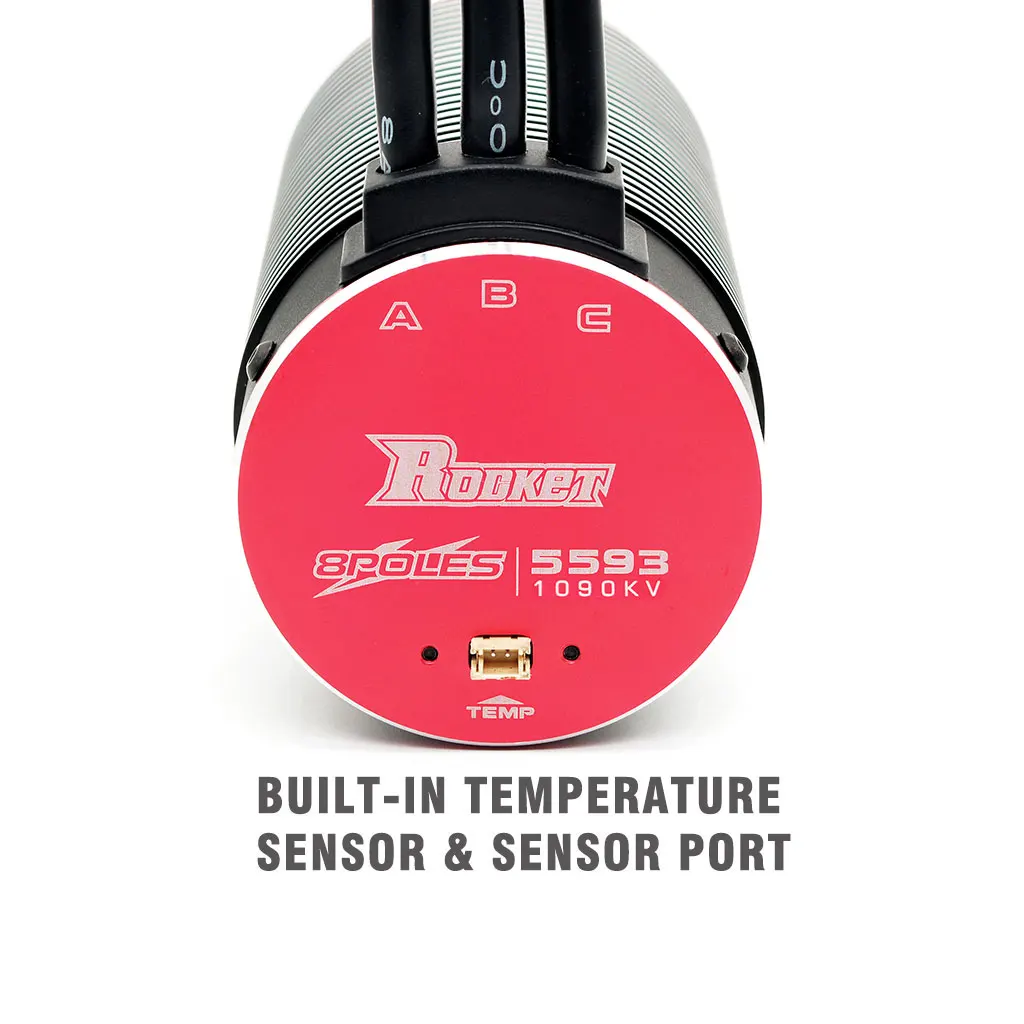

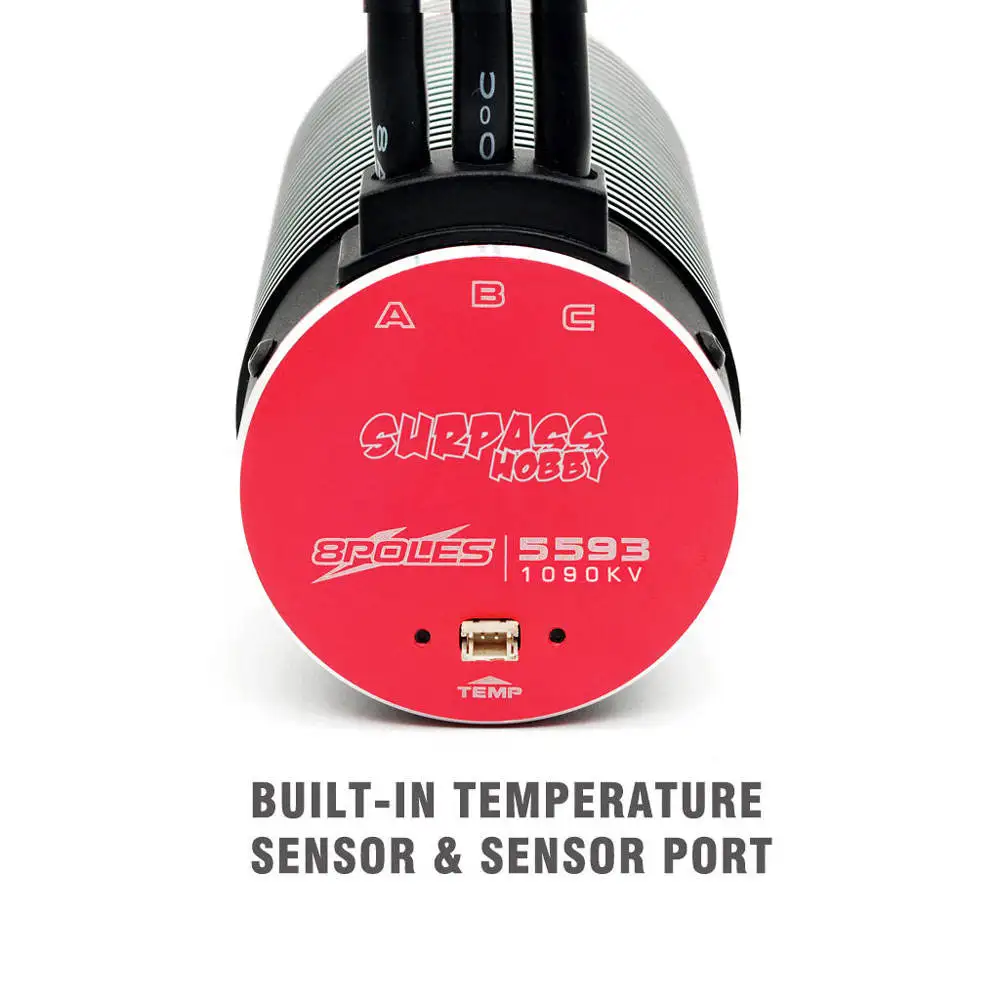

5. The motor has built-in temperature unit and ports, which can realize the motor temperature Overheat protection function by matching with the ESC.

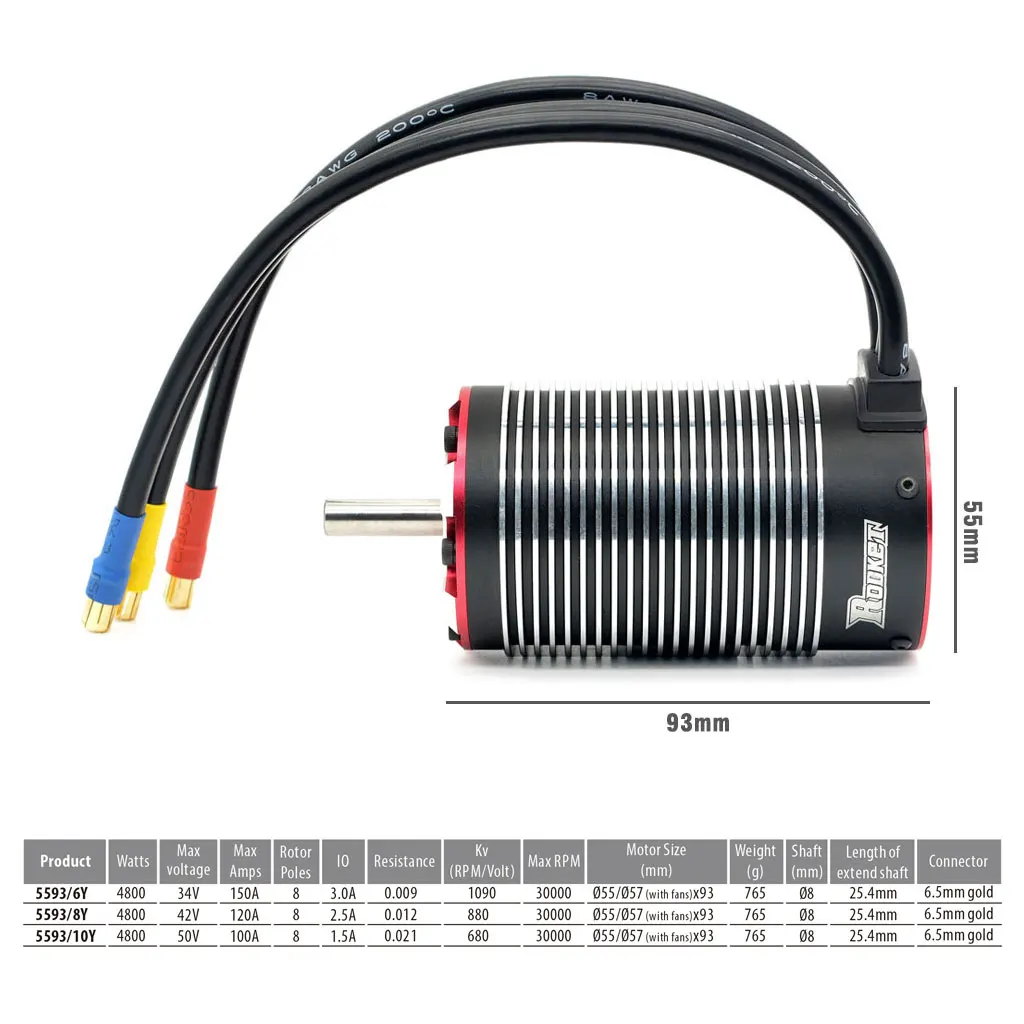

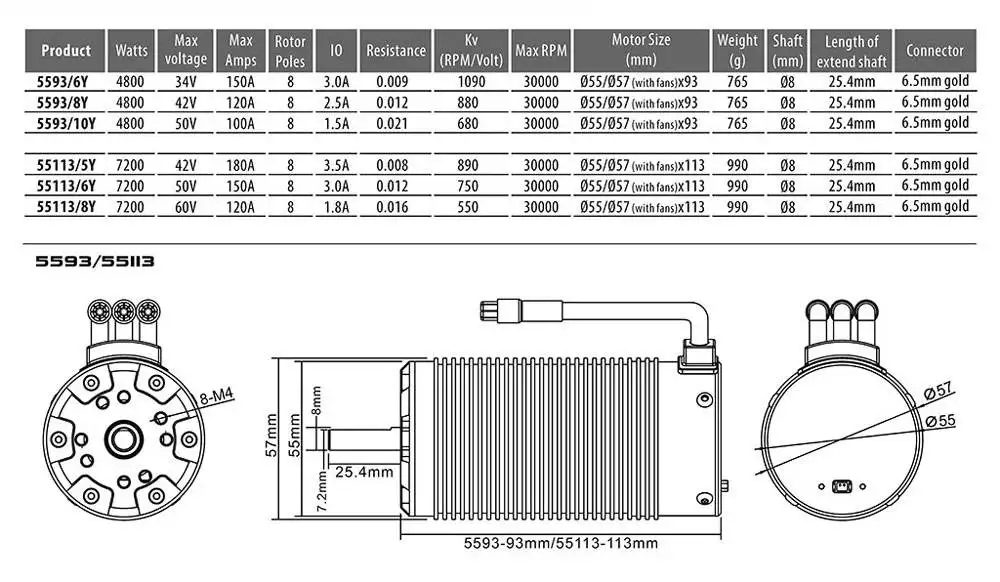

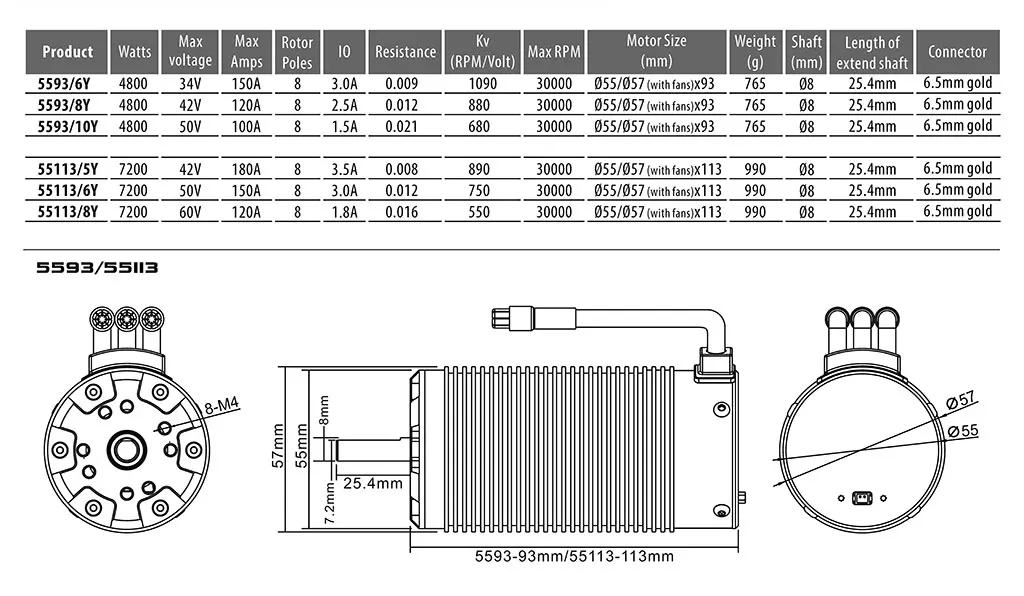

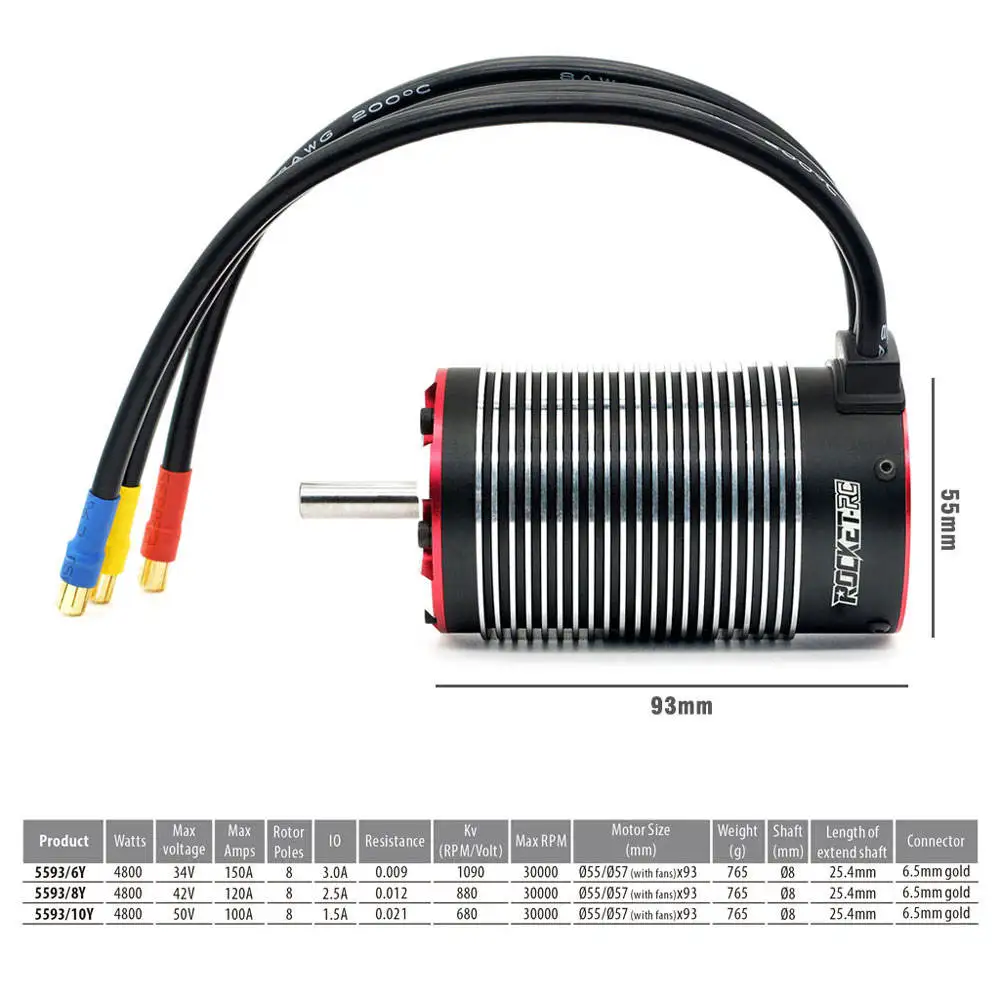

1080KV Specifications:

Watts: 4800W

Max Voltage: 34V

Max Amps: 150A

Rotor Poles: 8

IO: 3.0A

Resistance: 0.009

KV(RPM/Volt): 1080KV

Max RPM: 30000

Motir size: φ55/φ57(with fans)x93

Weight: 765g

Shaft: φ8mm

Length of extend shaft: 25.4mm

Connector: 6.5mm Gold



880KV Specifications:

Watts: 4800W

Max Voltage: 42V

Max Amps: 120A

Rotor Poles: 8

IO: 2.5A

Resistance: 0.012

KV(RPM/Volt): 880KV

Max RPM: 30000

Motir size: φ55/φ57(with fans)x93

Weight: 765g

Shaft: φ8mm

Length of extend shaft: 25.4mm

Connector: 6.5mm Gold



680KV Specifications:

Watts: 4800W

Max Voltage: 50V

Max Amps: 100A

Rotor Poles: 8

IO: 1.5A

Resistance: 0.021

KV(RPM/Volt): 680KV

Max RPM: 30000

Motir size: 55/57(with fans)x93

Weight: 765g

Shaft: 8mm

Length of extend shaft: 25.4mm

Connector: 6.5mm Gold

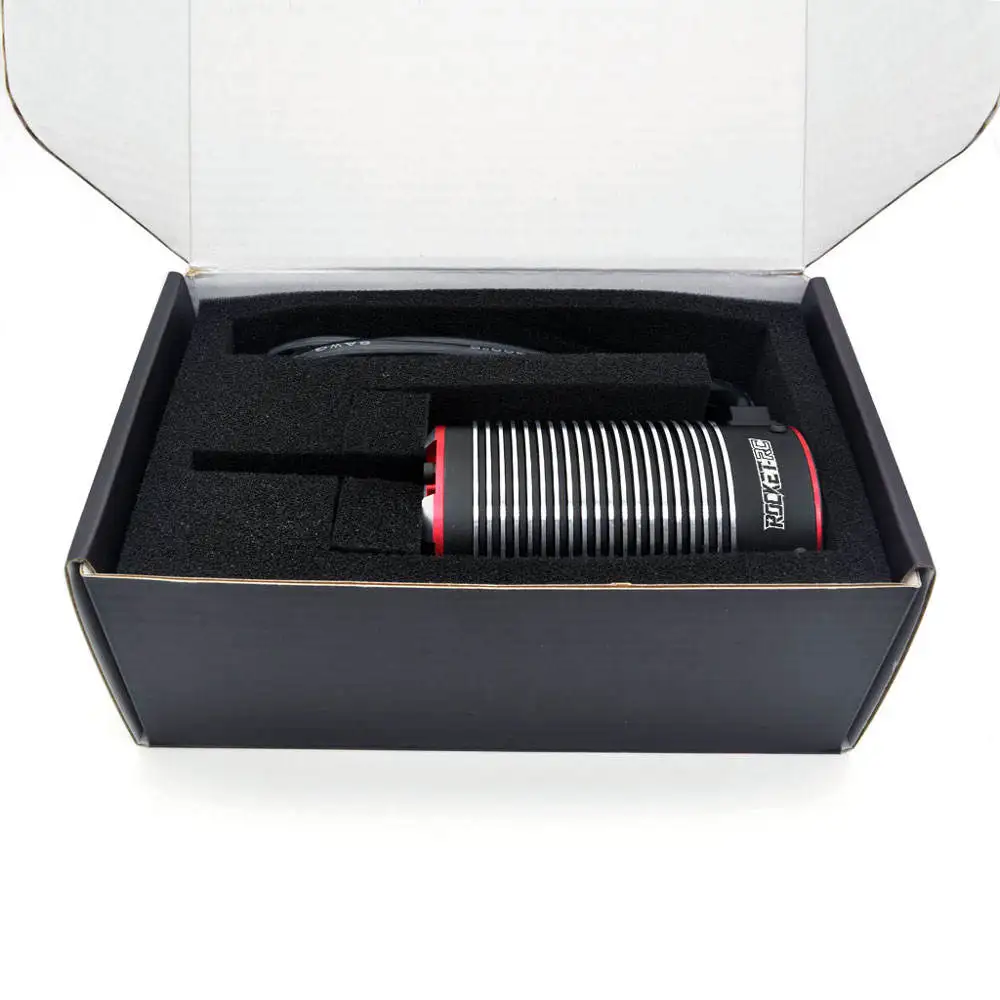

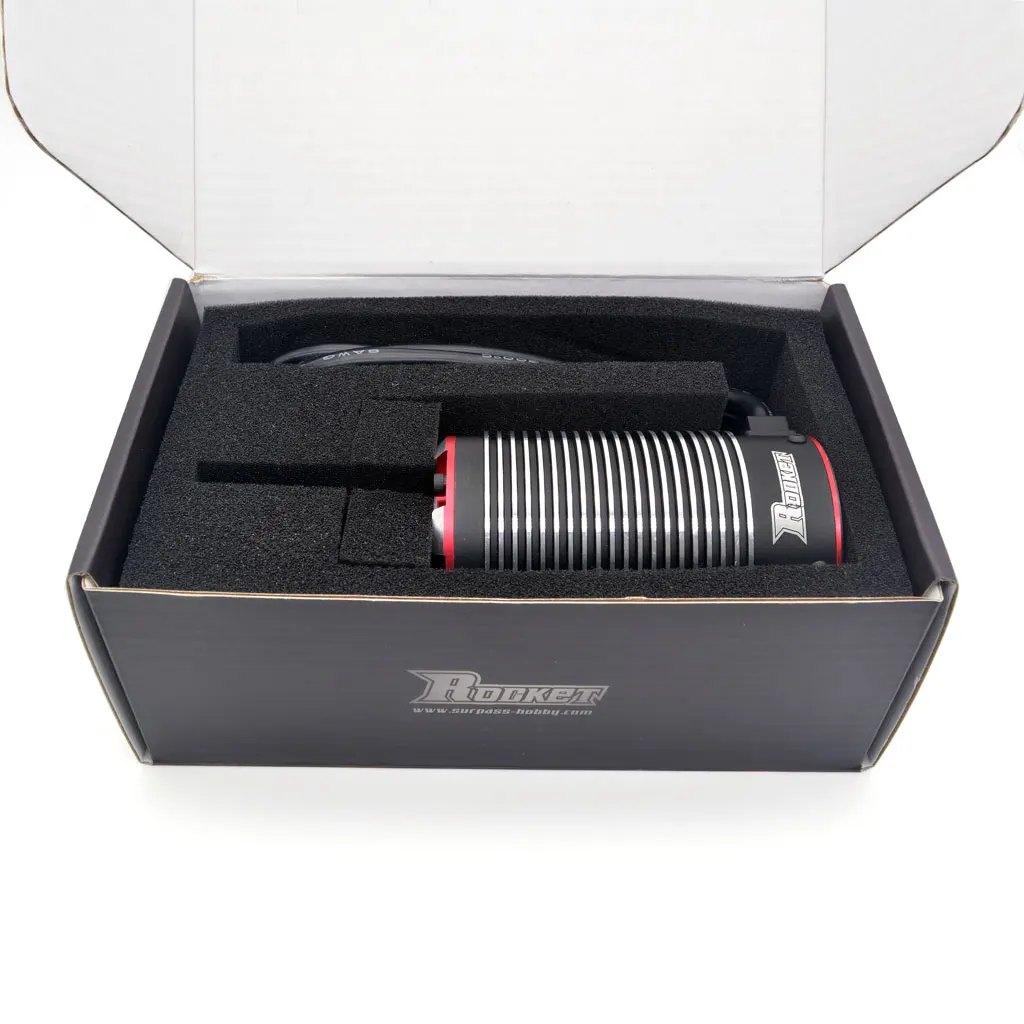

Package listing:

1 x 5593 Bruhsless motor
