CS/Stainless Steel/Iron Welded Round Tube Pipe Production Line Pipe Making Machinery
- Category: >>>
- Supplier: Jiangyin Bangnuo Machinery Co. Ltd.
Share on (1601044351582):
Product Overview
Description
Products Description
Description | Explaination |
Working speed | 10-15 m/min（Shear time is not included） |
Pressed plate thickness | 0.4-0.6mm |
Control mode | Panasonic PLC |
Discharging rack | 2 t manual discharging rack |
Number of molding passes | 20 lanes |
Roll material | After finishing, the surface of 45# steel is chrome plated。 |
Shaft material and diameter | 45# Steel finishing，Shaft diameter is￠65mm |
Main engine power | 7.5kw |
Power of hydraulic station | 3kw |
Hydraulic pressure | 12Mpa |
Scissors material | Cr12Mov， quench HRC 58-62℃ |
Length tolerance | 3m±1.5mm |
Voltage | 380V, 50HZ,3 phase（According to customer requirements can be adjusted） |
Transmission mode | 1.0 inch single row chain |
Equipment form | Slab-wall structure |
Equipment color | Company color |
Equipment size | L*W*H—10.5m*1.5m*1. 2m |
Date of delivery | 60 days |
Payment method | 30% advance charge，70% pay off on delivery |

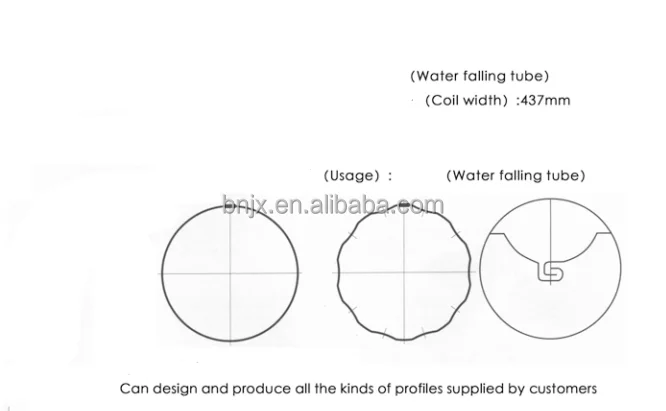

Flow Chart

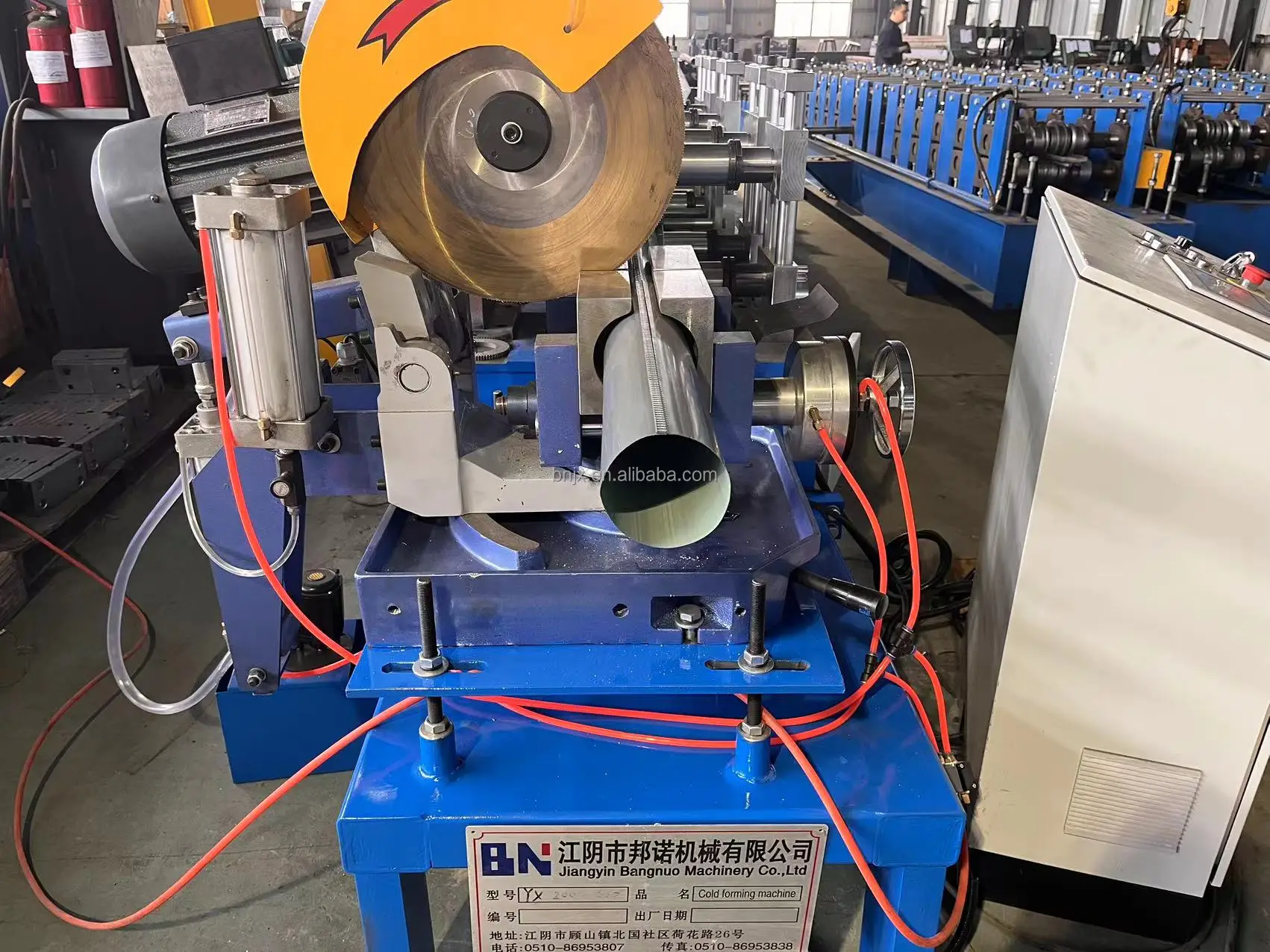

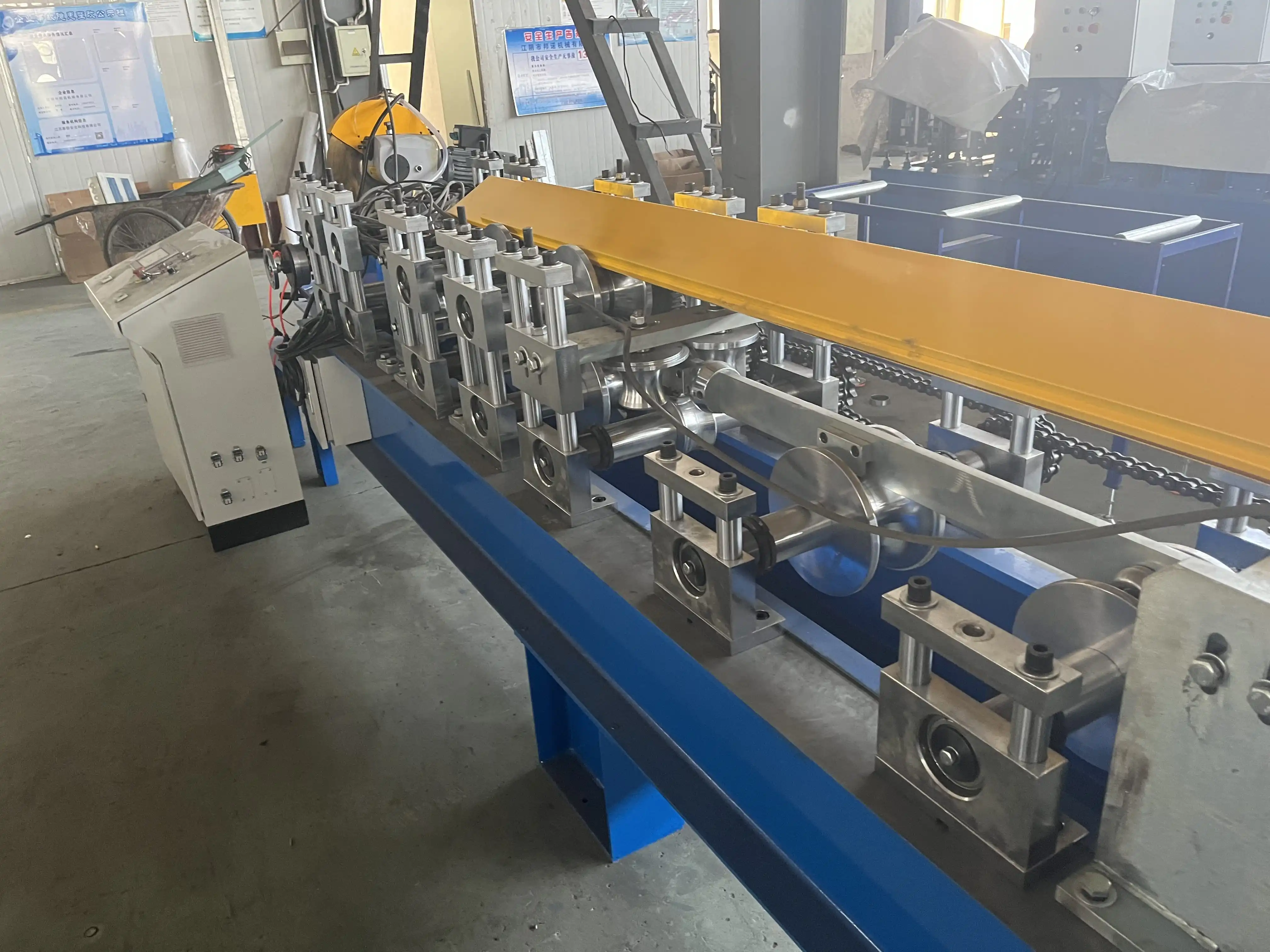

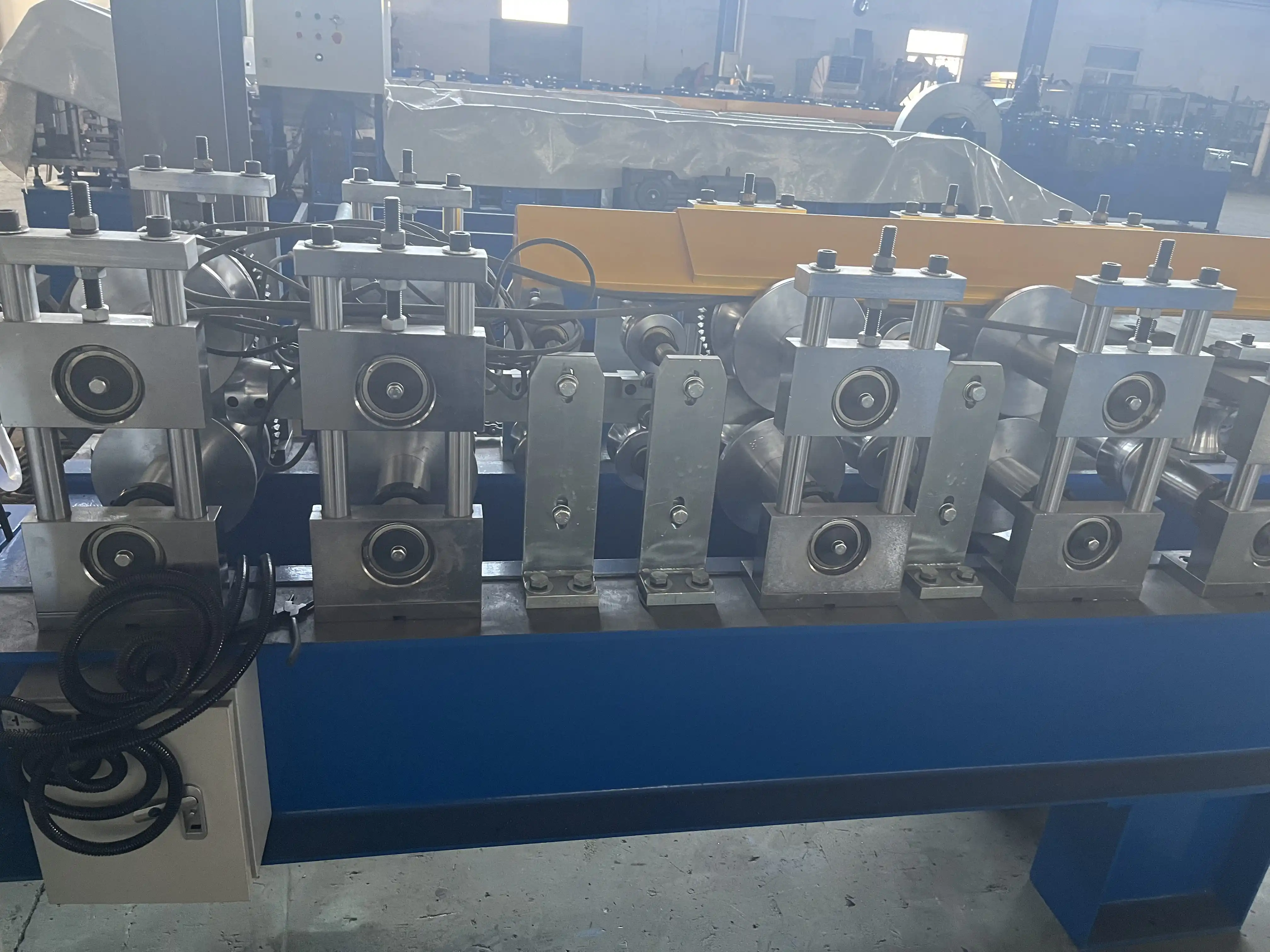

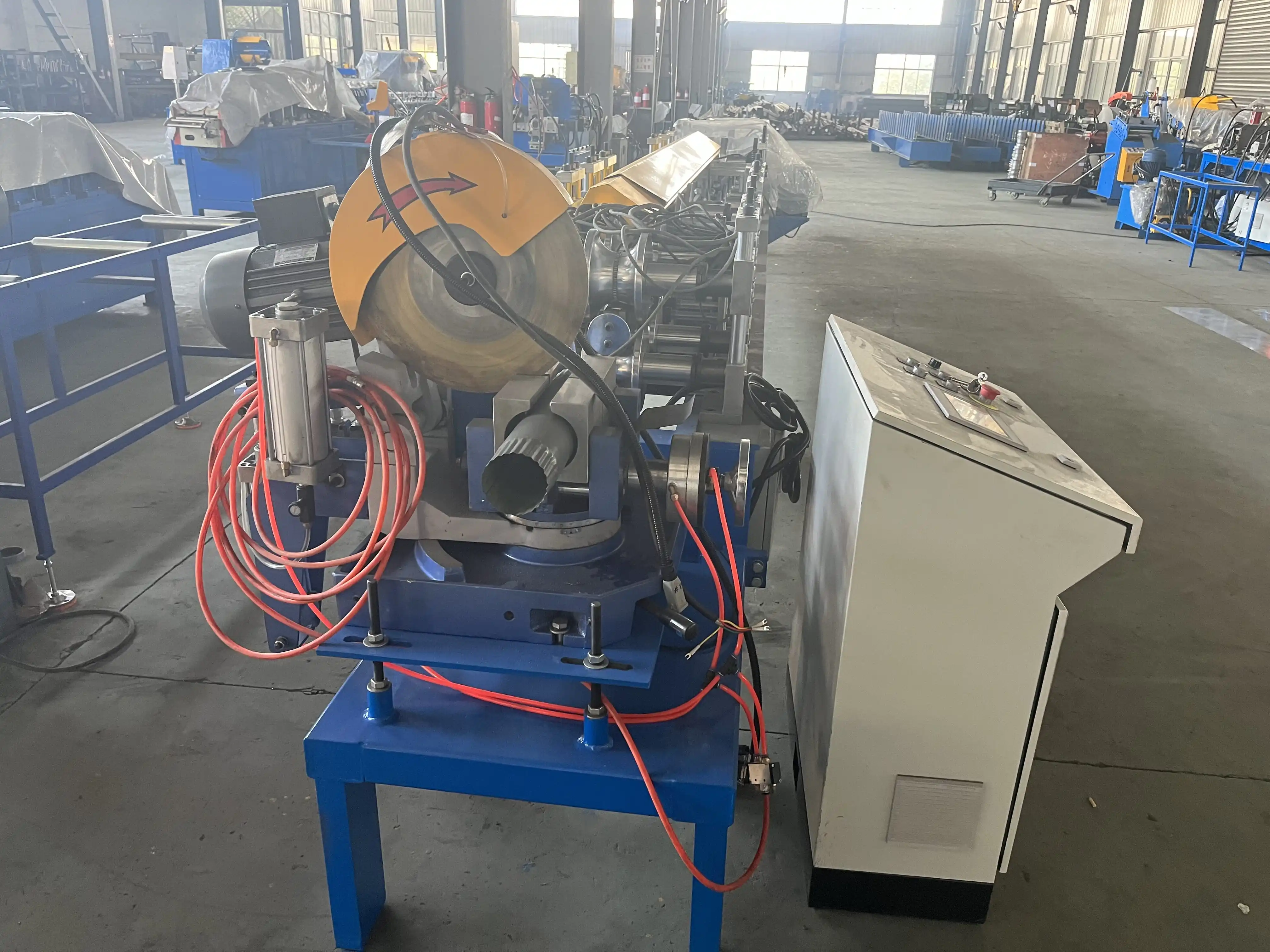

Details Images
Equipment composition
2 t manual discharging rack | 1 piece |
Molding machine | 1 set |
Control cabinet | 1 set |
Hydraulic station | 1 set |
Discharge table | 2 sets |
FAQ
1.Q：What is your MOQ?
A:The minimum order quantity is one set.
2.Q:How can I order?
A:Please contact our staffs for the products you like, then we will send you a quotation.
3.Q:Can I customize the size according to my own drawing?
A:Of course, everything is according to your requirements.
4.Q:Can you make our own logo on the products?
A:Yes,custom logo is available.
5.Q:What services are available after purchase?
A:Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
Certifications
Company Profile
Company Profile.
Jiangyin Bangnuo Machinery Co.. Ltd. is a professional manufacturer dedicated Color light steel construction . C. Z steel equipment and rolling, bending molding equipment enterprises. with the design and manufacture of various types of steel sheet thickness roll forming production line strength.
Company specializing in the productian of Dagong machines, foor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine. glazed tile machine
TRANSPORT
No additional packaging,
firmly fixed in containers
with belt and wood.
suitable for sea transportation
