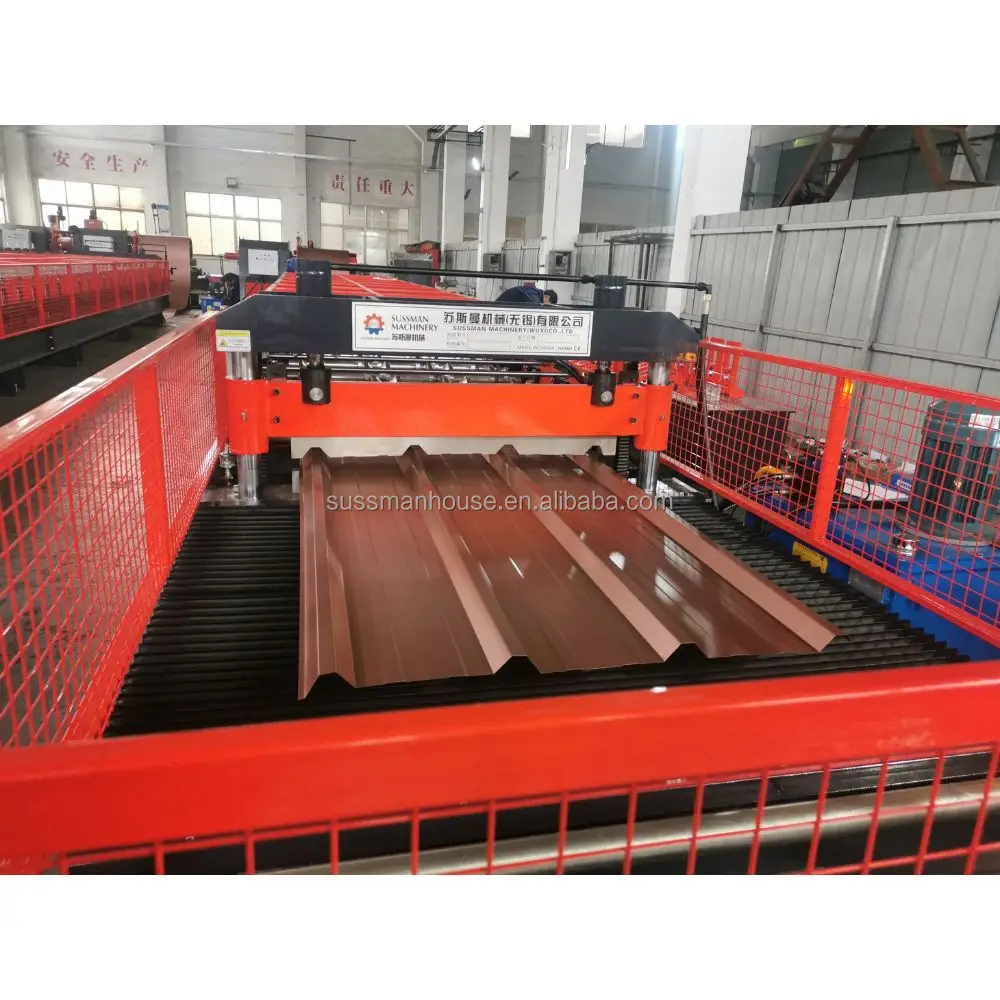

USA Popular 30 Meters/Minute PBR PBU R Panel AG Panel Trapezoidal Roof Sheet Roll Forming Machine Tile Making Machine
- Category: >>>
- Supplier: Sussman Modular House (wuxi) Co. Ltd.
Share on (1601044524016):
Product Overview
Description
Product Description
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile panel, metal deck panel, standing seam panel, K span panel and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction.
The normal machinable thickness range of our roof panel roll forming machine is 0.2mm-0.8mm, the standard or more used in international market is Gauge 26 (0.45-0.5mm), working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave..
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, PV-4, PV-5, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine. Its products are widely used in roof and wall system in workshop construction and housing construction.
The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

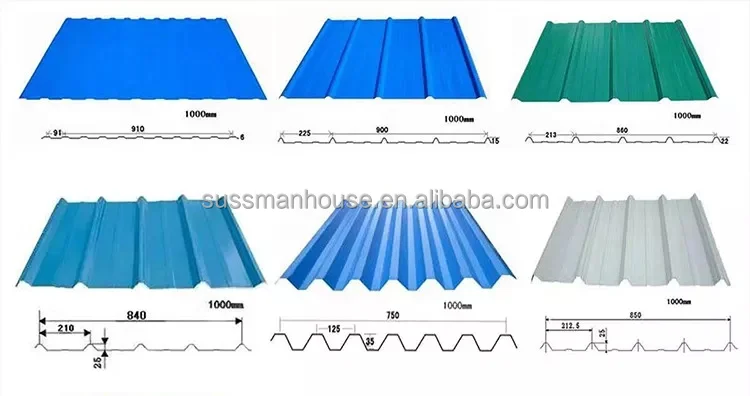

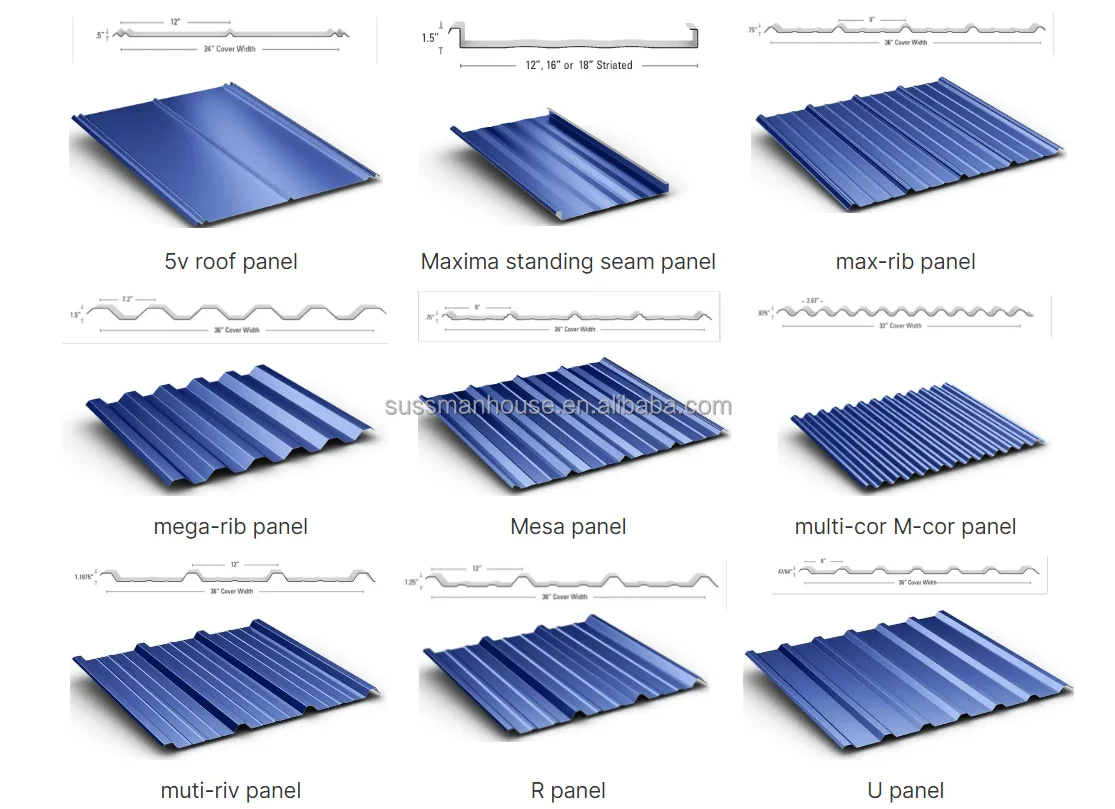

Different countries has different its own commonly used profiles and name. Here are some popular drawing profiles selected by our customers:
America Area:
1.ACANALADORA PARA LAMINA TR-90
2. ACANALADORA DE LAMINA R-72
3. CONFORMADORA PARA PLANCHA PV4/ PV6
4.CONFORMADORA PARA CHAPA R-101
5. CONFORMADORA PARA CALAMINA TR4
6. Acanaladora para lamina TR101
7. Perfil de telha Trapezio 25/1020
8.Acanalada de Onda
9. Acanalada 5-V
UK: Box profile roll forming machine
Africa: IBR 686 roll forming machine
The normal machinable thickness range of our roof panel roll forming machine is 0.2mm-0.8mm, the standard or more used in international market is Gauge 26 (0.45-0.5mm), working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave..
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, PV-4, PV-5, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine. Its products are widely used in roof and wall system in workshop construction and housing construction.
The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
Different countries has different its own commonly used profiles and name. Here are some popular drawing profiles selected by our customers:
America Area:
1.ACANALADORA PARA LAMINA TR-90
2. ACANALADORA DE LAMINA R-72
3. CONFORMADORA PARA PLANCHA PV4/ PV6
4.CONFORMADORA PARA CHAPA R-101
5. CONFORMADORA PARA CALAMINA TR4
6. Acanaladora para lamina TR101
7. Perfil de telha Trapezio 25/1020
8.Acanalada de Onda
9. Acanalada 5-V
UK: Box profile roll forming machine
Africa: IBR 686 roll forming machine
Technical Data:
Rolling Speed | 0-30m/min |
Feeding width | 1250mm |
Thickness | 0.3-0.7mm |
Control System | PLC |
Roller Stations | about 20 stations |
Roller Material | 45# forge steel, coated with chrome |
Motor Power | 11kw main motor+3KW servo motor |
Hydraulic power | 5.5kw |
Hydraulic Pressure | 12Mpa |
Tolerance | 1.5mm |
Power supplier | 380V, 60HZ,3 phase |
Way Of Drive | 1.2 inch single chain |
Machine weight | about 12 tons |
Machine List:
5 Tons Hydralic De-coiler | 1 set |
Main Roll Forming Machine | 1 set |
Servo Following Cutting | 1 set |
PLC Control Box | 1 unit |
Hydraulic Station | 1 unit |
3 Meters Conveying Platform | 1 set |
12 Meters Auto Stacker (optional) | 1 set |
Safety Cover | 1 set |
Spare Parts | 1 package |
Product Display

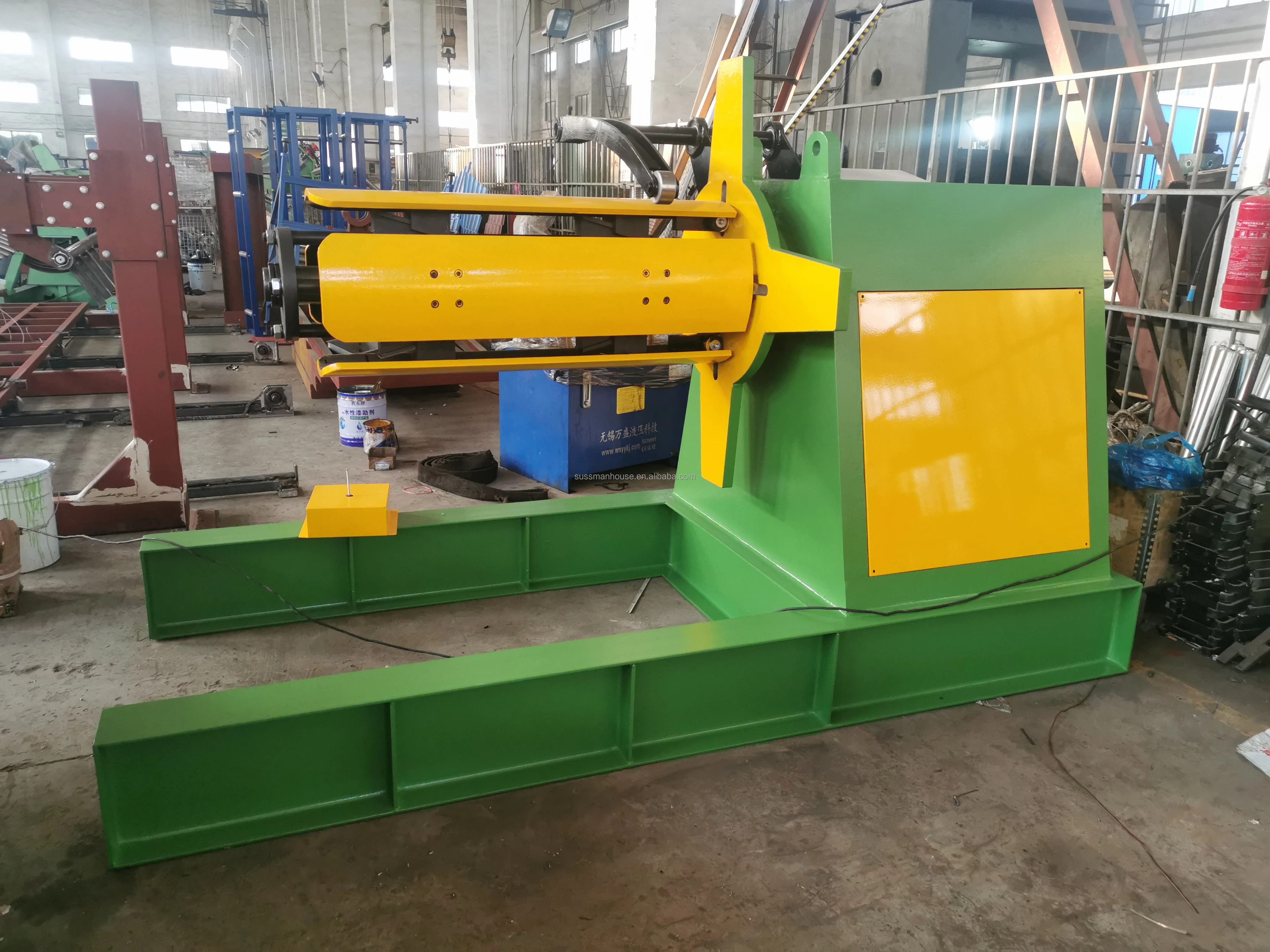

5 tons hydraulic decoiler
Coil inner Diameter: ￠460-520mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm
Main motor:5.5KW
Hydraulic power:4KW
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm
Main motor:5.5KW
Hydraulic power:4KW

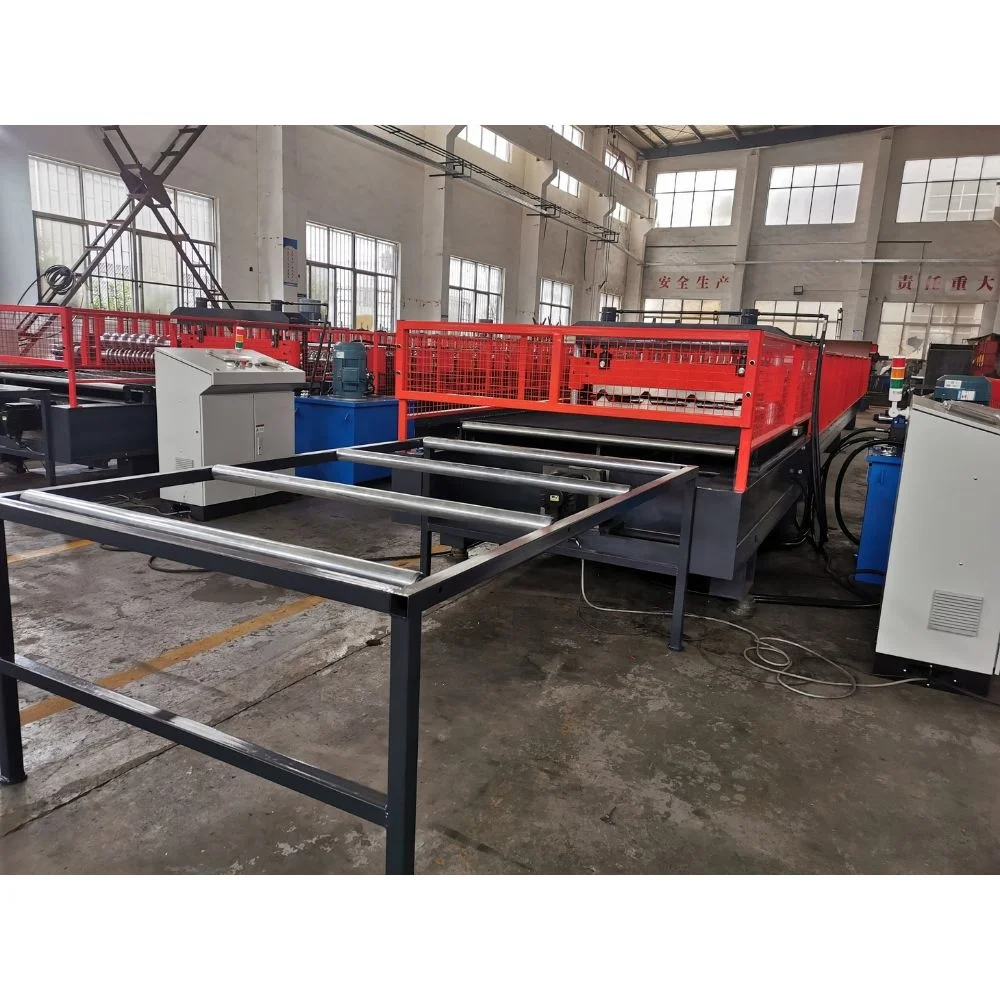

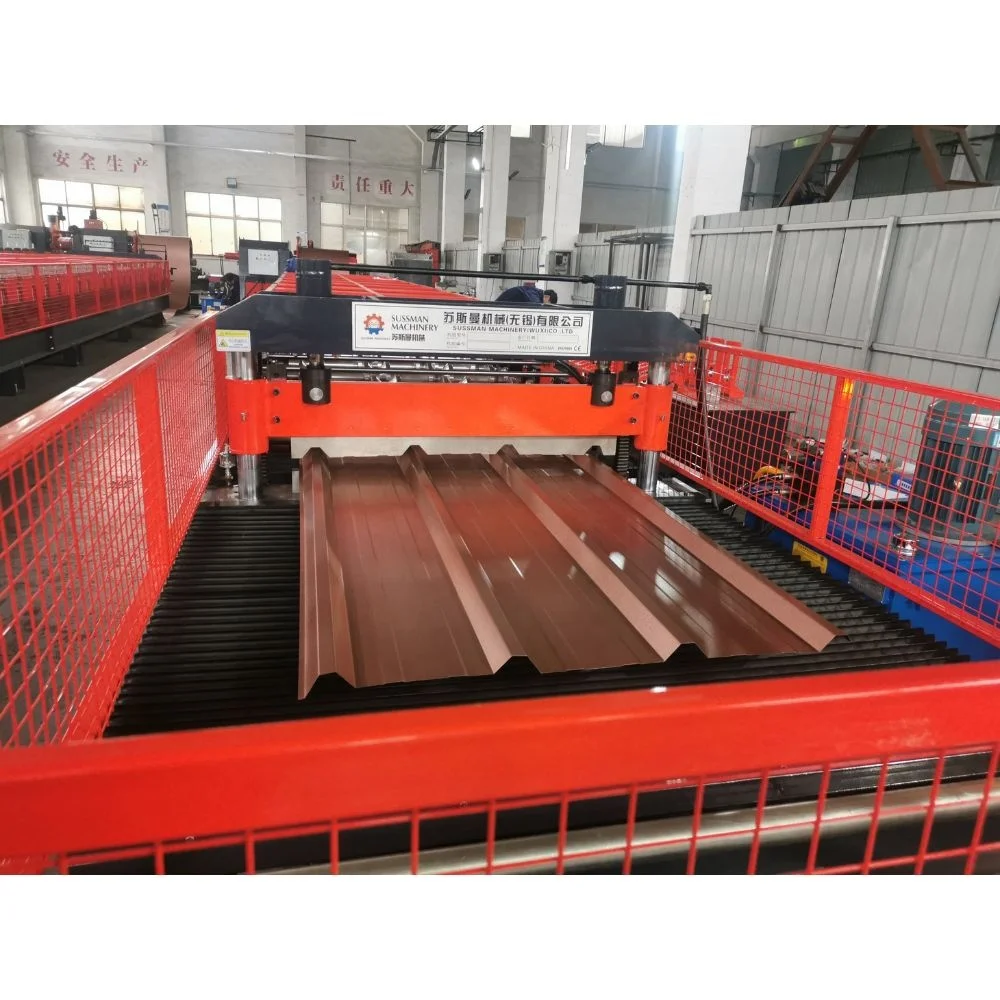

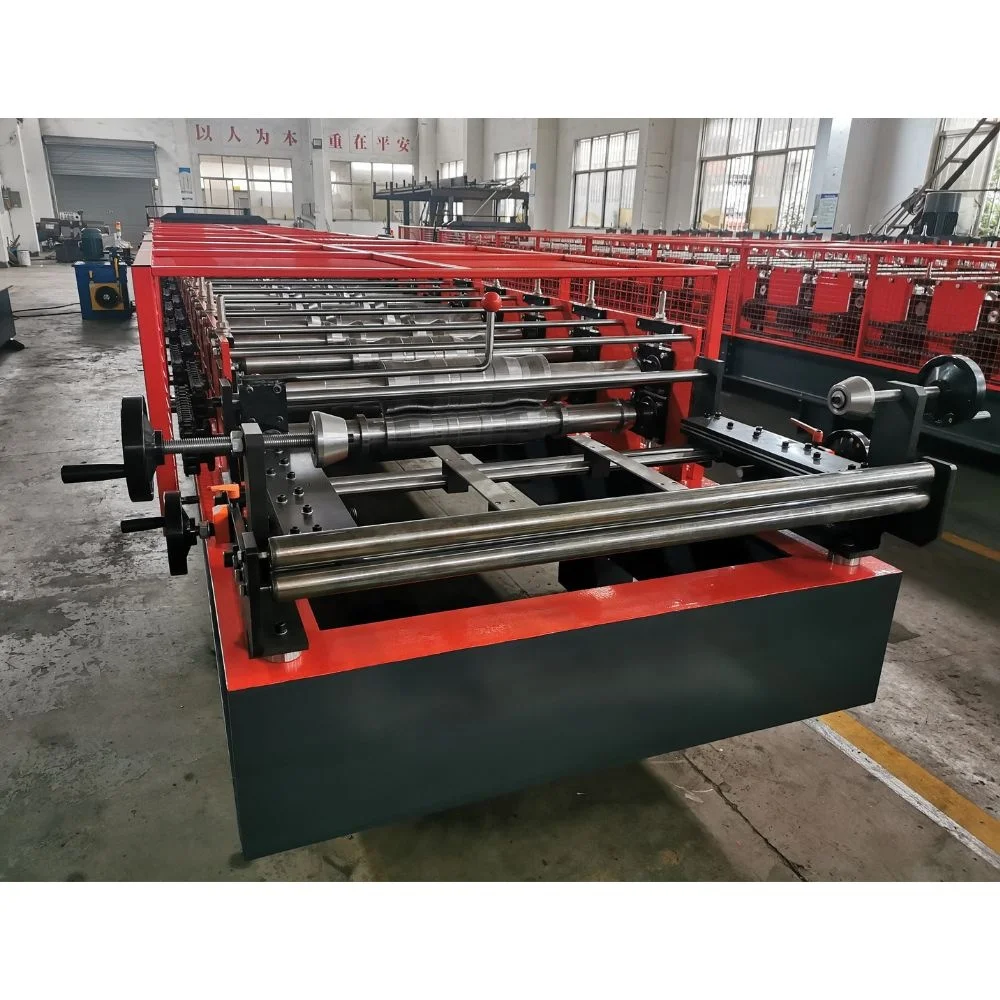

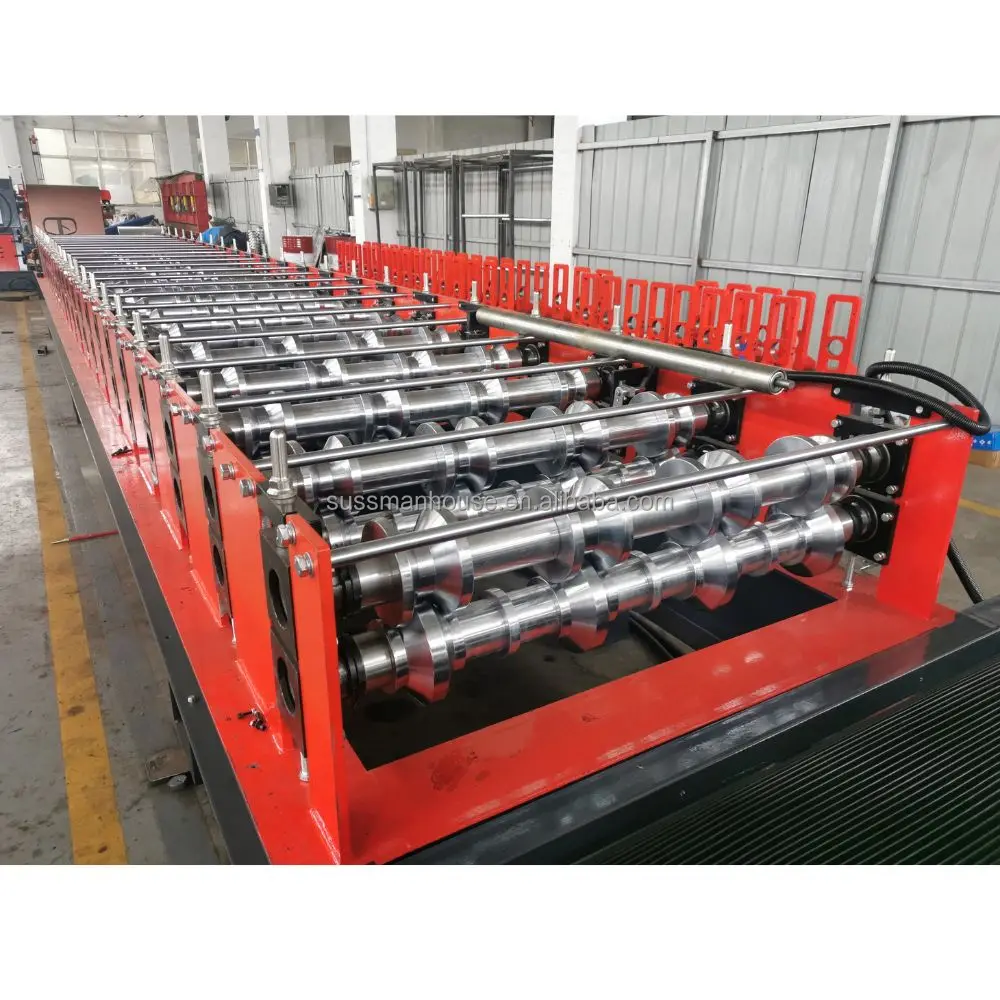

Roll Forming Part
The machine is drived by chain, the working speed can reach to 30 meters/minute.
Servo Following Cutting
(1) Cutting motion: Servo following cutting without stop
(2) Material of blade: CR12mov with heat treatment
(3) Length & quantity measurement automatically;
(4) The cutting thickness: 0.3- 0.8mm
(5) Hydraulic Station Power: 5.5kw
(2) Material of blade: CR12mov with heat treatment
(3) Length & quantity measurement automatically;
(4) The cutting thickness: 0.3- 0.8mm
(5) Hydraulic Station Power: 5.5kw

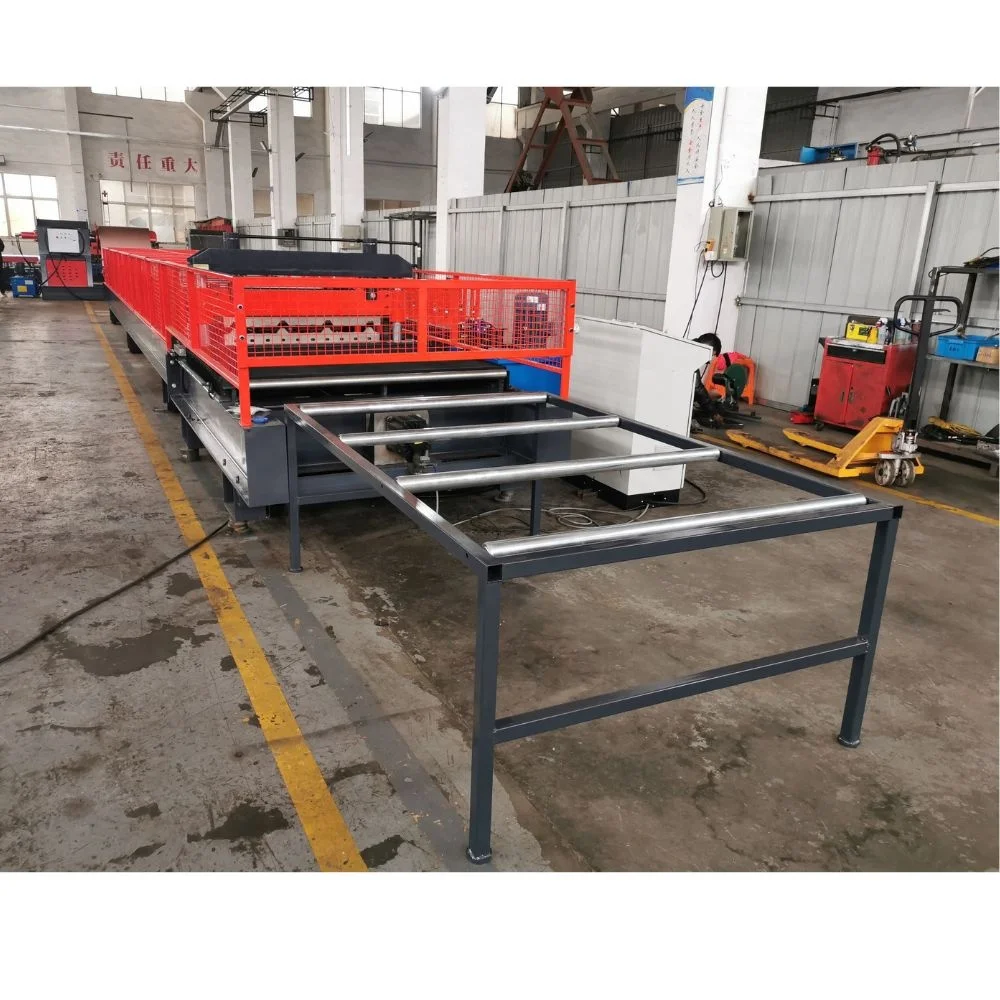

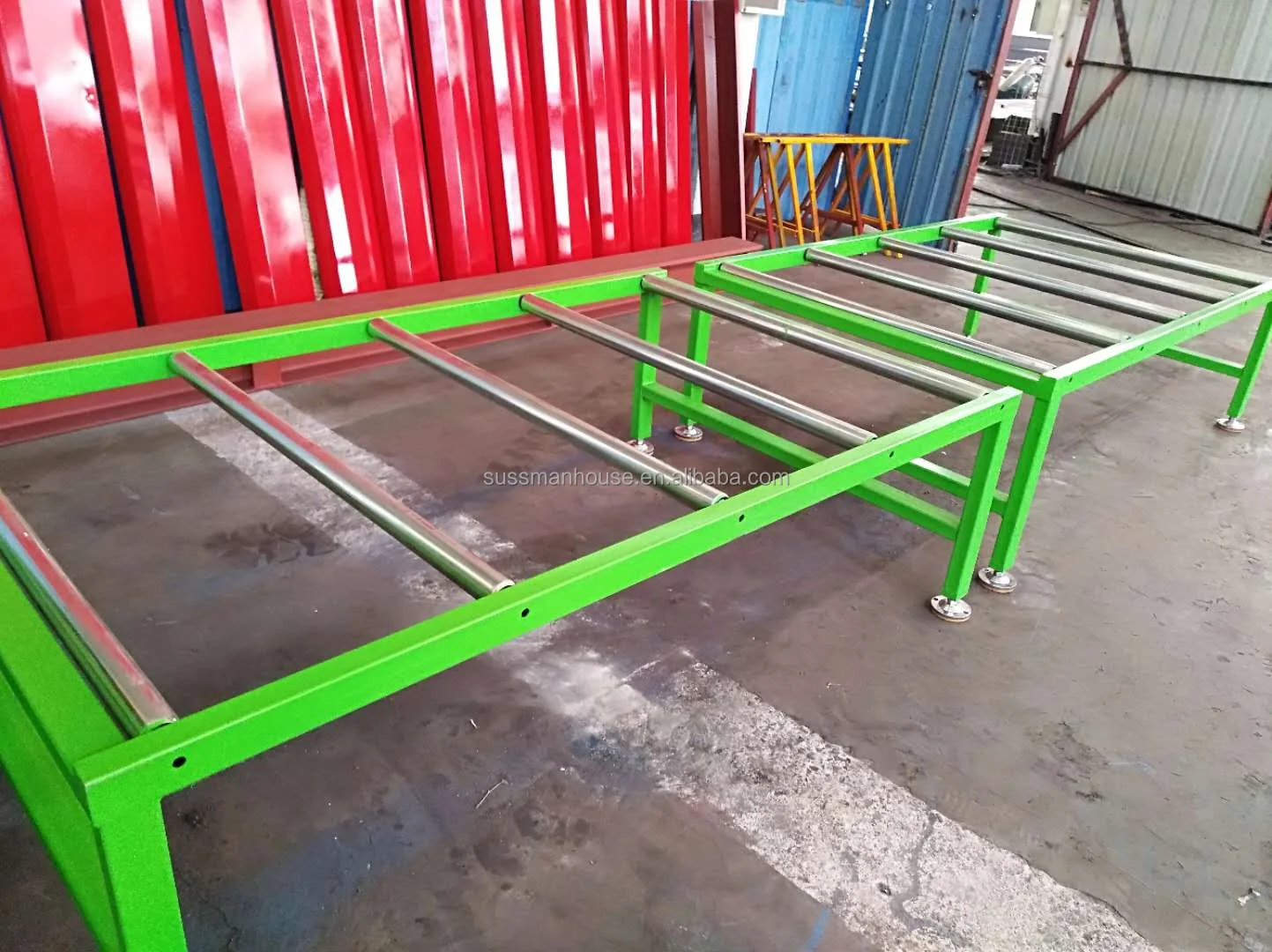

Output Table
some customer choose passive output table, some customers choose auto stackers
Application

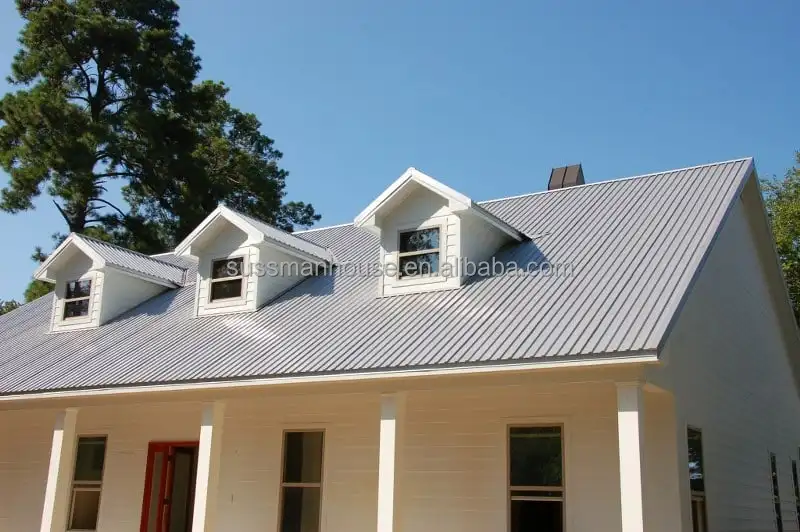

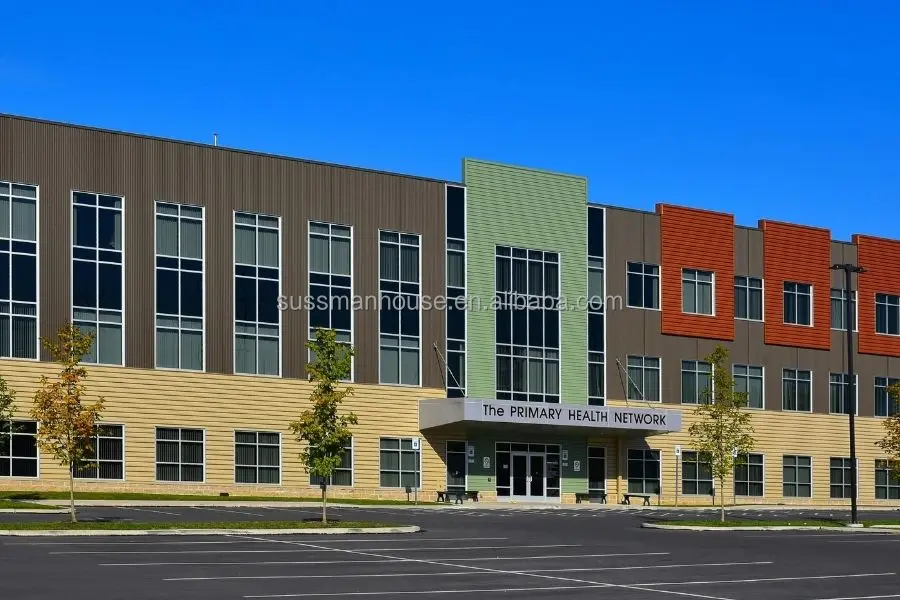

The panel sheet is light weight, can be used as wall panel and roof panels.
