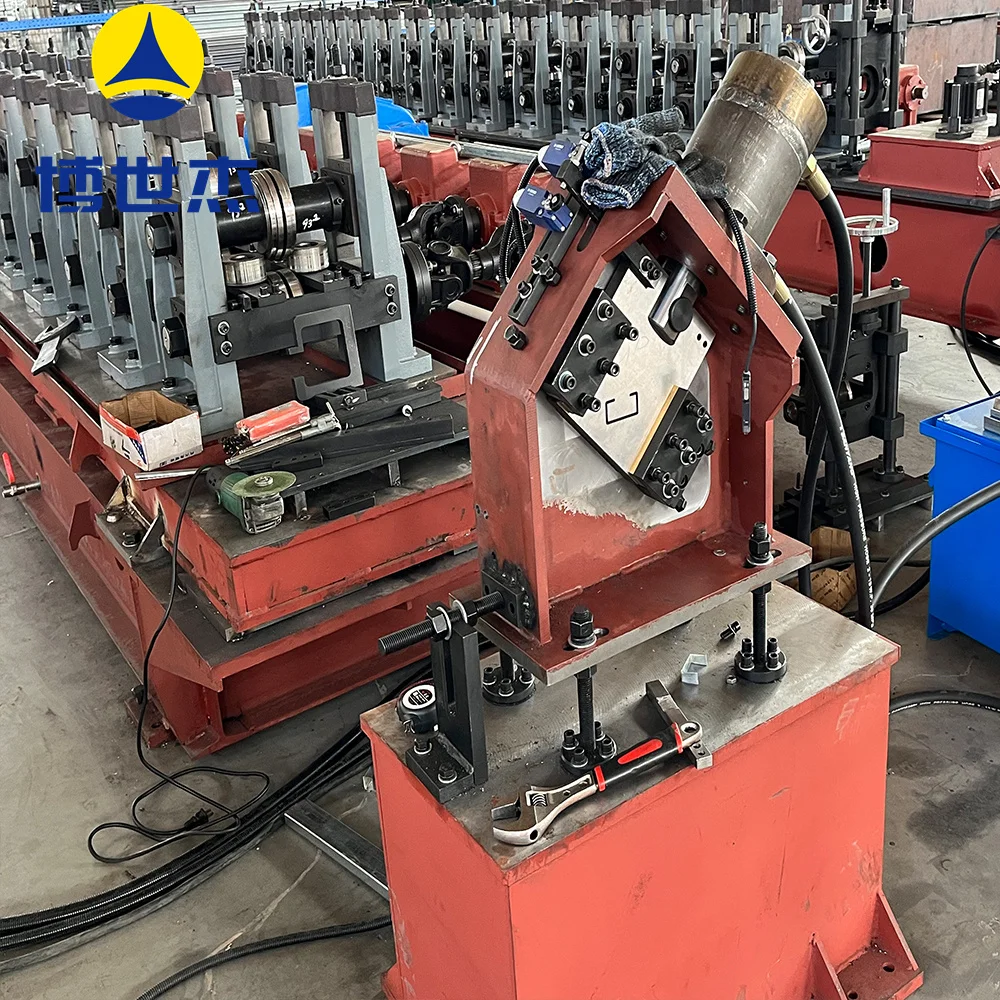

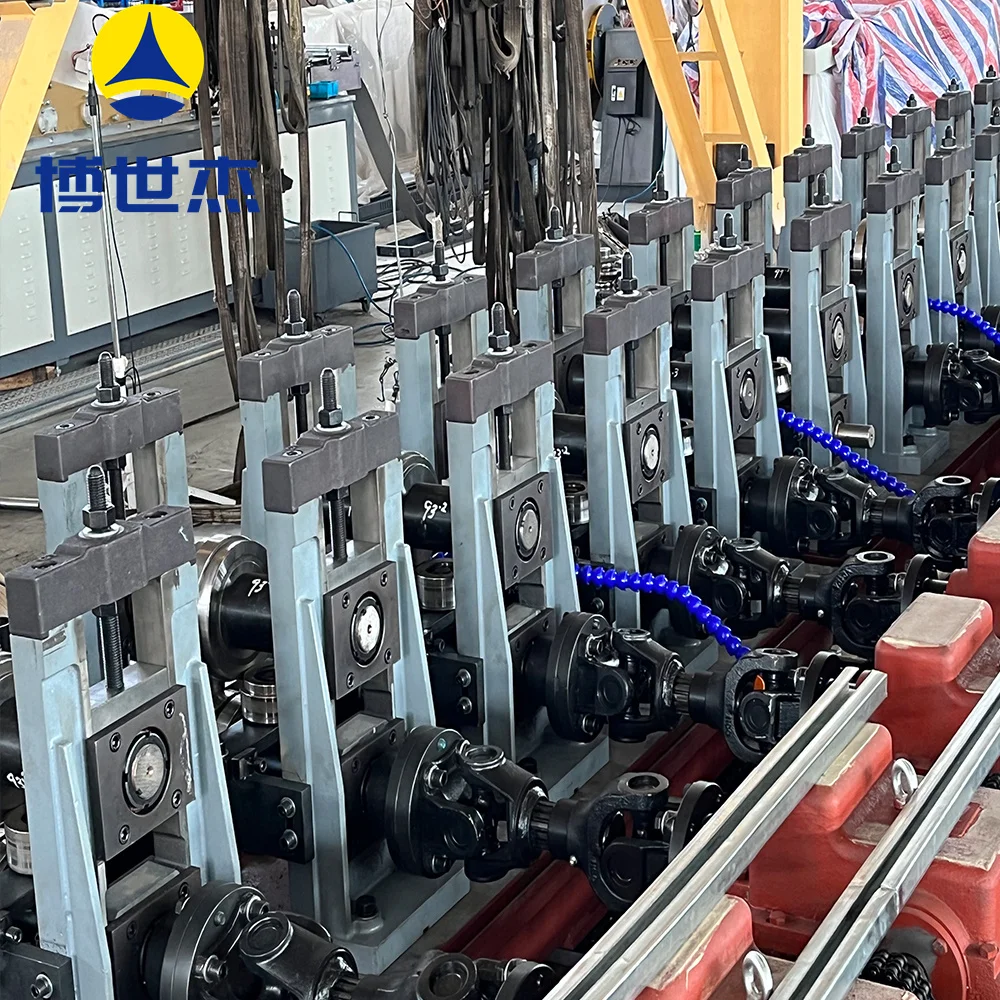

Estrutura Rittal ELECTRIC CABINET STRUCTURE PROFILE Roll Forming Machine
- Category: >>>
- Supplier: Jiangyin Bosj Science And Technology Co. Ltd.
Share on (1601044801232):
Product Overview
Description
Product Paramenters
Electric Cabinet 9 folded/13 folded/16 folded profile roll former
1.Description
Electric cabinet rack and frame design,two production lines includes welding,roll
forming,saw cutting technology.
If you would like the electric cabinet Enclosures in either 2D or 3D for either AutoCAD Electrical or elecworks, BOSJ offer you all machine solutions.
2.Features
BOSJ has total cabinet system machine solutions,including 9 folded, 13 folded,16 folded.We can update your cabinet system to make it easier for installation.

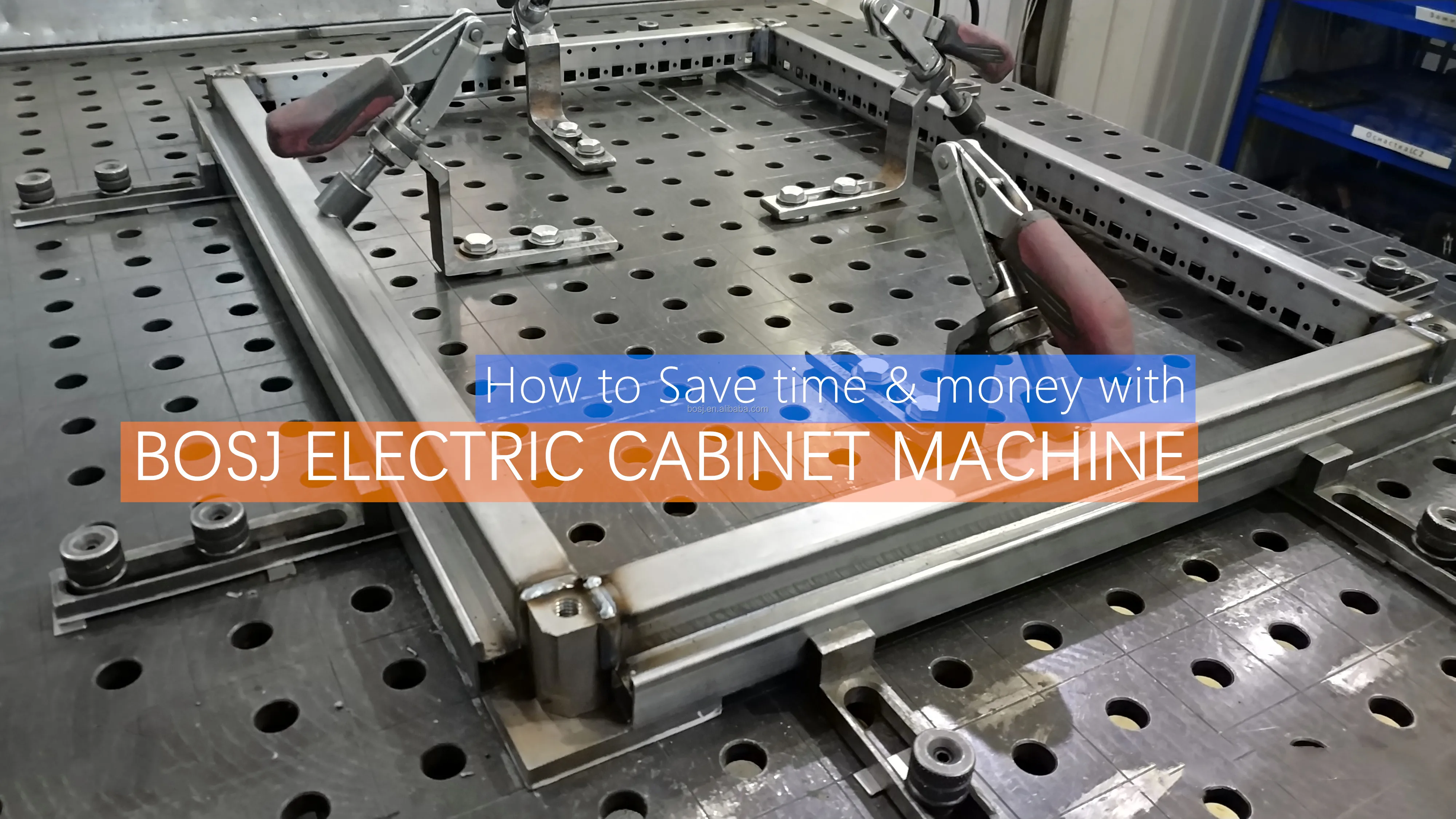

Electric cabinet rack and frame design,two production lines includes welding,roll
forming,saw cutting technology.
If you would like the electric cabinet Enclosures in either 2D or 3D for either AutoCAD Electrical or elecworks, BOSJ offer you all machine solutions.
2.Features
BOSJ has total cabinet system machine solutions,including 9 folded, 13 folded,16 folded.We can update your cabinet system to make it easier for installation.
BOSJ offer full machine,including welding cutting and punching auto system.

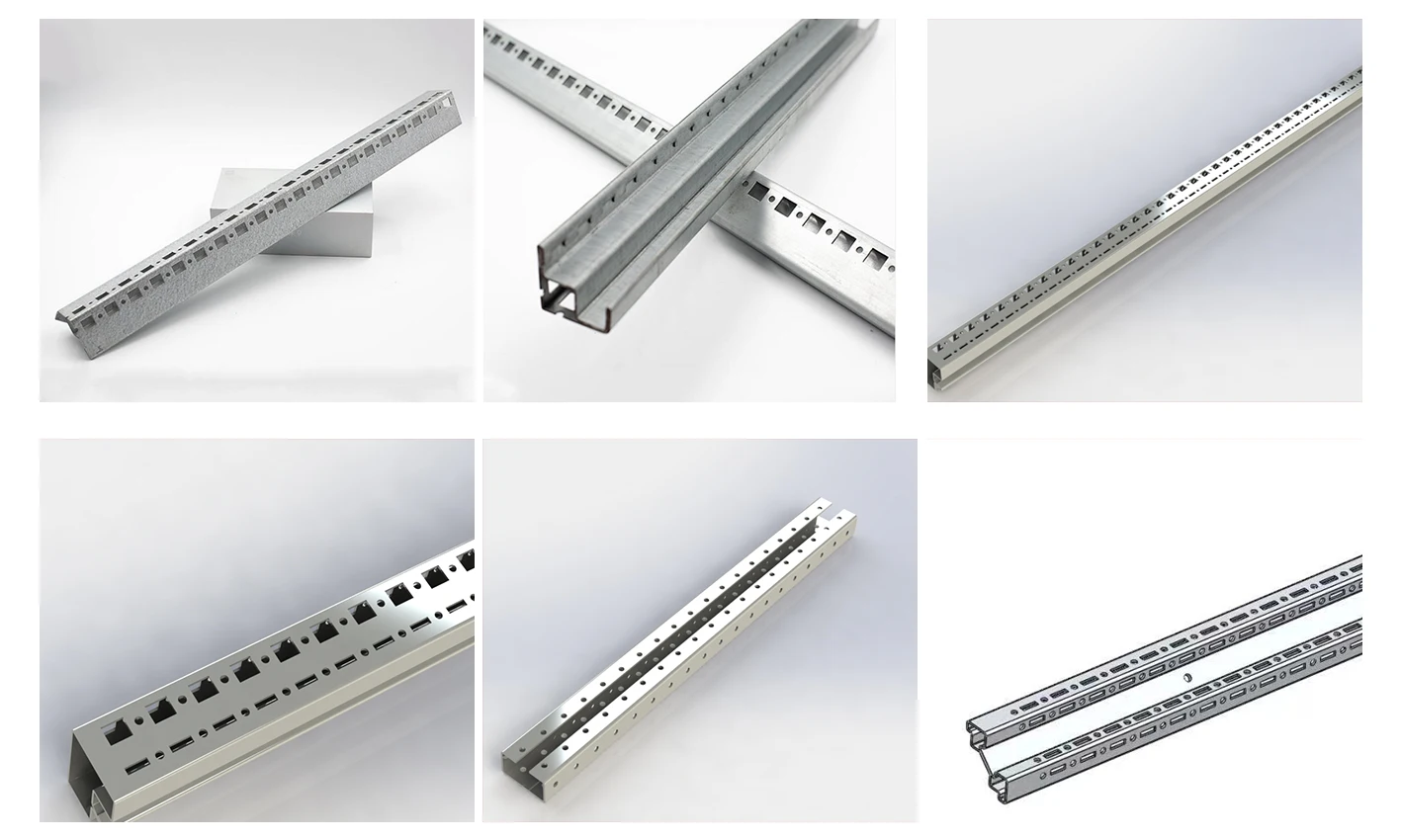

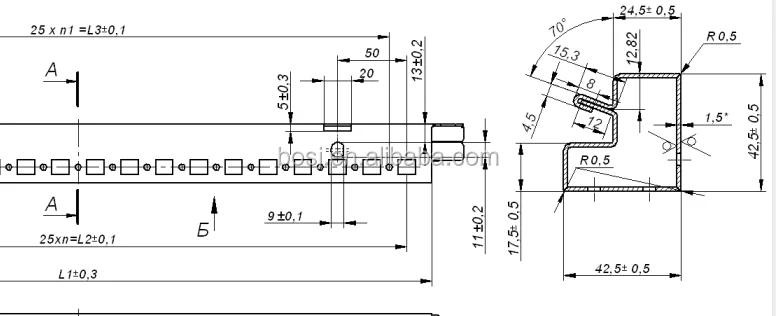

9 folded/13 folded/16 folded full series machine solutions

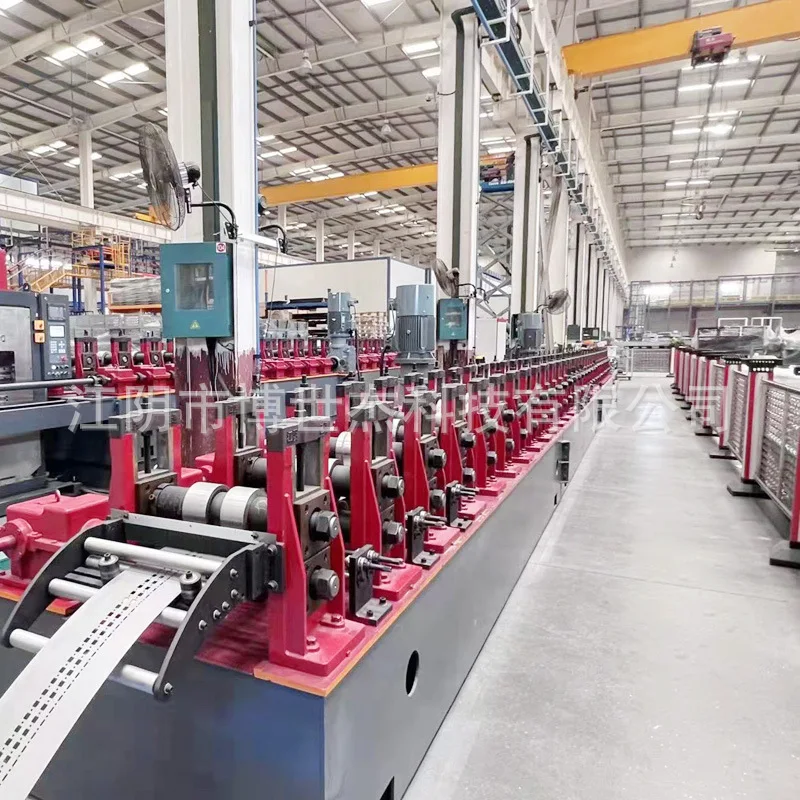

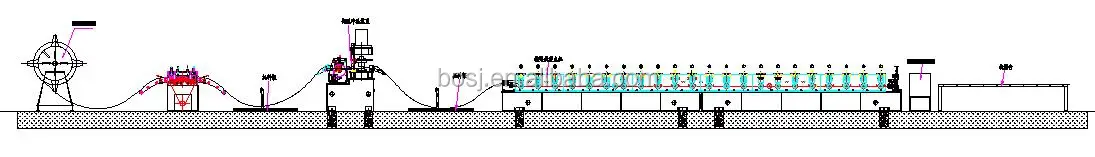

Production process

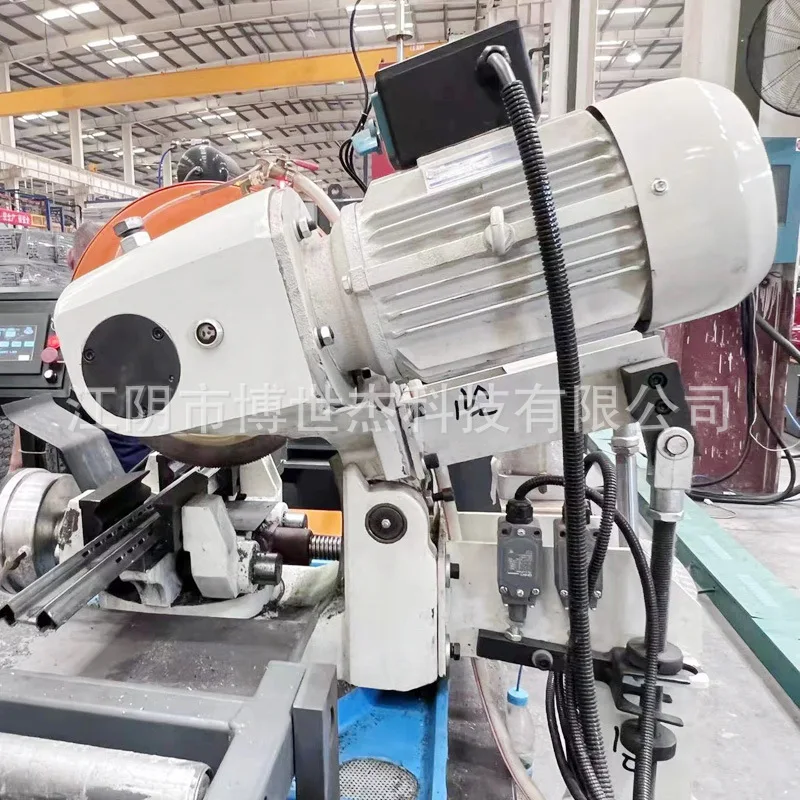

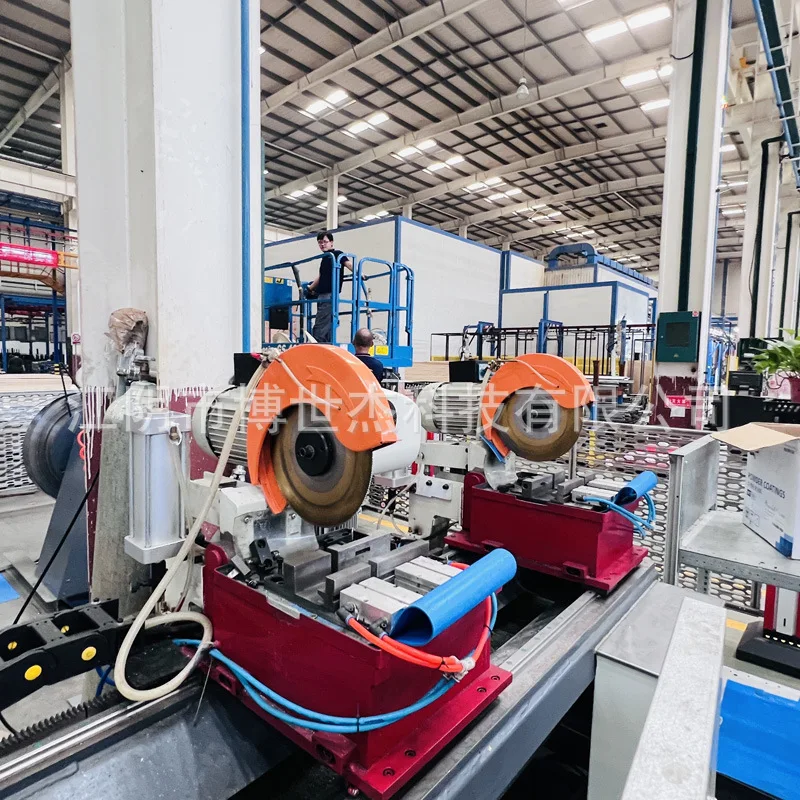

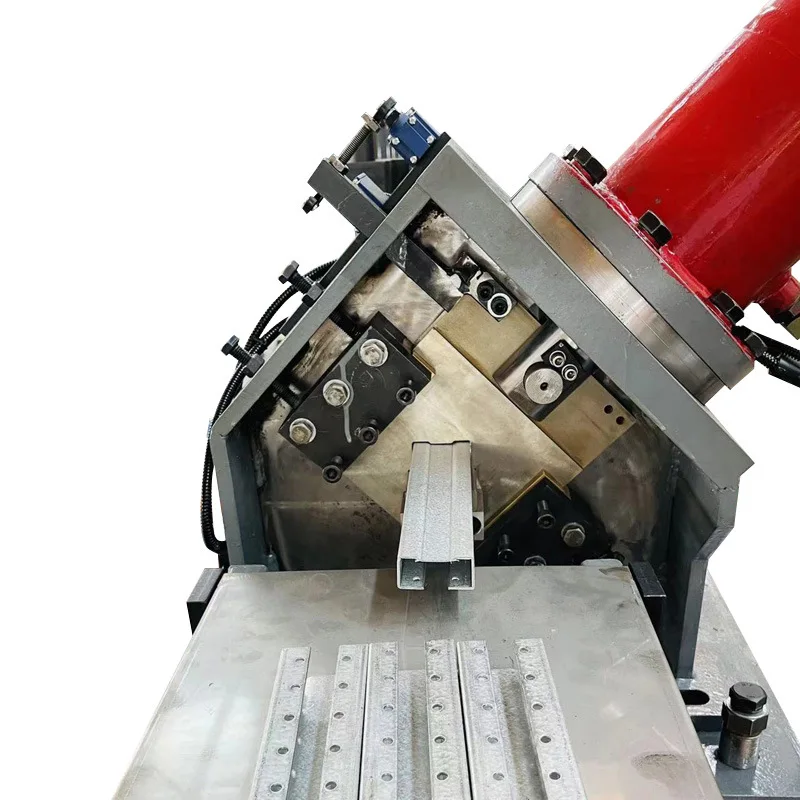

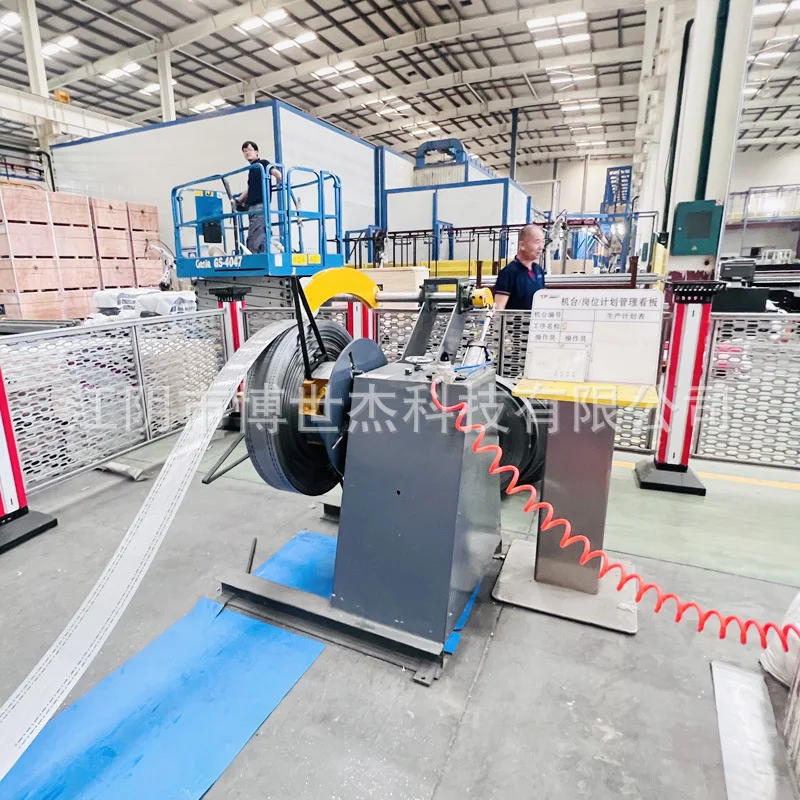

Decoiler --- straighten/leveler --- servo feeder--- punching -- forming -- cutting --- colletcion
Decoiler --- straighten/leveler --- servo feeder--- punching -- forming -- cutting --- colletcion

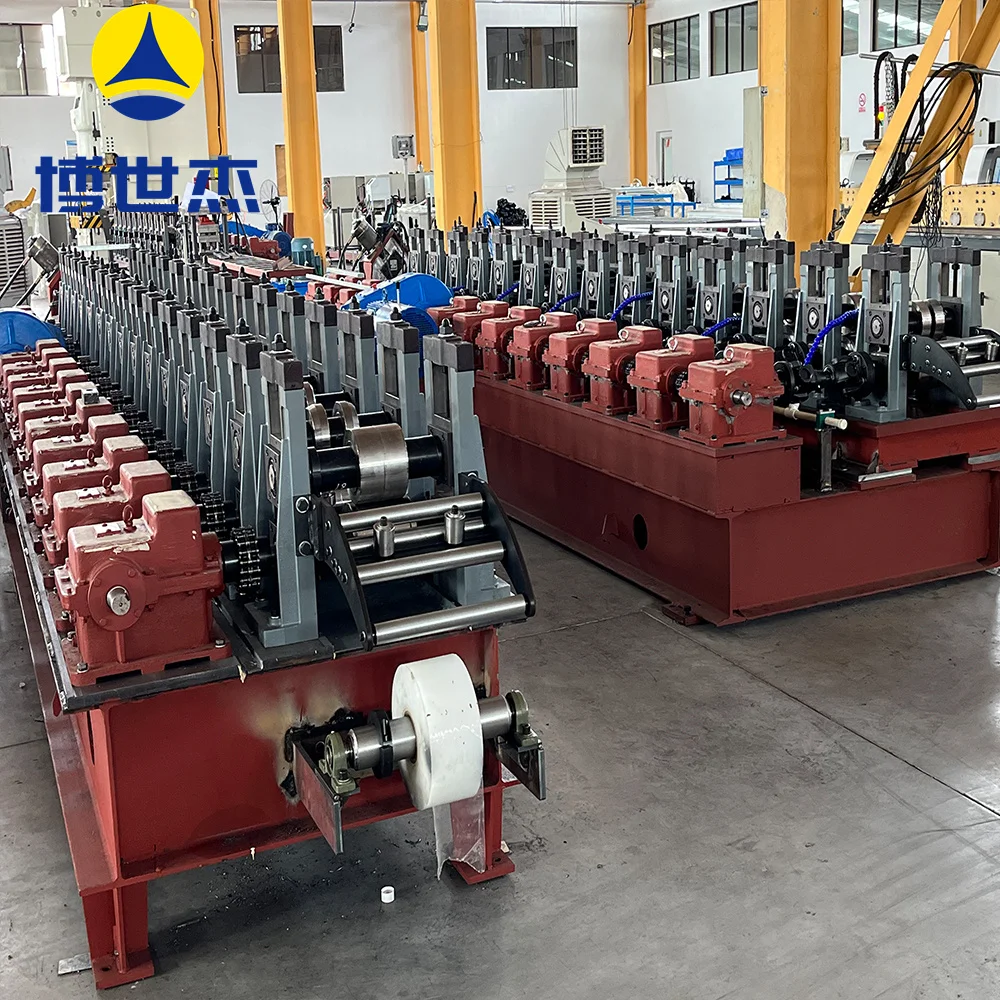

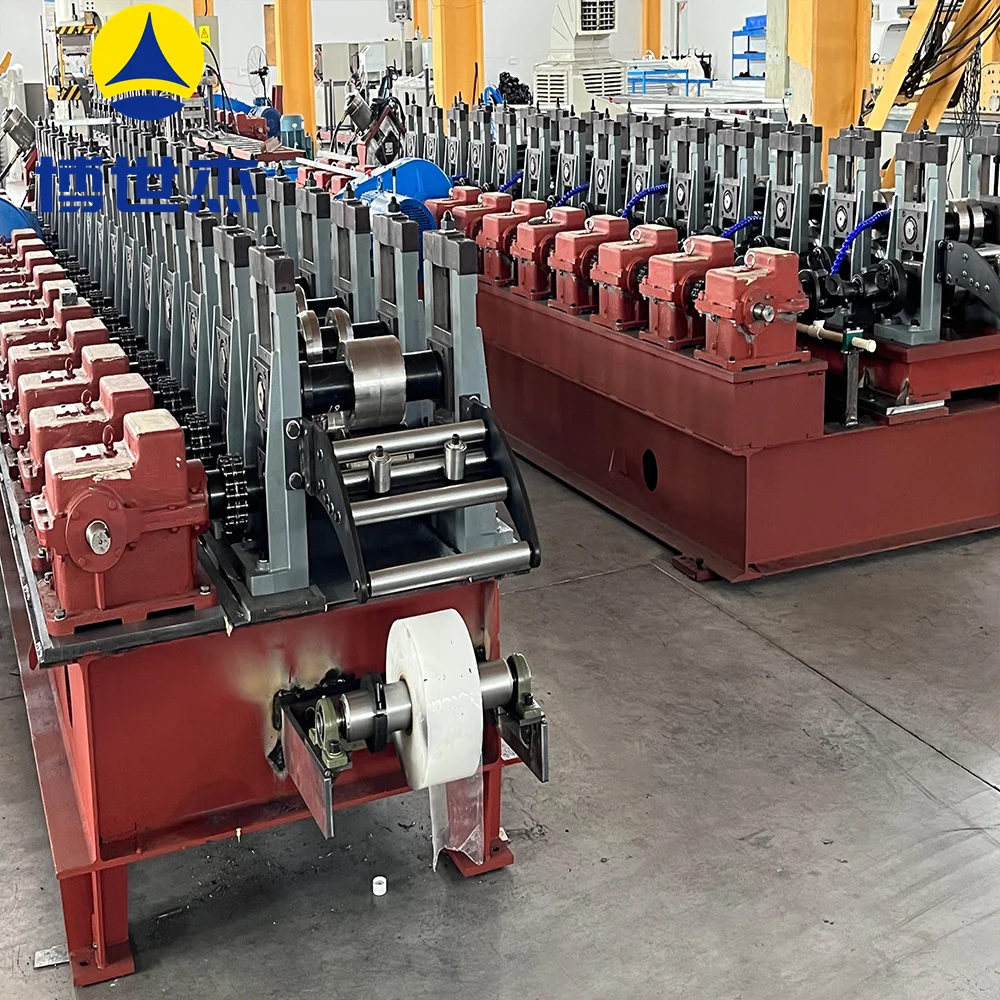

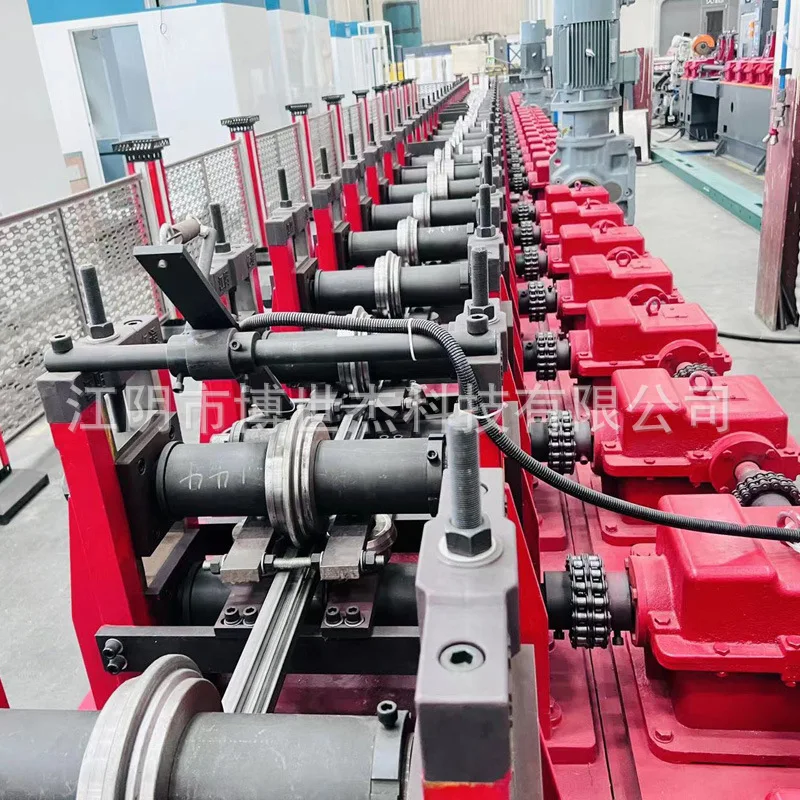

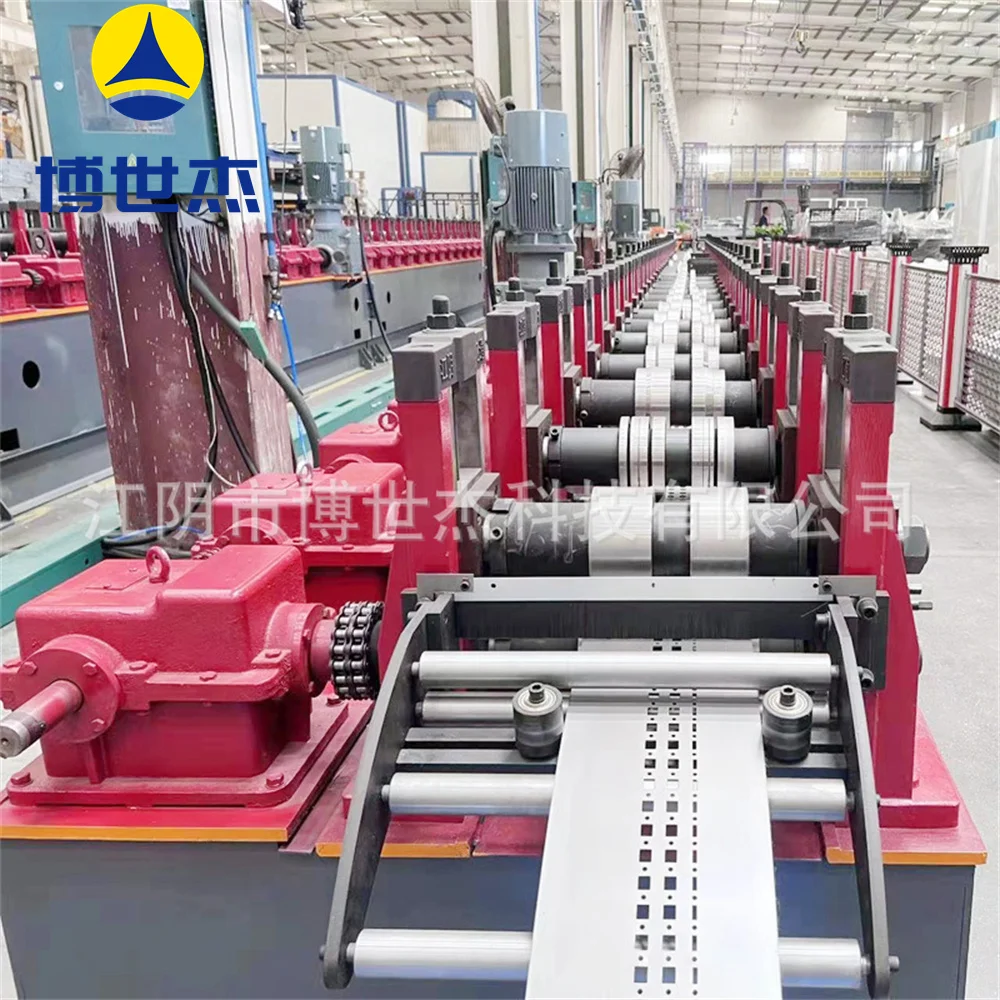

Equipment structure
Forming stations:26 stations
Max feeding width: 220mm
Roller axis diameter:¢60mm，,Material 40Cr

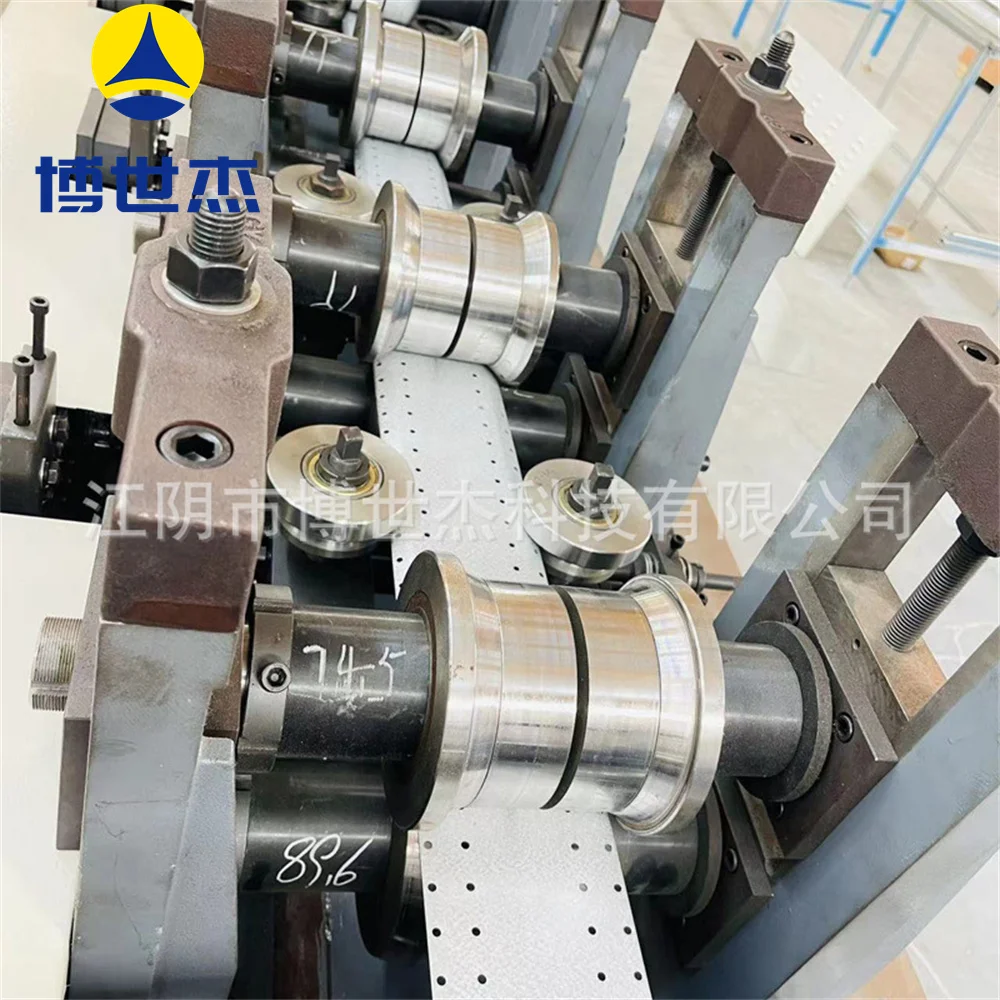

Roller material ：GCr15，quenching treatment, Hardness HRC56-62º
Motor power: 22kw
Max feeding width: 220mm
Roller axis diameter:¢60mm，,Material 40Cr
Roller material ：GCr15，quenching treatment, Hardness HRC56-62º
Motor power: 22kw
Machine main parameters
1 | Profile sizes | galvanized sheet,mild steel,etc, |
2 | Production speed | 6-8m/min |
3 | Material of roller | GCr15 quenching treatment |

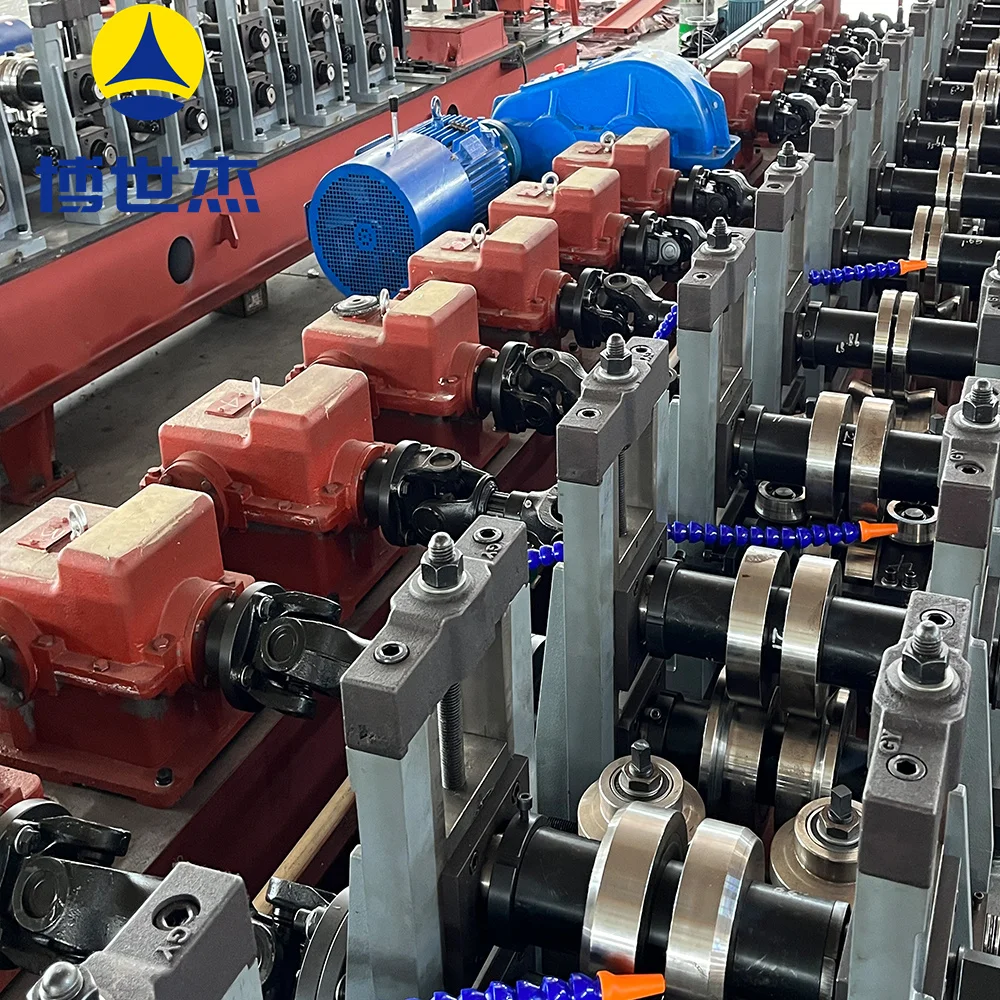

4 | Drive type | motor |
5 | Motor Power | 20kw |
6 | Electric control system | PLC interface |
7 | Dimensions(Length*width*height) | Gearbox driven |

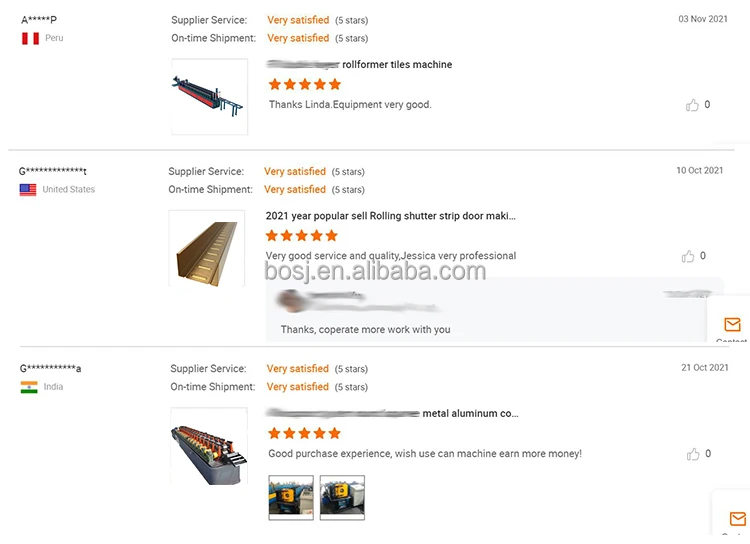

Customer Photos
