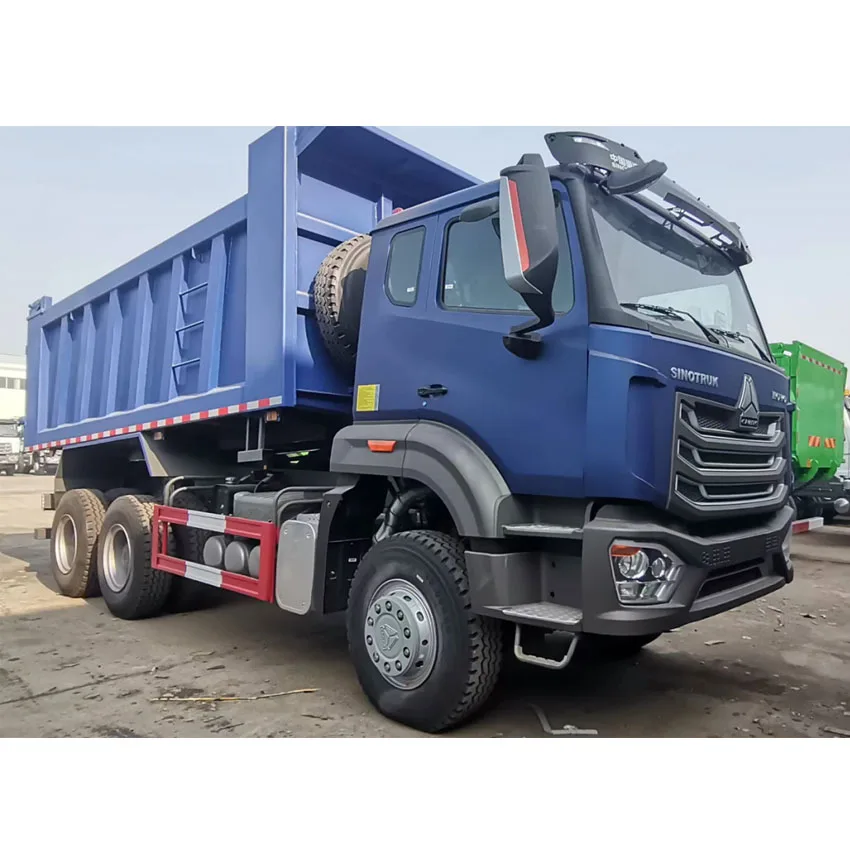

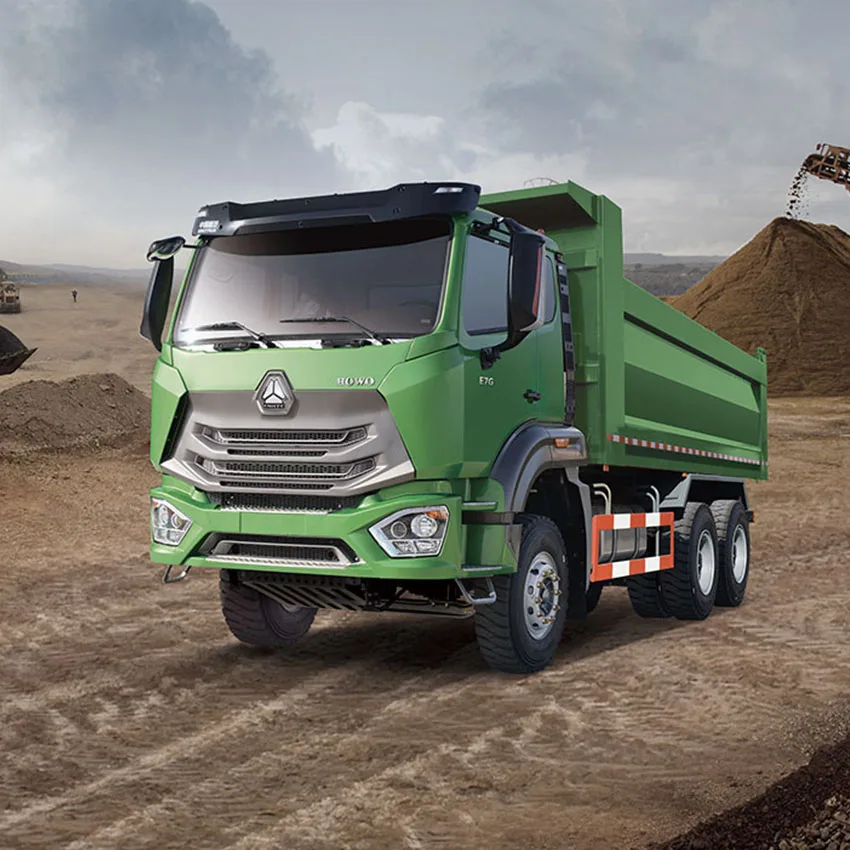

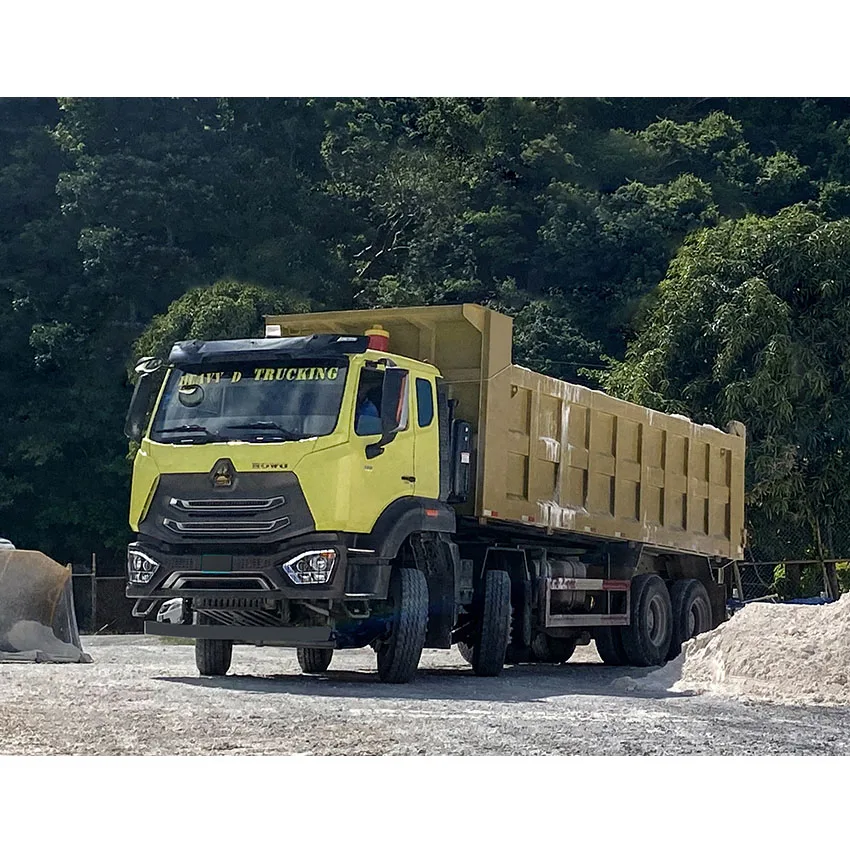

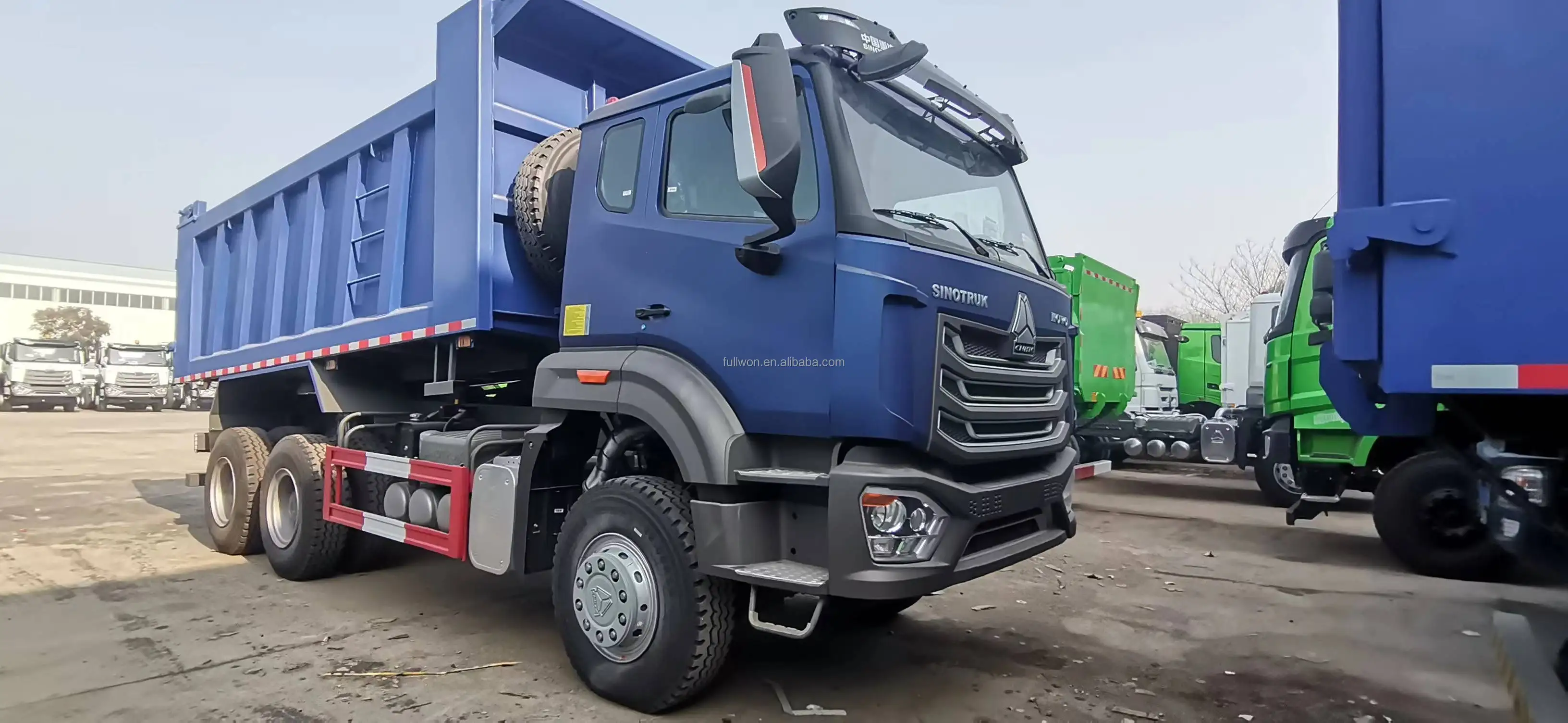

HOWO NX Series N7 6X4 380hp 25T Manual Diesel Tipper Dump Truck
- Category: >>>
- Supplier: Shanghai Fullwon Industrial Co. Ltd.
Share on (1601044843374):
Product Overview
Description
| HOWO NX Series N7 6X4 380hp 25T Manual Diesel Tipper Dump Truck | |

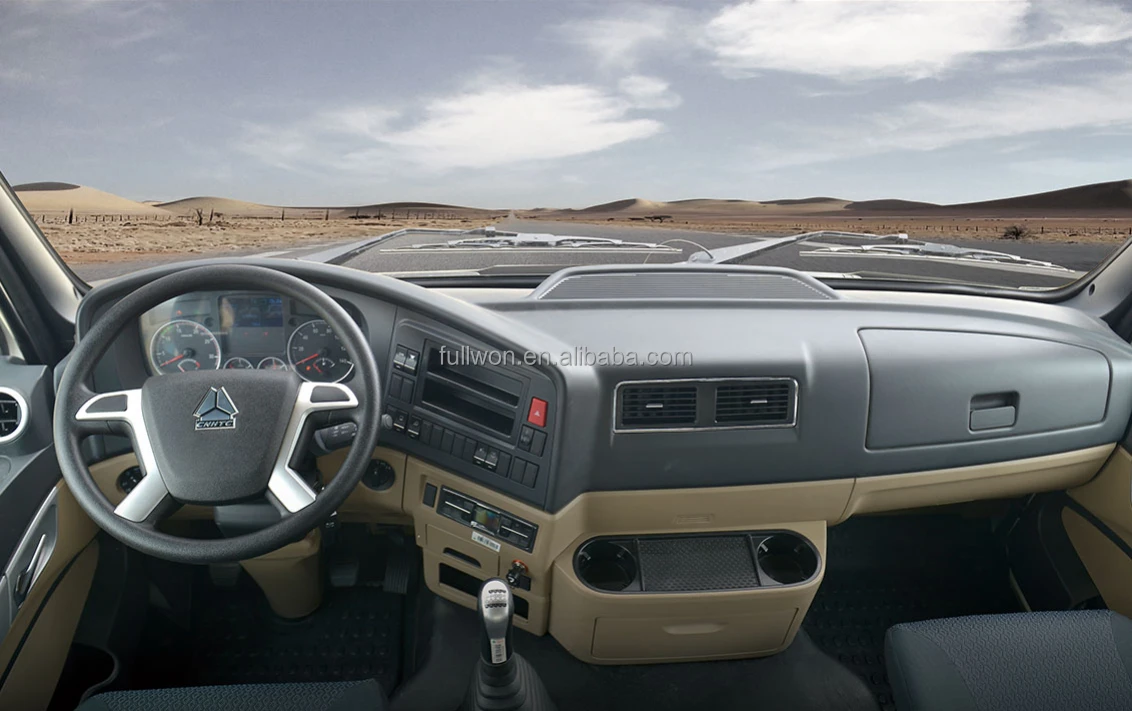

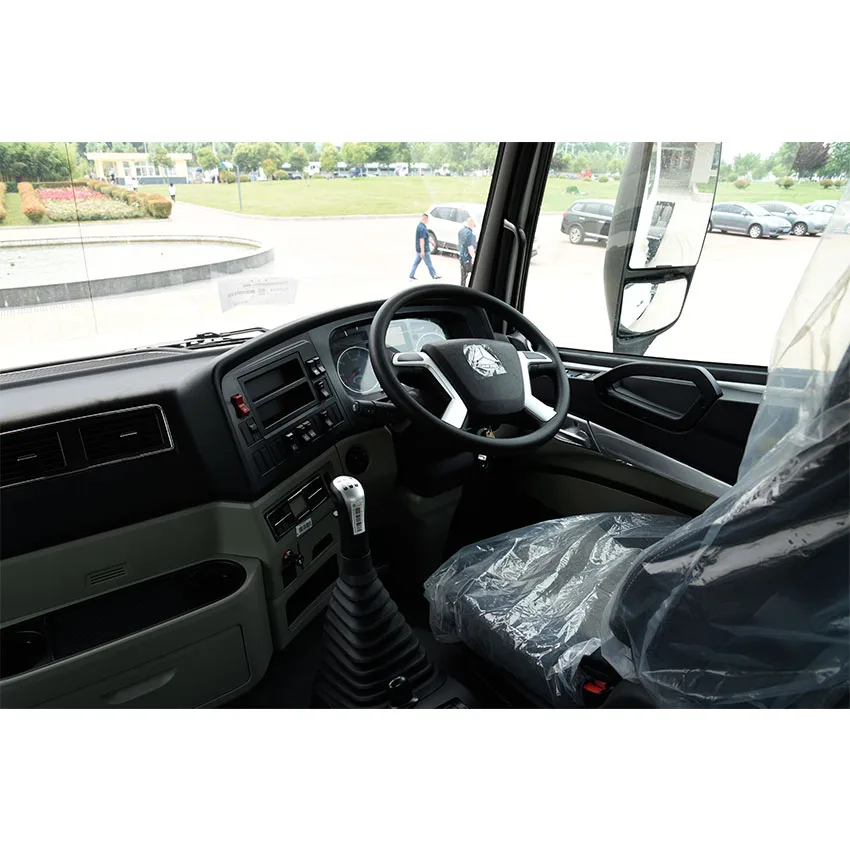

| Cabin | H77L cab, with one sleeper and two seats |
| Transmission | HW19710+HW50PTO |
| Steering | D50, hydraulic steering with power assistance |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Brake | Service brake: dual circuit compressed air brake |
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |
| Auxiliary brake: engine exhaust brake | |
| Tires | 12.00R20, Steel tires. 10+1 pics |
| Fuel Tank | 300L |
| Dump Truck Body | 5.6*2.3*1.5m/19.32cubic, China brand hydraulic Middle lifting system |
| Overall Dimension | 8500*2550*3500 mm |
| Engine | Diesel 4-stroke direct injection diesel engine,Engine model: WP10.380E22, Euro 4/Euro 5, 380HP, 6-cylinder in-line with water cooling, turbo-charging and intercooling,Displacement: 11.596L |
| Rear Axle | MCY16ZG Drum brake, Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 6.037 |
| Front Axle | VGD95, 1x9500 KGS Steering with double T-cross section beam |
| Chassis | Frame: U-profile parallel ladder frame with section of 280x80x8mm, and reinforced subframe all cold riveted cross members |
| Electrics | Operating voltage: 24 V, negative grounded |
| Starter: 24 V, 5.4 Kw | |
| Alternator: 3-phase, 28 V, 1540 W | |
| Batteries: 2 x 12 V, 165 Ah | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Color | Optional |
| GVW | 25000KG |
Truck | Construction equipment | Spare parts | ||
| Fullwon is one of leading truck distributors in Asia. Professional suppliers on the truck business for more than 15 years. | The super dealer of Volvo truck in China, who are providing all kinds of construction equipment, the domestic brands which including: | Full range of spare part for the trucks and construction quipment. Professional spare parts technical support with rich experience. | ||
| *Heavy duty truck | *Wheel loader | *Truck parts | ||
| *Light cargo truck | *Excavator | *Constuction machinery parts | ||
| *Truck mounted crane | *Road roller | *Best value parts | ||
| *Customized truck | *Bulldozer | *Truckparts.com.ph | ||
| *3 wheels truck | *Motor grader | *Fiamm horn | ||
| *Tank truck | *Mobile crane | *Workshop tools | ||
| *Semi-trailer | *Forklift truck |
Q: How can we trust your company?
A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and
VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.
Certificates including ISO9001 can also be provided.
Q: How about your warranty item?
A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our
experienced engineer can go abroad to your place for technical support.
Q: How about your product quality?
A: All our products are from the original manufacturers and the quality is 100% guaranteed.
Q:Can I be your agent in my country ?
A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
