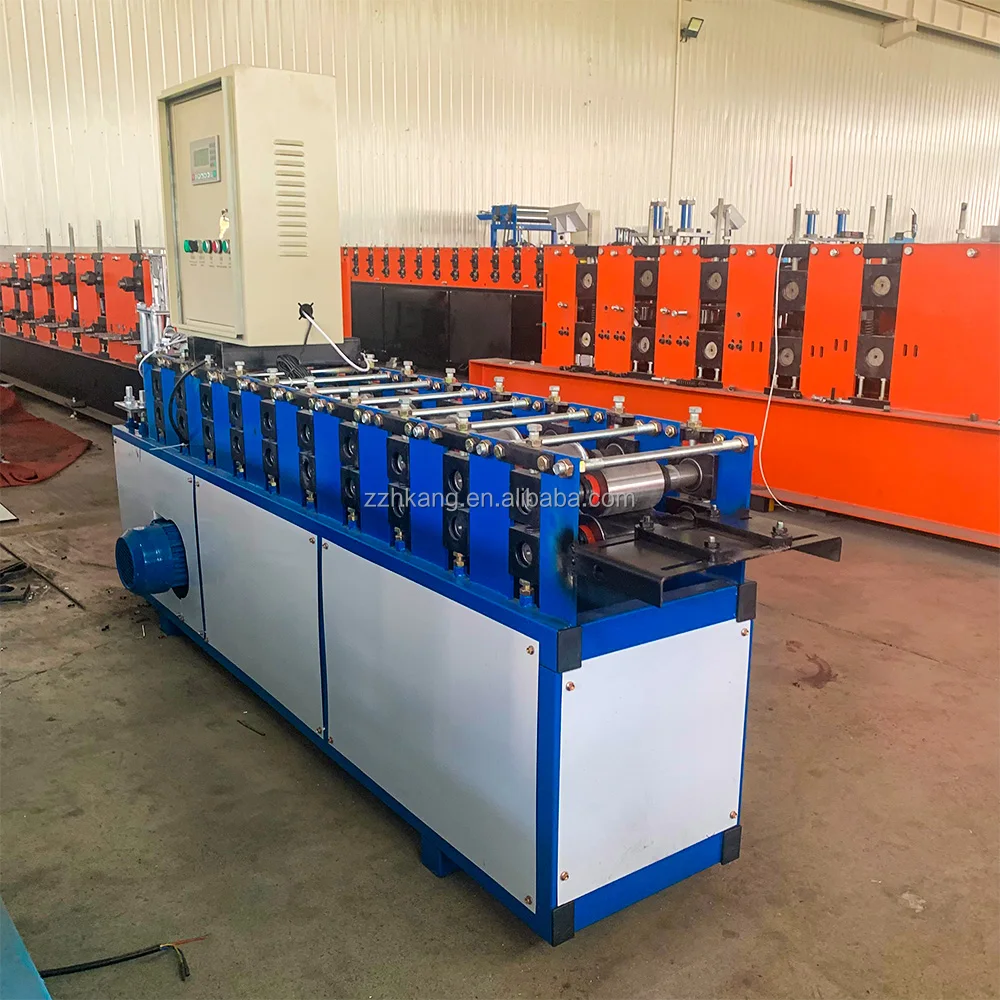

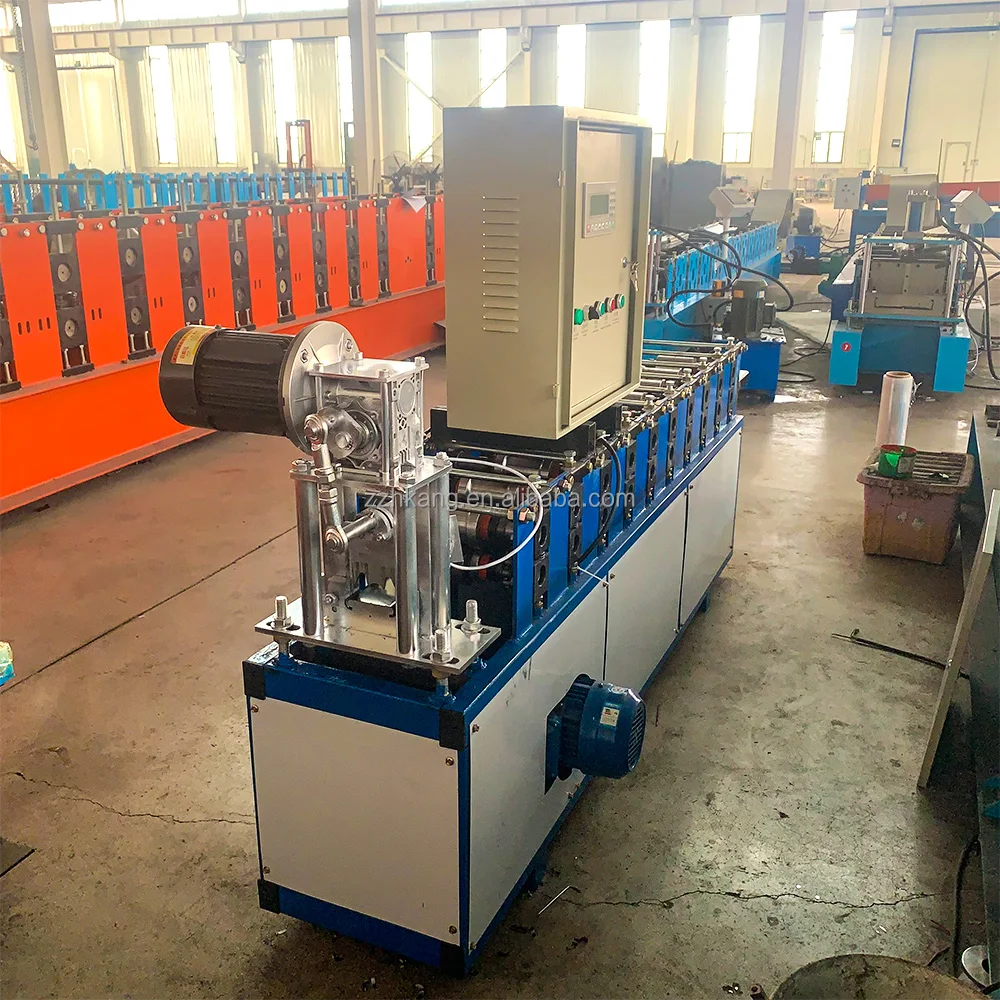

Factory European Standard Automatic Billboard Panel Making Machine C84 Adverting Gusset Plate Panel Roll Forming Machine
- Category: >>>
- Supplier: Zhengzhou Hokang Machinery Co. Ltd
Share on (1601046036862):
Product Overview
Description
Products Overview
Metal Gusset Plate Billboard Making Machinery Advertising Steel Gusset Plate Roll Forming Machine
Gusset Plate Machine is a very popular type of board in the market in recent years. Mainly exported to markets in Europe, America, Southeast Asia, such as the United States, Germany, Brazil, Malaysia, Chile, Indonesia, the Philippines, Russia, Thailand etc，It features a buckle style splicing design, seamless splicing, convenient installation, and high-end atmosphere. It is mainly used in various occasions such as commercial space background walls, outdoor door heads, indoor and outdoor suspended ceilings, and can be designed with different appearances according to customer requirements.
Main technical parameters of equipment
1.1 Equipment footprint: 2.2*0.6*1.2mm
1.2 Equipment feeding direction: left in and right out.
1.3 Voltage parameters 220V/380V (can be customized).
1.4 Drive motor power: 1.5KW / 2.2KW
1.5 Total quantity: 500kg
1.6 Large frame: welded from square tubes
1. 7 axis: diameter 40mm, quenched and finely ground
1.8 Solid wheel: 45# precision ground surface hard chrome plated
1.9 Middle plate: 10mm (16mm overall middle plate optional)
2.0 wheel chain: 6 minutes quenching treatment (optional gear transmission)
2.1 Cutting method: Electric shear (hydraulic shearing optional) Motor power: 0.75KW
2.2 Shearing error: ±0.5mm
2.3 Shearing mold: Gr12 P80mm*130mm*20mm
2.4 Maximum speed of molding machine: medium speed frequency conversion 15-25 m/min
2.5 Thickness of formed color steel plate: 0.2-0.8mm
2.6 Forming error: 0.2mm
2.7 Effective width of formed color steel plate: 84mm
2.8 Expansion width of formed color steel plate: 110mm
2.9 Production product specifications: raw material thickness: 0.3-0.6mm, feeding width: 110mm
3.0 Discharging speed: high speed 30-36 meters/minute (the overall speed can be controlled by the frequency converter power
speed, can save electricity, and can control the accuracy of machine discharging).
3.1 Applicable materials: Material: color steel plate. If you need other materials, please inform us in advance.
1.2 Equipment feeding direction: left in and right out.
1.3 Voltage parameters 220V/380V (can be customized).
1.4 Drive motor power: 1.5KW / 2.2KW
1.5 Total quantity: 500kg
1.6 Large frame: welded from square tubes
1. 7 axis: diameter 40mm, quenched and finely ground
1.8 Solid wheel: 45# precision ground surface hard chrome plated
1.9 Middle plate: 10mm (16mm overall middle plate optional)
2.0 wheel chain: 6 minutes quenching treatment (optional gear transmission)
2.1 Cutting method: Electric shear (hydraulic shearing optional) Motor power: 0.75KW
2.2 Shearing error: ±0.5mm
2.3 Shearing mold: Gr12 P80mm*130mm*20mm
2.4 Maximum speed of molding machine: medium speed frequency conversion 15-25 m/min
2.5 Thickness of formed color steel plate: 0.2-0.8mm
2.6 Forming error: 0.2mm
2.7 Effective width of formed color steel plate: 84mm
2.8 Expansion width of formed color steel plate: 110mm
2.9 Production product specifications: raw material thickness: 0.3-0.6mm, feeding width: 110mm
3.0 Discharging speed: high speed 30-36 meters/minute (the overall speed can be controlled by the frequency converter power
speed, can save electricity, and can control the accuracy of machine discharging).
3.1 Applicable materials: Material: color steel plate. If you need other materials, please inform us in advance.
Roll forming cold bending equipment production process flow
Unwinding machine—roller forming—hydraulic shearing—receiving rack

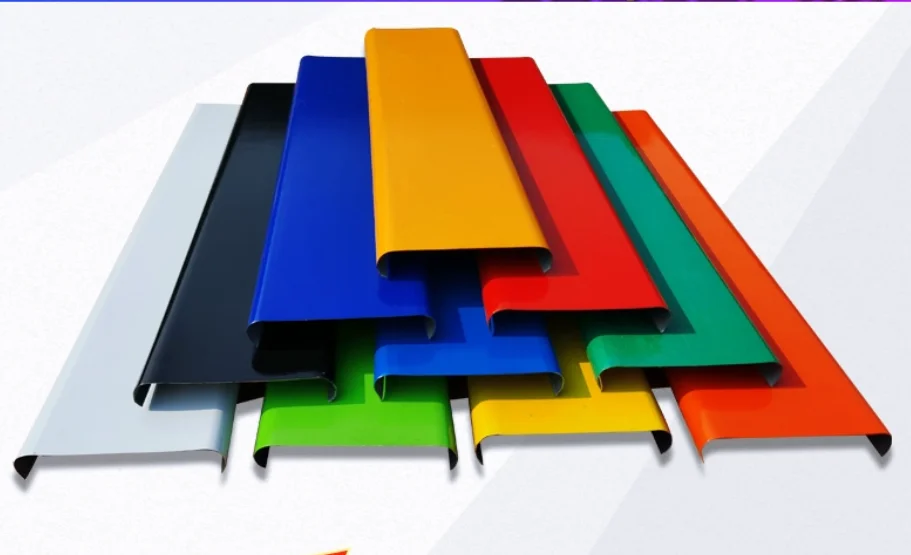

Finished product
Molding specifications: according to customer drawings, the expansion width size is designed according to the size determined by the customer

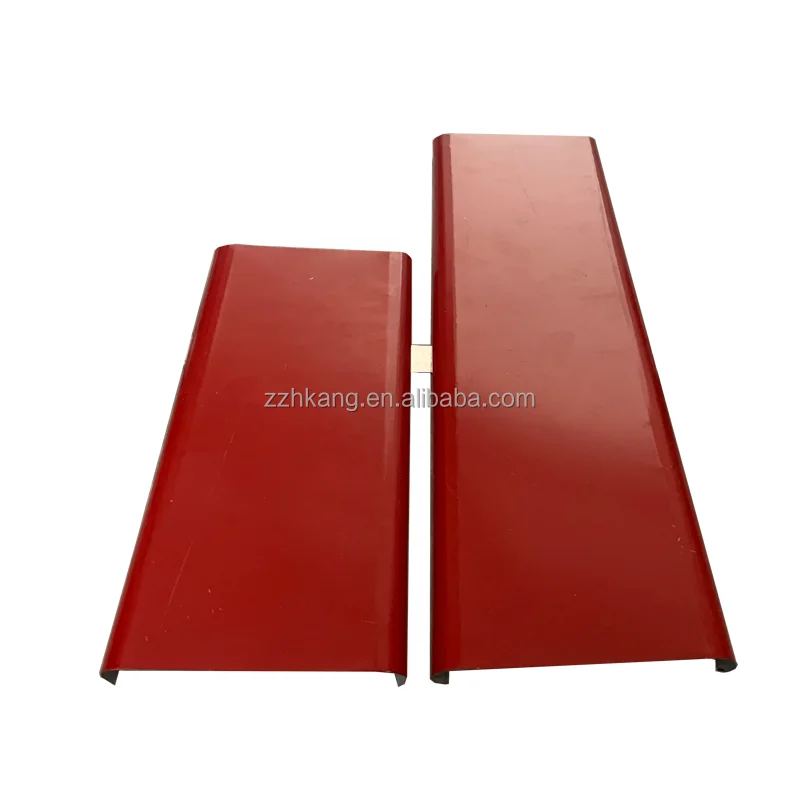

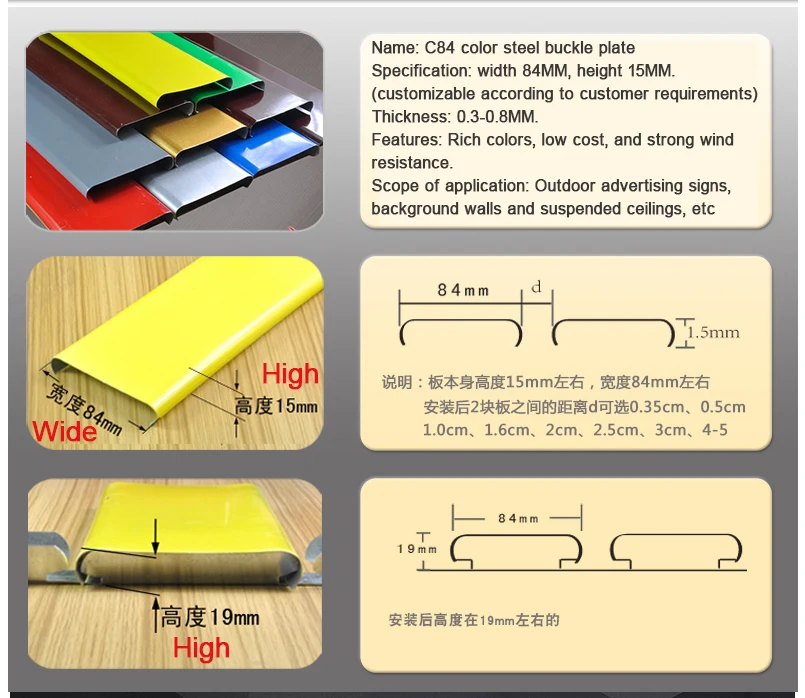

Name: C84 color steel buckle plate
Specification: width 84MM, height 15MM(customizable according to customer requirements)

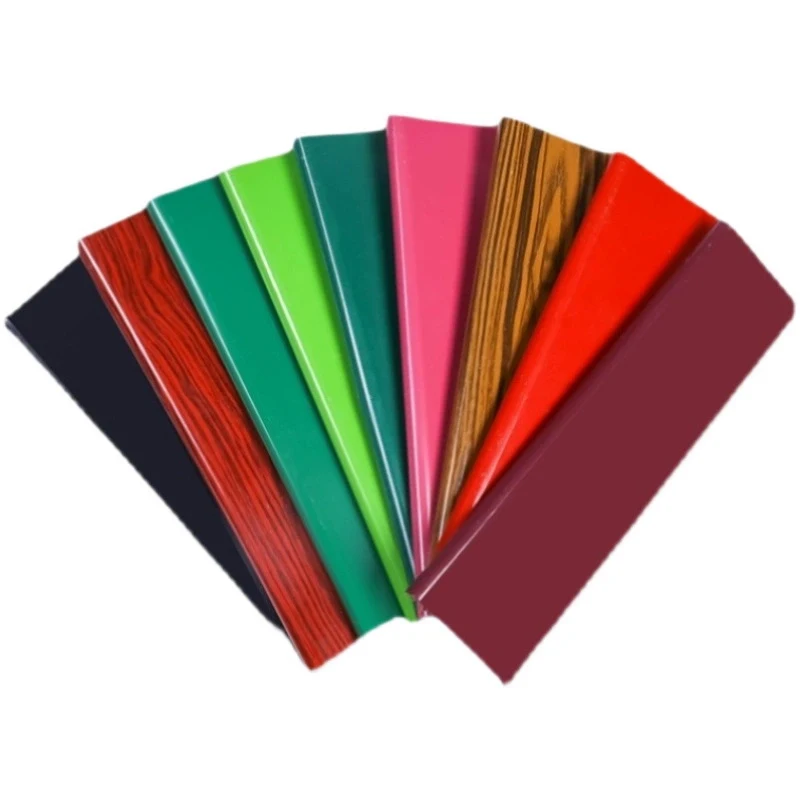

Thickness: 0.3-0.8MM.Features: Rich colors, low cost, and strong windresistance.

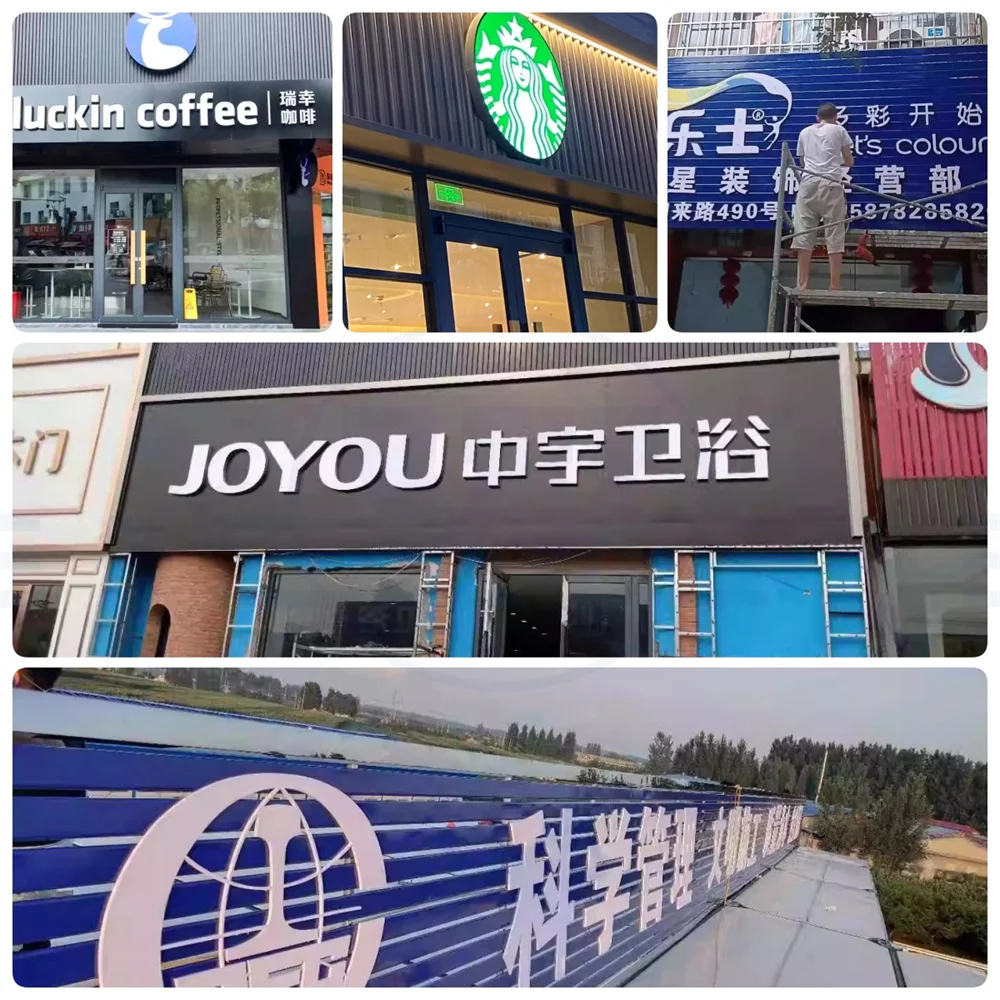

Scope of application: Outdoor advertising signs,background walls and suspended ceilings, etc
Specification
Equipment dimensions | 2500×500×1000 (length×width×height) |
Voltage | 3-phase 380 or 2-phase 220V |
Drive power of reducer | 0.75KW—2.2KW |
Cut off motor power | 0.75KW |
Number of molding rows | 10 rows |
Shaft diameter | 40mm shaft |
Middle plate thickness | 10mm |
Adapt to plate thickness | 0.2mm—0.6mm |
Formed color steel plate effective width | 84mm |
Expanded width | 110mm |
Metal Gusset Plate Billboard Making Machinery:

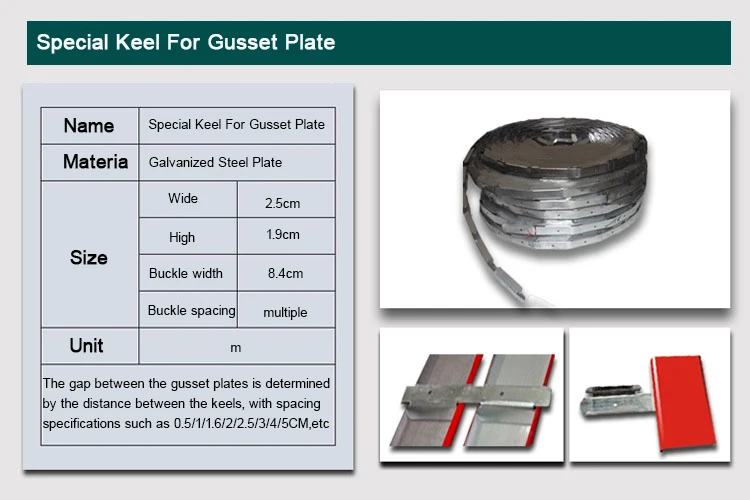

The gap between the gusset plates is determined by the distance the keels,with spacing specifications such as
0.3/0.5/1/1.6/2/2.5/3/4/5cm etc
0.3/0.5/1/1.6/2/2.5/3/4/5cm etc

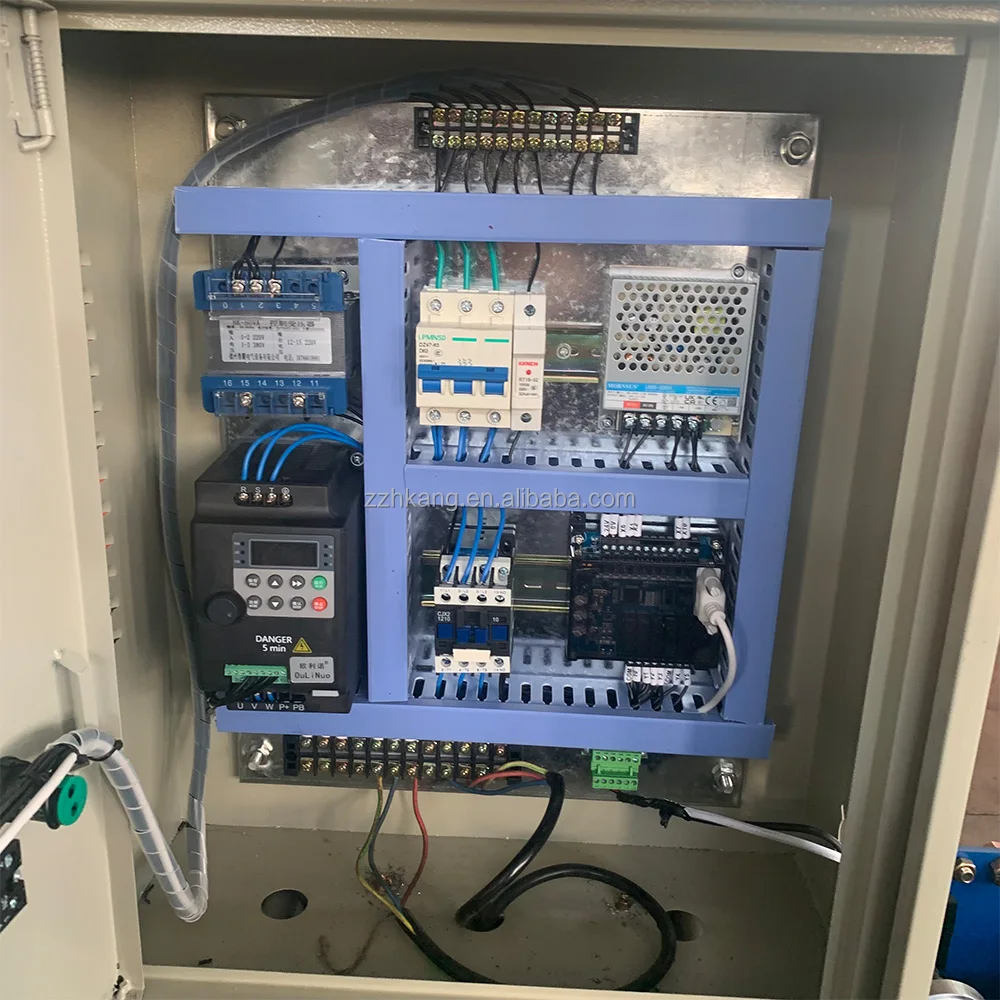

All the control system of our machines we make by ourselves. we have a professional engineer to design and make the control system. This can make sure the after-sale service, when customer have problem with control, we can solve it timely.

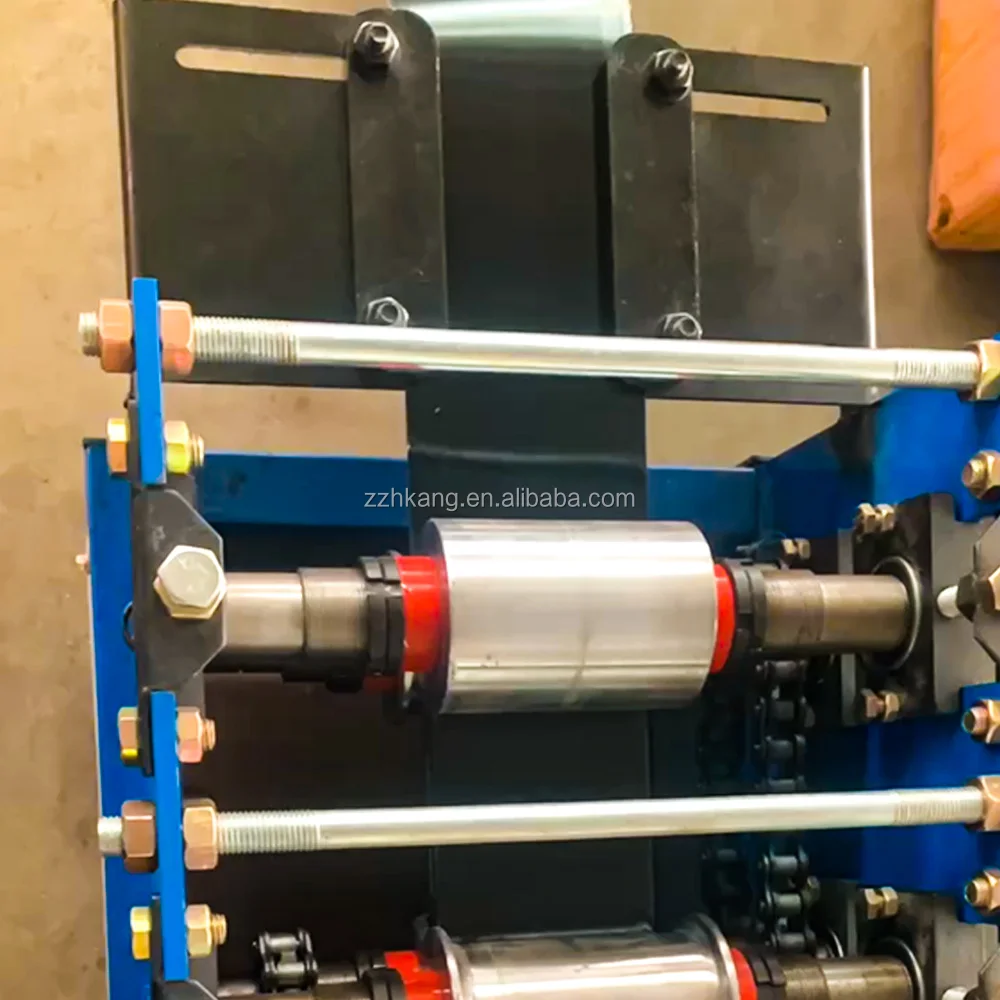

Design of Machine

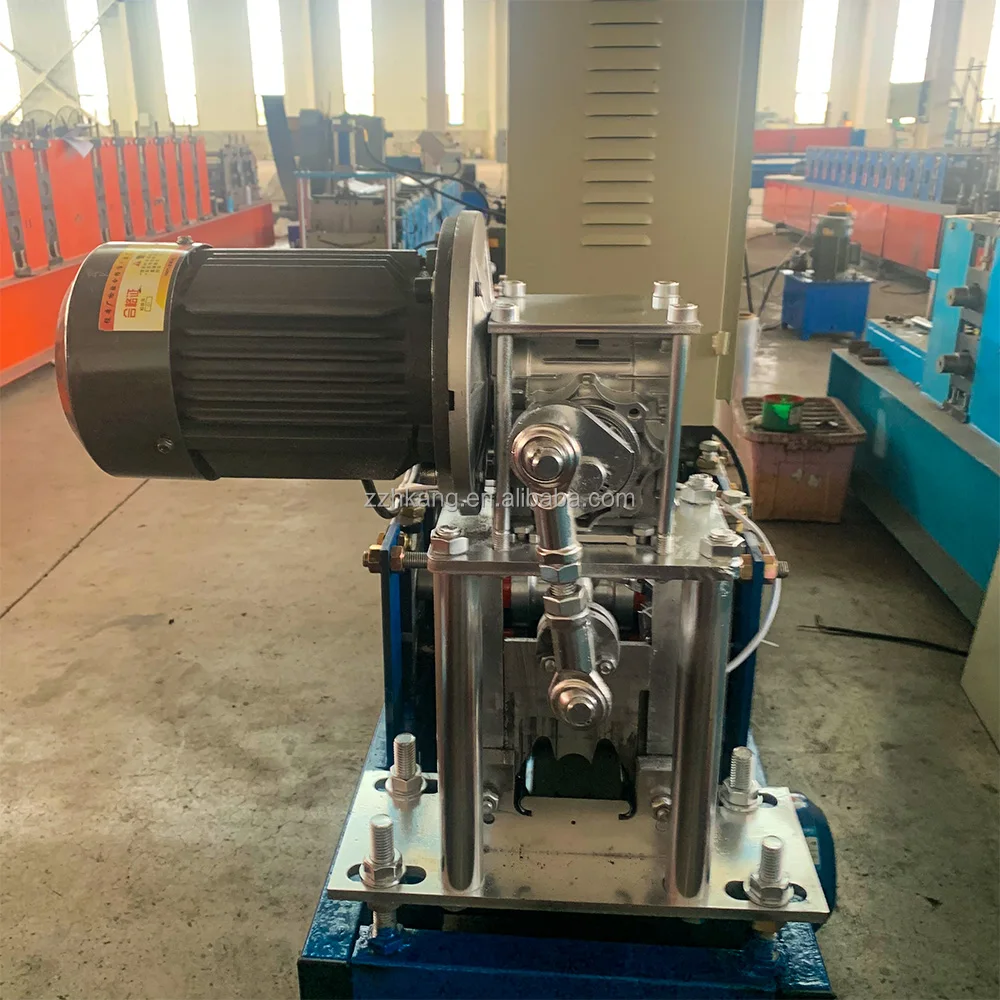

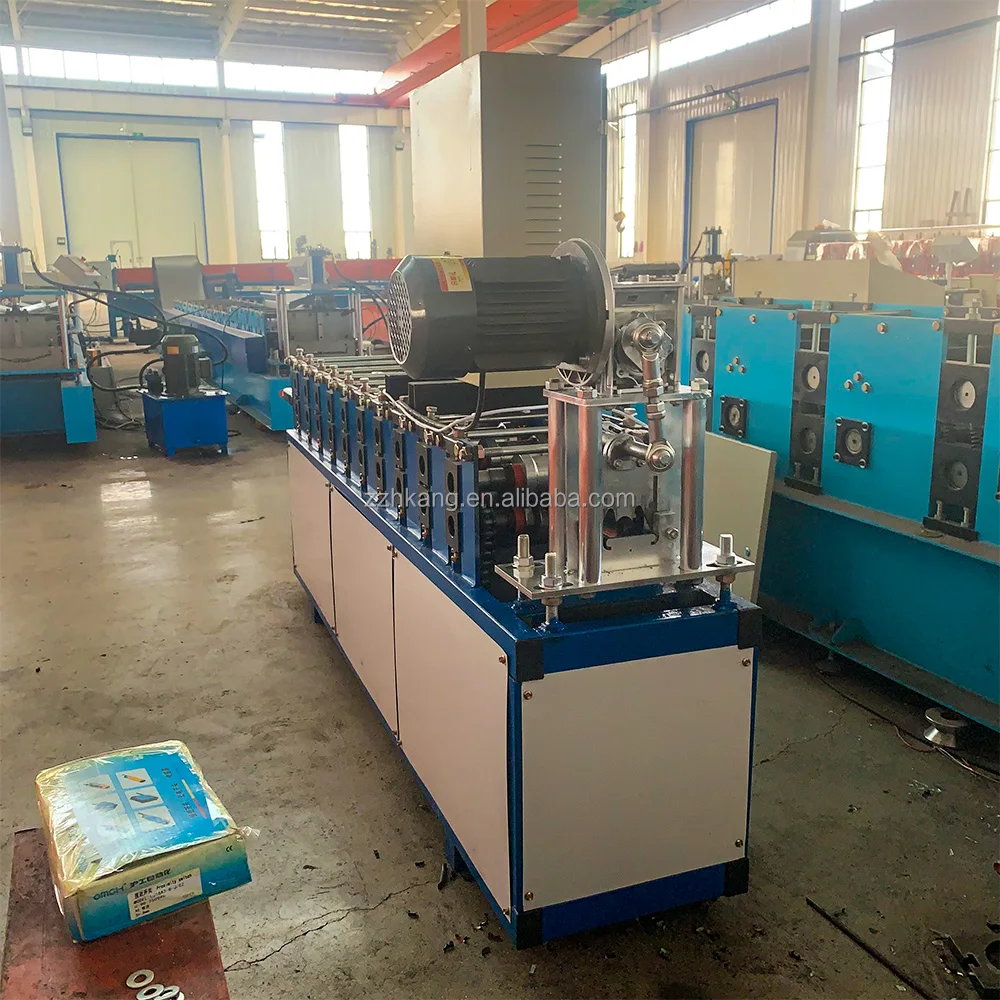

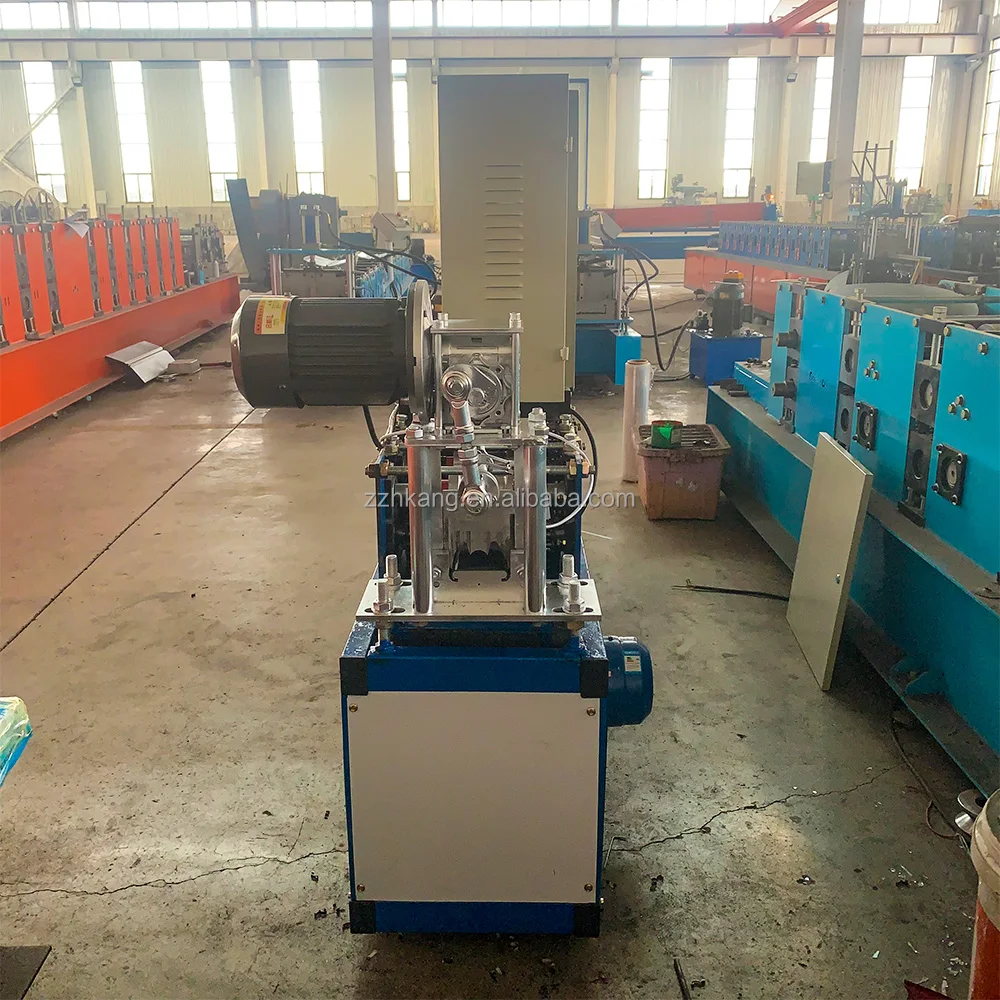

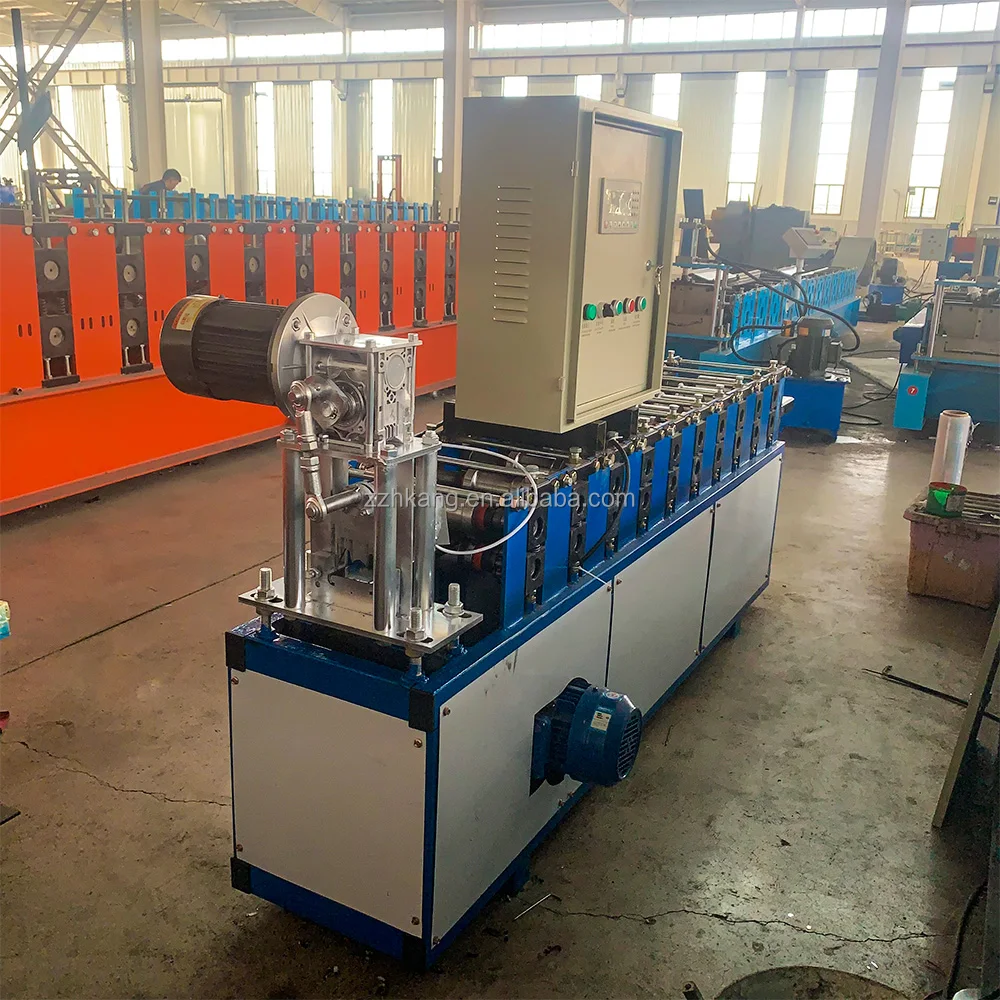

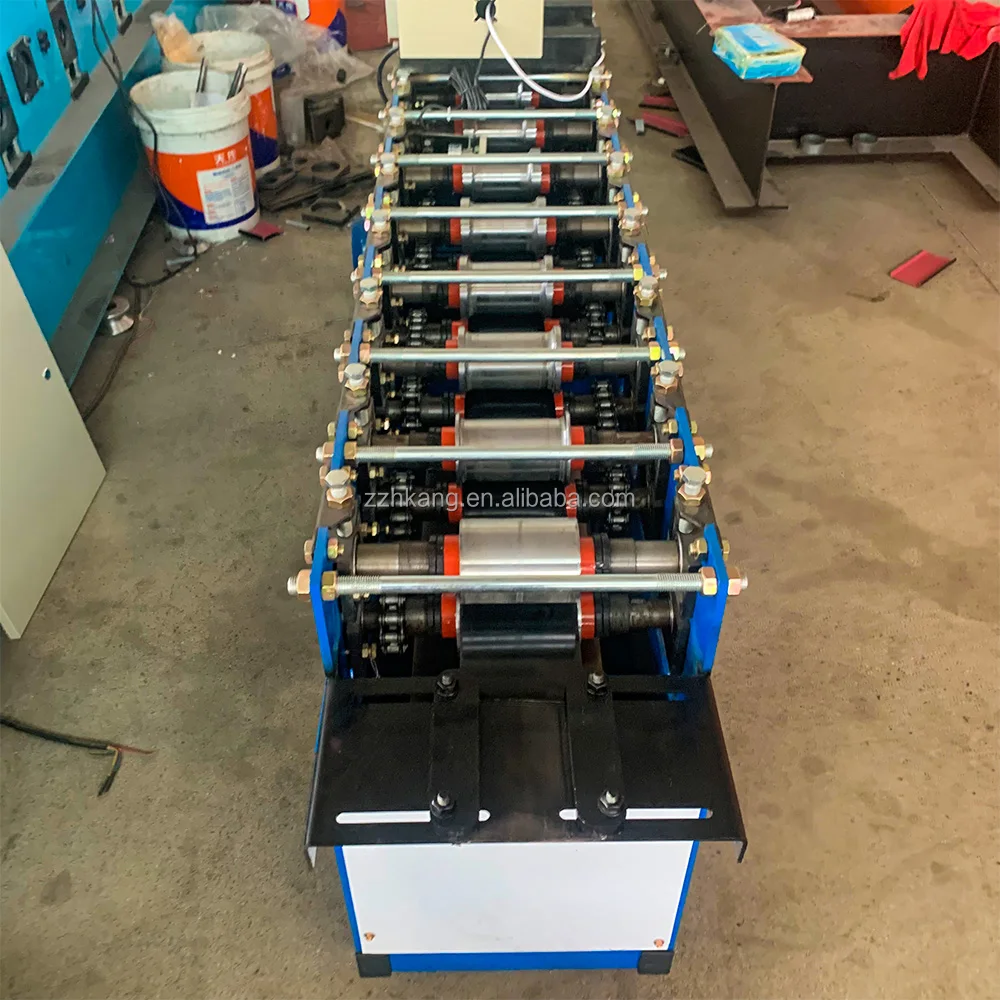

The unit includes: forming host, unwinding rack, forming shears, control box, and laminating device. The equipment is fully automatic computer-controlled, automatic metering, automatic laminating, automatic cutting.

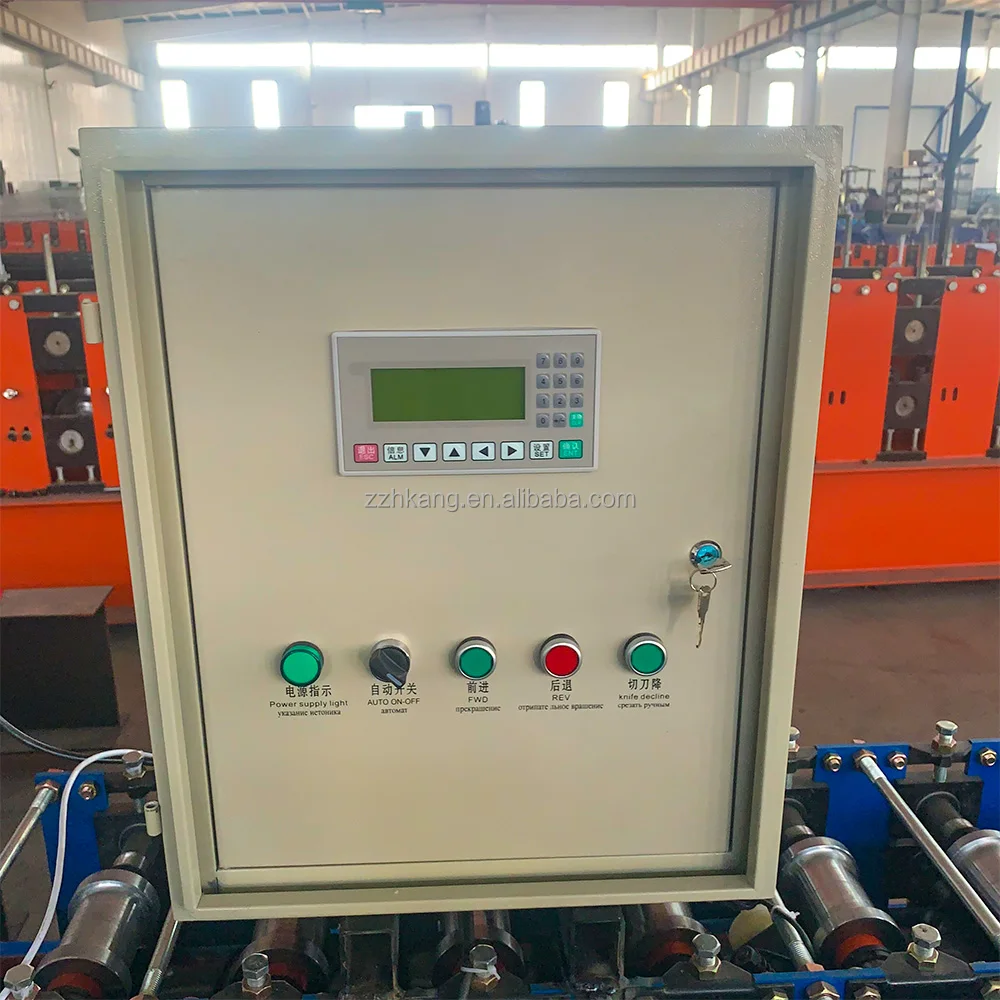

Computer control: automatic control of quantity and cutting length,
The components include: PLC, text screen, (frequency converter is optional) shear tolerance ≤±1mm, and other components are national famous brands.
Production speed: ordinary frequency conversion 8-10 meters per minute
Production speed: medium speed frequency conversion 15-25 meters per minute
Production speed: high-speed frequency conversion 30-37 meters per minute
Production speed: high-speed punching frequency conversion 30-37 meters per minute
Production speed: medium speed frequency conversion 15-25 meters per minute
Production speed: high-speed frequency conversion 30-37 meters per minute
Production speed: high-speed punching frequency conversion 30-37 meters per minute

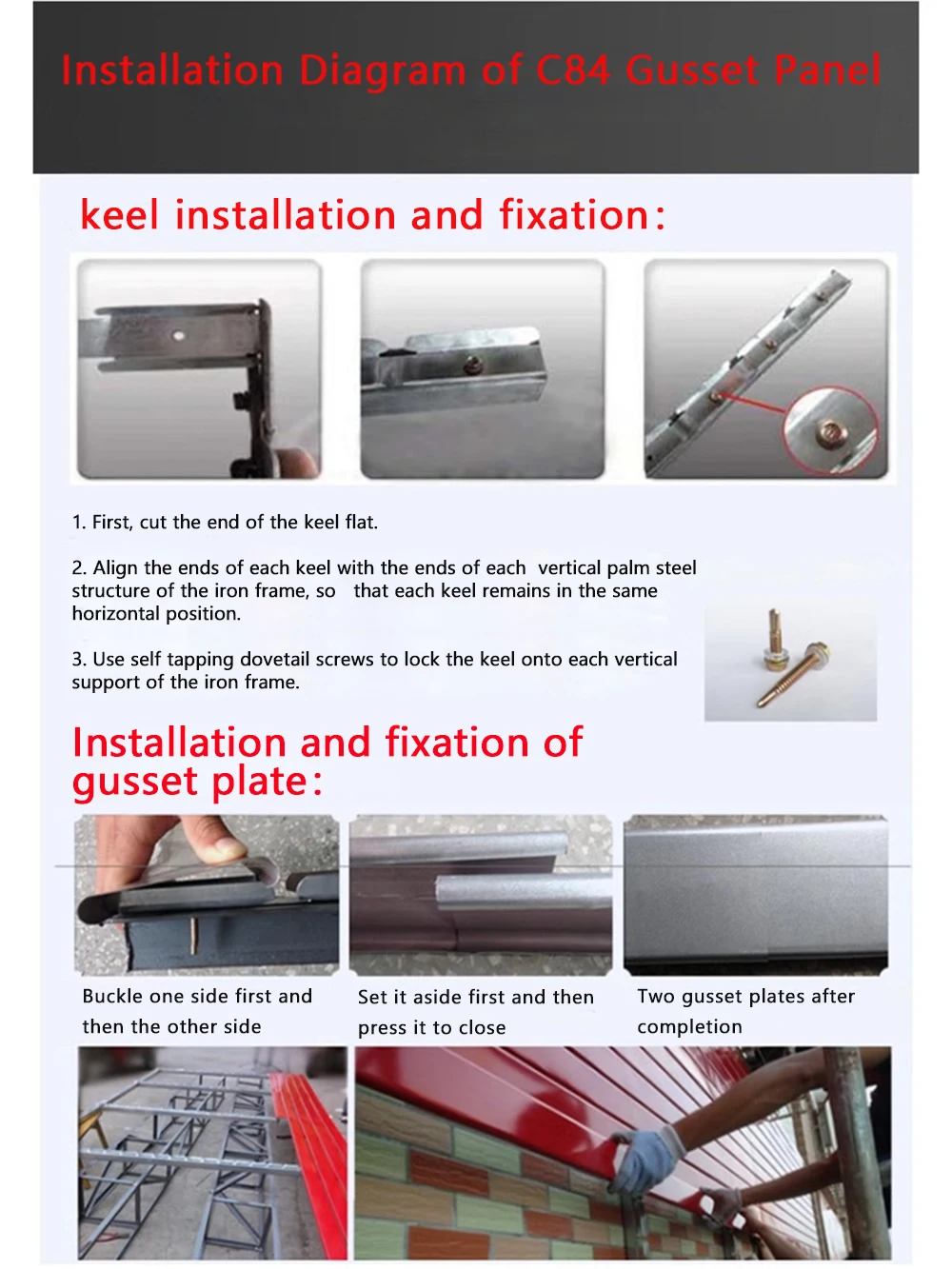

1. First, cut the end of the keel flat.
2. Align the ends of each keel with the ends of each vertical palm steel structure of the iron frame, so that each keel remains in the same horizontal position.
3. Use self tapping dovetail screws to lock the keel onto each vertical support of the iron frame.

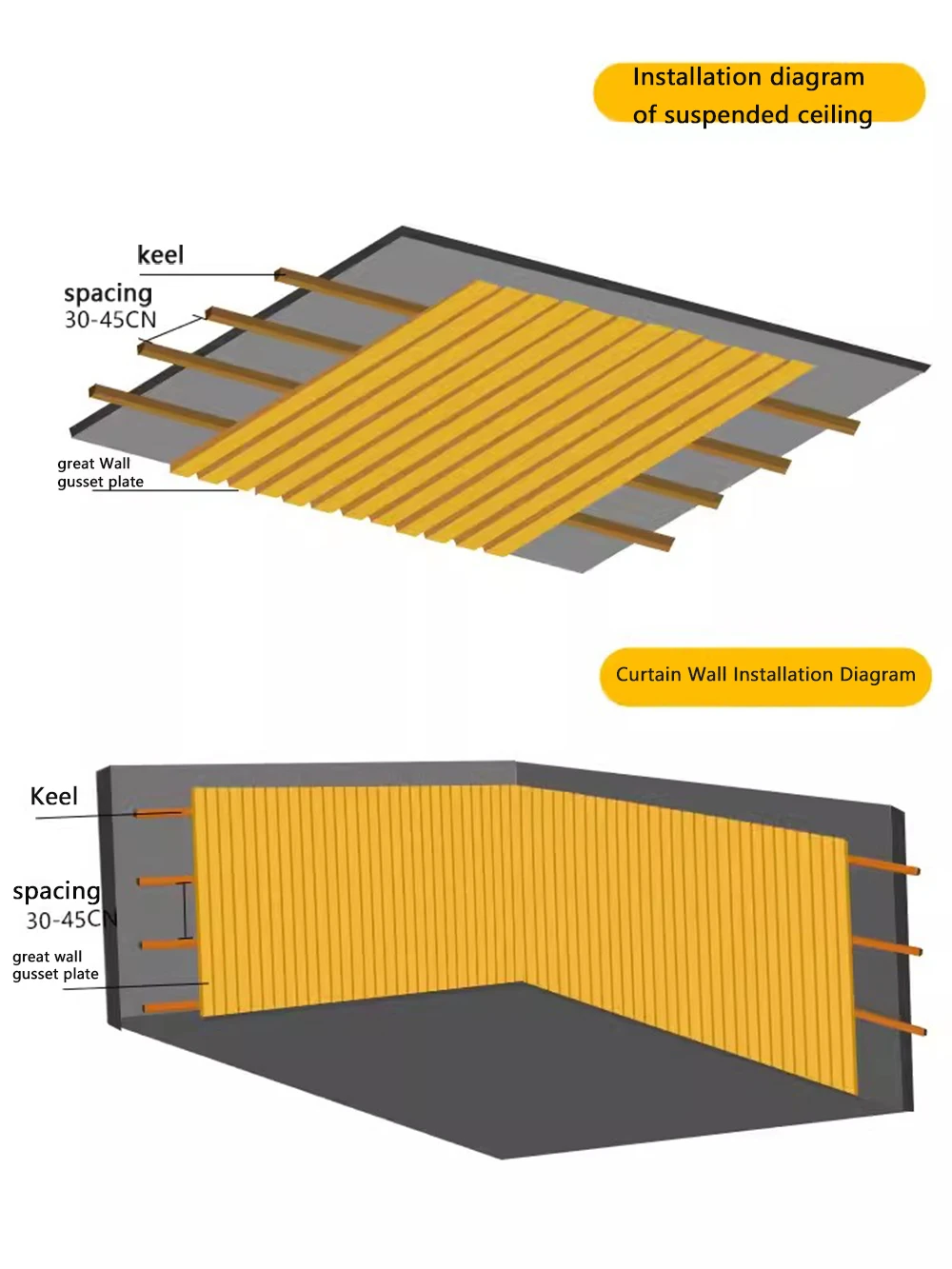

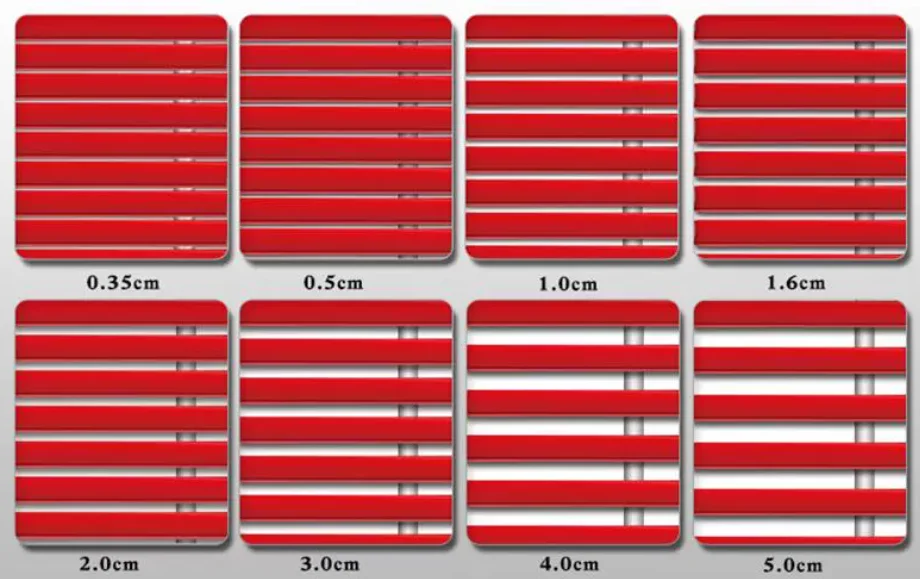

Different keel spacing installations have different effects - a schematic diagram

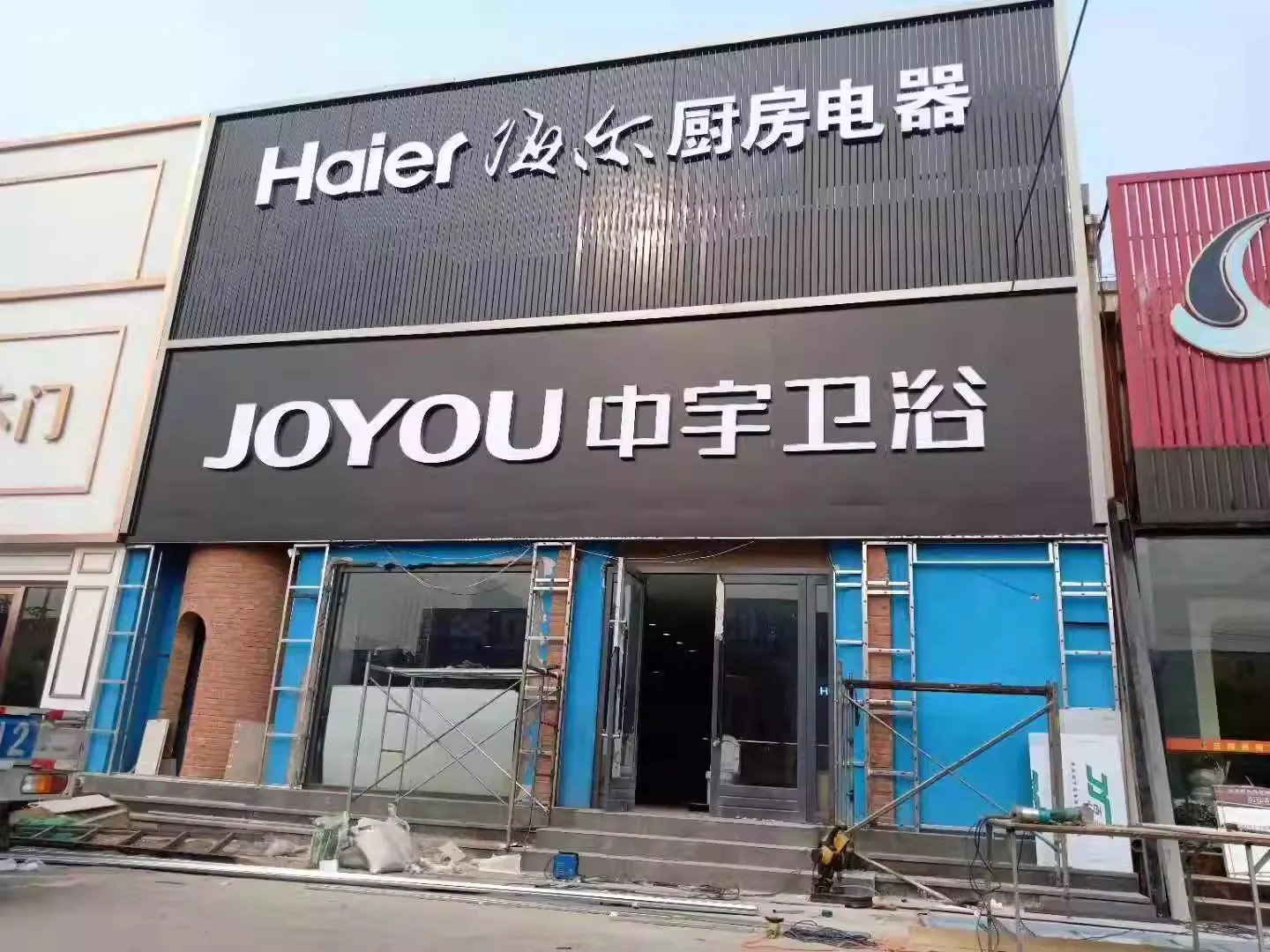

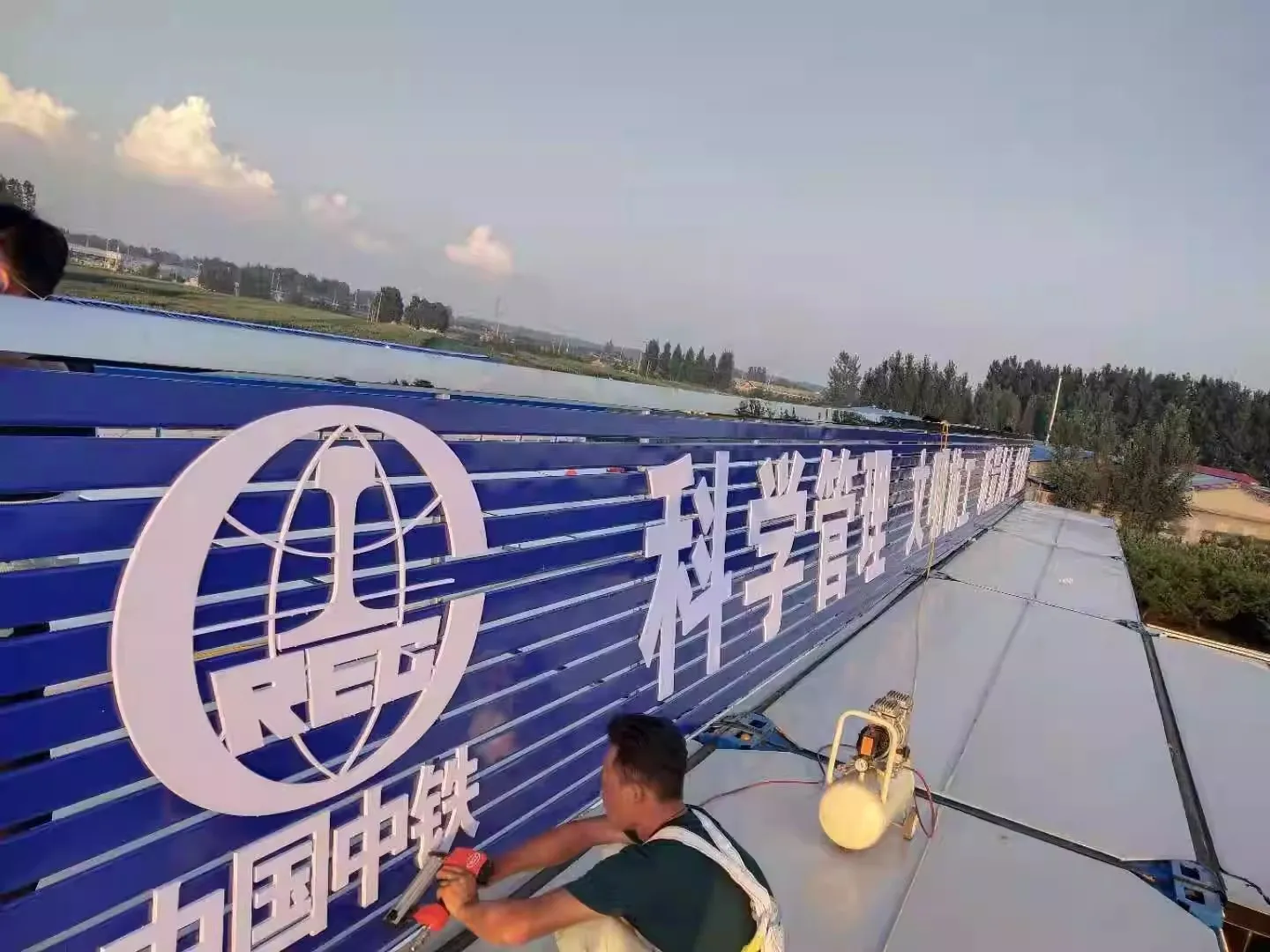

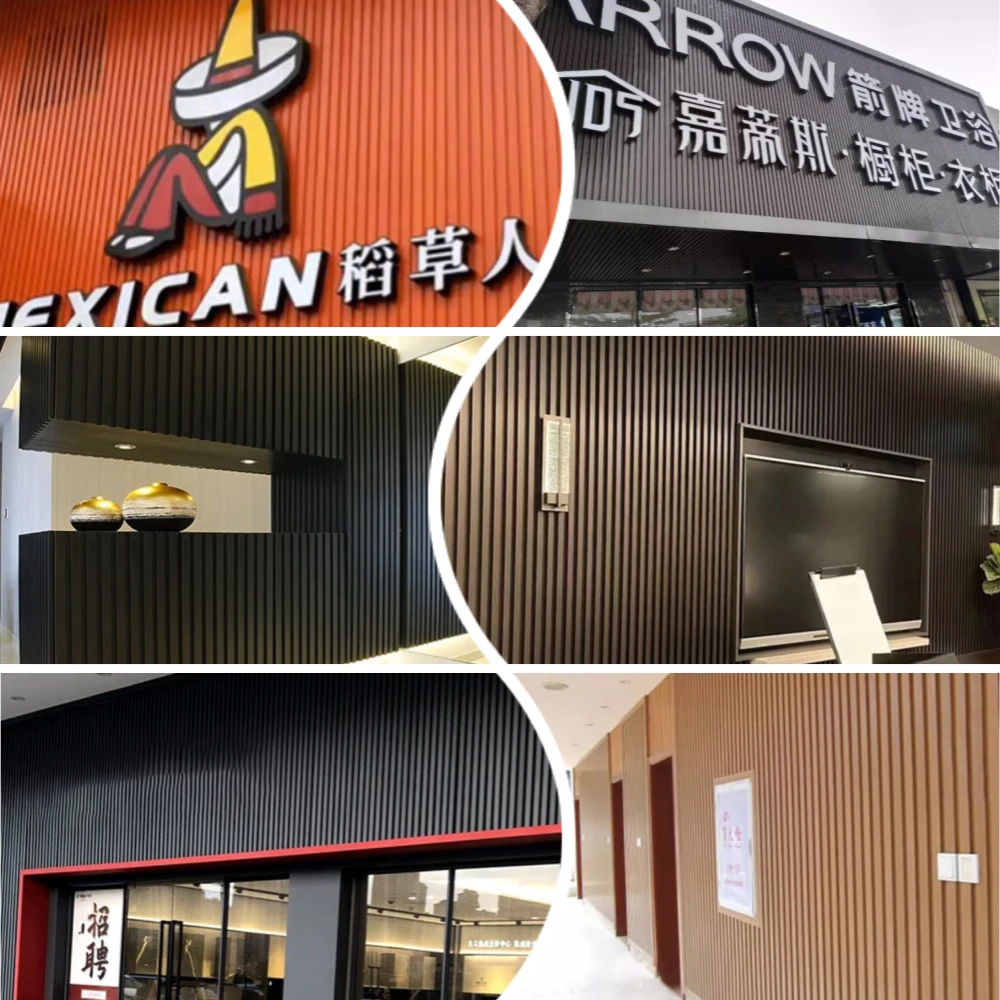

Product Application
Why Choose Us
Our Technical Personnel Provide On-Site Services Overseas:
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
