Metal Gutter Roll Forming Machine Aluminium Roofing Waster Gutter Collect Rainwater Downspout Forming Machine
- Category: >>>
- Supplier: Henan Dingkou Industrial Co. Ltd.
Share on (1601046545882):
Product Overview
Description
Product information
1. Product Profile

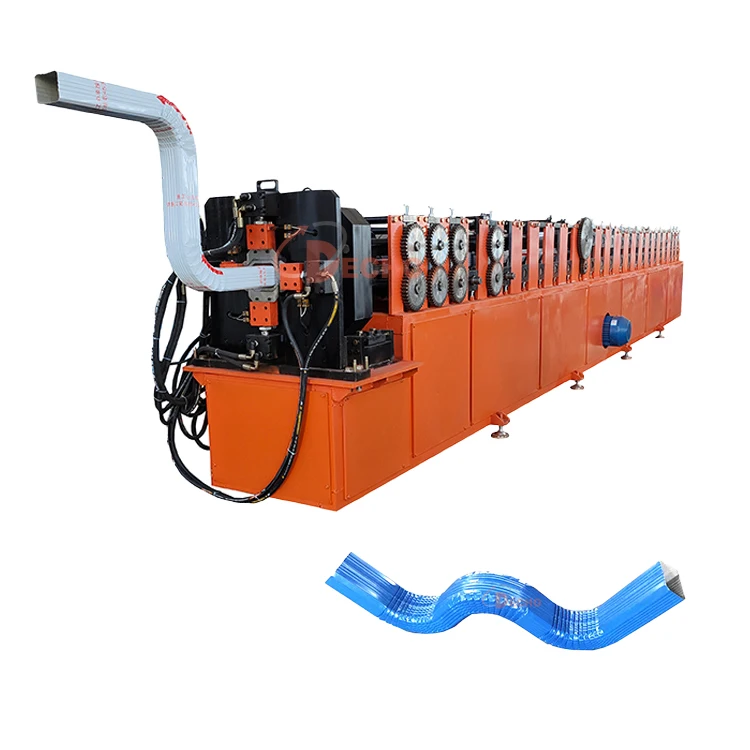

This square / round downspout pipe roll forming machine is a complete line that can produce pipe and elbow in one machine. We use servo motor as main forming power, it improves pipe’s precision. At last process, we not only offer a hydraulic cut, but also a elbow machine and a shrink device.
Collecting roof rainwater is an integral part of the falling water system, which is concentrated into the rainwater pipes laid below the ground. Downspout pipe material can be divided into:Metal pipes (such as cast iron pipes, colored aluminum pipes, copper pipes, colored steel pipes, etc.)
(Customized according to customer configuration requirements.)

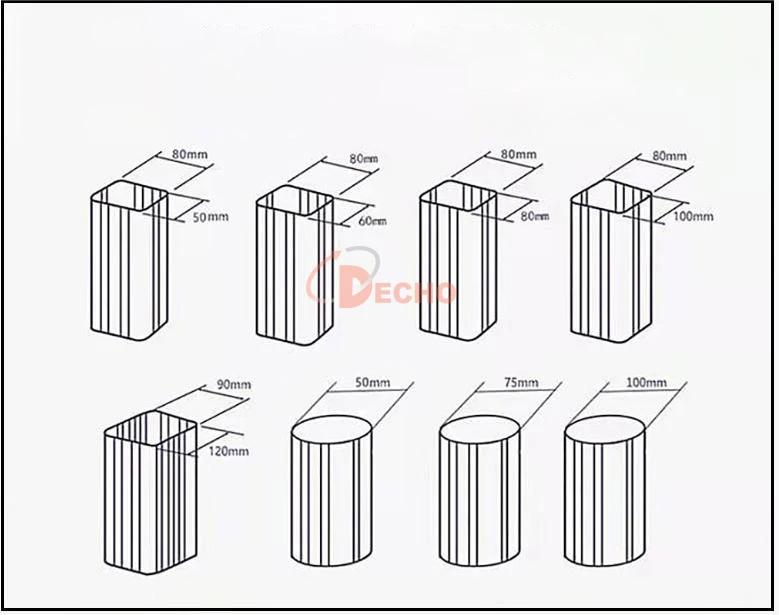

2. Sizes of downspouts that can be produced
Standard Shape Profile ( Also can be customized)
3. Work Flow
Capacity of the entire production line is 1-10 m/min. It consists of 6 parts. Un-coiler→Feeding and leveling material →Hydraulic punching→Roll forming→ Auto cutting→ Products receiving table, but It only takes 1 -2 worker.
4.Equipment List
NUM | Equipment Name | Quantity |
1 | Uncoiling Device | 1 set |
2 | Forming Main Machine | 1 set |
3 | Hydraulic Cutting System | 1 set |
4 | Material Receiving Table | 1 set |
5 | PLC Control System | 1 set |
6 | Supporting Accessories | 1 set |
5. Product Specification
Item | Parts | Specification & Description |
1.Raw Material | Type | Steel Coil / GI / PPGI |
Thickness(mm) | 0.3-0.9 mm | |
2.Un-coiler Device | Type | Manual/electric/hydraulic Decoiler |
Bearing(Tons) | 3T/5T | |
Way of working | Manual/electric/hydraulic tensioning crank. The center of the four-bar linkage is supported outward | |
Inner contraction range | φ450-550mm | |
Panel Width（mm） | Adjustable according to the molding drawing | |
Coil Inner diameter | φ480-500mm | |
3.Forming Main Machine | Main frame | Material: square tube Processing:Welding of rack box |
Material : 45#steel Thickness: 16 mm Processing :laser cutting steel plate | ||
Shaft | Material : 45# Steel Diameter : 80 mm Processing : Fine machining, quenching and tempering, hard chromium plating. | |
Material: Cr12 mov Processing: finish machining and heat treatment, hard chromium plating, wire drawing and polishing. | ||
Roller Station | 20-22 stations or Customization | |
Specifications:1 inch chain wheel with gear transmission Processing :Quenching heat treatment Gear oil:18 # hyperbolic gear oil | ||
Power:5.5KW Brand:Lichao(optional) Reducer: Cycloidal reducer Protection level:IP55 Explosion-proof level:ExdIICT4 | ||
Type | Automatic Hydraulic Guide Post Cutting | |
Blade material | Cr12 mov (Chromium 12 Molybdenum Vanadium) | |
Pump | hydraulic pressure:10-12mpa Hydraulic oil: 46# | |
Pump motor for cutter | Power: 3KW | |
5.Receiving rack | Type | Default manual receiving rack, optional electric receiving rack. |
Length | 3m | |
6.PLC Control System | PLC Control System | Plc brand:Delta(optional) Text control box:Vertical LCD control box Language: English / Chinese / Customized |
Inverter | Rated power : 7.5KW |
6. Product details
Packaging & Shipping
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
