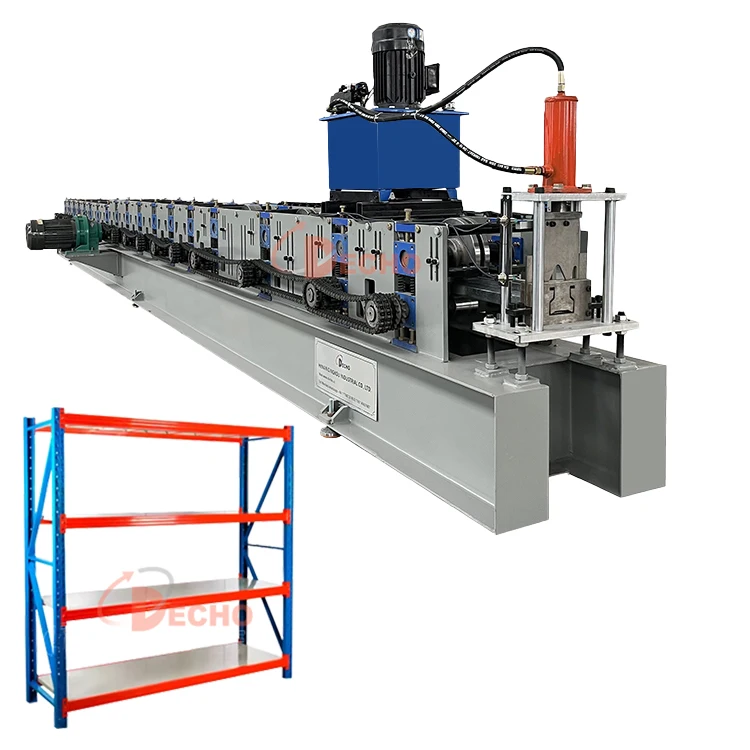

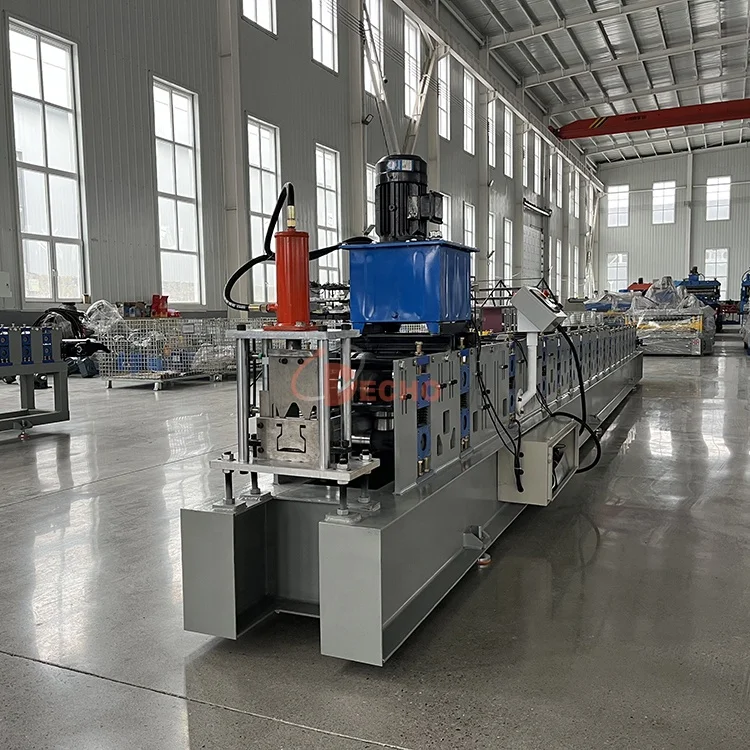

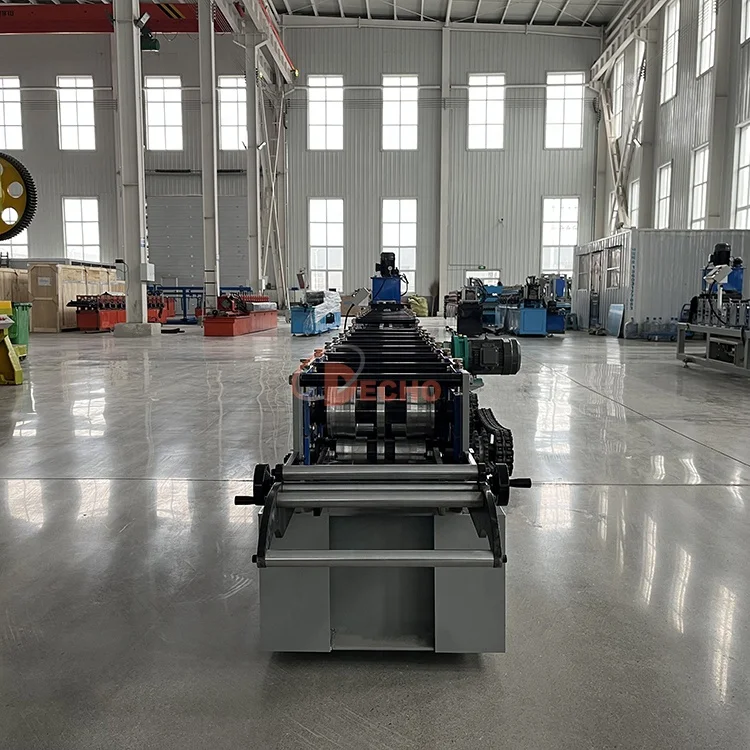

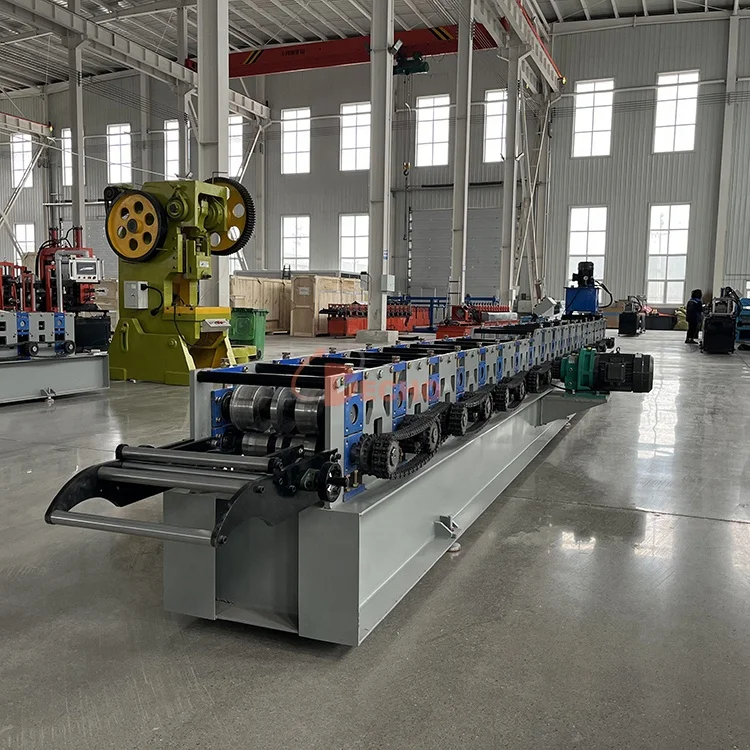

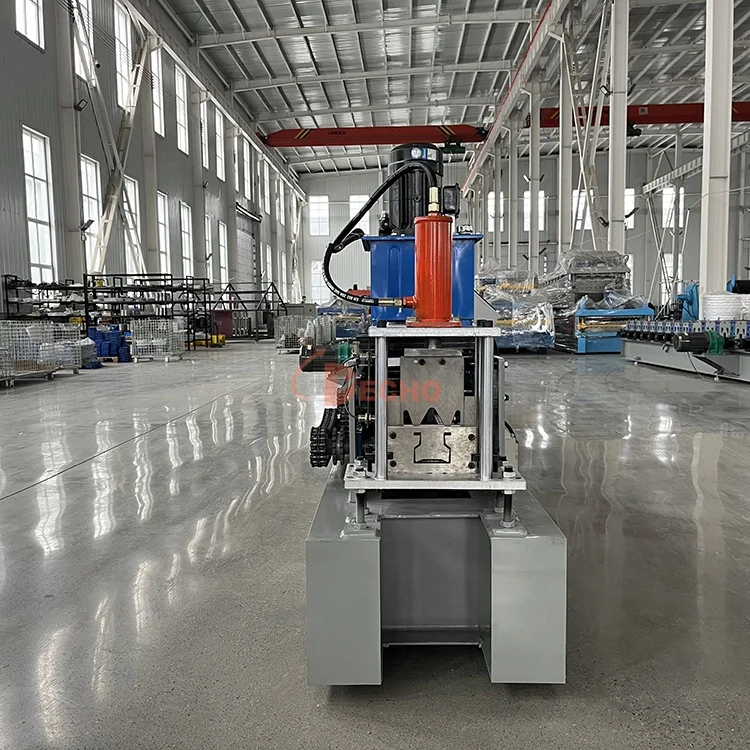

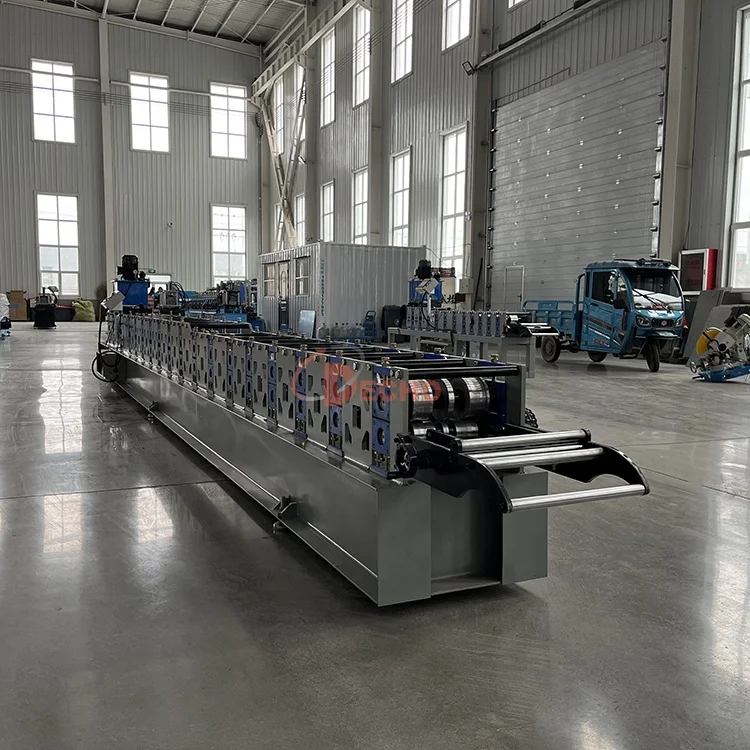

Heavy Duty Storage Rack Pallet Step Beam Roll Forming Machine Shelf Frame Forming Machine For Supermarket
- Category: >>>
- Supplier: Henan Dingkou Industrial Co. Ltd.
Share on (1601047794102):
Product Overview
Description
Product information
1. Product Profile
Supermarket & Warehouse shelf upright stud forming machine.
Supermarket Storage shelf upright stud Roll Forming Machine is used to produce shelf components for warehousing series, and the finished product is “upright stud”.
Supermarket Storage shelf upright stud Roll Forming Machine is used to produce shelf components for warehousing series, and the finished product is “upright stud”.

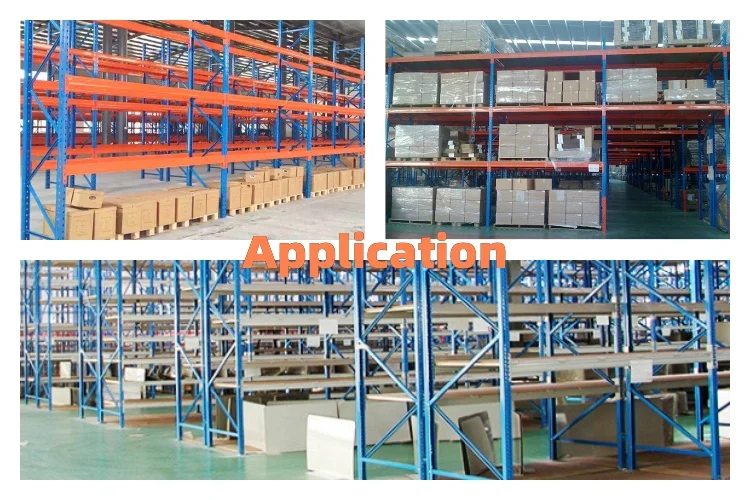

It is mostly used for duty shelf components such as goods display, placement, and merchandise display in warehouses, supermarkets, and small and large shopping centers.(Customized according to customer configuration requirements.)
2. Work Flow

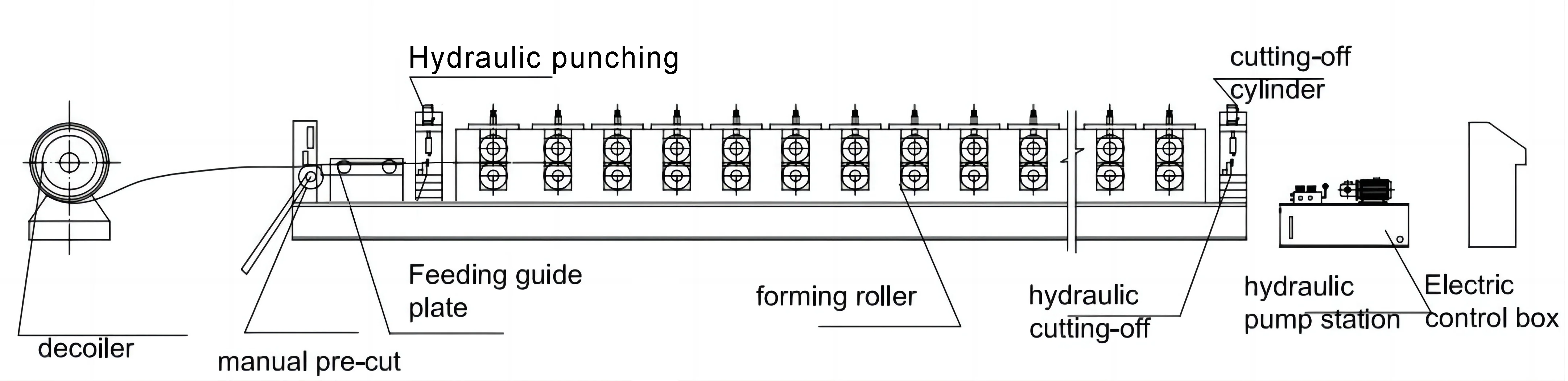

Capacity of the entire production line is 10- 20 m / min . It consists of 6 parts.Un-coiler →Feeding material →Hydraulic punching→Roll forming → Auto cutting → Products receiving table, but It only takes 1 -2 worker.
3. Equipment Name
NUM | Equipment Name | Quantity |
1 | Uncoiling Device | 1set |
2 | Forming Main Device | 1 set |
3 | Hydraulic Cutting System | 1 set |
4 | Material Receiving Table | 1 set |
5 | PLC Control System | 1 set |
6 | Supporting Accessories | 1 set |
4. Product Specification
1.Raw Material | Type | GI / GL /PPGI / PPGL /Customization |
Thickness(mm) | 0.8-1.5 /Customization | |
2.Un-coiler Device | Type | Manual / Electric / Hydraulic Decoiler（optional） |
Bearing(Tons) | 3T/5T | |
Way of working | Manual / Electric / Hydraulic tensioning crank. The center of the four-bar linkage is supported outward. | |
Panel Width | according to the drawings | |
Coil Inner diameter | φ480-500mm | |
Inner contraction range | φ450-550mm | |
3.Forming Main Machine | Main frame | Material:300H steel, Processing:Welding of rack box |
Material : 45#steel Thickness: 16mm Processing :laser cutting | ||
Material : 45# steel with chrome 0.05mm Diameter : 70mm Processing : Precision machining, heat treatment, precision grinding | ||
Material: GCr15 Processing : Precision machining - polishing - electroplating surface with hard chromium plating | ||
Roller Station | 17 stations or Customization | |
Specifications:1.2 inch chain wheel with gear transmission Processing :Quenching heat treatment Gear oil:18 # hyperbolic gear oil | ||
Power:7.5KW Brand：Lichao（optional） Reducer: Cycloidal reducer Protection level:IP55 Explosion-proof level:ExdIICT4 | ||
Type | Automatic Hydraulic Cutting | |
Blade material | Cr12MOV heat treatment process | |
Pump | hydraulic pressure:10-12mpa Hydraulic oil: 46# | |
Pump motor for cutter | Power: 4KW | |
5.Receiving rack | Type | manual / electric receiving rack |
6.PLC Control System | PLC Control System | Plc brand：Delta(optional） Text control box：Vertical LCD touch screen control box/Swing arm LCD touch screen control box Language: English / Chinese / Customized |
Inverter | Rated power:11KW |
5. Product Details
Packaging & Shipping
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
