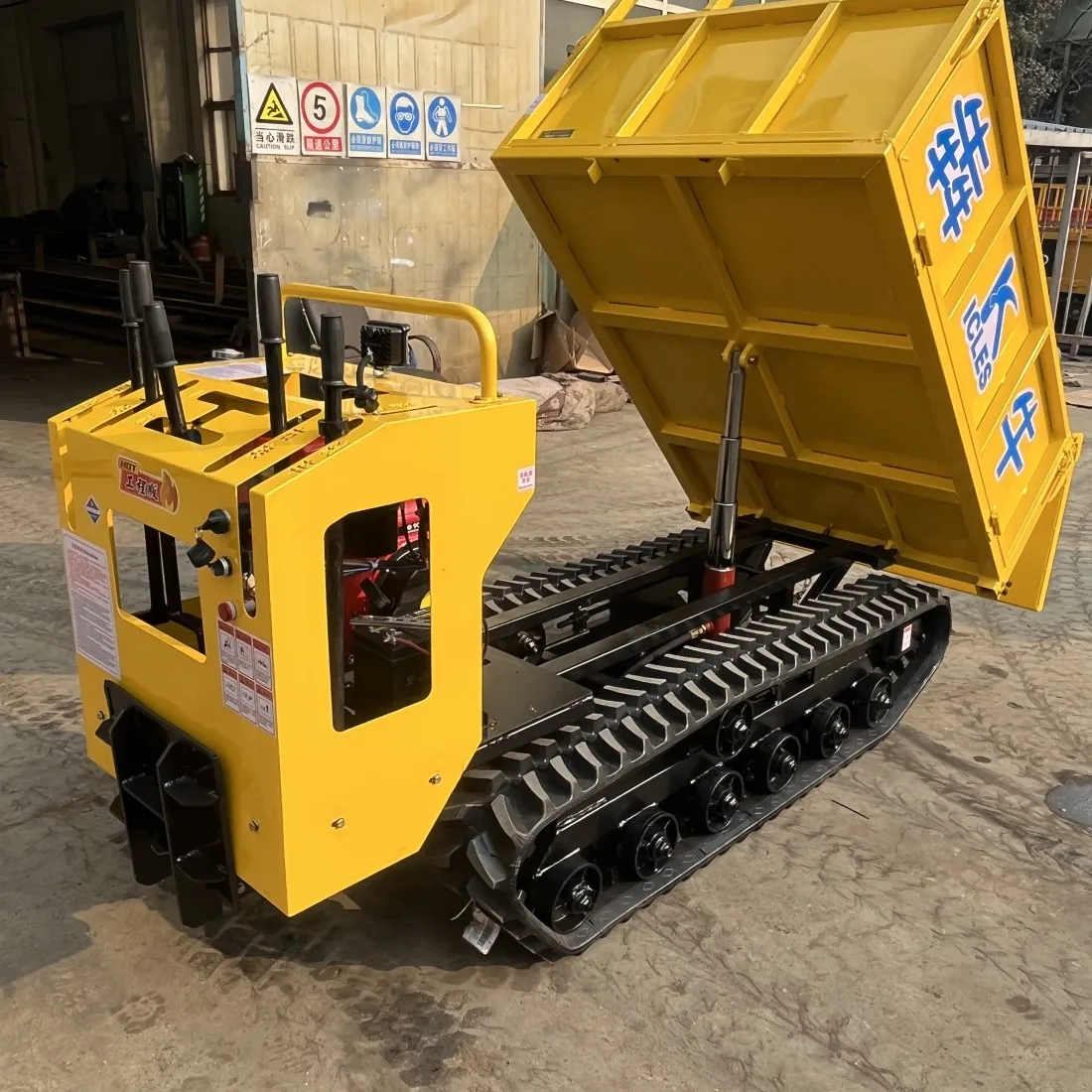

Mini Crawler Dumper Multifunctional Tracked Mini Dumper vehicle 1000kg 2000kg Mini Transporter Dump Truck For Construction

Product Overview

Description

We can customize according to customer needs and support OEM



1, The dynamic load and impact resistance, the rear axle and suspension are strengthened.

2, This structure is simple and higher reliability.

3, With small turning Radius, the tracked dumper is flexible operating.

4, With power track, torque, start low speed, the tracked dumper is suitable working in the soft, potholes and geological condition.

5, Braking performance is smooth, to avoid the impact of the dumper during the start-up, braking to reduce the damage of parts and improve the driver's comfort, so the tracked dumper adapt to a wider range of different road conditions.

Technical Specifications

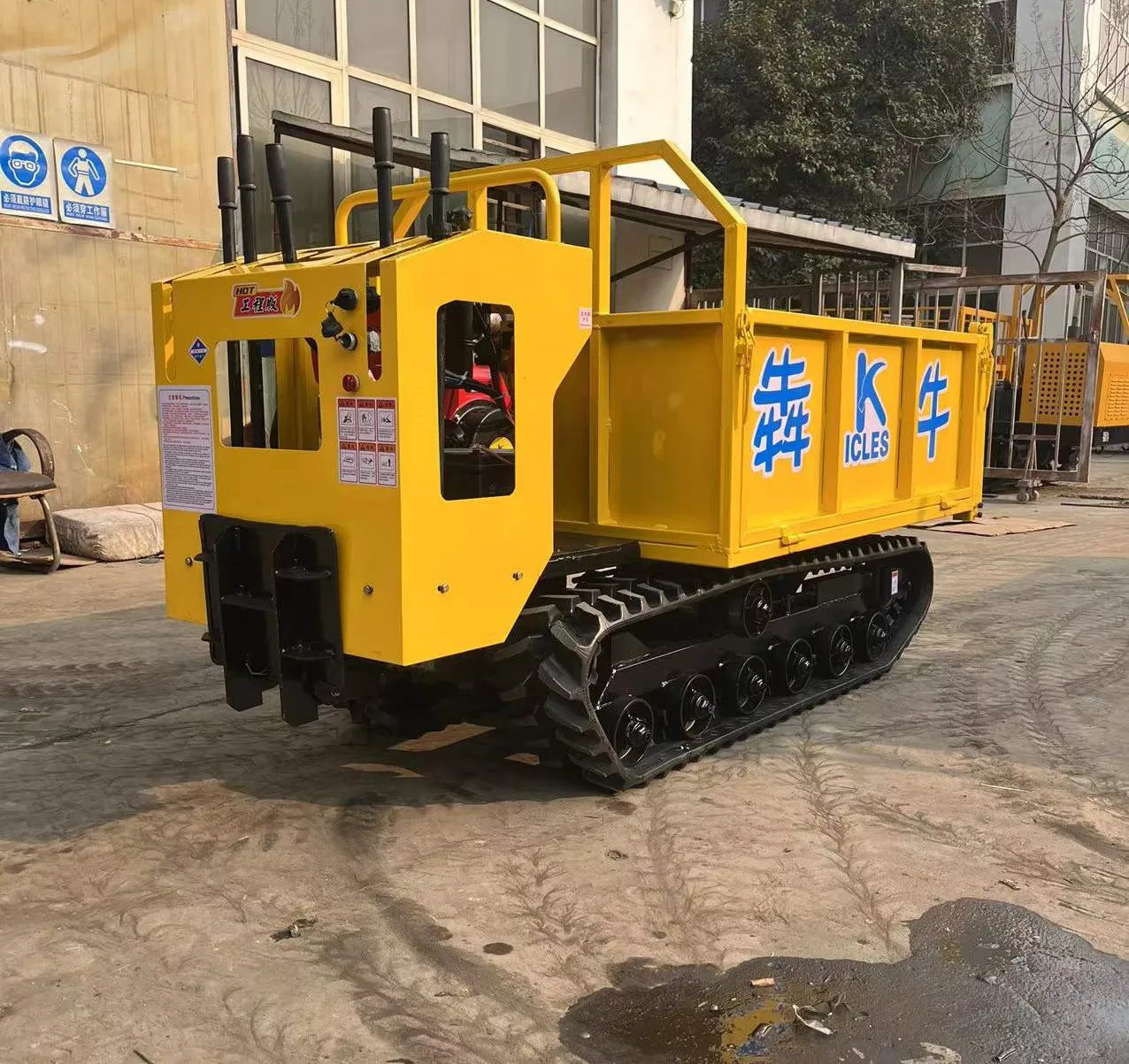

Model No.		ICLES-0.85T hand type
Length*width*height		2050*750*1200mm
Carriage size		1200*700*550mm
Chassis width		0.6m
Engine		186F,CHANGFA
Engine power kw		6.5 kw
Drive mode		diesel engine air cooling
Gearbox material model		13 steel
Track specifications and models		180*72*43
Track system		steel wire rubber track
Various wheel materials		Precision casting (4 rows of wheels)
Various shaft materials		High-quality carbon structural steel
Hydraulic self-unloading function		Yes
Can a crane be added?		Yes
Can lift be added?		Yes
Start mode		electric start
Loading weight		0.85 ton
Vehicle weight		680 kg
Minimum turning radius		1.1m
Gear		High/Low (3+1)
Height of the cargo box		50 cm
Standing slope angle		35 degrees
Uphill angle		45 degrees
Driving speed		0.8-12 km/h

Model	ICLES-1.5T
Overall size	2.75*1.20*1.40 M
Cargo bucket	1.60*1.20*0.85M
Chassis Width	850mm
engine model	Changchai brand L32
engine power	12  H P
engine type	water cooling diesel engine
gearbox type	cast steel 21# Yunzhou brand
rubber track	Engineering rubber track 300*72*56 Jinlilong brand
Various wheel material	Precision casting 7 rows wheels Dia:180mm
Various axle material	high quality carbon structural steel
hydraulic selfunloading function	yes
adding the crane	Can add
Adding lifting function	Can add
engine start model	electric start/hand pull start
loading capacity	1.5 ton
Operating weight	930kgs
gear	3 forward gears and 1 reverse gear with high and low speed configuration
height of cargo bucket from the ground	590mm
Rated climbing Angle	35 degree
Walking speed	0.8-12KM/H

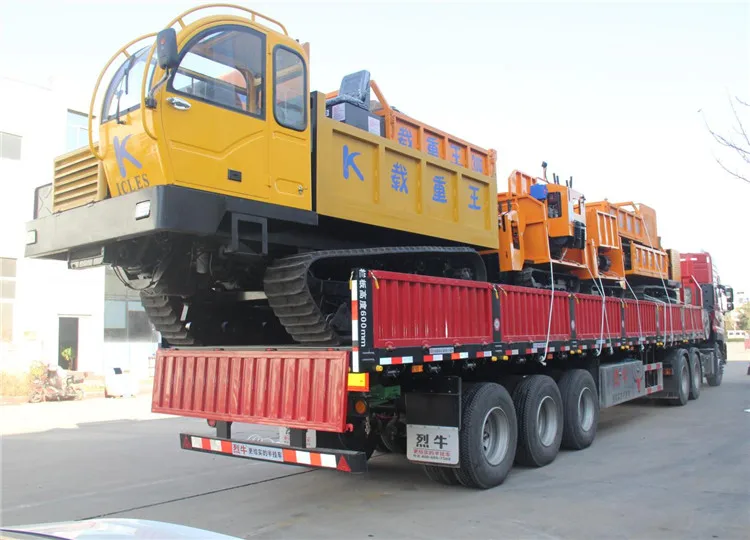

Shipment	2 units/20GP container 5 units/40HC container



FAQ



Q: How about your packing?

A: According your requirement, half assemled or assembled. One machine in one wooden box.We can also pack according to your requirements.

 Q:1.How to contact with us?

A:  24 hours online , quick answer, or email with us, wechat,whatsapp is available.Select one product and leave message to us.

Q: 2.How to purchase the products which you want?

A: Choose one product which you are interested and leave message

Or Inform us your request for brand and model number

Q: 3.How to confirm the quality before place the order?

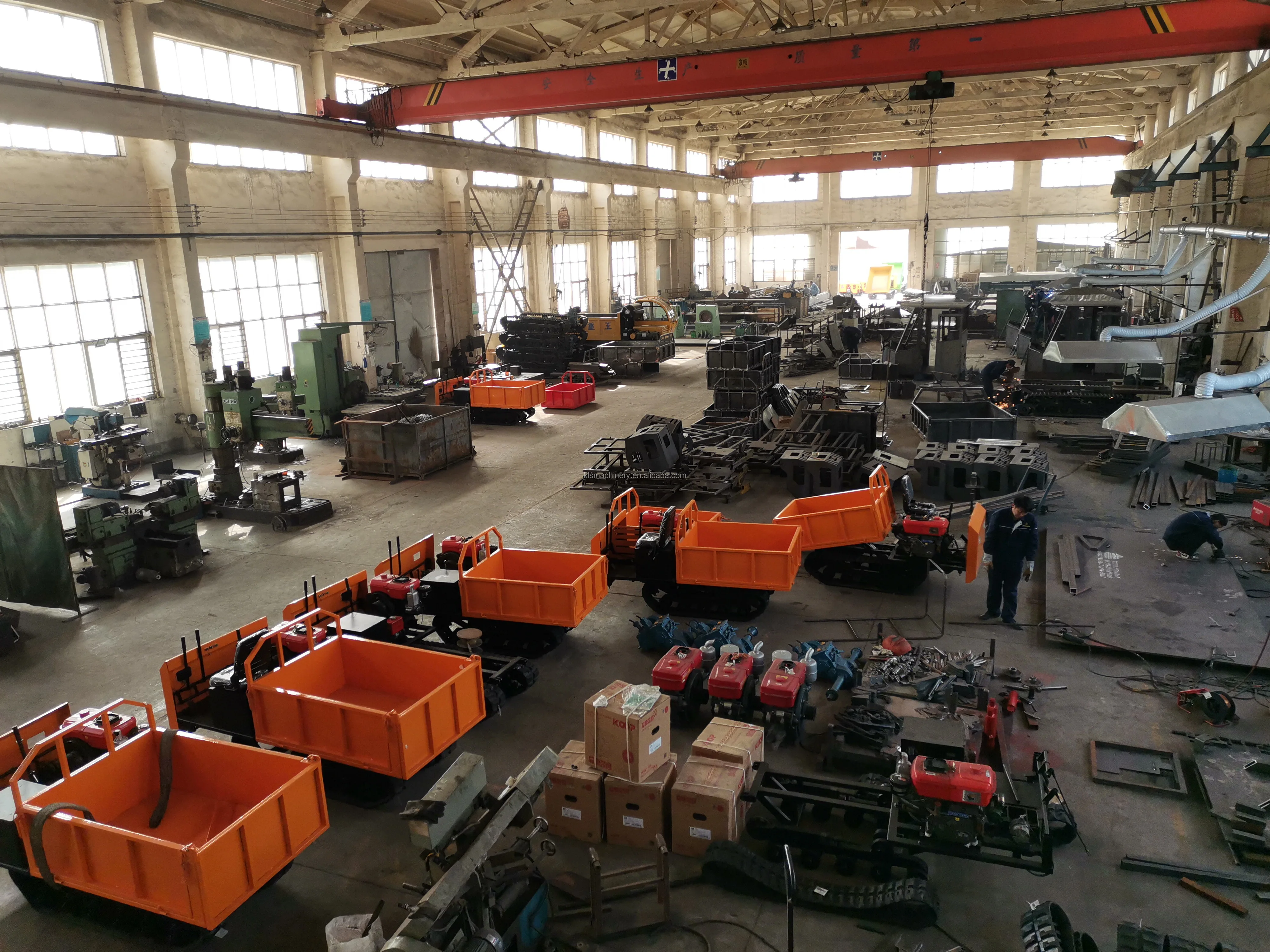

A:If you are in China, warmly welcome you visit our factory, check the Quality, meanwhile welcome to visit our office for reference.

Q: What is the payment term?

A: 30% T/T advance payment, 70% T/T before delivery.

Q: 4.How about the after-sale services?

A: If any problems after receiving the bulk goods, please do not hesitate to contact us for dealing, our engineer will service at any time to make you satisfied.
