ZTRFM Barrel Corrugation Machine Roof Tile Making Machine
- Category: >>>
- Supplier: Cangzhou Zhongtuo Roll Forming Machinery Co. Ltd.
Share on (1601049776144):
Product Overview
Description
ZTRFM 3m Horizontal Corrugated Pressing metal barrel corrugation machine roof tile making machine
The pictures for the finished product:
Profile drawing for reference:
ZTRFM 3m Horizontal Corrugated Pressing metal barrel corrugation machine roof tile making machine | ||
Raw material | GI & PPGI | |
Material thickness | 0.12 - 0.48mm (as request) | |
Chromed treatment, make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life | ||
Feeding length | Max 3000mm | |
Roller station | 2 sets (4 pcs) | |
Roller diameter | 300mm | |
Roller material | 45# steel | |
Roller length | 3000mm (by request) | |
Working speed | 15pcs/mim | |
Transmission | Gear | |
Voltage | 380v 50hz 3 phrase (Customizable) | |
Weight | 5.5t | |
1. Why some sheet panel need the round wave machine while some sheet panel machine need the cold roll forming machine?
The difference is that, the sheet panel made by the round waveroofing sheet machine is much thinner and with hardness up to 550 Mpa.The thickness range is: 0.2-0.6. But the thickness of the cold roll forming machine coil is 0.3-1.0mm as usual.
2. Which machine with higher capacity between the round wave machine and cold roll forming machine?
The capacity of the round wave machine and cold roll forming machine is more or less similar capacity, the round wave machine can press several pieces of the sheet at one time.
The difference is that, the sheet panel made by the round waveroofing sheet machine is much thinner and with hardness up to 550 Mpa.The thickness range is: 0.2-0.6. But the thickness of the cold roll forming machine coil is 0.3-1.0mm as usual.
2. Which machine with higher capacity between the round wave machine and cold roll forming machine?
The capacity of the round wave machine and cold roll forming machine is more or less similar capacity, the round wave machine can press several pieces of the sheet at one time.

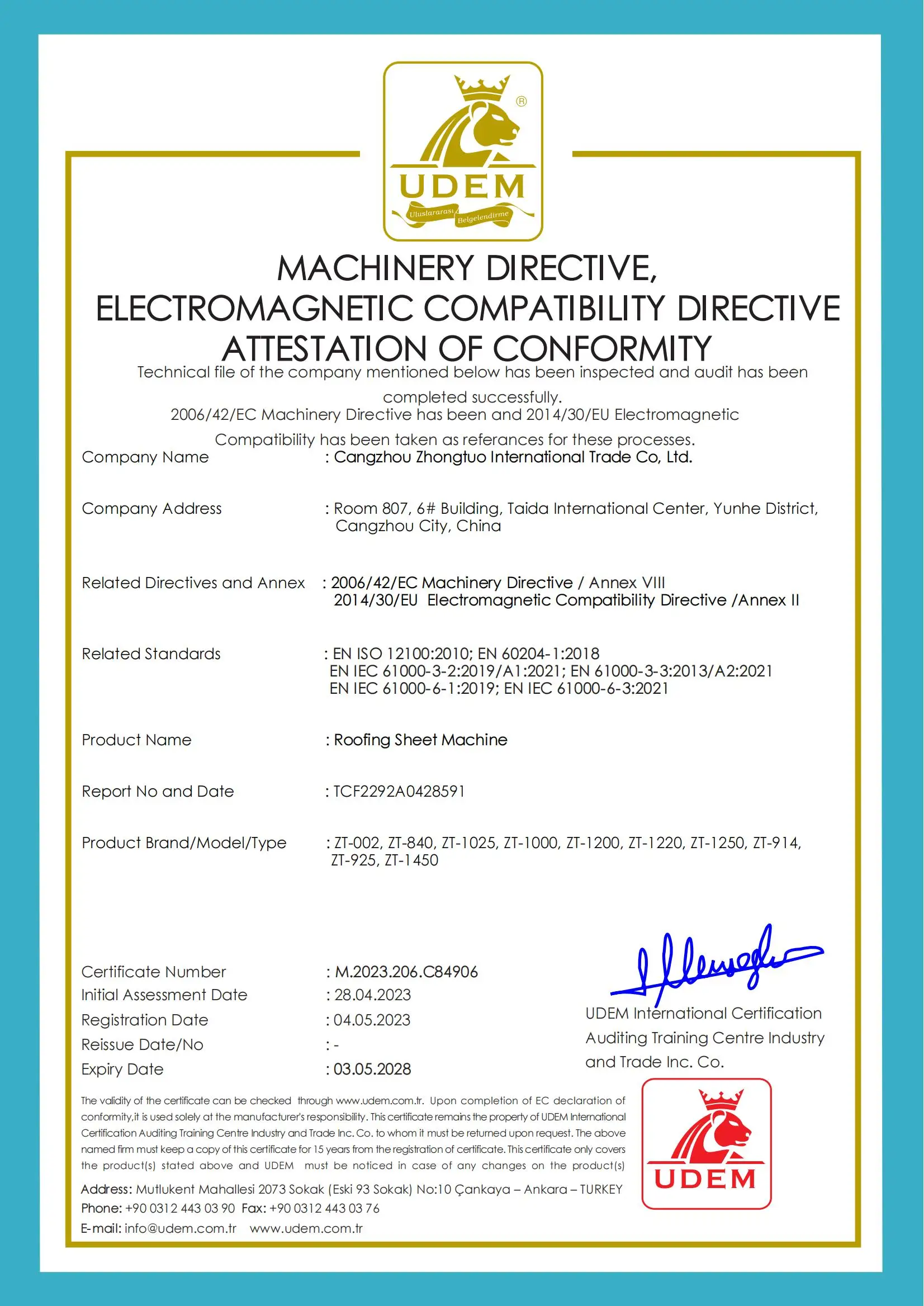

CE(No.OP180719.CZIDC95)
ISO 9001(No:ZL92090220234630)
