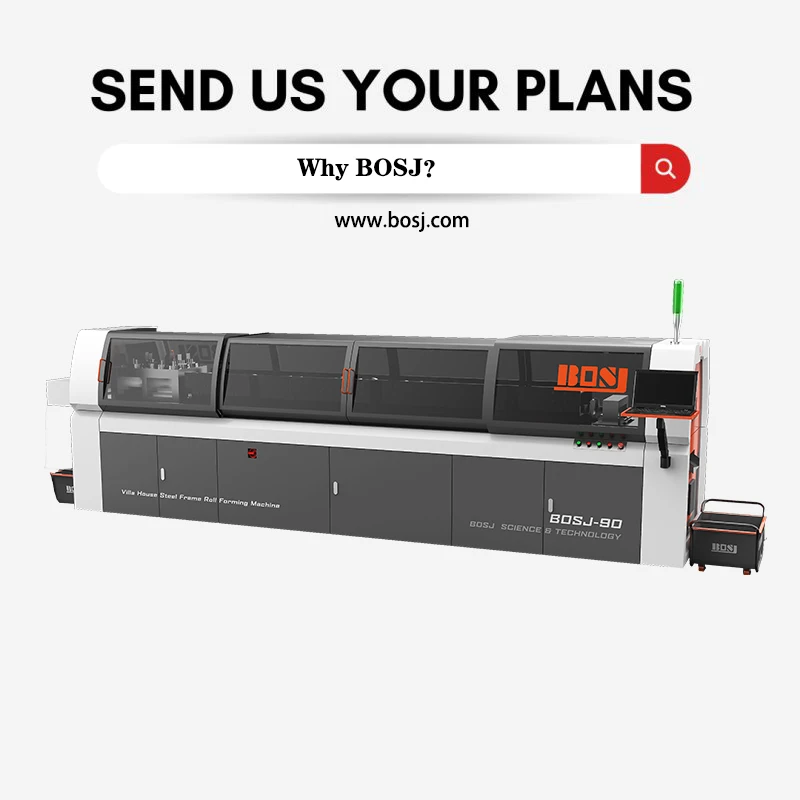

LSF Light Steel Frame Lightweight Steel Structure Galvanized Building Machine
- Category: >>>
- Supplier: Jiangyin Bosj Science And Technology Co. Ltd.
Share on (1601050828714):
Product Overview
Description
Product Overview

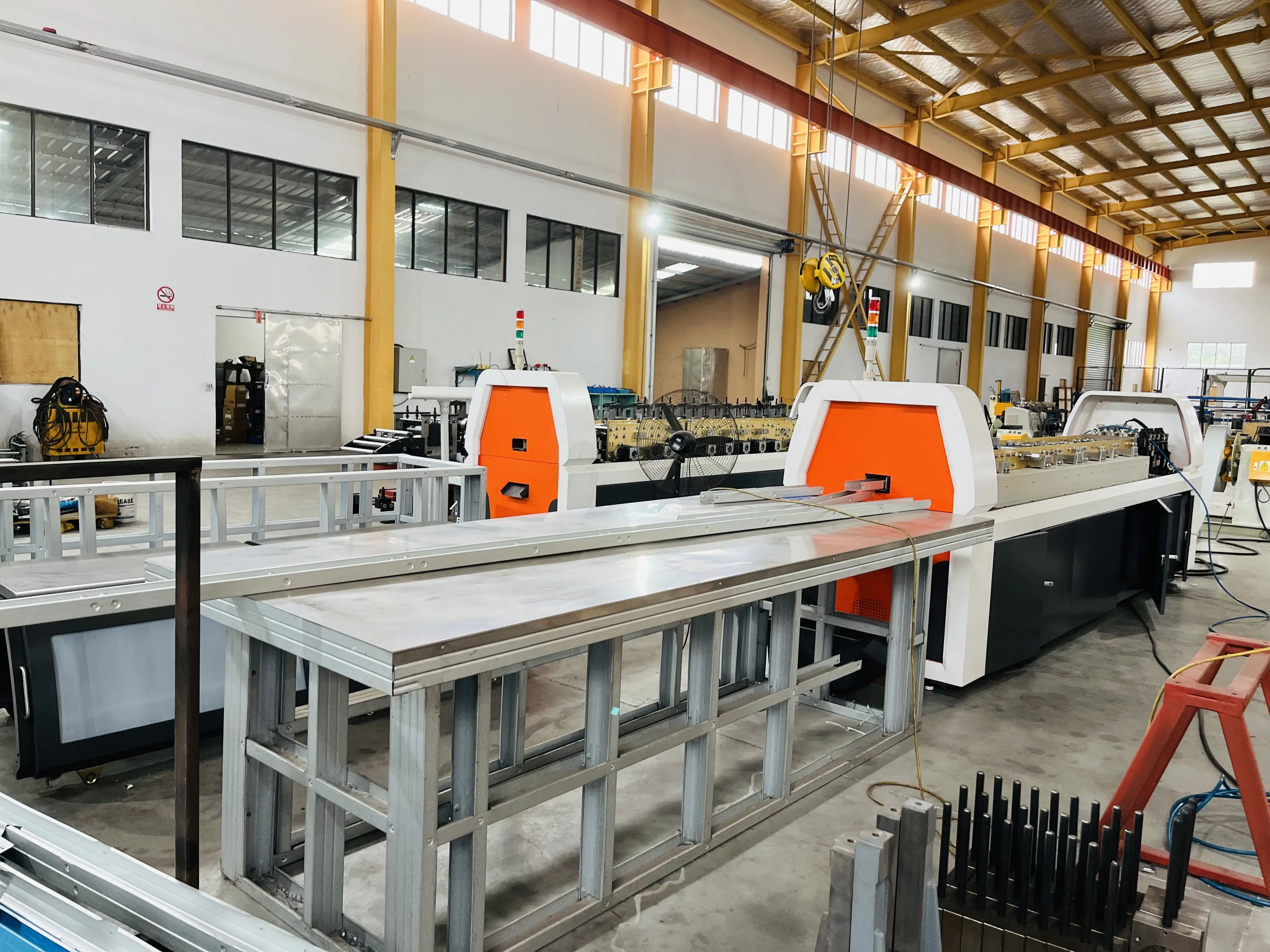

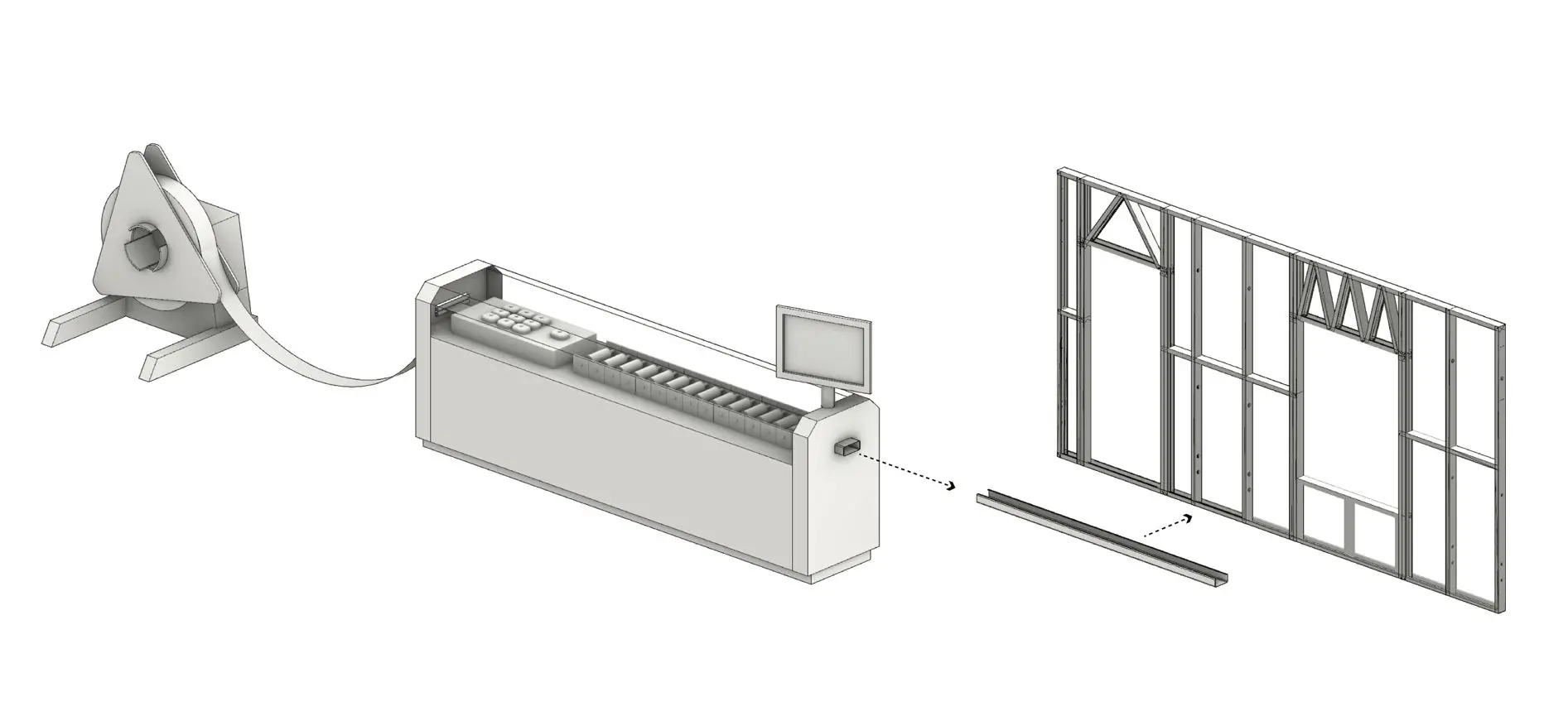

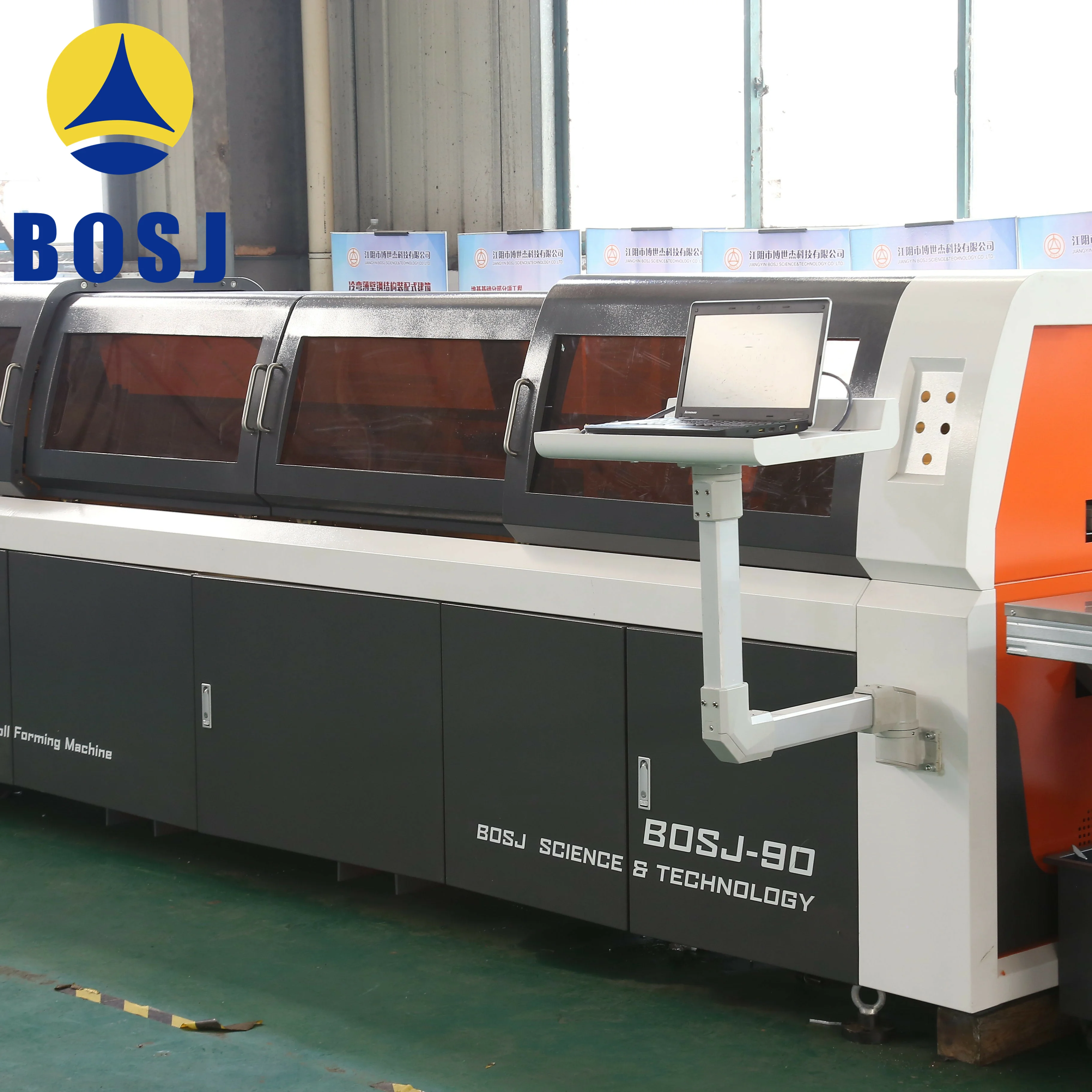

The BOSJ LGS SYSTEM is a fully automatic wall, floor and roof truss frame design production system using one single dedicated C & U shape profile.
This framing system engineers, designs and produces wall frames, floor truss, and roof trusses complying to all major international light steel framing building codes
PRODUCT SPECIFICATIONS
Name | Details | ||

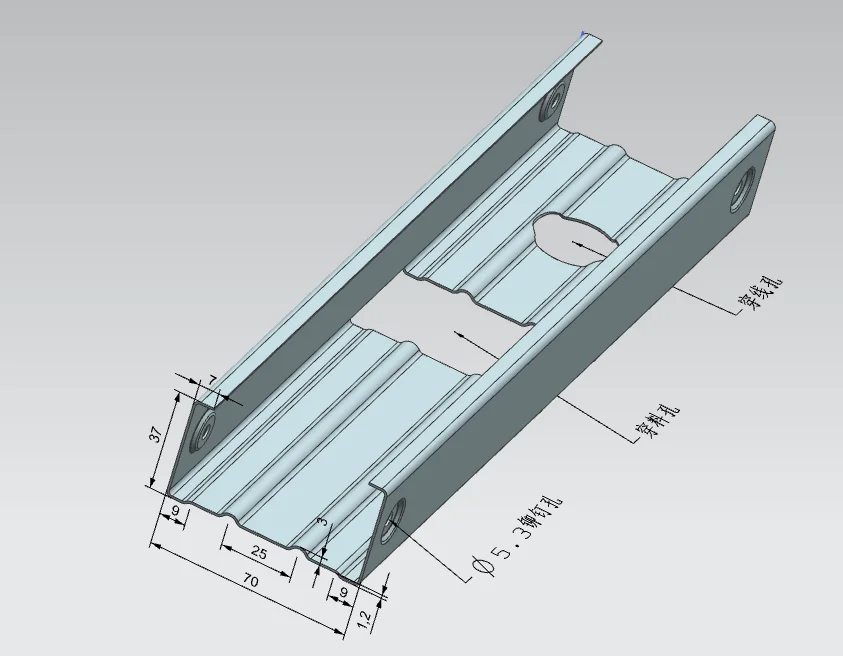

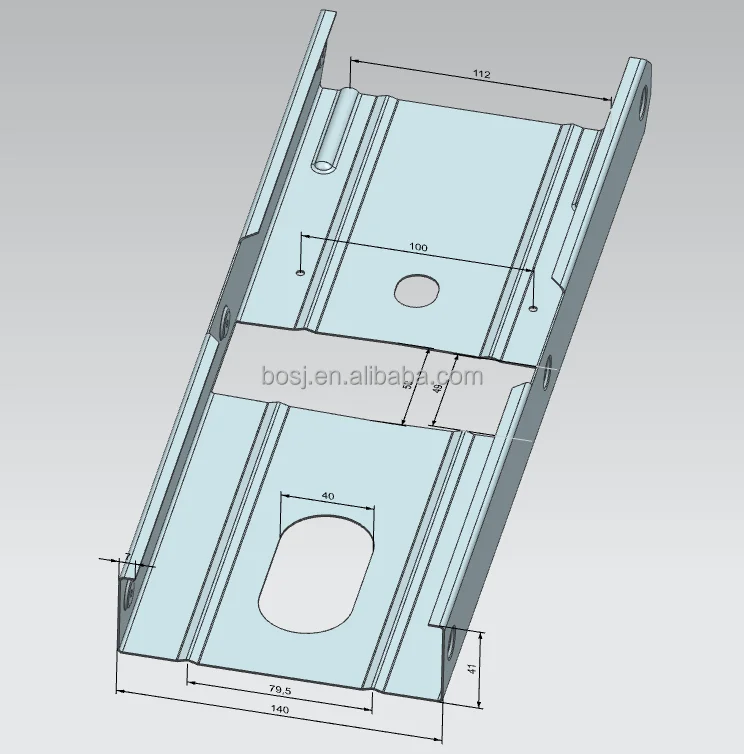

Section | C type | ||
Size | 50mm x 41mm x 6mm 60mm x 41mm x 10mm 75mm x 41mm x 13mm 90mm x 41mm x 13mm 100mm x 41mm x 13mm 140mm x 41mm x 13mm 150mm x 41mm x 13mm | 2” x 1.625” (200S162) 2.5” x 1.625” (250S162) 3”x 1.625” (300S162) 3.5”x 1.625” (350S162) 3.625”x 1.625” (362S162) 4”x 1. 625” (400S162) 5.5”x 1. 625” (550S162) 6”x 1. 625” (600S162) | |
Thickness | 0.8-1.2 mm, G300-G550 zinc plated, aluminum zinc plated | ||
Main motor | 7.5 KW Servo motor | ||

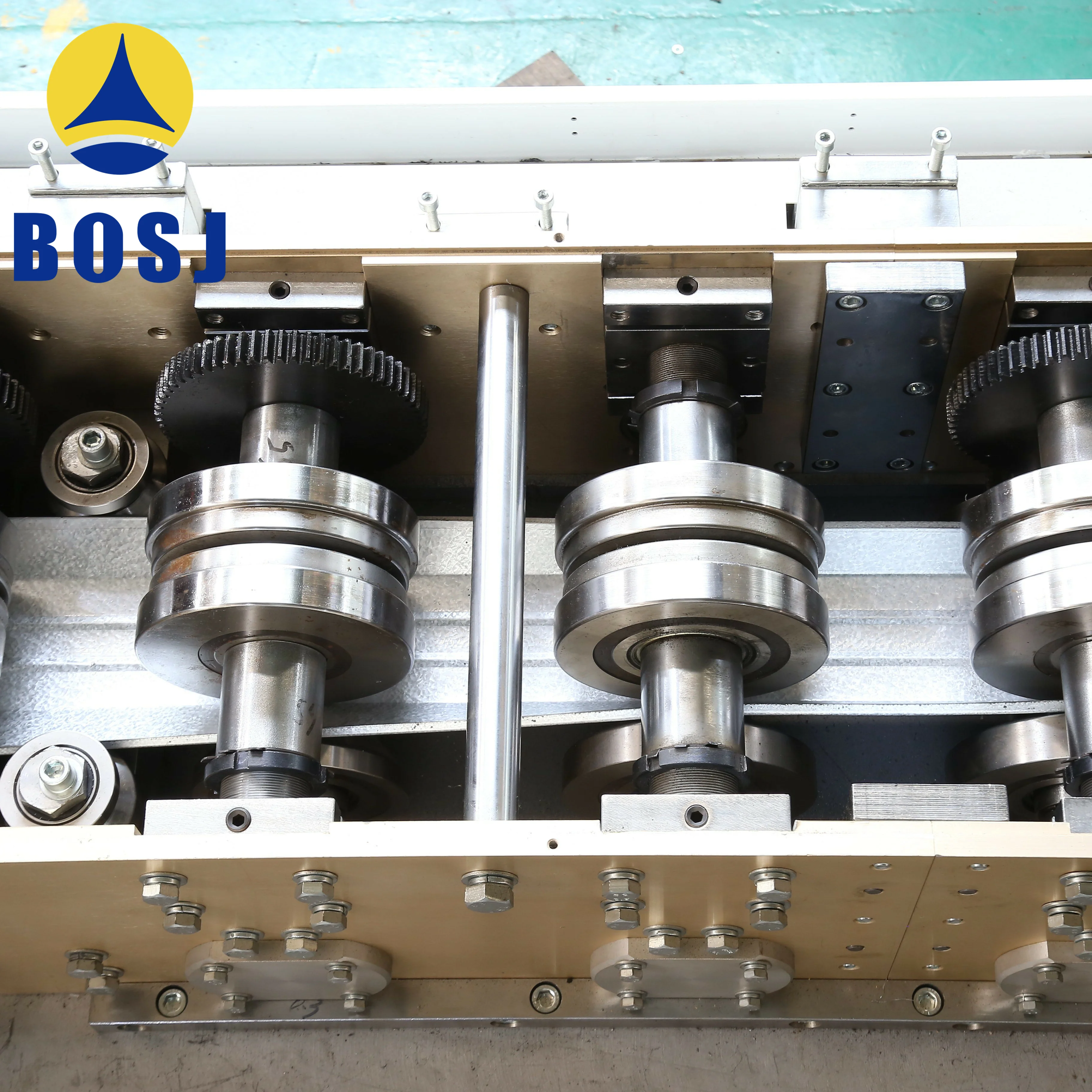

Transmission | Gear transmission + chain drive | ||
Speed | 40m/min(without punching and cutting) | ||

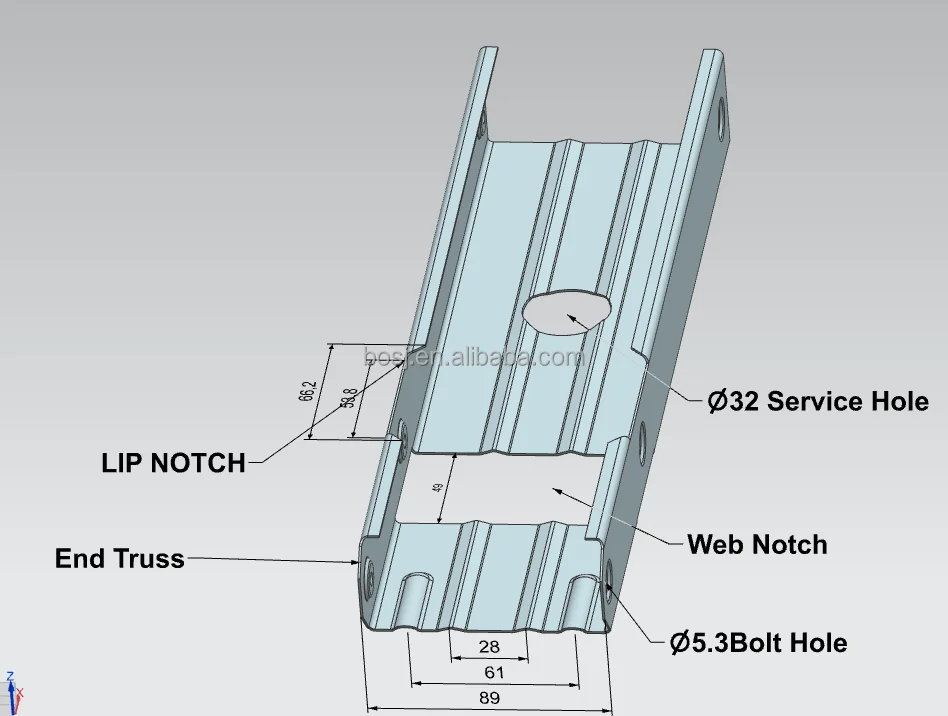

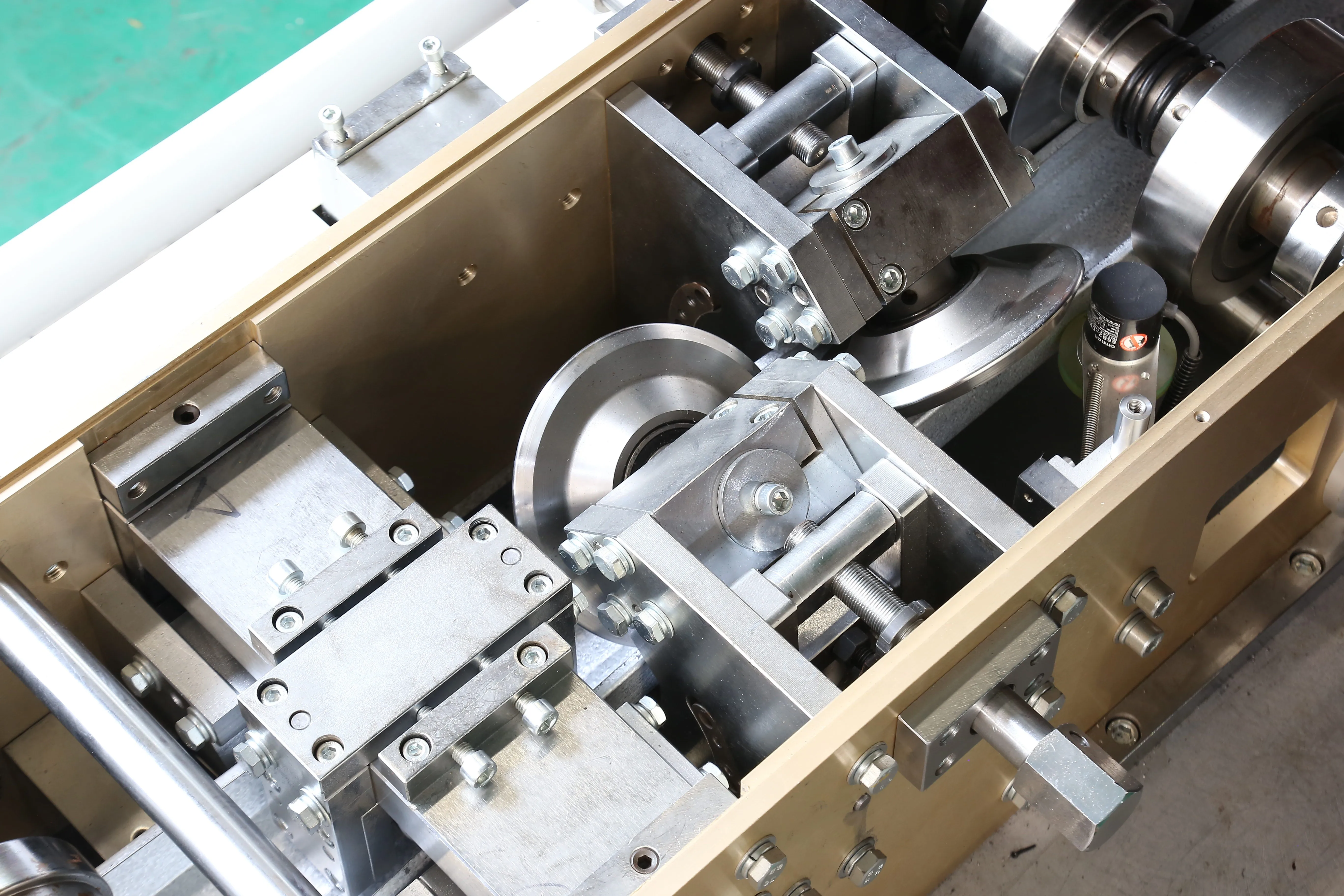

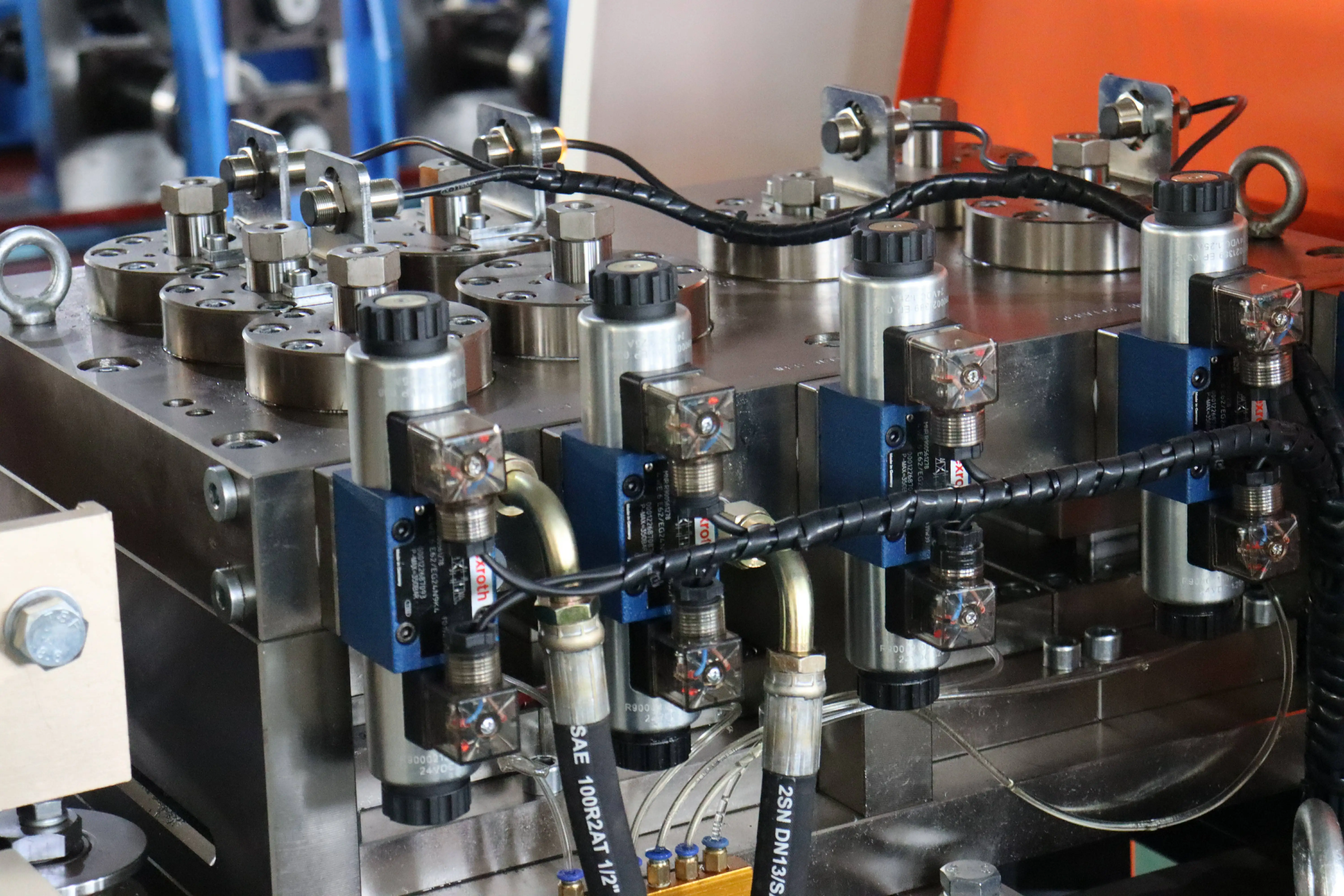

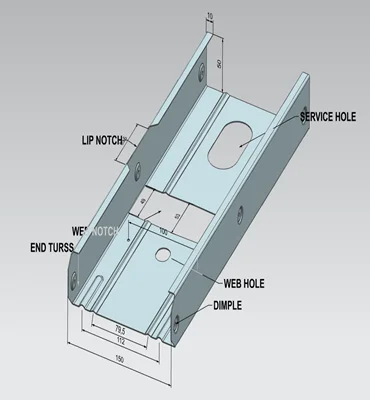

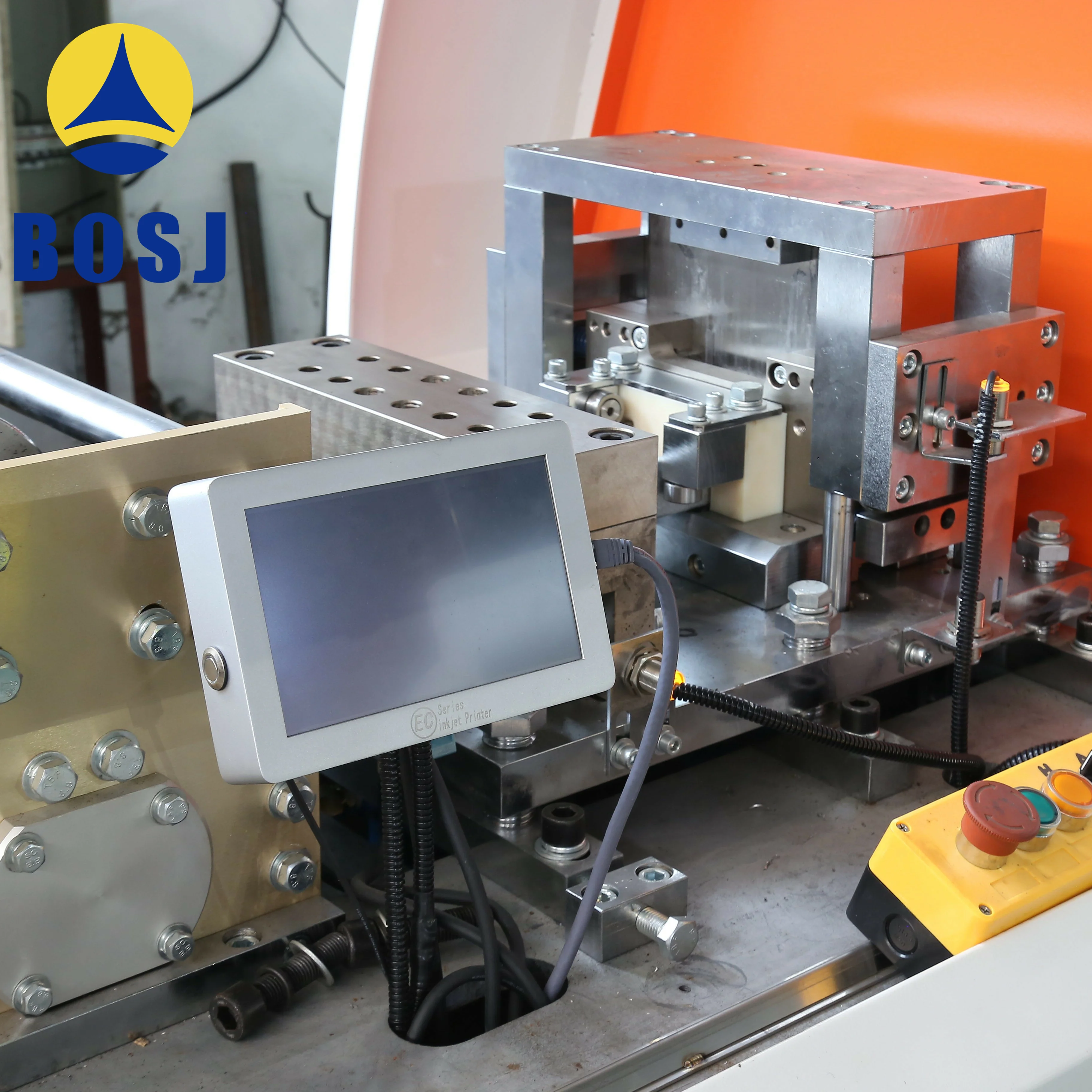

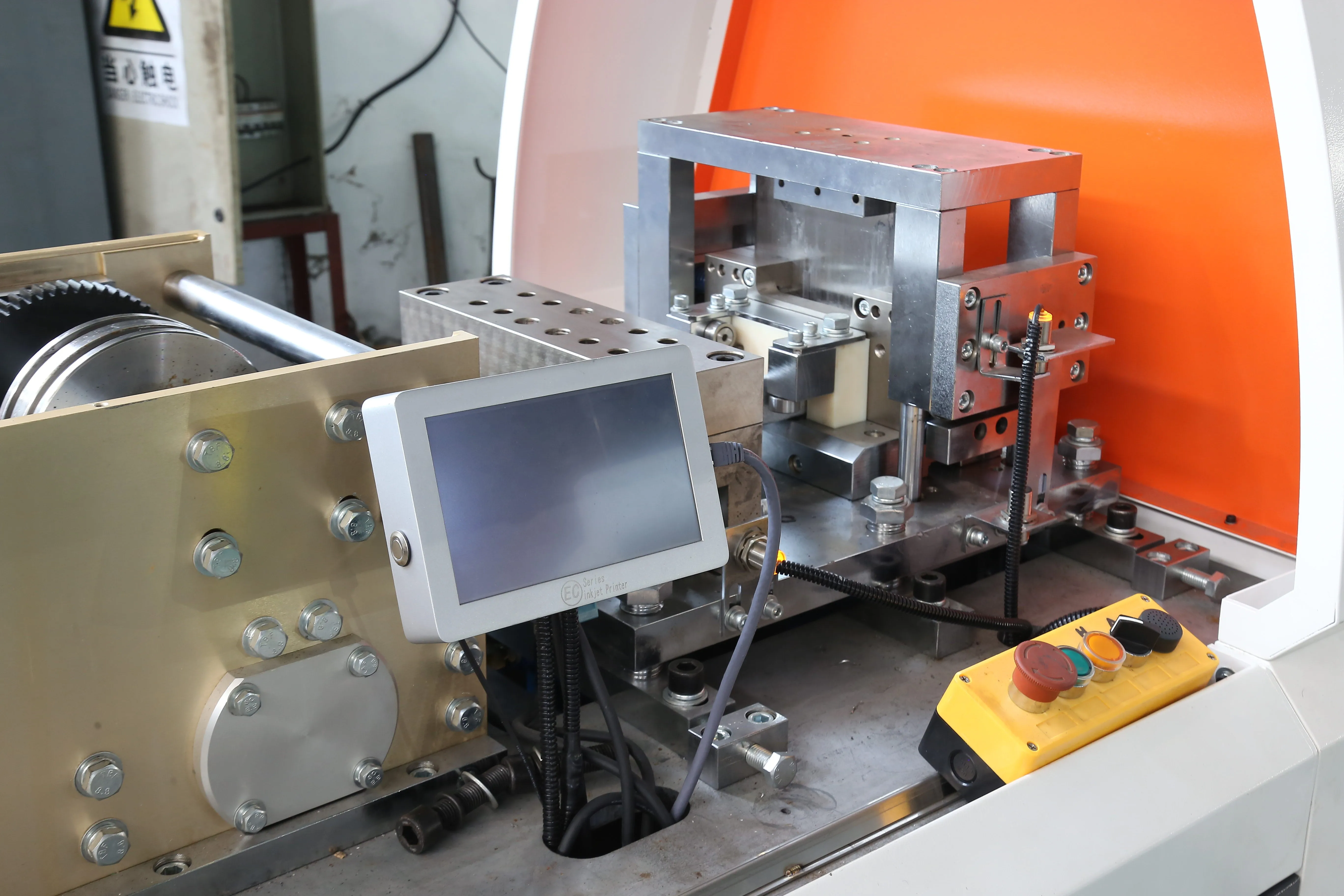

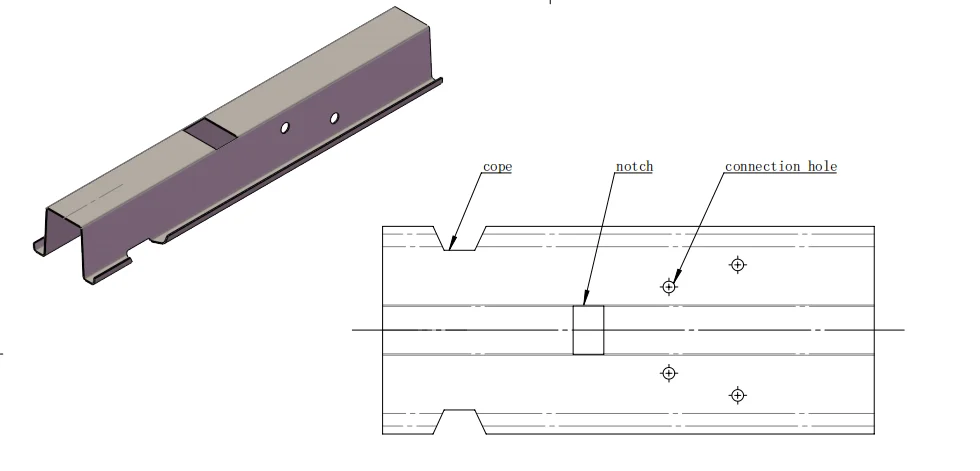

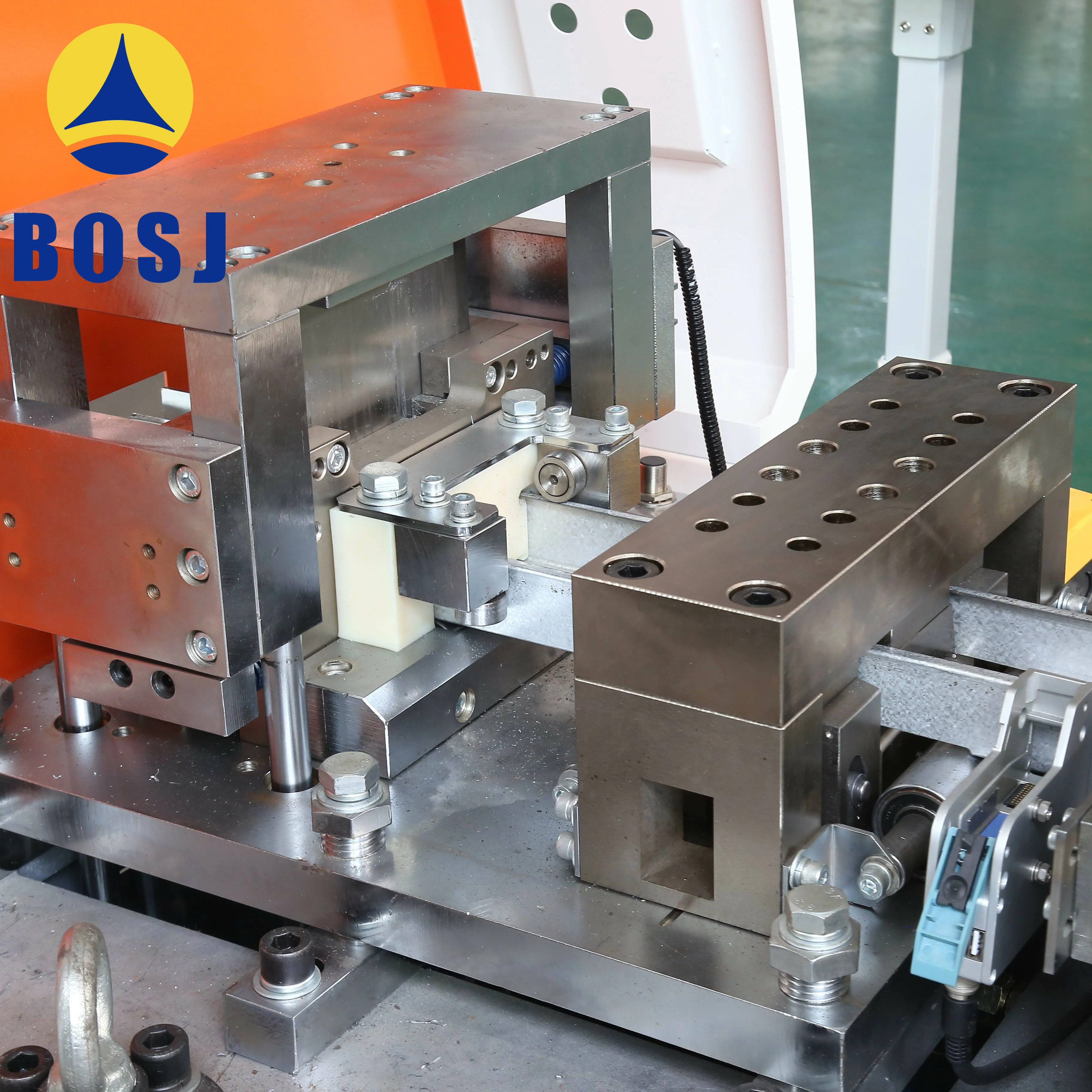

High speed continuous punch tools:
Service hole punch
Left & right lip notch punch
Web notch punch
Truss end cut punch
Flange dimple hole punch
Shear cut
End crimp punch
Service hole punch
Left & right lip notch punch
Web notch punch
Truss end cut punch
Flange dimple hole punch
Shear cut
End crimp punch

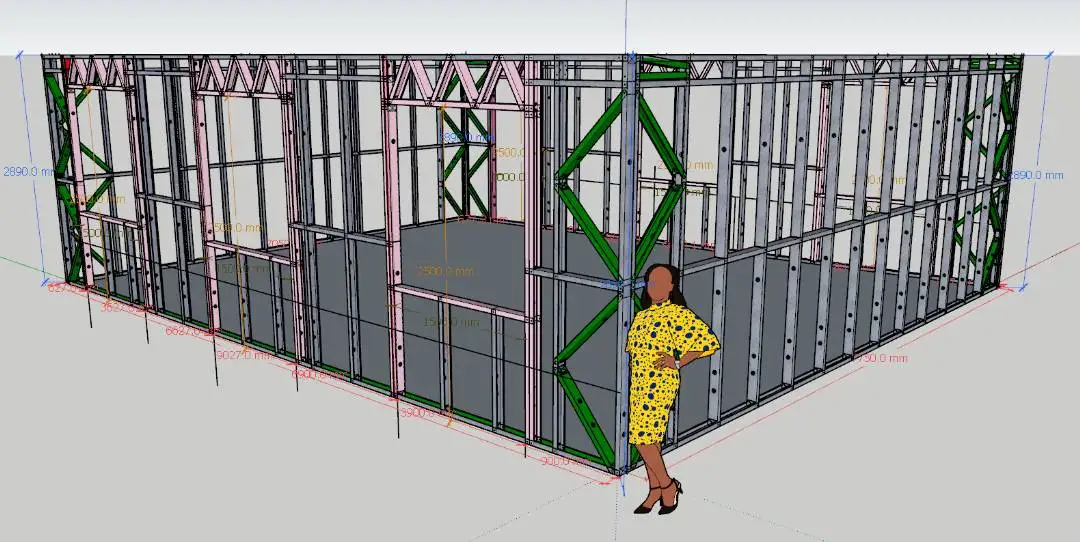

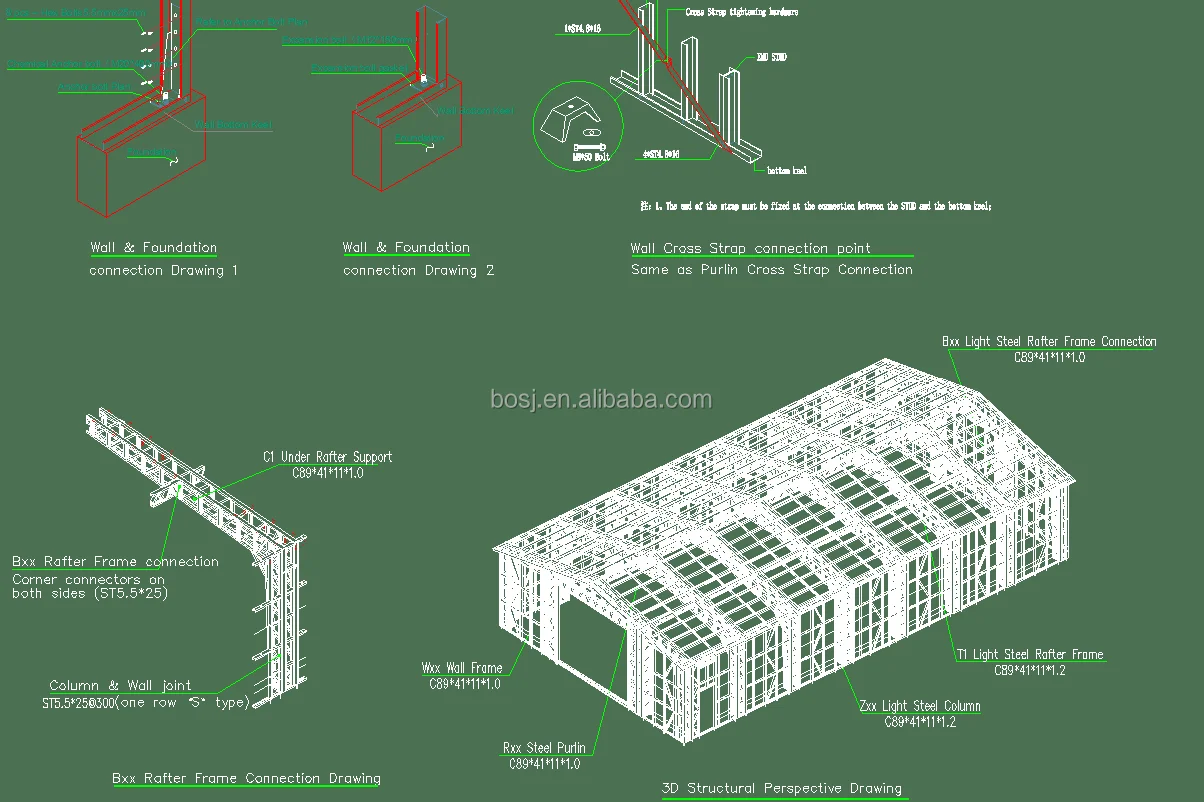

@BOSJ Designer Case

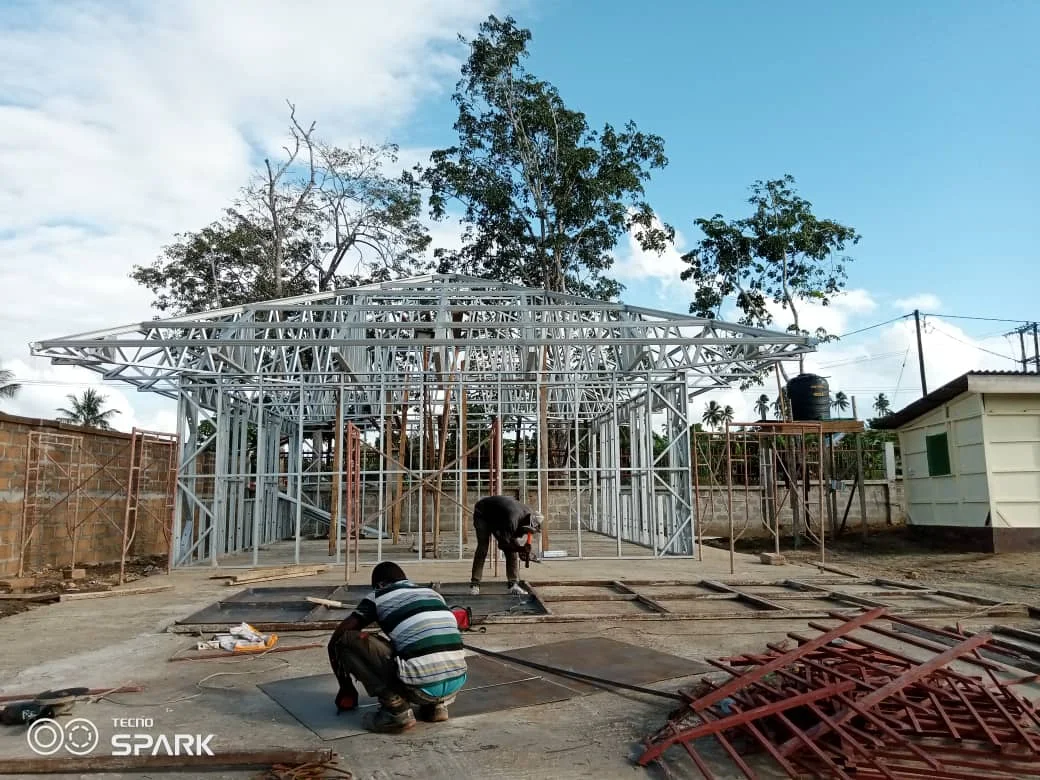

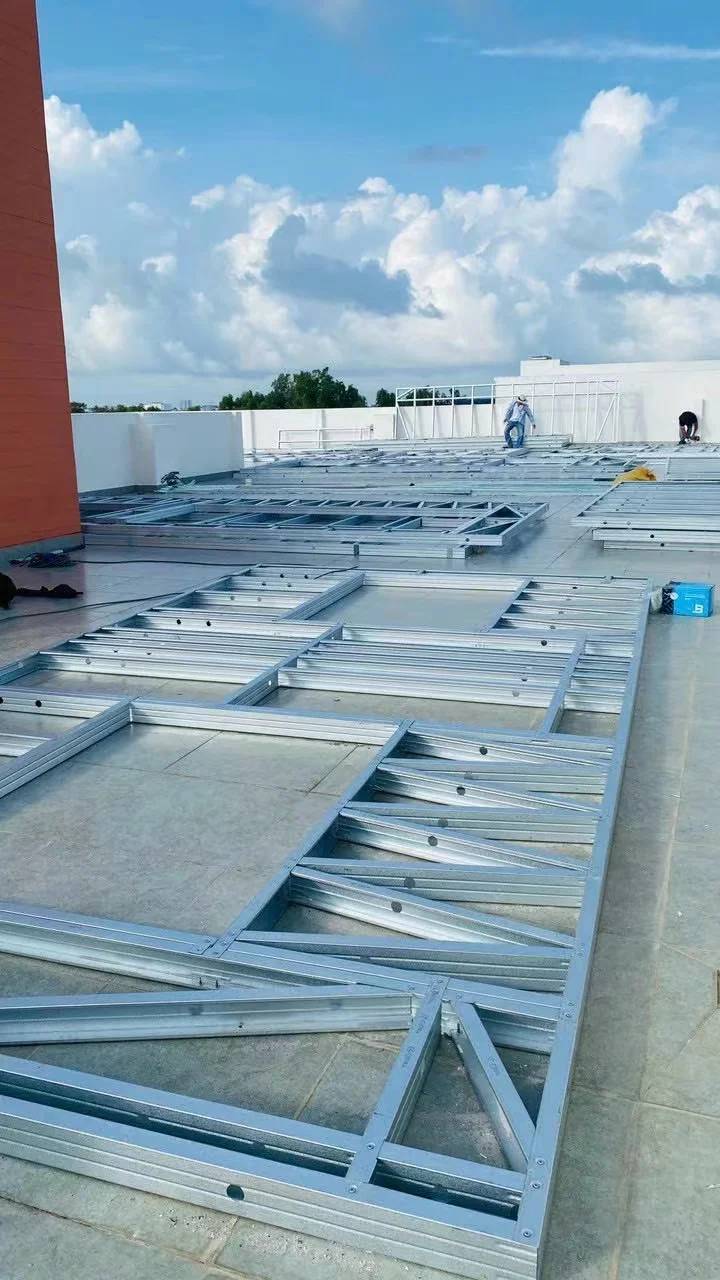

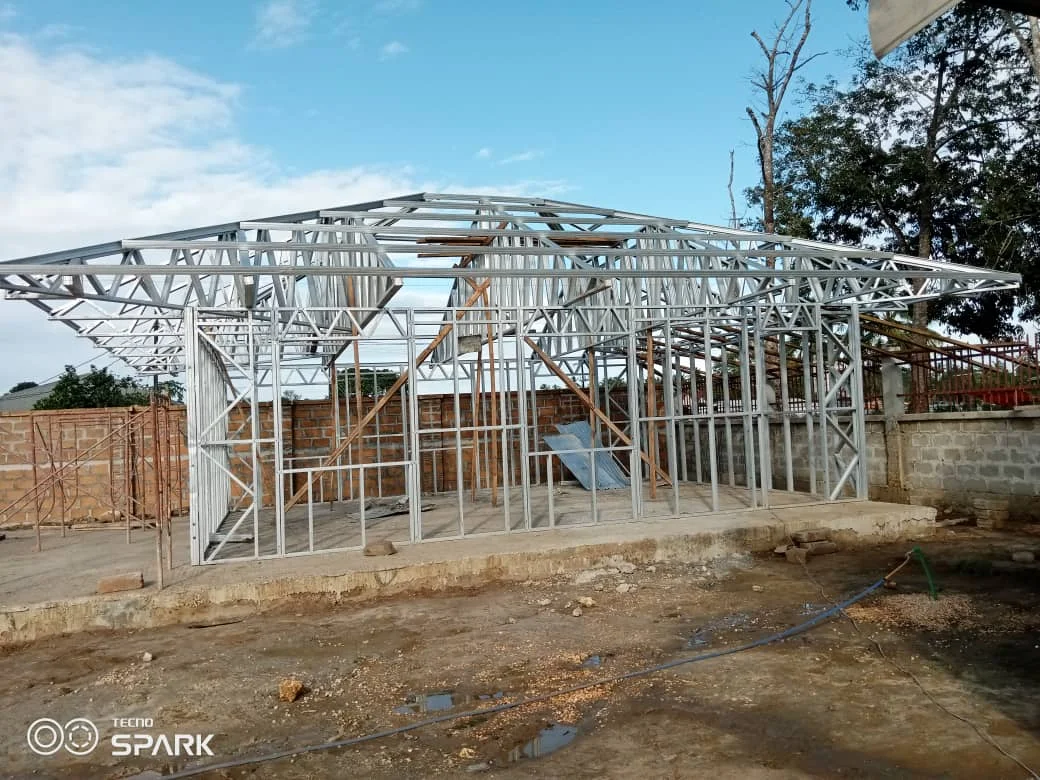

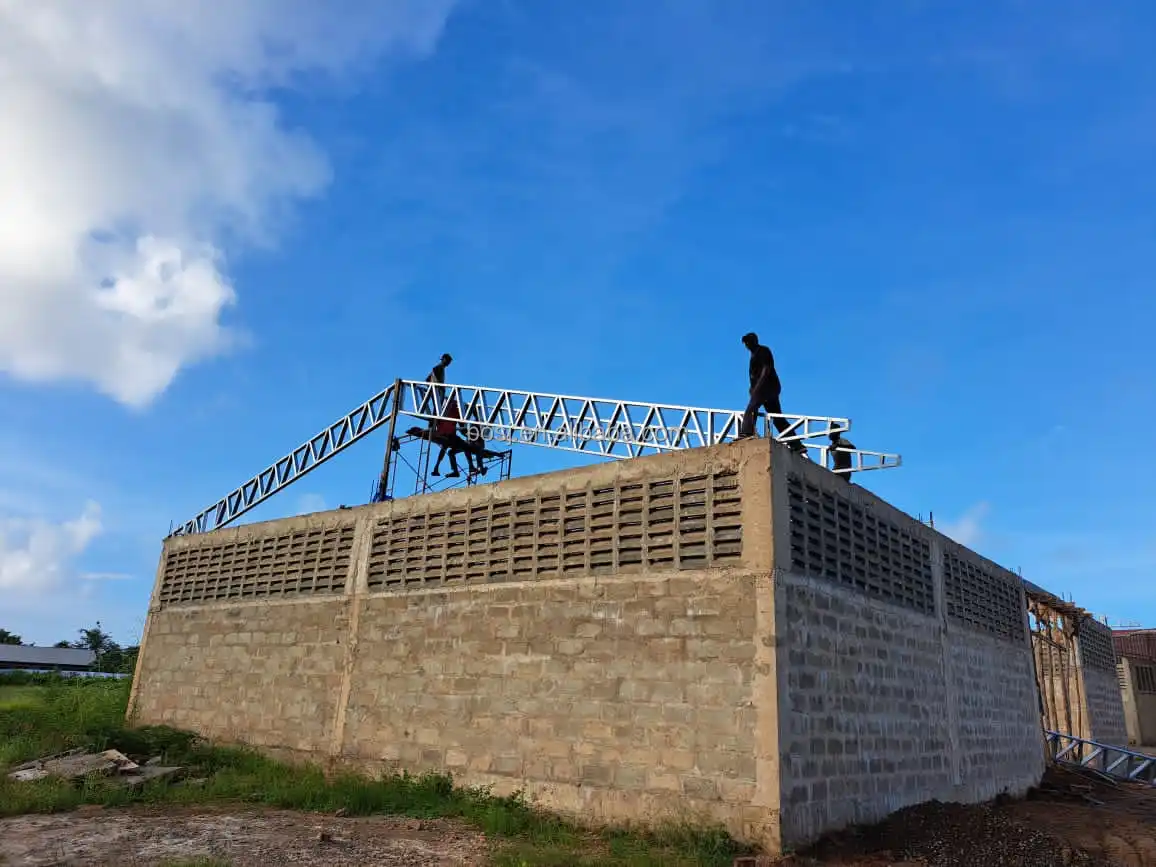

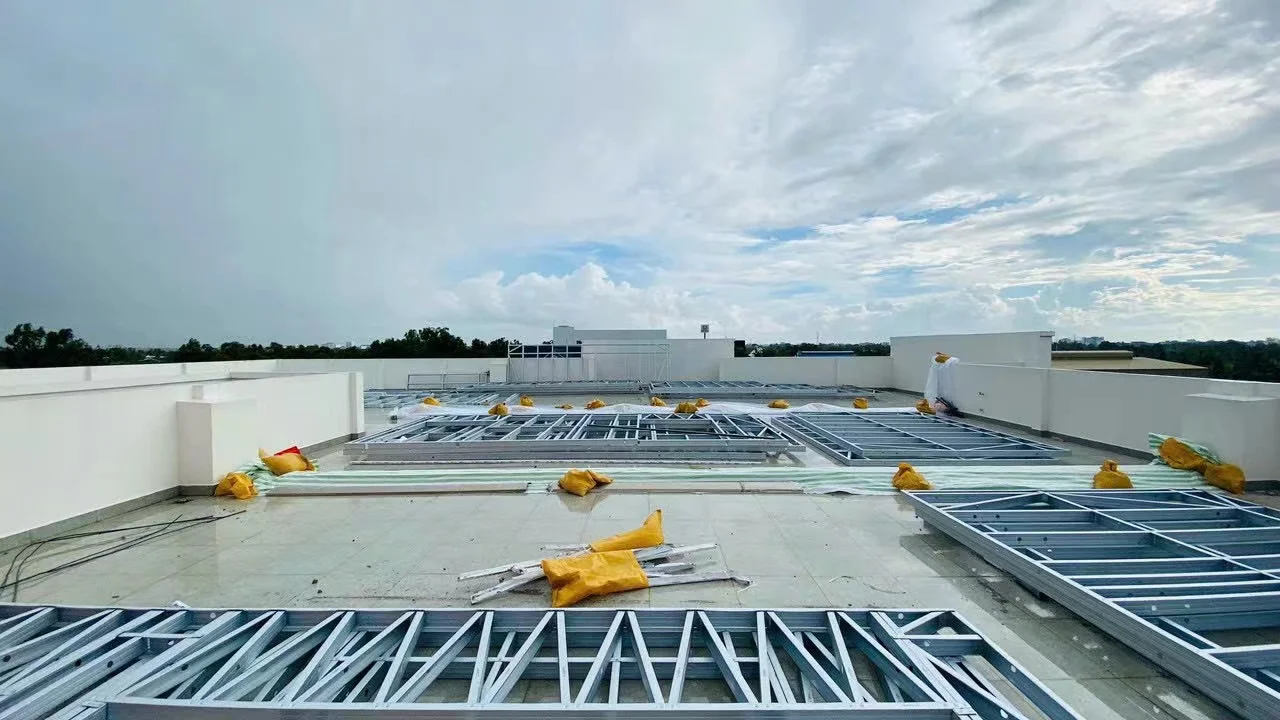

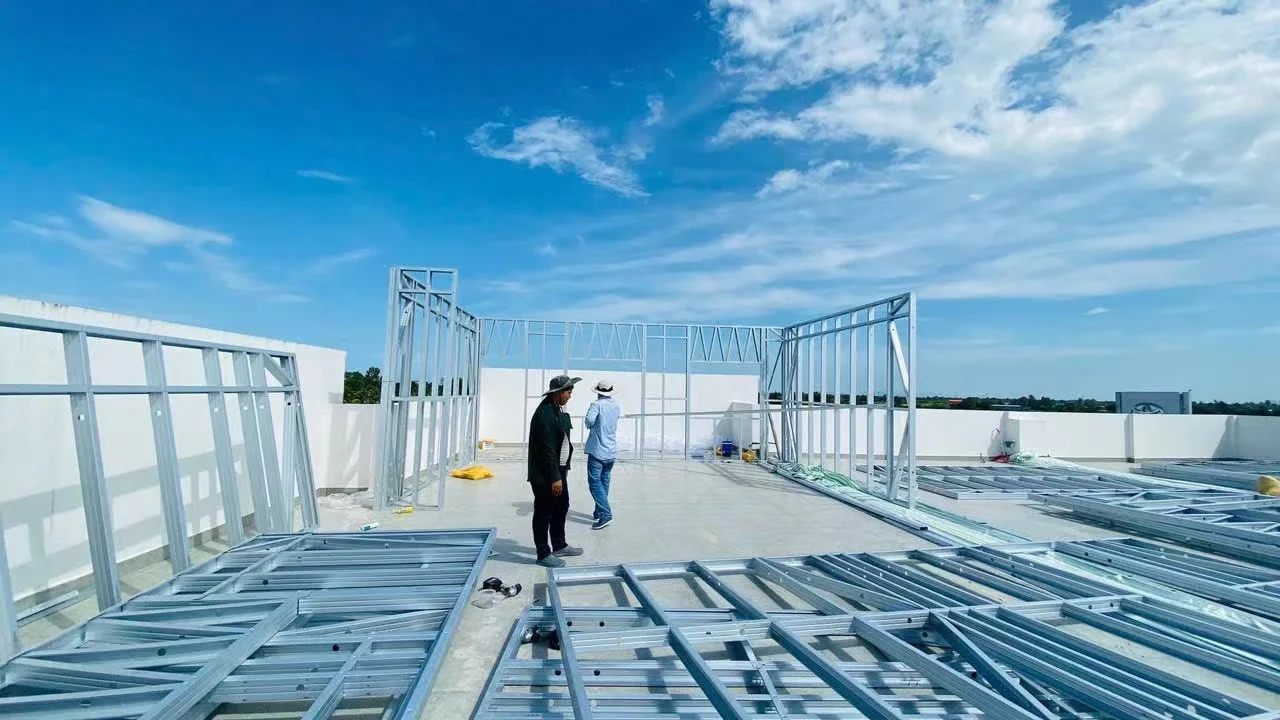

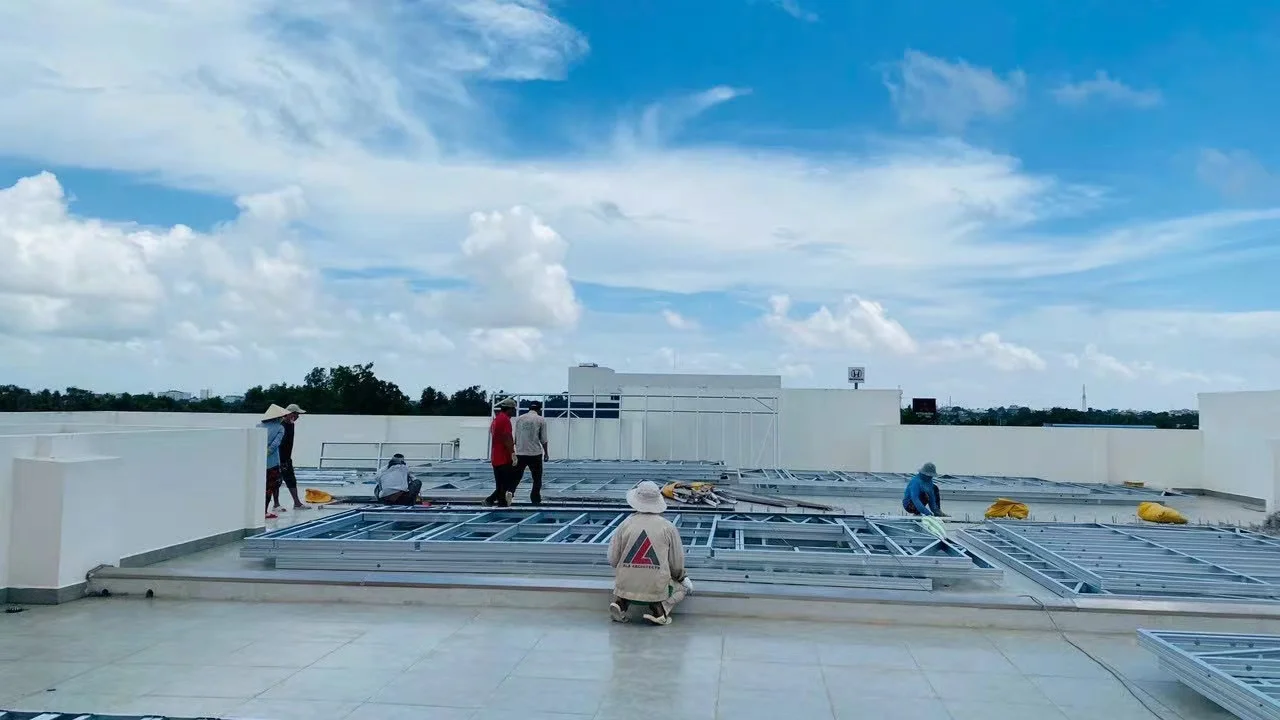

@BOSJ Field Case

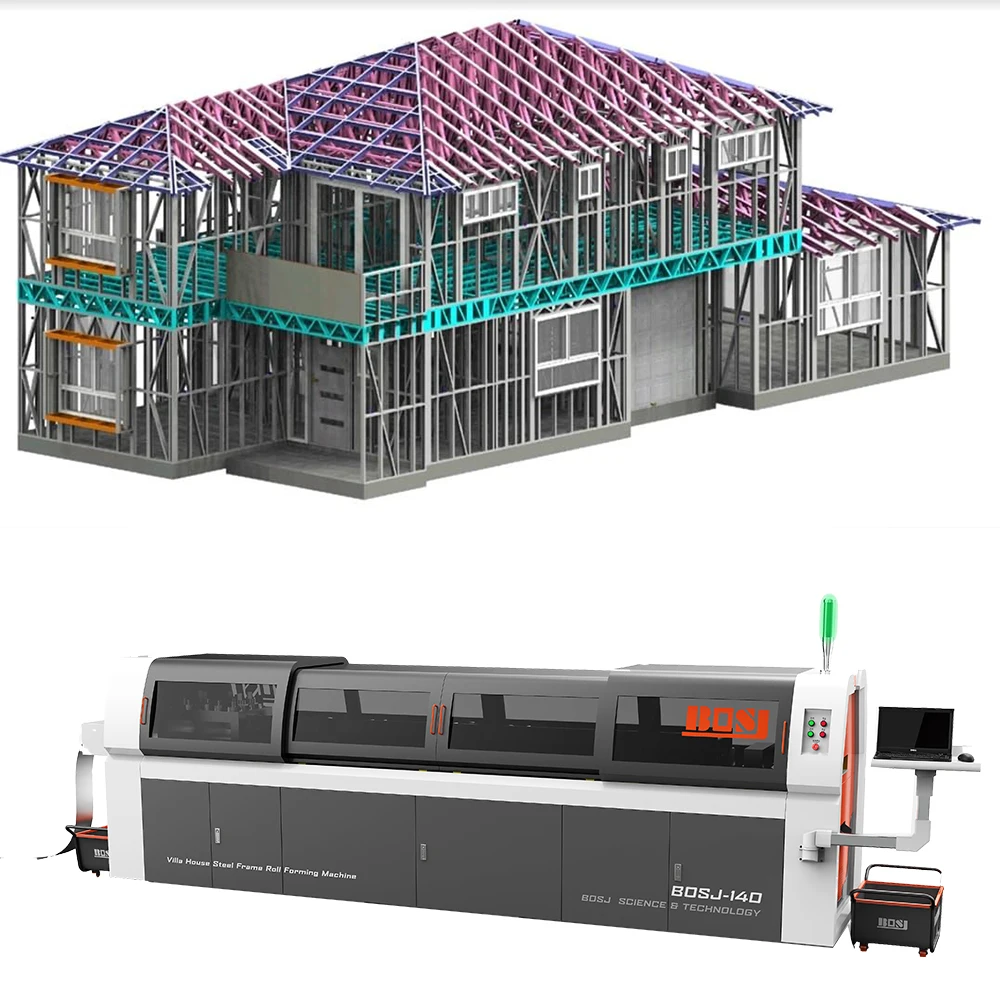

Major Building Applications of BOSJ LGS Machine System
* Low Rise Residential Building Structures
* Mid Rise Residential Building Structures
* Student Staff Accommodation Facilities
* Floor Roof Truss production
* Portable Buildings Cabins
* Light Medium Column Beam Warehouse Structures
* Light Medium Modular Building Structures
* Light Medium Commercial and Industrial Building Structures
* Mid Rise Residential Building Structures
* Student Staff Accommodation Facilities
* Floor Roof Truss production
* Portable Buildings Cabins
* Light Medium Column Beam Warehouse Structures
* Light Medium Modular Building Structures
* Light Medium Commercial and Industrial Building Structures

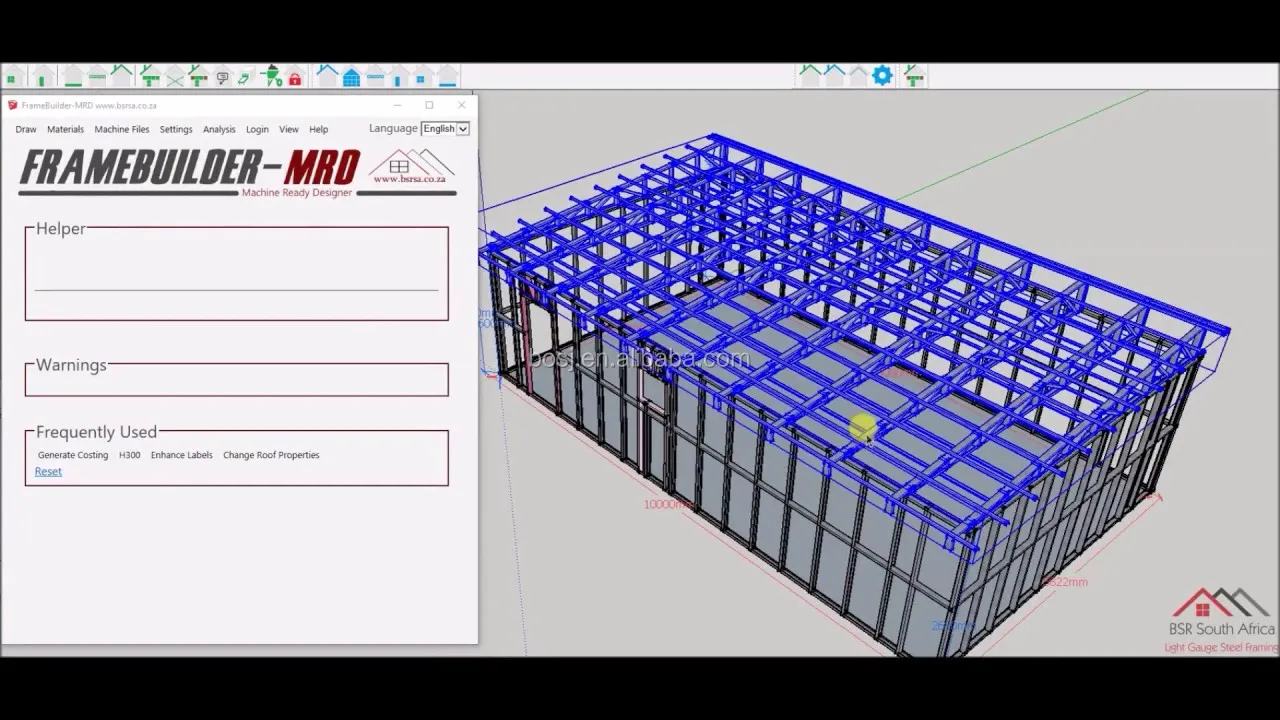

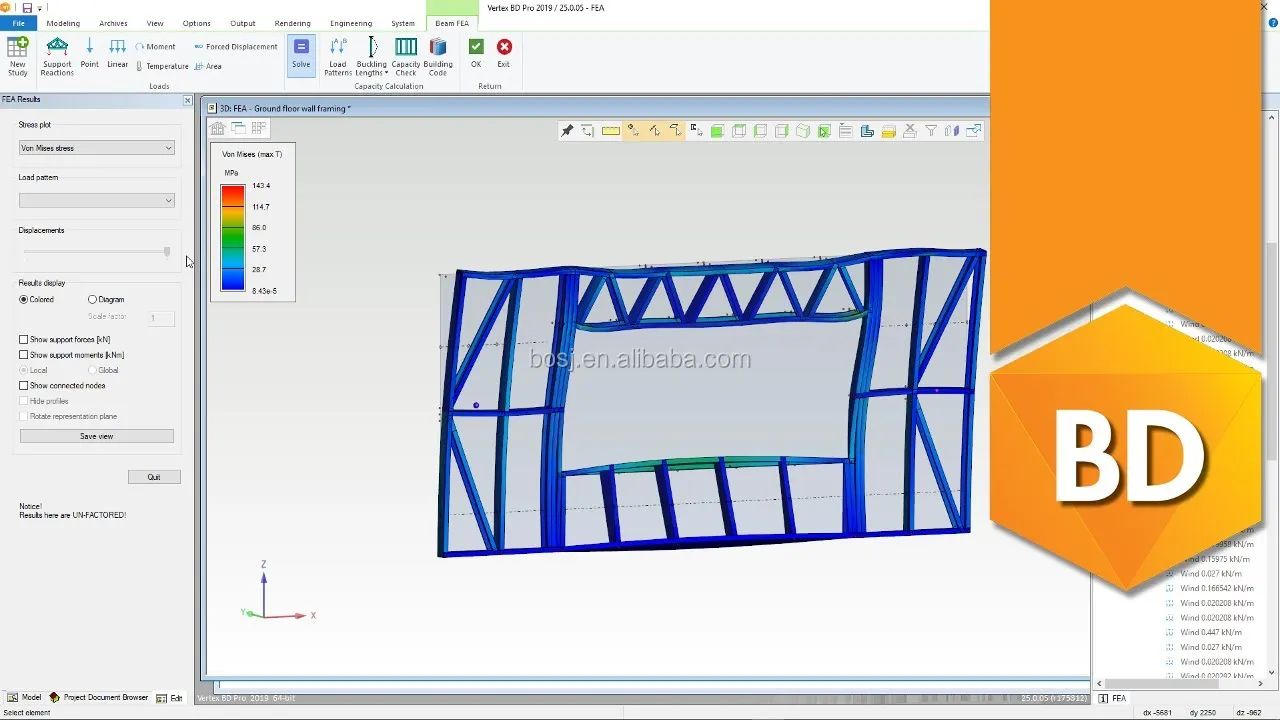

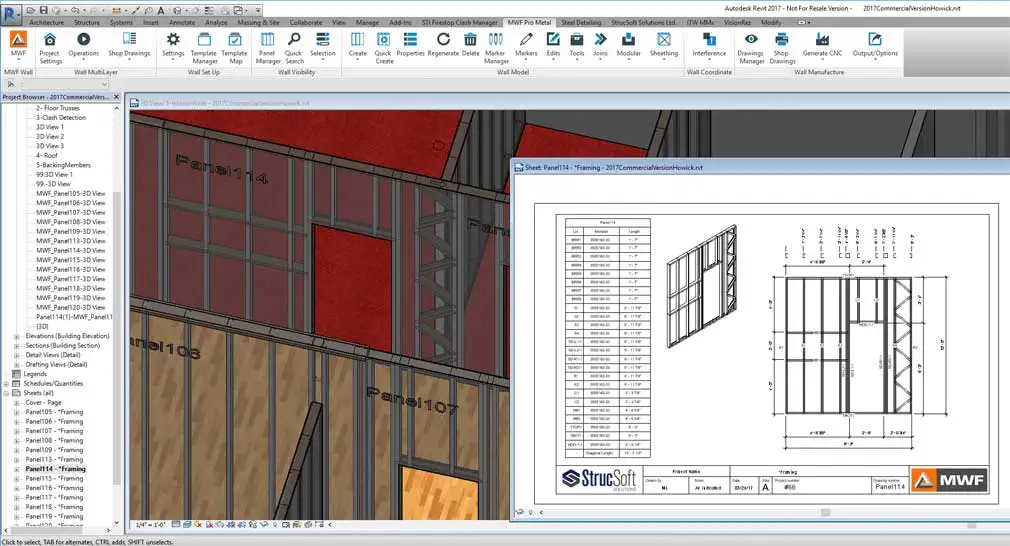

Software
