Randro Automatic production line of metal steel sheet coil slitting machine
- Category: >>>
- Supplier: Henan Randro Machinery Equipment Co. Ltd.
Share on (1601057836980):
Product Overview
Description
Products Description
Heavy Duty Metal Sheet Horizontal Slitting Line

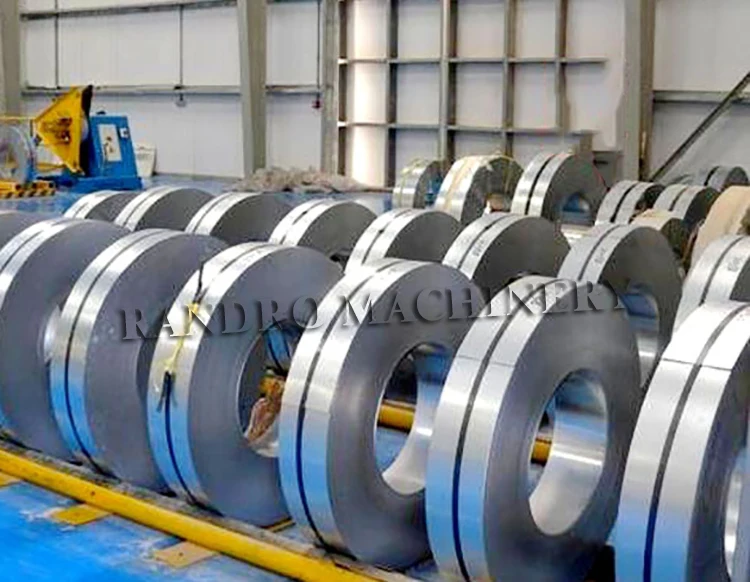

This slitting line is not only for the steel sheet cutting industry, but also for the pipe making field. Many customers make the pipes before slitting the large coil into the small size. This complete line can do uncoiling, feed guide, leveling,slitting and recoiling to any required width based on different demands.
Main Components:
1.Hydraulic decoiler with coil car
2.Feed guide device
3.Leveling and straitening system
4.Main slitting machine
5.Scrap collection device
6.Hydraulic recoiler machine with coil car
1.Hydraulic decoiler with coil car
2.Feed guide device
3.Leveling and straitening system
4.Main slitting machine
5.Scrap collection device
6.Hydraulic recoiler machine with coil car
Heavy duty hydraulic decoiler
Slitting machine
heavy duty recoiler
Product Paramenters
sn | items | technical data |
1 | Applicable material | galvanized steel at stress 235 Mpa (33KSI); less than 450 Mpa; |
2 | Material thickness | 0.3-2.0 mm |
3 | Coil width | 500-1600 mm |
4 | Coil inner diameter | 508 mm-610 mm |
5 | Coil outer diameter | less than 2000 mm |
6 | Max coil weight | 10 ton |
7 | Production speed | 10-15 m/min |
8 | The waste edge | 3-15 mm |
9 | The slitting burr | less than 0.05 mm |
10 | Mini slit width | 30 mm |
11 | The quantity of waste edge | 2 strips |
12 | The slit width of tolerance | 0.2 mm/m |
13 | The max. Weight of waste edge | less than 150kgs/roll |
14 | Slitting straighten tolerance | 0.2 mm/m |
Application
Randro Company's color steel slitting machines can satisfy kinds of customers' requirements.

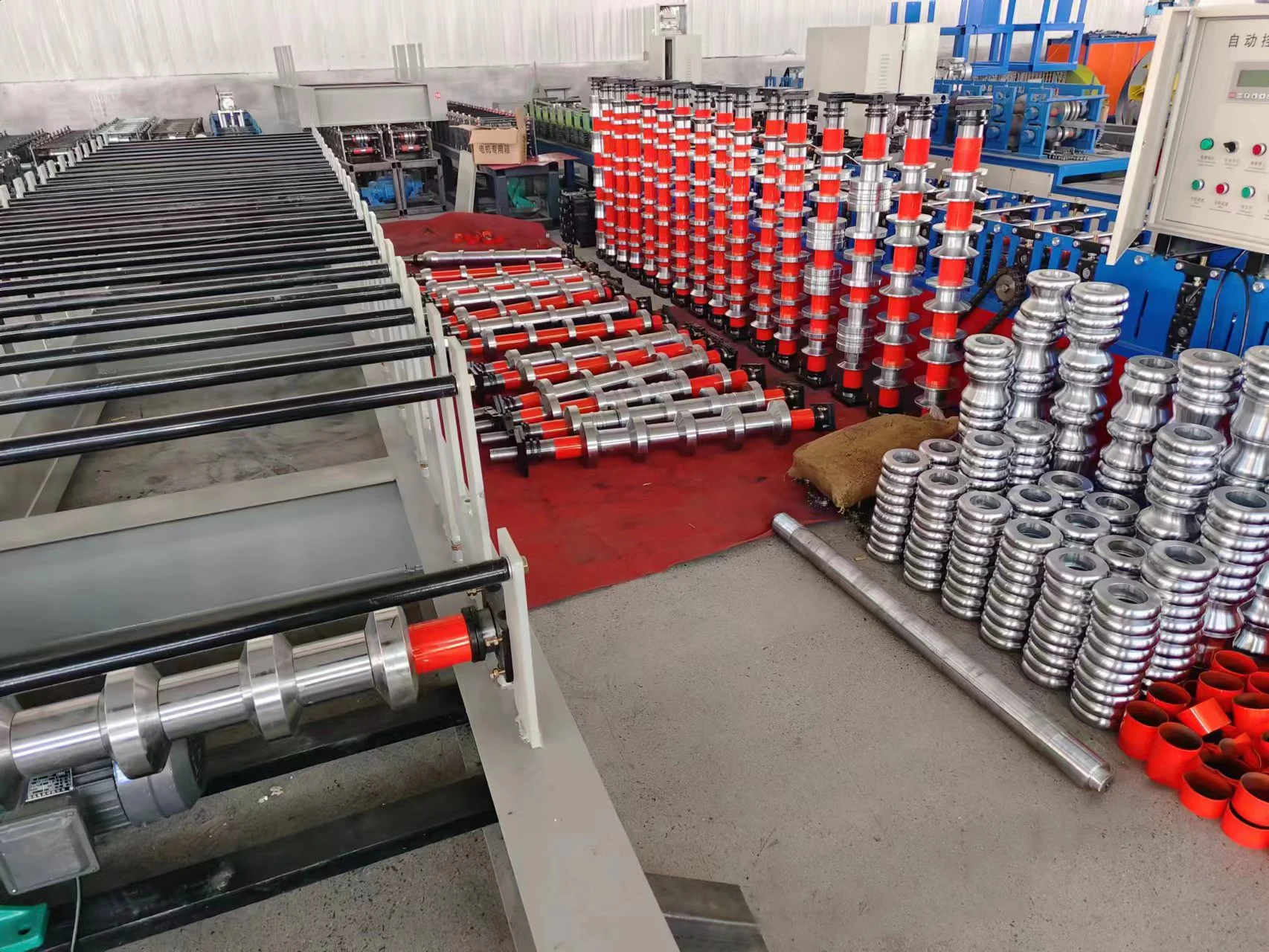

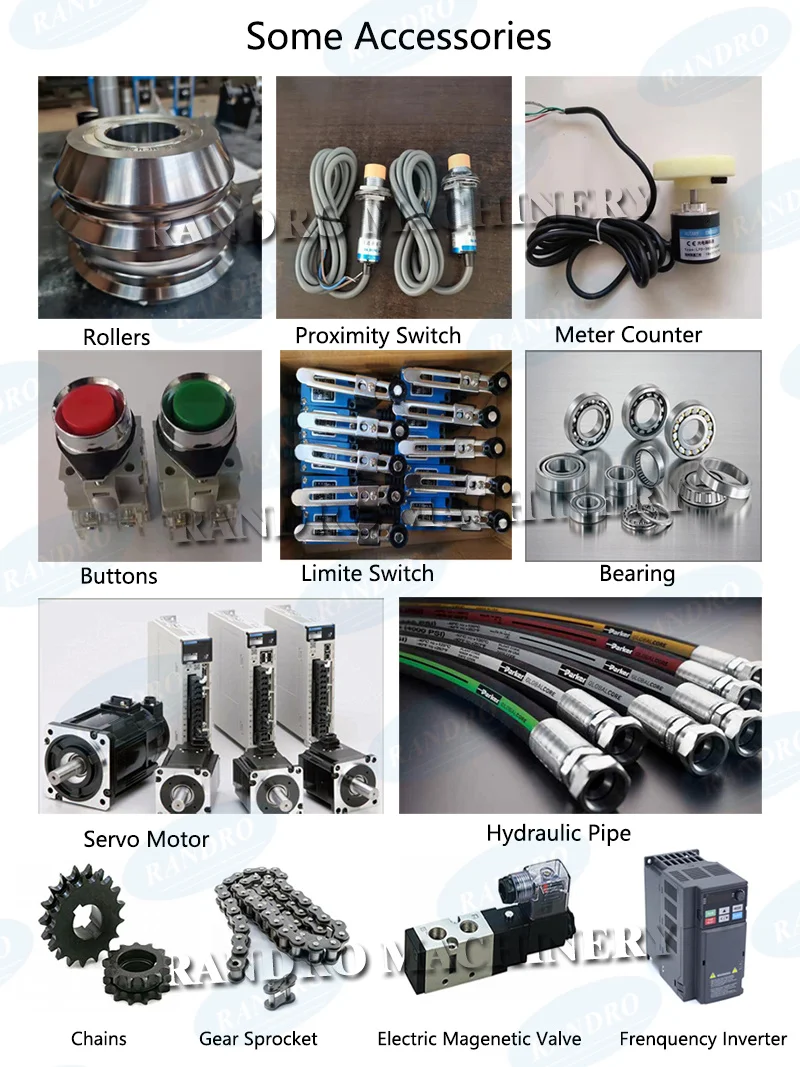

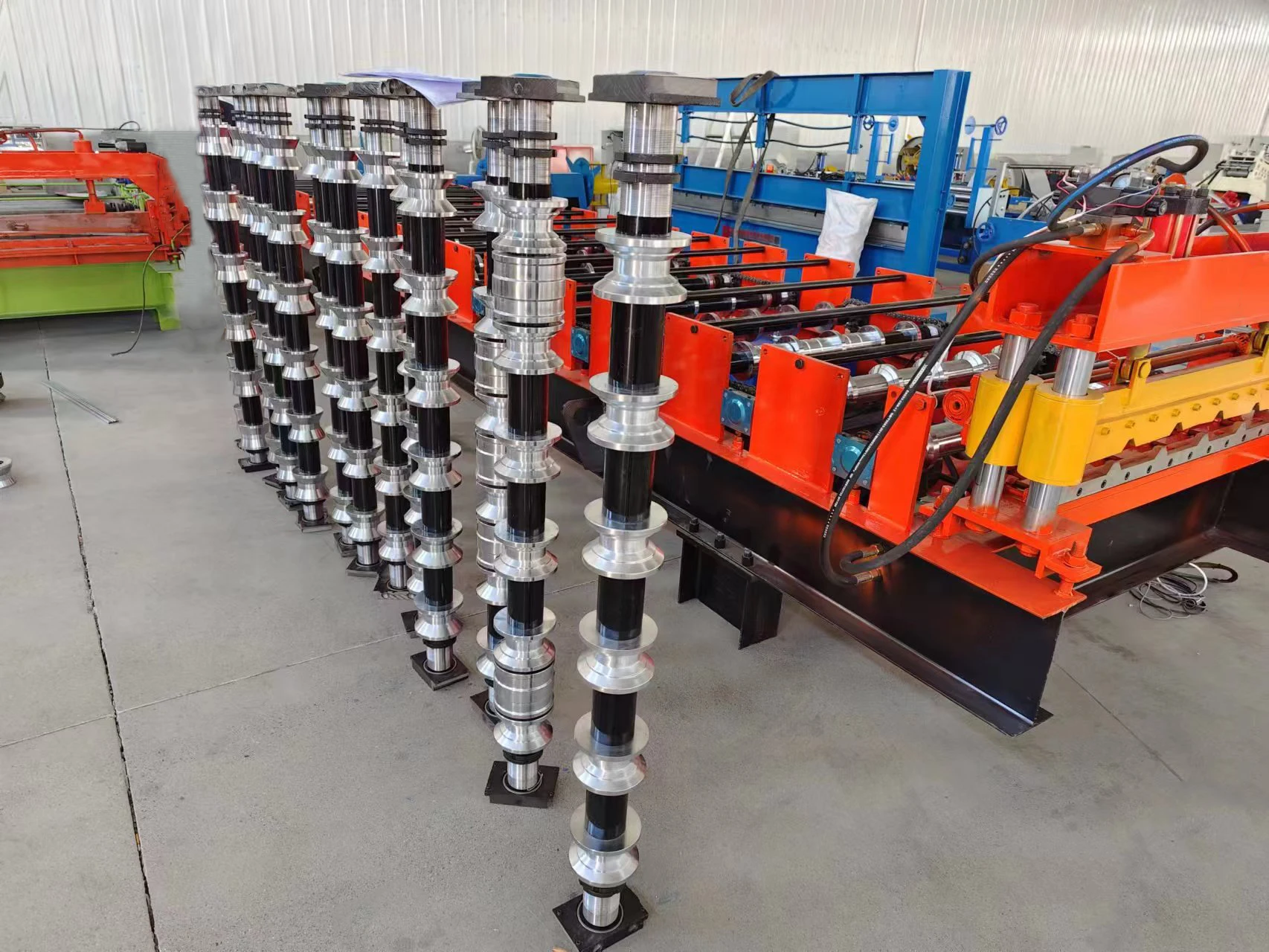

Spares
We can also provide cost effective spares for our clients.

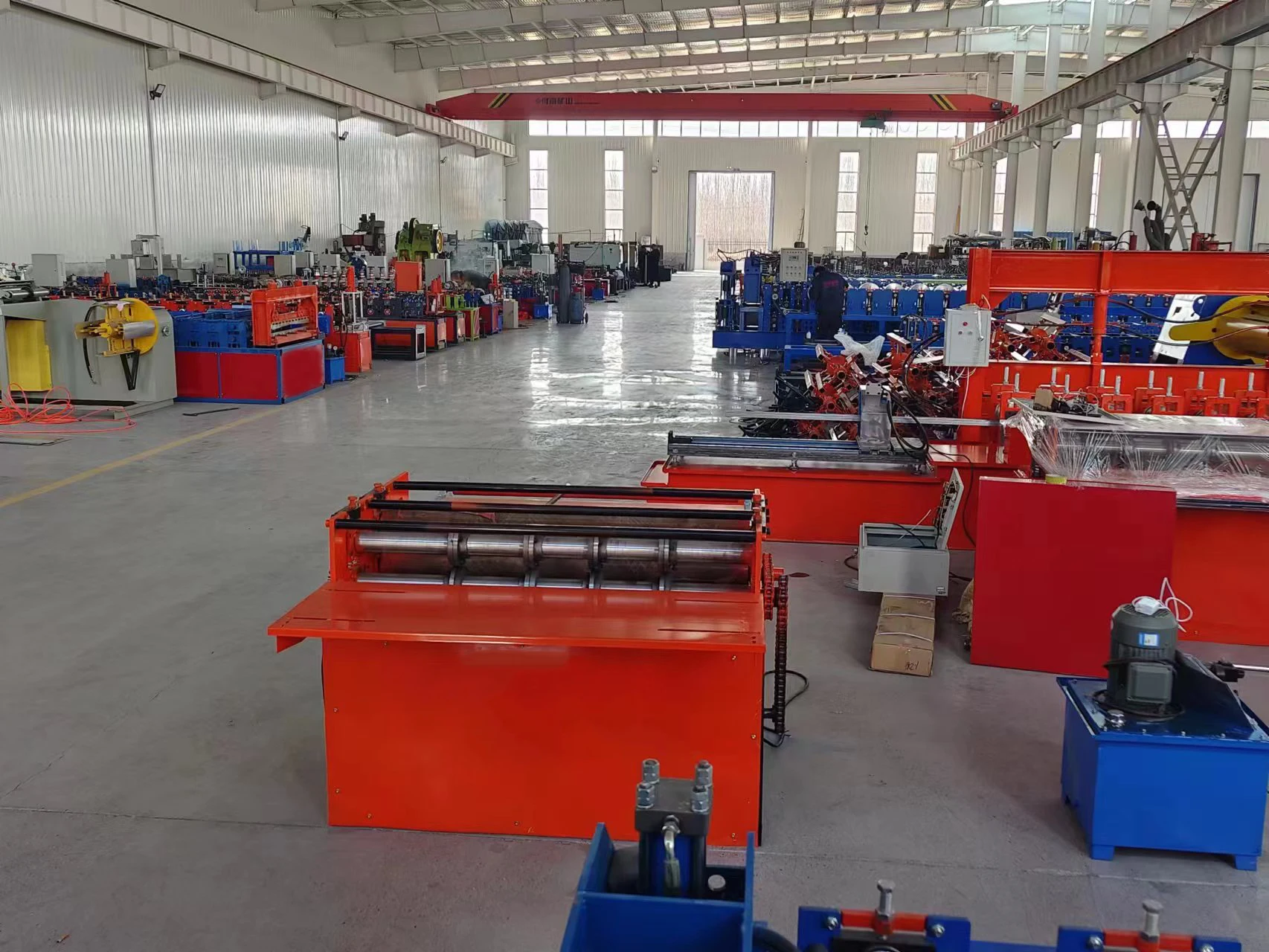

Company Profile
Henan Randro Machinery Equipment Co., Ltd.
Henan Randro Machinery Equipment Co., Ltd. Located in Henan Province focuses on one-stop service solutions for metal processing roll forming machines. We provide comprehensive solution to diverse building projects with professional techniques. Randro adheres to the business philosophy of "Professionalism Leads Progress, Quality Drives Value" to provide customers with high-quality cold roll forming machines.Customized Fully Automatic C/Z Interchangeable Roll Forming Machine, Roof Sheet Roll Forming Machine, Color Steel Tile Press Production Line, Heavy Duty Steel Deck Production Line, Complete Horizontal Coil Slitting Line, Container Roll Forming Machine, High-speed Guardrail Forming Machine, Shutter Door Roll Forming Machine,Metal Furry Roll Forming machine, Customized Keel Roll Forming Machine and related supporting equipment. Welcome our friends from all over the world to visit our company and sincerely look forward to cooperating with you!
