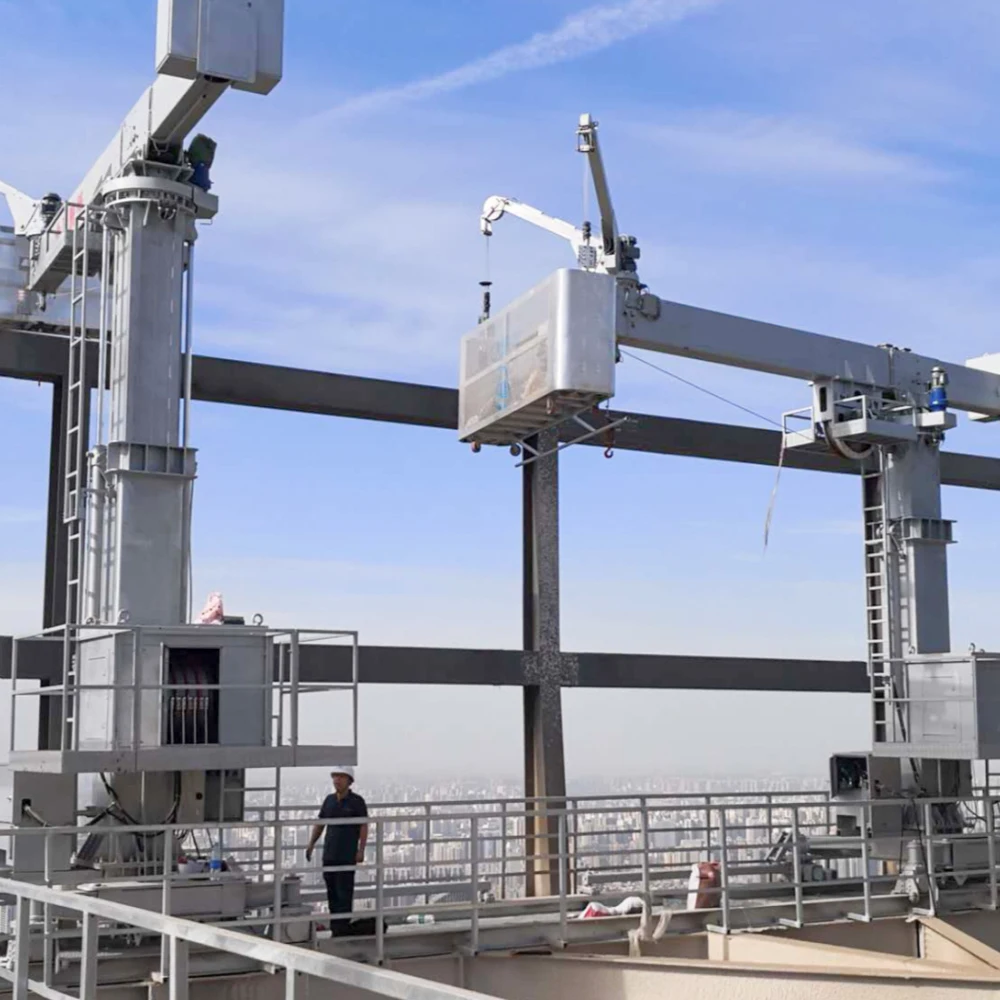

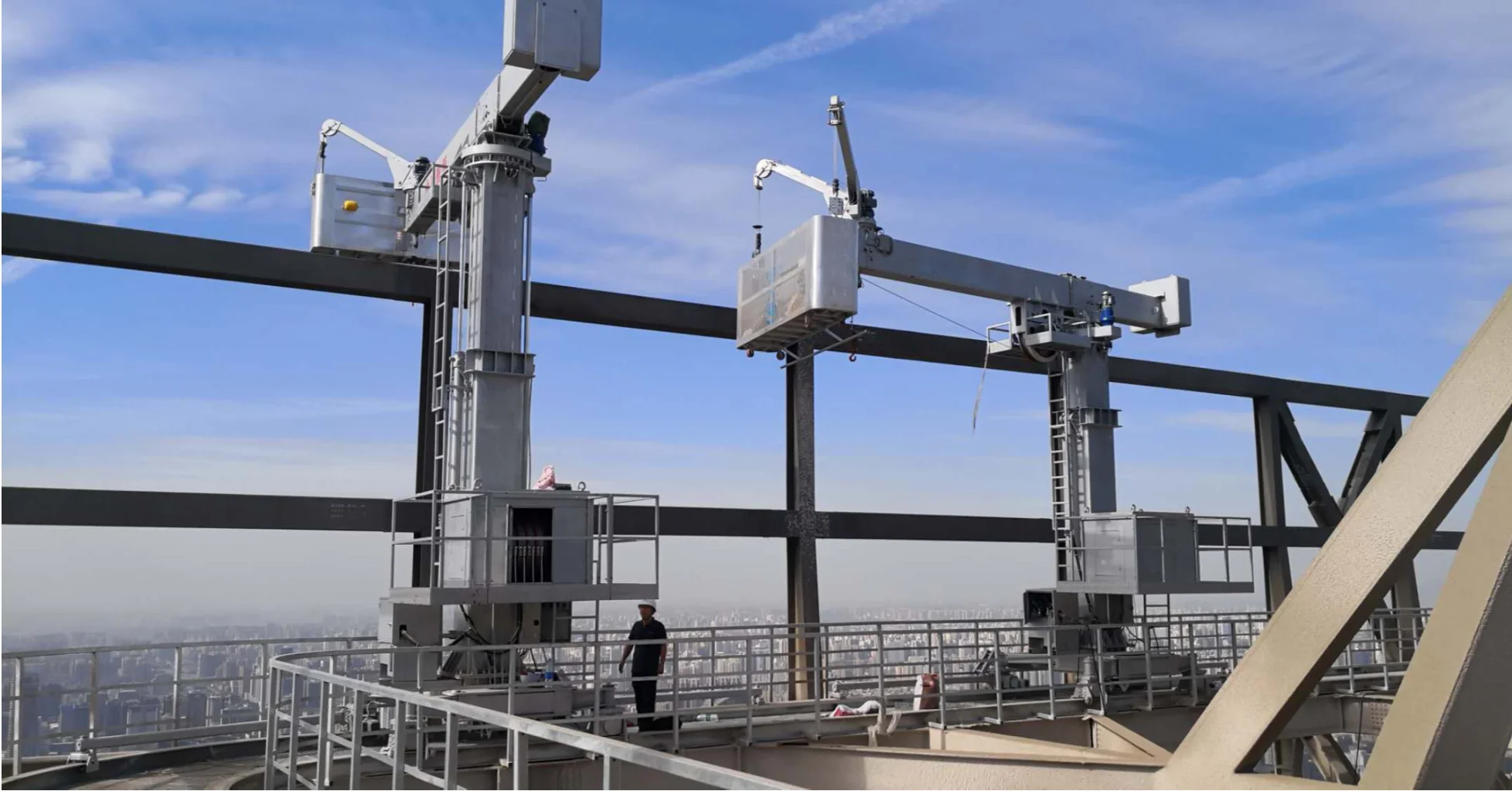

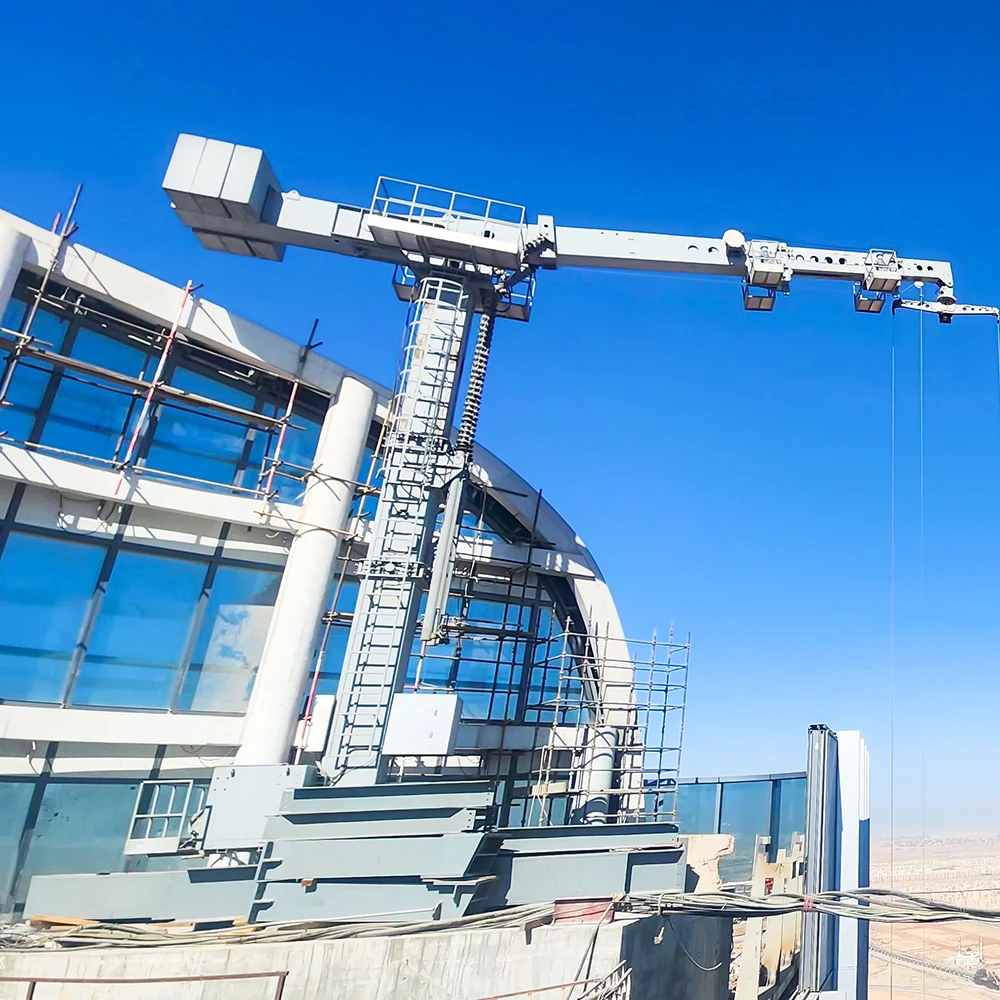

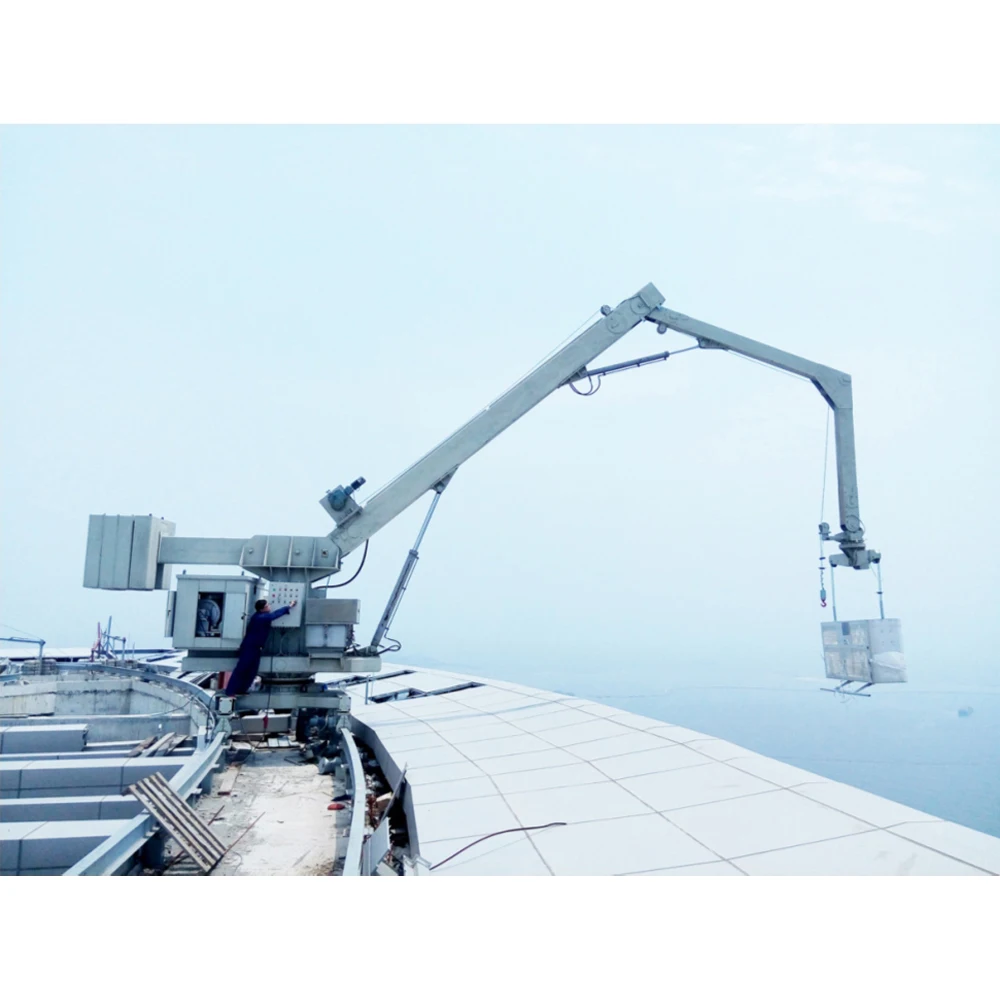

ZK BMU with twin jibs,window cleaning equipment facade cleaning gondola with CE and EAC certificate
- Category: >>>
- Supplier: Shandong Zuanke Machine Equipment Co. Ltd.
Share on (1601060174873):
Product Overview
Description
Products Description

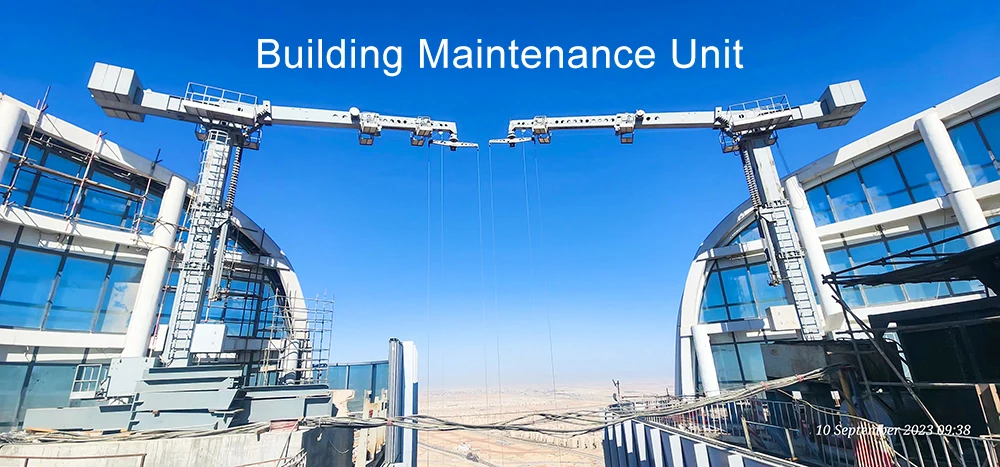

A Building Maintenance Unit (BMU) is an automatic, remote-controlled, or mechanical device, usually suspended from the roof, which moves systematically over some surface of a structure while carrying window washers or mechanical robots to maintain or clean the covered surfaces.
Building Maintenance Units are required on the more complicated building designs, and provide a sophisticated façade access solution. They are usually mounted permanently at roof level, and provide full lateral, horizontal and vertical movement of the working platform, in order to access all surfaces of a building.
The system is designed for scheduled facade maintenance e.g. window washing & external cleaning, and unscheduled maintenance e.g. replacement of glass/facade panels and other repairs.
Building Maintenance Units are required on the more complicated building designs, and provide a sophisticated façade access solution. They are usually mounted permanently at roof level, and provide full lateral, horizontal and vertical movement of the working platform, in order to access all surfaces of a building.
The system is designed for scheduled facade maintenance e.g. window washing & external cleaning, and unscheduled maintenance e.g. replacement of glass/facade panels and other repairs.
We offer the highest quality, most technologically advanced Building Maintenance Units (BMU).
* Safest, most reliable and economical solutions for any kind of building design or shape of facades;
* Consulting, planning and design right through to commissioning and after sales service;
* Facade access solutions in close cooperation with architects or building owners;
* Years of international experience and a strong tradition of product development;
* Speedy and reliable planning and design, using the latest techniques of computer aided modelling and calculation;
* The BMU is tailored and specifically designed for the building on which they are installed.
* Consulting, planning and design right through to commissioning and after sales service;
* Facade access solutions in close cooperation with architects or building owners;
* Years of international experience and a strong tradition of product development;
* Speedy and reliable planning and design, using the latest techniques of computer aided modelling and calculation;
* The BMU is tailored and specifically designed for the building on which they are installed.
Technical Advantages
JIB lay-off system adopt CNC plasma cutting equipment, to ensure the layoff size and panel bending size accuracy, and also ensure the gap balance during telescopic jib working.
Because BMU is for highrise cleaning and maintenance machinery, so CABR follows serious working procedures from R&D to fabrication, and from entry factory inspection to final exfa-ctory test, all implement on serious standard to guarantee CABR only supply reliable quality and high working performance BMU client.
Drum orbiting of hoisting system was adopted gear transmission way, can keep high transmission features, and enhance overload
mechanism reliable.Over speed mechanism was adopted ratchet pawl mechanism, and assembled spring buffer device on the ratchet pawl
me chanism backside, to reduce mechanism be impacted by shocking.
mechanism reliable.Over speed mechanism was adopted ratchet pawl mechanism, and assembled spring buffer device on the ratchet pawl
me chanism backside, to reduce mechanism be impacted by shocking.
Electrical components are all from world famous brand, e.g. Siemens, Muller, Mitsubishi, Fuji, Panasonic, Schneider, etc.,ensuring reliability of electric system.
Motors and reducers of BMU are all Germany SEW or NORD, which are practiced safe and reliable for many years.
The BMUs all adopt hot dip galvanized coats, with thickness of 85um.
Product Paramenters
Model | BMU WITH TWIN JIB |
Track gauge(B): | 1000 ~ 2000mm |
Maximum reach (C): | ≤7000mm |
Service height | ≤180m |
Total weight | 3300 ~7000Kg |
Safe working load(SWL): | 250Kg, 300kg |
China standard | GB/T 19154-2017 |
Europe standard | EN1808 |
Model | BMU WITH FIXED JIB |
Track gauge(B): | 1000 ~ 3000mm |
Maximum reach (C): | ≤12 000mm |
Service height | ≤500m |
Total weight | 5000~12000Kg |
Safe working load(SWL): | 250Kg, 300kg |
China standard | GB/T 19154-2017 |
Europe standard | EN1808 |
Model | BMU WITH TELESCOPIC JIB |
Track gauge(B): | 1500 ~ 4000mm |
Maximum reach (C): | 9-40m |
Service height | ≤500m |
Total weight | 10000 ~ 40 000Kg |
Safe working load(SWL): | 250Kg, 300kg |
China standard | GB19154-2003 |
Europe standard | EN1808 |
Model | BMU WITH LUFFING JIB |
Track gauge(B): | 1500 ~ 4000mm |
Maximum reach (C): | 4-40m |
Service height | ≤500m |
Total weight | 5000 ~ 40 000Kg |
Safe working load(SWL): | 250Kg, 300kg |
China standard | GB 19154-2017 |
Europe standard | EN 1808 |
Model | BMU WITH TELESCOPIC COLUMN |
Track gauge(B): | 1500 ~ 4000mm |
Maximum reach (C): | 4-40m |
Service height | ≤500m |
Total weight | 5000 ~ 42 000Kg |
Safe working load(SWL): | 250Kg, 300kg |
China standard | GB 19154-2017 |
Europe standard | EN 1808 |
Model | Motorized Trolley With Powered Cradle |
Track gauge(B): | B1: 1200 ~2000mm B2: 600~1200mm |
Maximum reach (C): | C1≤8000mm;C2≤5000mm |
Service height | ≤150m |
Total weight | ≤7000Kg |
Safe working load(SWL): | 250Kg |
China standard | GB/T 19154-2017 |
Europe standard | EN 1808 |

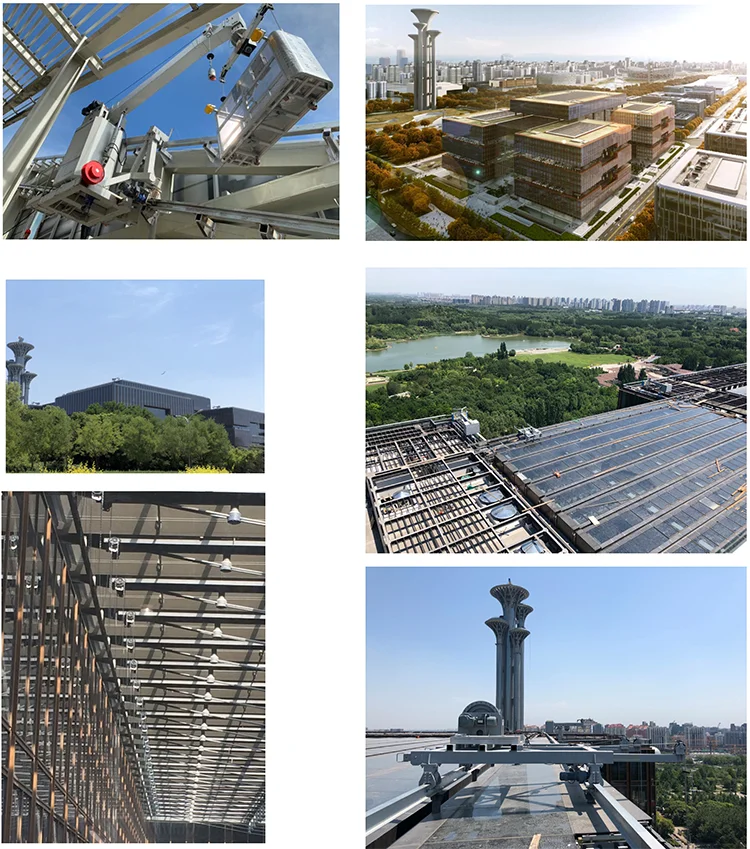

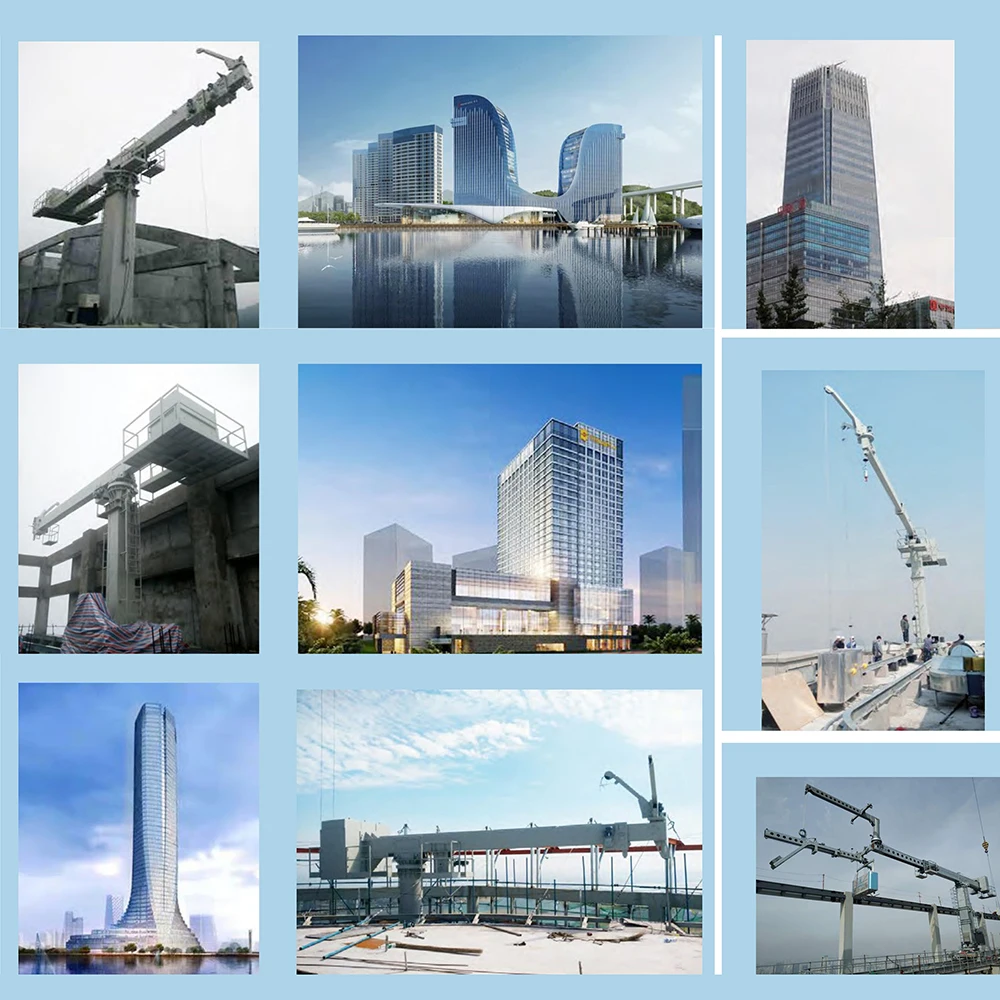

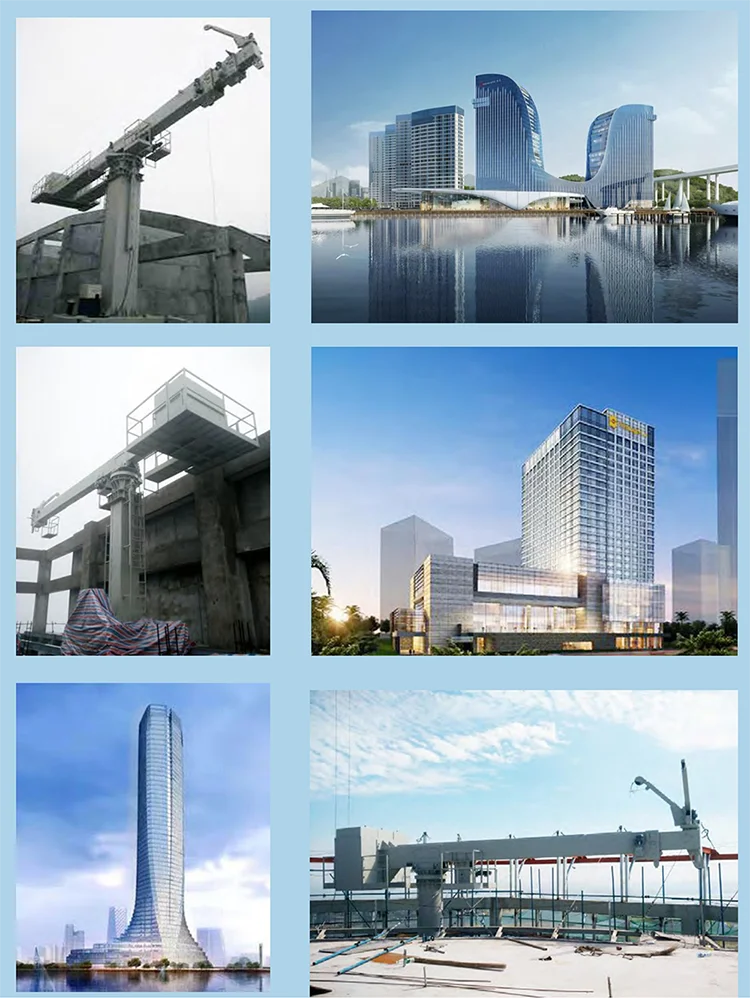

Application

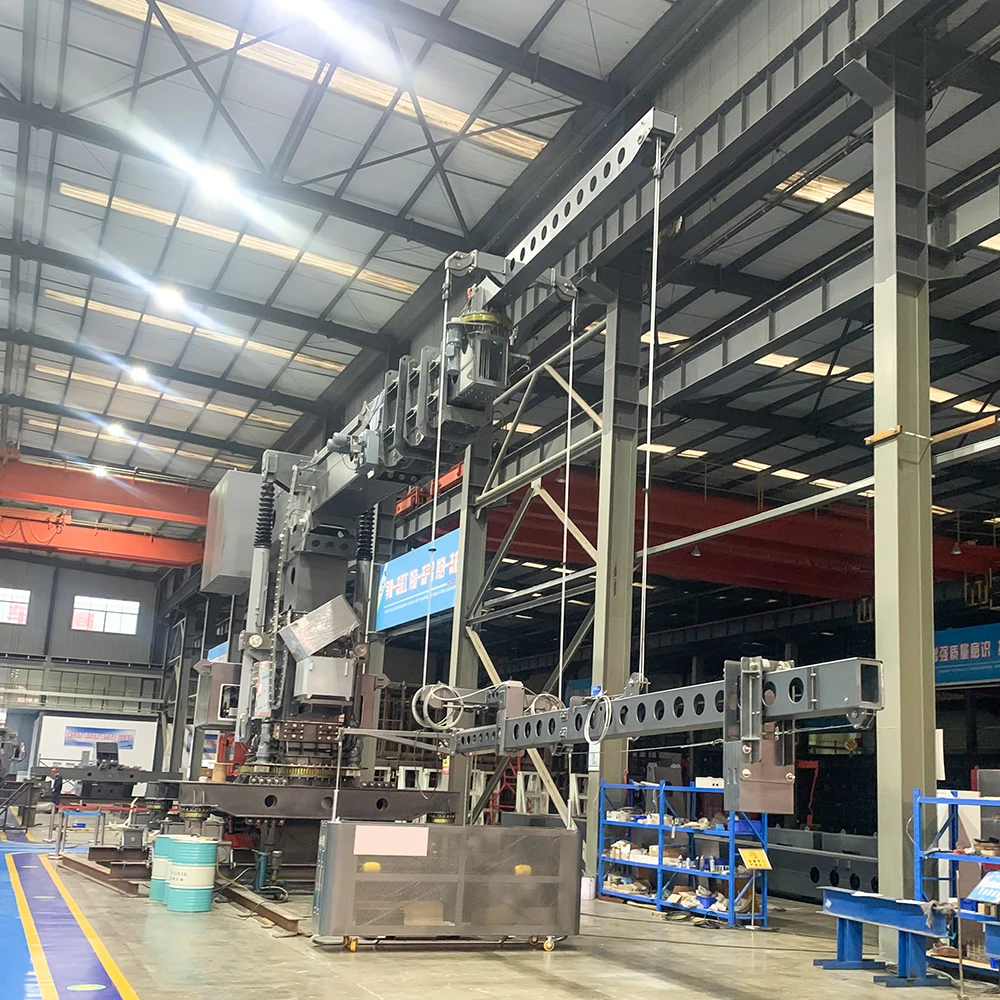

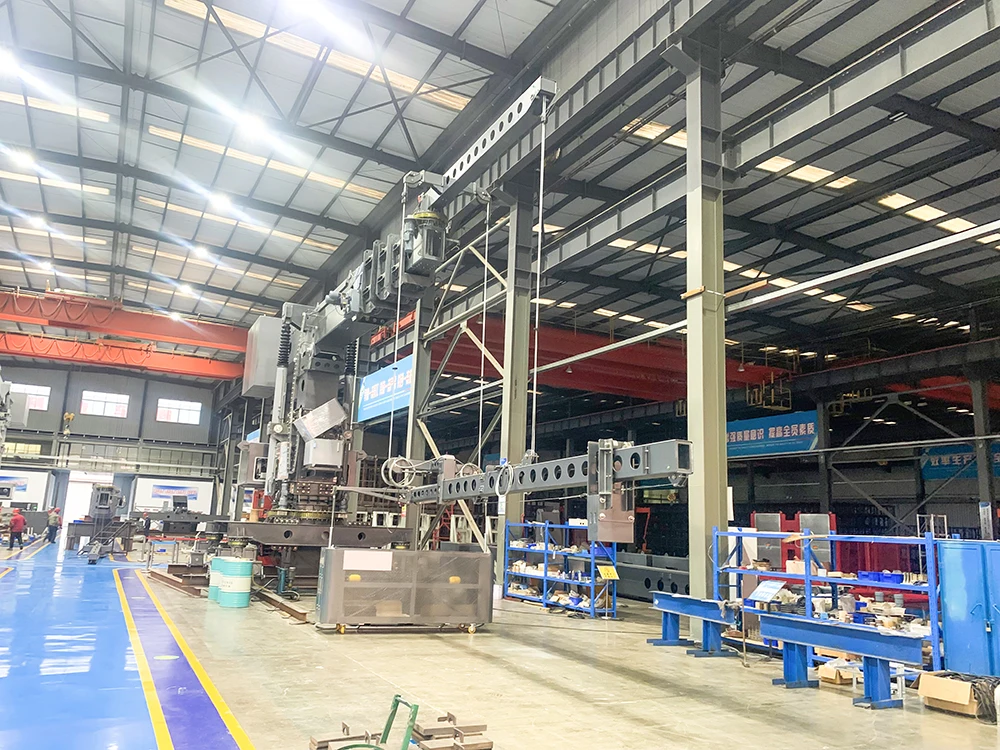

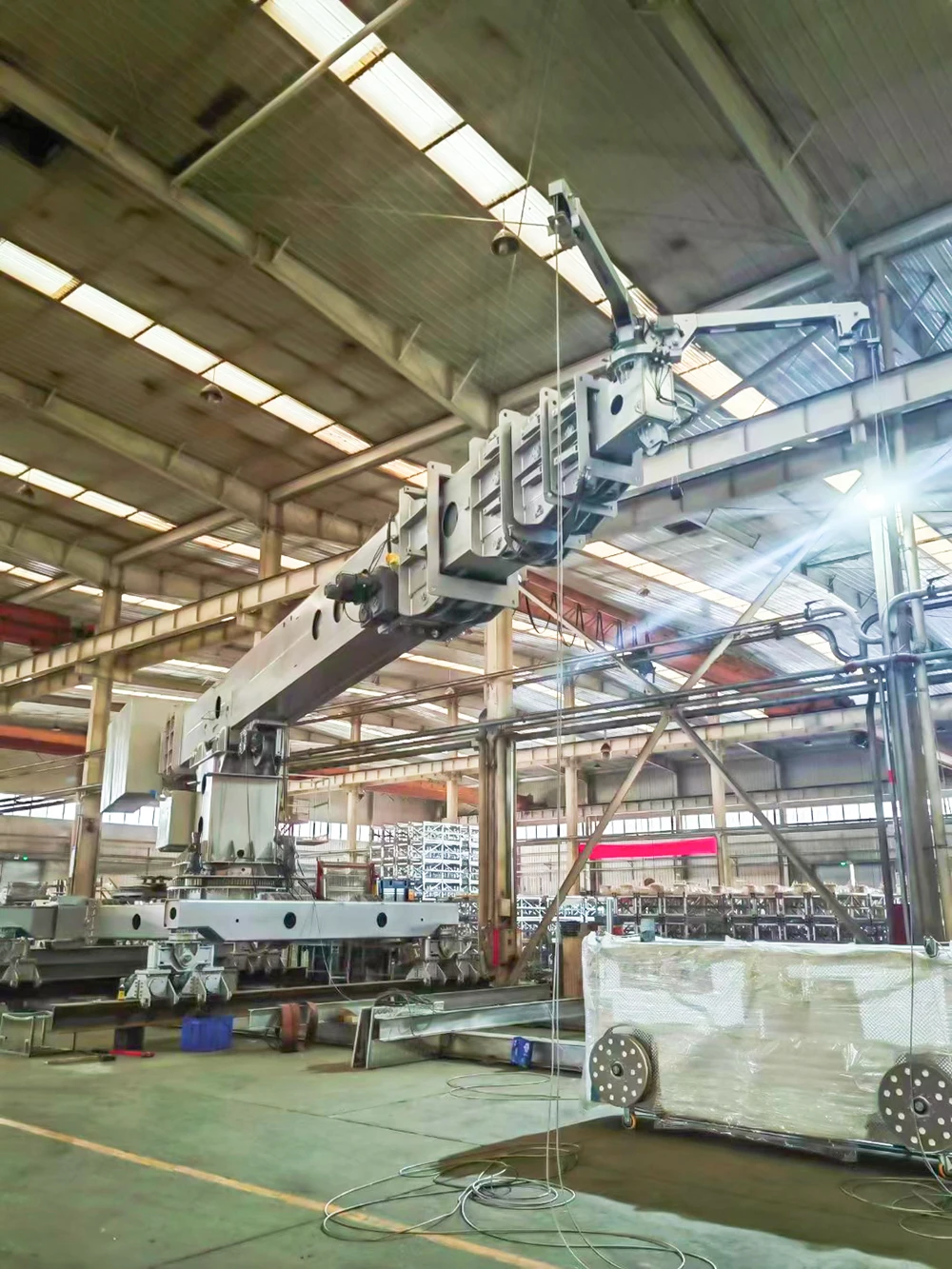

Factory
