Product Overview

Description

Single component guangdong building equipments construction machinery

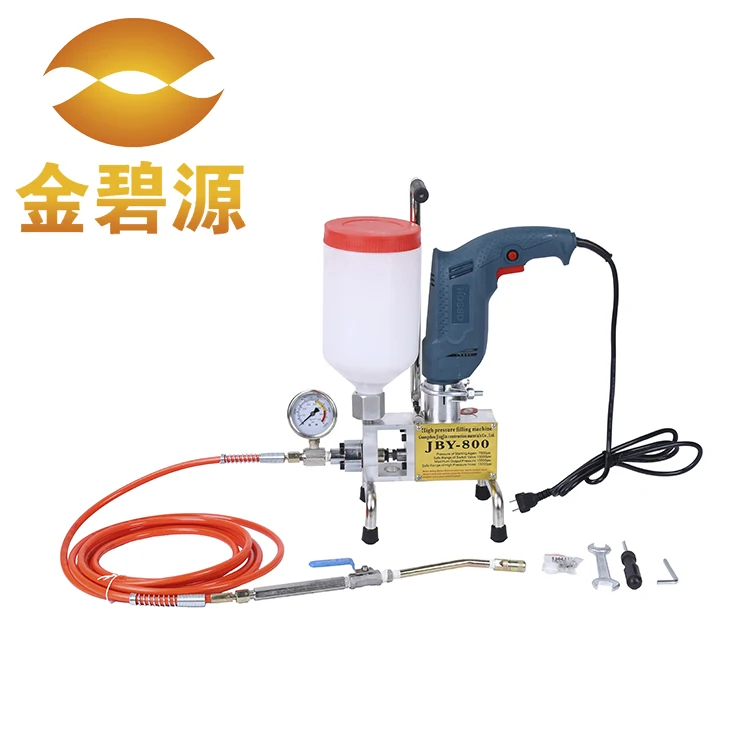

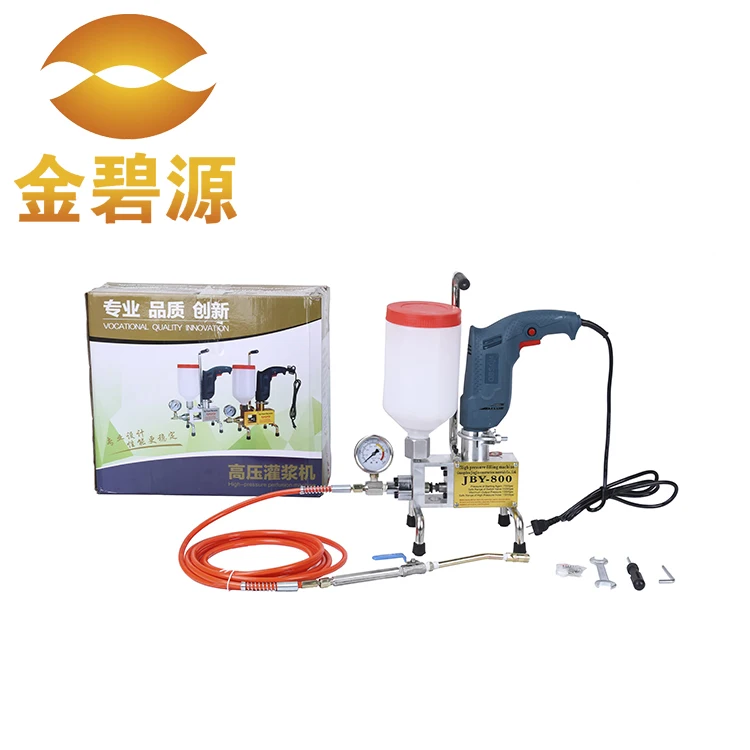

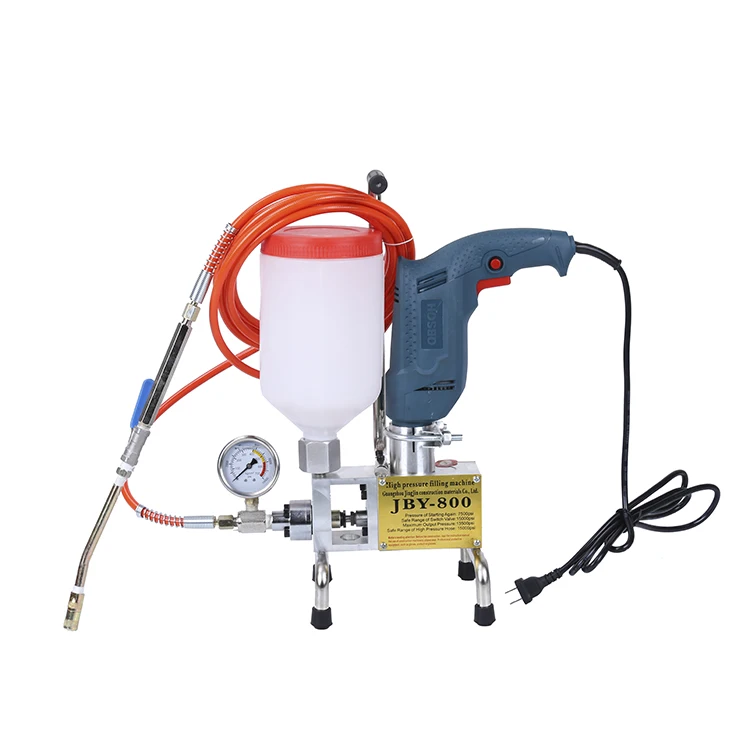

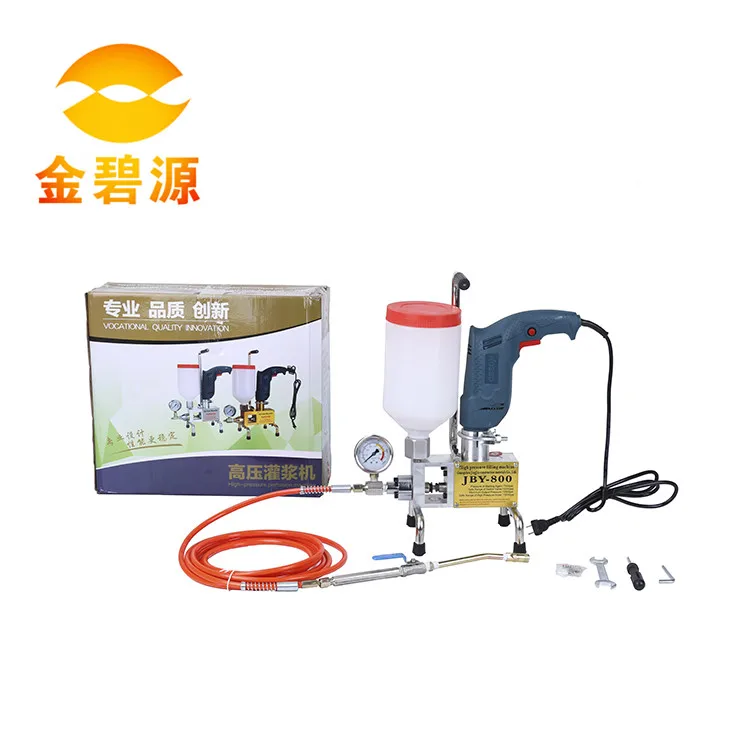

 High pressure grouting  machine is the use of mechanical pressure leakage power (high pressure meeting the concrete cracks slurry water quick dispersion, emulsion, inflation, unity elastomeric fill all concrete crack, will be completely blocked in the concrete structure outside the body, in order to achieve the purpose of the leakage of water stop.







 Accessory of the machine









Application Places





Leakage blocking, reinforcing and strengthening for underground, floor, second construction joints, subway, tunnel, dam, structure hives, concrete crack etc.





Suitable Materials

PU foam agent, Epoxy resin. Polyurethane, acrylic resin, waterproofing plugging agent, insulation materials etc.







Construction drawing









Direction for Use





1. Before starting, please confirm whether the switch of electric drill is in R (forward) position or not.





2. When first time used the new machine, you should pour the lubricating oil into material cup and open the power then rotate the material cup over again.



3. After completing construction, you must use the cleaning agent clean the machine immediately.



Specifications



Place of Origin: Guangzhou China (Mainland)	Brand Name: JBY	Model Number: JBY-999
Usage: Grouting	Power: 910W/220V	Applicable materials: PU foam agent, Epoxy resin. Polyurethane, acrylic resin
Max output pressure: 13500psi	Restart pressure: 7500psi	Safe range of high-pressure hose: Less than 13500psi
Safe range of switch valve: Less than 10000psi	Weight: 8KG	Packing size: 31*19*50cm







Maximum output pressure	13500psi
Pressure of starting again	less than 7500psi
Safe range of high-pressure hose	less than 13500psi
Safe range of switch valve	less than 10000psi

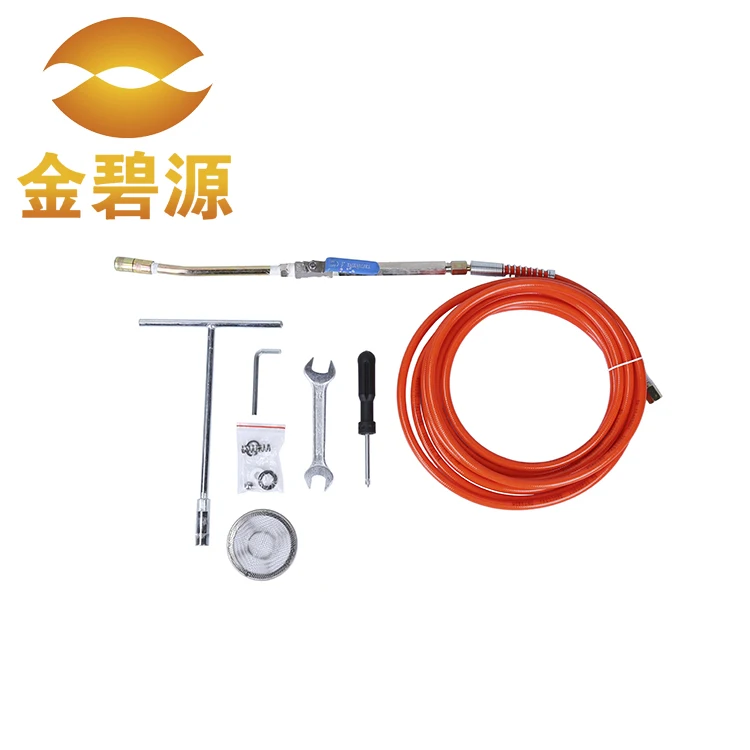

Accessories



Drill	1 set

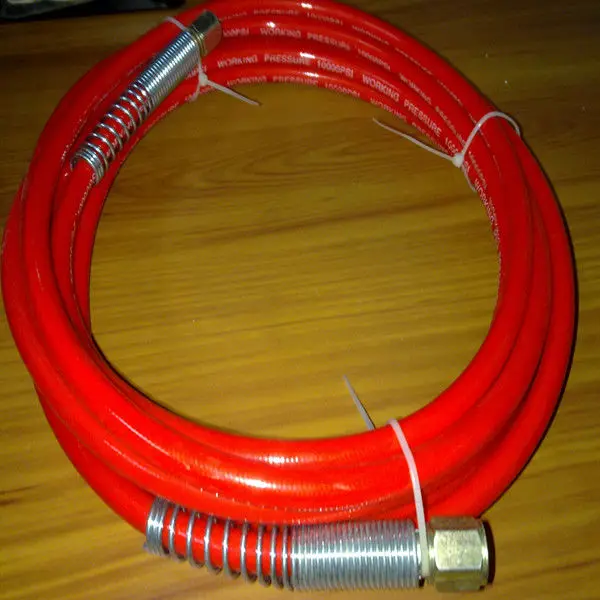

High pressure hose	1 pcs
Shut-off value	1 set

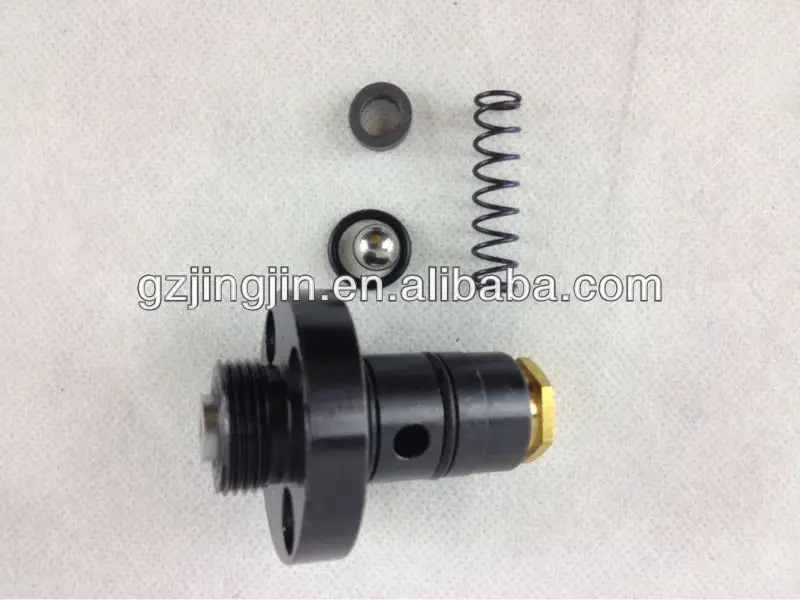

repairing kit	1 set
Seal set	1 set
T type wrench	1 set
Rubber pad	10 pcs
Zerk	1 pcs
Filter	1 pcs
Material cup	1 pcs

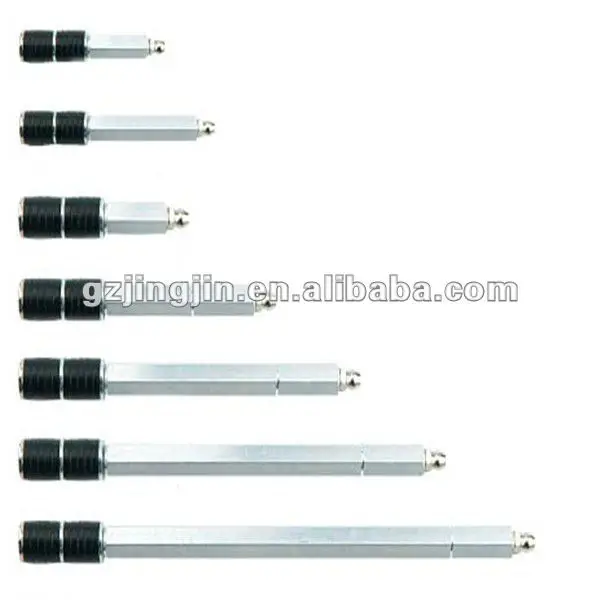

Machine Packers



The machine have included all of accessories except packers which is disposable.The choice of packers size is depended on the depth of crack.
