DY26A Ultrasonic Leak Detector Tool
- Category: >>>
- Supplier: Yiwu Ofine Auto Accessories Co. Ltd.
Share on (1601063262860):
Product Overview
Description
Products Description
DUOYI DY26A Ultrasonic Leak Location Determine Meter Car Window Sealing Flaw Gas Vaccum Pressure Locator Sound Light Alarm
Dear friends, the following is the difference between DY26 and DY26A
DY26 is suitable for testing leaks in confined spaces.
Instructions:
1. Put the transmitter DY26-T into a closed container to be tested.
2. Adjust the sensitivity of the receiver's DY26-R (you can adjust the sensitivity to the maximum at the beginning), and then hold
the receiver DY26-R to slowly move along the measured object and listen to the sound from the headphones.
3. The closer to the point of the leak, the louder the headphones. (At this time you can adjust the sensitivity appropriately)
DY26A is suitable for various leaks and has a 420mm probe.
Instructions:
1. Adjust the sensitivity of DY26A, hold DY26A slowly moving around the measured object,
2. The closer to the point of the leak, the louder the sound from the headphones.
If you are still not sure which one is better, you can consult the seller. Leave me a message. I will reply you as soon as
possible.
DY26A is designed to locate leaks in pressure and vacuum system.
It can be used to detect and locate the source of the ultrasonic emission generated by gas or liquid f1owing through a small
restrictive opening.
lt uses the advanced ultrasonic sensing technique and features small size, light weight;reliable detection, easy use and utility.
Dear friends, the following is the difference between DY26 and DY26A
DY26 is suitable for testing leaks in confined spaces.
Instructions:
1. Put the transmitter DY26-T into a closed container to be tested.
2. Adjust the sensitivity of the receiver's DY26-R (you can adjust the sensitivity to the maximum at the beginning), and then hold
the receiver DY26-R to slowly move along the measured object and listen to the sound from the headphones.
3. The closer to the point of the leak, the louder the headphones. (At this time you can adjust the sensitivity appropriately)
DY26A is suitable for various leaks and has a 420mm probe.
Instructions:
1. Adjust the sensitivity of DY26A, hold DY26A slowly moving around the measured object,
2. The closer to the point of the leak, the louder the sound from the headphones.
If you are still not sure which one is better, you can consult the seller. Leave me a message. I will reply you as soon as
possible.
DY26A is designed to locate leaks in pressure and vacuum system.
It can be used to detect and locate the source of the ultrasonic emission generated by gas or liquid f1owing through a small
restrictive opening.
lt uses the advanced ultrasonic sensing technique and features small size, light weight;reliable detection, easy use and utility.
Products Show
If you are outside, hold the DY26A along the object to measure the leak, you can find the leak location
If you are in a sealed container, you should check if the container is leaking. Choose DY26
Features:
1. Sense pressurized leaks, detects electrical arcing, and finds falling solenoids, valves and bearings .
2. Comes with a transmitter that emits an ultrasonic frequency to help locate leaaks that are not pressurized.
Enough to emit frequencies the detector can pick up.(Only DY26)
3. Detects any pressurized leaking gas, including chlorofluoro carbon(CFCs), hydrofluoro carbon(HFCs),
nitrogen(Ni), carbon dioxide(CO2) and steam.
Specification:
Alarm Indication: The"LEAK" LED lights and the"ticking tone" increases in frequency.
Frequency Response: 40kHz ± 2kHz
Operating Condition: temperature:0°C - 40°C
Relative humidity: <80%
Battery: 9V, 6F22 or equivalent

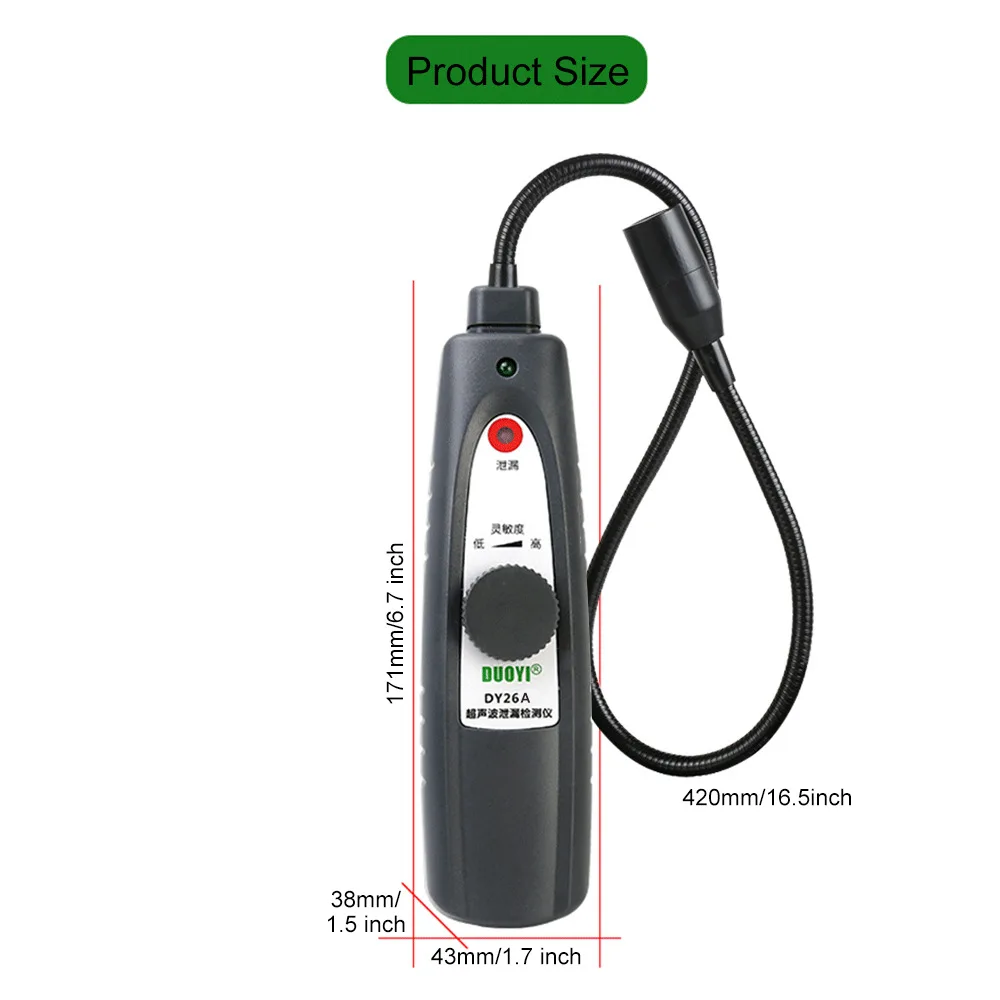

Size: 171*43*38mm
Weight: about 240g
Note :
1.There are many factors involved in the ultrasonic leak detection, such as the pressure within the vessel under test,
hole shape, hole size, temperature etc. In some cases, the ultrasonic sound caused by leak is very weak,
so you should set the DY26A's sensitivity to the highest level at the beginning of leak detection.
2.If the detected ultrasonic sound is too intense so that it is impossible to pinpoint the leak because the" ticking tone"
is too high in frequency, you should decrease the sensitivity with the sensitivity knob.
3.In noisy environments, you can decrease the sensitivity appropriately to exclude the disturbance caused by noise.
4.When DY26A detects ultrasonic sound, move its probe around the suspected leak to determine
whether the detected ultrasonic sound is from the suspected leak or from other areas.
5.Because ultrasonic sound attenuates rapidly when it travels over distance, move the probe of DY26A
as close as possible to the suspected leak, remember to decrease the sensitivity if necessary.
During location, move the probe slowly.
If you are in a sealed container, you should check if the container is leaking. Choose DY26
Features:
1. Sense pressurized leaks, detects electrical arcing, and finds falling solenoids, valves and bearings .
2. Comes with a transmitter that emits an ultrasonic frequency to help locate leaaks that are not pressurized.
Enough to emit frequencies the detector can pick up.(Only DY26)
3. Detects any pressurized leaking gas, including chlorofluoro carbon(CFCs), hydrofluoro carbon(HFCs),
nitrogen(Ni), carbon dioxide(CO2) and steam.
Specification:
Alarm Indication: The"LEAK" LED lights and the"ticking tone" increases in frequency.
Frequency Response: 40kHz ± 2kHz
Operating Condition: temperature:0°C - 40°C
Relative humidity: <80%
Battery: 9V, 6F22 or equivalent
Size: 171*43*38mm
Weight: about 240g
Note :
1.There are many factors involved in the ultrasonic leak detection, such as the pressure within the vessel under test,
hole shape, hole size, temperature etc. In some cases, the ultrasonic sound caused by leak is very weak,
so you should set the DY26A's sensitivity to the highest level at the beginning of leak detection.
2.If the detected ultrasonic sound is too intense so that it is impossible to pinpoint the leak because the" ticking tone"
is too high in frequency, you should decrease the sensitivity with the sensitivity knob.
3.In noisy environments, you can decrease the sensitivity appropriately to exclude the disturbance caused by noise.
4.When DY26A detects ultrasonic sound, move its probe around the suspected leak to determine
whether the detected ultrasonic sound is from the suspected leak or from other areas.
5.Because ultrasonic sound attenuates rapidly when it travels over distance, move the probe of DY26A
as close as possible to the suspected leak, remember to decrease the sensitivity if necessary.
During location, move the probe slowly.
