F4 V3S PLUS FC Flight Controller Board with 30A 45A 60A 4in1 Brushless ESC for RC QAV/ZMR 210 230 250MM Drone FPV Racing







Specification

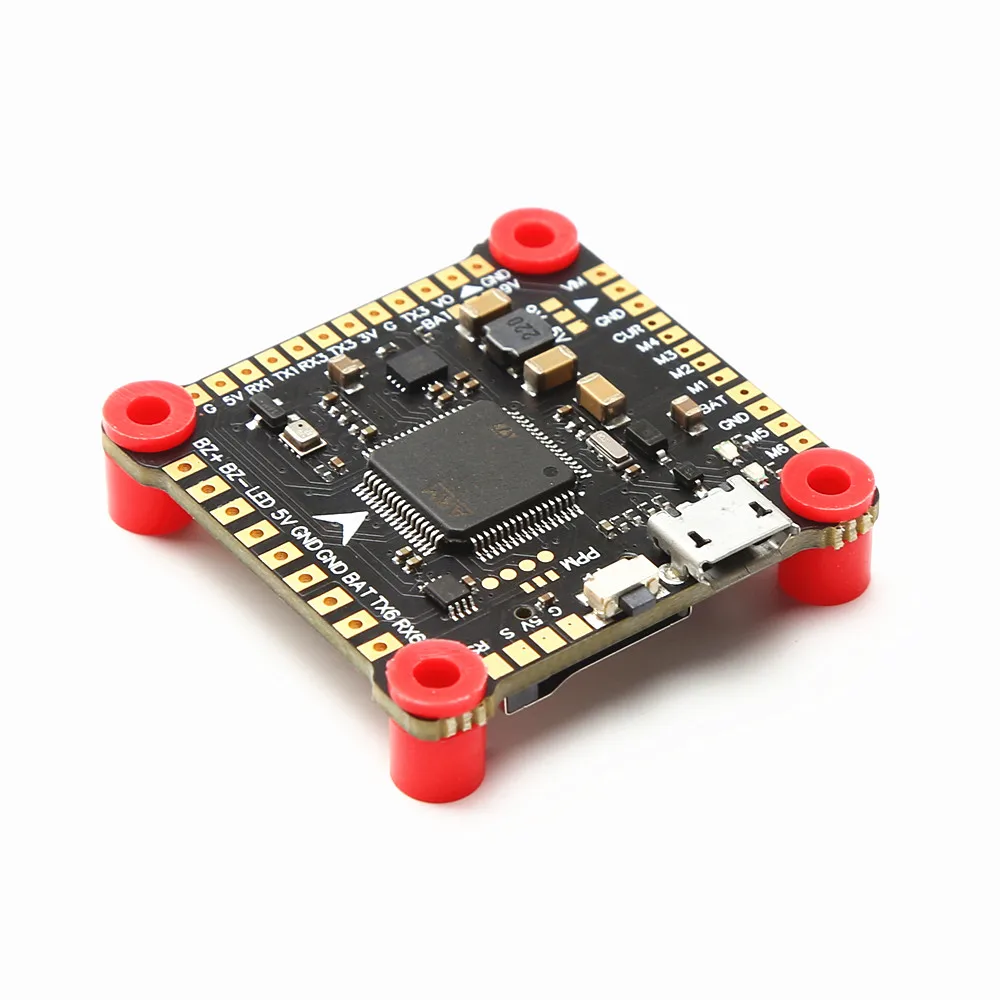

F4 V3S PLUS FC


Specification:

Item name: F4 V3 PLUS Flight Controller

Size: 36x36mm

Mounting holes: 30.5x30.5mm STM32 F405 MCU
Dshot support Drag and Drop OSD configured via Betaflight

Gyro:BMI270 SBUS / PPM AND Spketrum ports MicroSD card blackbox
Baro (BMP280)

BEC:5v3a 9V3A On-board video filters (only 5V to VTX and camera)

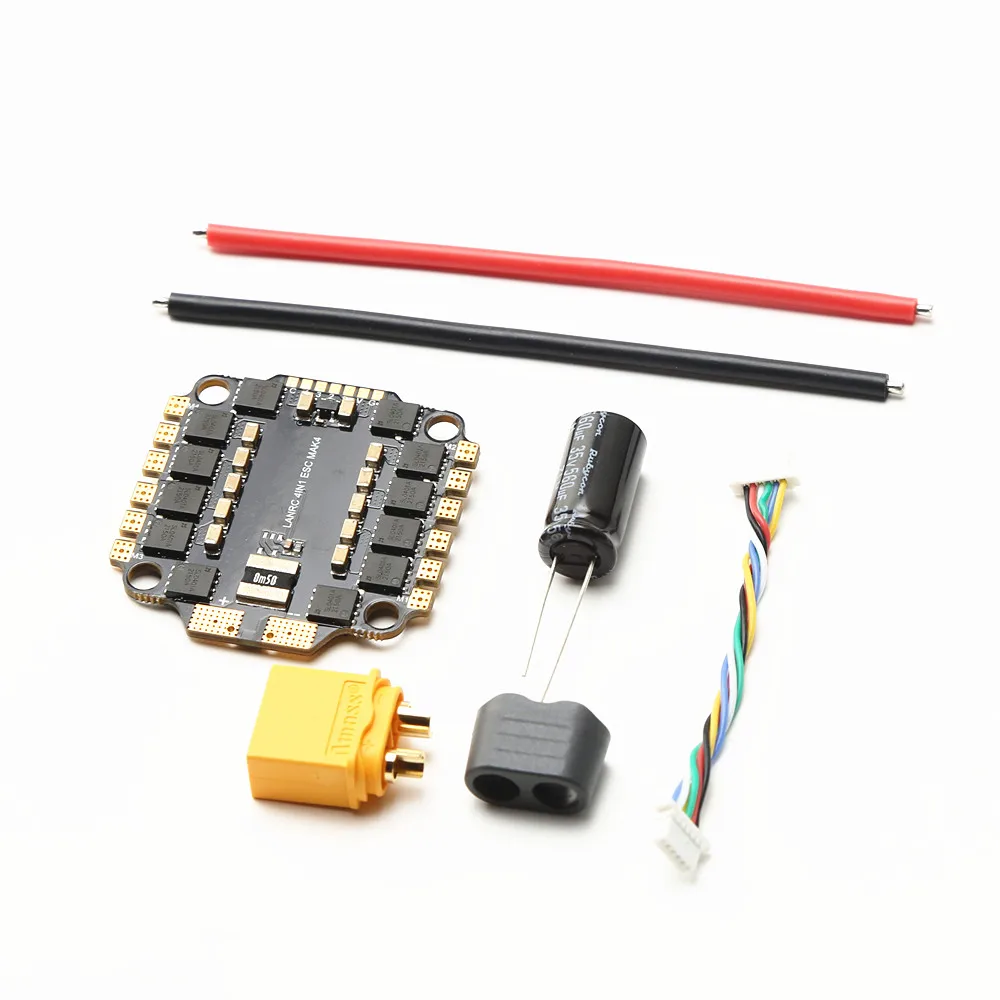

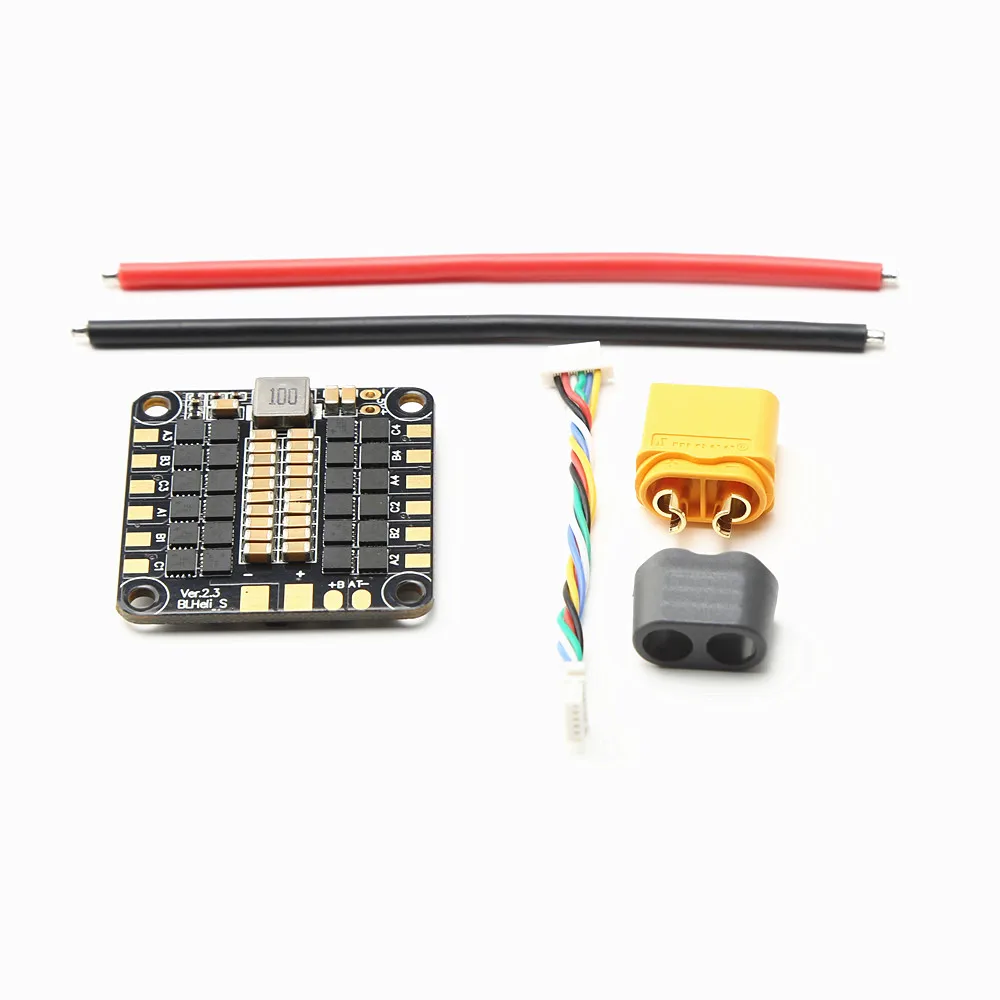

30A ESC:


Special Edition Wizard X220S FPV Racer RC Spare Part Drone 4 in 1 30A ESC BLHeli_S 2-6S Dshot600 RC Racing Drones Quadcopter Accessories



Description:

Item name: 4 in 1 30A BLHeli_S ESC

Con. current: 30A

Peak current (10s): 35A

Input voltage: 2-6 S

BEC: 5V output

Programming: YES

Firmware: blheli_s

Weight: 9g

Size: 36 * 36 MM

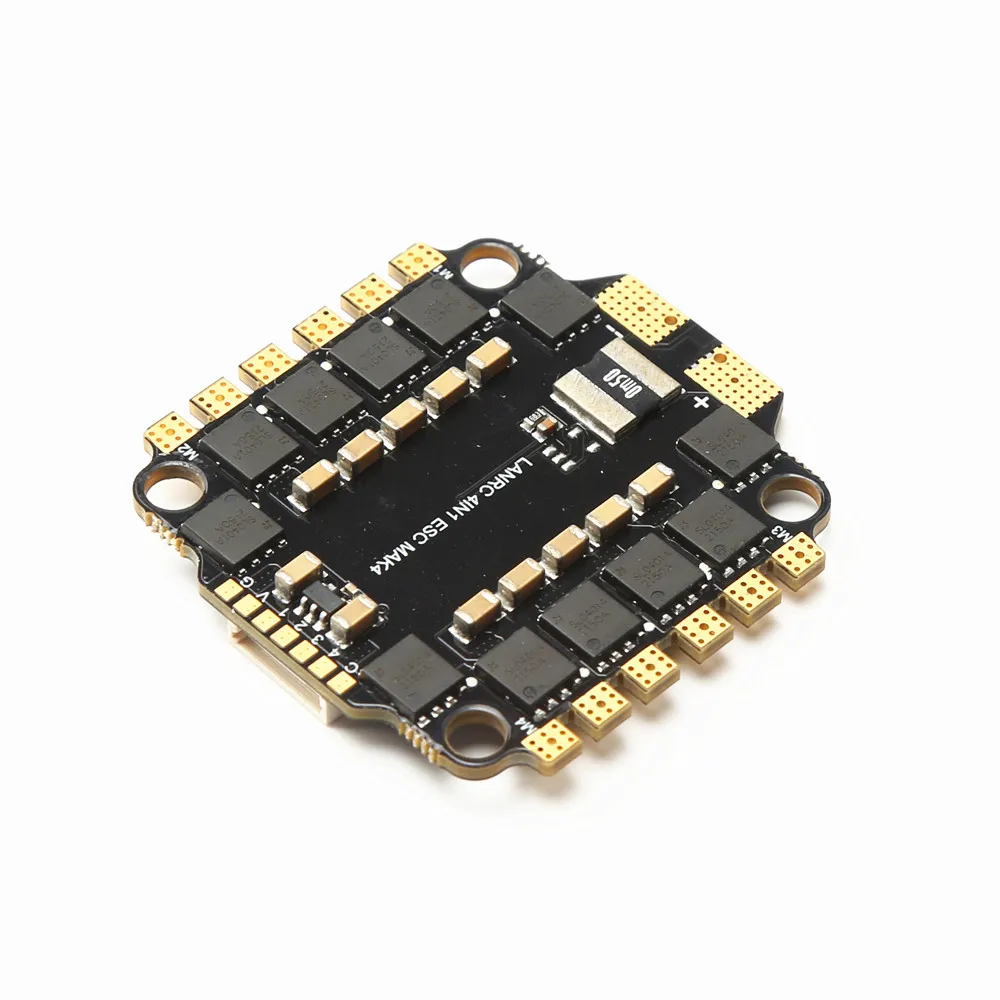

45A ESC BLHELI_S 45A 4IN1 3-6S Brushless ESC Support DShot300-600/Multishot/Oneshot/PMW 30.5*30.5mm For RC FPV Racing Drone 45A 4-in-1 ESC Size: 41*39.5*5mm Hole distance: 30.5*30.5/5mm (3mm hole diameter after installing the shock-absorbing ball) Weight: 13g Input voltage: LIPO 2-6S Continuous current: 45A Maximum current: 50A (10 seconds) Processor: EFM8BB21F16G Firmware: BLS J_H_30_REV16_7 Drive signal support: DShot300-600/Multishot/Oneshot/PMW Current sensor: Support 60A ESC Description 60A 4-in-1 ESC The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation ESC onboard current sensor. Continuous current: 60A Instantaneous current [5 seconds]: 70A Firmware: BLS J_H_30_REV16_7 The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize the battery voltage, and protect the precision components of the flight control ESC
