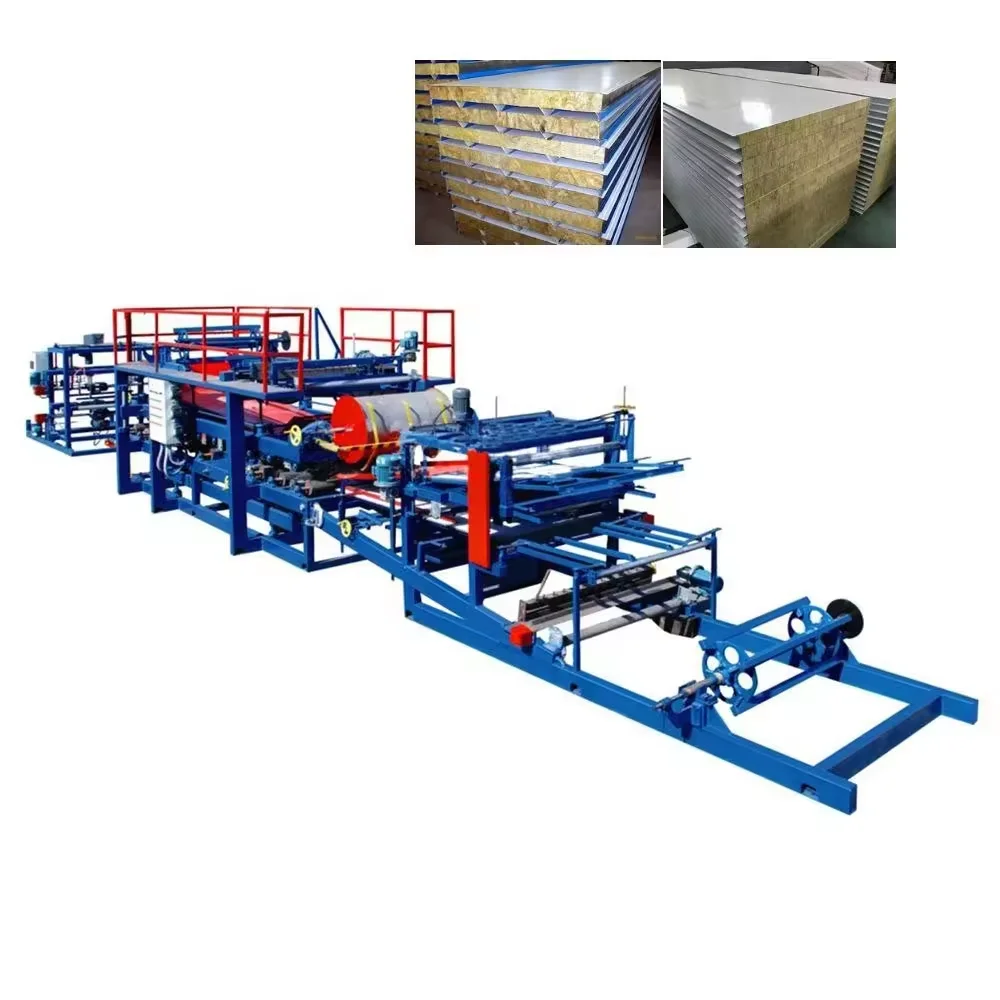

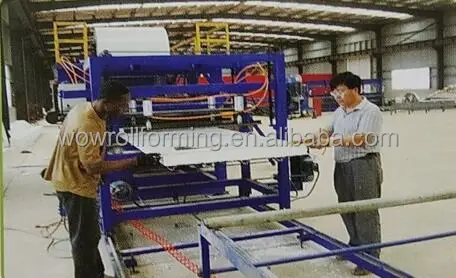

sandwich panel machine production line
- Category: >>>
- Supplier: Cangzhou Wow International Trade Co. Ltd.
Share on (1601073510554):
Product Overview
Description

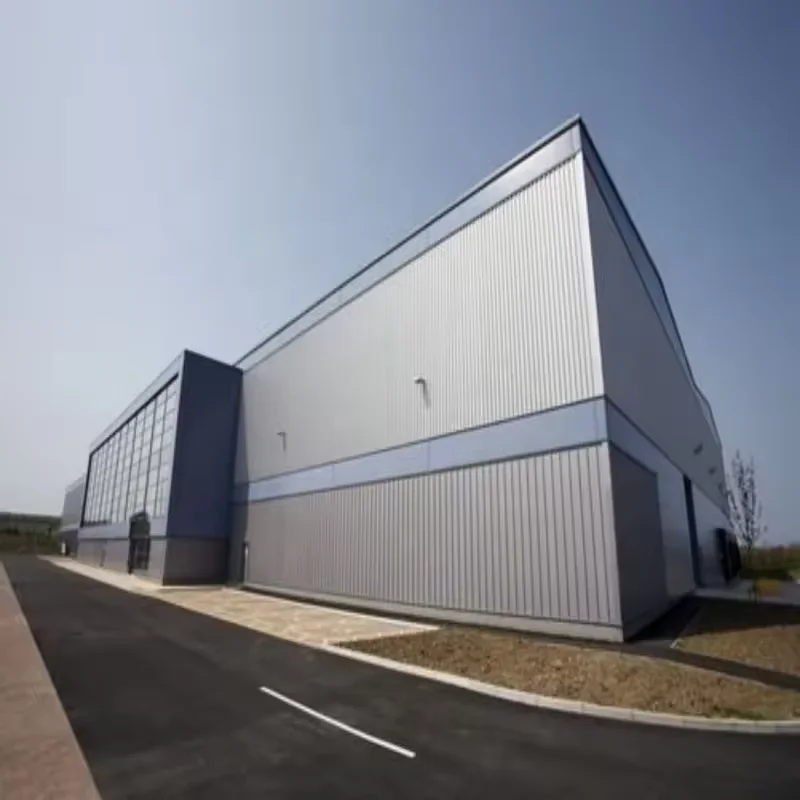

Application

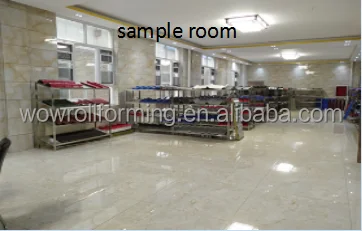

Sample
product description
Other machines

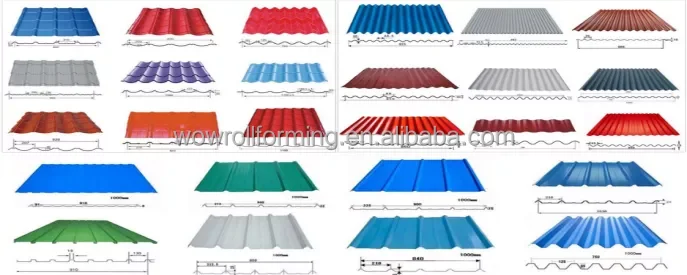

We can produce too many types roofing panels roll forming machine ,especially according to your request to produce.you need provide panel drawing,feeding width,effective width,and materials thickness,then we can send you more machine details.please feel free contact me.
Specification
control system : | automatic PLC frequency control | ||||||
roller steps : | 11/16 rows or as your need | ||||||
main power : | 4 kw | ||||||
fax speed : | 8-12 m/min | ||||||
feeding width : | 1000 mm or as your need | ||||||
thickness of the plant : | 0.3-0.8 mm | ||||||
feeding material : | color steel | ||||||
roller's material : | 45#steel with chrome treatment on surface | ||||||
voltage : | 380 V,50 Hz,3 Phase | ||||||
roller's material : | 45#steel with chrome treatment on surface | ||||||
Cutting blade material: | Cr 12 Mov | ||||||
Shaft material: | 45# Steel Outer Diameter: 70 mm | ||||||
Roller material: | 45#steel | ||||||
Raw material: | Color Steel Coil | ||||||
Color : | Blue or as your need | ||||||
Cutting Mechanism
It adopts hydraulic motor drive and automatic location to decide the dimension and cut the target products.

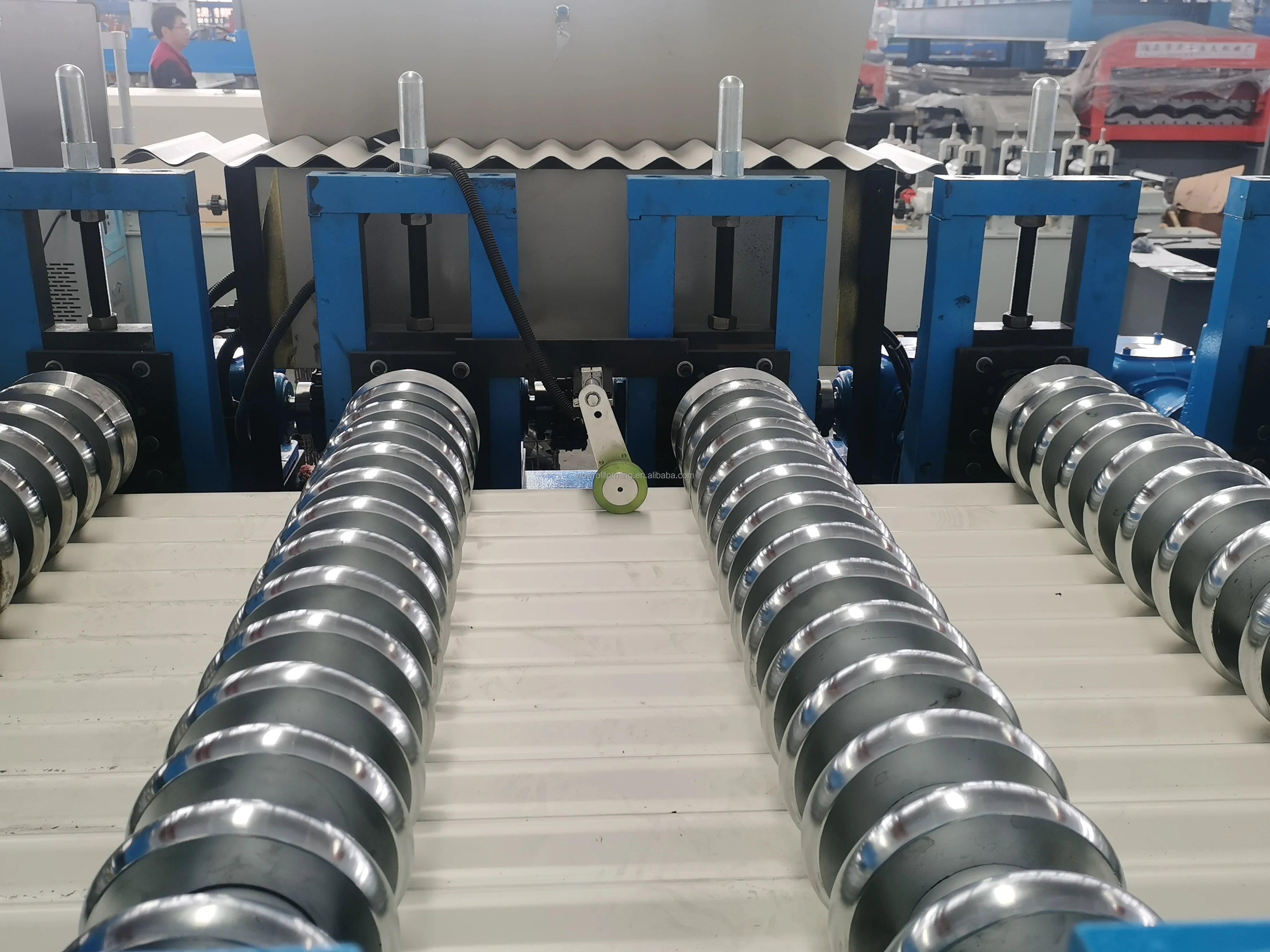

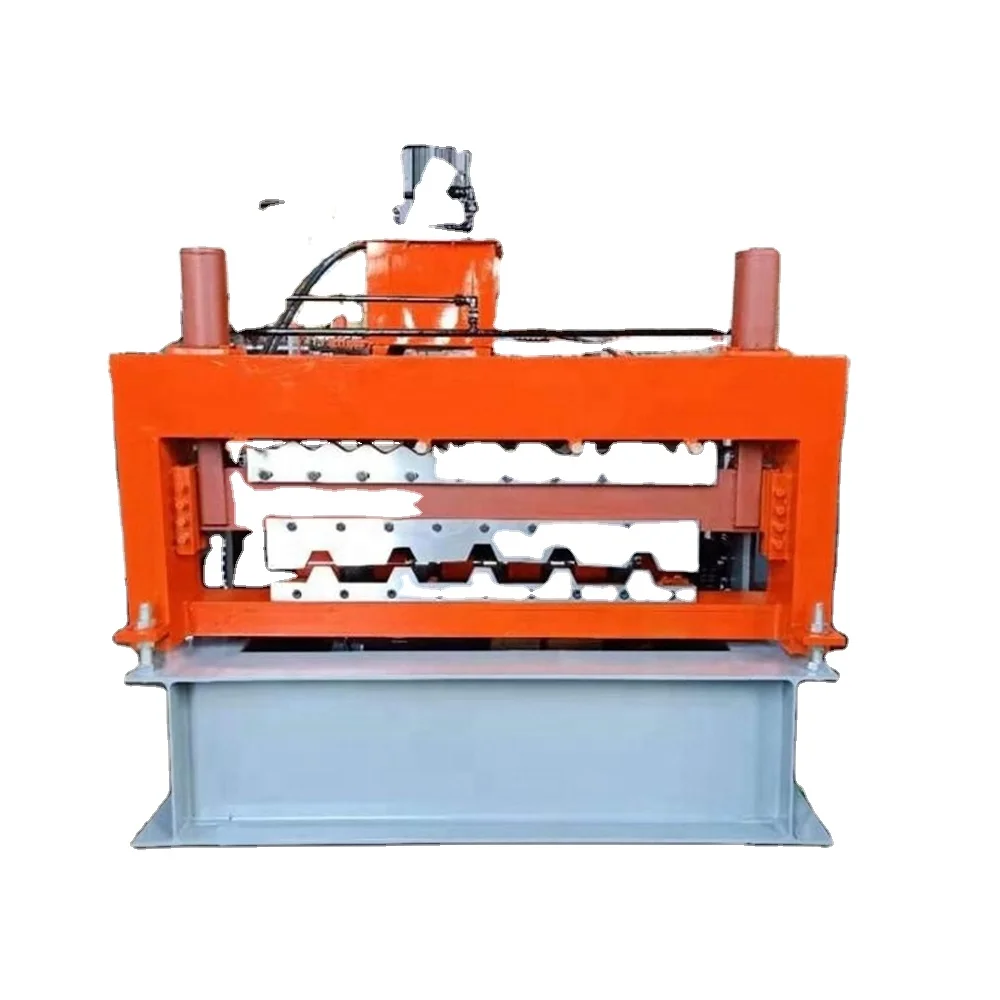

Roller system
Material of the roller:High grade No.45 forged steel.Roller station: 16 rows or custom as customer's requirements.
Thickness of feeding material:0.3-0.8 mm.
Thickness of feeding material:0.3-0.8 mm.

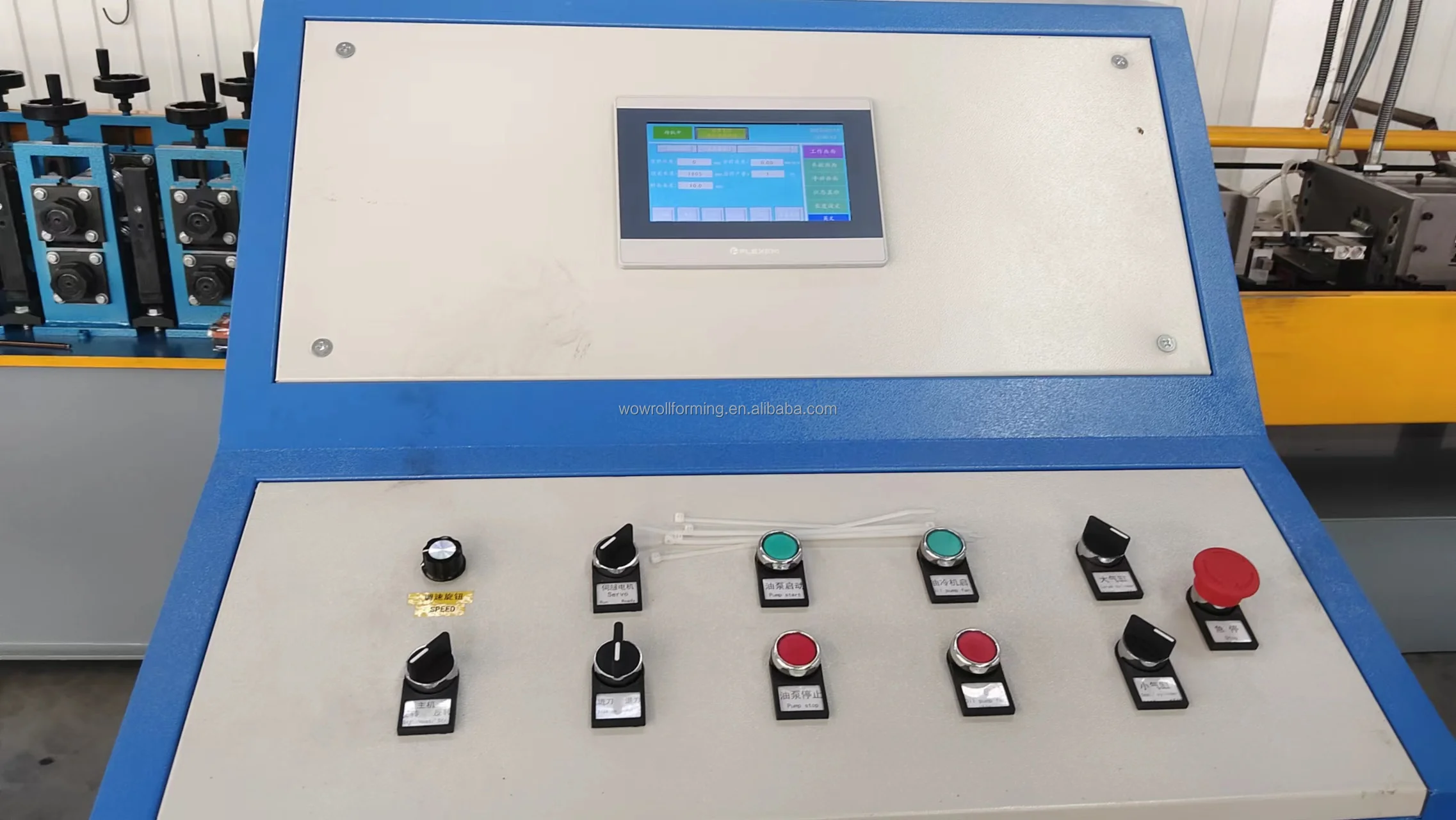

Computer Control Cabinet
It adopts Delta PLC to control.The target piece length is adjustable and digit of it can be adjusted.Computed mode has two modes automatic and manual one.
Hydraulic System
Match equipment hydraulic motor,a set of hydraulic tank,a set of hydraulic oil pump,two hydraulic pipes and two sets of electromagnetism valves.
Power:5.5kw
Power:5.5kw
Manual Uncoiler
Maximal out diameter: 1250mmCoil placement in the coil holder:hydraulic hoist
Working speed:0- 15m/min adjustable
Main motor power:5 5KW AC motor
Working speed:0- 15m/min adjustable
Main motor power:5 5KW AC motor
Receiving Table
Maximal out diameter: 1250mmCoil placement in the coil holder:hydraulic hoist.

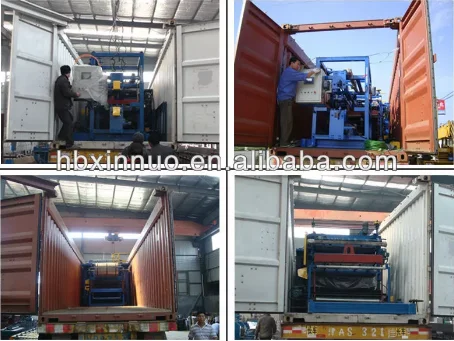

packaging and shipping
Our Advantages

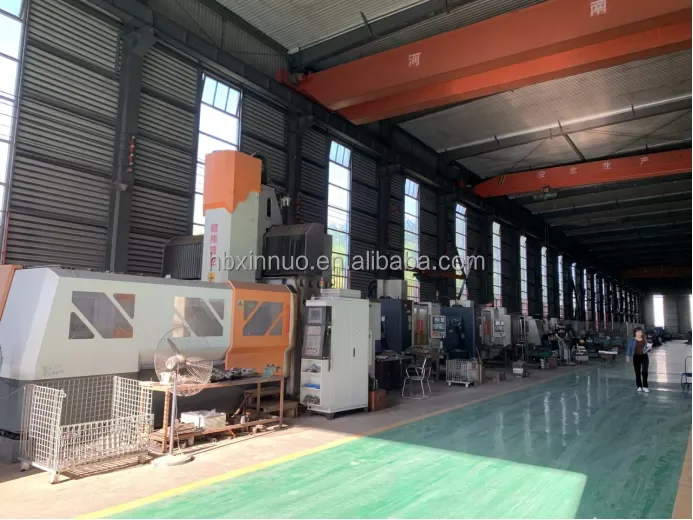

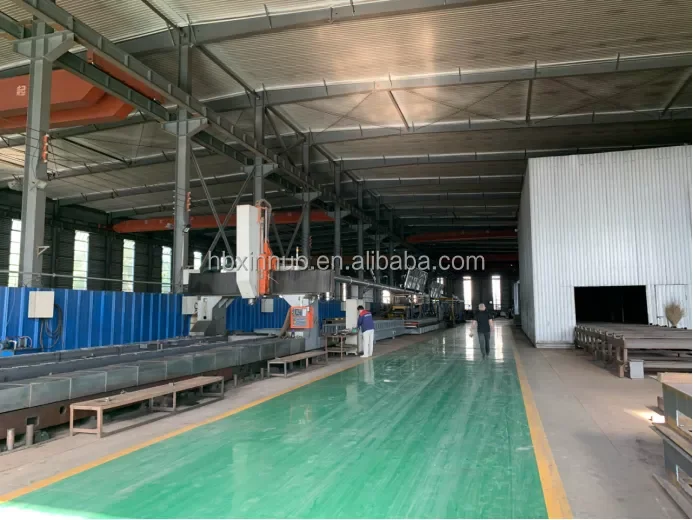

Large gantry milling machine
Our factory uses a 13-meter large gantry milling machine. This equipment is used to process the main frame of the machine, so that the large frame has a higher flatness and better levelness, and the accuracy can reach 0.05 mm. Effectively ensure product stability.
Spray paint workshop
Using environmentally friendly resin paint, two-coating and two-spray new technology, the paint surface has good adhesion, durability, corrosion resistance, aging resistance and no fading.

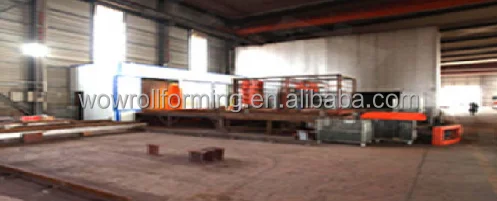

Shot blasting machine
The use of large-scale shot blasting with six heads for rust removal and the deep treatment of the overall frame improves the intrinsic quality of the paint film and steel and prolongs its service life.
Electrical control
The electrical control systems of the machines in our factory are all programmed and designed by our factory engineers.If there is a problem with the operation of the travel electrical appliance,the electrical engineer can assist the customer through video to ensure that the problem is solved in time.

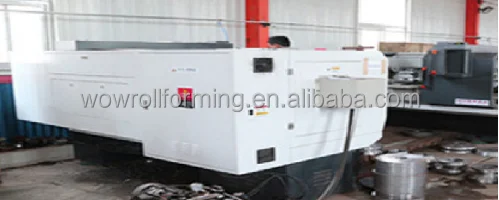

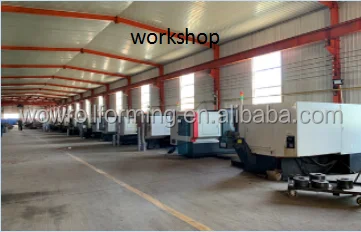

Machining

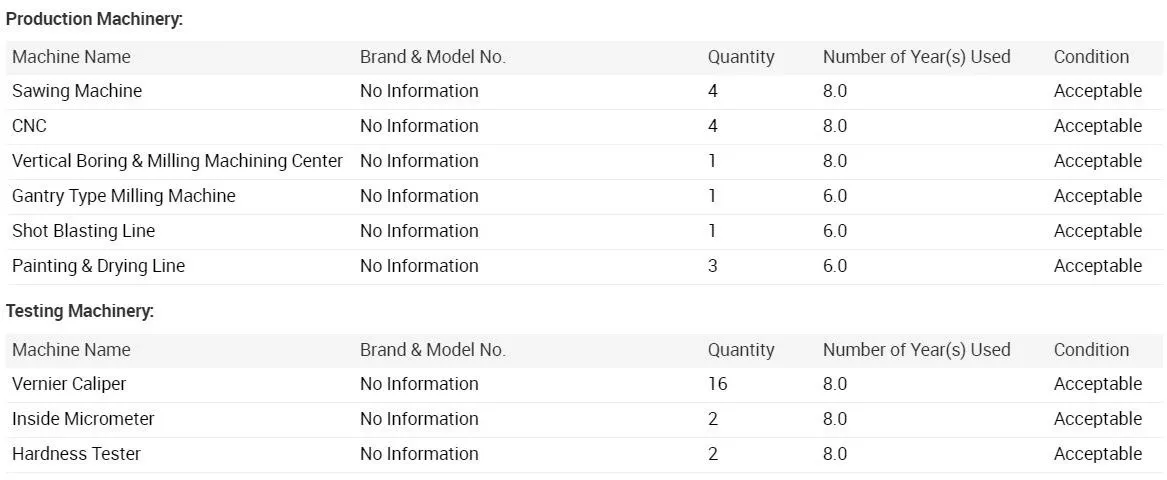

Our factory has purchased more than 50 processing machine, including CNC machining centers, CNC lathes, grinding machines, milling machines , sawing machines, drilling machines, etc.,to ensure that each component is processed by itself, and undergoes strict quality inspection to ensure product quality.
Data milling machine
All the hole positions of the vertical plate of the computer C-shaped steel equipment ,which is a hot-selling product of our
factory ,are processed by this equipment ,and the hole positions are accurate . The vertical plates of all C-section steel equipment are interchangeable for after-sales convenience.
factory ,are processed by this equipment ,and the hole positions are accurate . The vertical plates of all C-section steel equipment are interchangeable for after-sales convenience.
Company Profile
Botou Kexinda Roll Forming Machinery Co., Ltd. is located in "the town of casting molds", enjoying convenient and highly effective transportation.

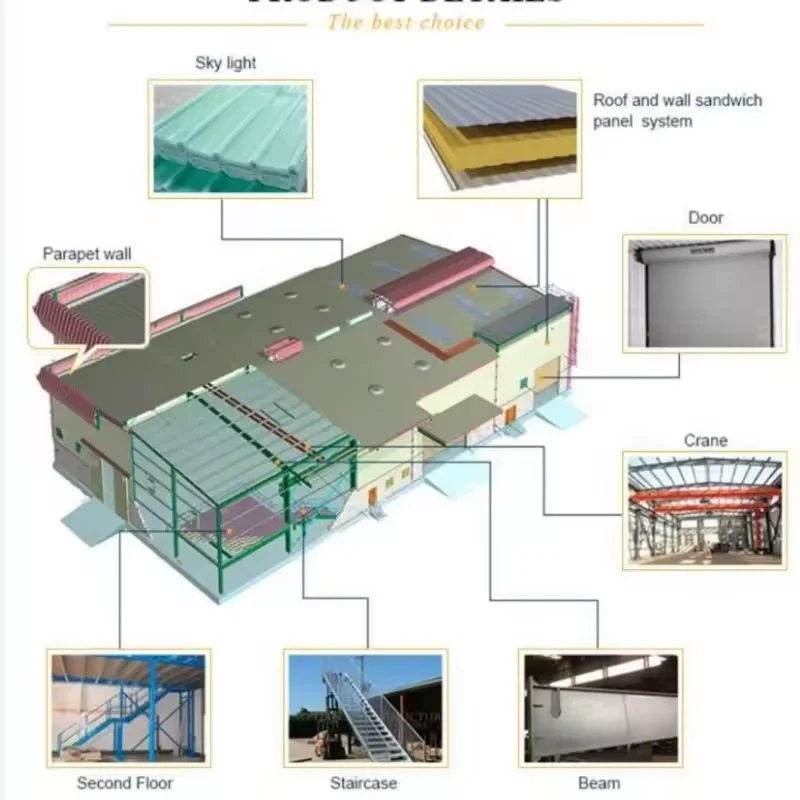

Our factory specializes in producing and designing each kind of roll forming machine and automatic cutting machine. Our products are widely applied to manufacture colored steel tiles for industry workshop, warehouse and high-rise construction site. We undertake production with high technology and comprehensive processing equipment. We can design according to our customers' requirements and we will do our best to meet your needs. For the above reasons, our products not only have a ready sale in domestic market but are also exported.
Insisting on the belief of "quality first, prestige is supreme", we are looking forward to your cooperation and contact. New and old friends are welcome to cooperate with us for a bright future.
Our factory specializes in producing and designing each kind of roll forming machine and automatic cutting machine. Our products are widely applied to manufacture colored steel tiles for industry workshop, warehouse and high-rise construction site. We undertake production with high technology and comprehensive processing equipment. We can design according to our customers' requirements and we will do our best to meet your needs. For the above reasons, our products not only have a ready sale in domestic market but are also exported.
Insisting on the belief of "quality first, prestige is supreme", we are looking forward to your cooperation and contact. New and old friends are welcome to cooperate with us for a bright future.
