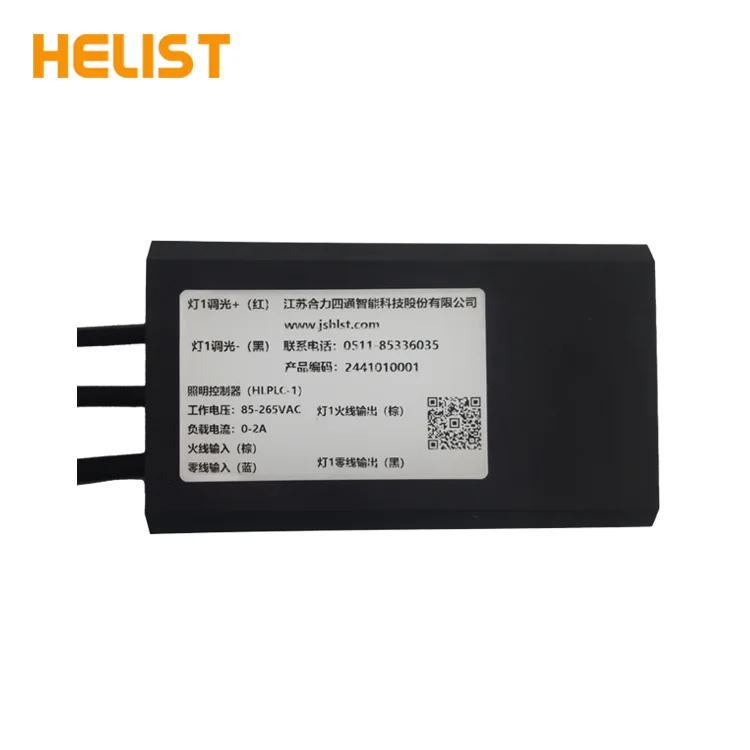

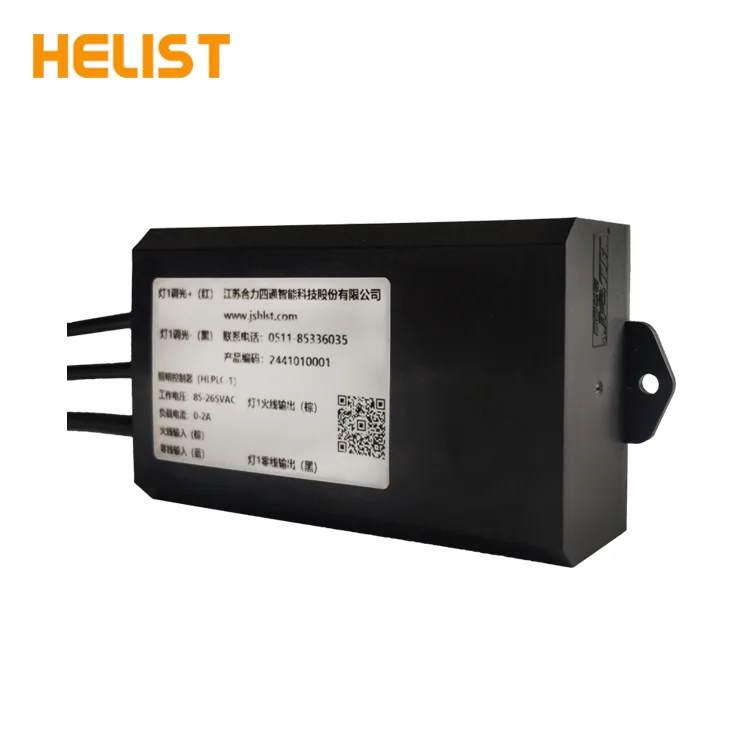

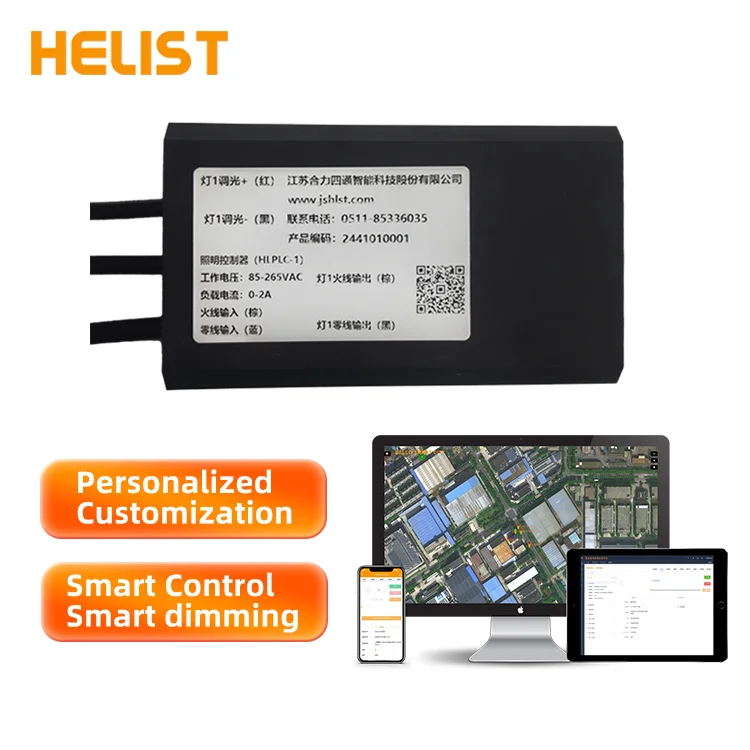

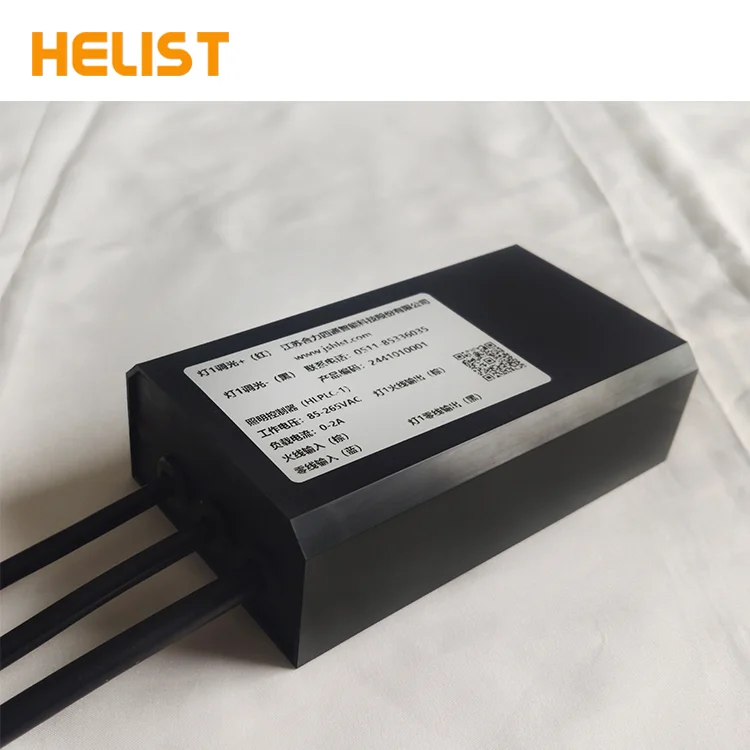

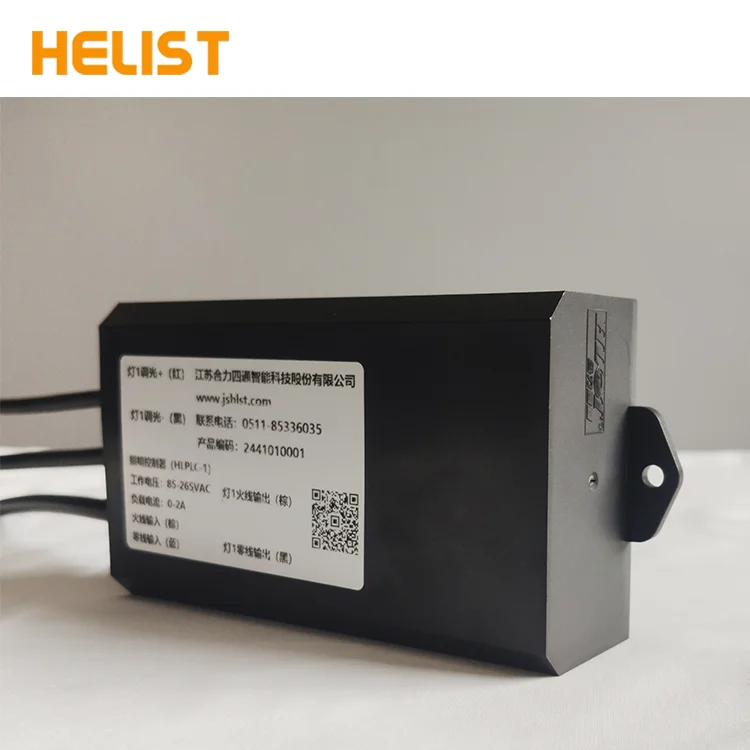

good price PLC smart single lamp controller street light system plc controller for garage warehouse
- Category: >>>
- Supplier: JIANGSU HELIST SMART TECHNOLOGY CO. LTD
Share on (1601079214877):
Product Overview
Description

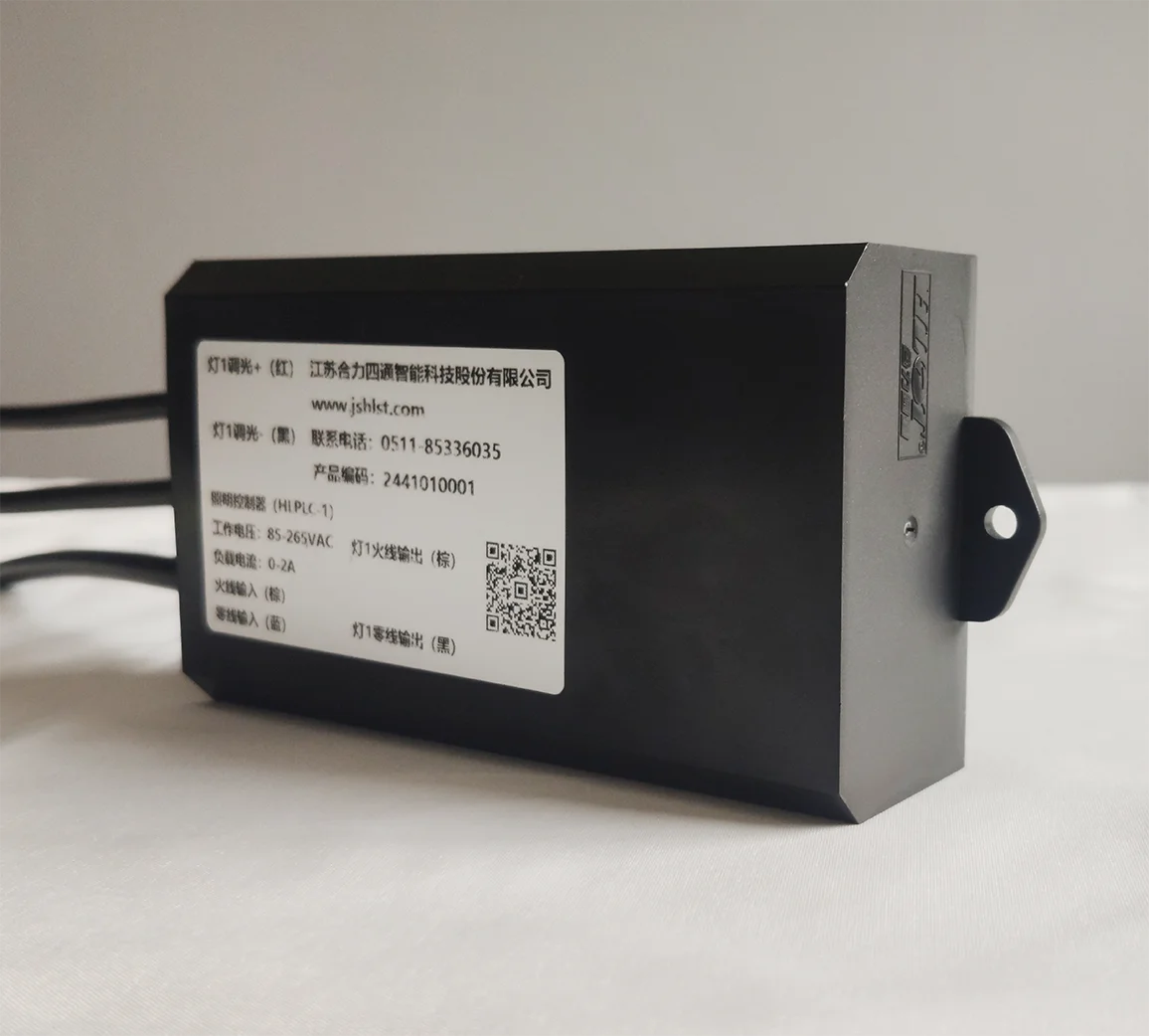

PLC Single light controller
Product Description
Model | HLPLC-1 | ||||||
Connection Mode | PLC | ||||||
Voltage | AC96~264V | ||||||
Working Temp | -40°C~+85°C | ||||||
IP Grade | IP65 | ||||||
Dimming Output | 0~10V | ||||||
Modem | OFDM | ||||||
Carrier Center Frequency | 4MHz | ||||||
Communication Rate | 120kbps~1.2Mbps | ||||||
Accept sensitivity | -80dB~-60dB | ||||||
Size | L133*W78.3*H40.9mm | ||||||
Product Characteristics
No need for line renovation,
use existing cables for signal processing.
●Capable of current, voltage, power, power factor, and remote energy reading.
●Equipped with remote light on/off, dimming, lighting duration statistics, fault information reporting, and real-time reading of current energy consumption values.
●Multiple intelligent fault diagnosis alarms: lamp failure, power failure, leakage, node loss, undervoltage and overvoltage, overcurrent, and maintenance door opening alarm. At the same time, fault protection can be configured, and corresponding dangerous faults can be self powered off for protection
Mature technology and
proven anti-interference technology.
●Carrier communication: point-to-point transmission distance of 2500 meters, 2000 meters after automatic relay at the terminal.
●The number of terminals that can be controlled by the PLC gateway: ≥ 400 long-distance communication devices such as street lights, ≥ 150 short distance communication devices such as warehouse lighting, and multiple devices can be mounted on separate lines.
●Can control LED lights with a power of ≤ 400W and support dimming from 0-10V;
External infrared photosensitive sensors can be connected, enabling adaptive action while achieving remote control.
External infrared photosensitive sensors can be connected, enabling adaptive action while achieving remote control.
Control Solutions
Single Controller Operation Mode

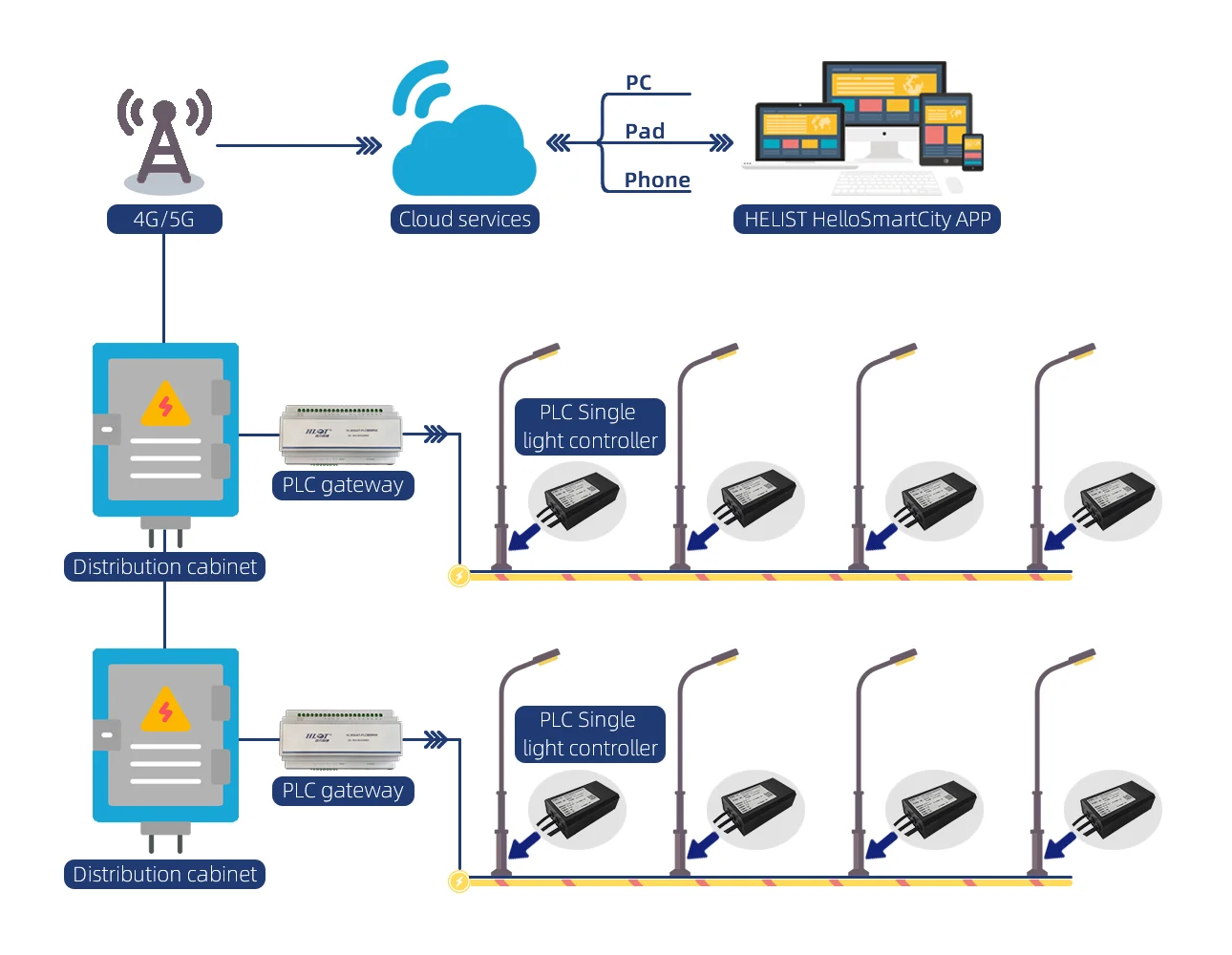

Smart Street Light Management System
Control the lighting equipment on/off, energy-saving operation, and check the operating parameters and event notifications of the single light controller.
Practical Application
Company Profile
JIANGSU HELIST SMART TECHNOLOGY CO.,LTD, founded in 2007， the company has driven industrial upgrading through technological innovation and digital empowerment. It has always focused on innovation and research and development of urban smart lighting software and hardware products, development, investment and operation of platform energy (photovoltaic, energy storage) power stations, and virtual power grids.
After years of steady development, it has become a high-tech enterprise and has been awarded honors such as Zhenjiang Smart Lighting Engineering Technology Center and Jiangsu Province Quality Credit AA level Enterprise. In addition, the company has also established a graduate workstation in Jiangsu Province, which has passed ISO9001 quality control Certification of management system, ISO14001 environmental management system, and OHSAS18001 occupational health and safety management system.
The company upholds the "harmony" culture, emphasizes the combination of nature, trust, and innovation, and has the original vision of "using wisdom to drive every beam of light in the world". We wholeheartedly serve the beautiful life of the city and contribute to building a smart city and promoting green development.
