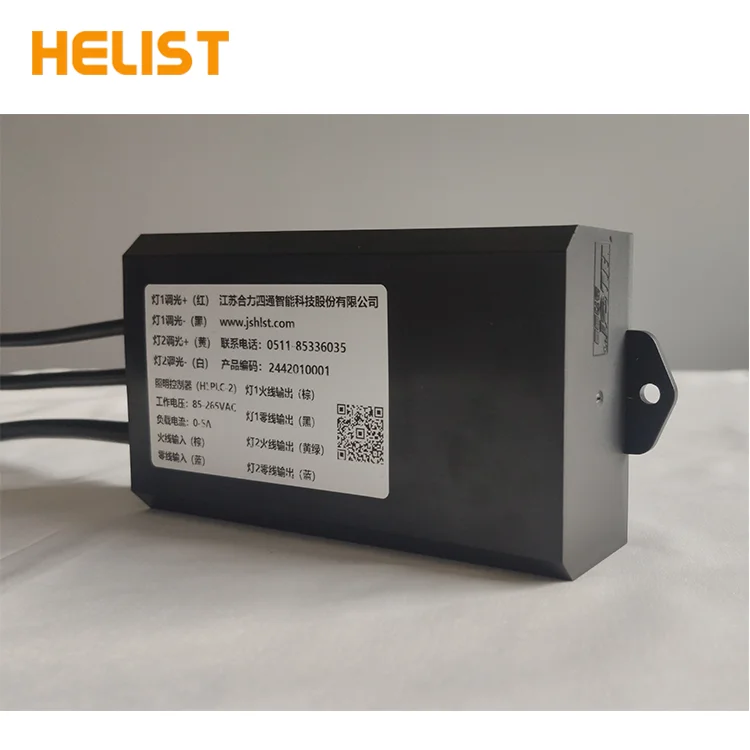

HELIST NEW PLC smart dual light controller system plc street lights control
- Category: >>>
- Supplier: JIANGSU HELIST SMART TECHNOLOGY CO. LTD
Share on (1601088309568):
Product Overview
Description

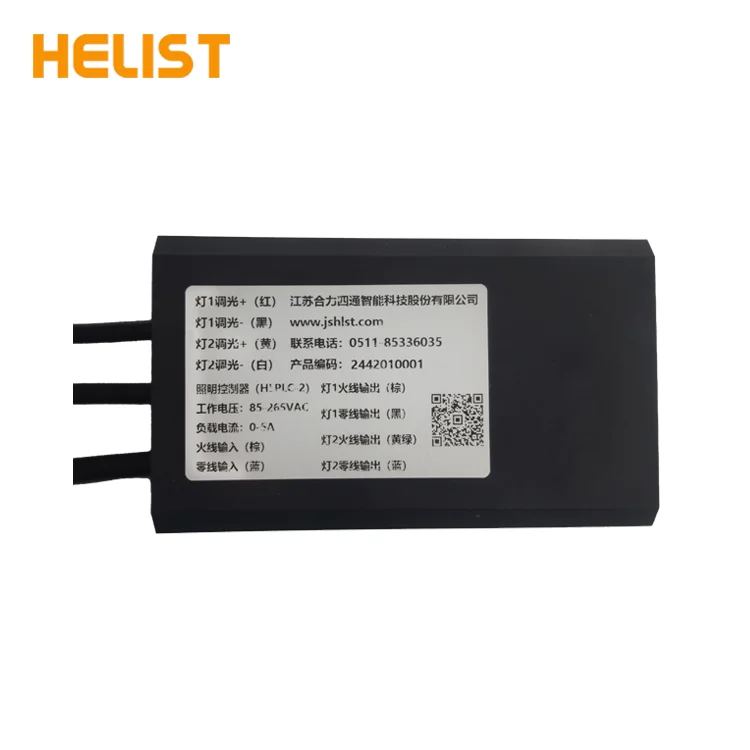

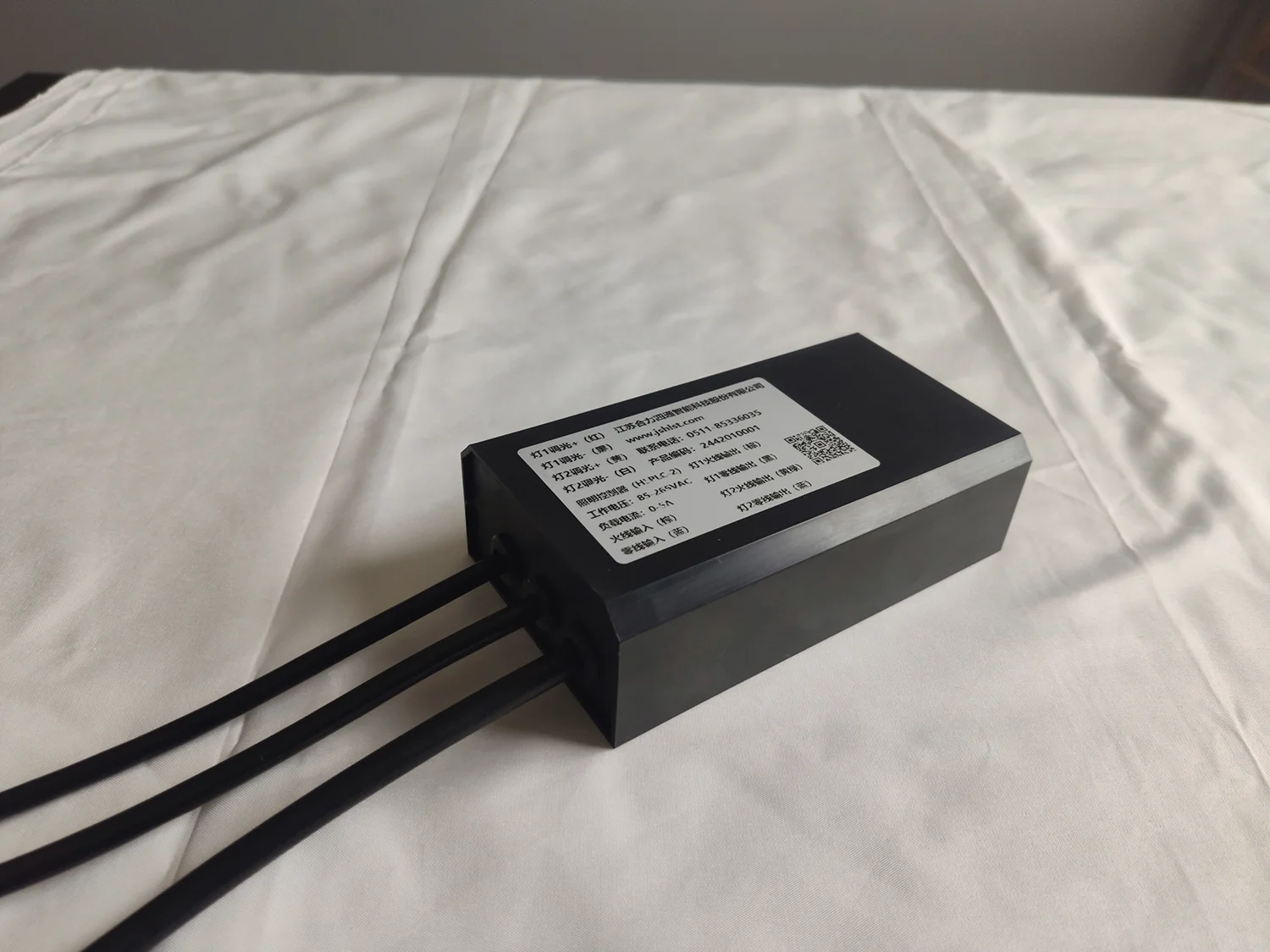

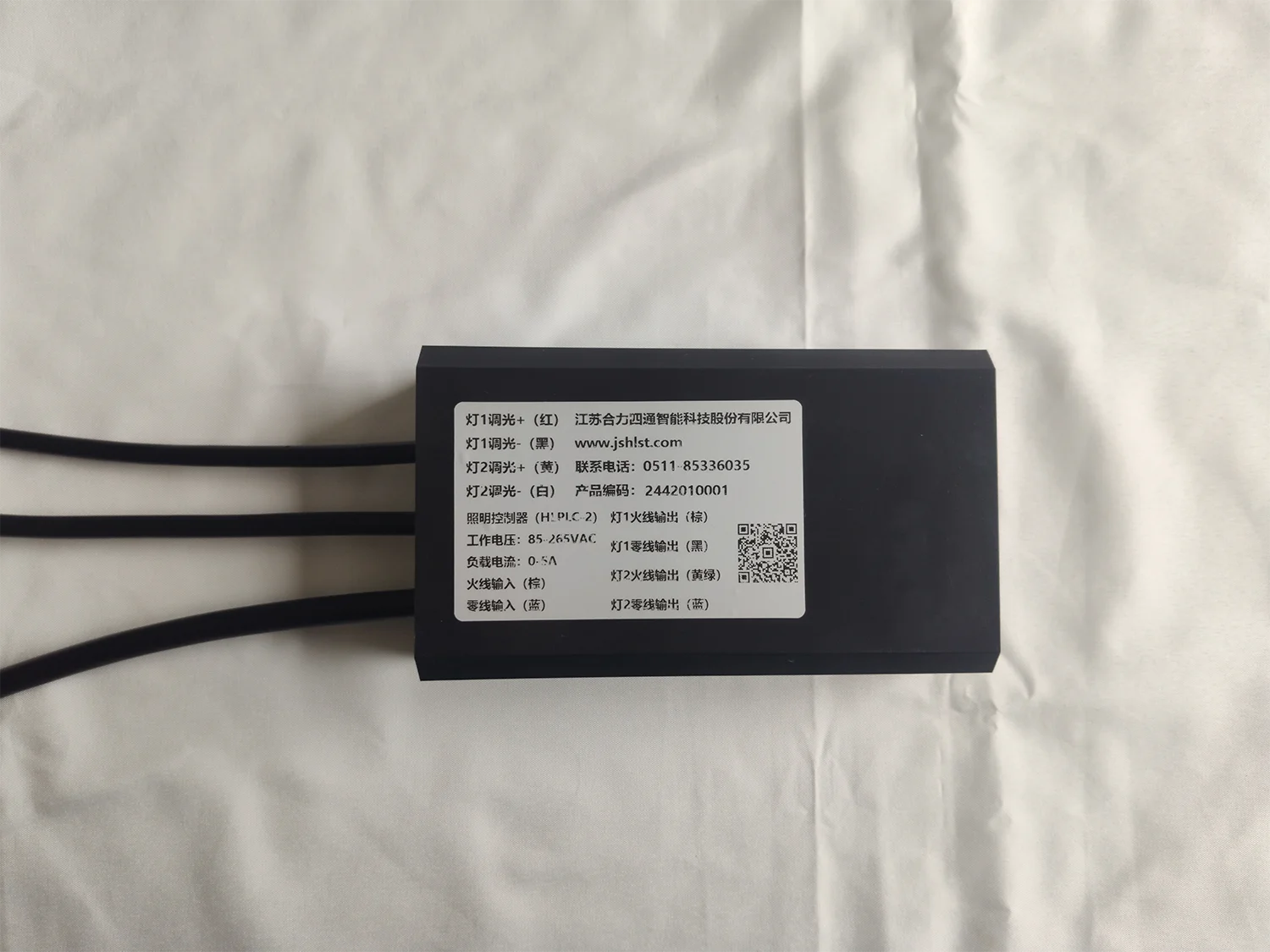

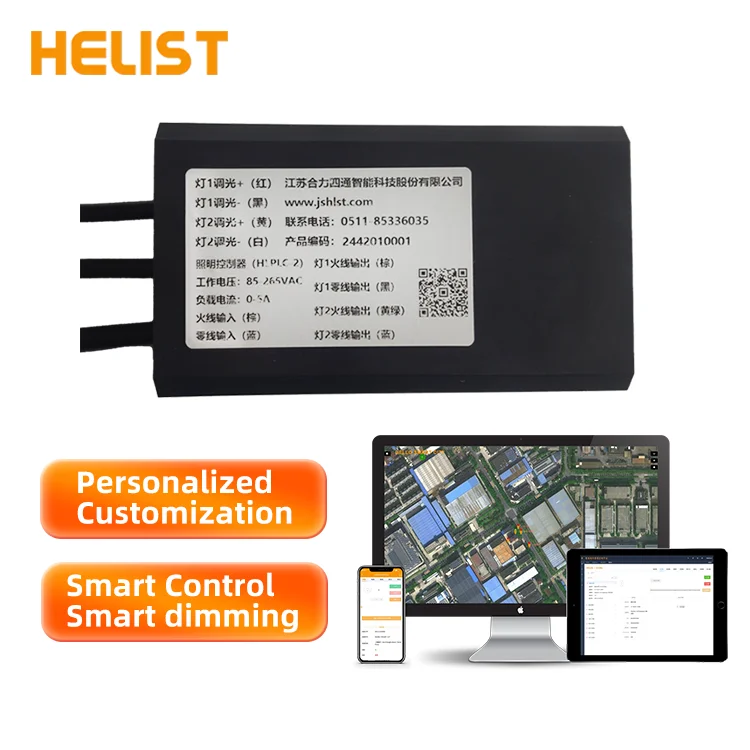

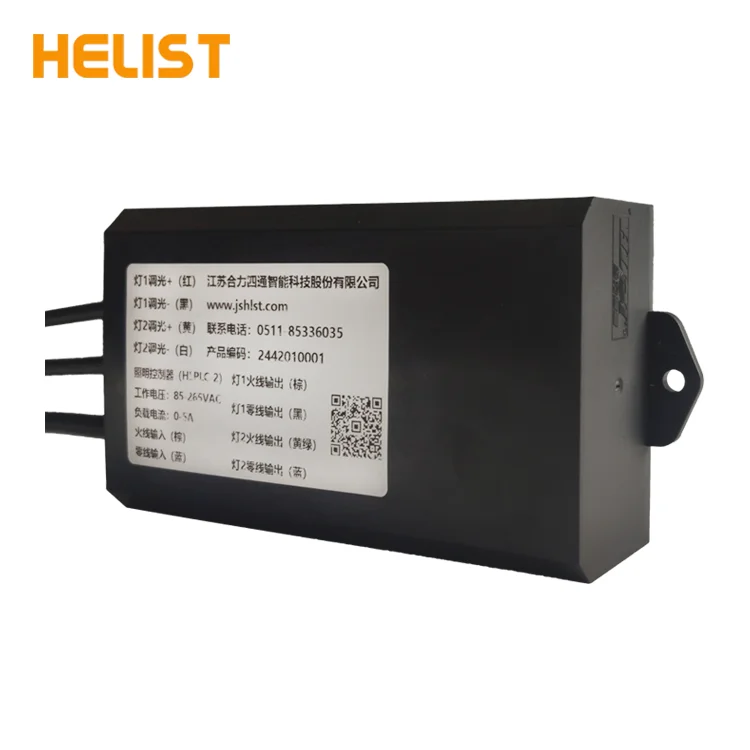

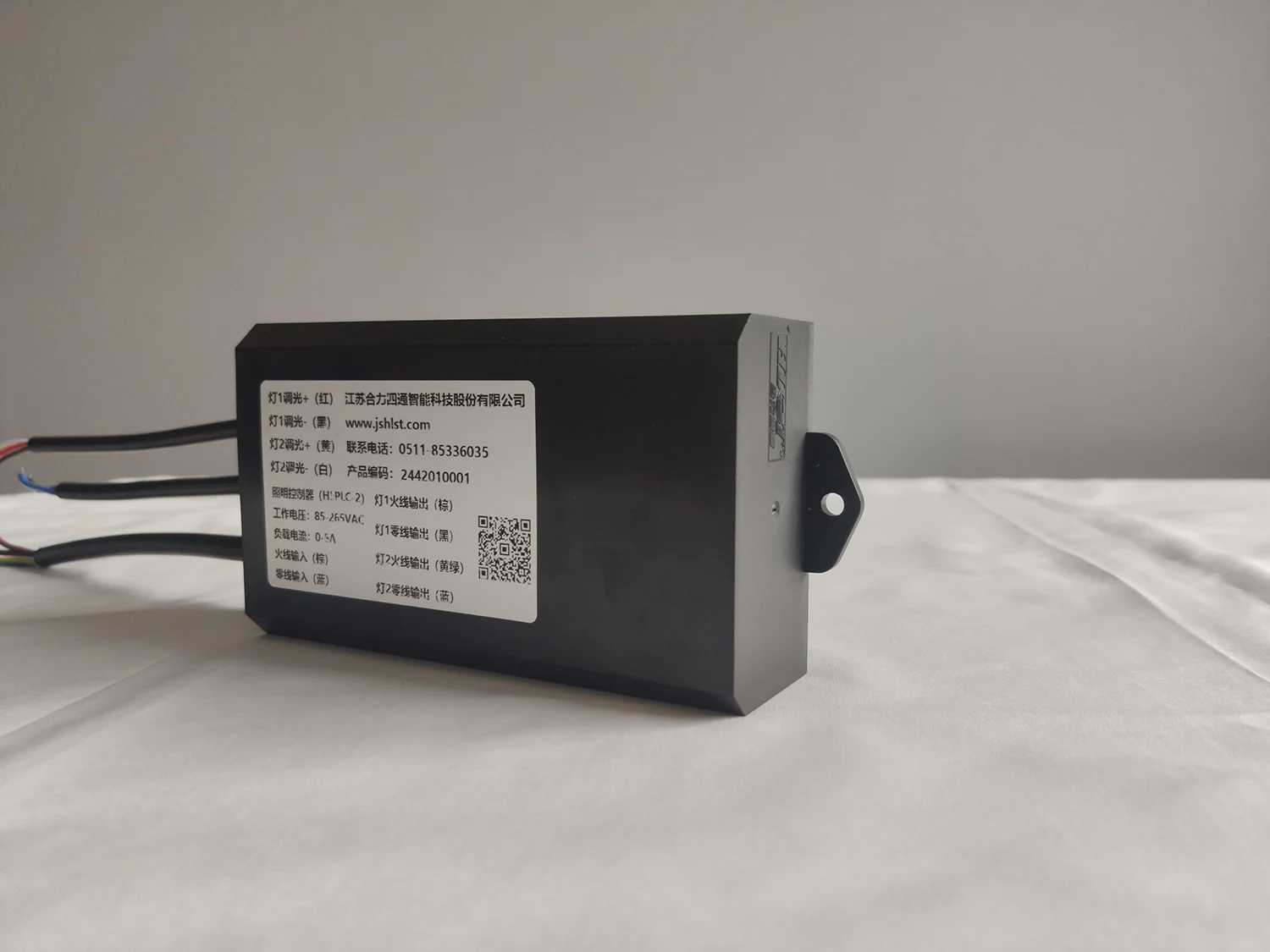

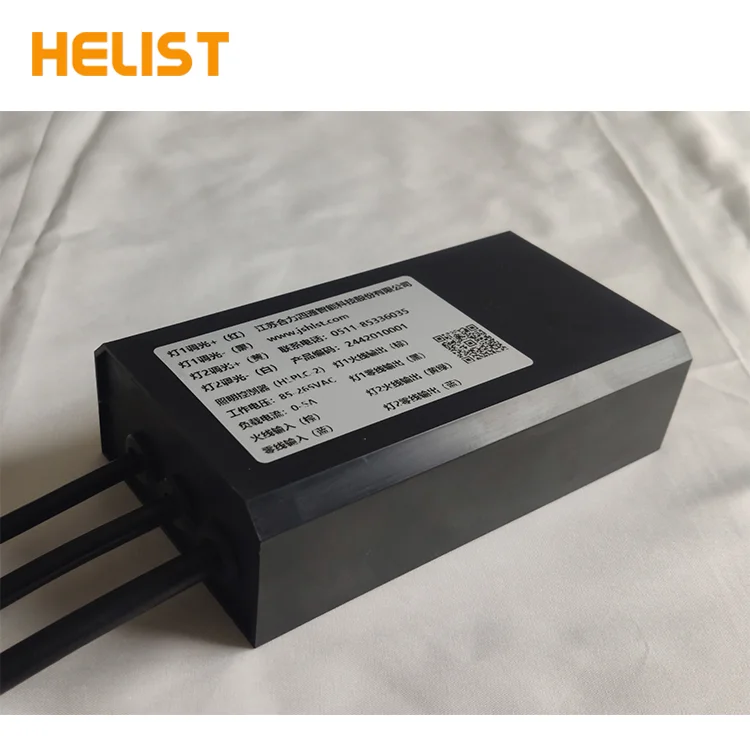

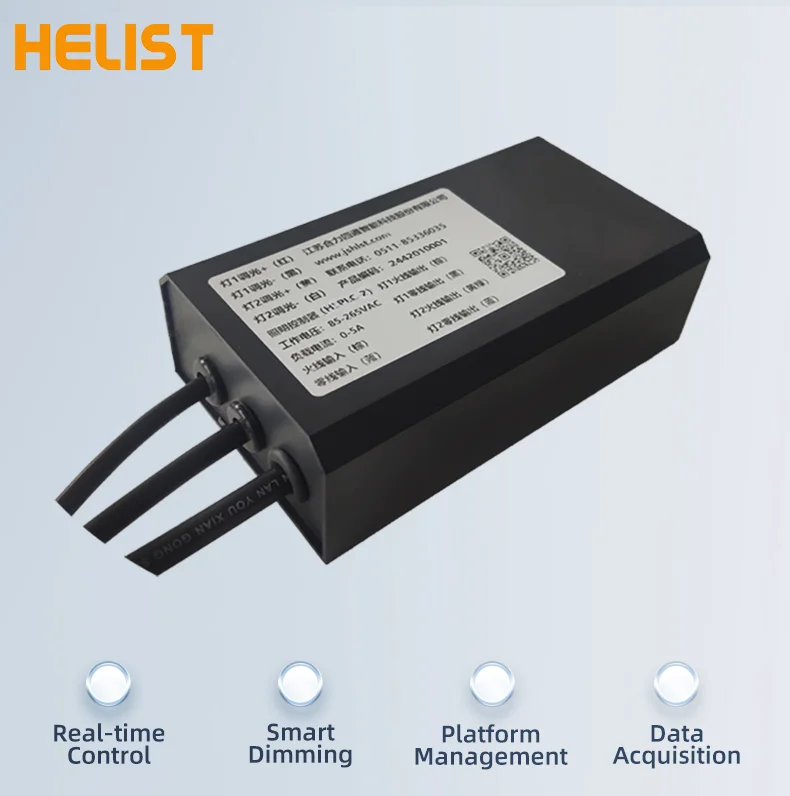

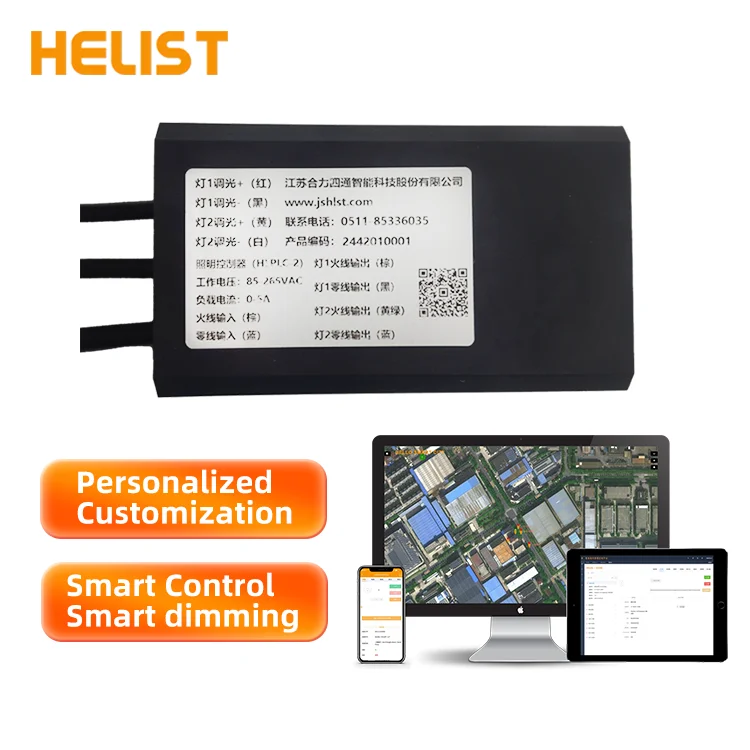

PLC Dual Light Controller
Product Description
Model | HLPLC-2 | ||||||
Connection Mode | PLC(Power Line Communication) | ||||||
Voltage | AC85~265V | ||||||
Working Temp | -20°C~+75°C | ||||||
IP Grade | IP65 | ||||||
Dimming Output | 0~10V | ||||||
Rated Working Voltage | 220VAC | ||||||
Maximum Load Current | <5A 250VAC | ||||||
Maximum Load Power Consumption | ≤1000W | ||||||
Overall Power Consumption | 1-3W | ||||||
Size | L133*W78.3*H40.9mm | ||||||
Product Characteristics
No need for line renovation,
the original cables can be used for signal.
●Overload protection design based on safety, integrated with industrial grade chips.
●Real-time monitoring of parameters such as current, voltage, power, frequency, and electric energy, actively uploading to the platform.
●Multiple intelligent fault diagnosis alarms: bulb failure, power failure, leakage, node loss, undervoltage and overvoltage, overcurrent, and maintenance door opening alarm. At the same time, fault protection can be configured, and corresponding dangerous faults can be self-powered off for protection.
●Built-in real-time clock with automatic time calibration function (to be used in conjunction with PLC gateway), which can run autonomously according to the set strategy after disconnection.
Mature technology and
proven anti-interference technology.
●2 switch and 2 channel 0-10V dimming,using HongFa relay. The dimming mode is suitable for LED lights, and the switch mode can be used for various lighting fixtures.
●Easy and convenient installation,with second-level response instructions and traceable device operation logs.
●The lighting mode can be set to longitude and latitude, timing, normally open mode, etc.
●Actively transmit real-time device status information to the system platform, including switch status, communication status, operation status, etc.
●Adopting a waterproof rubber pad and sealing process on the top to achieve IP65 waterproof rating, with an ABS flame-retardant shell that is anti-aging and durable against falls.
Control Solutions

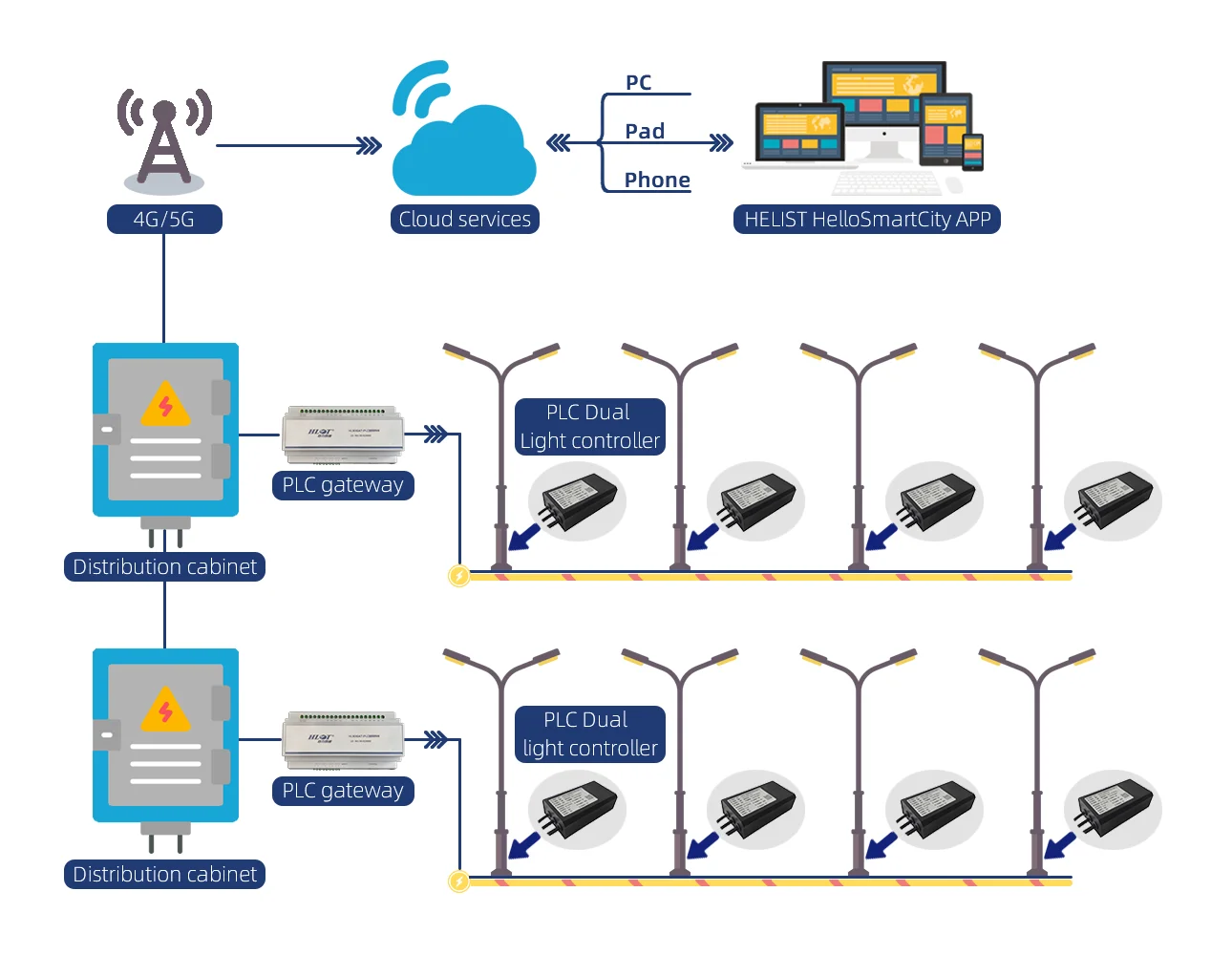

Dual Controller Operation Mode

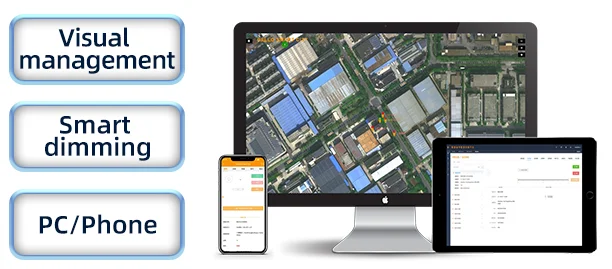

Smart Street Light Management System
Control the lighting equipment on/off, energy-saving operation,
and check the operating parameters and event notifications of the single light controller.

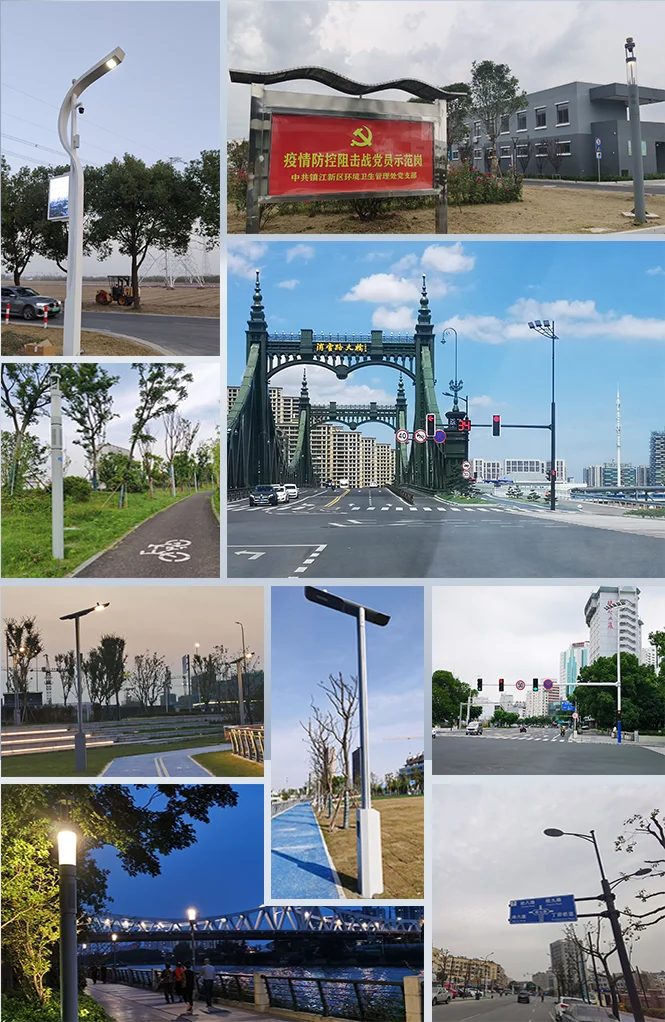

Practical Application

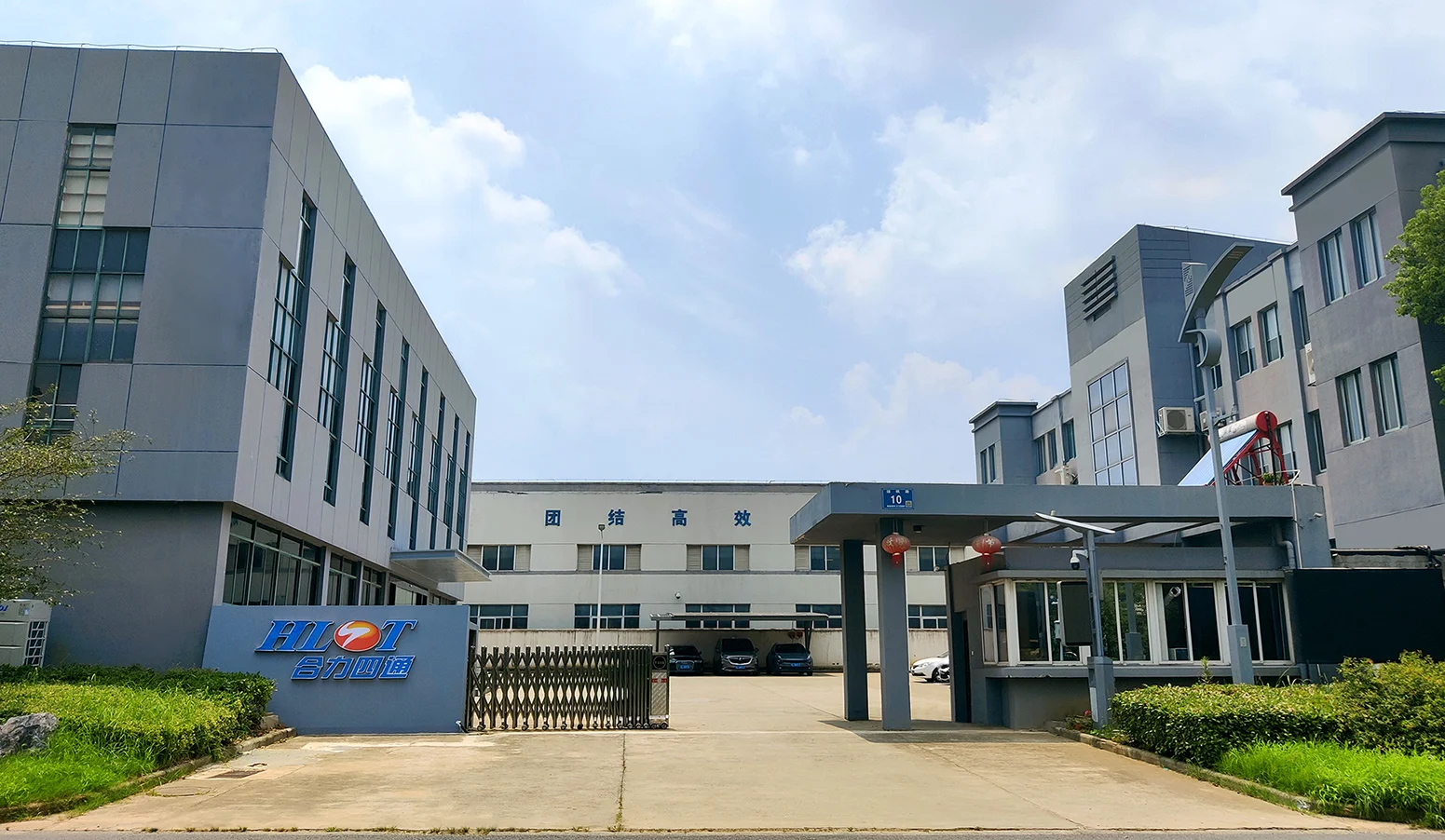

Company Introduction
