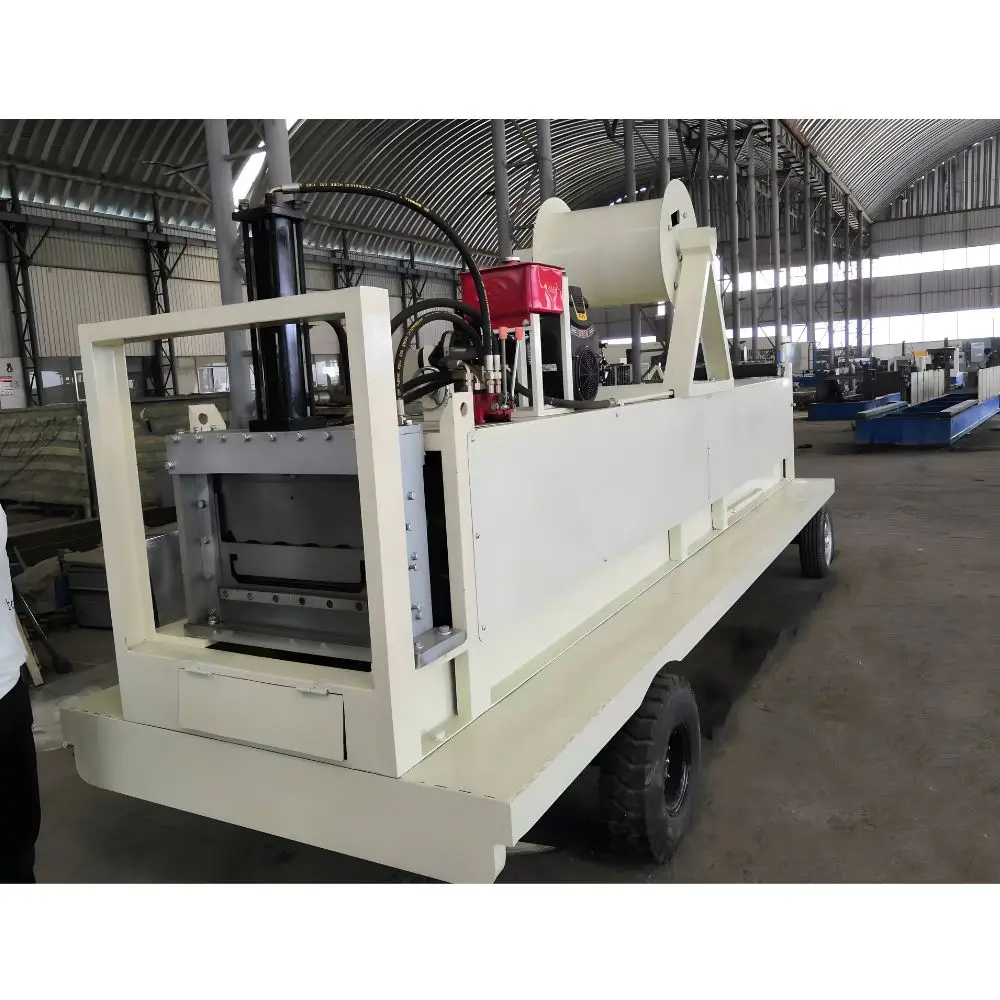

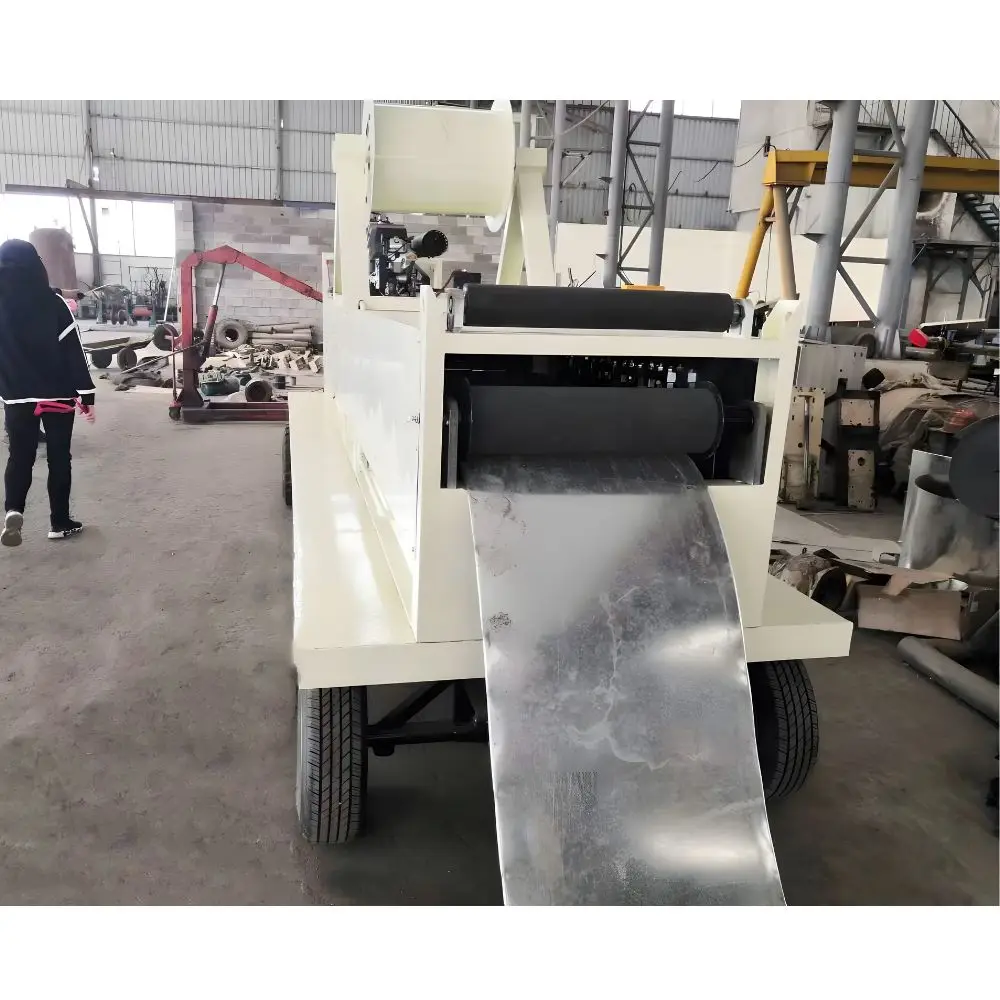

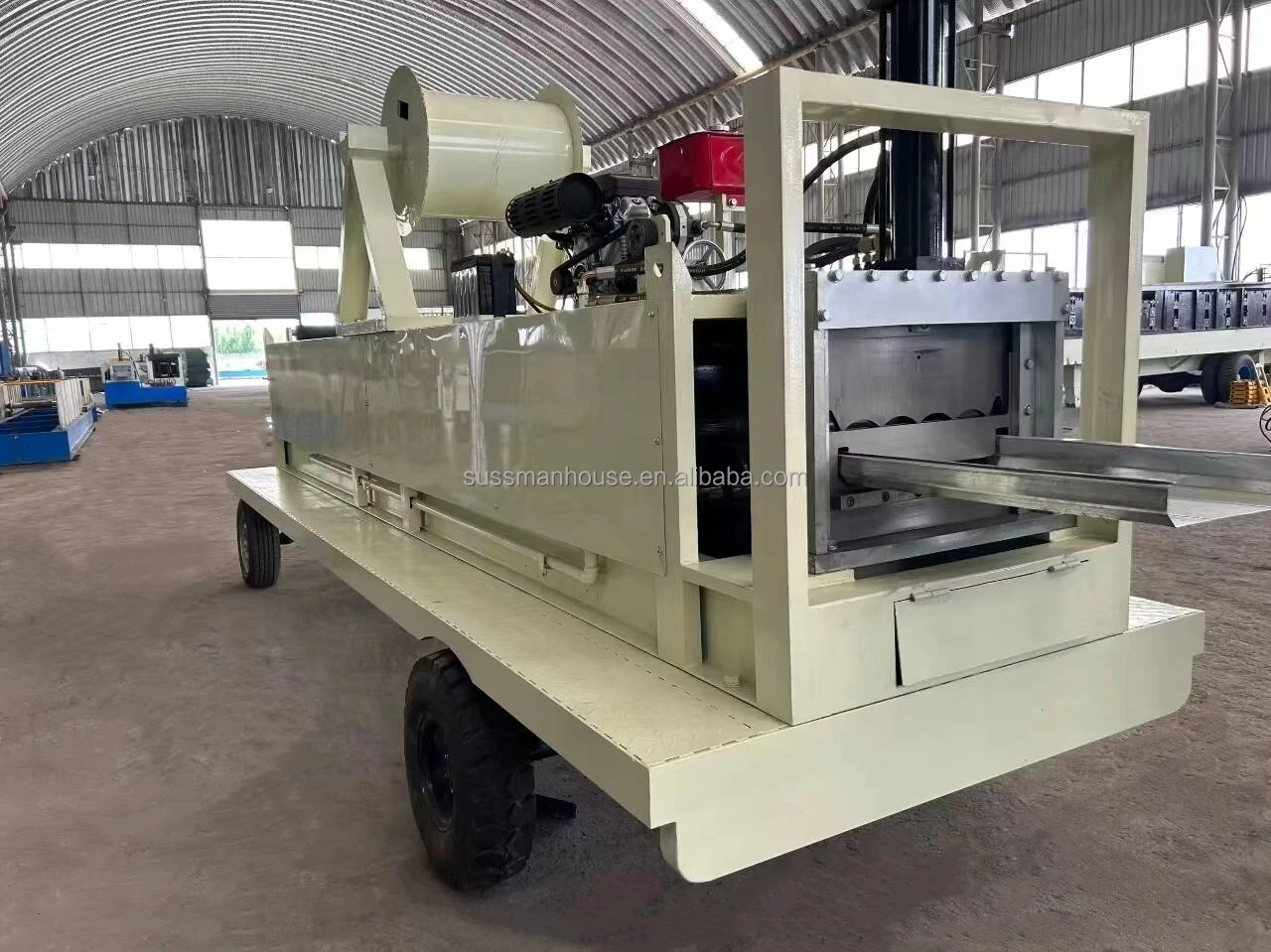

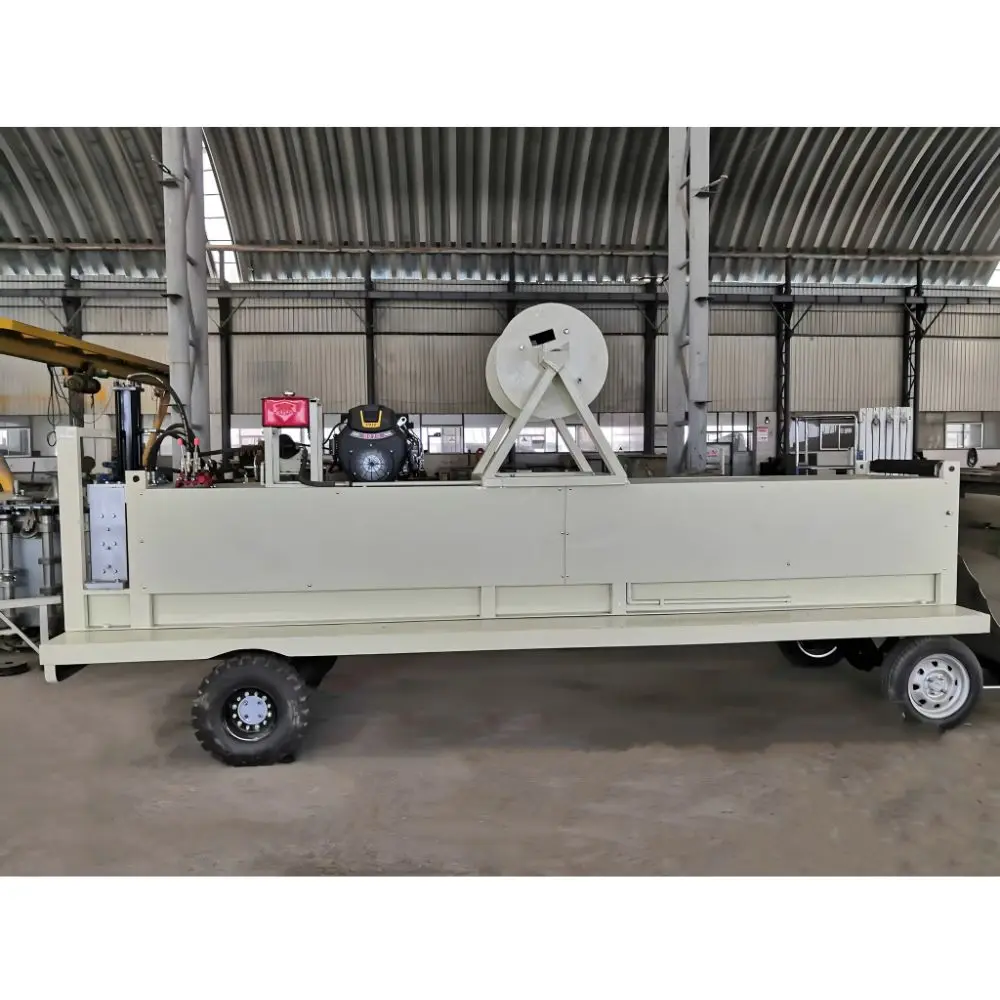

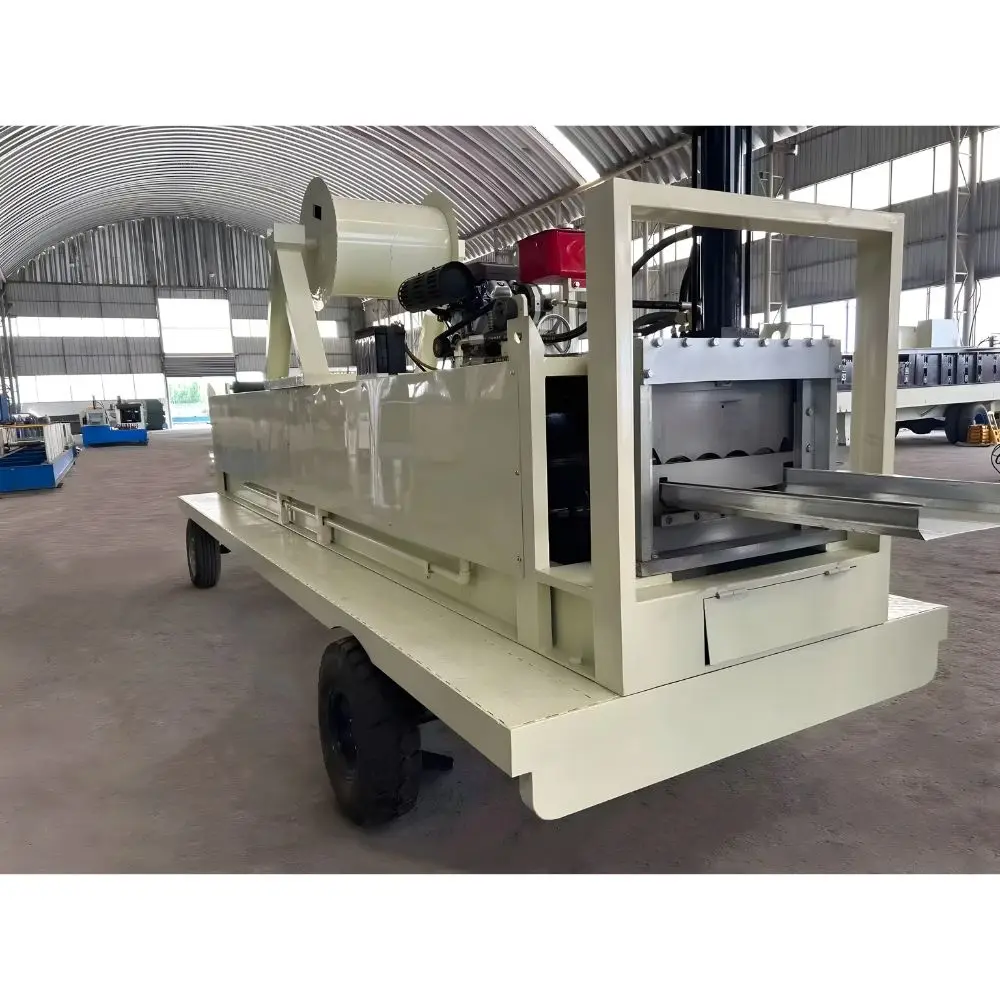

New Mexico Portable SSR KR18 KR24 Standing Seam Bemo Standing Roof Sheet Roll Forming Machine with Wheel Trailer
- Category: >>>
- Supplier: Sussman Modular House (wuxi) Co. Ltd.
Share on (1601089258319):
Product Overview
Description
Product Description

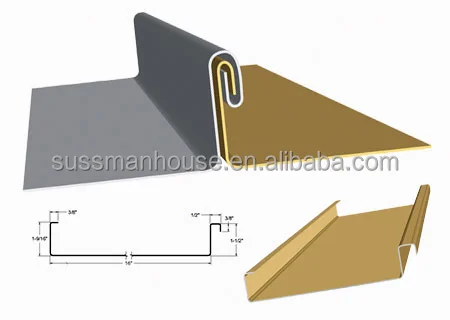

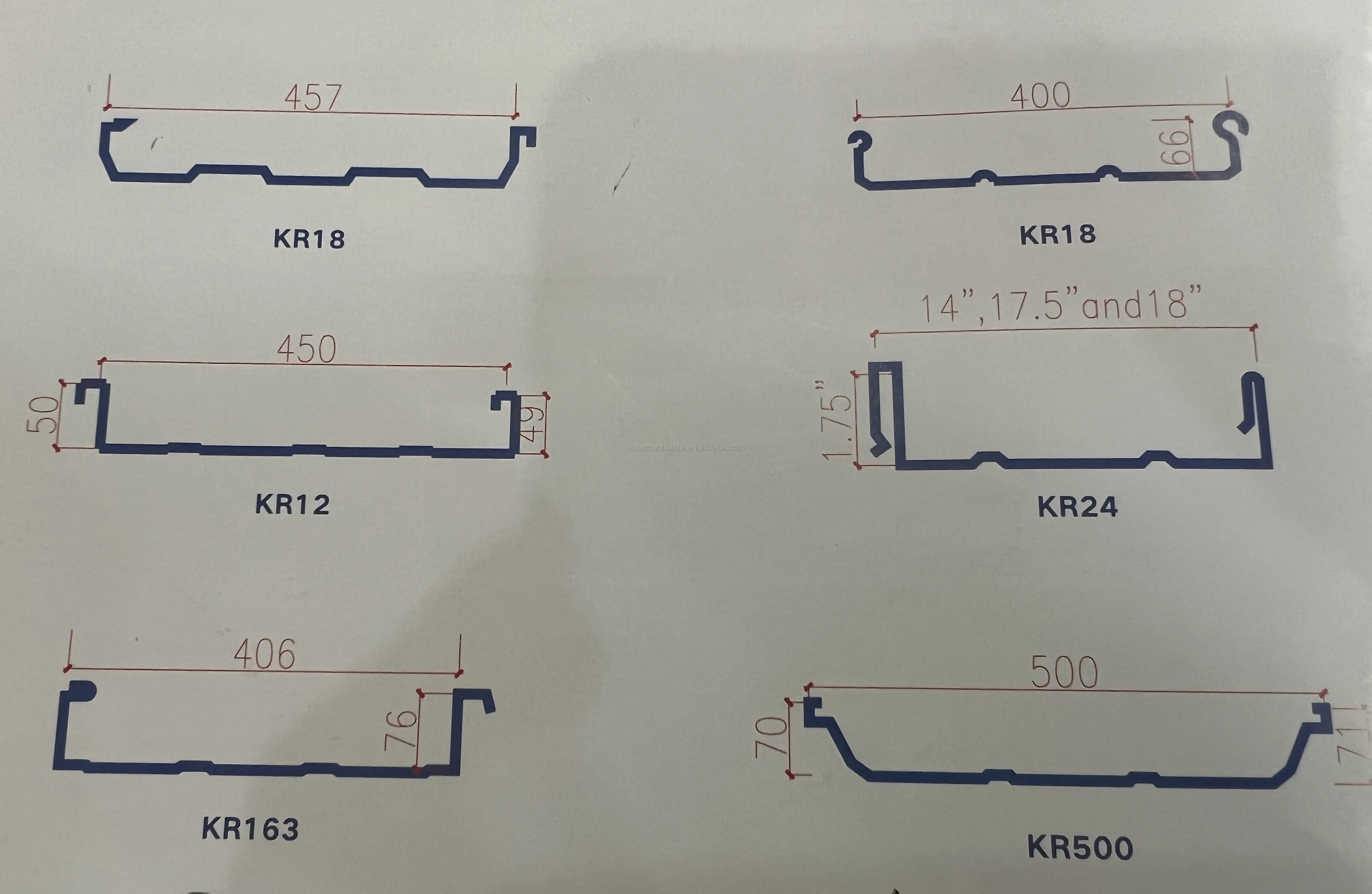

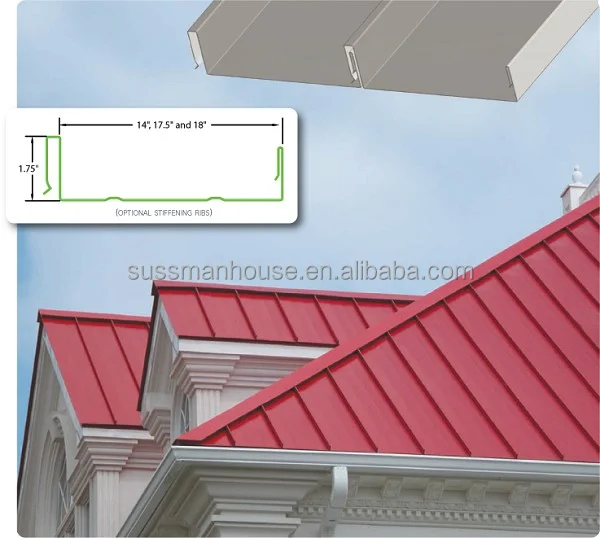

KR18 KR24 are the popular profile drawing in Mexico. The KR-24 jointed sheet is rolled with portable equipment, which facilitates its transfer and installation. Its fixing is hidden by means of clips and its longitudinal overlap can be clipped, this guarantees a low maintenance cost and great impermeability.The KR-24 sheet is of SSR type (Standing Seam Roof) ribbed and jointed on site.

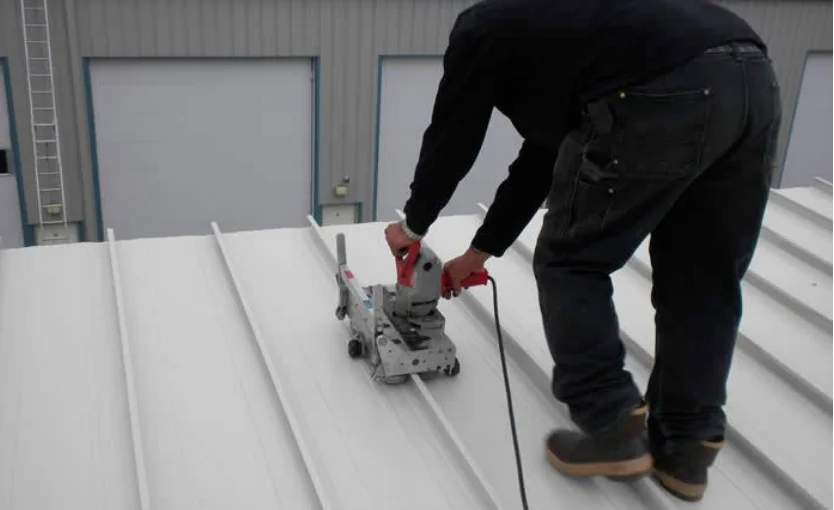

The KR-24 Steel Sheet (SSR-24) has a hidden fixing system based on clips, it reduces the risk of possible leaks since it is not required to drill the sheet for its installation. The KR-24 has no limitations in its length since it is manufactured in a single piece from gutter to ridge. It also allows the installation of insulating materials. Hooked Roofs can be installed on roofs with low slopes up to 2%.

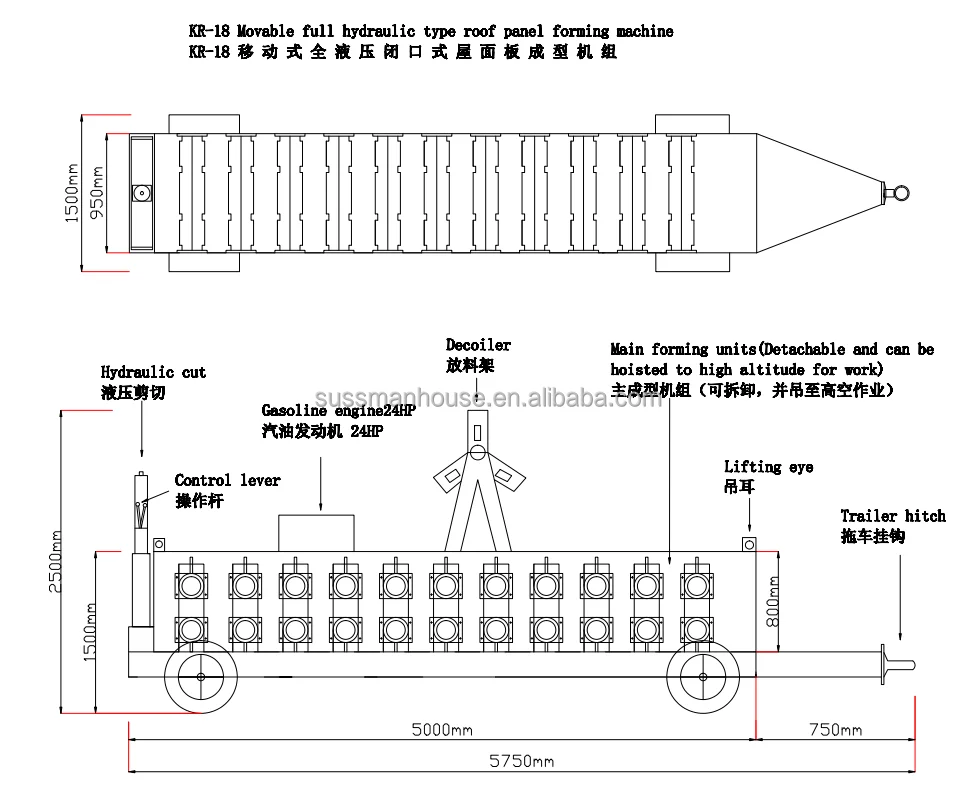

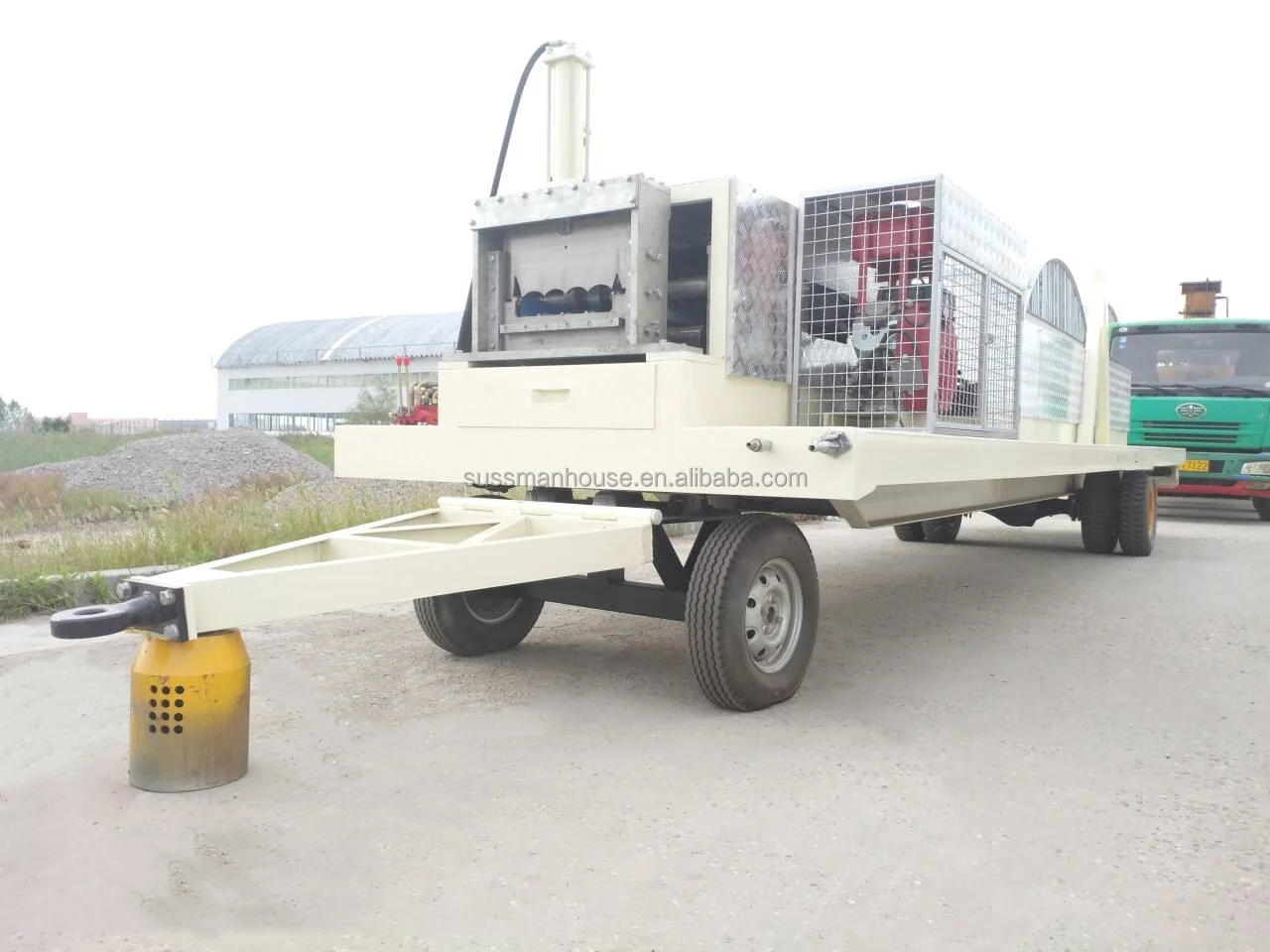

This machine is portable, can be with trailor or not, the customer can put the machine on the truck and take the machine to the construction.
1. Specification
Size: approximately 5.7*1.5*2.5M
Weight: about 3.0 T
Axle and wheels: two axles, four wheels
Towing: adjustable draw bar height from 80mm-160mm with 80mm round hitch.
Working speed: Forming:10-13 m/min
Material of rollers: Good 45# steel, rigid chrome coated
Material of roller shafts: 45# steel, quenched HRC 58-62
Material of cutting blade: Cr12 steel
Forming station: 11 steps
Power plant：gasoline engine 24HP
Battery:12 Volt DC*2
Drive System: All hydraulic pump with engine
Drive/Forming Rollers: Chain drive
Host big frame structure H Frame

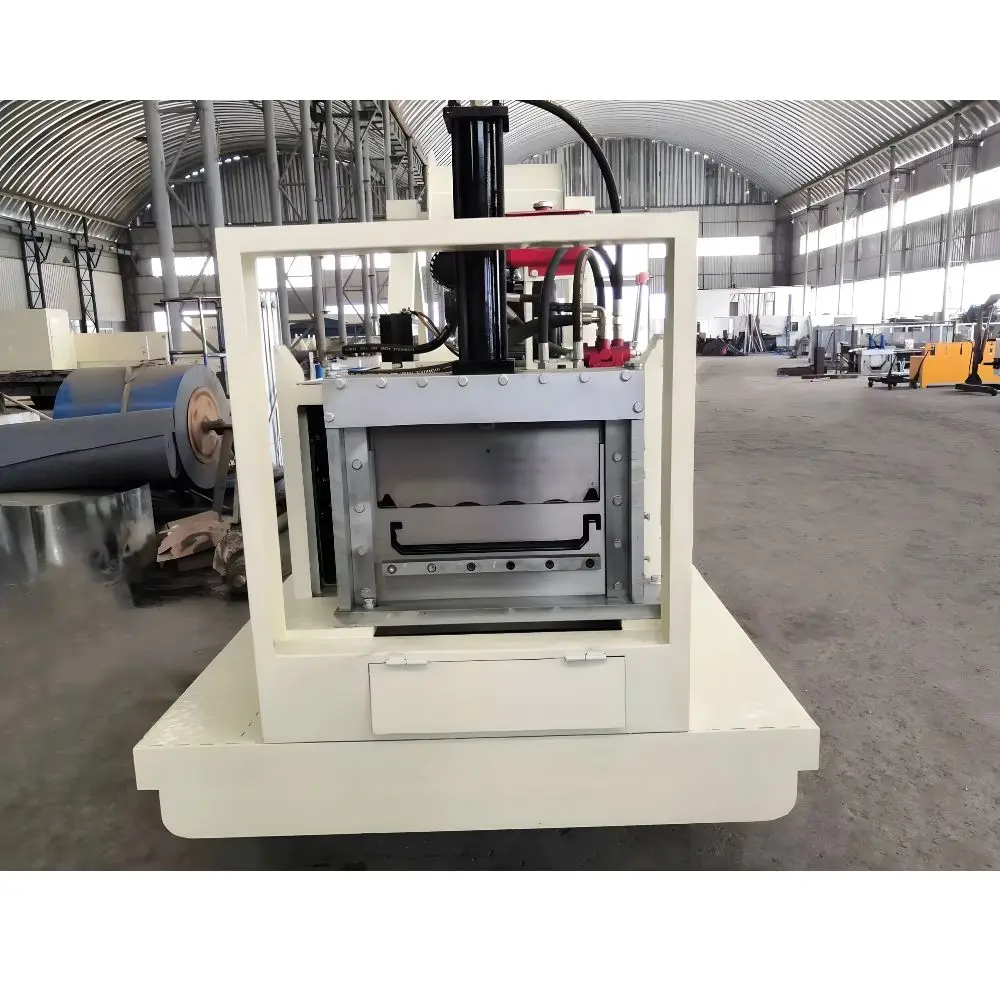

Cutting type: Hydraulic cutting
Manual Decolier：Carrying capacity 5 tons of steel coil
Working procedures: feeding-forming-cutting
The KR-24 Steel Sheet (SSR-24) has a hidden fixing system based on clips, it reduces the risk of possible leaks since it is not required to drill the sheet for its installation. The KR-24 has no limitations in its length since it is manufactured in a single piece from gutter to ridge. It also allows the installation of insulating materials. Hooked Roofs can be installed on roofs with low slopes up to 2%.
This machine is portable, can be with trailor or not, the customer can put the machine on the truck and take the machine to the construction.
1. Specification
Size: approximately 5.7*1.5*2.5M
Weight: about 3.0 T
Axle and wheels: two axles, four wheels
Towing: adjustable draw bar height from 80mm-160mm with 80mm round hitch.
Working speed: Forming:10-13 m/min
Material of rollers: Good 45# steel, rigid chrome coated
Material of roller shafts: 45# steel, quenched HRC 58-62
Material of cutting blade: Cr12 steel
Forming station: 11 steps
Power plant：gasoline engine 24HP
Battery:12 Volt DC*2
Drive System: All hydraulic pump with engine
Drive/Forming Rollers: Chain drive
Host big frame structure H Frame
Cutting type: Hydraulic cutting
Manual Decolier：Carrying capacity 5 tons of steel coil
Working procedures: feeding-forming-cutting
Machine List:
De-coiler | 1 set |
Manual Super plier | 1 set |
Driving chains | 1 set |
Chain half section | 5 |
Chain whole section | 3 |
Polish wax | 1 |
