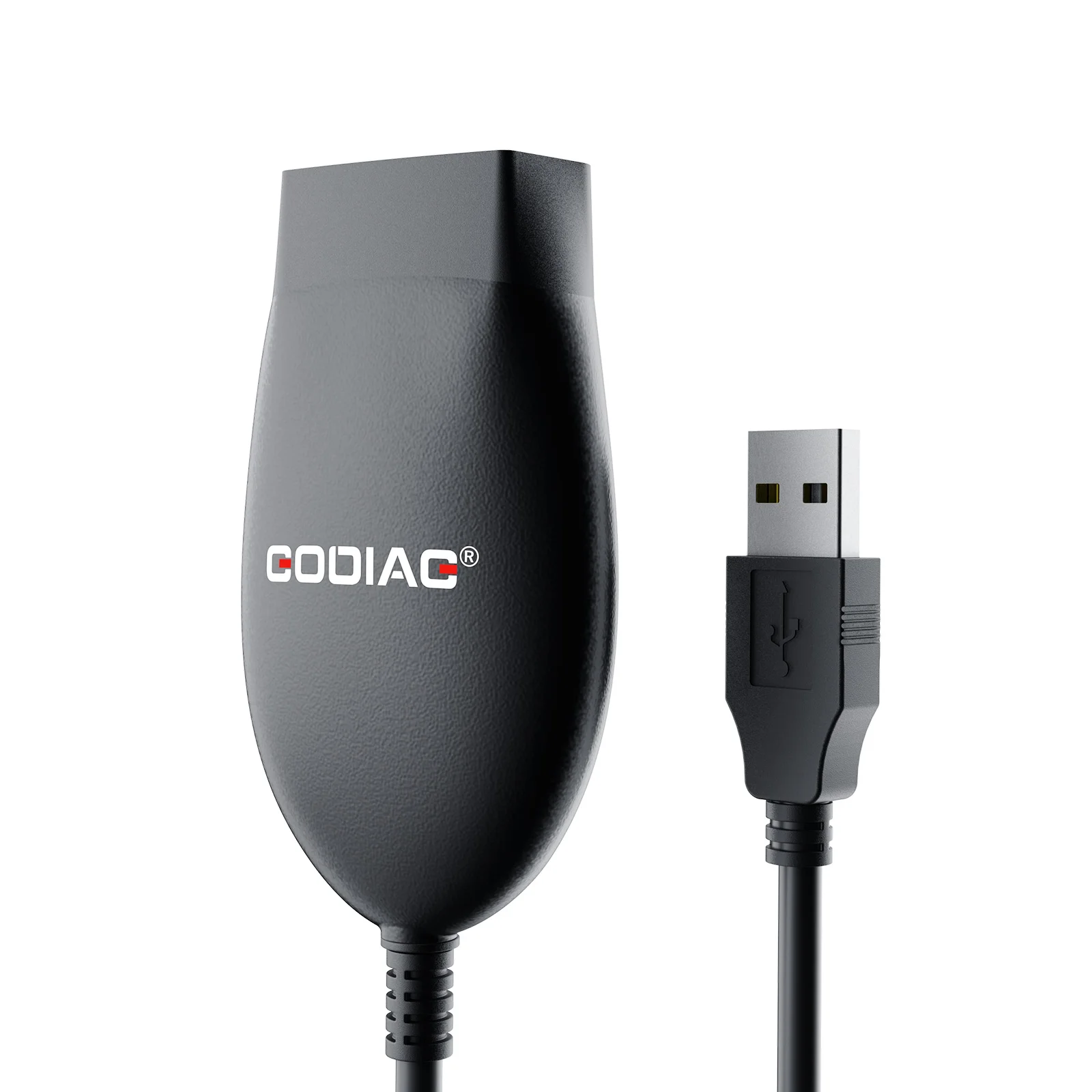

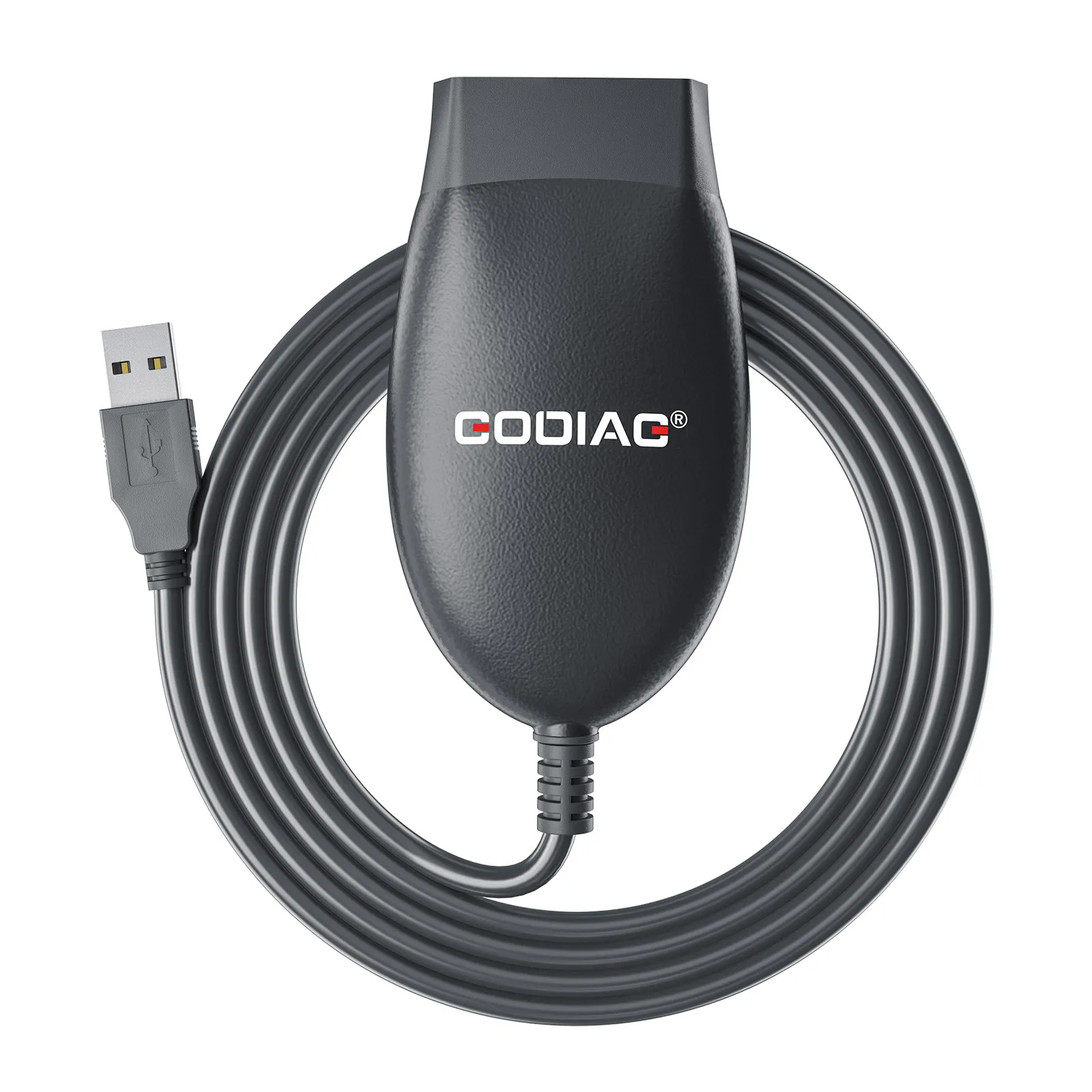

GODIAG GD101 J2534 Passthru Diagnostic Cable for Ford Mazda/ Toyota/ Forscan/ ScanMaster/ SDD/ PCM Flash/ ELM327/ J1979
- Category: >>>
- Supplier: Shenzhen Tompzon Electronics Co. Ltd.
Share on (1601093973368):
Product Overview
Description
GODIAG GD101 J2534 Passthru Diagnostic Cable for Ford Mazda/ Honda/ Toyota/ Renault/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327/
J1979
J1979
1. GODIAG GD101 J2534 is compatible with Honda 3.104.024, Toyota V17.30.011, JLR SDD V163, Forscan 2.3.48, Scanmaster v2.1,
PCM-Flash 1.2.0, VAG ODIS 9.1.0, Renault Clip V227.
2. Works with J2534 Passthru and ELM327
GODIAG GD101 J2534 Diagnostic Cable Support J2534 & ELM327 Diagnose J1979 Compatible Vehicles for Toyota/ Honda Acura/ ODIS/ Ford
Mazda/ Renault etc
PCM-Flash 1.2.0, VAG ODIS 9.1.0, Renault Clip V227.
2. Works with J2534 Passthru and ELM327
GODIAG GD101 J2534 Diagnostic Cable Support J2534 & ELM327 Diagnose J1979 Compatible Vehicles for Toyota/ Honda Acura/ ODIS/ Ford
Mazda/ Renault etc
GODIAG GD101 J2534 Highlights:
1. Compatible with Honda 3.104.024, Toyota V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS
9.1.0 and Renault Clip V227,Renault Clip V230
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
5. Wok on Windows 8/10/11, 32/64bit

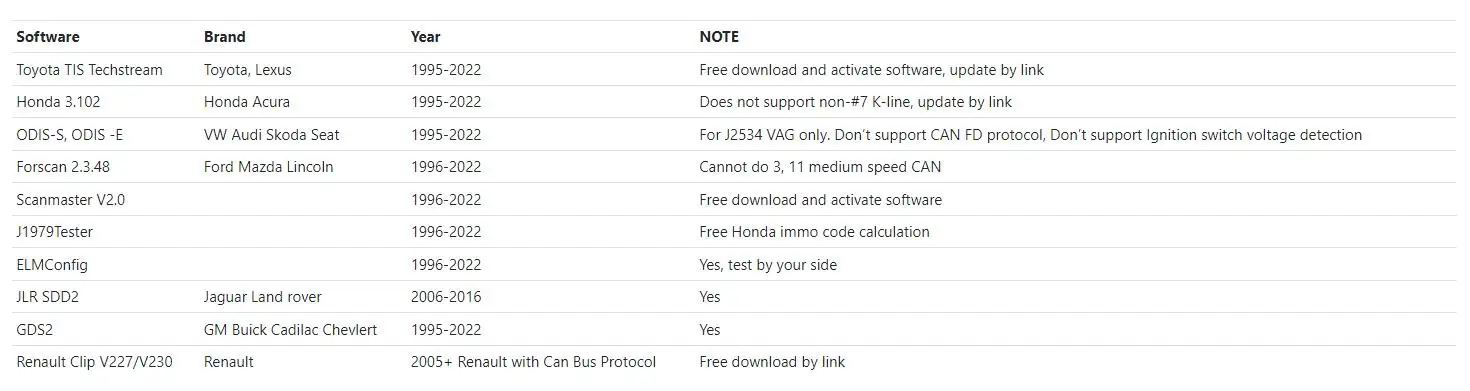

GODIAG GD101 J2534 Function List:
9.1.0 and Renault Clip V227,Renault Clip V230
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
5. Wok on Windows 8/10/11, 32/64bit
GODIAG GD101 J2534 Function List:
Notice:
Can't support MS-CAN
GODIAG GD101 J2534 Features:
1. Support most all of J2534 compatible software
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.
Notice:
1. Software Free Download:
Free Download Godiag J2534 V2.3 Software
For Honda 3.104.024, Techsteam V17.30.011, JLR SDD V163, Forscan 2.3.48, Scanmaster v2.1, PCM-flash 1.2.0 and VAG ODIS 9.1.0,
Renault Clip V227/V230, please contact online customer service on Whatsapp: +86 13995696053.
2. Not Support Win7 System

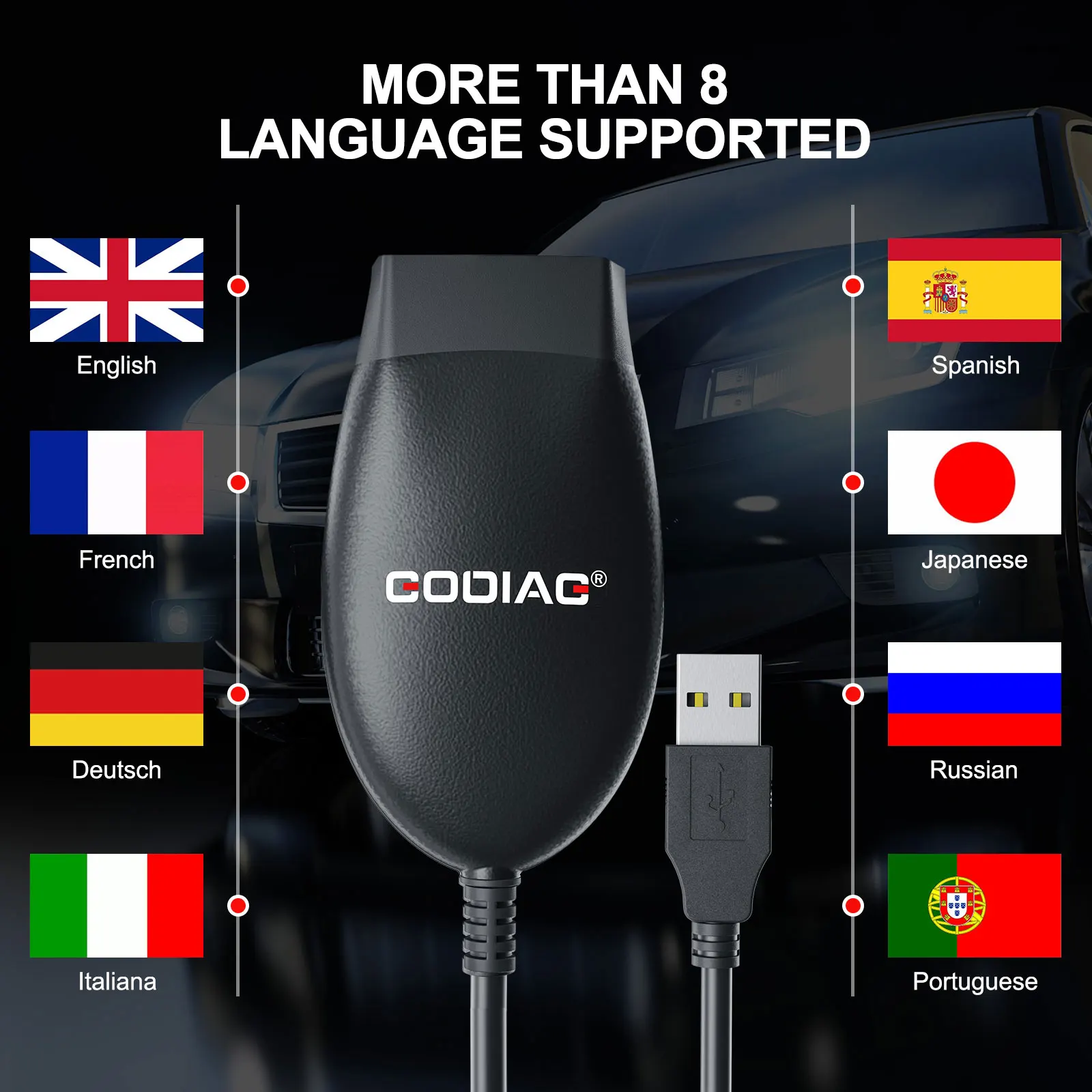

GODIAG GD101 J2534 Languages:
ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German,
Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese
Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian,
Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese,
Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
Pcmflash: English, Russian
Can Clip Renault: English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romania, Swedish
GODIAG GD101 J2534 Protocol Configuration:
1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.3a
GODIAG GD101 J2534 Hardware Configuration:
1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).

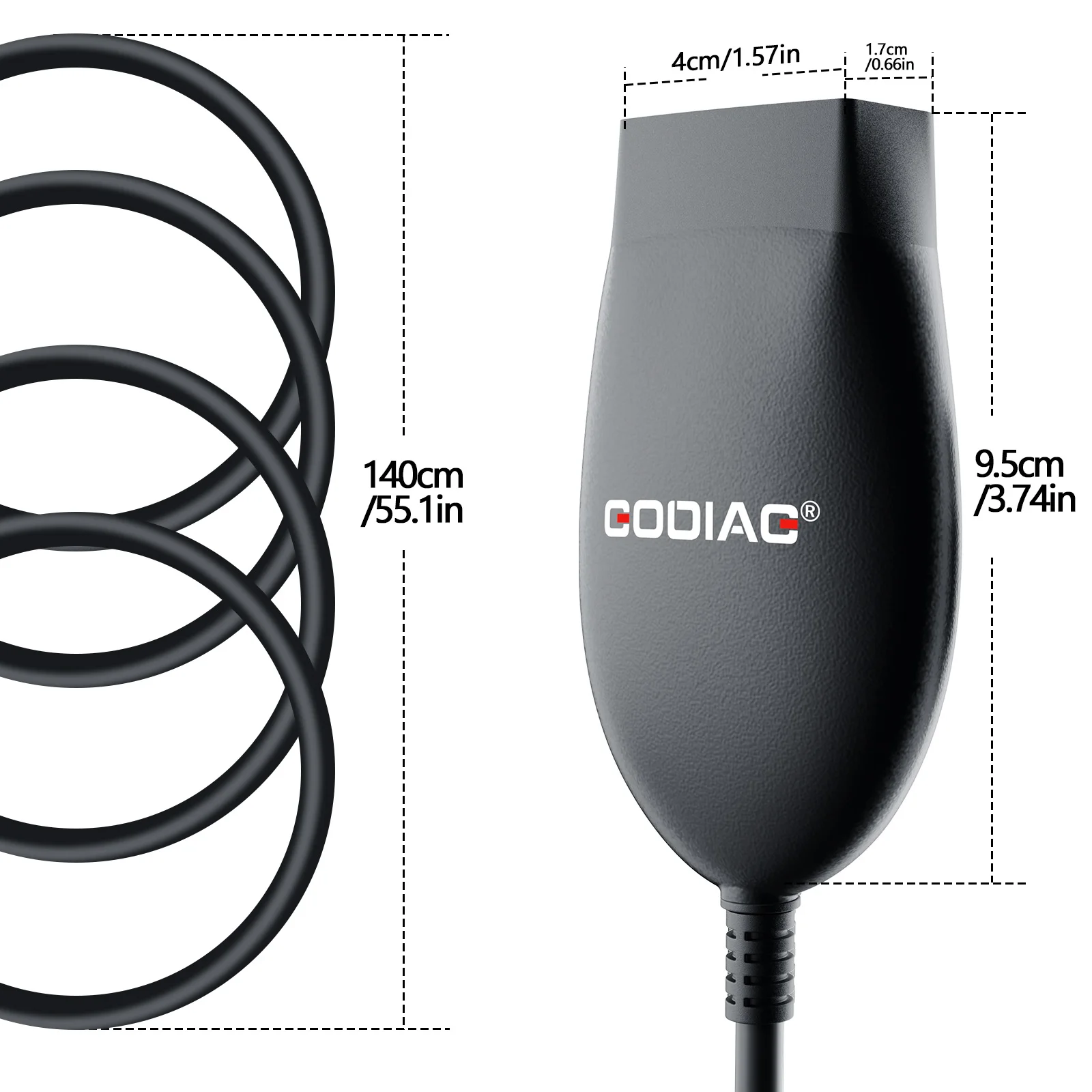

7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC

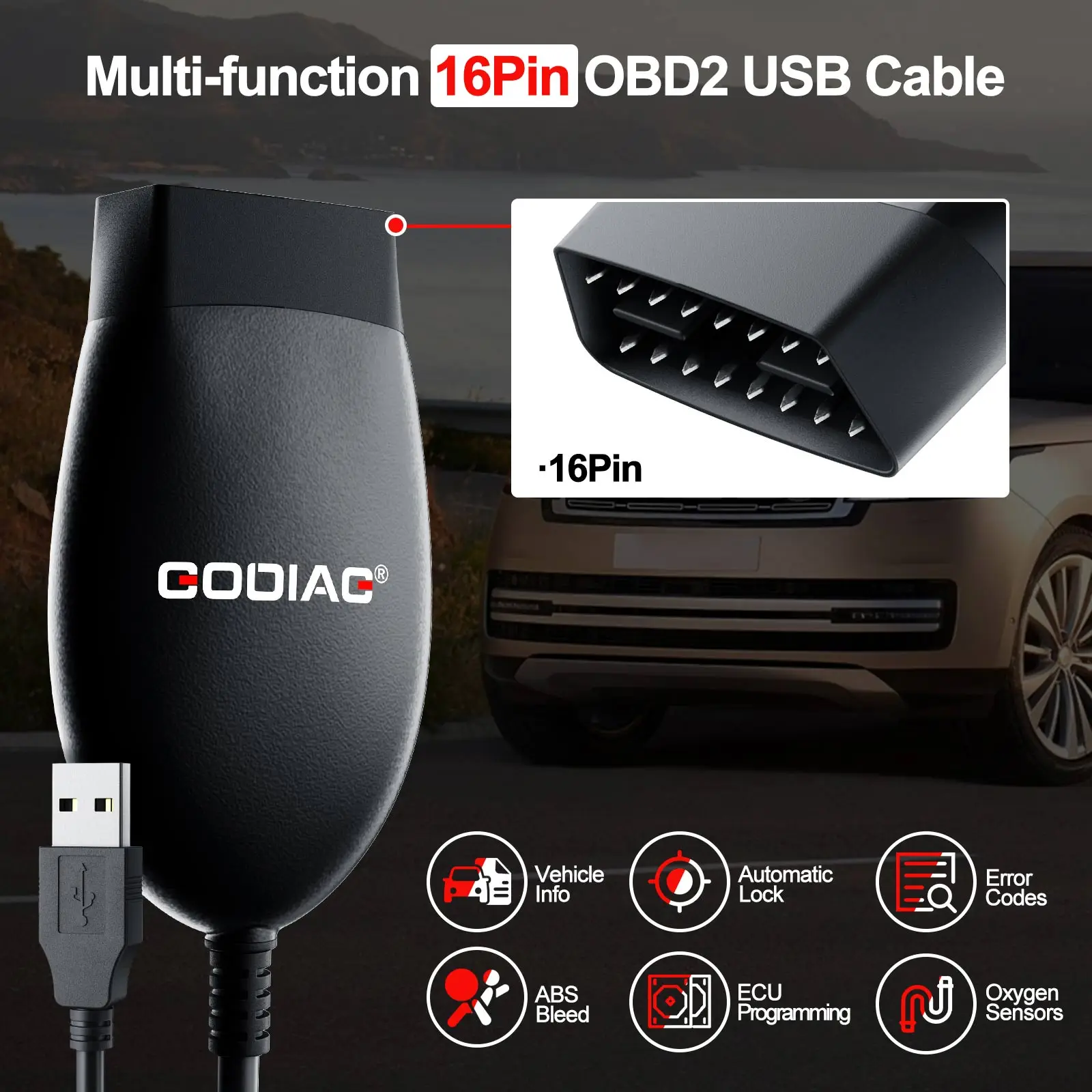

10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0
1. Support most all of J2534 compatible software
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.
Notice:
1. Software Free Download:
Free Download Godiag J2534 V2.3 Software
For Honda 3.104.024, Techsteam V17.30.011, JLR SDD V163, Forscan 2.3.48, Scanmaster v2.1, PCM-flash 1.2.0 and VAG ODIS 9.1.0,
Renault Clip V227/V230, please contact online customer service on Whatsapp: +86 13995696053.
2. Not Support Win7 System
GODIAG GD101 J2534 Languages:
ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German,
Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese
Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian,
Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese,
Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
Pcmflash: English, Russian
Can Clip Renault: English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romania, Swedish
GODIAG GD101 J2534 Protocol Configuration:
1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.3a
GODIAG GD101 J2534 Hardware Configuration:
1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC
10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0

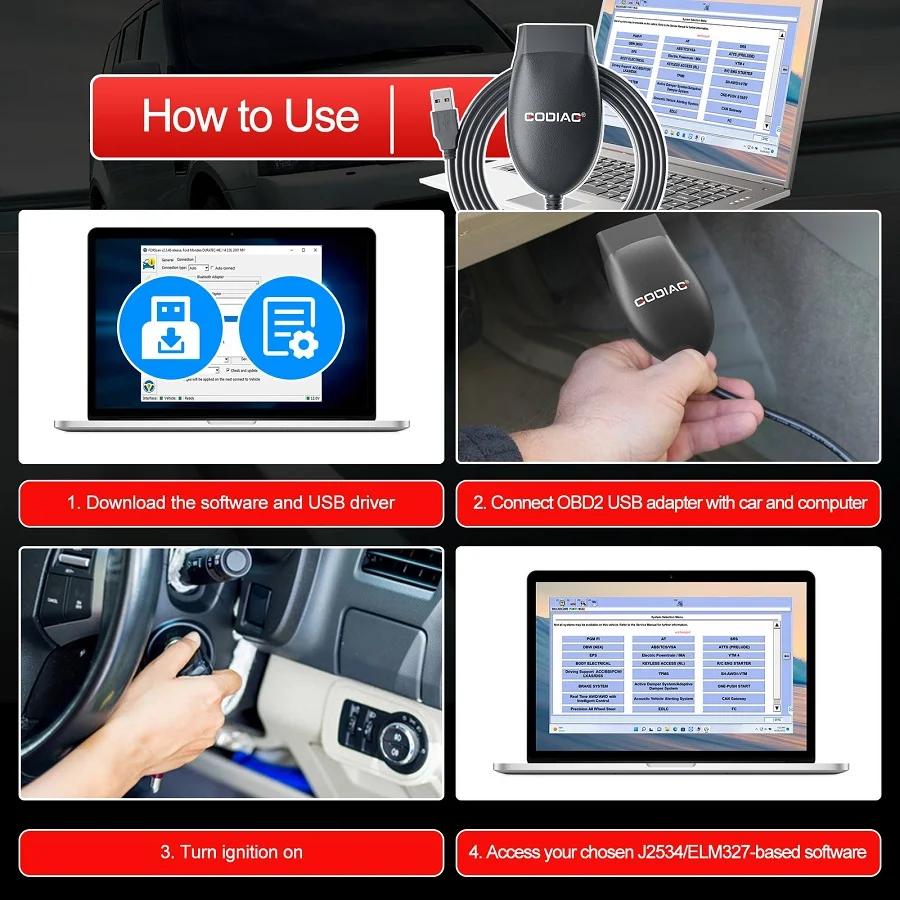

How to use the GODIAG GD101 J2534?

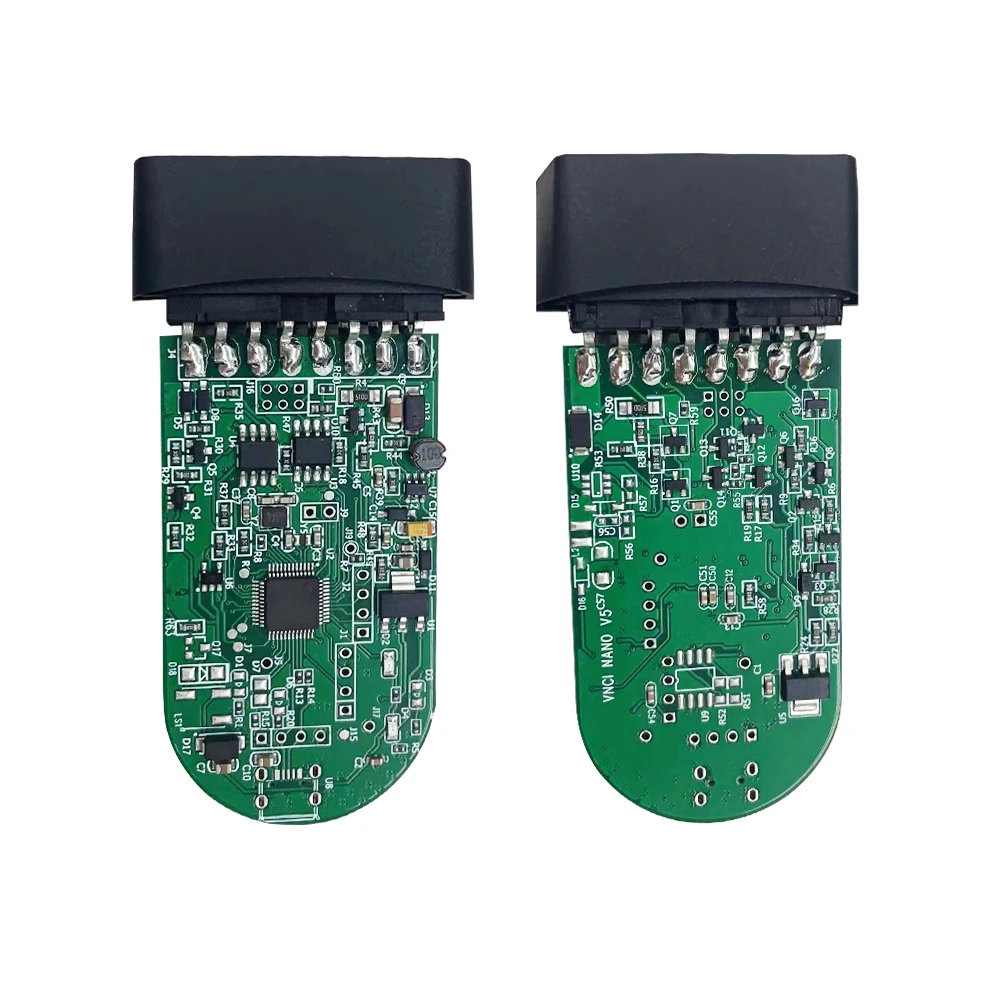

PCB
GODIAG GD101 J2534 PCB Display:
Notice:
GODIAG J2534 Upgrade Notice
Driver Updated on 2023-8-16
GODIAG GD101 J2534 driver update to V2.3, Click to download V2.3
Support test Renault Clip V227
Renault year 2005+ Renault with Can Bus Protocol
Software Firmware（March 31, 2023）
1. Software upgrade to 2.1
2. Firmware upgrade to 1.8
Solve the following problems:
1. In J2534 mode, the sending length of J1850VPW is extended to 4128
2. PyOBD software cannot be connected in ELM327 mode
3. ELM327 mode cannot read ISO9141 VIN
Open the startup software, connect the device, and click upgrade firmware.
Package Includes:
1pc x GODIAG GD101 J2534
Driver Updated on 2023-8-16
GODIAG GD101 J2534 driver update to V2.3, Click to download V2.3
Support test Renault Clip V227
Renault year 2005+ Renault with Can Bus Protocol
Software Firmware（March 31, 2023）
1. Software upgrade to 2.1
2. Firmware upgrade to 1.8
Solve the following problems:
1. In J2534 mode, the sending length of J1850VPW is extended to 4128
2. PyOBD software cannot be connected in ELM327 mode
3. ELM327 mode cannot read ISO9141 VIN
Open the startup software, connect the device, and click upgrade firmware.
Package Includes:
1pc x GODIAG GD101 J2534
