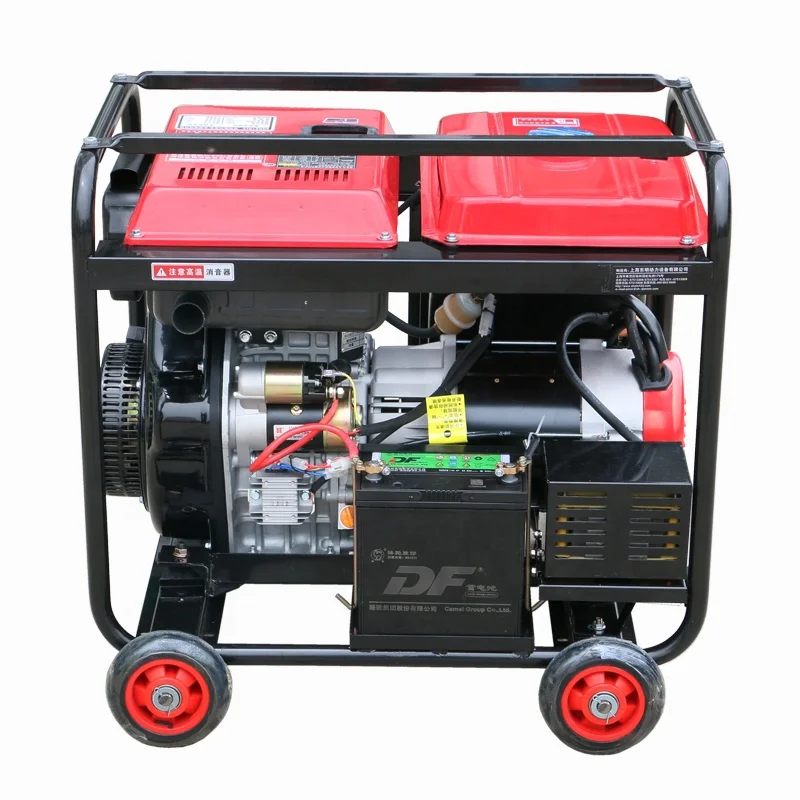

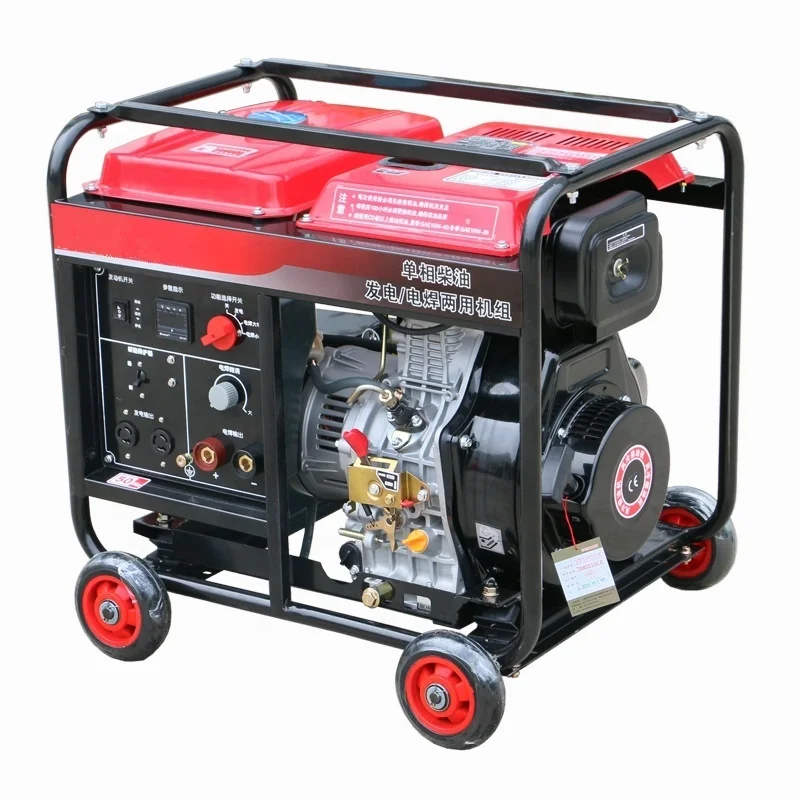

Manufactory Direct Welder 10kw Portable Machine Welding Diesel Generator
- Category: >>>
- Supplier: Shanghai Formac Machinery Co. Ltd.
Share on (1601095640148):
Product Overview
Description
Product Overview

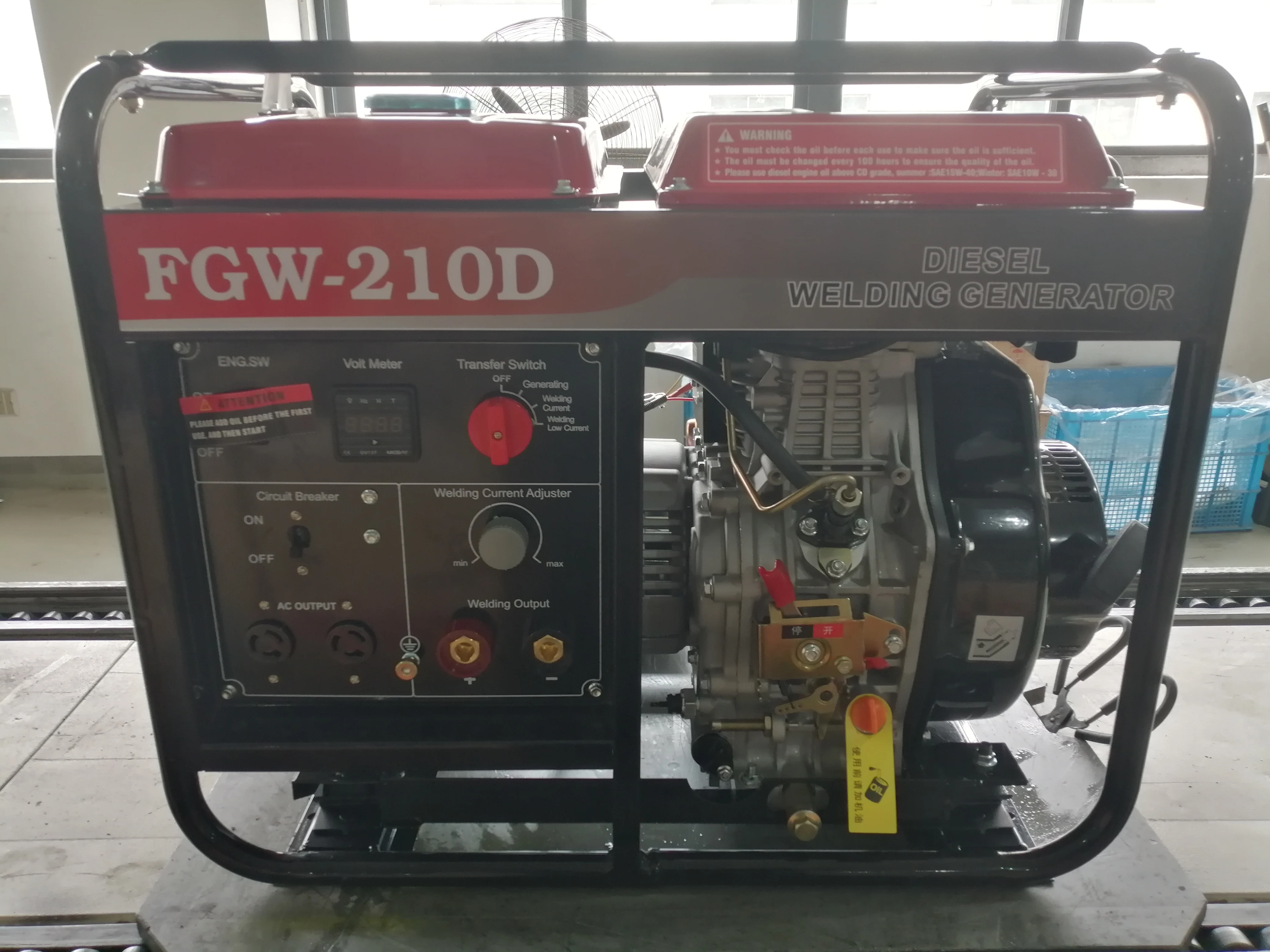

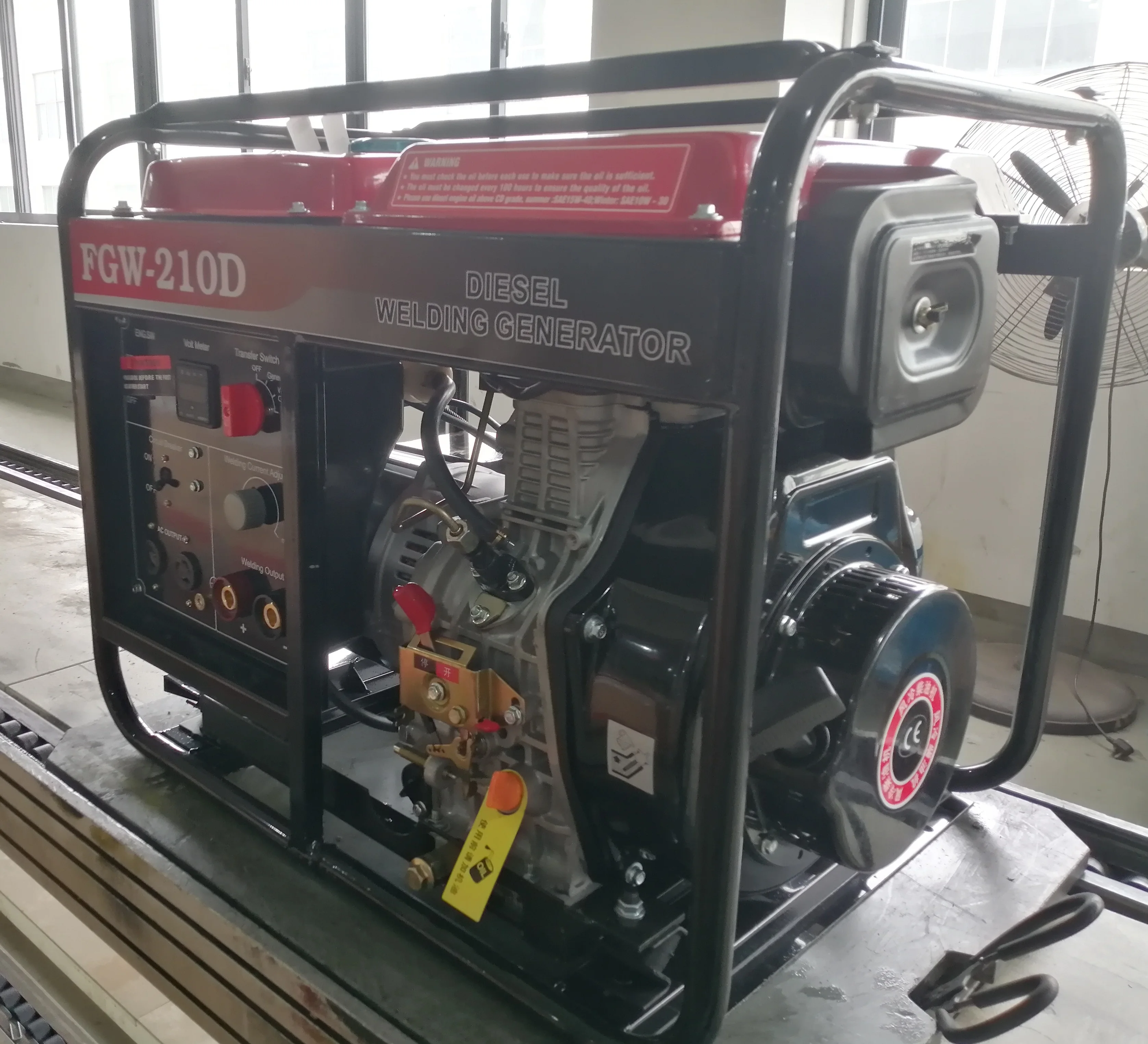

Diesel Welding & Generator FGW-210D
Formac diesel welding&generator is specially developed for professional users who need it for any situations
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Item | Data | |||
ENGINE | Engine Model | Diesel 192F | ||
2 | Engine Type | Single cylinder, four stroke, air cooled | ||
3 | Bore Size * stroke mm | 92*75 | ||
4 | Displacement cm3 | 499 | ||
5 | Start Method | Manual start/electric start | ||
6 | Max. Outout Power kw/rpm | 9.4/3600 | ||
7 | Fuel Tank Capacity L | 12 | ||
8 | Oil Capacity L | 1.65 | ||
Welding Function | Rated Voltage V | 26-28 | ||
Current regulation range A | 80-200 | |||
Temporary load rate | 60% | |||
Electrode diameter mm | Φ2.5～4.0 | |||
Power Generation Function | Rated Power kW | 5 | ||
Rated Voltage V | AC230 | |||
Tated Frequency Hz | 50 | |||
Generator Set | Outline Dimesions mm | 740*580*720 | ||
Weight kg | 160 |
PRODUCT CONFIGURATION
Advantages:
--Integrated with generator and welding;
--Chinese famous diesel engine adopted;
--3C certification approved;
--Test report provided;
--Powerful and potable, easy for transportation.
Multi-funcitonal
It can work as both generator and welding machine.
Integrated with generator and welding
Powerful diesel engine.
It adopts chinese famous diesel engine for efficient and stable performance.

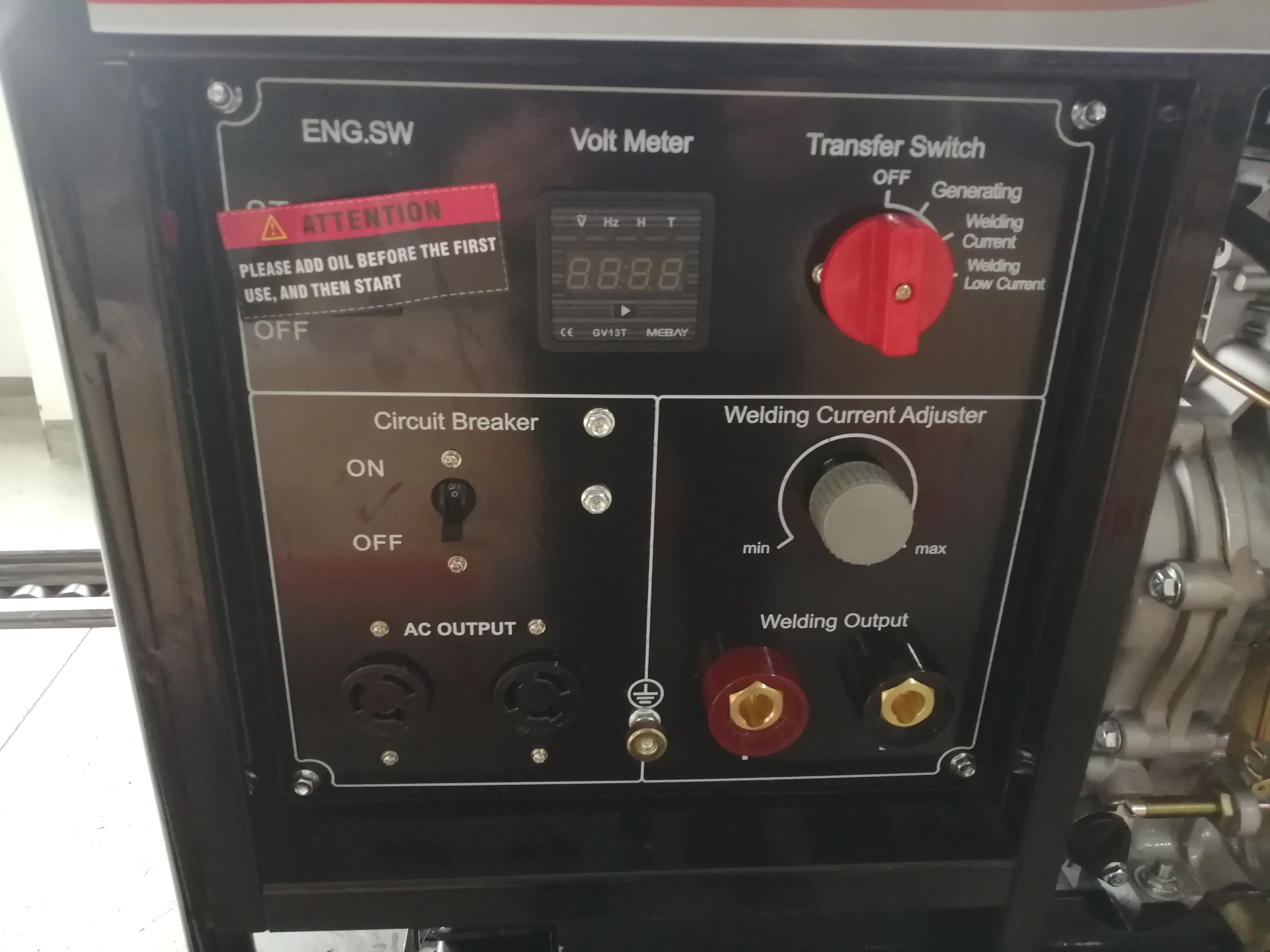

English control panel.
English panel is user friendly to control the machine
