Product Overview
Description
Product Description
Function
Description:
KW600 12V car battery tester is able to effectively analyze andread important car data such as voltage, internal
resistance, cold cranking amp and AH capacity, battery health and charge status. It provides accurate results, calculates thecold
cranking capability of the battery and the aging extent, allowingfor a quicker, more precise car repairing. Test results display

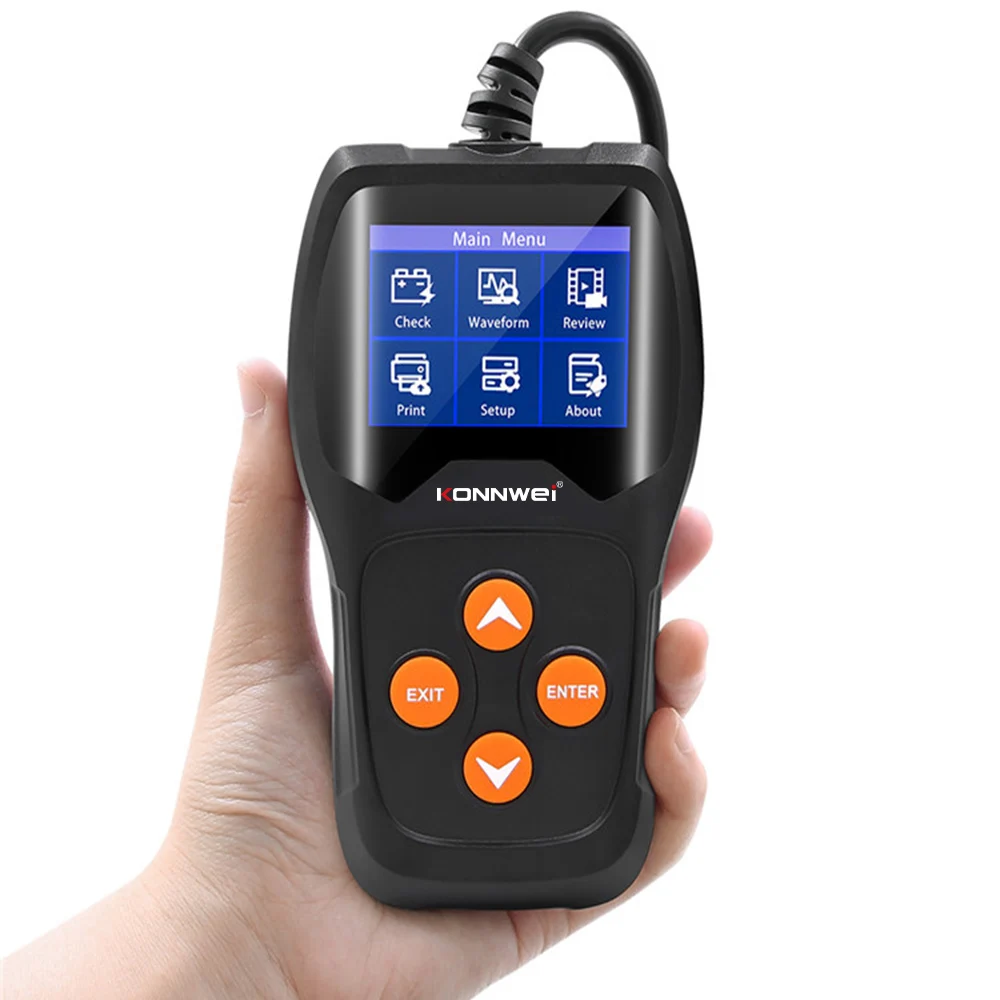

in both text and graphing, but the real-time battery voltage showing in a waveform. With an intelligent 2.4” LCD screen and STM32
main chip, reading access is practical and rapid! Lifetime update service is supported by KONNWEI BTlink app.
Function :
System voltage 12 Volts and Voltage test in waveform
Test Result Good, Recharge or Replace
Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Internal resistance value (mΩ) and Life in percentage (%)
Cranking system and Charging system
Record and re-play battery data, Life-time free update service
Battery test, cranking test, charging test and other additional functions.
The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported
Features:
1.System voltage: 12 Volts
2.Test Result: Good, Recharge or Replace
3.Capacity - Cold Cranking Amps
(CCA), DIN, EN and IEC information relative to battery rating.
4.Internal resistance value (mΩ)
5.Life in percentage (%)
6.Cranking system
7.Charging system
8.Voltage test in waveform
9.Record and re-play battery data, Life-time free update service
10.Battery test, cranking test, charging test and other additional functions.
Specifications :
1.Measure Standard
2.CCA:100-2000
3.BCI:100-2000
4.CA:100-2000
5.MCA:100-2000
6.JIS:26A17-24SH52
7.DIN:100-1400
8.IEC:100-1400
9.EN:100-2000
10SAE:100-2000
11.GB:100-1400
12Display: Color TFT LCD Screen
13.System Voltage:12 Volts
14.Input Voltage Range:8V-16V
15.Power Requirements: No internal batteries required.
16.Power on when hooked up during testing.
17.Operating Temperature:0℃-50℃
18.Storage Temperature:-20℃-70℃

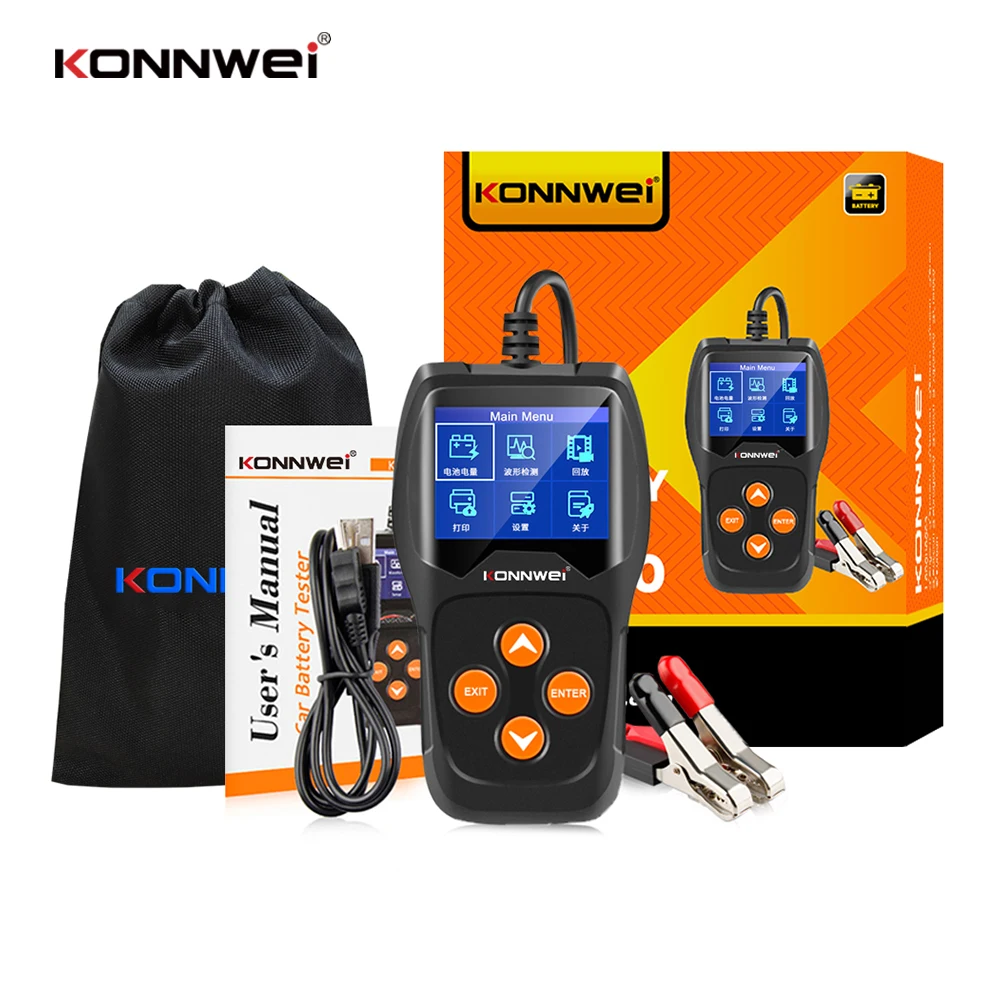

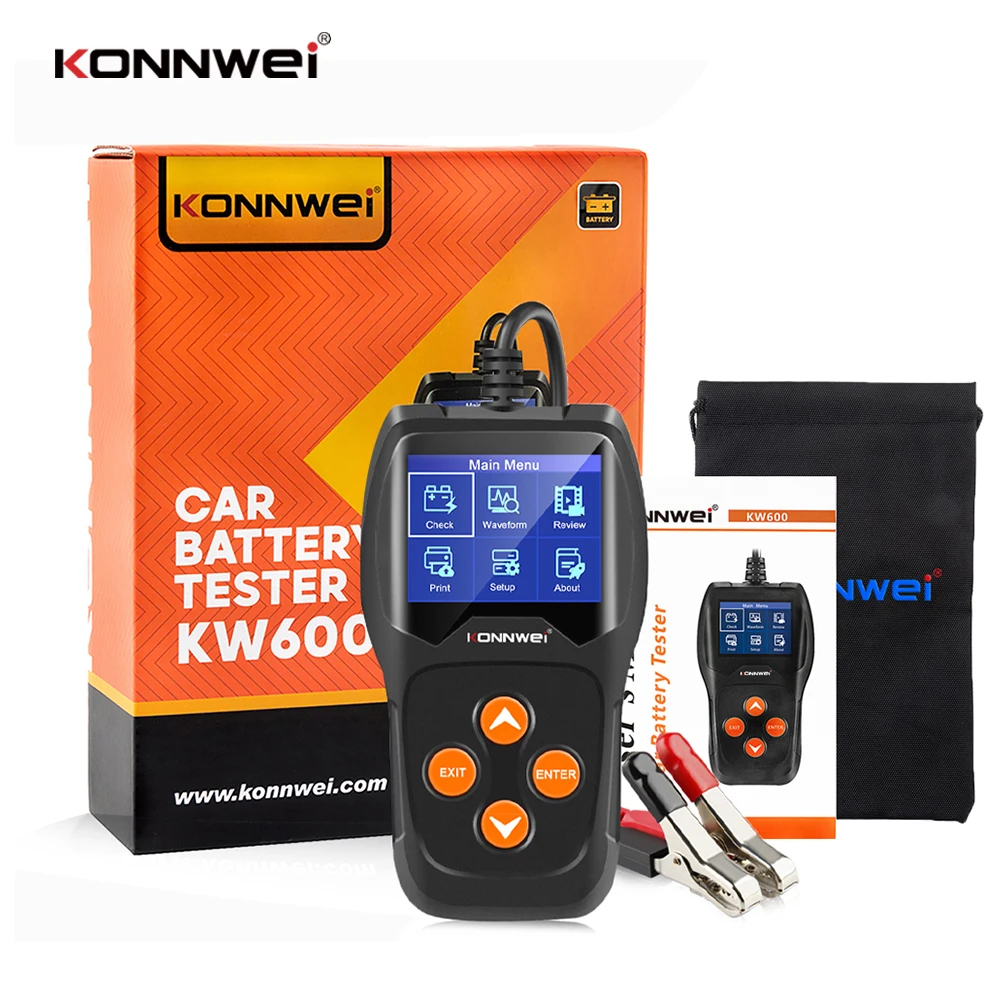

Package includes:
1*KONNWEI KW600 KONNWEI car battery tester
1*Mini USB cable
1*User’s Manual
1* Nylon cloth bag
1* colorful box
item | Car Battery Analyzer, motorcycle battery tester , Digital Battery Tester, Values Lead Acid Load Battery Automotive Voltage Tester , and so on |
LCD Screen Size(Inch | 2.4Inchs LCD TFT Colorful Screen |
Usage | Auto Testing Machine, Test li-ion battery, Environment-simulated Test Chamber |
Material | ABS housing |
size | 14*11*2.5 |
weight | 0.29kg |
Application | For all 12V cars battery such as vehicles car/ gasoline cars/Hybrid electric vehicle |
IC Chip | SMT32F103C8T6 Chip solution |
