wire butt welder steel wire butt welding machine
US $60000-$80000
40 160 mm water pipeline butt welding machine 160mm HDPE pipe joint fusion machine price
- Category: >>>
- Supplier: Hangzhou Welping Machinery Equipment Co. Ltd.
Share on (1601100989686):
Product Overview
Description
Product Overview

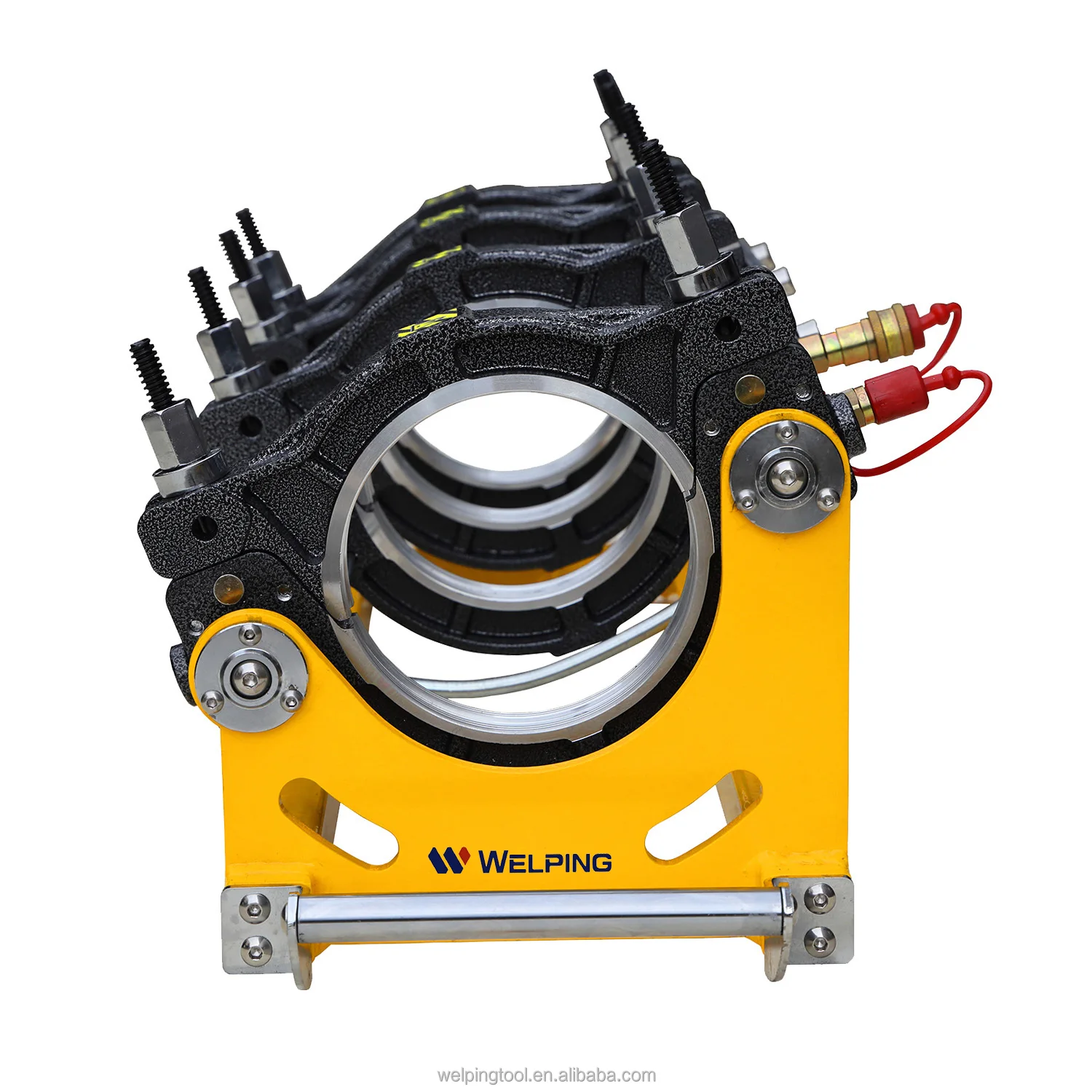

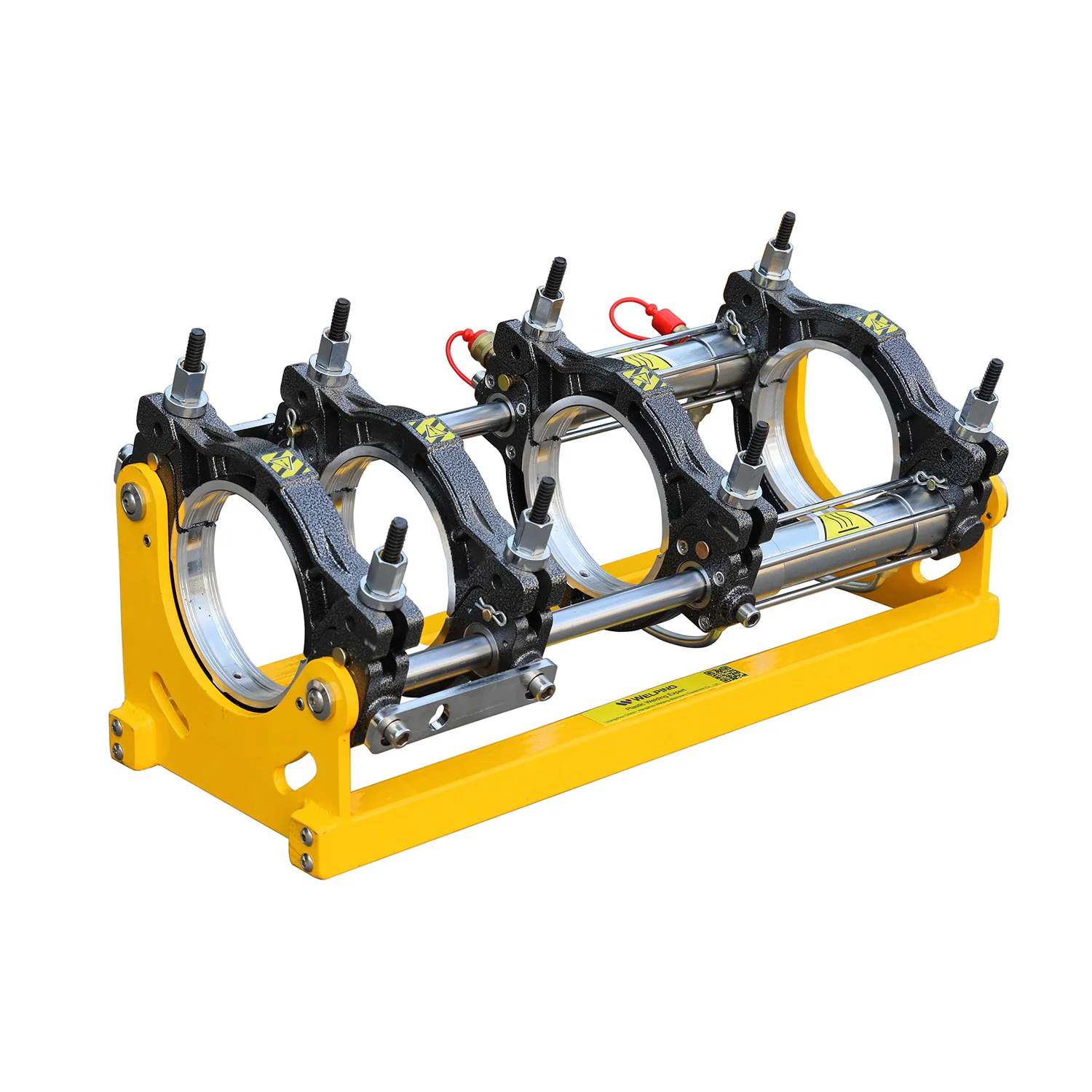

WP160A hydraulic butt fusion welding machine
Productiion Specifications
Model | WP160A |
Suitable materials | PE,PP, PB. PVDF |
Range | 40-50-63-75-90-110-125-140-160 mm |
Power supply | 110V/220V |
Frequency | 50HZ |
Total power | 3.65 KW |
Heating plate | 1.5 KW |
Planing tool | 1.4KW |
Hydraulic station | 0.75 KW |
Max.Pressure | 16Mpa |
Hydraulic oil | L-HM46 |
Max.Temperature of heating plate | 270ºC |
Temp.Deviation in Surface | ±5ºC |
Total Weight | 111kg |
Net weight | 99kg |
Basic Frame & planing tool & heating plate （plywood case） | 84*45*62cm |
Hydraulic Unit （plywood case） | 54*49*58cm |

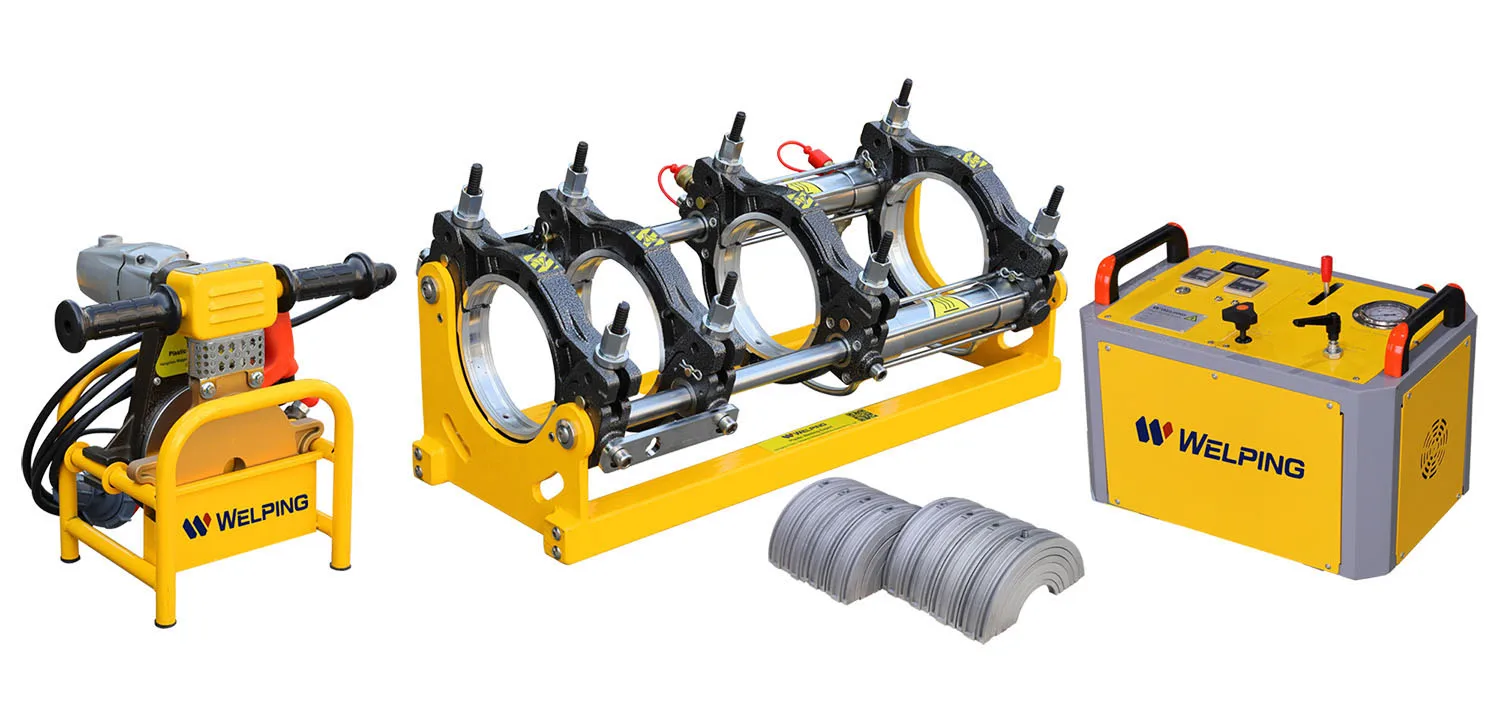

WP160A hydraulic butt fusion welding machine
Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor StructureModifications.
Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.
Products Description
Packing & Delivery
WP160A butt welding | Length (cm) | Width (cm) | Height (cm) | N.W. | G.W. |
package 1 | 84 | 46 | 61 | 53 | 63 |
package 2 | 60 | 46 | 53 | 46 | 52 |

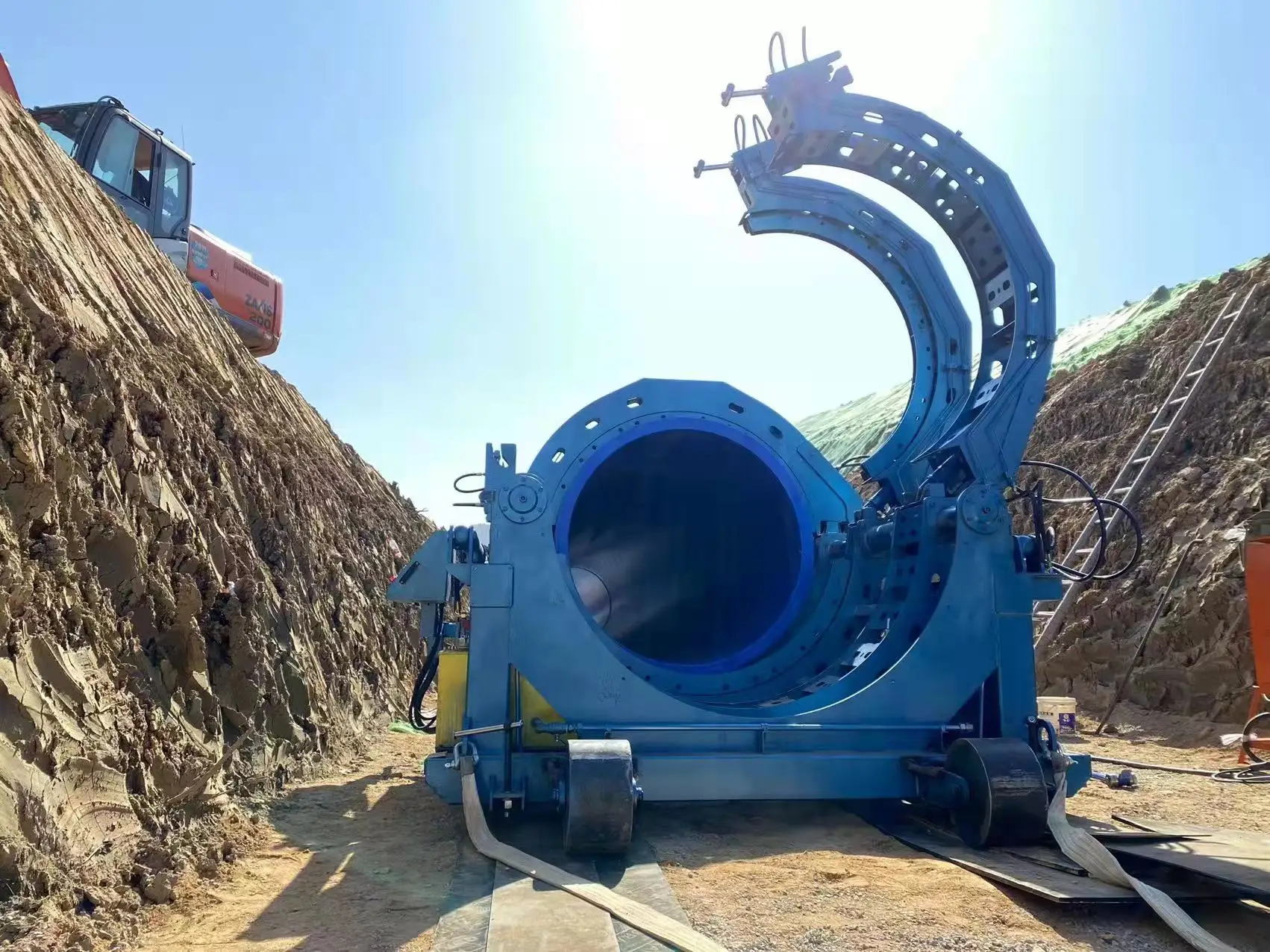

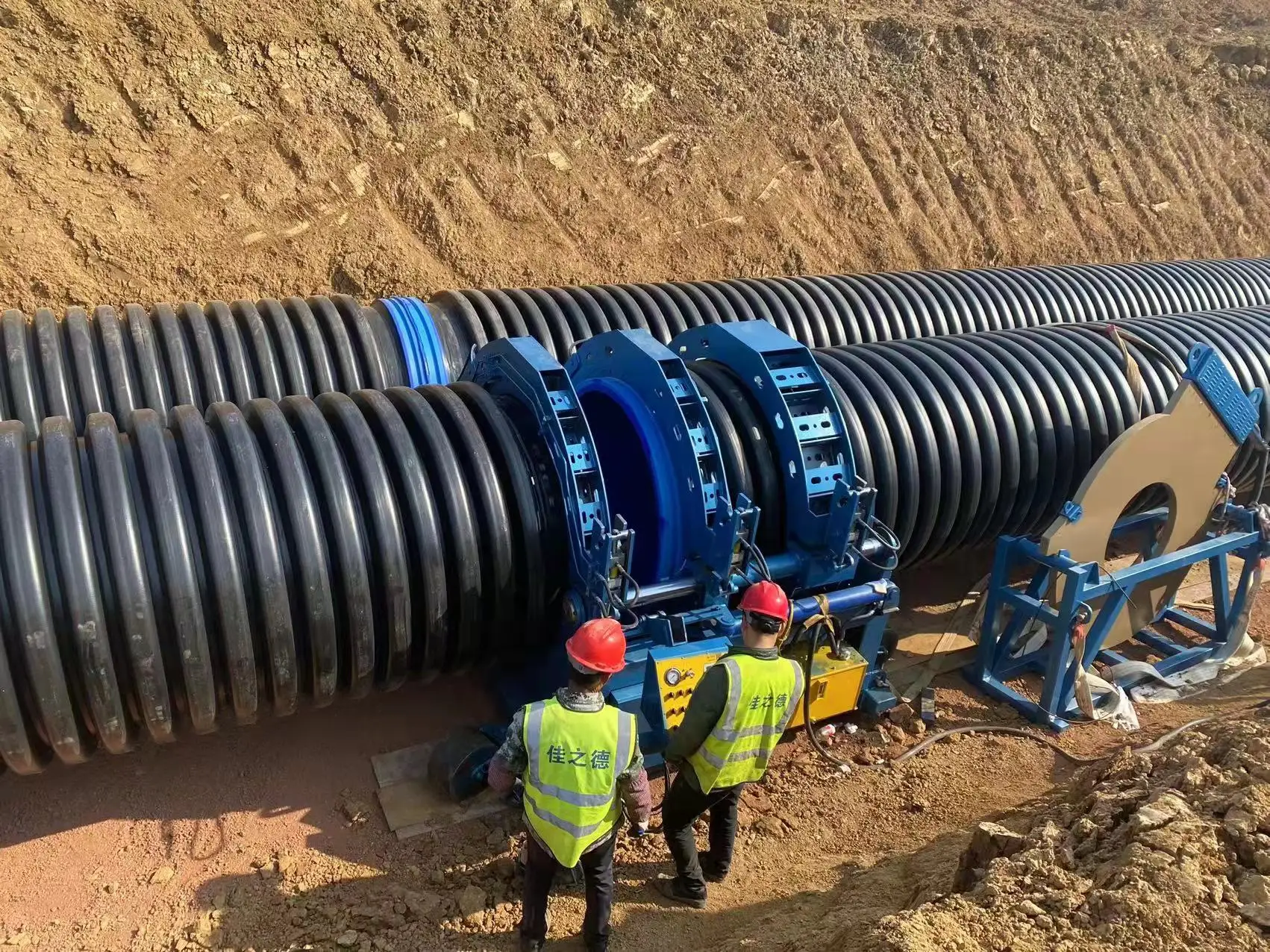

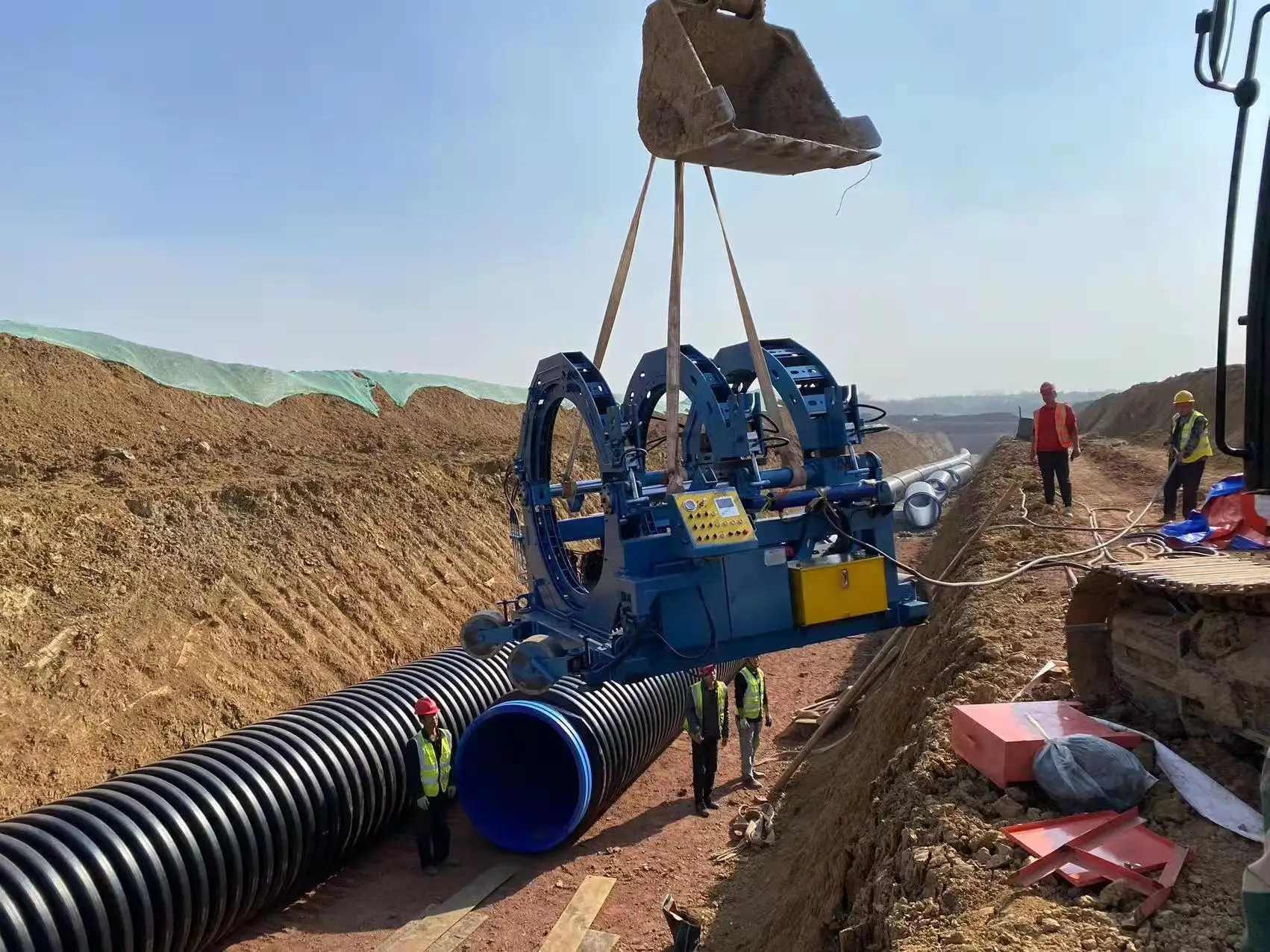

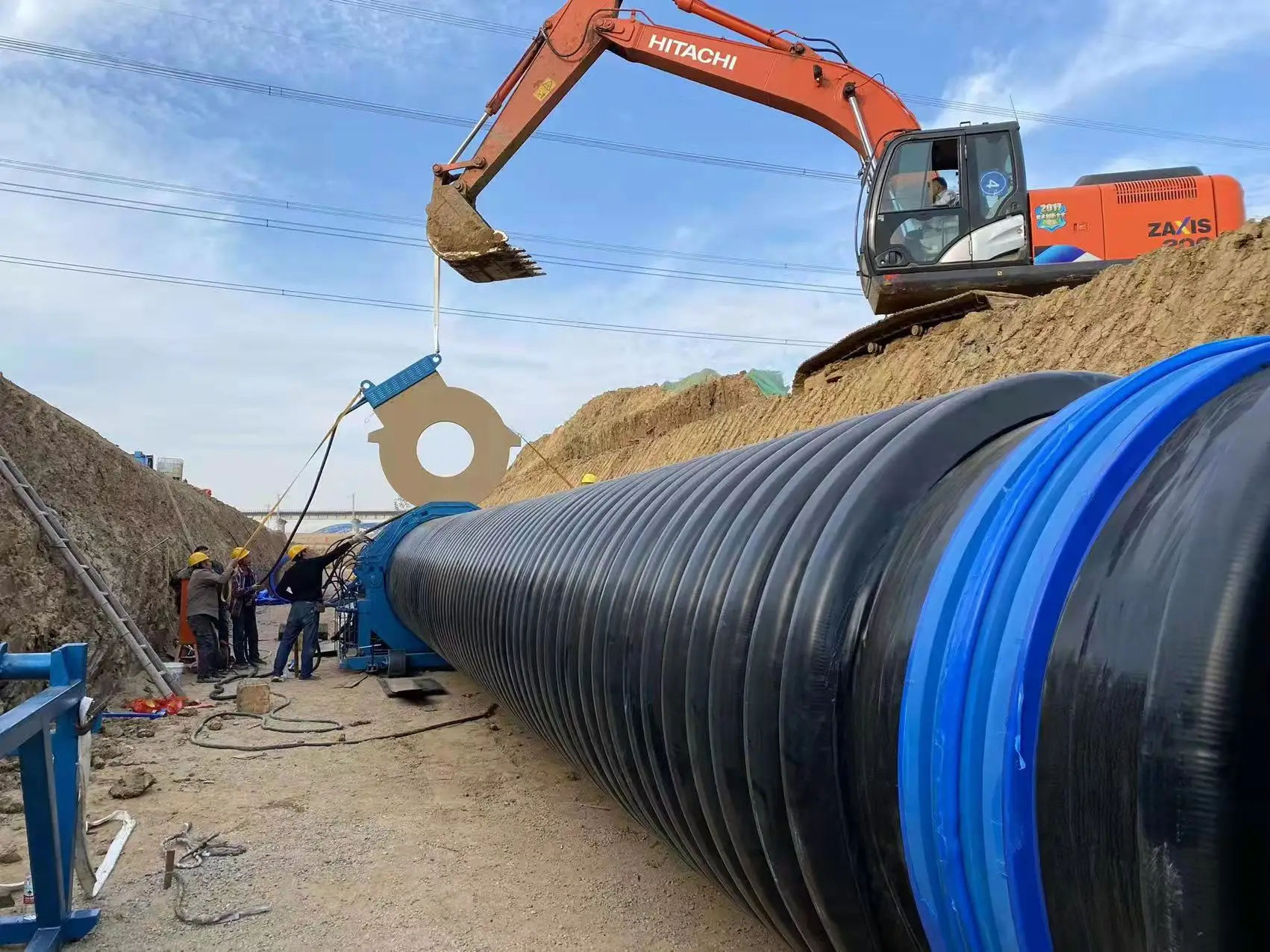

Applications
Workshop
Company Profile
Certifications
FAQ
1.Payment Term
Our Usual Payment Term Is Of T/T Remittance Before Shipment Or Against B/L Copy. We Cherish Long-Term Cooperation,
We Grand More Favorable Payment Terms For Our Regular Customers.
2.Production Lead Time
Owe To Self-Managing Production Procedures And Machinery, Standard And Light-Oem Items, Welping Can Finish In Around 10-15 Days.
3.Customized Design
Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor Structure Modifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.
4.Product Warranty
We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.
5.About Agency
To Further Serve Our Customers And Provide More Value To Clients, We Are Very Willing To Establish Agency With Influential Distributors. As Welping’S Agent, You Can Get More Favorable Cooperation Terms And Service.
We Grand More Favorable Payment Terms For Our Regular Customers.
2.Production Lead Time
Owe To Self-Managing Production Procedures And Machinery, Standard And Light-Oem Items, Welping Can Finish In Around 10-15 Days.
3.Customized Design
Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor Structure Modifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.
4.Product Warranty
We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.
5.About Agency
To Further Serve Our Customers And Provide More Value To Clients, We Are Very Willing To Establish Agency With Influential Distributors. As Welping’S Agent, You Can Get More Favorable Cooperation Terms And Service.
