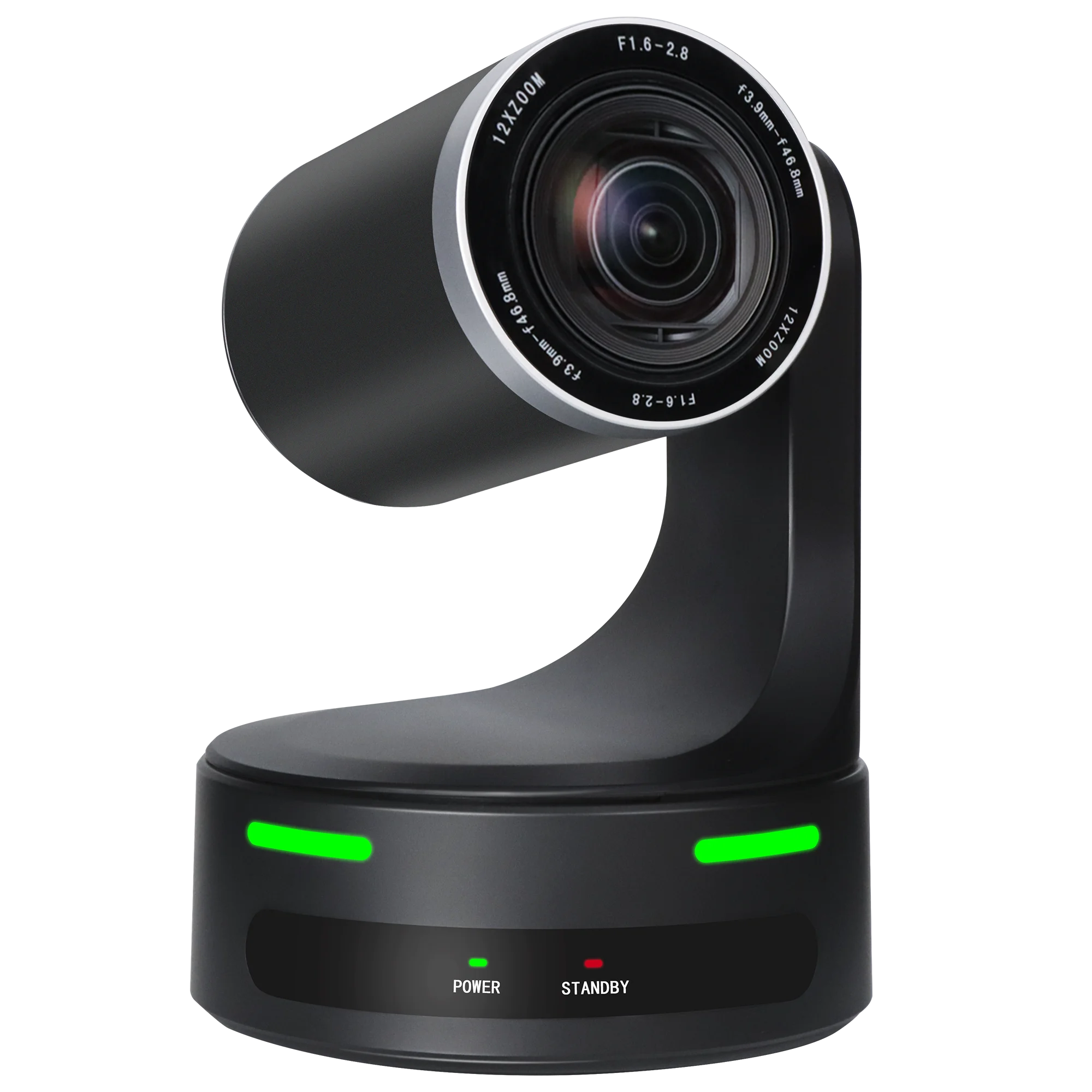

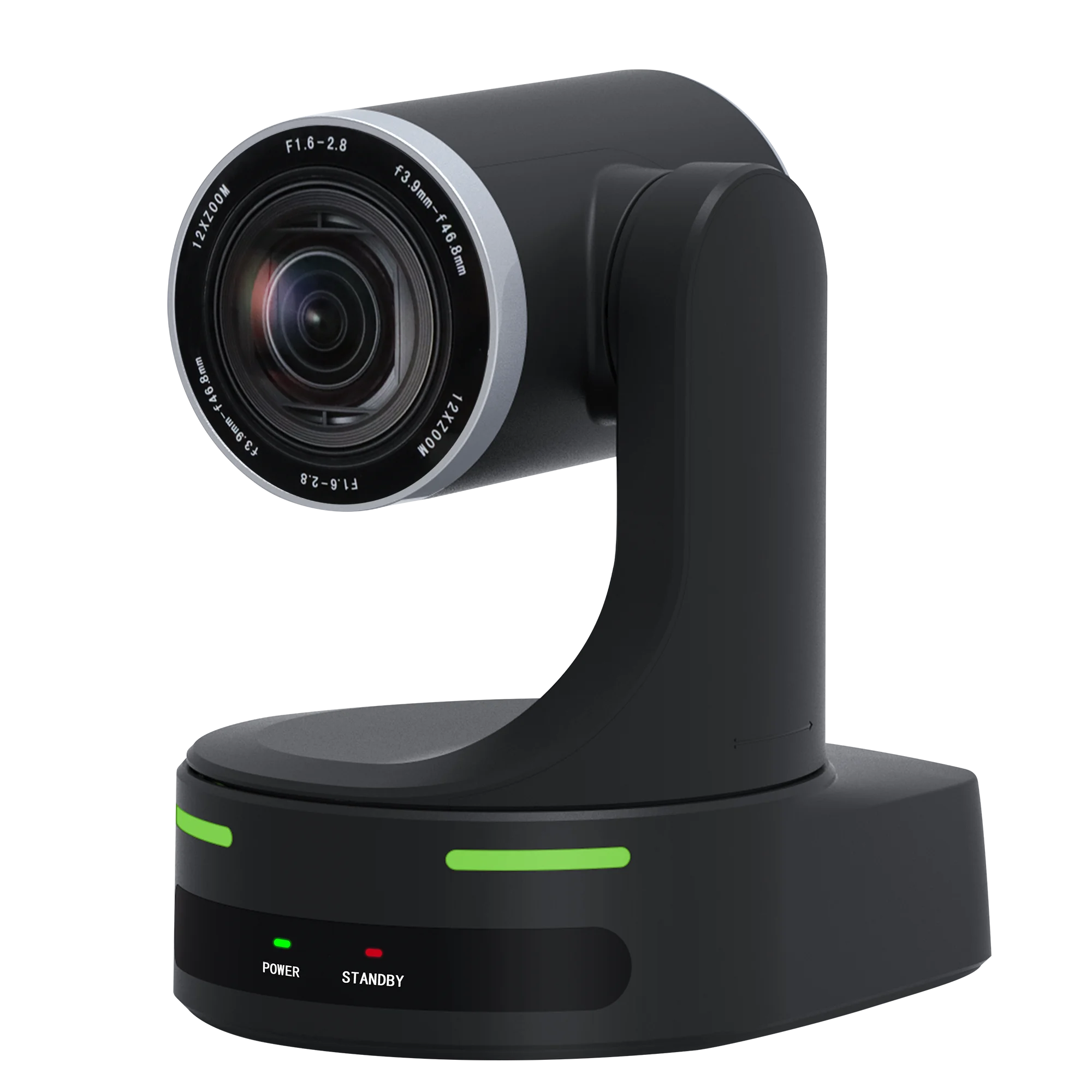

HD 1080P Live streaming ptz SDI camera ptz camera ndi video conference system for live stream camera
- Category: >>>
- Supplier: Shenzhen Jinjiutianshi Industry Co. Ltd.
Share on (1601104024092):
Product Overview
Description
Recommend Products
Product Parameters
Image Parameters | ||
Resolution | HDMI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 | |
Image Sensor | SONY 1/2.8" CMOS | |
Pixels | 3.10 Megapixels, 2.07 Effective Megapixels | |
Scan Mode | Line by line | |
Lens | HD86R: 12X Optical Zoom, f=3.9m(W)~46.8mm(T), F1.6~F2.8 HD86A: 20X Optical Zoom, f=5.2m(W)~104mm(T), F1.55~F3.13 HD86DB: 30X Optical Zoom, f=5.2m(W)~156mm(T), F1.3~F4.8 | |
Digital Zoom | 16X | |
Horizontal View Angle | HD86R: 72.5°(W)~6.5°(T) HD86A: 58.7°(W)~3.2°(T) HD86DB: 58.1°(W)~2.14°(T) | |
Vertical View Angle | HD86R: 40.8°(W)~3.7°(T) HD86A: 32.2°(W)~1.8°(T) HD86DB: 34.1°(W)~1.2°(T) | |
Focus System | Auto, Manual | |
Shutter Speed | 1/50s ~ 1/10000s | |
Minimum Illumination | HD86R: 0.1 Lux @ (F1.8, AGC ON) HD86A: 0.1 Lux @ (F1.5, AGC ON) HD86DB: 0.1 Lux @ (F1.3, AGC ON) | |
Exposure | Auto, Manual, Iris Priority, Shutter Priority, Brightness priority | |
White Balance | Auto, Indoor, Outdoor, One Push, Auto Tracking, Manual | |
Backlight Compensation | Support | |
Digital Noise Reduction | 2D&3D Digital noise reduction | |
S/N Ratio | ≥50dB | |
Pan/Tilt | ||
Pan Angle | 355° | |
Tilt Angle | -30°~+90° | |
Pan Speed | 1°~80°/s | |
Tilt Speed | 1°~60°/s | |
Preset Positions | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC | |
Preset Accuracy | 0.1°±10% | |
Flip | Support | |
Image Freeze | Support | |
POE | 802.3af (Optional) | |
AI | ||
Humanoid Tracking | Support (Only HD86A) | |
Auto Framing | Support (Only HD86A) | |
USB | ||
Protocol | UVC 1.1 | |
Operating System | Window7 and above, MacOS, Linux, Android | |
Video Compression | YUY2, MJPEG | |
Resolution | 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 | |
Frame Rate | Max.60 | |
UVC Control | Support | |
LAN | ||
Protocol | TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) | |
Video Compression | H.264, H.265 | |
Code Stream | Main code stream*1, Sub code stream*1 | |
Main Stream Resolution | 1920*1080, 1280*960, 1280*720, 720×576, 720*480, 640*480 | |
Sub Stream Resolution | 640*480, 640*360, 480*360, 352*288, 320*240, 176*144 | |
Bitrate Control | VBR, CBR | |
Audio | ||
Audio Compression | AAC | |
Audio Bit Rate | 128kbps | |

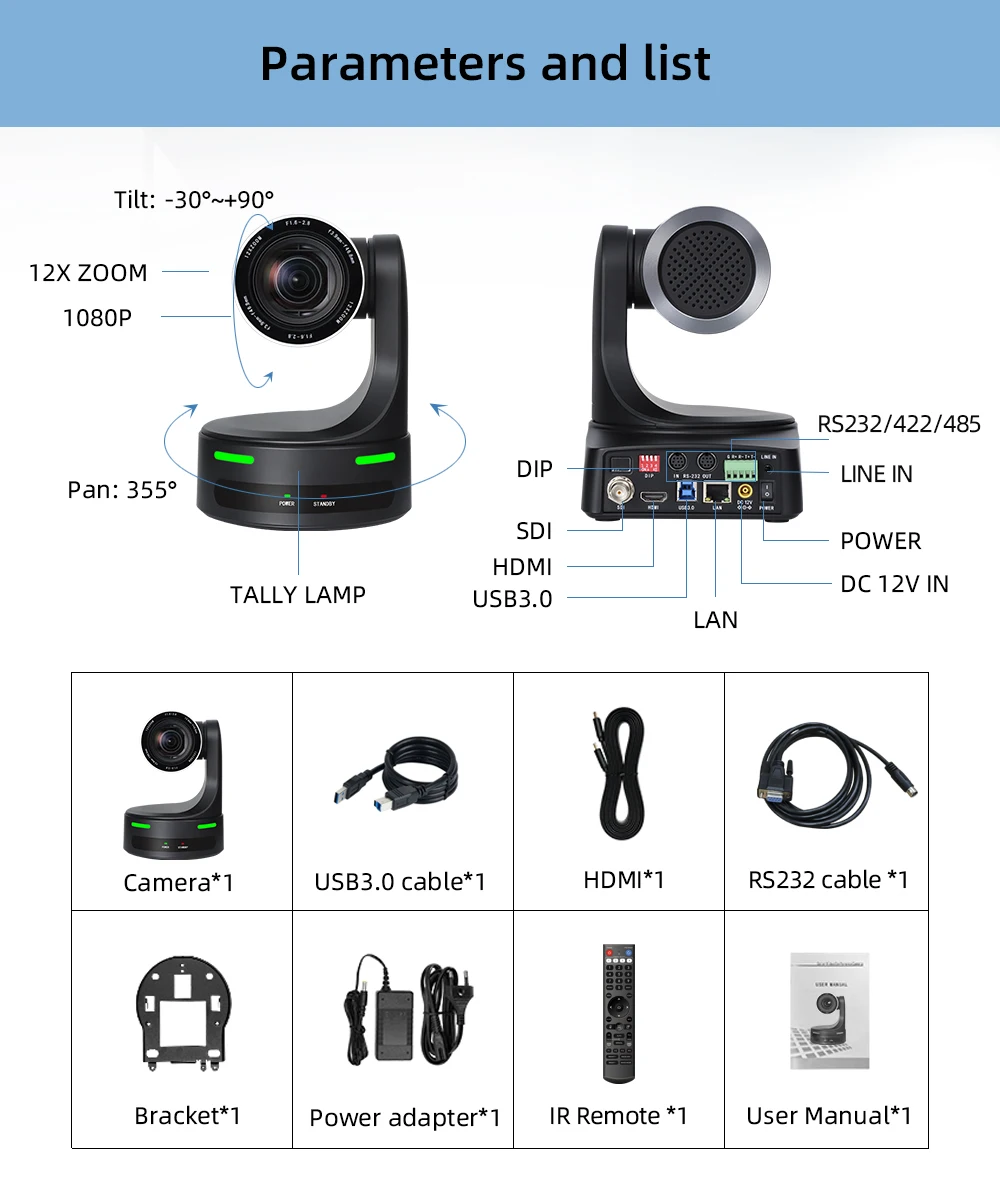

Interface | ||
HDMI Interface | 1 Line, HDMI: Version 1.4 | |
SDI Interface | 1 Line, 3G-SDI | |
USB Interface | 1 Line, USB3.0, Type-B Socket | |
Network Interface | 1 Line, RJ45: 10M/100M adaptive Ethernet port | |
Audio Interface | 1 Line, Line In, 3.5mm | |
Serial Interface | 1 Line, RS232 IN/OUT: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. 1 Line, RS422/485: 5-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol. | |
Power Interface | JEITA RC-5320A Type 4 | |
General Specifications | ||
Tally Light | Support | |
Input Voltage | DC 12V | |
Input Current | Max.1.5A | |
Power Consumption | Max.18W | |
Operating Temperature | 0~40℃ | |
Storage Temperature | -10~60℃ | |
Color | Black, White (Optional) | |
Dimension | (W)134*(D)174*(H)187mm | |
Weight | 1.2kg | |
Accessories | DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) | |
