Product Overview
Description
Product information
1. Product Profile

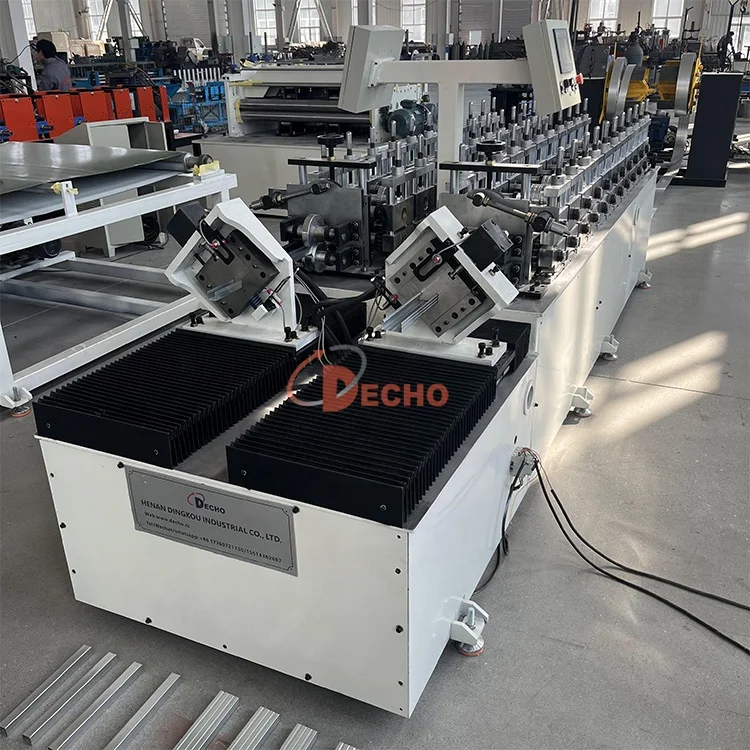

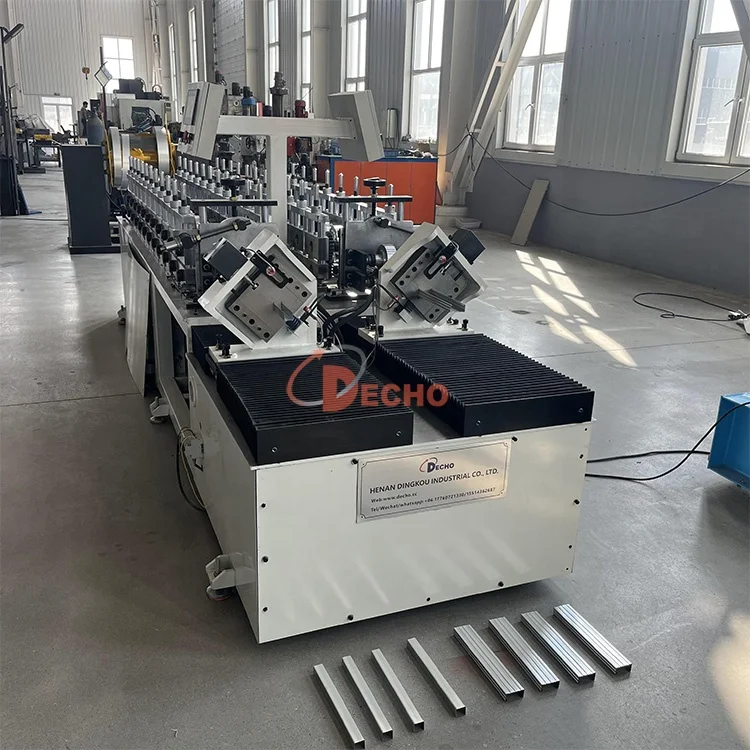

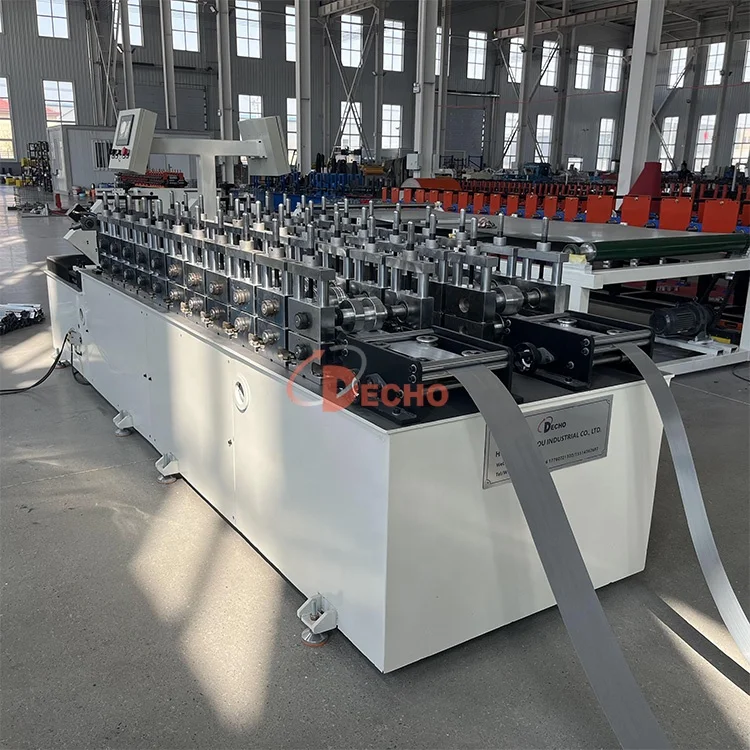

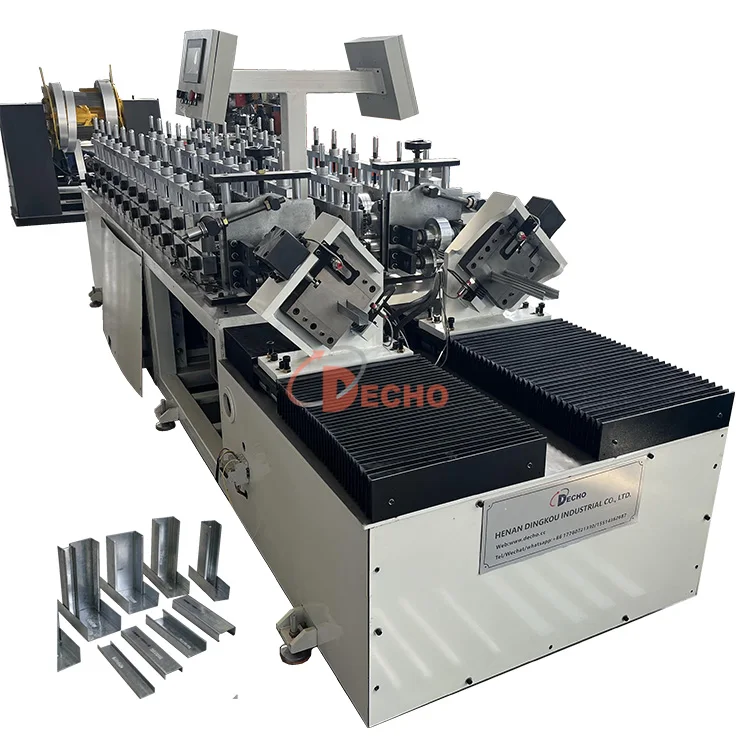

This double headed C-shaped and U-shaped keel forming machine is a rolling forming device that can produce various specifications of C-shaped and U-shaped keel products. The double headed C/U steel forming equipment mainly consists of passive loading frame, leveling device, automatic punching device, forming host, annular post forming shear device, hydraulic station, computer control system, etc.
This machine has two production lines, each with an efficiency of 30-50 meters per minute. Two production lines can produce simultaneously, greatly improving production efficiency.
If you usually have a large production capacity, we have machines at 50 meters per minute, and we also have more common machines at 25 meters per minute to meet your different needs. (Customized according to customer configuration requirements.)

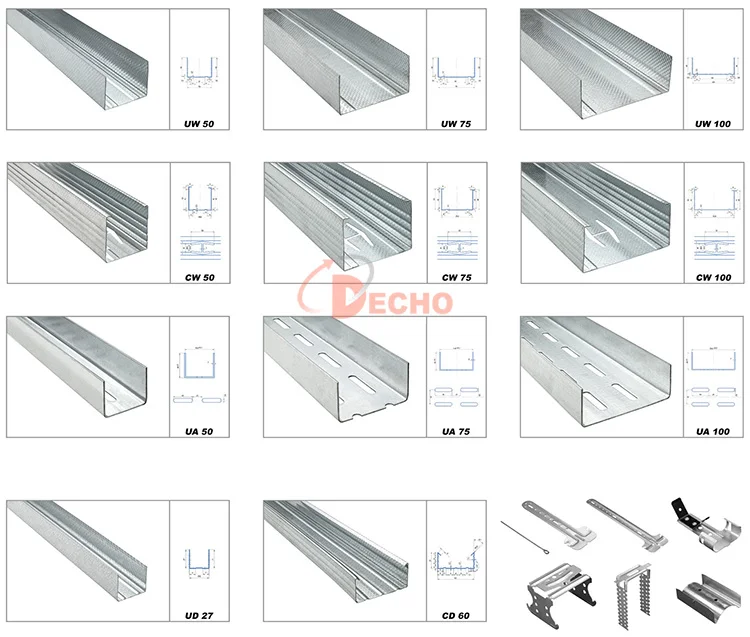

2. C/U keel size that can be produced
Standard Shape Profile ( Also can be customized)
3. Work Flow

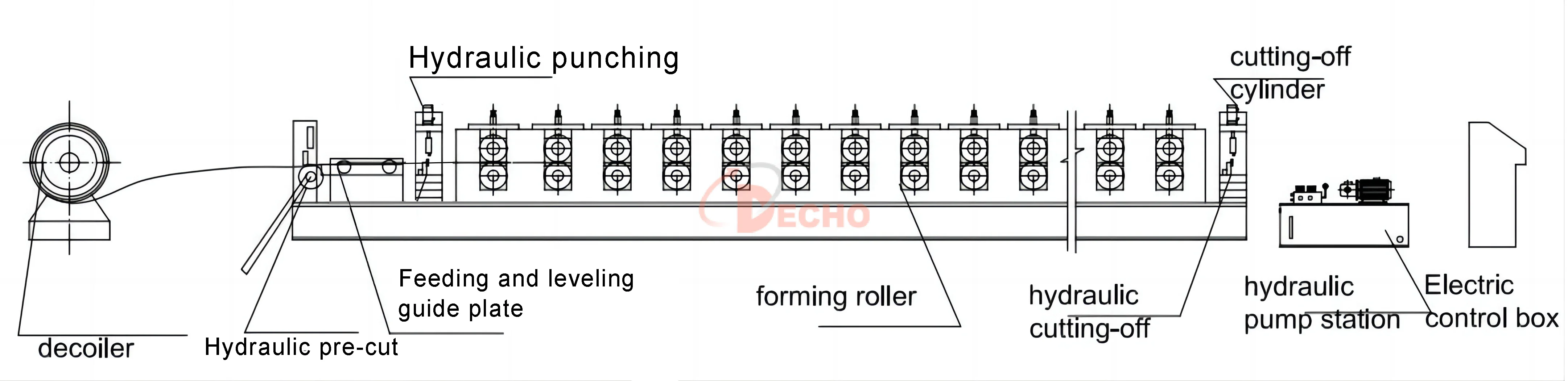

Capacity of the entire production line is 30-50 m/min/line. It consists of 6 parts. Un-coiler→Feeding and leveling material →Hydraulic punching→Roll forming→ Auto cutting→ Products receiving table, but It only takes 1 -2 worker.
4.Equipment List
NUM | Equipment Name | Quantity |
1 | Uncoiling Device | 1 set |
2 | Hydraulic Punching Device(optional) | 1 set |
3 | Forming Main Machine | 1 set |
4 | Hydraulic Cutting System | 1 set |
5 | Material Receiving Table | 1 set |
6 | PLC Control System | 1 set |
7 | Supporting Accessories | 1 set |
5. Product Specification
Item | Parts | Specification & Description |
1.Raw Material | Type | galvanized steel / Q195/ Q235 hot rolled strip steel or Customization |
Thickness(mm) | 0.5-1.5 / Customization | |
2.Un-coiler Device | Type | Manual/electric/hydraulic Decoiler |
Bearing(Tons) | 3T/5T | |
Way of working | Manual/electric/hydraulic tensioning crank. The center of the four-bar linkage is supported outward | |
Panel Width（mm） | 100-300(Adjustable according to the molding drawing) | |
Coil Inner diameter | φ480-500mm | |
Inner contraction range | φ450-550mm | |
3.Hydraulic punching(optional) | Type | Punching mold: DC53 heat treatment Sets:2 Power:1KW × 2 |

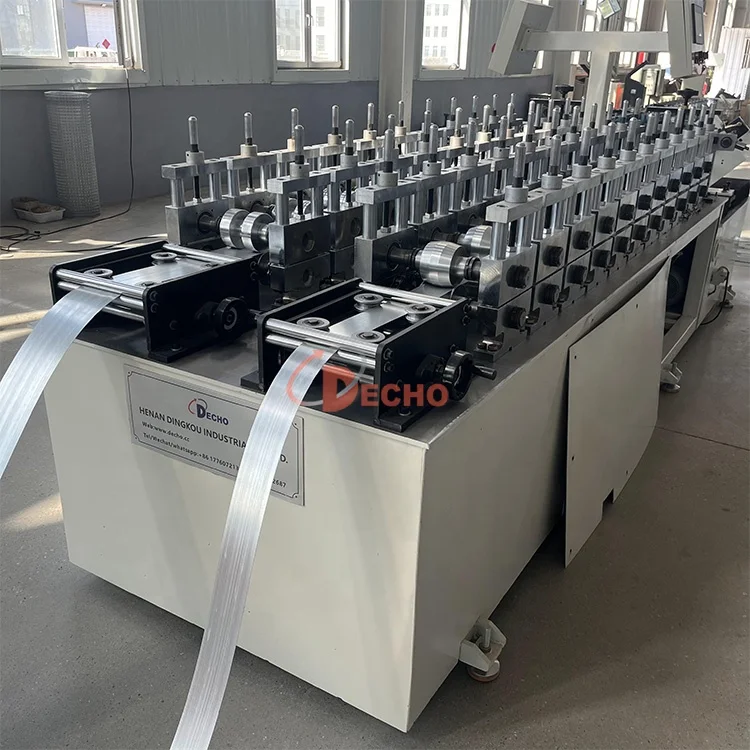

4.Forming Main Machine | Main frame | Frame material:Galvanized steel square tube, section size:80×80(mm). Material wall thickness:4mm Machine table:16mm 45#steel CNC milling Processing:Welding box frame. The machine table is processed by a large CNC milling machine. The frame of the machine has undergone aging treatment to eliminate internal stress and have good stability. |
Middle plate | Type:Casting door type middle plate Material:Fine cast iron Thickness:50mm Processing:Casting-heat treatment- precision machining. The middle plate made of this material and structure has higher strength and will not deform. It forms a rigid connection with the Machine table of the main frame through high-strength bolts, ensuring that the shaft and roller installed on the middle plate will not be displaced due to force. | |
Shaft | Material : 40Cr Solid alloy structural steel with Quenching and tempering treatment Diameter : 50-60mm Processing : Forging-Rough Machining-Quenching and tempering treatment- precision machining-Hard Chromium Electroplating | |

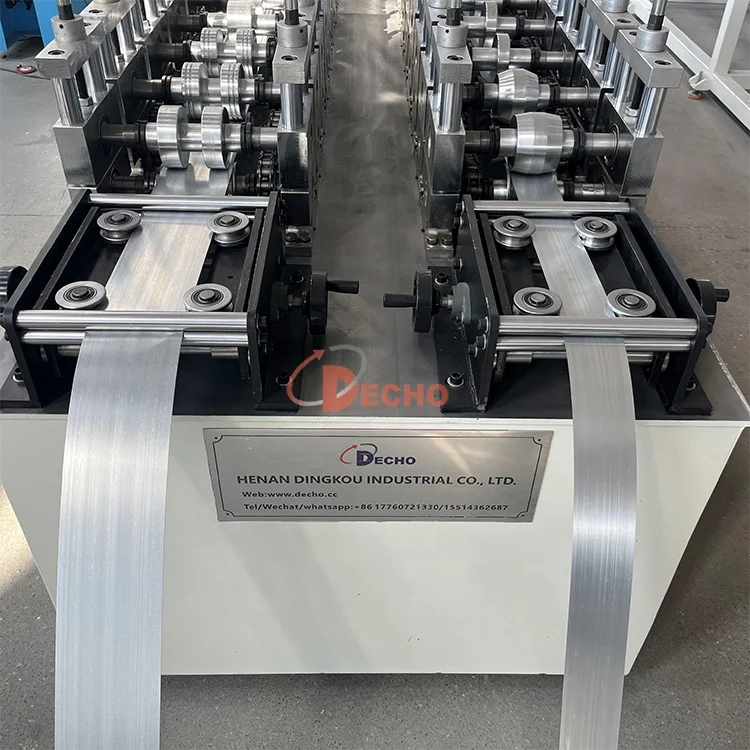

Rollers | Material: GCr15 High carbon chromium bearing steel with heat treatment process Processing: Forging-Superfine Treatment-Machining-Heat treatment - polishing-Hard Chromium Electroplating | |
Roller Station | 12-14 stations or Customization | |
Specifications:1.2 inch chain wheel with gear transmission Processing :Quenching heat treatment Gear oil:18 # hyperbolic gear oil | ||
Power:5.5KW Brand:Lichao(optional) Reducer: Cycloidal reducer Protection level:IP55 Explosion-proof level:ExdIICT4 | ||
Type | Automatic servo tracking electric shearing | |
Blade material | DC53 heat treatment process | |
servo motor for cutter | Power: 3KW | |
6.Receiving rack | Type | Default manual receiving rack, optional electric receiving rack. |
Length | Customization | |
7.PLC Control System | PLC Control System | Plc brand:Delta(optional) Text control box:Vertical LCD control box Language: English / Chinese / Customized |
Inverter | Rated power:7KW |
6. Product details
Packaging & Shipping
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
