Garbage truck 10 15 cubic meters heavy truck garbage collection compacting truck
- Category: >>>
- Supplier: Fujian Jingle Machinery Import And Export Co. Ltd.
Share on (1601104337672):
Product Overview
Description

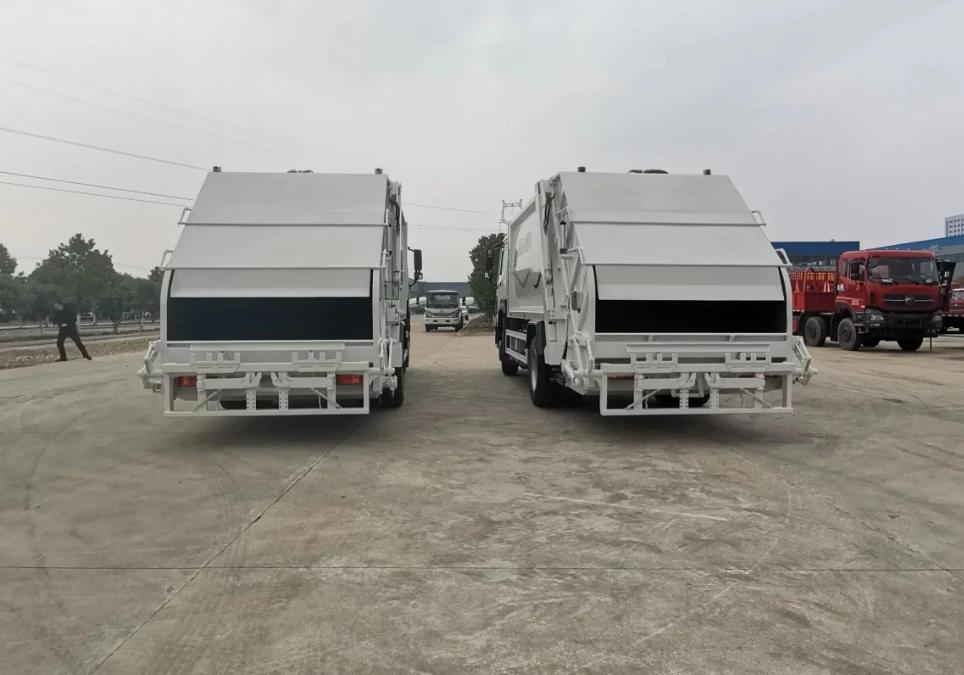

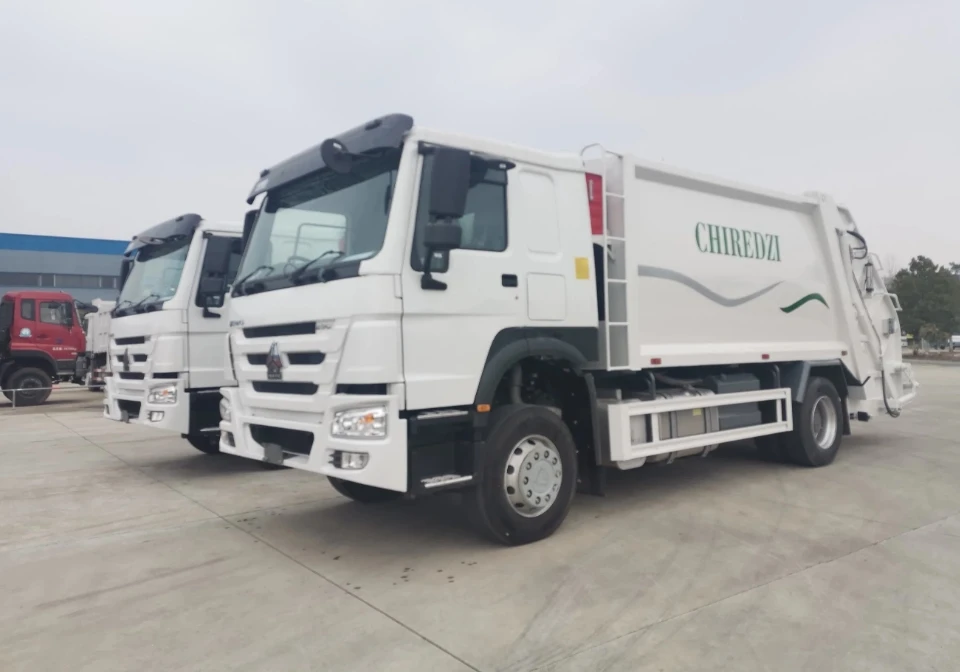

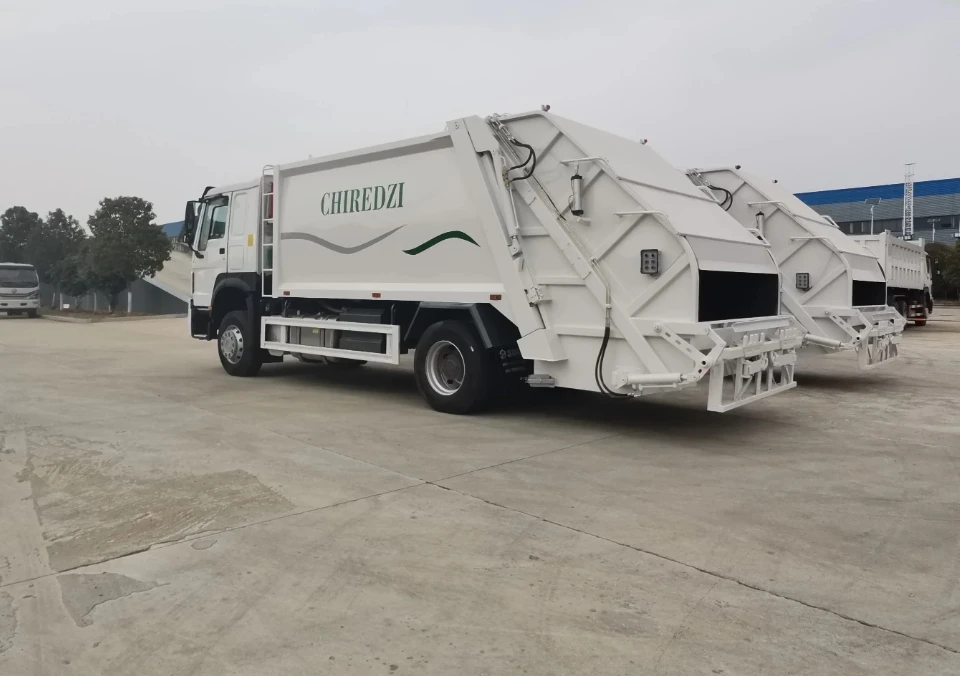

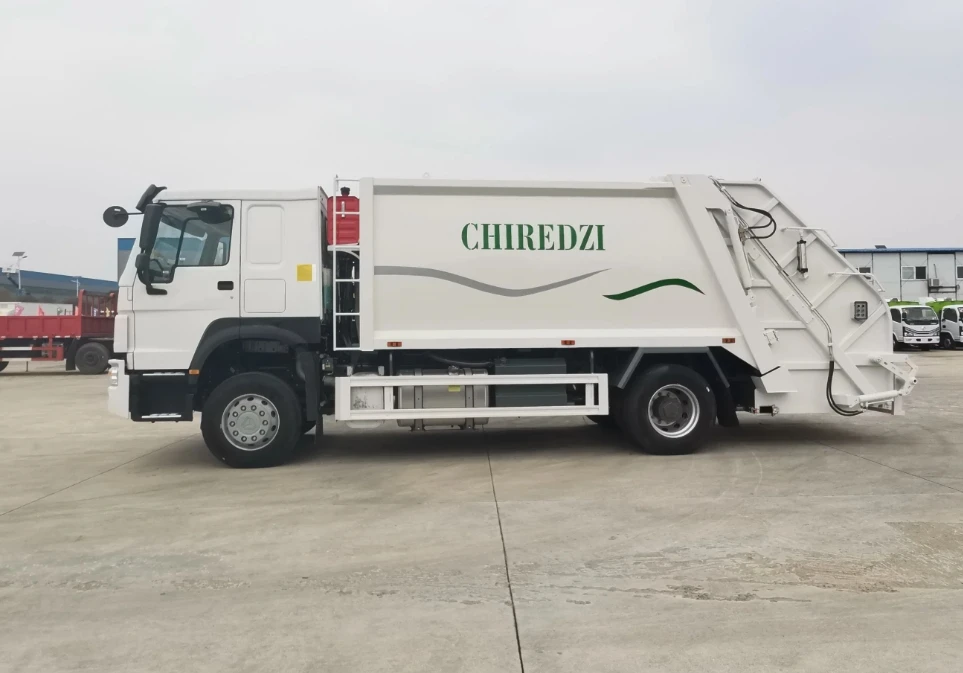

Above compressed garbage truck is made for South Sudan customer, with garbage container capacity 8cbm.
Compactor garbage truck consists of sealed garbage container, hydraulic system, and operating system.
We can produce garbage tank capacity from smallest 3cbm to largest 25cbm.
The garbage tank material is made of Q345B, very strong to hold solid waste.
We can provide all kinds of truck brand, according to customer's requirement, such like Howo, Dongfeng, Foton, Shacman, Jac, Jmc.
| Overall dimensions | 9450*2550*3450mm |
| GVW | 18000kg |
| Chassis brand | SINOTRUK |
| Traction type | 4*2 |
| Up-partsSpecification | ||
| Dustbin volume | 15cbm | |
| Material & thickness | Side | 4mm Q345 |
| Bottom | 5mm Q235A | |
| Type ofRear garbage filler(Rear Turnover device) | 1.Hangingtrashbin | |
| 2.Swing arm | ||
| 3.Dustpan | ||
| Control system | Electrically Controlled Hydraulic +ManualHydraulic | |
| Type of compactor | Fill, push and compression | |
| Garbage compact density | 0.9±0.05 T/cbm | |
| Sewage water tank | Rear | About 500L, on the bottom of rear filler |
| Front | About 230L, on the front of garbage van | |
