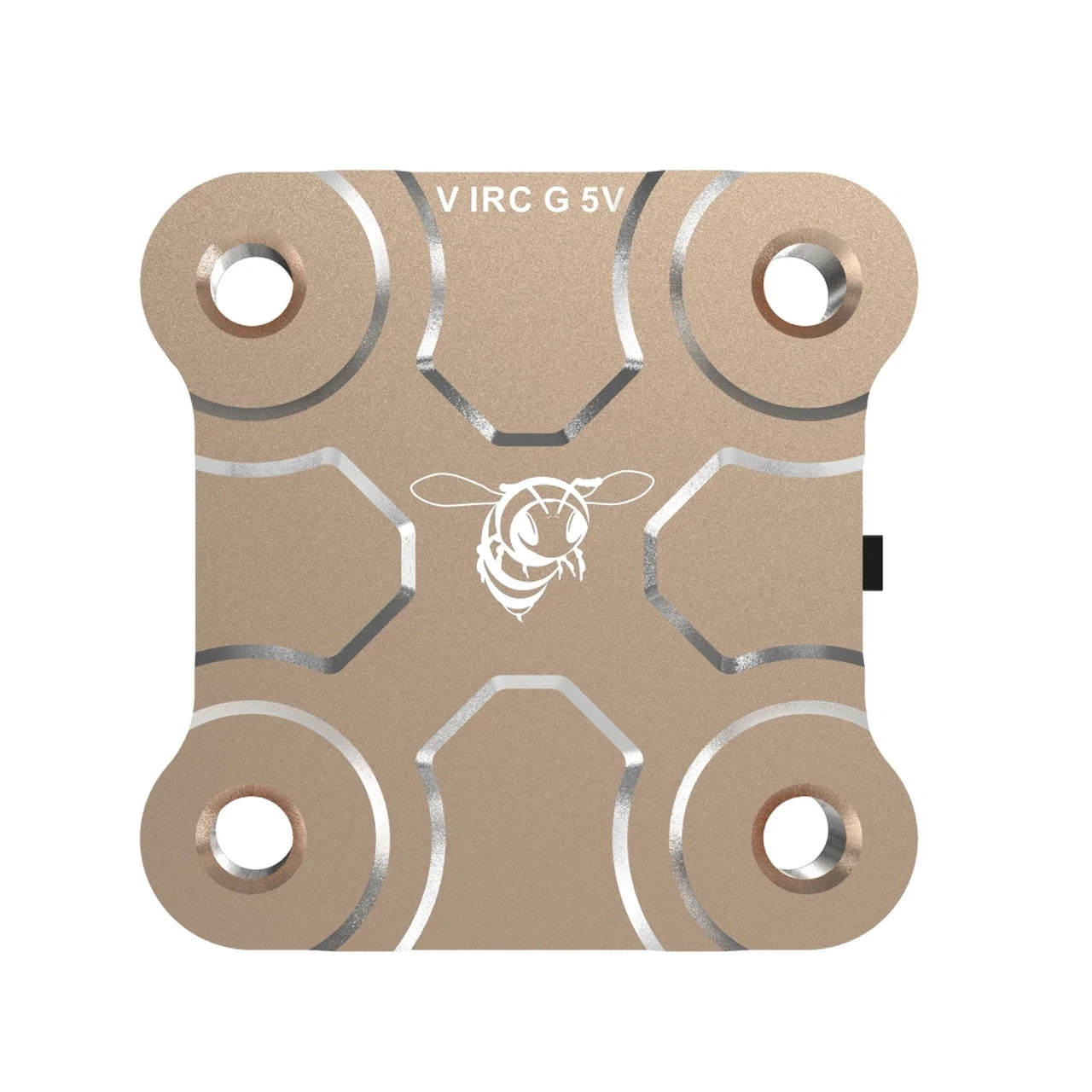

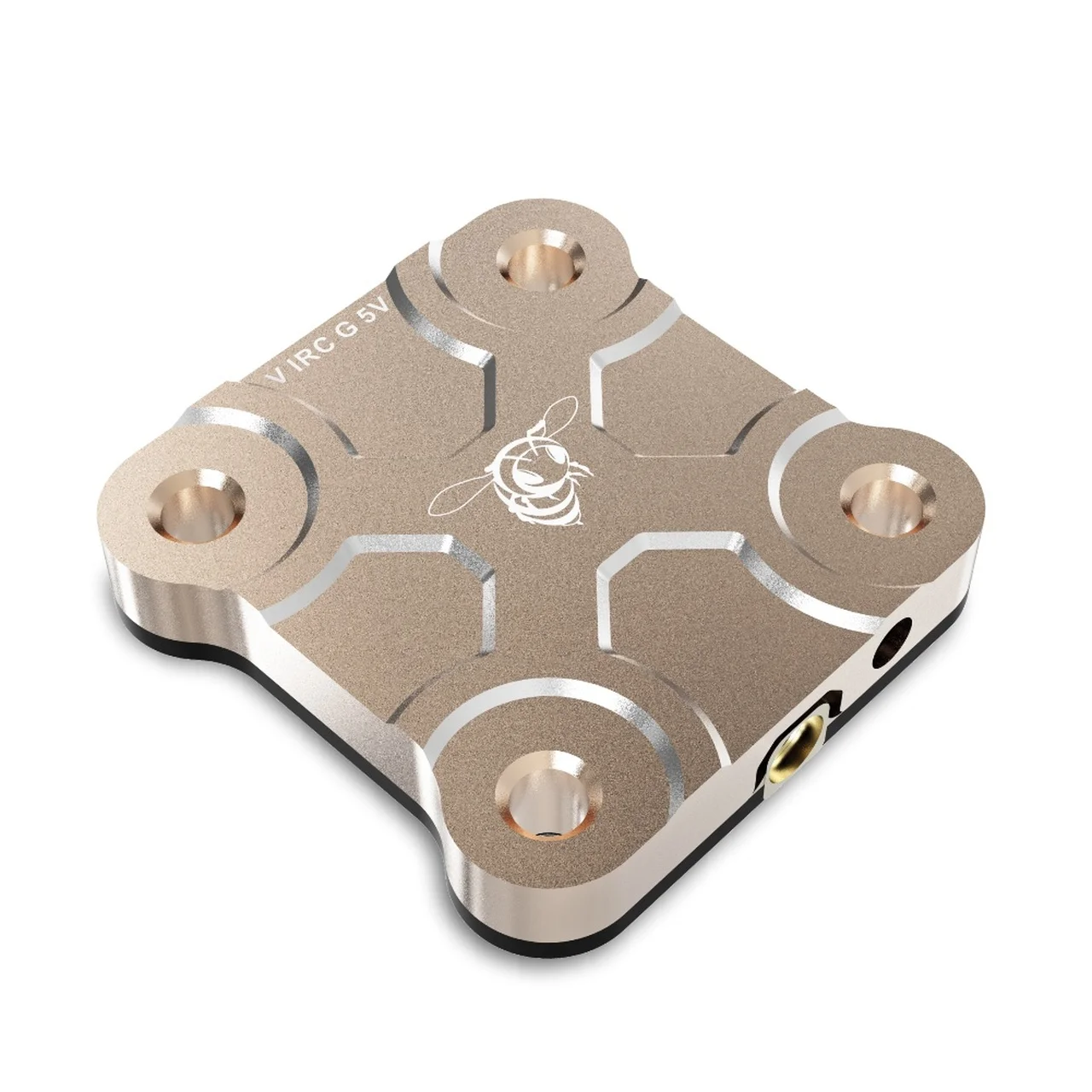

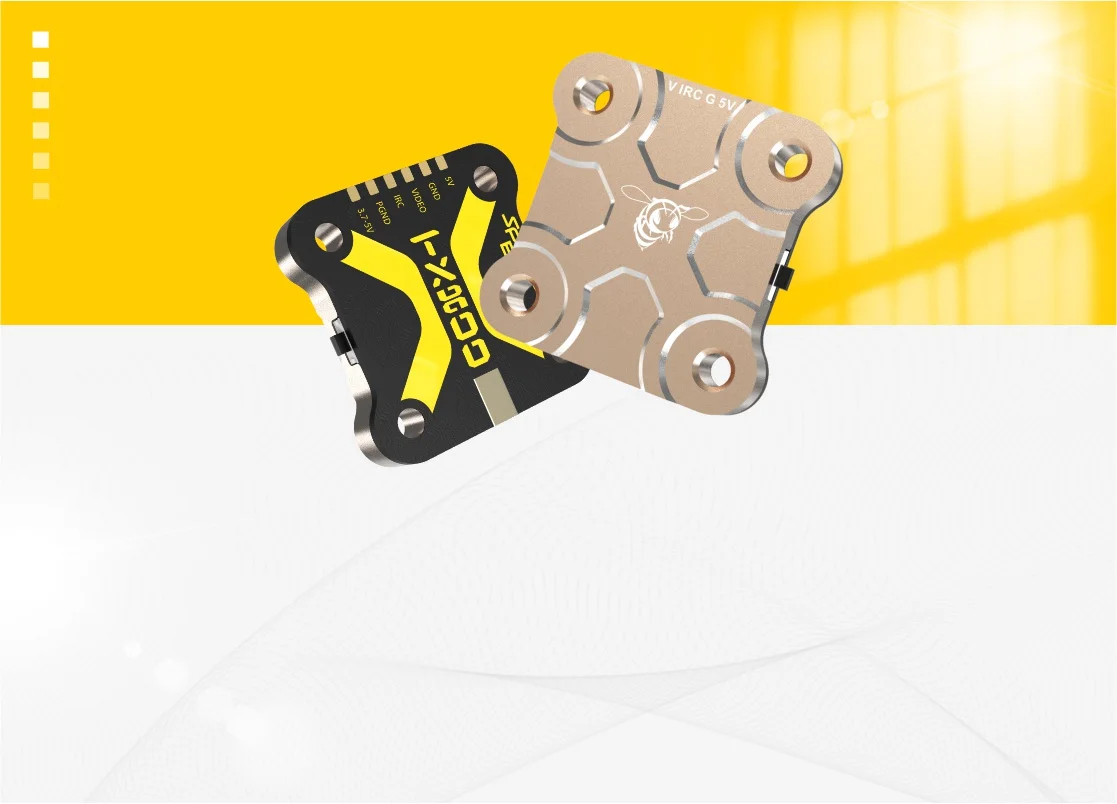

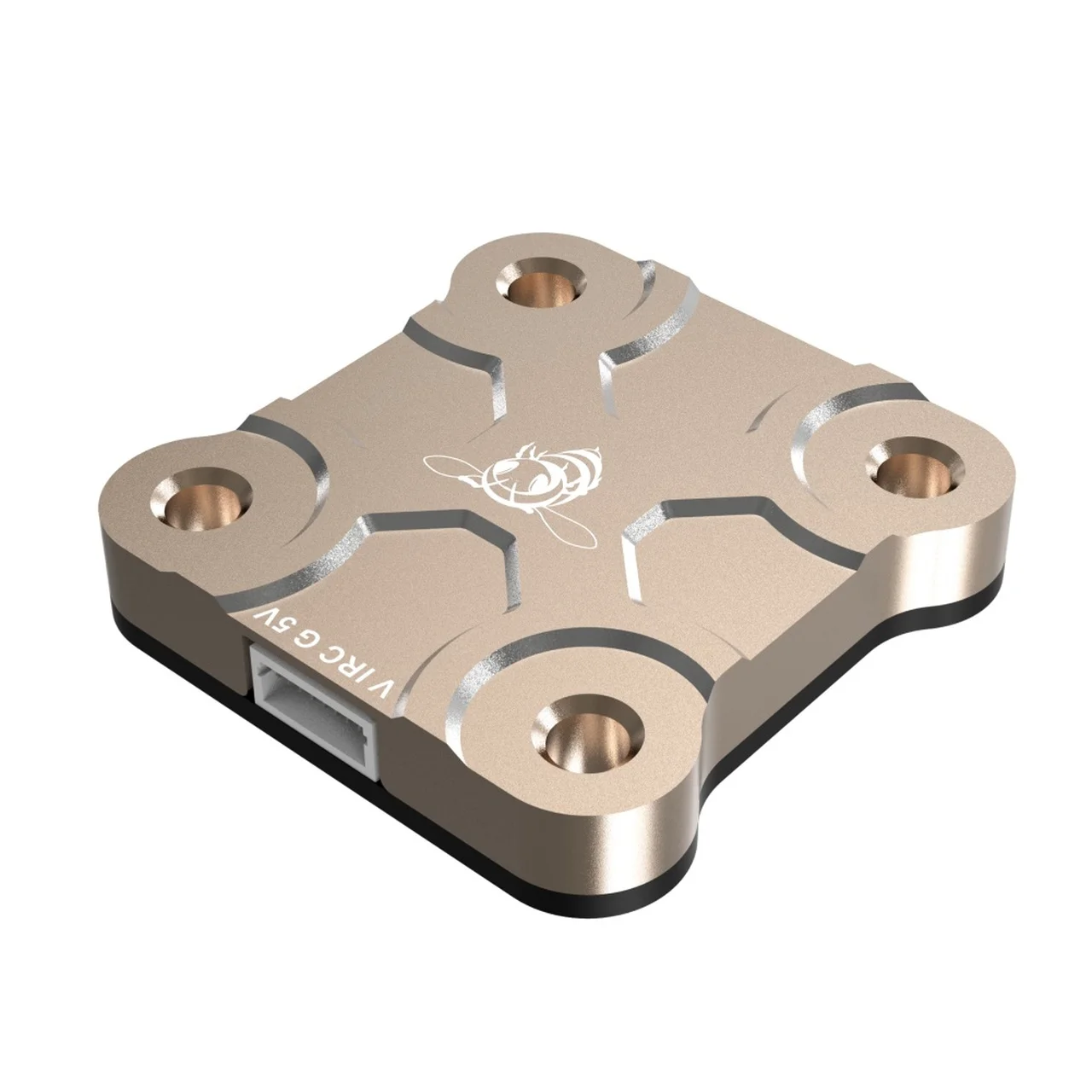

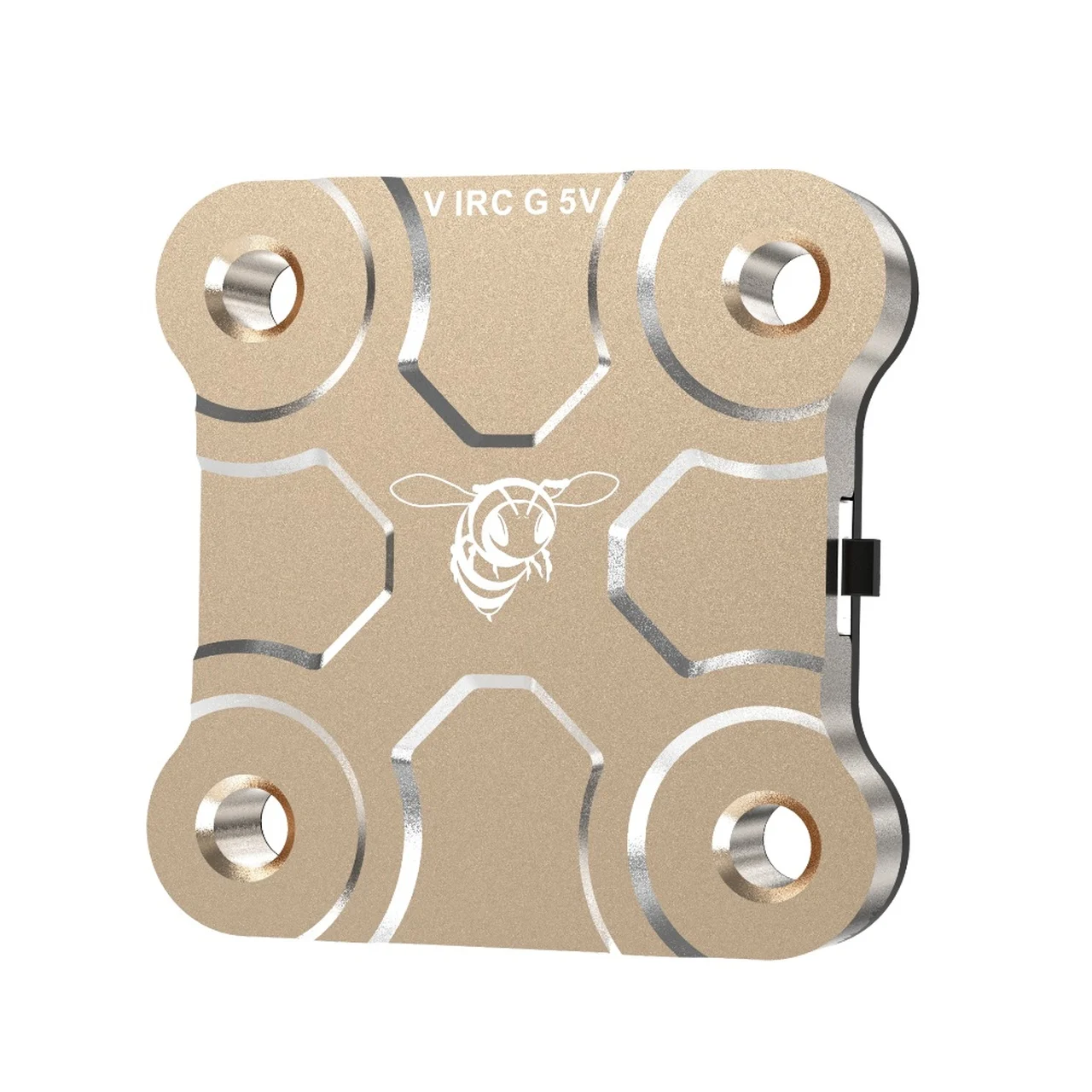

20X20mm SpeedyBee TX800 5.8G 48CH PitMode 25mW 200mW 400mW 800mW Adjustable Tramp FPV VTX Video Transmitter for FPV Racing Drone

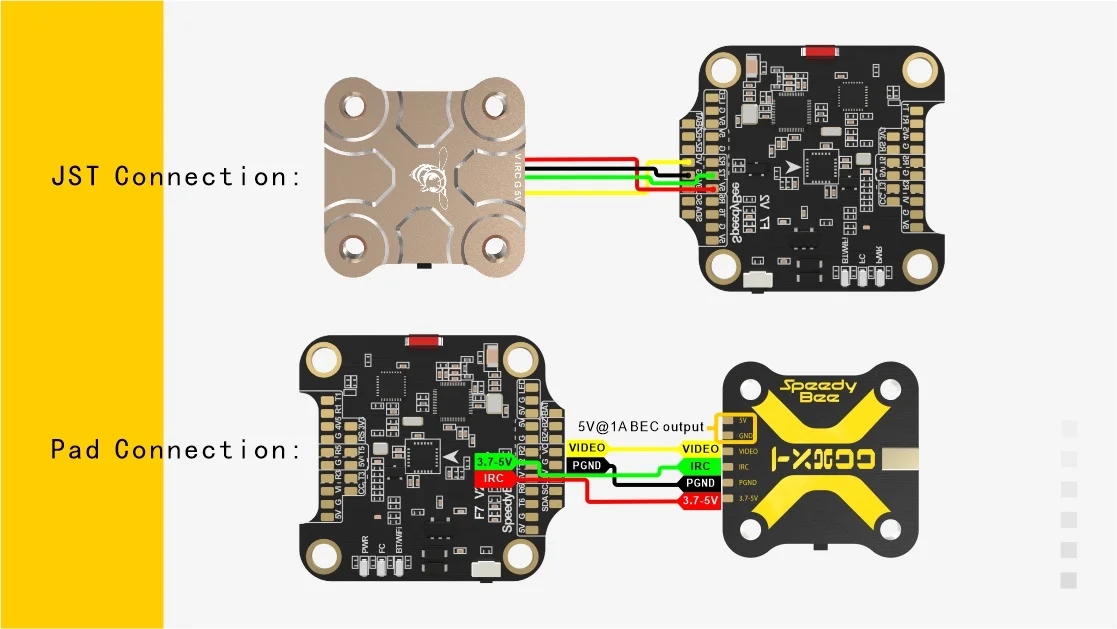

JST socket and ----
pad connection supported

Tramp Protocol Support

TX800 supports IRC TRAMP protocol,also supports to modify the image transmitter
parameters through the remote control,Including frequency, working power and so on.
If your flight controller supports or WiFi,You can also modify the
parameters of image transmitter through SpeedyBee App.

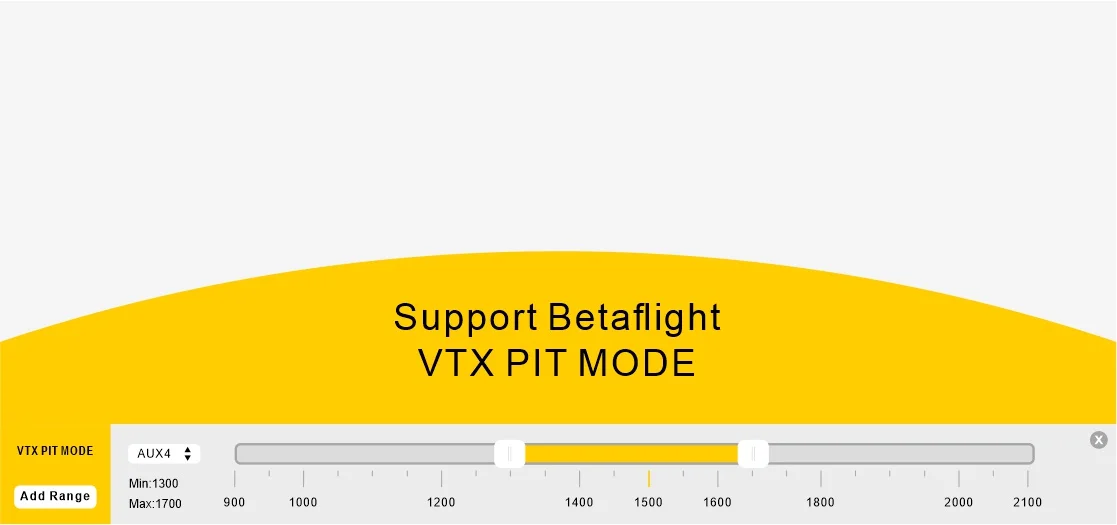

PitMode Support

When you are flying in the same field with other players, PitMode can make you
more calm to power up the aircraft for parameter adjustment without disturbing other players

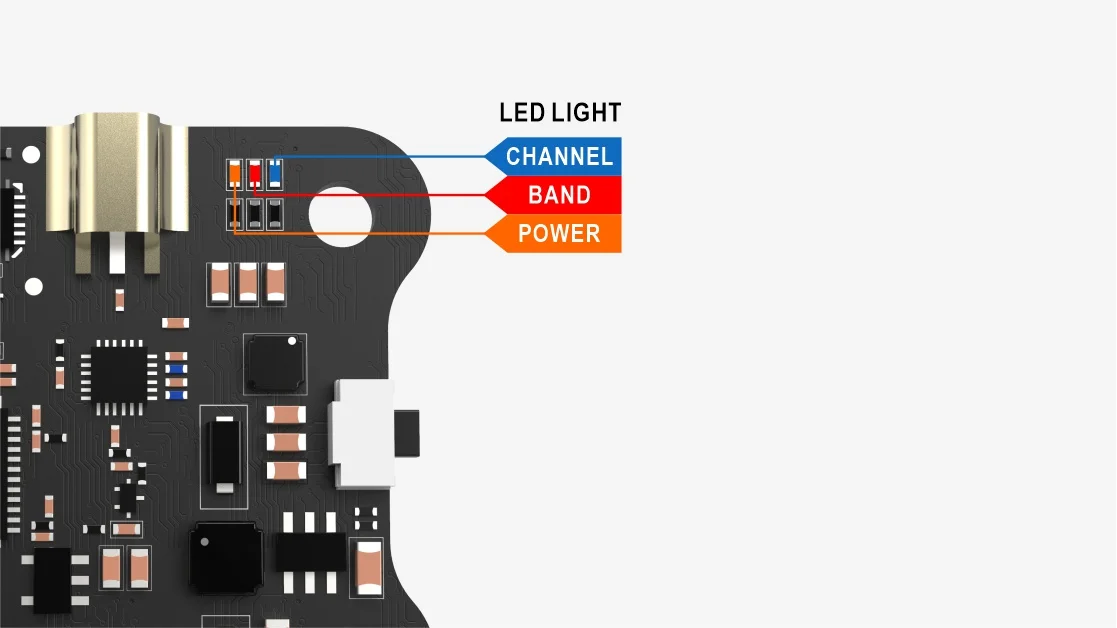

LED Status

1 Blue Channel LED

Steady on: The current frequency point is Channel 1
Off: The current frequency point is one of Channel 2 ~ 8.

1 Red Band LED

Steady on: The current frequency band is Band 1
Off: The current frequency band is one of Band 2 ~ 6.

1 Orange Power LED

Orange light off:  25mW
Orange flashes once every 2 seconds:  200mW
Orange flashing once every second:  400mW
Steady Orange light on:  800mW
Orange light flashes fast 2 times per second :  PIT Mode

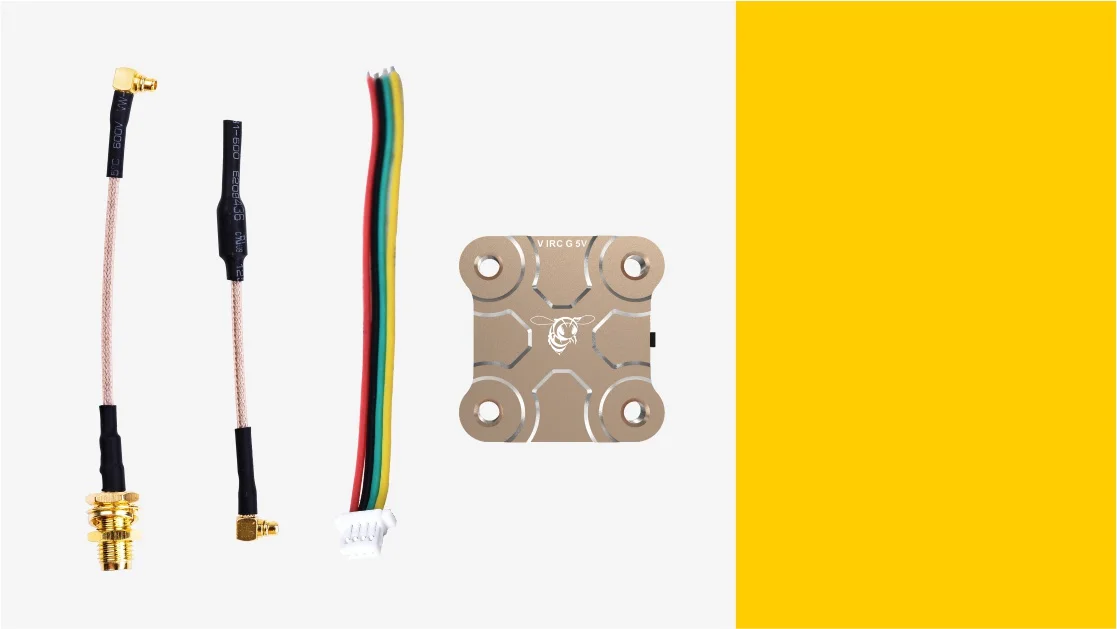

Package

1 X TX800
1 X MMCX antenna
1 X MMCX to SMA Cable
1 X 1.0mm 4pin Cable
