Factory High Quality Silo Panel Machine Silo Wall Machine Silo Production Line
- Category: >>>
- Supplier: Cangzhou Yousheng Roll Forming Machine Co. Ltd.
Share on (1601110249366):
Product Overview
Description
Product Description
Water Storage Silo Tank Making Machine Manufacturers Grain Silo Side Wall Making Machine For Sale
Water Tank Panel Machine is for producing silo wall panels which is corrugated and curved.
A steel silo is a structure for mass storage materials. Steel Silos are used in agriculture to store grain or fermented feed known as silage.
A steel silo is a structure for mass storage materials. Steel Silos are used in agriculture to store grain or fermented feed known as silage.

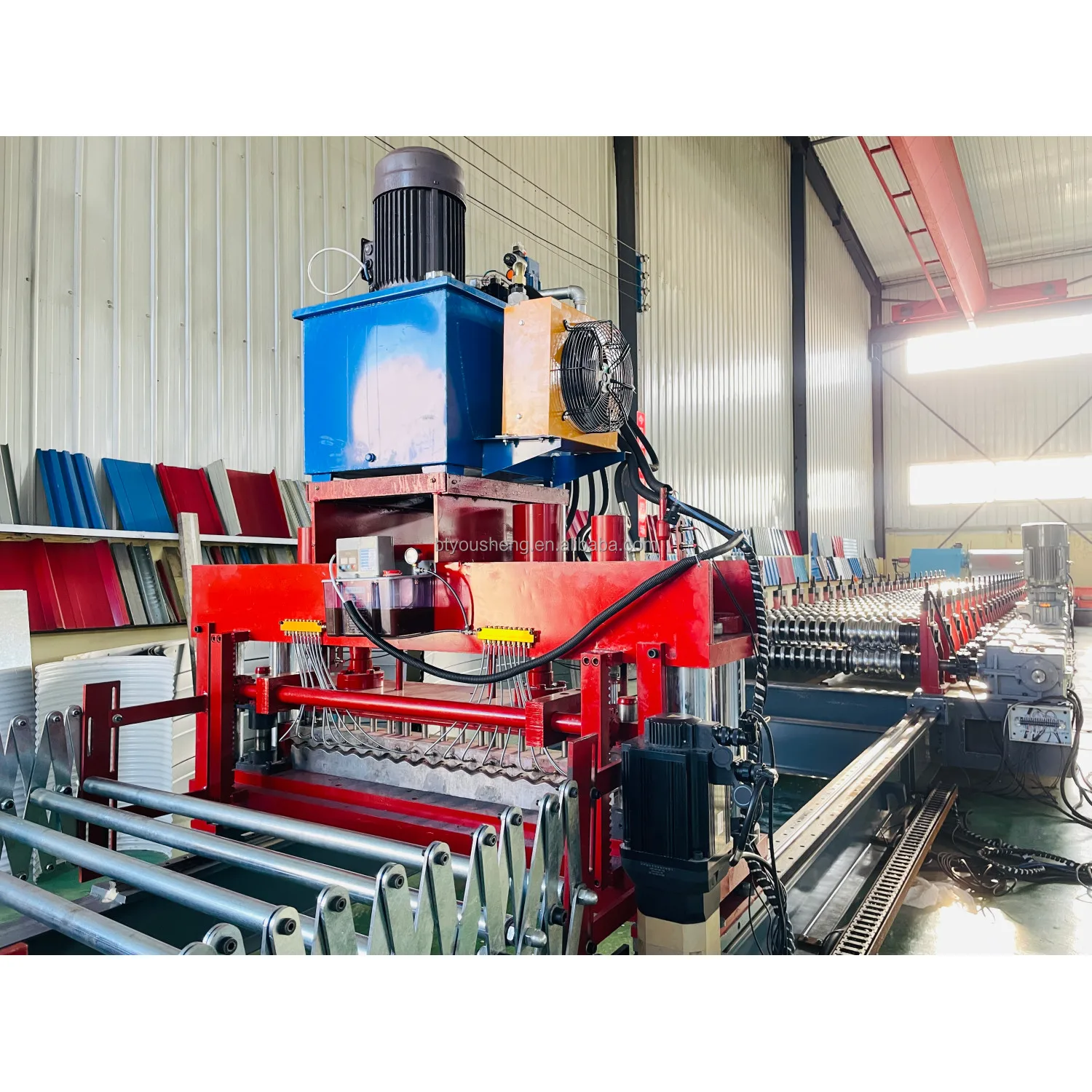

This machine includes punching, we are equipped with a separate punching device, and a PLC operation box is installed in the punching device, this PLC operation box is specially used to operate the hole position and size.
Our Company have a whole range of roll forming machines for Steel Silo. Such as Grain Steel Silo Corrugated Wall Panel Roll Forming Machine, Steel Silo Post Roll Forming Machine.
PRODUCT SPECIFICATIONS
No | Specification: | |||
1 | Suitable material | Material | Galvanized sheet | |
2 | Output Width: | 1220-1450mm | ||
3 | Thickness: | 1.0-3.0mm | ||
4 | Yield strength: | Q235 | ||
2 | Power | Main power: | 18.5kw | |
3 | Hydraulic power: | 7.5 kw | ||
3 | Forming Speed: | 8-12 meters/min | ||
4 | Punching: | 1. one set of side hole punching device; 2. one set of middle hole punching device; | ||
5 | Curving Part: | Curving speed: | 2m/min | |
Curving Diameter: | 4-12m | |||
Curving rollers: | 5 stations | |||
6 | Hydraulic decoiler | Loading: | 10 tons | |
Inner diameter: | 508mm | |||
Type: | Hydraulic | |||
7 | Machine specification | Roll stations: | 18-24 roll stations | |
Splint thickness: | 25mm | |||
Diameter of shaft: | 110 mm(solid) | |||
Sizes of chain: | 1.2 inch double chain | |||
Type of cutting: | Hydraulic cutting | |||
Material of cutter: | CR12 | |||
Material of rollers: | Carbon steel with heat-treatment, with hard chrome coating after precision lathe | |||
Sizes of machine: | 7500*1700*1200mm | |||
Version Size
The following drawings can be used as a reference
Molding Process
Uncoiling- Feeding and Guiding- Roll Forming-Pre-cutting-Punching Holes- Curving- Cutting-Receiving
Product Display

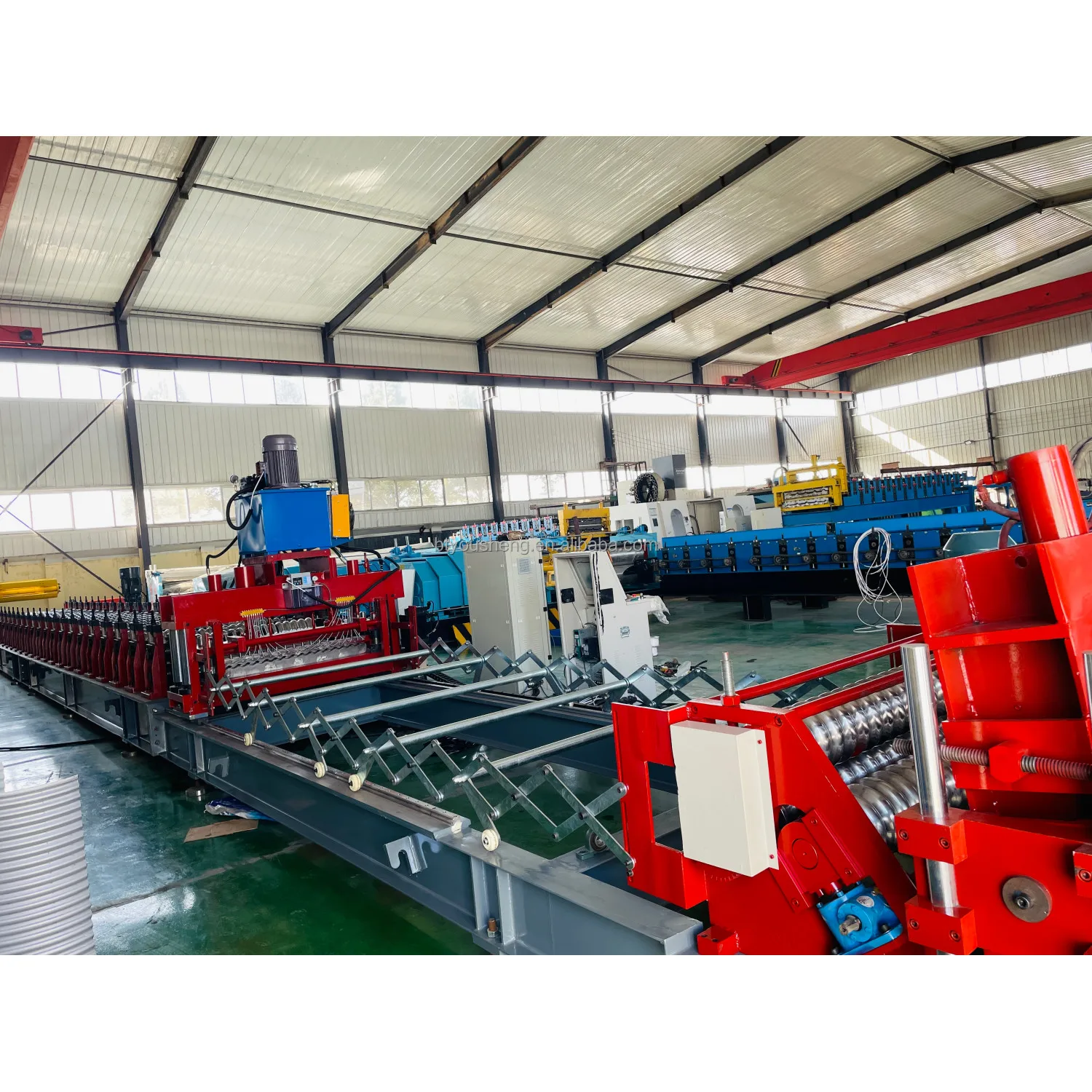

Production line composition
Hydraulic uncoiler
Feeding platform

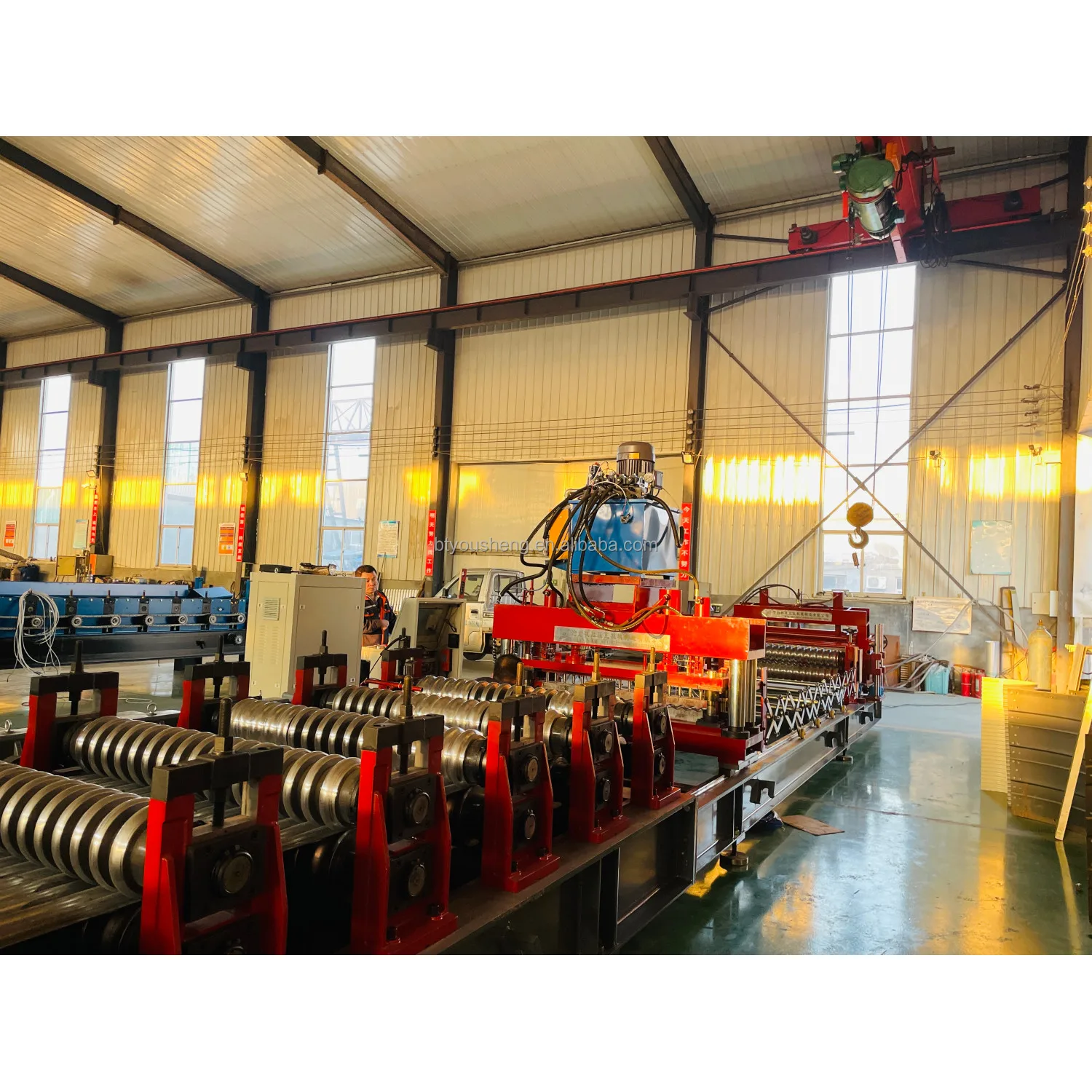

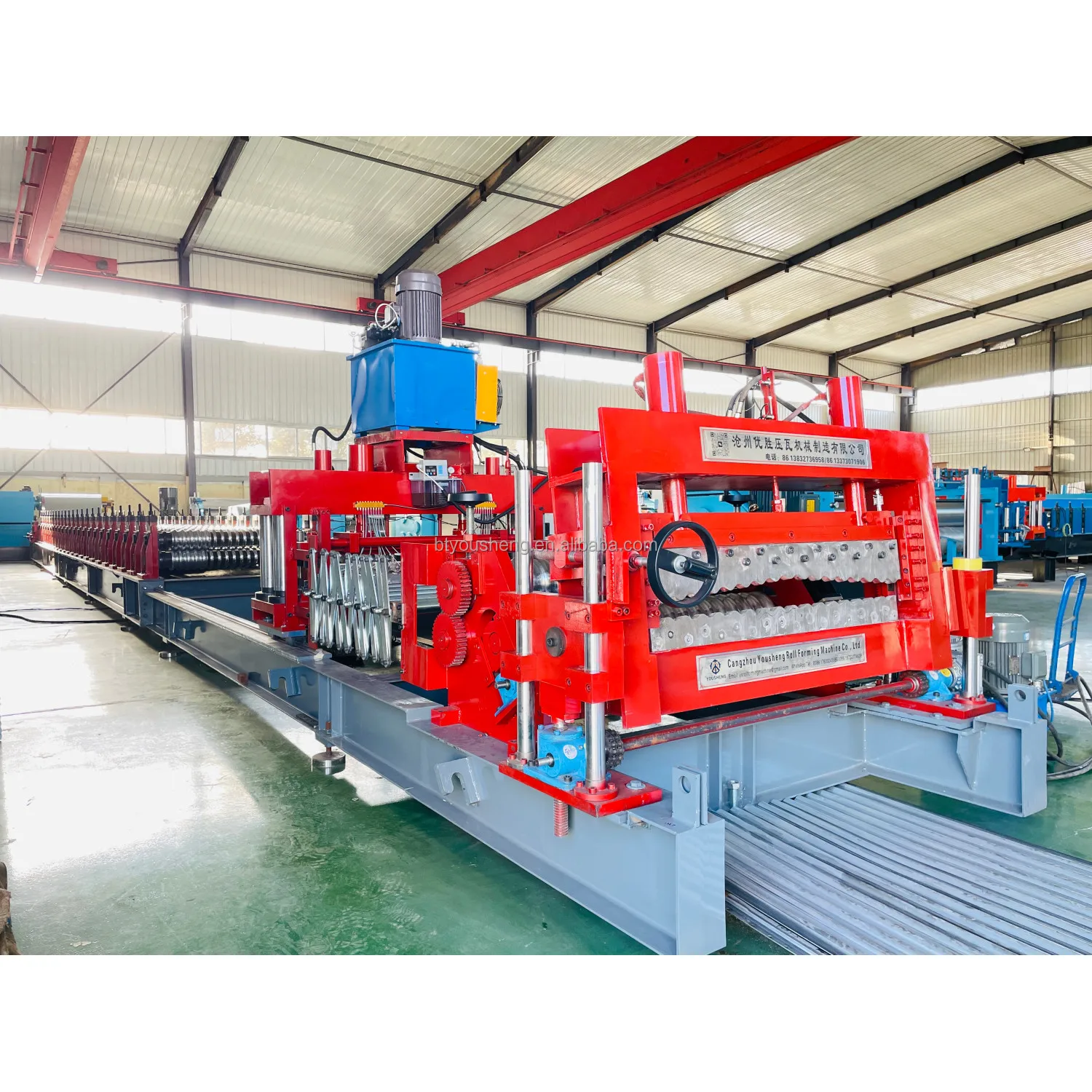

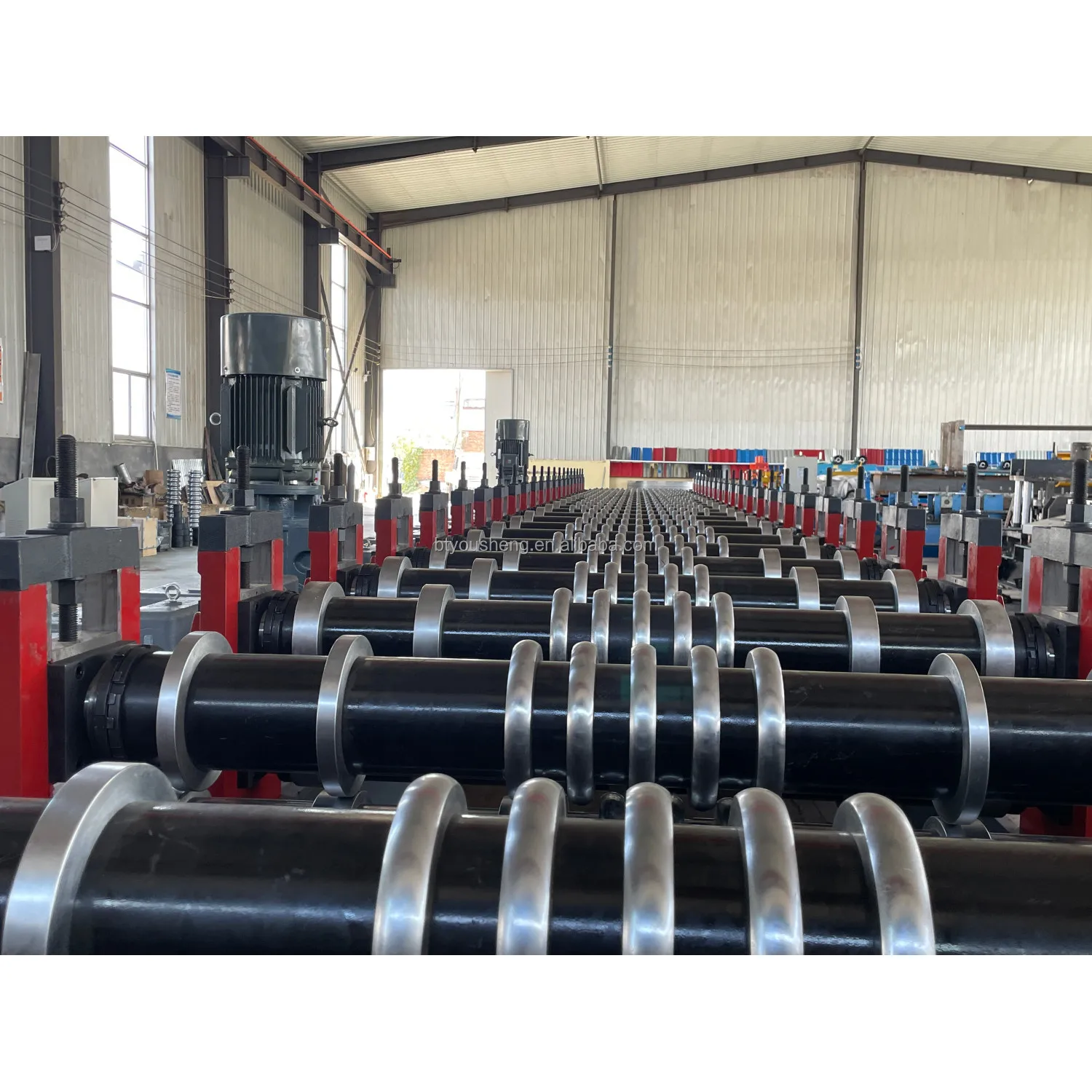

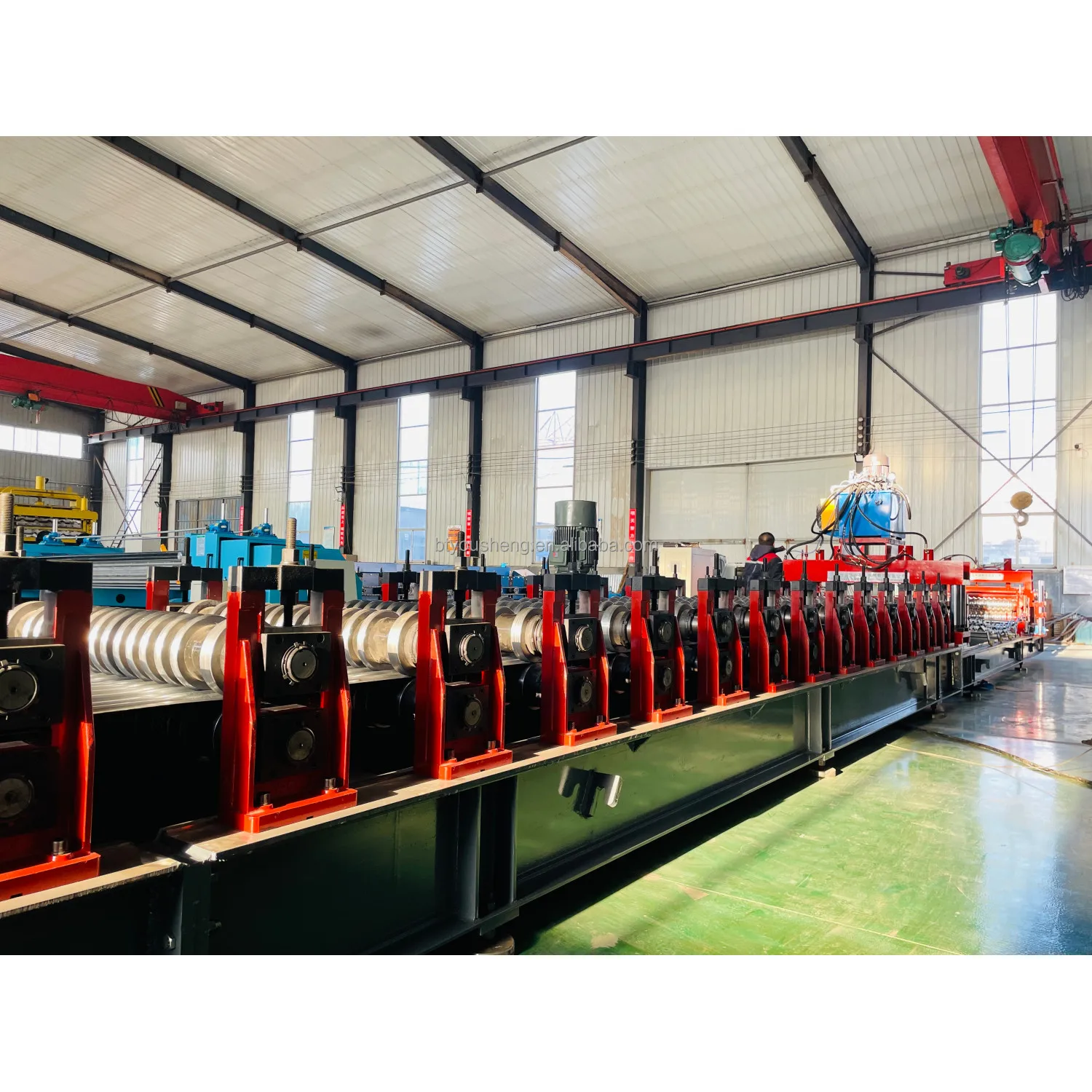

Forming part
Whole Range Of Roll Forming Machines For Steel Silo
About Company
Product loading
We use 10mm oil wire rope to reinforce the machine to ensure the stability of the machine during transportation.
FAQ
Q: What's your payment term?
-30% by TT for the advance payment at order
-70% will be paid after inspection in China before shipment.
Q: How to repair the machine during the warranty period?
Q: What kind of after-sales service do you provide?
- 24 months from the date of loading by the seller, during the warranty period, we provide lifetime free technical support and repair consultation.
Q: How can you quickly solve your after-sales problems?
- You need to contact your salesman, and the salesman will give feedback to the technical department in time to solve your problem quickly.
-30% by TT for the advance payment at order
-70% will be paid after inspection in China before shipment.
Q: How to repair the machine during the warranty period?
- During the warranty period of the machine, we will buy and send you free accessories for non-artificially damaged parts.
Q: What kind of after-sales service do you provide?
- 24 months from the date of loading by the seller, during the warranty period, we provide lifetime free technical support and repair consultation.
Q: How can you quickly solve your after-sales problems?
- You need to contact your salesman, and the salesman will give feedback to the technical department in time to solve your problem quickly.
Q:Are you a trading company or a factory?
- We have indoor and outdoor production workshops, which are real processing and production plants, including roller processing workshops, assembly workshops, spraying workshops and so on.
Q:How many days is the lead time of the machine?
- Since our machines are all customized products, please consult your salesman when placing an order.
