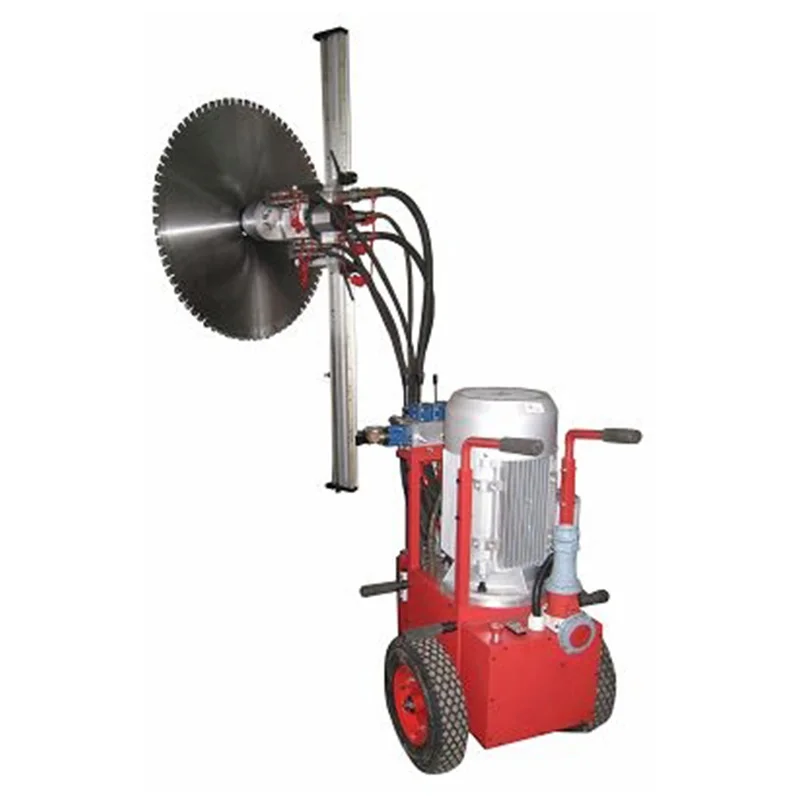

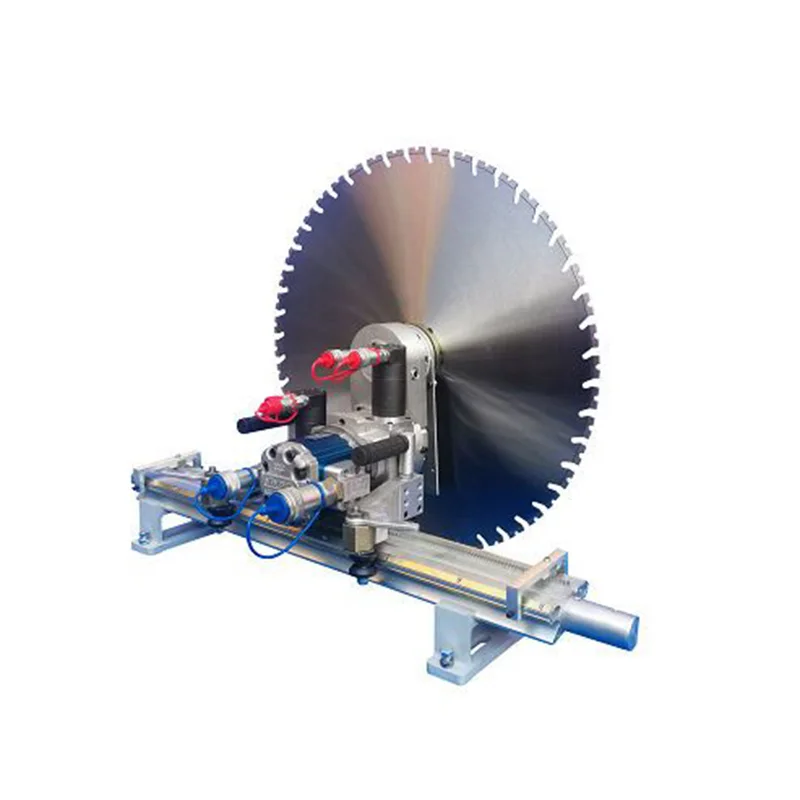

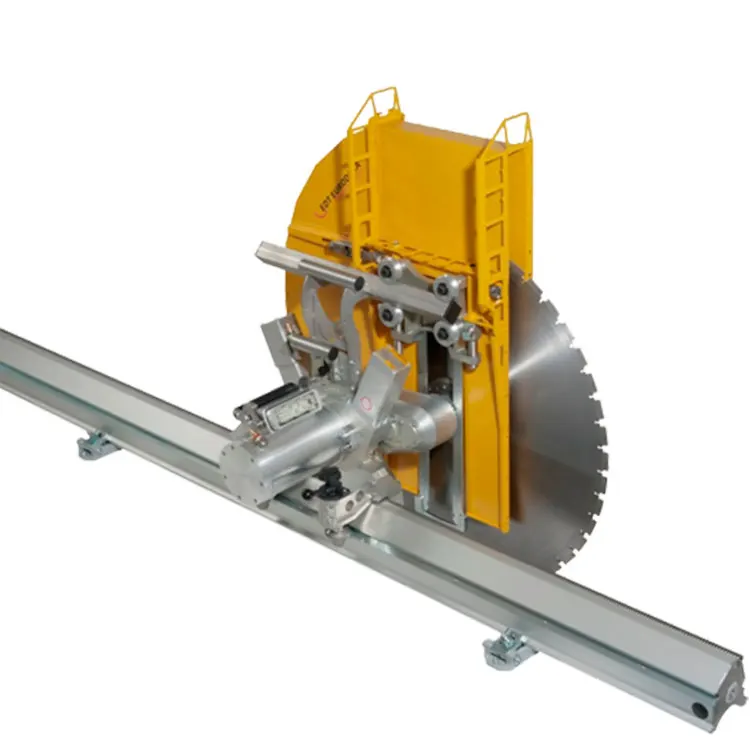

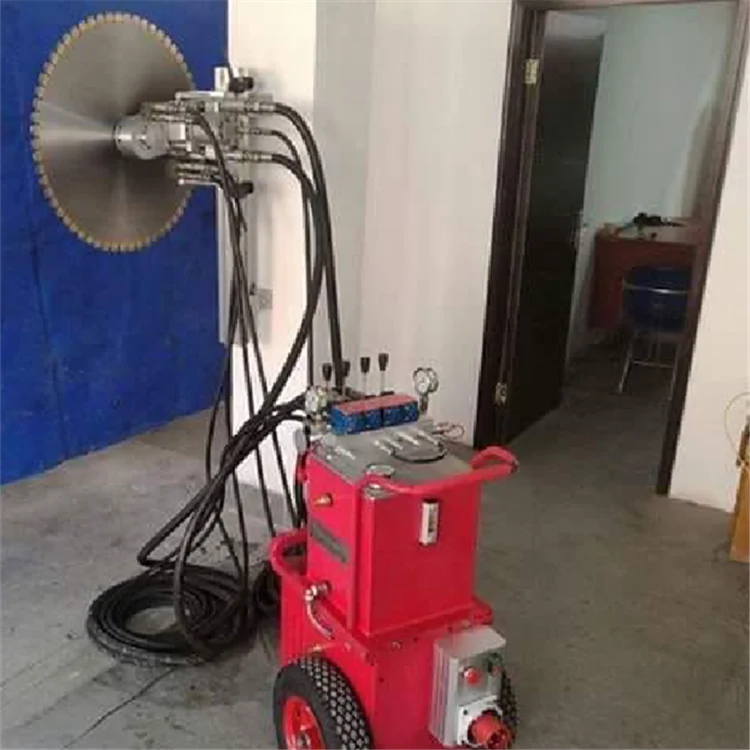

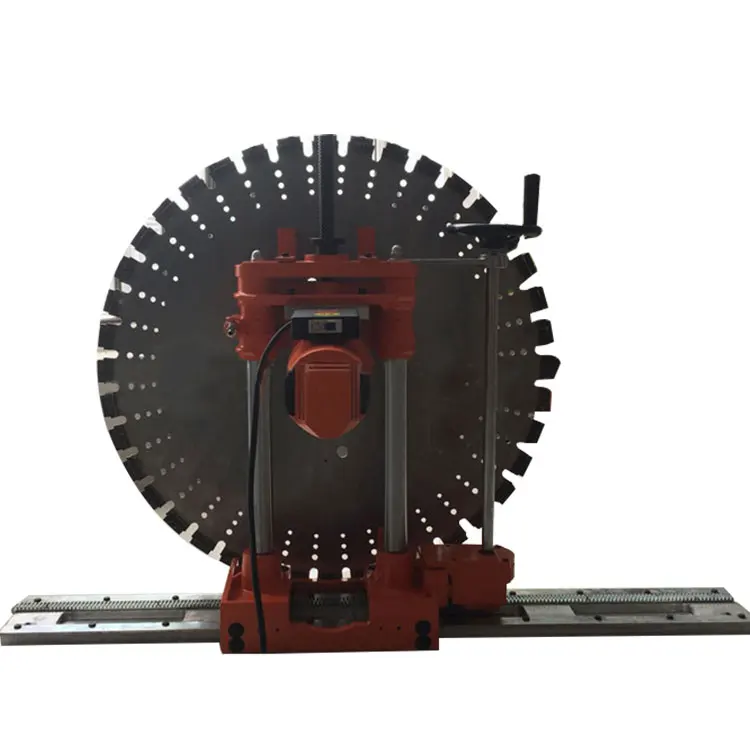

Cutting Rocks Grooving Power Wall Saw Cutting Machine Concrete Cutter Machine Hydraulic Wall Saw
- Category: >>>
- Supplier: Henan Yulu Machinery Co. Ltd.
Share on (1601110260451):
Product Overview
Description
Concrete Electric/Hydraulic Circular Wall Saw Curbing Cutting Machine
Product Description
Concrete wall saw is mainly used for the cutting of reinforced concrete wall, brick wall and other stone materials, as well as the renovation and reinforcement of old buildings. It can also cut large-area walls, such as, door holes, windows or elevator holes. Concrete wall saw can also be called wall cutting saw, concrete wall saw, wall cutting saw machine, which usually contains two types, hydraulic concrete wall and electric concrete wall saw according to the power.Hydraulic concrete wall saw is composed of power station and saw.
Technical Paramete of Hydraulic Concrete Wall Saw:
Hydraulic Concrete Wall saw | Model | YG-600 | YG-700 |
Saw blade diameter range(mm) | 800-1400 | 800-1600 | |
Cutting depth(mm) | 620 | 730 | |
Max.working pressure(bar) | 180 | 200 | |
Max.oil flow rate(L/min) | 100 | 100 | |
Gearing | gear | gear | |
Rotation speed(Rpm) | 450/950/1300 | 450/850/1200 | |
Dimension(mm) | 400*420*400 | 400*420*400 | |
Weight(kg) | 38 | 39 | |
Hydraulic oir pump | Max.power(kw) | 25 | 30 |
Motor cooling method | Air cooling | water cooling | |
Rated voltatge | 380V 50HZ | 380V-420V 50HZ-60HZ | |
Pressure stages | 3 | 3 | |
Max.operating pressure(bar) | 200 | 210 | |
Oil flow rate(L/min) | 30-80 | 40-100 | |
Dimensions | 600*650*1050 | 500*520*1100 | |
Weight(kg) | 220 | 140 |
Technical Paramete of Electric Concrete Wall Saw:
Model | YG-800 | YG-1000 | YG-1200 |
Saw blade diameter(mm) | 800 | 1000 | 1200 |
Cutting depth(cm) | 30 | 40 | 50 |
Power(w) | 6150 | 6150 | 6150 |
Cutting efficiency(m/h) | 3-6 | 3-6 | 3-6 |
Semi-automatic additional servo motor: 1500w Fully automatic two sets of gear sets Two servo motors Remote control: 1500w | |||
Product details:
Application:
1. general reinforced concrete walls, board cutting, demolition or the door hole.
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use.
4. 1600 mm blade which Maximum cutting depth up to 600mm.
Packaging & Shipping
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, sandblasting equipment, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
Advantages
1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
