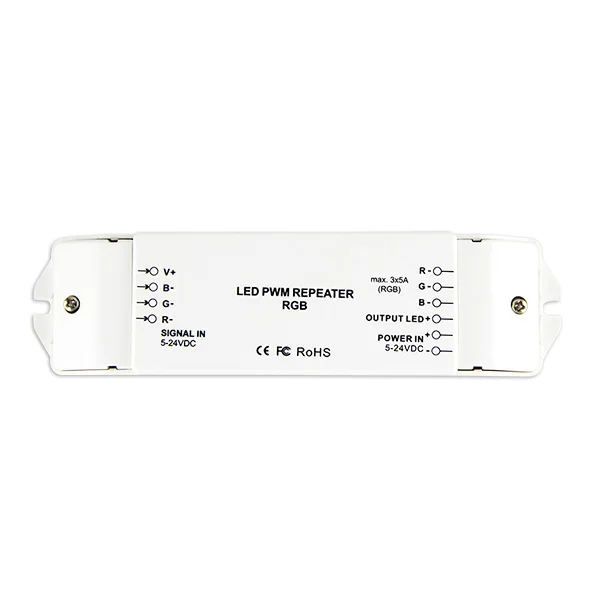

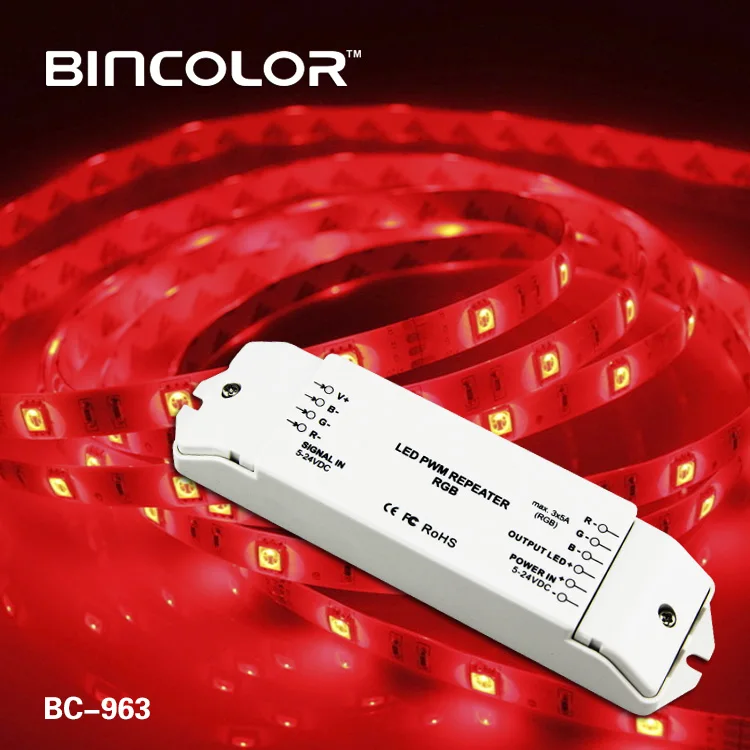

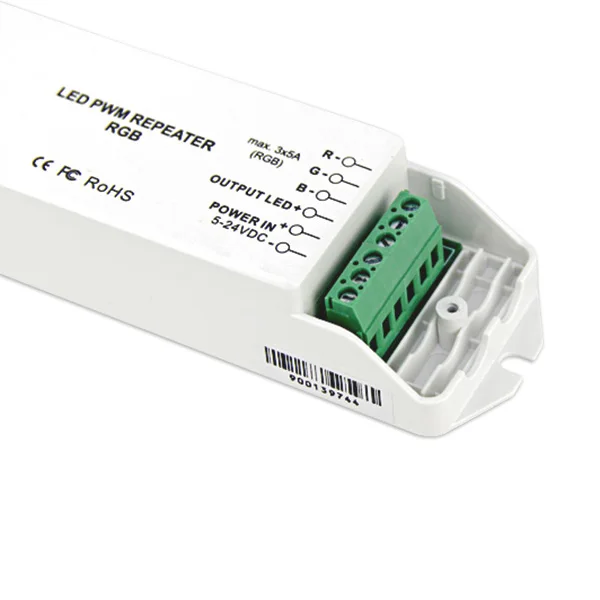

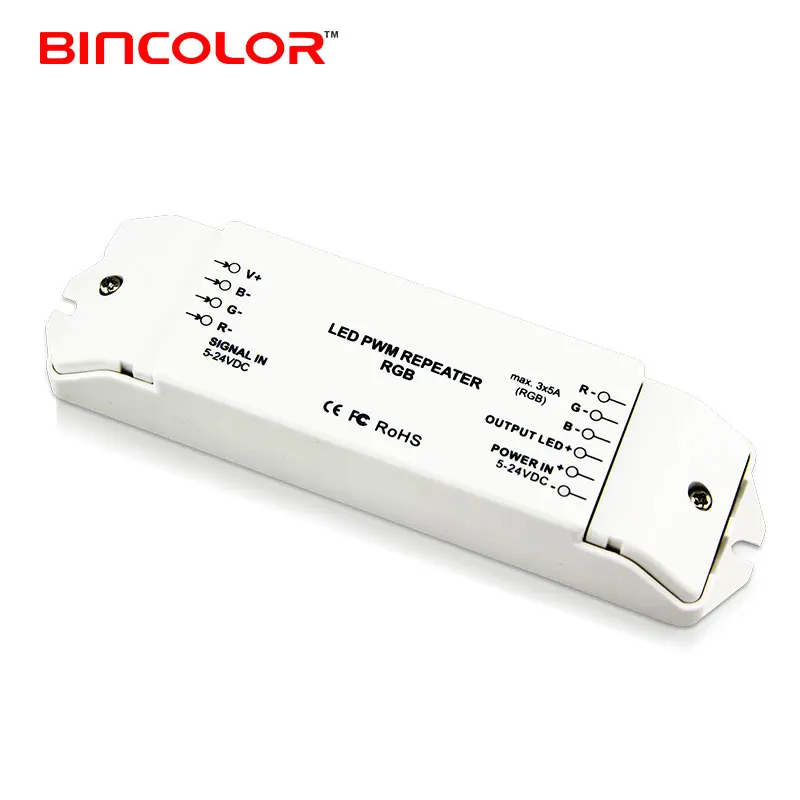

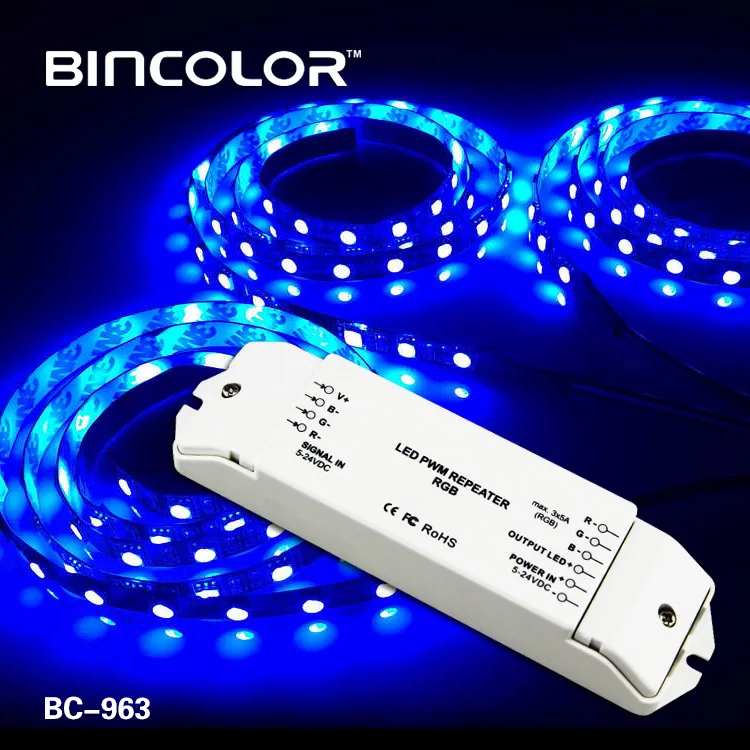

BC 963 DC5 24V led rgb professional high frequency power amplifier repeater with 3 years warranty

Product Overview

Description







1.  High frequency three channels power repeater

2.  Multi protection three channels power amplifier



    LED Power Repeater is suitable for all of our company's power-output style controllers’ power expansion, it accepts PWM control, unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of constant voltage model and constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.



Feature function:

1. Common anode input and output.

2. Sustain high frequency common anode PWM input signal.

3. Work with RGB controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.

4. Over current protection and short circuit protection.

5. 3000V optoelectronic isolation.



Click here to send us your enquiry!!!



Specifications



Model	BC-963 3CH High Frequency Repeater
Input voltage	DC5V-DC24V
Max Load Current	5A/CH×3
Output signal	Constant voltage PWM
Max output power	75W(5V)180W(12V)360W(24V)
Product Dimension	L175×W44×H30(mm)
Package Size	L178×W48×H35(mm)
Gross Weight	120g
