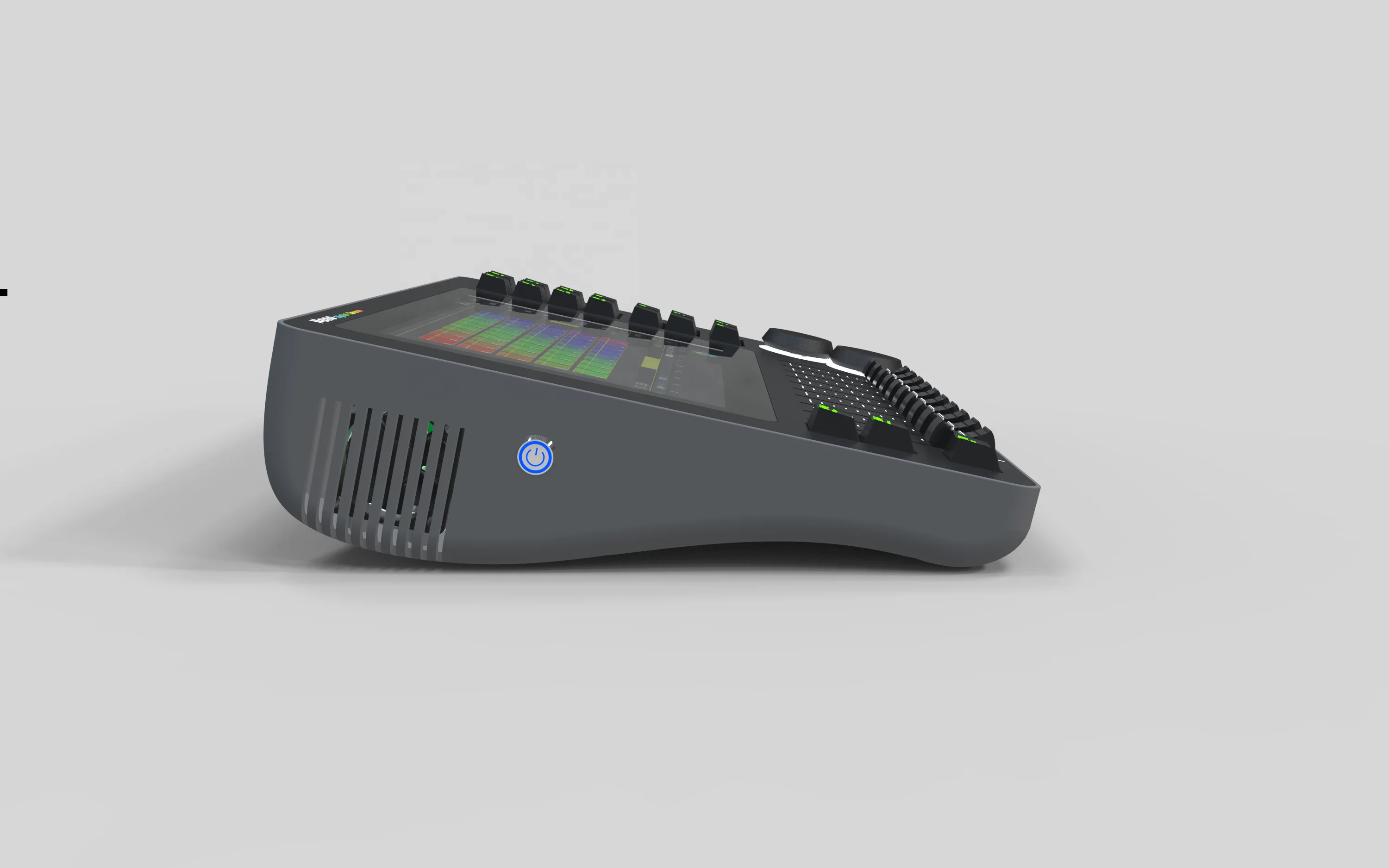

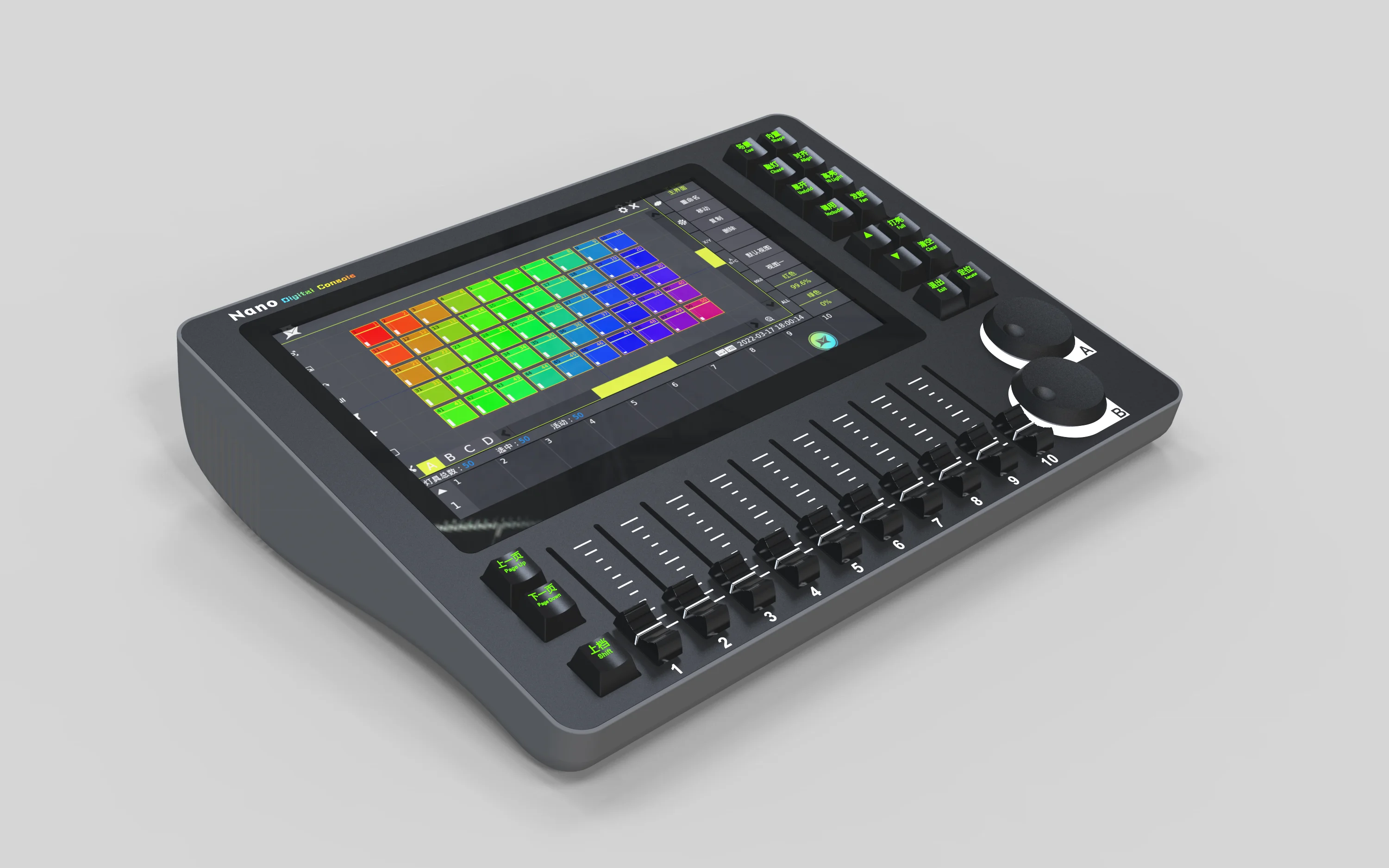

lighting controller console DMX 512channel

Technical Parameters

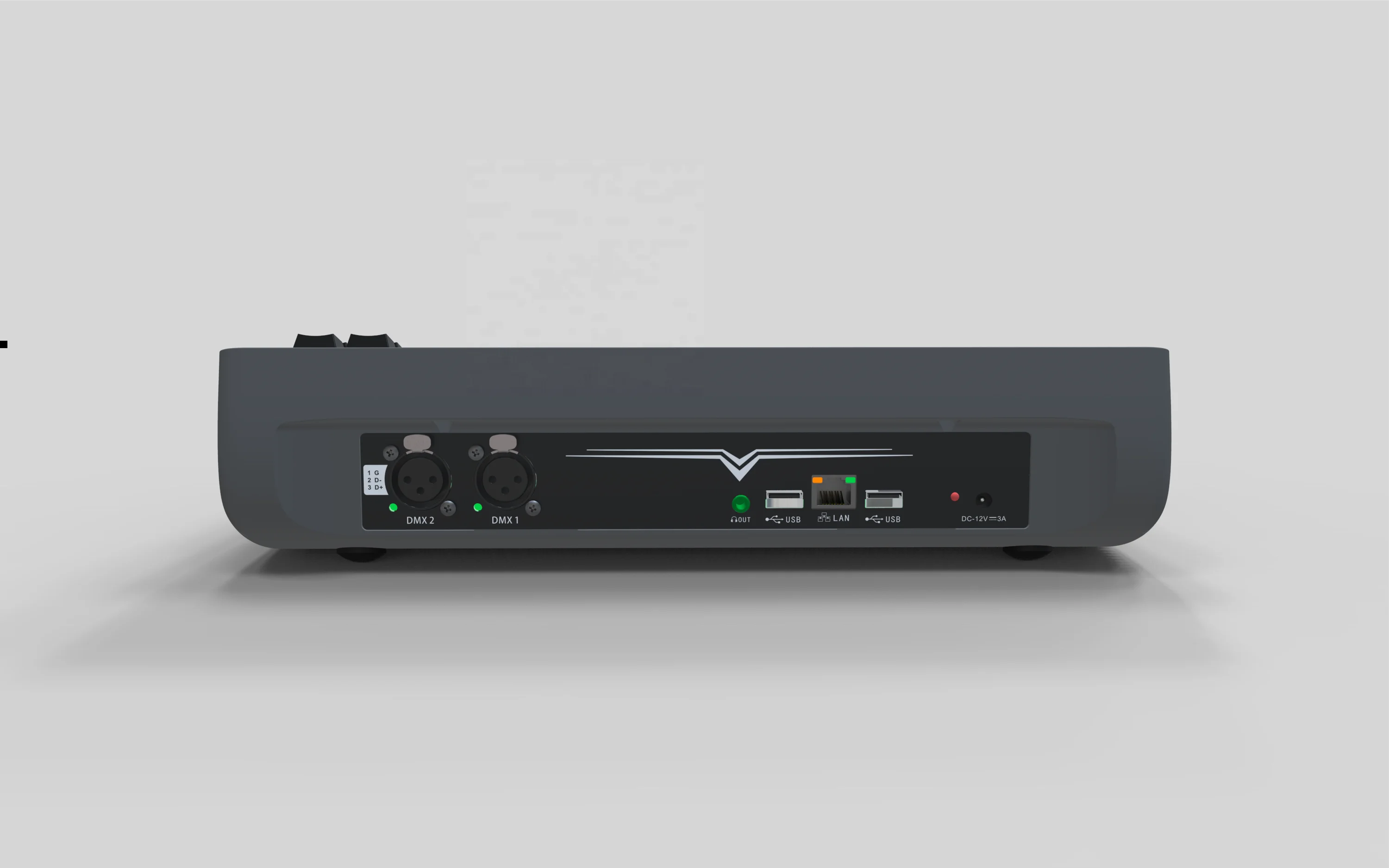

Output:1 Art-Net outlet, 2 optically isolated standard DMX ports,2 SPl  light bars control the output

RDM:Support DMX port RDM and Art-net RDM

DMX Chanel:2*512 DMX channels, support extended to 1024 channels with Art-net

Ribbon control: 2*1024 RGB full-color pixels, do not occupy DMX channel

Fixtures Position: Built-in 600 lamp position, support patch and control up to 64 fixtures 16 channels at the same time

Library Support: 7000 fixture positions, support patch and control up to 100000 fixtures at the same time,support R20,D4,DK three formats directly matched with the use of built-in intuitive and fast lamp library writing software.

Fixture Attribute:One fixture sport up to 512 attribute

Pallets And Groups:Up to 1000 pallets and 200 fixtures group

Shaps:Abundant shapes effect, shapes effects, pixel mapping, key frame shapes, homemade shapes. Sport multiple shapes superposition operation

Graphical Interface:English operation interface, work window can be resized, workspace layout can be saved. Support image naming and graffiti naming.

Language:Support Simplified Chinese, Traditional Chinese, English language.

Advanced Controls: Built in RGB&CMY palette, support edit fixtur order, attribute time parameter

Playback Stored: 10 playback faders ,50 pages,independent playback window,up to 1000 playback

Playback: Supports occupied and non-occupied playback, up to support 10 playback.

Chase Stept:A chase can save up to 100 steps

Encoder: 2 high-precision optical encoder

Hardware Parameters:Dual- CPU, 2GRAM, 16G SSD hard disk

Software System:Self developed system software based on Linux

Monitor:10.1" IPS full view HD capacitive touch screen

Advanced Function:work online, Sonic audio, Super fixture library, Super RDM, Super list, One key frozen, APP remote control, OTA upgrade

Power Input:DC12V 4A

Product Size:33.6*25.4*7.5cm

Carton Packing Size: 42*39*21cm   Gross weight: 3.6kgs

Flight Case Packing Size: 42*39*21cm   Gross Weight: 8kgs

PP Bag Packing size: 40*33*18cm        Gross weight: 5kgs

OEM and ODM are available!!!

1.WORLDWIDE SHIPPING.(Except some countries and APO/FPO)
2.Orders processed timely after the payment verification.
3.We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4.The images shown are not the actual item and are for your reference only.
5.SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7.Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

About Guarantee
1.100% strict quality check during production and before shipping.
2. 12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories also come with a 12-month warranty.Free shipping for the first 12 months of the warranty period!

About Feedback
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.

Guang Zhou Yunpeng Lighting Equipment Co.,Ltd. is a professional stage light equipment manufacturer, integrated with R&D,design,production, sales and service. Our company specializes in light controller and lighting equipment. All products are researched and developed independently by ourselves along with our intelligent property. We have a strong R&D team consisting of a few senior software engineers. We produce light consoles insisting on independent research and development. Our team is always full of great innovation and passion.

We established a good reputation beyond customers at all ages. It is our mission to make great quality controller and high-quality light products for customers. We will dedicate ourselves to the mission.
