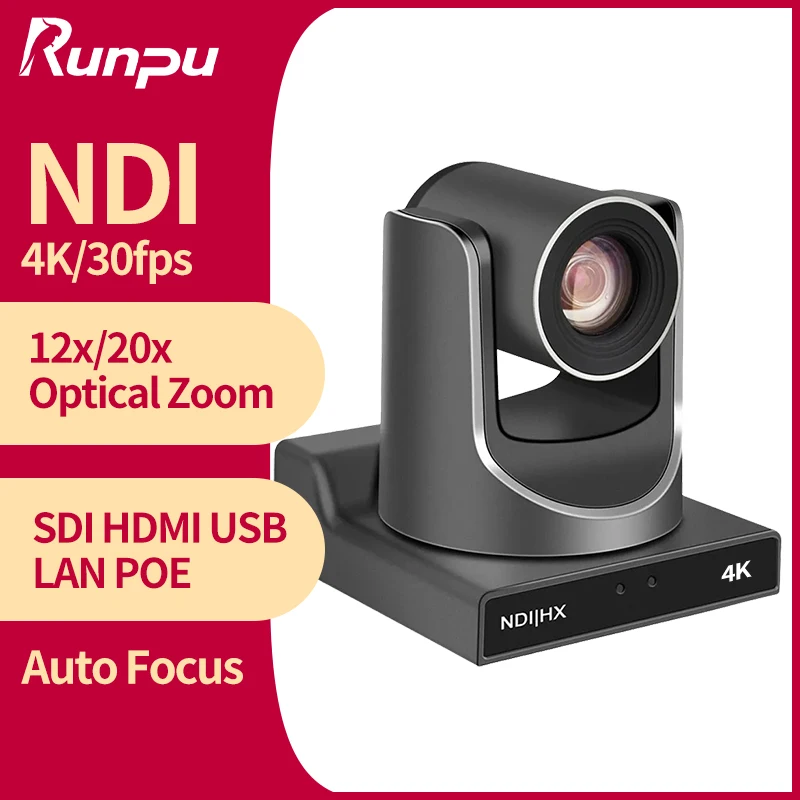

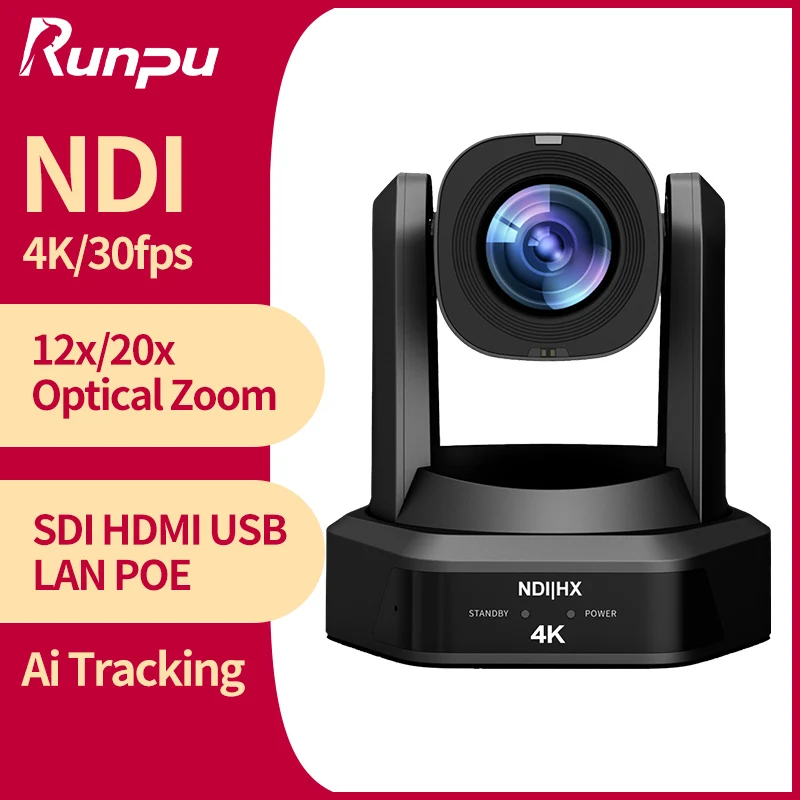

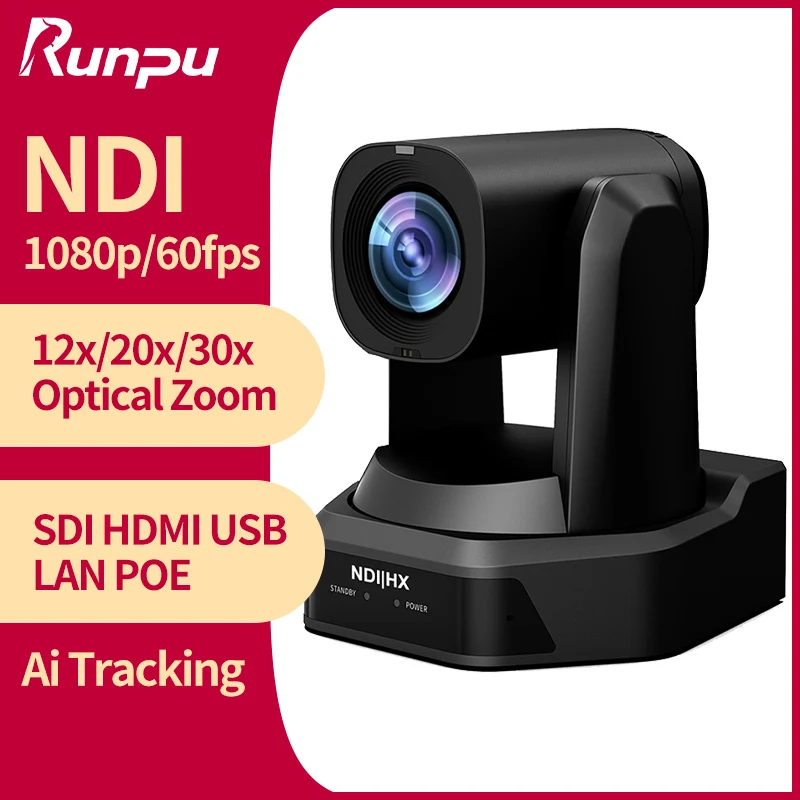

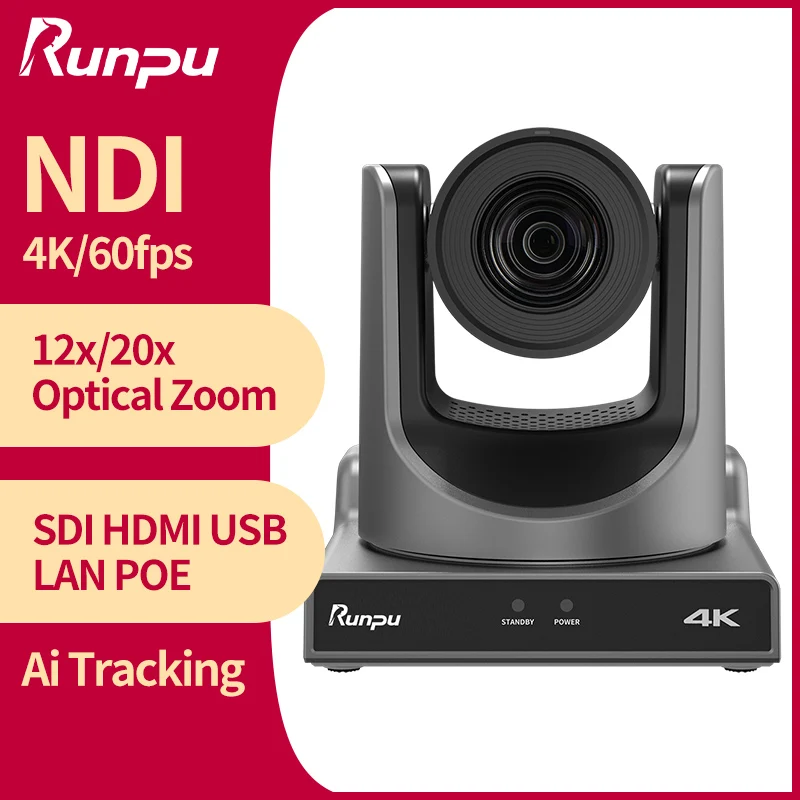

Runpu VX630AL N 4K 60FPS 30x Optical Zoom NDI Camera SDI H DMI PTZ Camera live streaming Vmix OBS church education 4K PTZ Camera

Share on (1601114789449):


Price:

Quantity:


Product Overview

Description

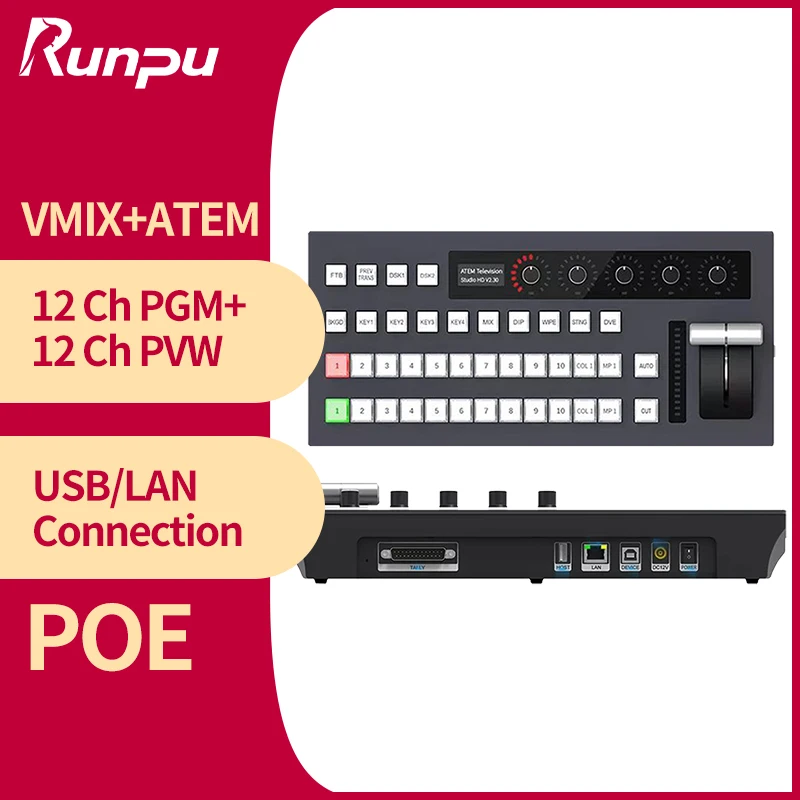

2024 Other Hot Cameras Controllers






Product Features




RP-VX630NA 4K 60FPS 30X Optical Zoom NDI HX AI auto Tracking POE PTZ Camera - Key Features
AI Tracking
With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, which can realize automatic tracking of scenes such as education, conferences and live broadcasts.

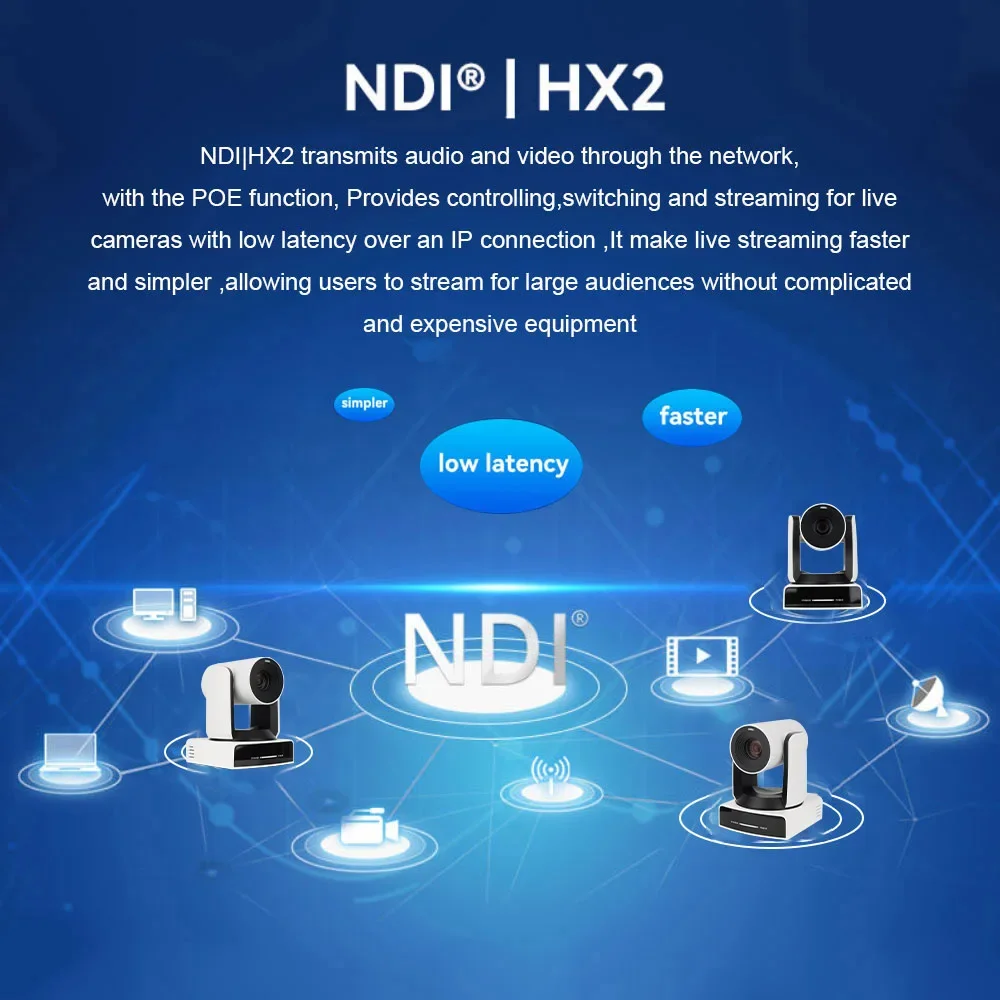

NDI|HX2
NDI|HX2 has the characteristics of low delay and plug and play, which is convenient for project implementation and deployment. It has good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode.

4K UHD
Use new 1/1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080P, 720P and other resolutions.

30x Optical Zoom
It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 30x optical zoom, and the maximum field angle is 59°.

HDMI 2. 0
Support HDMI 2.0 interface, which can directly output 4KP60 uncompressed digital video.

Low Light
The application of 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keep the picture clean and clear, and the SNR of image is as high as 55dB.

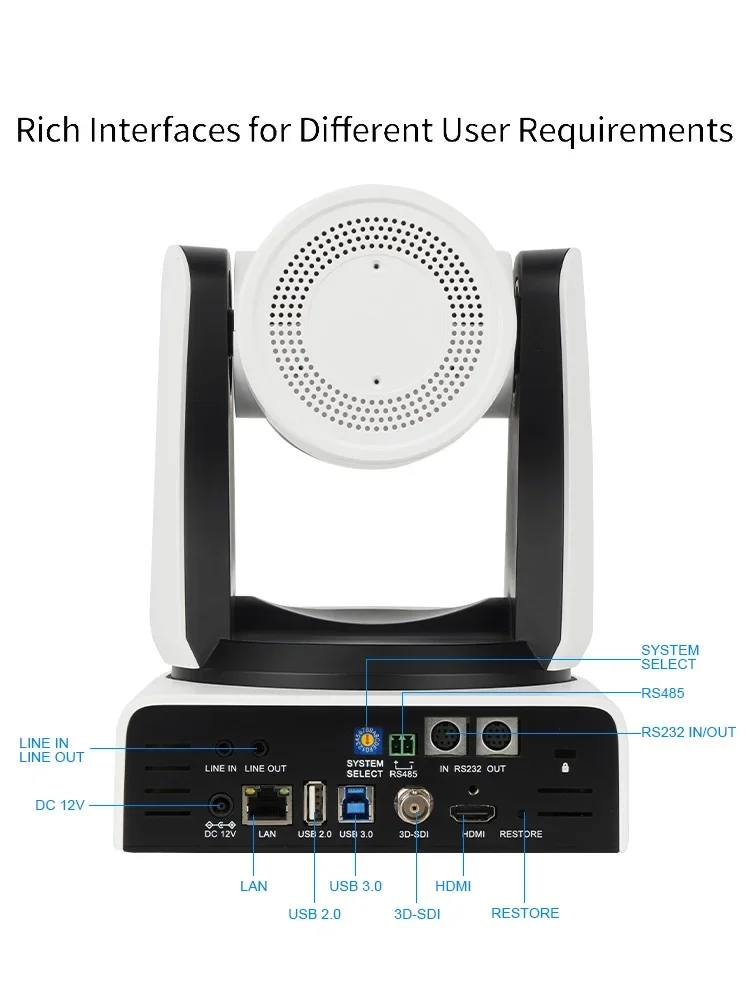

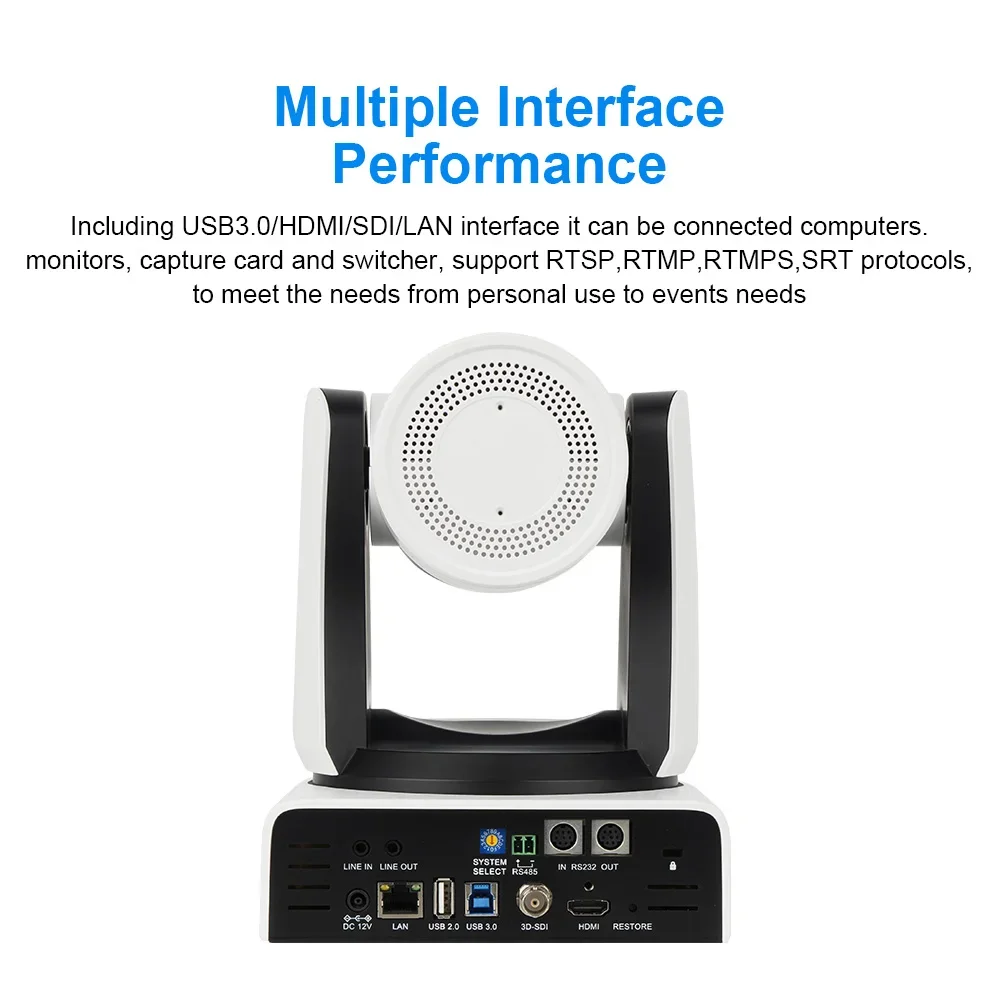

Multiple Interfaces
Support HDMI and 3G-SDI interface, effective transmission distance of 3G-SDI is up to 150 meters (1080P30). HDMI or 3G-SDI, USB, LAN can output three HD digital signals at the same time.

Remote Control

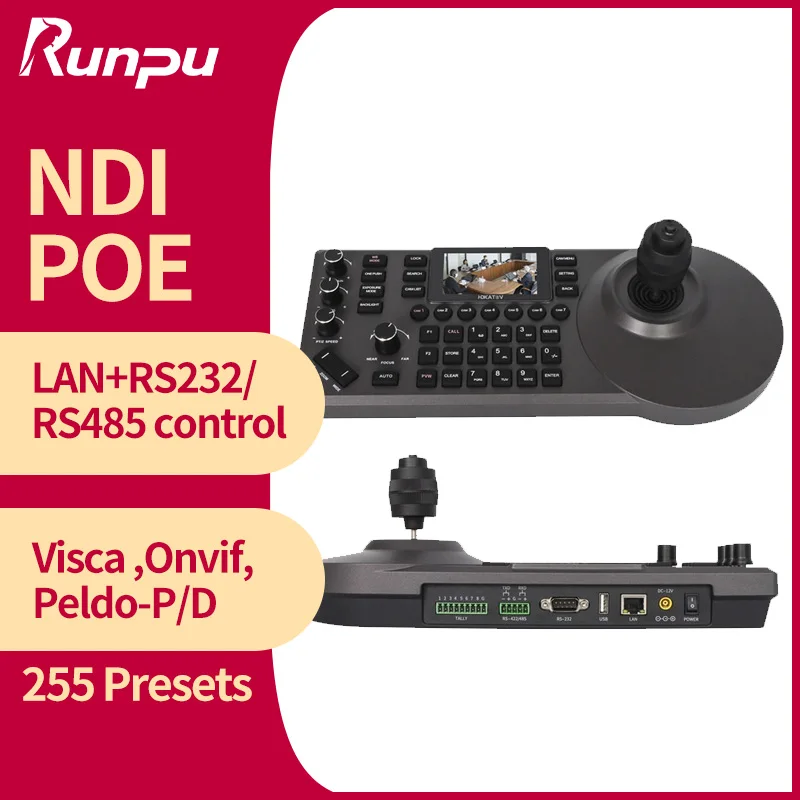

Through the RS232 and RS485 serial ports, the camera can be controlled remotely.

Gravity Sensor
It supports automatic image flipping function, which is convenient for engineering installation and use.

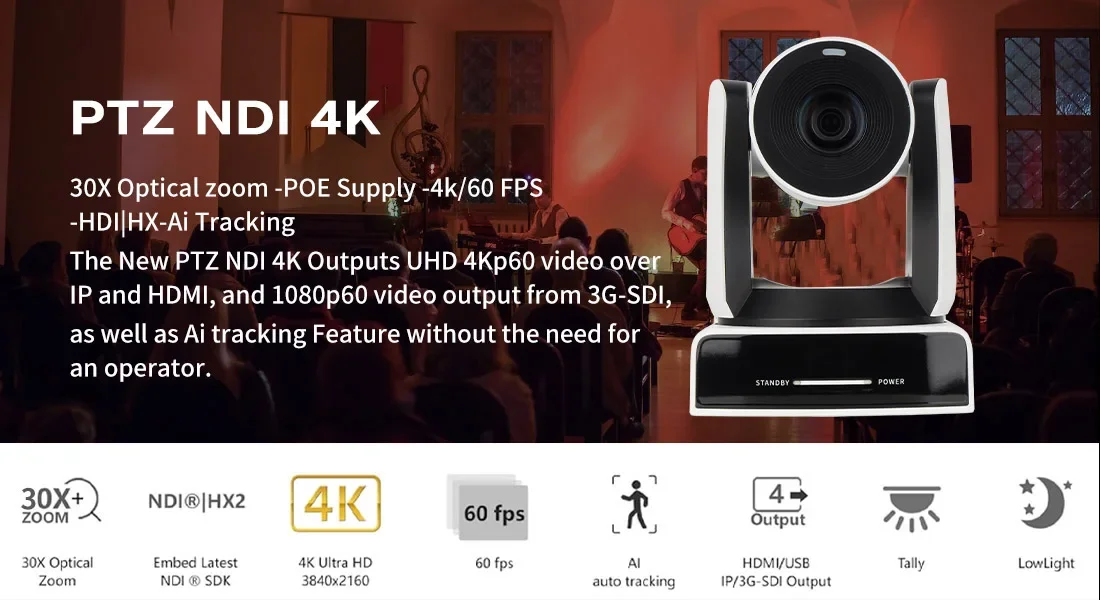

4K 60FPS 30X Optical Zoom NDI HX AI auto tracking PTZ Camera Live Streaming
Signal System
HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60, 1080P50, 1080P59.94, 1080P30, 1080P29.97, 1080I60, 1080I50,
1080I59.94, 720P60, 720P59.94
3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
Image sensor
1 / 1.8 inch high quality CMOS sensor
Effective pixel
8.42 million, 16:9
Video output interface
NDI HX POE sdi hdmi lan usb AI auto tracking
Lens
30X Optical Zoom
View angle
2.5 ° (narrow angle)- 59.2° (wide angle)
Aperture coefficient
30x, f=7.1mm~210mm, F1.61~F5.19
Gain control
Auto/manual
Focus
Auto/manual
Horizontal rotation
- 170 degree to + 170 degree
Pitch rotation
- 30 degree to + 90 degree
The horizontal control speed
0.1 ~ 60 degree / s
Pitch control speed
0.1 ~ 30 degree/ S
Control protocol:
visca / PELCO-D / pelco-p; baud rate:
115200 / 9600 / 4800 / 2400
Preset position
IR remote control supports 10 presets
PELCO Protocol supports 255 presets
Minimum illumination
0.5Lux (f1.8, AGC on)
Digital noise reduction
2D & 3D digital noise reduction
Image stream
double stream output
Video compression format
h.265, H.264
Audio compression format
AAC, MP3, g.711a
Network interface
100m network port (10 / 100base-tx)
5gwifi (optional)
Network protocols
RTSP, RTMP, onvif, GB / t28181
Power interface
hec3800 power socket (DC12V)
Power adapter
input ac110v-ac220v, output DC12V /
1.5A
Input voltage
DC12V ± 10%
Power consumption
12W (maximum)
Work temperature
-10℃~+50℃ / 20%~80%
Storage temperature
-10℃~+60℃ / 20%~95%
Installation
Support desktop, Tripod, Wall mount and Ceiling mount














Old Clients Application and Feedback

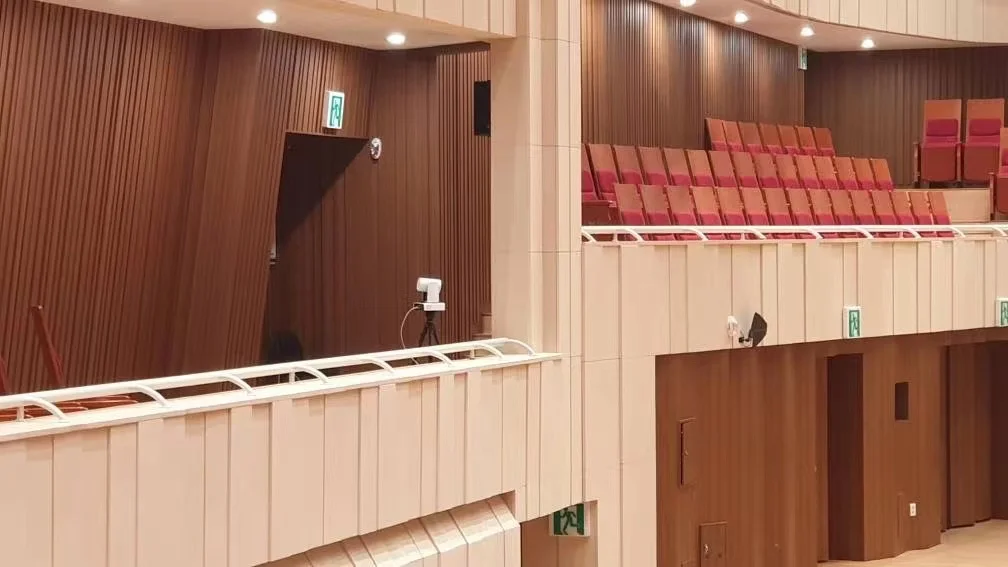

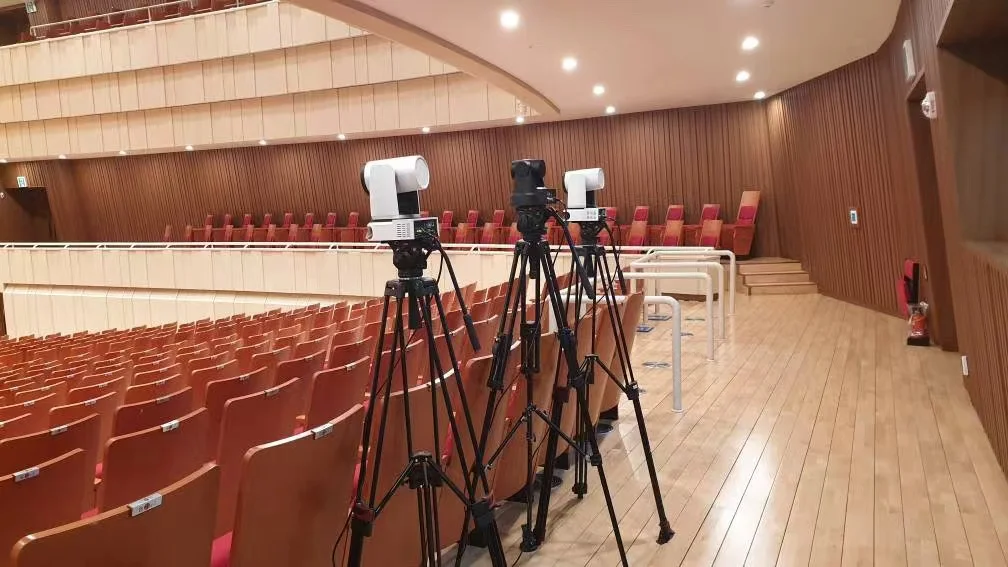

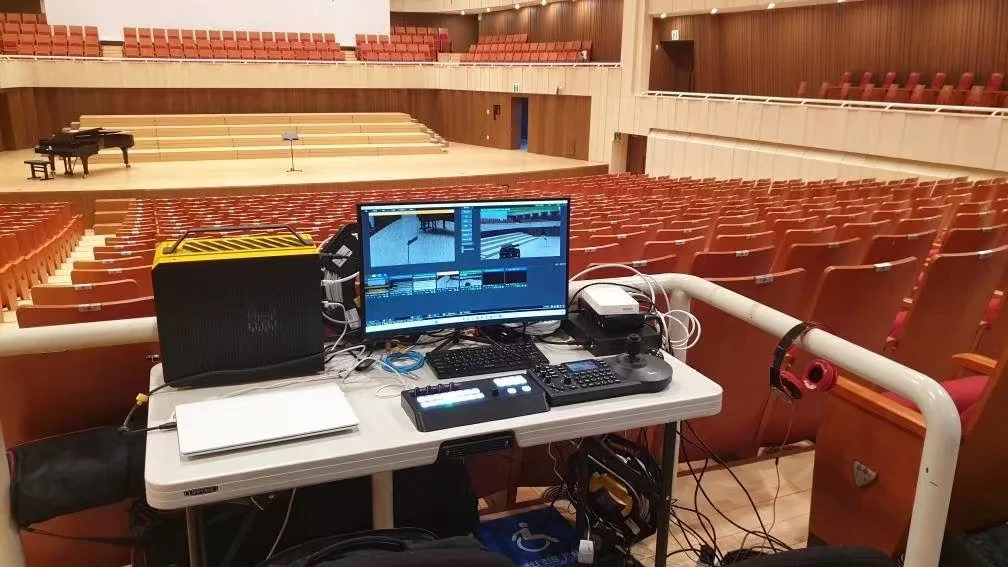

Korea old client use for Conference Live Streaming




Philippines old client use for tiktok


https://www.facebook.com/ToastyAudio/posts/pfbid02xgeHNJJomESdmBT1in2GYxq4NMgF3z3fyAaqhKtxiQR13Uwn8iKy3LAz2v28RR6Cl

UK old client use his logo to sell our NDI Cameras via facebook for Church use
