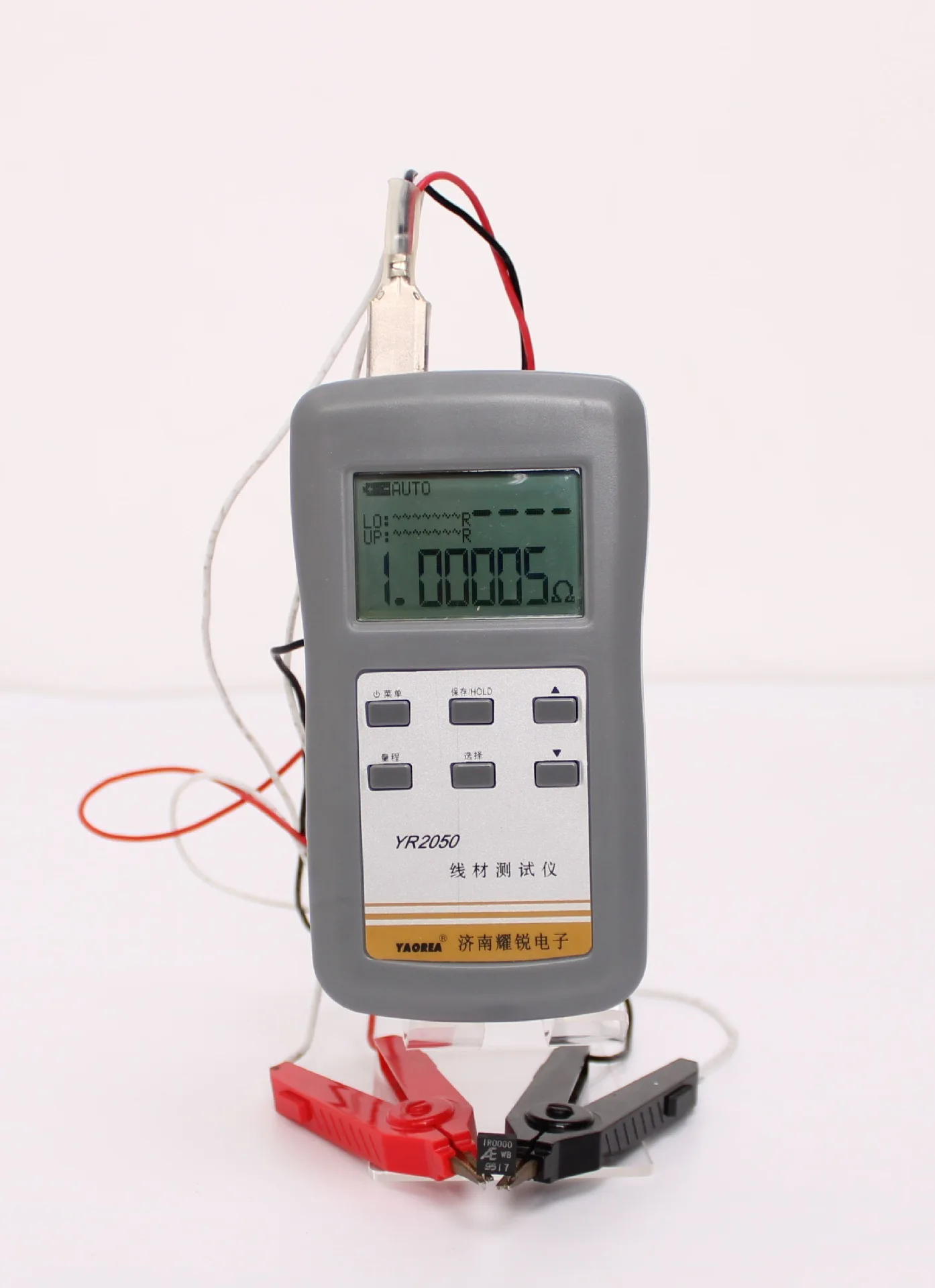

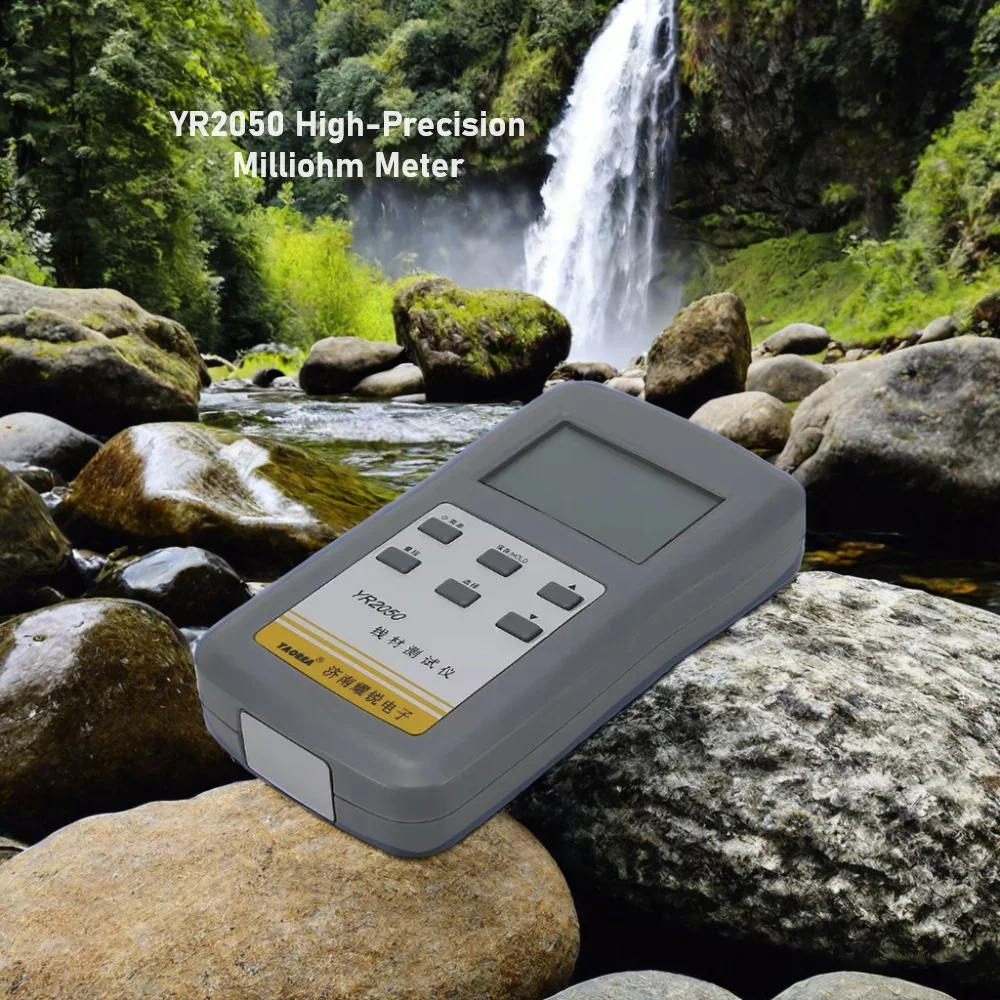

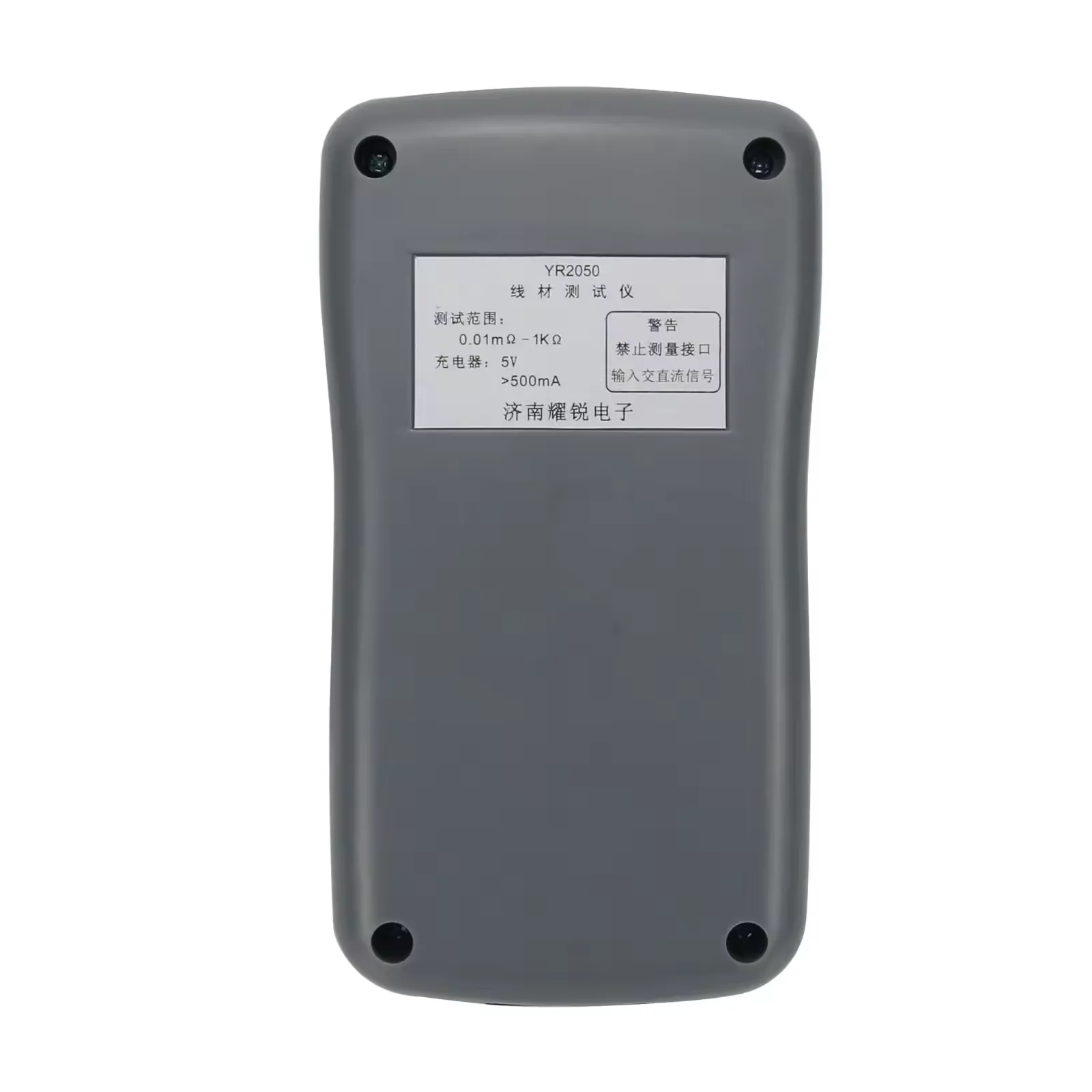

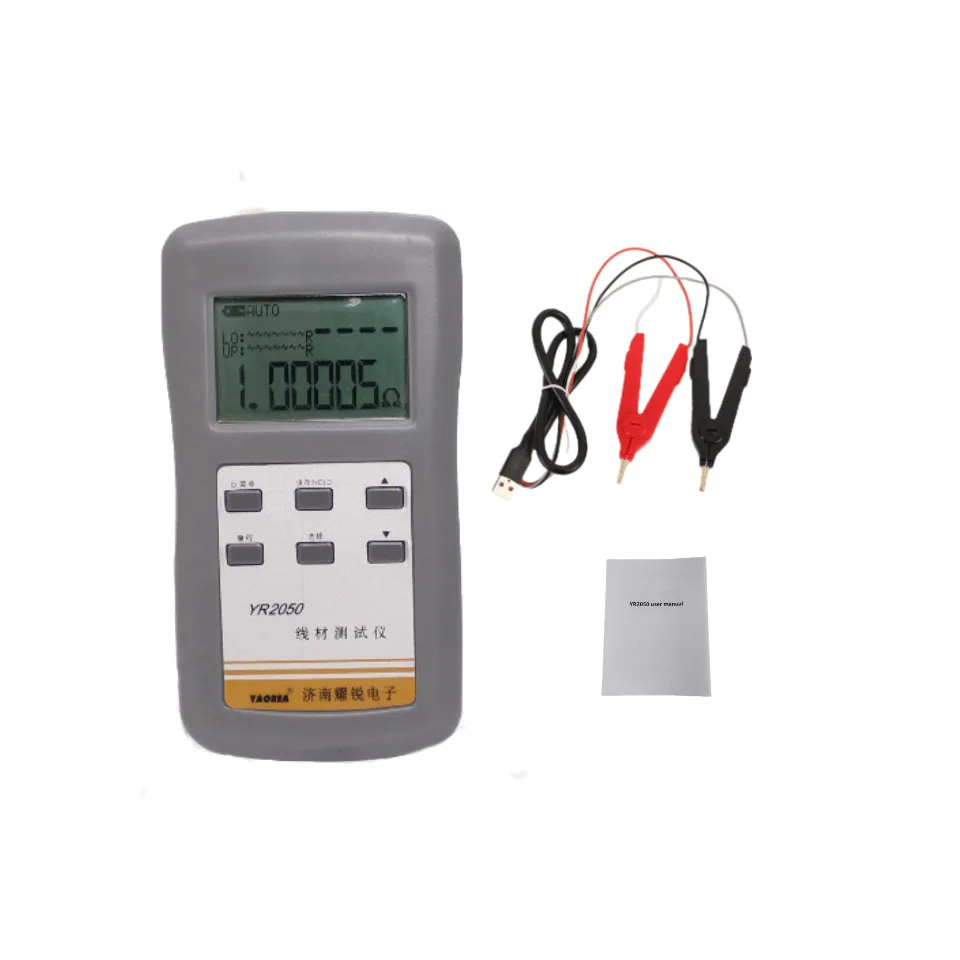

YR2050 High Precision Handheld Milliohm Meter 5V DC Micro Ohm Battery Tester Low Resistance Meter Tester
- Category: >>>
- Supplier: Shenzhen Changxiao Automobile Technology Co. Ltd.
Share on (1601117671127):
Product Overview
Description
Product Description
Specification
Description:
This is a high-precision and cost-effective milliohm meter, which also has the functions of calculating square number, meter number and resistivity. It is suitable for testing wires such as milliohm resistance, current-sensing resistance, power cord,wire, and network cable.
Applications:
1. Cut a certain length, such as 1m. Measure the diameter to calculate the cross-sectional area, enter the instrument detection mode, enter the corresponding parameters, and measure the resistance of the wire to calculate the resistivity. The resistivity can
determine whether the wire material is pure copper.
2. For a coil of wire, measure the diameter of the wire to calculate the cross-sectional area, enter the instrument detection mode, enter the corresponding parameters, and select the wire material, such as copper. Find out the overall resistance at both ends of the wire to calculate the length of the wire and judge whether the length of the wire is sufficient.
3. Check whether the transformer winding is qualified. In the normal mode, open the upper and lower limits, and input the upper and lower limits of resistance to test the resistance of the transformer winding.
4. Motor repair. The winding resistance of a high-power motor is extremely small. If there is a short circuit between the same winding wires, it is difficult to detect it with the resistance file of a multimeter. You can compare the resistance value of the normal winding in the normal mode.
5. Power cord detection. The quality of the three-hole power cords for household appliances on the market is uneven. You can use the detection mode to input the length and material of the power cord, such as copper, and measure the resistance to calculate the
cross-sectional area of the wire.
6. Contact resistance detection, whether all kinds of connectors, telescopic probes and wiring terminals are in good contact can be judged by the resistance value.
7. Test milliohm resistance such as current-sense resistance and shunt.
Parameters:
- Resolution 120000
- Temperature drift: ±100ppm (10~40℃)
Gear Minimum position Accuracy indication ±(reading%+range%)
1Ω 0.01mΩ ±(0.12%+0.03%)
10Ω 0.1mΩ ±(0.08%+0.02%)
100Ω 1mΩ ±(0.08%+0.02%)
1KΩ 10mΩ ±(0.10%+0.03%)
Attention:
- Built-in 18650 rechargeable battery, without a separate charger, you can use phone charger for Android to charge.
- It is strictly forbidden to measure any live devices, because the AC and DC voltage input to the test interface may damage the instrument.
- To ensure the accuracy and safety of the machine, please store and use it in a dry and non-corrosive gas environment.
Package Included:
- 1 x Milliohm Meter
- 1 x Pair of Clips
Measuring Range | Max.Resolution | Accuracy |
1Ω | 0.01m Ω | ±(0.12%+0.03%) |
10 Ω | 0.1m Ω | ±(0.08%+0.02%) |
100Ω | 1m Ω | ±(0.08%+0.02%) |
1K Ω | 10m Ω | ±(0.10%+0.03%) |
Packing & Delivery

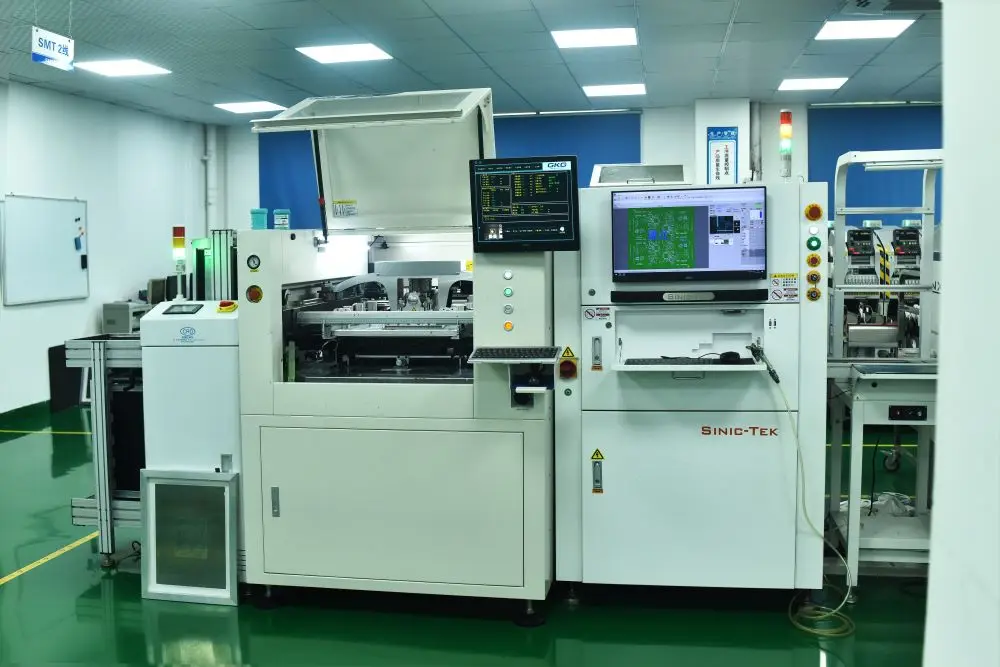

Company Profile

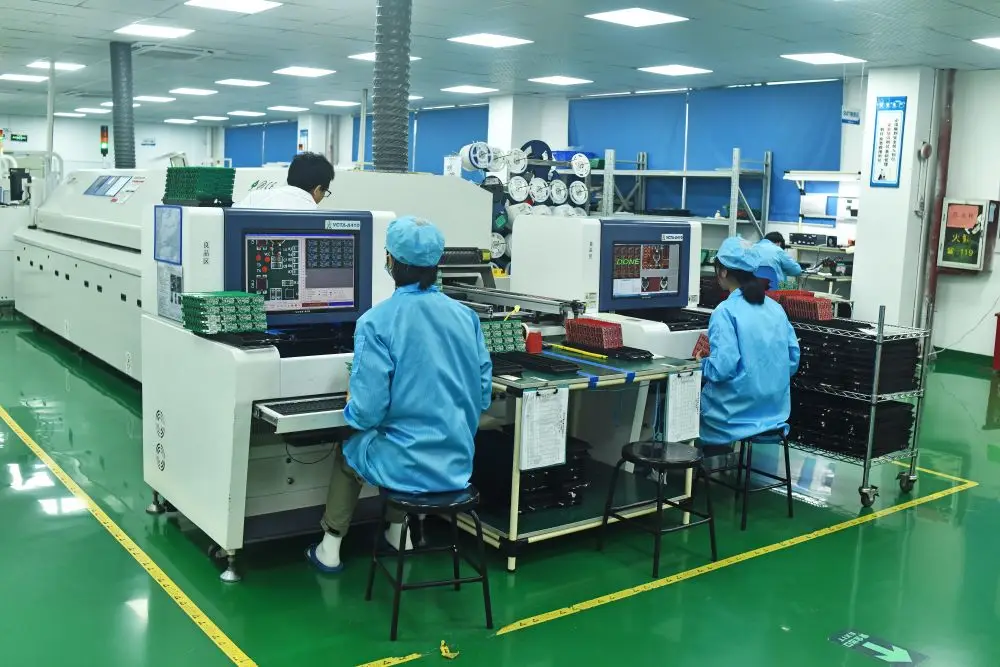

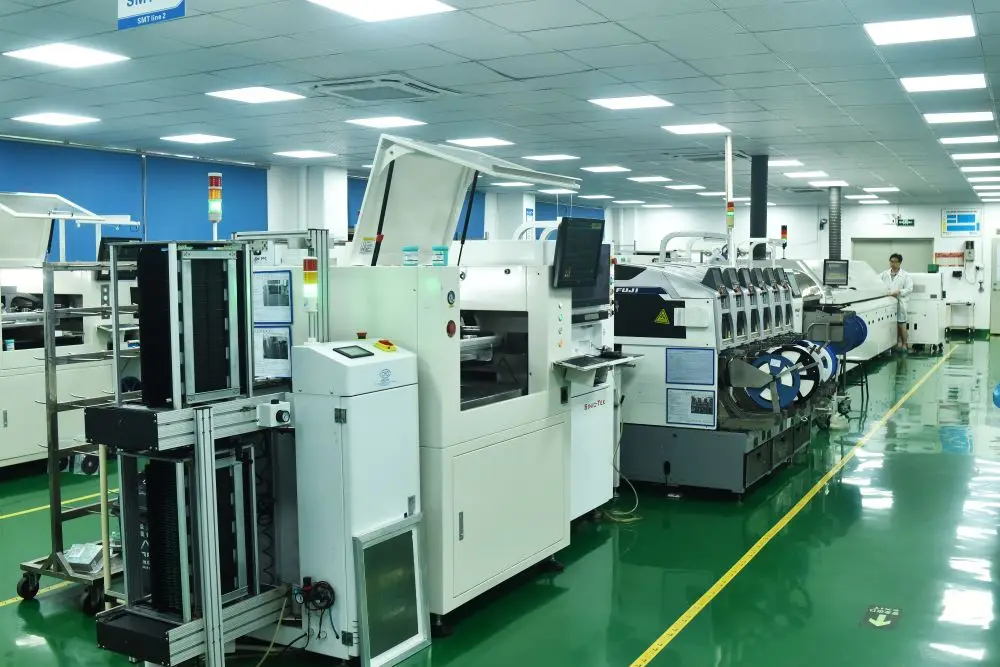

Shenzhen Changxiao Technology Co., Ltd, which is a pioneer in the solar generator industry, specializing in R&D, manufacturing and sales of power suppliers, solar power station, power panel and other related products. Our R&D director and production director have more than 20 years of industry experience in batteries and power station. Our company consists of R&D center, industrial design center, quality control center and manufacture center, and our workshop is more than 8,000 square meters.
