Motor Grader Road Construction Machinery New Used Road Grader APY series APY135 APY165 APY180 APY220 Full range of road graders
- Category: >>>
- Supplier: Asian Construction Equipment Group Co. Ltd.
Share on (1601123673420):
Product Overview
Description
Dear customers, In order to provide you with a fast and accurate quote, please tell us the following information:
1. The type and quantity you need.
2. Machine capacity and configuration.
3. Your target price.
4. The appearance of the machine can be customized.
There is more information that you are more concerned about. We are an independent research and development dealer integrating industry and trade. We can produce according to your needs. As long as you can confirm the model information you need,we can ship it to you immediately. We require 30% of the amount as deposit to place an order. Click the link for more details.
1. The type and quantity you need.
2. Machine capacity and configuration.
3. Your target price.
4. The appearance of the machine can be customized.
There is more information that you are more concerned about. We are an independent research and development dealer integrating industry and trade. We can produce according to your needs. As long as you can confirm the model information you need,we can ship it to you immediately. We require 30% of the amount as deposit to place an order. Click the link for more details.
Products Description

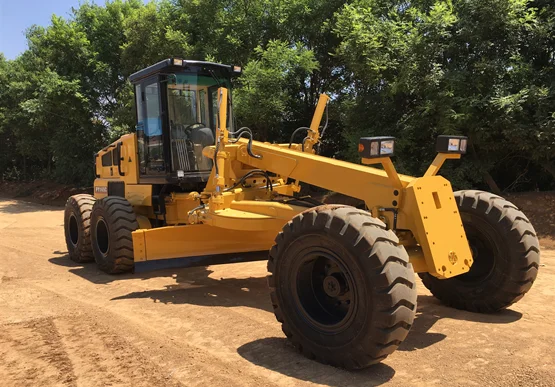

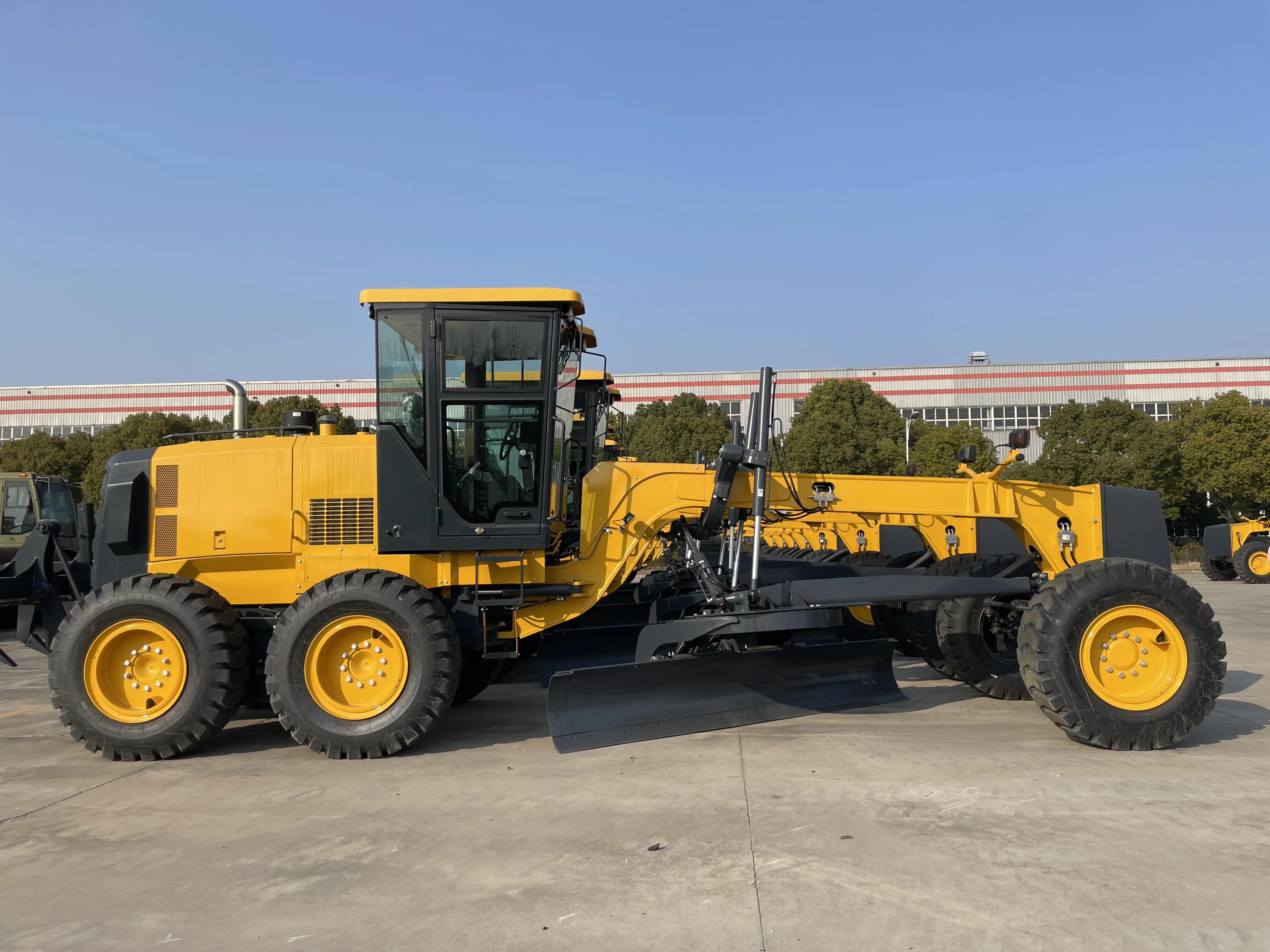

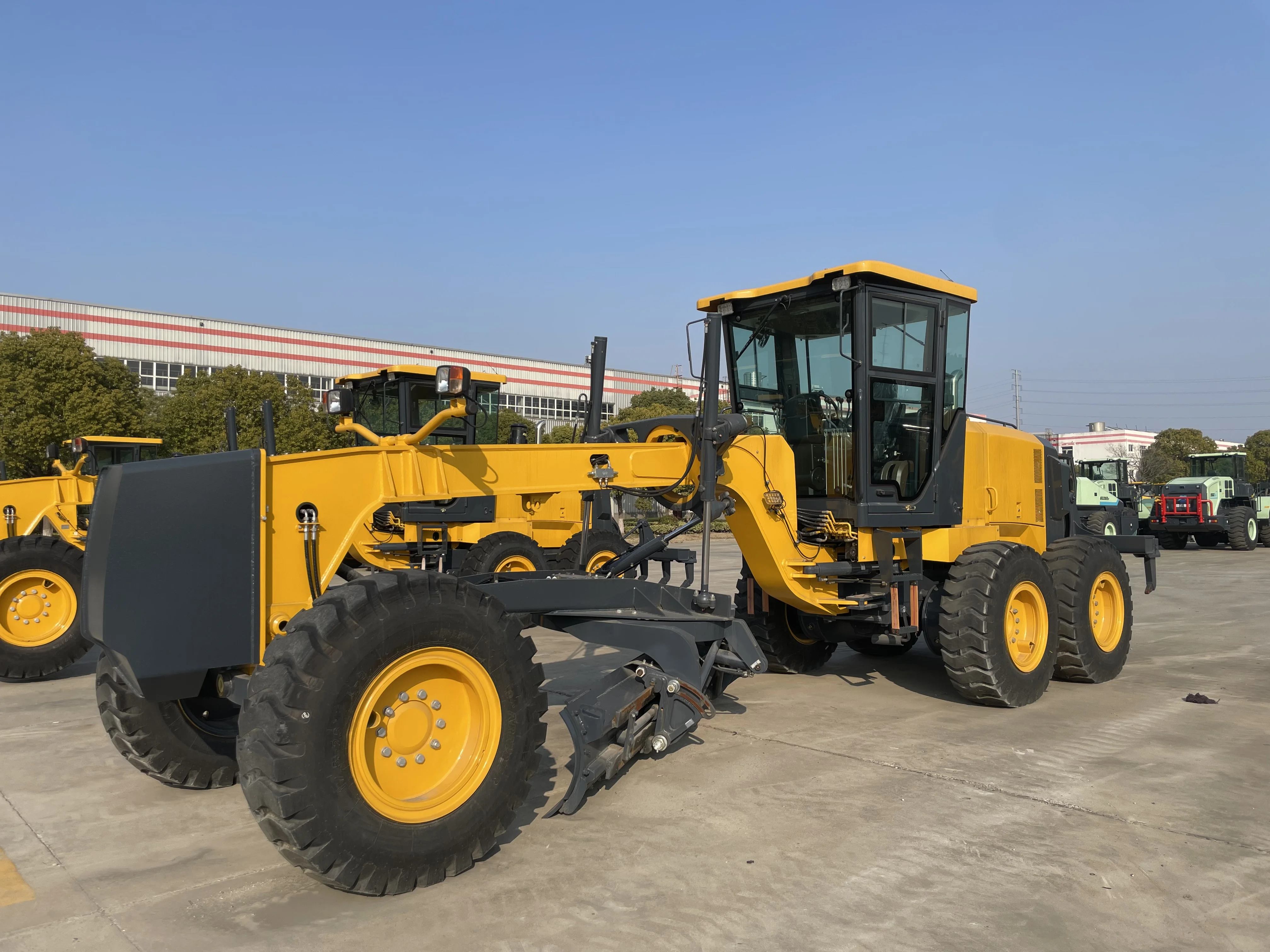

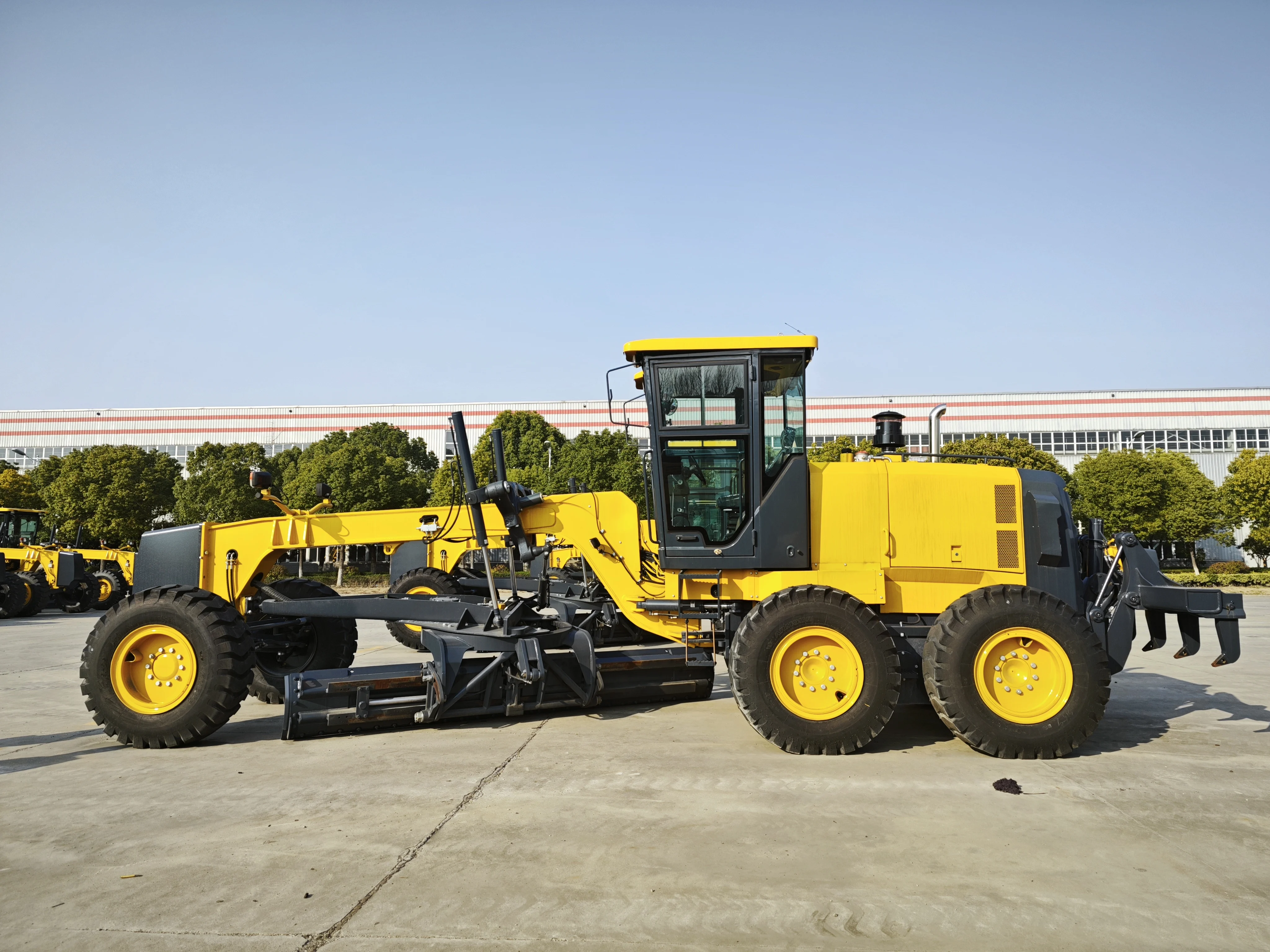

Motor Grader
Motor grader is a high-speed, high-efficiency, high-precision and multi-purpose earthmoving engineering machine. It is widely used in road, airport and other large-scale ground leveling operations. It can also stir road surface mixtures, remove snow, push loose materials, and maintain soil and gravel roads.
SCOPE OF USE：APY series motor grader is articulated, hydraulic-driven, self-propelled construction machine. It is featured by mufti-function and high efficiency, an ideal machine for large-scale land leveling, also can be used for ditching, slope scraping, bulldozing, ripping, virgin land scarifying and snow-removing. APY series motor grader is suitable for construction projects ranging from road, highway, railway, airport, harbor, dam, industrial and farm land leveling.
Main Feature
It adopts power shift transmission featuring single-handle manipulation and elector-hydraulic control
Six forward and three reverse gears
Highly efficient hydraulic system with hydraulic lock, enabling normal operation of every unit
Fully hydraulic brake system provides high working safety and reliability
NO-SPIN differential, auto locking and unlocking function, great stability and powerful traction
Box-type frame and advanced transmission make it able to finish heavy-duty task
Front dozer and rear ripper as desired
Technical Parameters
Product Model | APY135 | APY165 | APY180 | APY220 |
Operating Weight | 13,800kg | 15,000kg | 16,000kg | 16,900kg |
Front Axle Load | 4,000kg | 4,150kg | 5,150kg | 5,820kg |
Rear Axle Load | 95,800kg | 108,500kg | 108,500kg | 110,800kg |
Max. Forward Speed | 38.3km/h | 40.4km/h | 36.0km/h | 36.8km/h |
Max. Backward Speed | 24.4km/h | 25.7km/h | 25.0km/h | 24.8km/h |
Speed Gear Number | F6/R3 | F6/R3 | F6/R3 | F6/R3 |
Turning Radius | 7,500mm | 7,500mm | 7,800mm | 7,800mm |
Hydaulic System Pressure | 18MPa | 18MPa | 18MPa | 18MPa |
Size of Blade (L×H) | 3660×610mm | 3660×610mm | 3965×610mm | 3965×610mm |
Front Wheel Track | 2150mm | 2150mm | 2150mm | 2150mm |
Rear Wheel Track | 2165mm | 2255mm | 2255mm | 2255mm |
Wheelbase | 5347mm | 5347mm | 5647mm | 5647mm |
Engine Power | 97kW/Cummins | 125kW/Cummins | 132kW/Cummins | 158kW/Cummins |
Overall Dimension (L×W×H) | 8270×2495×3390mm | 8305×2695×3420mm | 8605×2695×3420mm | 8605×2695×3420mm |
For more parameter information, click the link to contact us
Hot Selling Products
Company Profile
Professional Road Maintenance Equipment Manufacturer

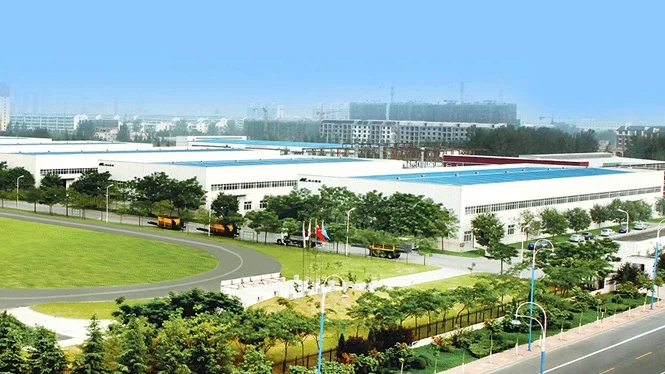

SG Factory, located in Xinxiang, Henan Province, is the highway maintenance equipment production base and R & D center of ACE Group. It enjoys the formidable strength due to long-term effort to develop and accumulate advanced processing technology.
SG Factory offers a full range of road maintenance equipment as well as solutions to road distresses. ACE’s asphalt distributor, slurry paver, chip sealer, chip spreader, binder agent spreader, pothole patcher have gained a reputation both at home and abroad.
The Only National Engineering Laboratory for Highway Maintenance Equipment in China.
Supported by 5 standard factories, ACE boasts an annual production capacity of 500 sets of machine.
Our experienced engineers are on standby to assist you with troubleshooting.
Construction Case
Concrete Paver Machine
Chip Spreader
Motor Grader
Asphalt Distributor Truck
Micro Surfacing/Slurry Paver
Pothole Patcher
Synchronous Chip Sealer
Binding Agent Spreader
Asphalt Milling Machine
We are trying our best to provide the best motors grader and other general equipment. Professional and high-quality after-sale service has enhanced our market competitiveness, and competitive price and discount makes our equipment preferred globally. Now they are very popular in Poland, Russia, Indonesia, Nigeria, and some other countries.
Certificate
Till now, we have obtained 156 technical patents. As a result of our consistent focus on quality, our company has received the ISO9001:2000 certificate, and our products like motor graders and asphalt distributors have also been awarded the CE and EAC certificates. So please feel secure in your purchase.
Q: How to heat the asphalt?
A1: It's heated by heat conducting oil furnace and direct heating asphalt tank.
Q: How about the difference between a direct heat asphalt tank and a thermal oil asphalt tank?
A2: Direct heat asphalt tank belongs to the ordinary tank, with no heat conduction oil system, and the price is relatively
cheap,which is also called “tank in a tank”. Asphalt is heated by the small tank inside the tank, without any heat conduction oil system. Heat-conducting oil furnace type asphalt tank used an oil heat-conducting oil system, and coiled tubing for high heating speed, and all the oil can be pumped clean.
Q: How to choose the right machine for project?
A3: According to the capacity require per day, need to work how many days, how long destination site, etc.Engineers online will provide service to help you choose the right model also.
Q: What is the delivery time?
A4: 20-40 days after receiving advance payment.
Q: What are the payment terms?
A5: T/T, L/C, Credit card (for spare parts) are all accept.
Q: What kind of trade terms available from your side?
A. We can deal by EXW, FCA, FOB, CFR, DAP. CIF, DDP. etc.
Q: How to guarantee the trade safety if I made the payment?
A. We can deal on Alibaba by trade assurance order, so that both parties can be guaranteed.
Q: What's your supportive policy for distributors in overseas market?
A. We support in many aspects including marketing,promotion, product development/improvements, service training, advertising, etc.
Q: If I have other questions, whom should I ask?
A. You can contact us here online, our sales will respond within 10 mins.
A1: It's heated by heat conducting oil furnace and direct heating asphalt tank.
Q: How about the difference between a direct heat asphalt tank and a thermal oil asphalt tank?
A2: Direct heat asphalt tank belongs to the ordinary tank, with no heat conduction oil system, and the price is relatively
cheap,which is also called “tank in a tank”. Asphalt is heated by the small tank inside the tank, without any heat conduction oil system. Heat-conducting oil furnace type asphalt tank used an oil heat-conducting oil system, and coiled tubing for high heating speed, and all the oil can be pumped clean.
Q: How to choose the right machine for project?
A3: According to the capacity require per day, need to work how many days, how long destination site, etc.Engineers online will provide service to help you choose the right model also.
Q: What is the delivery time?
A4: 20-40 days after receiving advance payment.
Q: What are the payment terms?
A5: T/T, L/C, Credit card (for spare parts) are all accept.
Q: What kind of trade terms available from your side?
A. We can deal by EXW, FCA, FOB, CFR, DAP. CIF, DDP. etc.
Q: How to guarantee the trade safety if I made the payment?
A. We can deal on Alibaba by trade assurance order, so that both parties can be guaranteed.
Q: What's your supportive policy for distributors in overseas market?
A. We support in many aspects including marketing,promotion, product development/improvements, service training, advertising, etc.
Q: If I have other questions, whom should I ask?
A. You can contact us here online, our sales will respond within 10 mins.
