Product Overview
Description
Products Description

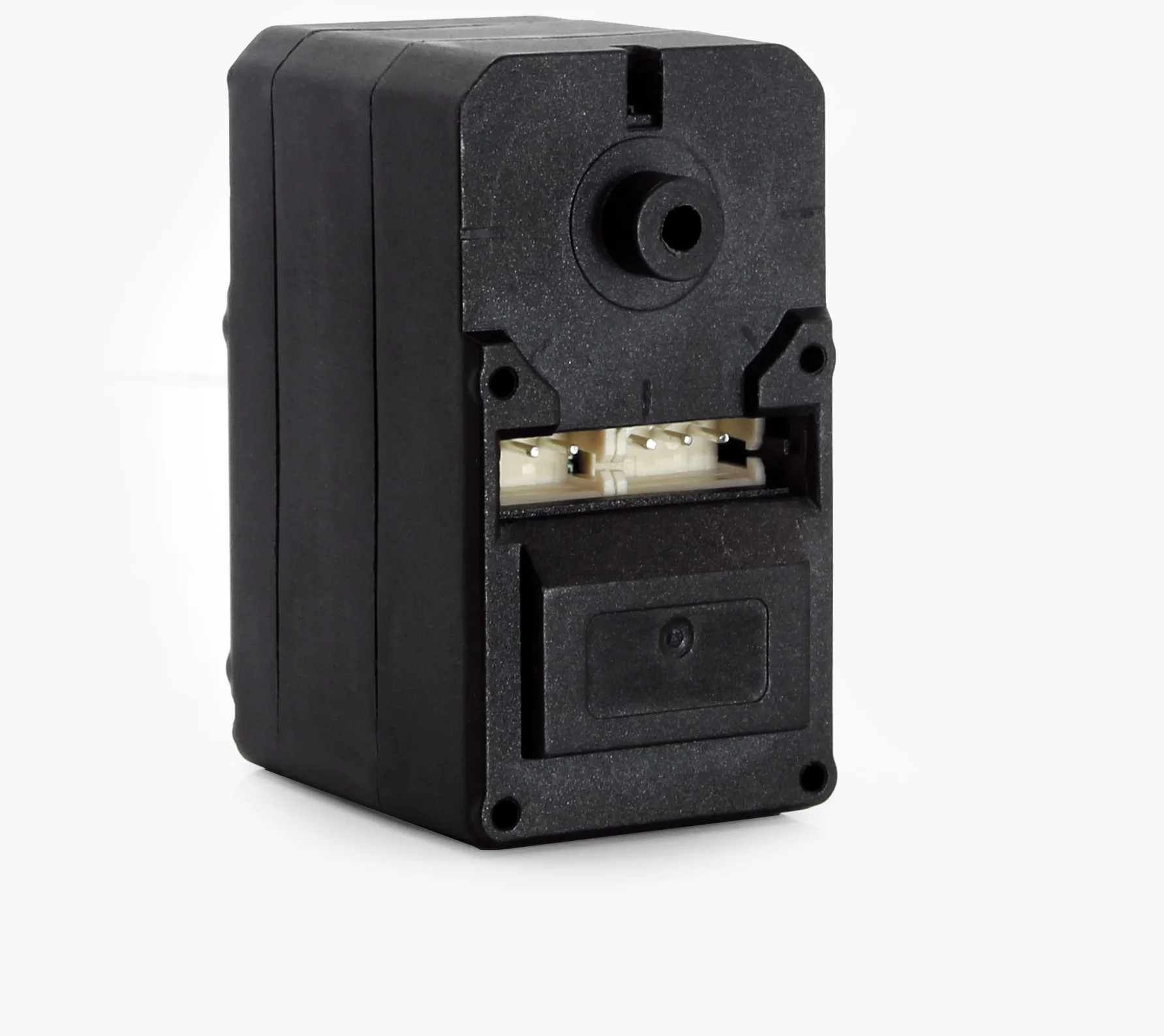

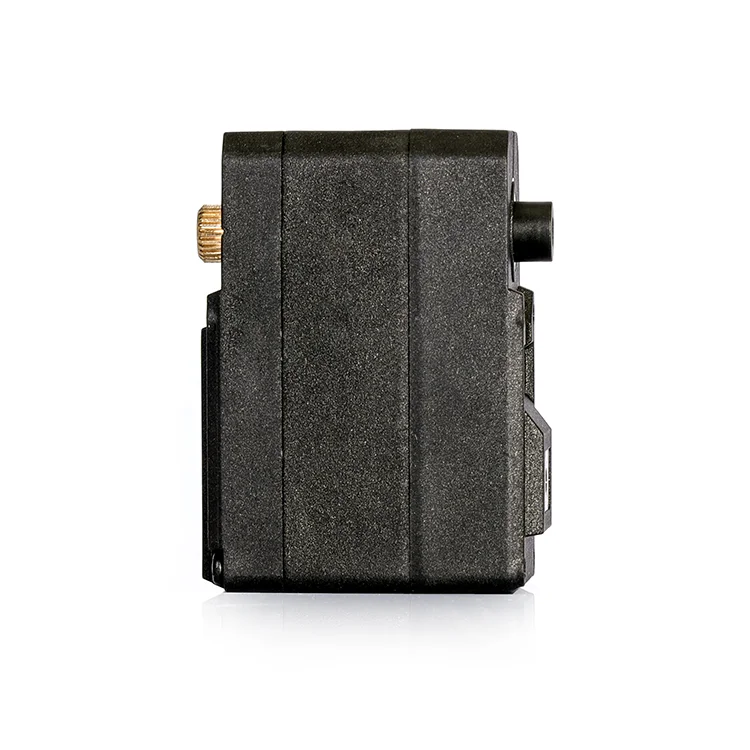

Model : SM40BL
Size : 46.5mm*28.5mm*34mm
Weight : 100g
Gear type : Steel Gear (Gear Ratio 353:1 )
Limit angle : No Limiter
Electronic Protection : Over Load,Over Current,Over Voltage,Over Hot
Operating Modes :
Mode 0: Angle servo mode
Mode 1: Speed closed loop motor mode
Mode 2: Speed open loop motor mode
Mode 3: Step mode
Multi-Loop Mode : The maximum accuracy can be positive or negative 7 circle absolute position control, but the number of power-off coil is not saved
Step Middle Position : One key is more accurate, 360 degree Angle arbitrary position installation, one key is more than the current position is the middle
Bearing : 2 Ball bearings
Horn gear spline : 25T (0D5.96mm)
Horn type : Aluminium
Case : Aluminium
Connector wire : 150mm ±5 mm
Motor : Brushless motor
Command signal : Bus Packet Communication RS485
Protocol Type : Half duplex Asynchronous Serial Communication
ID range : 0-253
Communication Speed : 38400bps ~ 1 Mbps
Running degree : 360°(when 0～4095)
Feedback : Load,Position,Speed,Input Voltage,Current,Temperature
Position Sensor Resolution : 360° (when 0~4095)-CW
Feedback : Load,Position,Speed,Input Voltage,Current,Temperature
Position Sensor Resolution : 360° (when 0~4095)-CW

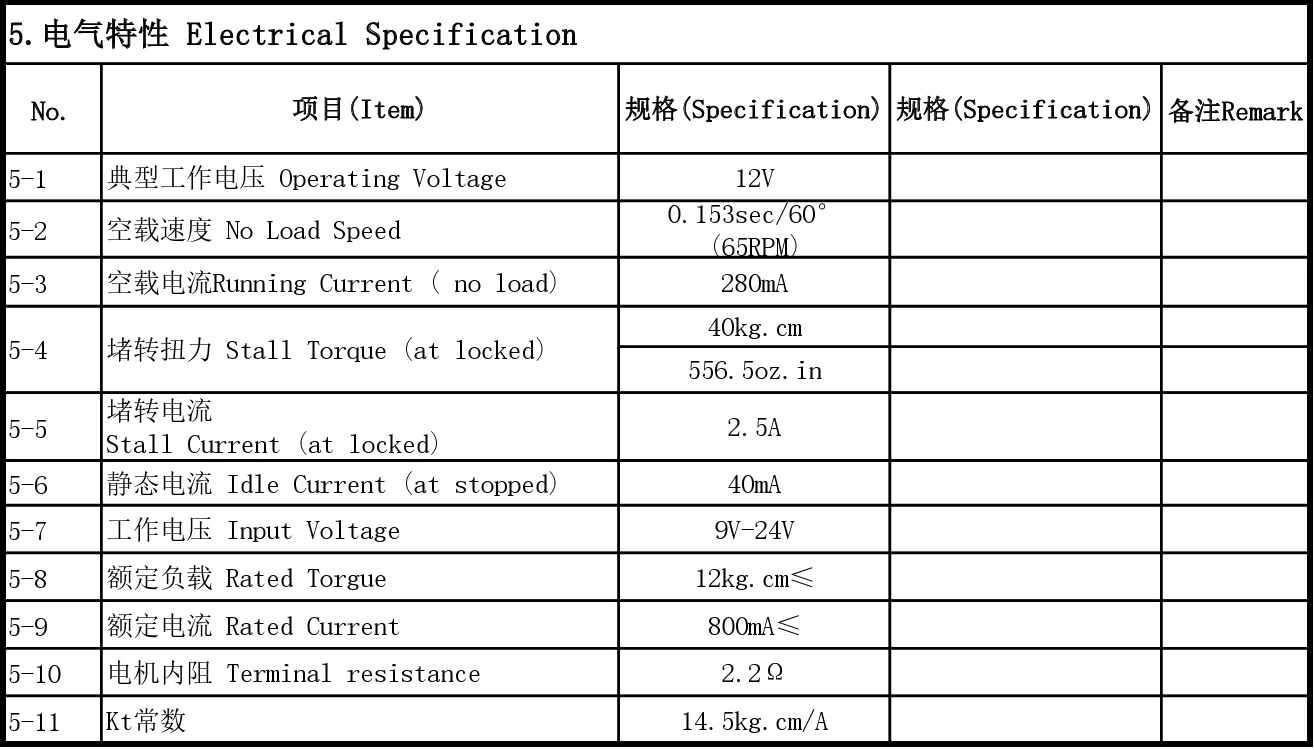

Electrical Specification

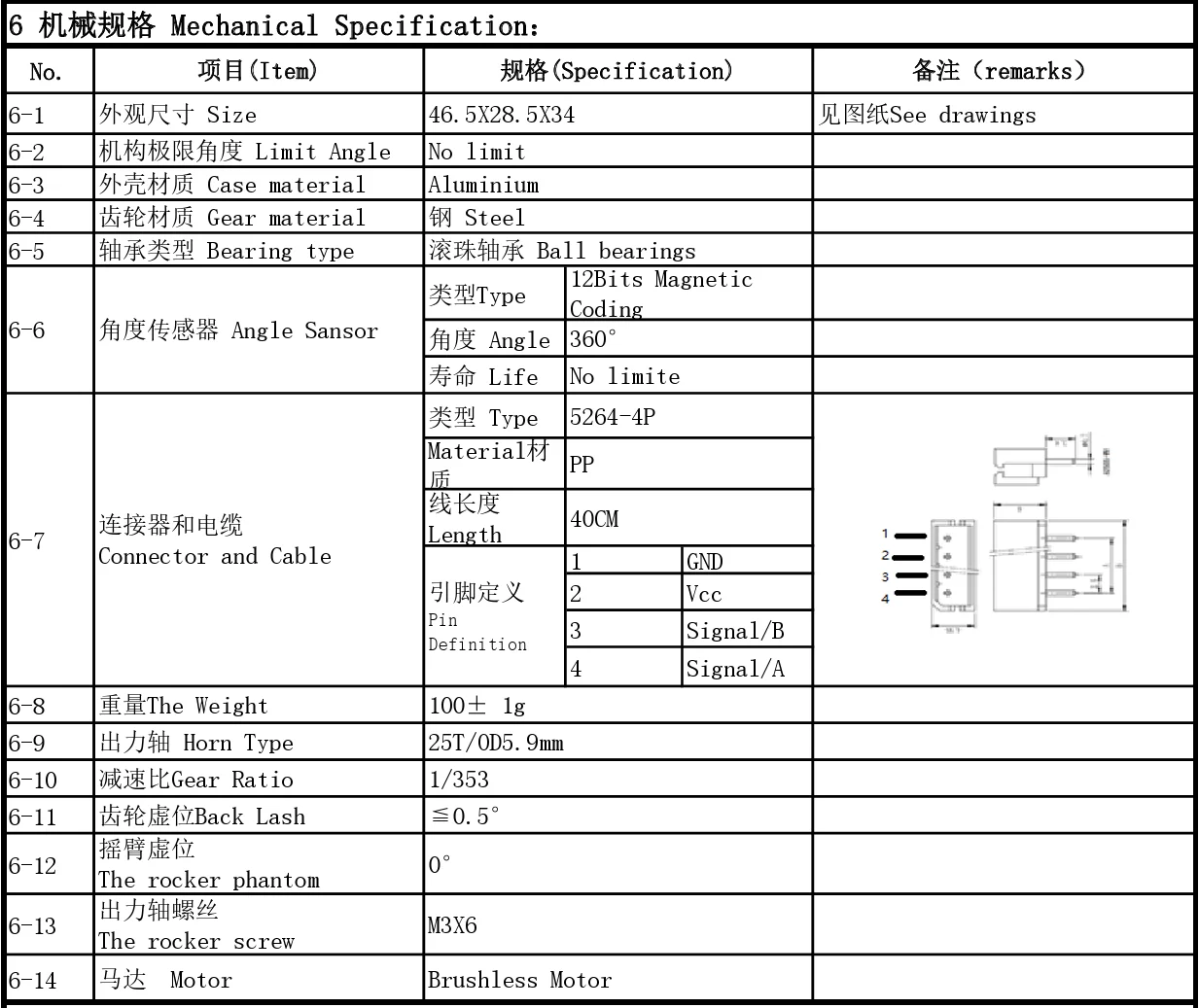

Mechanical Specification
