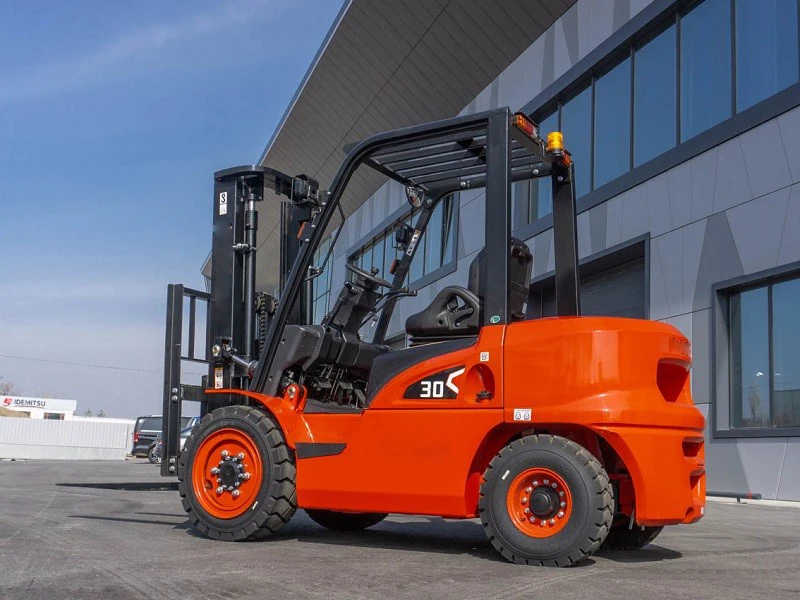

3.5ton diesel forklift truck CPCD35 X with side shifter
- Category: >>>
- Supplier: Newindu Construction Engineering (shanghai) Co. Ltd.Newindu Ltd.
Share on (1601128419039):
Product Overview
Description
Products Description
X series 3.5ton diesel forklift truck CPCD35-X
Improved operational comfort:
Equipped with mast buffer, rear axle buffer and delayed valve operation, which greatly improves driver comfort;
Ratcheting hand brake that accords with arm movement for comfortable and easy operation;
Improved security:
Three-stage drive axle, realizing small front suspension design, improving longitudinal stability of the whole machine;
High-mounted rear axle structure improves the lateral stability of the whole machine;
Energy efficient:
AC lifting, climbing and driving performance improvement;
Equipped with LED signal lights, the energy saving is more than 80%;
Easy maintenance:
Equipped with a large-screen liquid crystal display instrument, which can directly display the vehicle running status, with fault display and misoperation alarm functions.
For users who need to change the battery frequently, they can choose the battery side to take the model to achieve rapid battery replacement.
Equipped with mast buffer, rear axle buffer and delayed valve operation, which greatly improves driver comfort;
Ratcheting hand brake that accords with arm movement for comfortable and easy operation;
Improved security:
Three-stage drive axle, realizing small front suspension design, improving longitudinal stability of the whole machine;
High-mounted rear axle structure improves the lateral stability of the whole machine;
Energy efficient:
AC lifting, climbing and driving performance improvement;
Equipped with LED signal lights, the energy saving is more than 80%;
Easy maintenance:
Equipped with a large-screen liquid crystal display instrument, which can directly display the vehicle running status, with fault display and misoperation alarm functions.
For users who need to change the battery frequently, they can choose the battery side to take the model to achieve rapid battery replacement.
Contact way
Maura Guo
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +17789202388
Mobile / Whatsapp/ Wechat: +86 17789202388
Web: www.newindu.com
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +17789202388
Mobile / Whatsapp/ Wechat: +86 17789202388
Web: www.newindu.com
Product Paramenters
No. | Item | ||||
1 | Model | CPCD30-XRW10 CPCD30-XRW33 CPCD30-XRG2 CPCD35-XRW55 CPCD30-XRW73 | CPCD30-XRG2 CPCD35-XRW55 CPCD30-XRW73 | CPCD38-XRG2 CPCD35-XRW55 | |
2 | Engine | ISUZU/C240NKFC YANMAR/4TNE98 XINCHAI/C490BPG MITSUBISHI/S4S ISUZU/4JG2 | XINCHAI/C490BPG MITSUBISHI/S4S ISUZU/4JG2 | XINCHAI/C490BPG MITSUBISHI/S4S | |
3 | Rated capacity | kg | 3000 | 3500 | 3800 |
4 | Load center | mm | 500 | 500 | 500 |
5 | Self-weight | kg | 4380 | 4750 | 4950 |
6 | Tire size, front | 28×9-15-14PR | 28×9-15-14PR | 28×9-15-14PR | |
7 | Tire size, rear | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | |
8 | Height, mast lowered | mm | 2054 | 2169 | 2169 |
9 | Lifting height | mm | 3000 | 3000 | 3000 |
10 | Length to face of forks | mm | 2700 | 2780 | 2810 |
11 | Overall width | mm | 1225 | 1225 | 1225 |
12 | Fork size(s/e/l) | mm | 45×122×1070 | 50×122×1070 | 50×122×1070 |
13 | Turning radius | mm | 2400 | 2440 | 2480 |
Details Images
