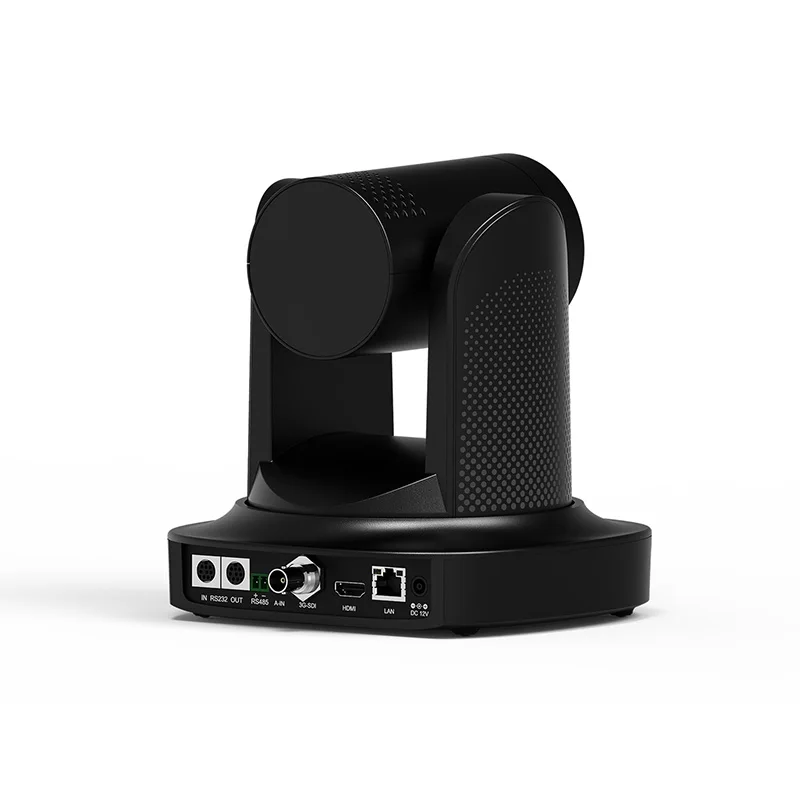

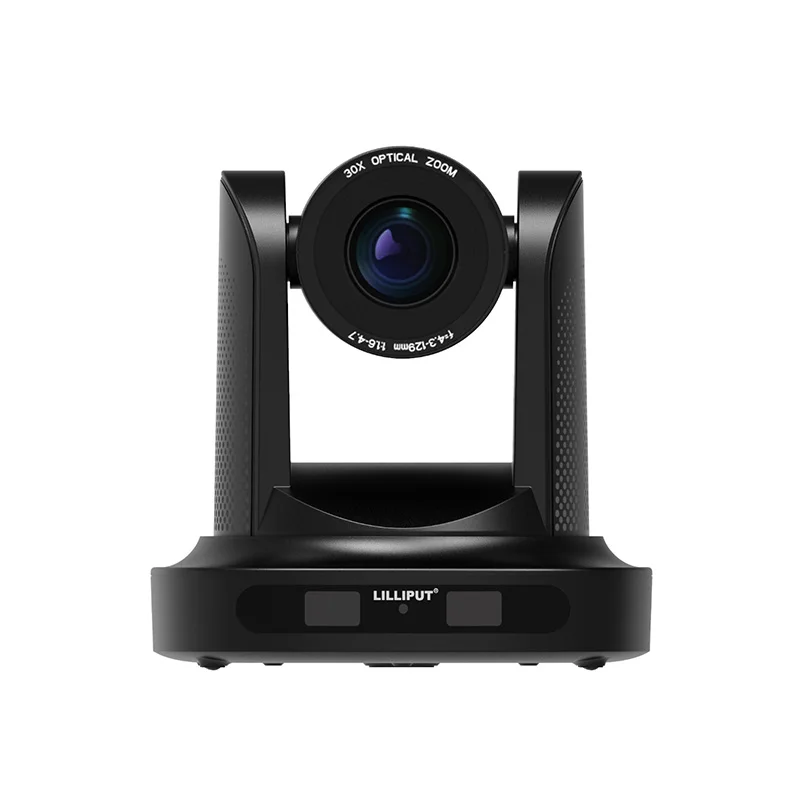

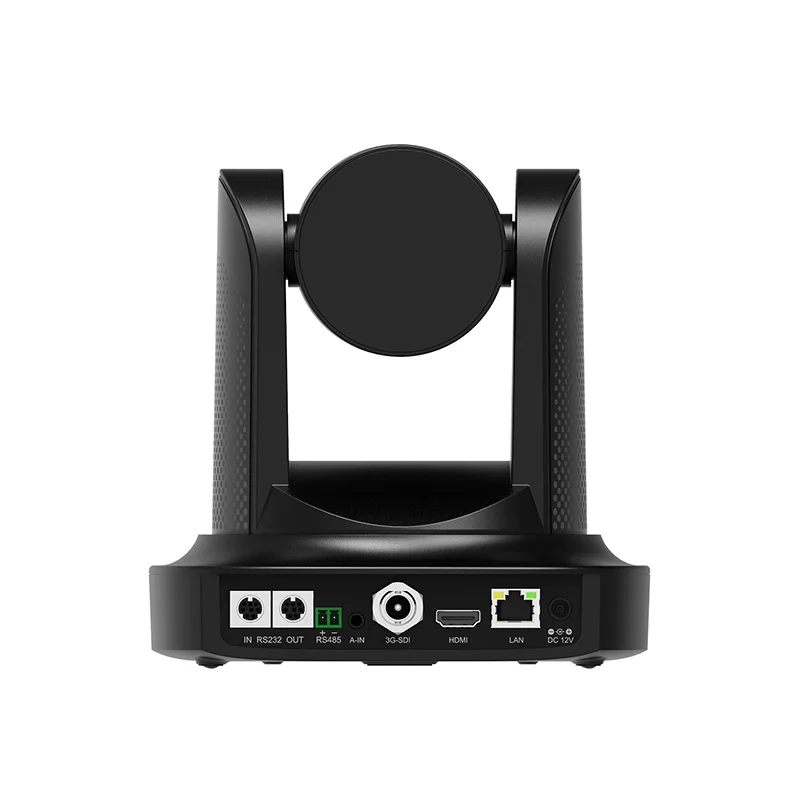

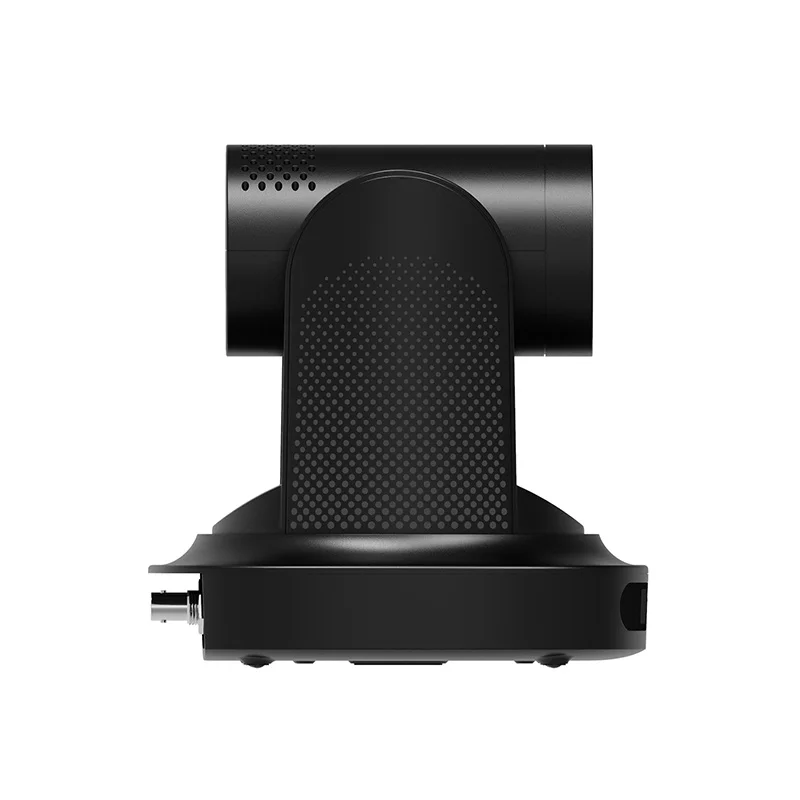

Professional PTZ Poe Camera 30x 20x Optical Zoom with LCD Display 3G SDI for Church Camera
- Category: >>>
- Supplier: Zhangzhou Lilliput Electronic Technology Co. Ltd.
Share on (1601137696307):
Product Overview
Description
PTZ Video Conference Camera 20x/30xOptical Zoom NDI|HX 5.0 applications in broadcasting, education, church and other fields
Product Description
- Structure -
Specification
INTERFACES | MODEL | C20N |
LAN Port | IP Streaming: RTSP/RTMP/SRT/ PoE | |
LAN Port Audio Input | 3.5mm audio (Line-level) | |
ontrol Interface | RS-232 In and Out, RS485 In | |
Control Protocol | Onvif, VISCA over IP/ VISCA/ Pelco-D/P | |
Video Format | HDMI/ SDI Video up to 1080P60 | |
Video Out | SDI, HDMI | |
CAMERA PARAMETERS | Optical Zoom | 20x /30x |
Focal Length | F=5.5~110mm | |
View Angle | 2.34°(tele) 65.1°(wide) | |
Aperture Value | F1.6 ~ F4.7 | |
Sensor | 1/2.8 inch, High quality HD CMOS sensor | |
Effective Pixels | 16: 9, 2.07 Megapixel | |
Digital Zoom | 30× | |
Minimum Illumination | 0.5Lux (F1.8, AGC ON) | |
DNR | 2D & 3D DNR | |
SNR | >55dB | |
White Balance | Auto/ Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K | |
WDR | OFF/ Dynamic level adjustment | |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
Other Camera Parameters | Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC | |
PTZ PARAMETERS | Rotation Angle | Pan: ±170°, Tilt: -30°~+90° |
Rotation Speed | Pan: 60°/sec (Range: 0.1 -180°/sec), Tilt: 30°/sec (Range: 0.1-80°/sec) | |
Preset Number | 255 presets (10 presets by remote controller) | |
OTHERS | Input Voltage | DC12V±10% |
Input Current | 1A (Max) | |
Consumption | 12W (Max) | |
Temperature | Working Temperature: -10~+50°C, Store Temperature: -10~+60°C | |
Working Humidity | Working Humidity: 20~80% RH (no condensation), Store Humidity: 20~95% RH (no condensation) | |
Dimension | 170×170×180.31mm | |
Weight | Net weight: 1.25kg; Gross weight: 2.1kg | |
Accessories | Power Supply, RS232 Control Cable, Remoter, Manual | |
Installation Methods | 1/4 inch tripod hole; Bracket installation for Optional |
