Conference Device Simultaneously Interpretator Microphone Headphones Interpreters With Simultaneous Interpretation Earphone

Strong Interference Immunity

Transmitting in 2~6 MHz(IEC61603 BAND4)frequency band eliminates  disturbance from high frequency lighting systems;

Highly privacy protection

Avoiding eavesdropping and radio interference

Extensibility

    It can be used together with wired interpretation system, and FS-FHSS wireless interpretation system from Gonsin Series.

Unlimited Quantity of Radiator

The input level indicator shows input level directly;

19-inch rack mounting using.

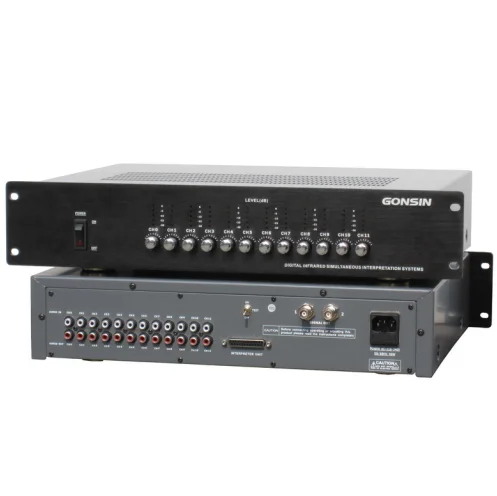

Technical Specifications

Frequency Range

2.0~6.0 Mhz

Modulation mode

FM/Superheterodyne PLL

Channels

4/6/8/12

Indication

Channel level indication

Weight

7.6kg

Operating temperature

0~45℃

Storage temperature

-20~50℃

Audio input/output

Unbalance RCA X6

Dimension (W×H×D)

485mm×325mm×90mm

Features:

* Compliant to IEC 60914;

* Compatible with any other wired simultaneous interpretation system and IR simultaneous

interpretation system;

* Transmitting in 2.0~6.0 MHz (EC61603 BAND4) frequency band eliminates disturbance from high

frequency lighting systems;

* Multiple audio output/input channels;

* Transmitter can support up to 12 channels simultaneously;

* Unique channel detection function.

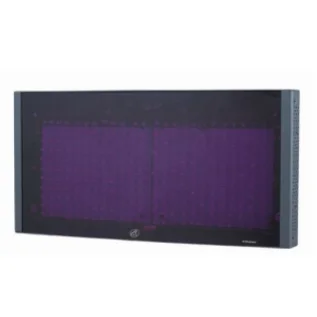

Technical Specifications

Frequency Range

2.0~6.0 Mhz

Modulation mode

FM/Superheterodyne PLL

IR Output Power

25W/35W

Coverage range

40 (25W) / 60 (35W) meters

Angle of half intensity

±22°

Transmitted power

50%/100%(min/max)

Power

110/240VAC,50/60Hz

Weight

3.8kg

Operating temperature

0~45℃

Storage temperature

-20~50℃

Dimension (W×D×H)

450mm x 83mm x 211mm

Features:

* Compliant to IEC 60914 and IEC 61603;

* Transmitting in 2.0~6.0MHz frequency (IEC61603 BAND4);

* Eliminates disturbance from high frequency lighting systems;

* Emission power 25W/35W available;

* Three working status indicators;

* Strong emission ability;

* Indicator to show operation mode;

* Synchronization ON/OFF with transmitter;

* Manual/Auto power switch.

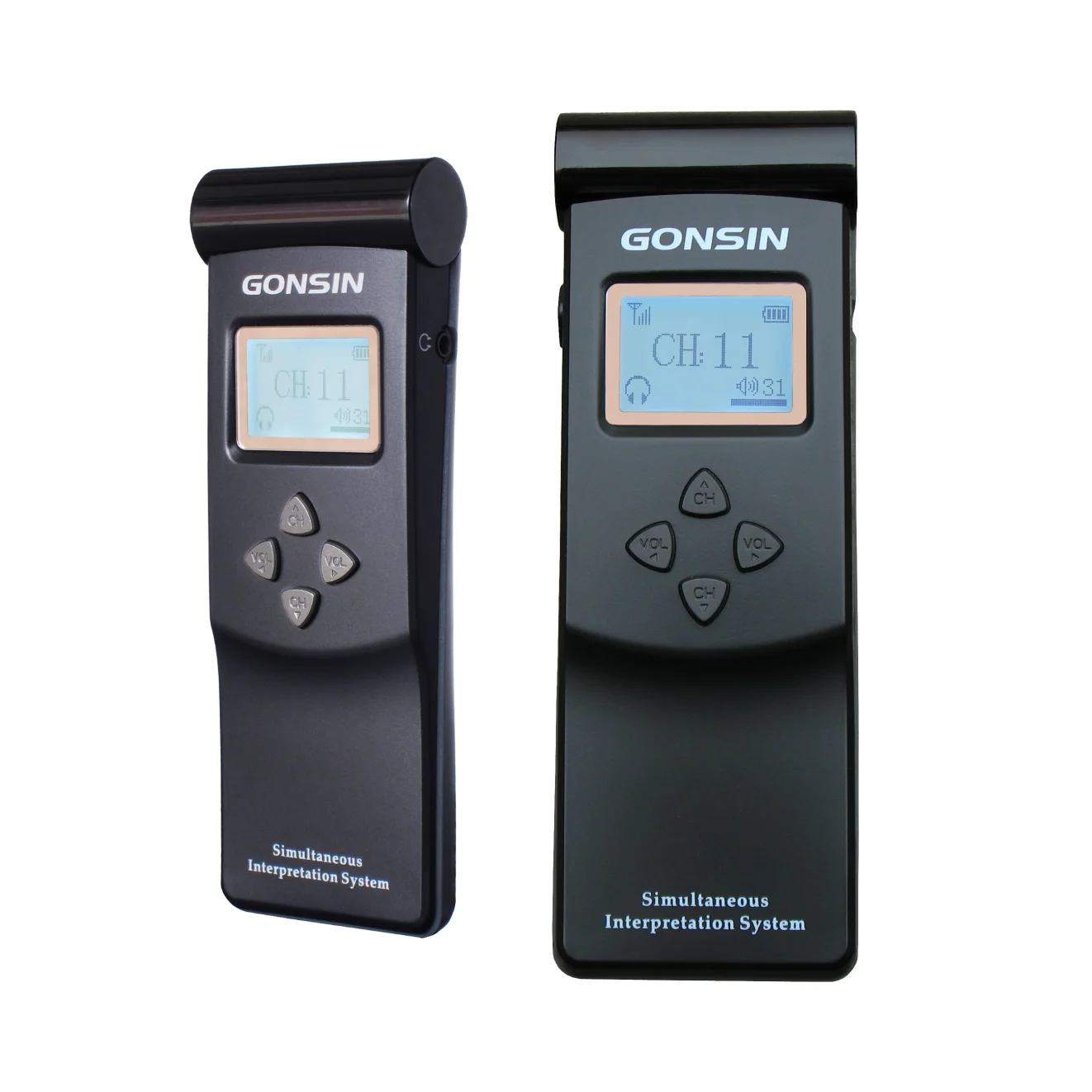

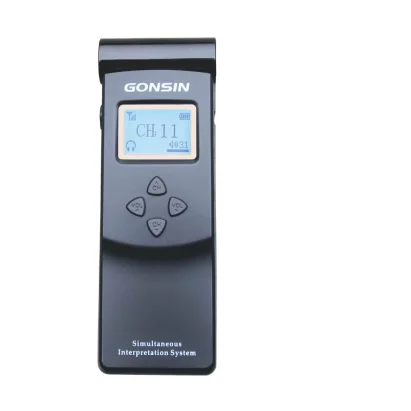

Technical Specifications

Frequency Range

2.0~6.0 Mhz

Modulation mode

FM/Superheterodyne PLL

Battery

3.7V Li-Ion battery

Supply voltage

2.3V~3.6V

Battery life

30hours

LCD parameter

Dimension 34mm×22mm
Lattice 96x64

Dimension(L*W*H)

159mm×55mm×26mm

Weight

0.12Kg

Operating temperature

0~45℃

Storage temperature

-20~50℃

Package

Portable aluminum box packing

Features:

* Streamlined design;

* Language of every channel can be displayed;

* Unique 270º super wide reception angle;

* Channel selection via up/down button;

* Supports 4/6/8/12 channels;

* Chargeable lithium battery;

* Battery can continuously work up to 30 hours;

* Headphone detection function;

* Operating information display on the LCD;

* Clear sound, high fidelity;

Channel

6/16

Frequency response

30Hz to 20KHz

Channel separation

> 85 dB

Distortion at 1 Khz

< 0.1%

Operating voltage

24V DC

Power consumption

2.5W

Maximum input power level

7.5V

Built-in loudspeaker

8Ω/2W

Audio input/output

2× MIC / 2× REC/2 × Headphone

Standard mic stem length

410 mm

Operating temperature

0℃to 45

Storage temperature

-20℃ to 50℃

LCD screen

Dimensions: 65mm*32mm
128×64 dot-matrix display
Blue backlit, white letter

Dimensions

247×145×95 mm(W×D×H)

Weight

1.2kg

Features:

Digitally-controlled workstation designed for 6 or 16-channel interpretation system

* LCD screen to display various information

* Support direct interpretation and relay interpretation

* Support dual mic relay interpretation

* Mic selection function

* L/M/H selectable output volume level

* 3pre-select incoming channels

* Automatic channel interlocking function

* Speaking speed remind function

* Pluggable microphone stem

Technical Specifications

Power input

AC100V~240V,50/60Hz

Capacity

60 units

Charging time

2.5 hours

Charging indicator

LED indicator

Dimension (L*W*H)

680mm×430mm×245mm

Weight

11 Kg

Operating temperature

0~45

Storage temperature

-20~50

Features:

* Intelligent charging management

* Independent LED indicators for charging status

* Portable aluminum storage case

* Anti-misplug design for charging port
