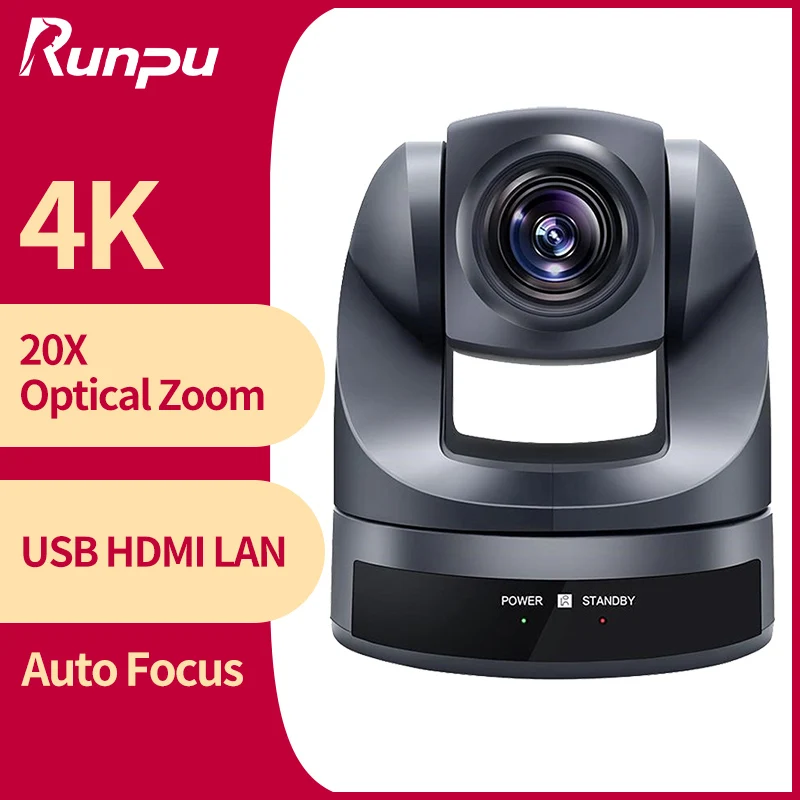

Runpu HK10UH Football AI Camera 4K 20X HD MI Conference Room Camera LAN USB3.0 POE PTZ Camera for live youtube
- Category: >>>
- Supplier: Beijing Runpu Shitong Technology Co. Ltd.
Share on (1601148128295):
Product Overview
Description
4K 20X HDMI LAN USB3.0 POE PTZ Camera Parameters
Video Format: 3840×2160P@30fps/25fps
Effective Pixels: 8.5 megapixel, 16：9
Sensor: 1/2.8 inch high quality CMOS sensor
Video Output HDMI LAN USB3.0 POE
Optical Zoom: 20x Optical Zoom
View Angle: 8.8°～ 70°
Focus Length: f=4.34mm～41.66mm
AV: F1.85 – F2.43
Minimum Illumination: 0.5 lux （F1.8, AGC ON）
DNR: 2D & 3D
White Balance: Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus: Auto / Manual/ One Push Focus
Exposure: Auto / Manual
BLC: On/Off
Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR: >55dB

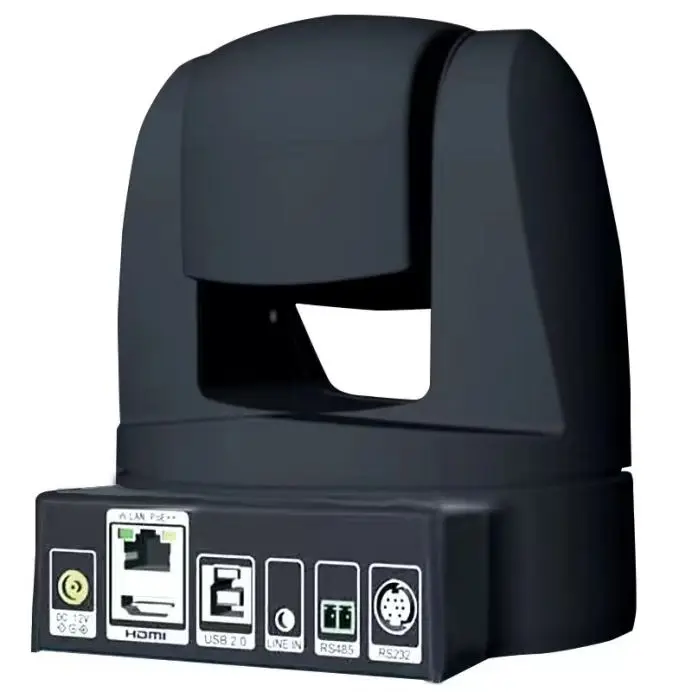

Input/output Interface
Video Output HDMI LAN USB3.0 POE
Video Compression Format MJPG, H.264, H.265
Control Interface RS232 (IN/OUT), RS485
Control Protocol VISCA/Pelco-D/Pelco-P
Power Interface HEC3800 outlet (DC12V)
USB Feature
Operation Systems: Windows 7, Windows8, Windows10, Mac osx, Linux, etc
Video Compression Format: MJPG, H.264, H.265
USB Communication Protocol: UVC
PTZ Parameters
Pan Rotation: -170°～+170°
Tilt Rotation: -30°～+90°
Pan Control Speed: 0.1 ～60°/sec
Tilt Control Speed: 0.1～30°/sec
Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
Preset Number: 255 presets (10 presets via remote control)
Video Format: 3840×2160P@30fps/25fps
Effective Pixels: 8.5 megapixel, 16：9
Sensor: 1/2.8 inch high quality CMOS sensor
Video Output HDMI LAN USB3.0 POE
Optical Zoom: 20x Optical Zoom
View Angle: 8.8°～ 70°
Focus Length: f=4.34mm～41.66mm
AV: F1.85 – F2.43
Minimum Illumination: 0.5 lux （F1.8, AGC ON）
DNR: 2D & 3D
White Balance: Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus: Auto / Manual/ One Push Focus
Exposure: Auto / Manual
BLC: On/Off
Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR: >55dB
Input/output Interface
Video Output HDMI LAN USB3.0 POE
Video Compression Format MJPG, H.264, H.265
Control Interface RS232 (IN/OUT), RS485
Control Protocol VISCA/Pelco-D/Pelco-P
Power Interface HEC3800 outlet (DC12V)
USB Feature
Operation Systems: Windows 7, Windows8, Windows10, Mac osx, Linux, etc
Video Compression Format: MJPG, H.264, H.265
USB Communication Protocol: UVC
PTZ Parameters
Pan Rotation: -170°～+170°
Tilt Rotation: -30°～+90°
Pan Control Speed: 0.1 ～60°/sec
Tilt Control Speed: 0.1～30°/sec
Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
Preset Number: 255 presets (10 presets via remote control)
2024 Year New Arrival 4K 20X HDMI LAN USB3.0 PTZ Camera Live Streaming | ||
Video Format | 3840×2160P@30fps/25fps | |
Image sensor | 1/2.8 inch high quality CMOS sensor | |
Effective pixel | 8.5 megapixel, 16：9 | |
Video output interface | hdmi lan usb3.0 poe | |
Lens | 20X Optical Zoom | |
View angle | 8.8°～ 70° | |
Aperture coefficient | f=4.34mm～41.66mm AV: F1.85 – F2.43 | |
Gain control | Auto/manual | |
Focus | Auto/manual | |
Horizontal rotation | - 170 degree to + 170 degree | |
Pitch rotation | - 30 degree to + 90 degree | |
The horizontal control speed | 0.1 ～ 60 degree / s | |
Pitch control speed | 0.1 ~ 30 degree/ S | |
Control protocol: | visca / PELCO-D / pelco-p; baud rate: 115200 / 9600 / 4800 / 2400 | |
Preset position | IR remote control supports 10 presets PELCO Protocol supports 255 presets | |
Minimum illumination | 0.5Lux (f1.8, AGC on) | |
Digital noise reduction | 2D & 3D digital noise reduction | |
Image stream | double stream output | |
Video compression format | h.265, H.264 | |
Audio compression format | AAC, MP3, g.711a | |
Network interface | 100m network port (10 / 100base-tx) 5gwifi (optional) | |
Network protocols | RTSP, RTMP, onvif, GB / t28181 | |
Power interface | hec3800 power socket (DC12V) | |
Power adapter | input ac110v-ac220v, output DC12V / 1.5A | |
Input voltage | DC12V ± 10% | |
Power consumption | 12W (maximum) | |
Work temperature | -10℃～+50℃ / 20%～80% | |
Storage temperature | -10℃～+60℃ / 20%～95% | |

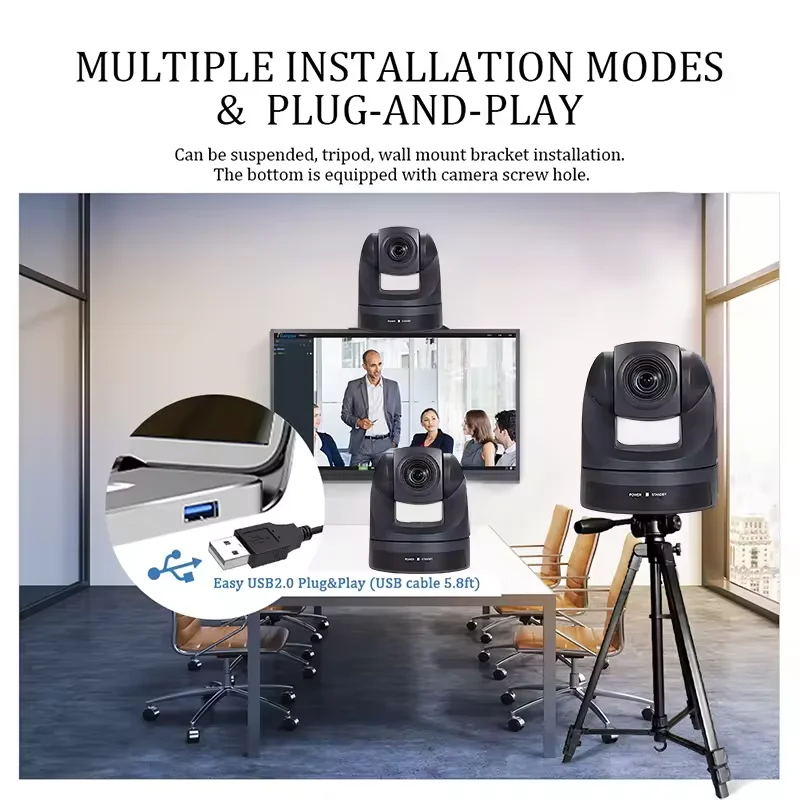

Installation | Support desktop, Tripod, Wall mount and Ceiling mount | |
