SP107E LED Pixel Music Controller LED Light Strip DC5V 24V APP Control RGBIC WS2811 2812 2815 TM1814 Bluetooth Controller
- Category: >>>
- Supplier: Glite Electronics Co. Ltd.
Share on (1601151608783):
Product Overview
Description
Product Description
SP107E (LED music controller)
Control Method | APP-music controller |
Input Voltage | DC 5-24V |
Pixel | 960 Pixels |
Control Distance | 30m |
Product weight | 40g |
Product size | 85mm*45mm*22mm |
WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105 |
1. Long distance APP remote control via Blutooth;
2. Support almost every kind of one-wire or two-wires LED driver IC ;
3. Support setting pixel number and segment number, support up to 960 pixels;
4. With 18 kinds of LED strip music effects, 30 kinds of LED matrix music effects and 180 kinds of non-music effects;
5. DC5V~24V wide range working voltage, reverse power supply input protection;
6. User setting saving;
2. Support almost every kind of one-wire or two-wires LED driver IC ;
3. Support setting pixel number and segment number, support up to 960 pixels;
4. With 18 kinds of LED strip music effects, 30 kinds of LED matrix music effects and 180 kinds of non-music effects;
5. DC5V~24V wide range working voltage, reverse power supply input protection;
6. User setting saving;
APP
Both IOS version and Android OS version are available. (hardware should support Bluetooth)
* Requires IOS version 10.0 or later;
* Requires Android OS version 4.4 or later;
* Search “LED Chord” in App Store or Google Play or scan this QR code to download and install the APP:
* Requires IOS version 10.0 or later;
* Requires Android OS version 4.4 or later;
* Search “LED Chord” in App Store or Google Play or scan this QR code to download and install the APP:
Instructions

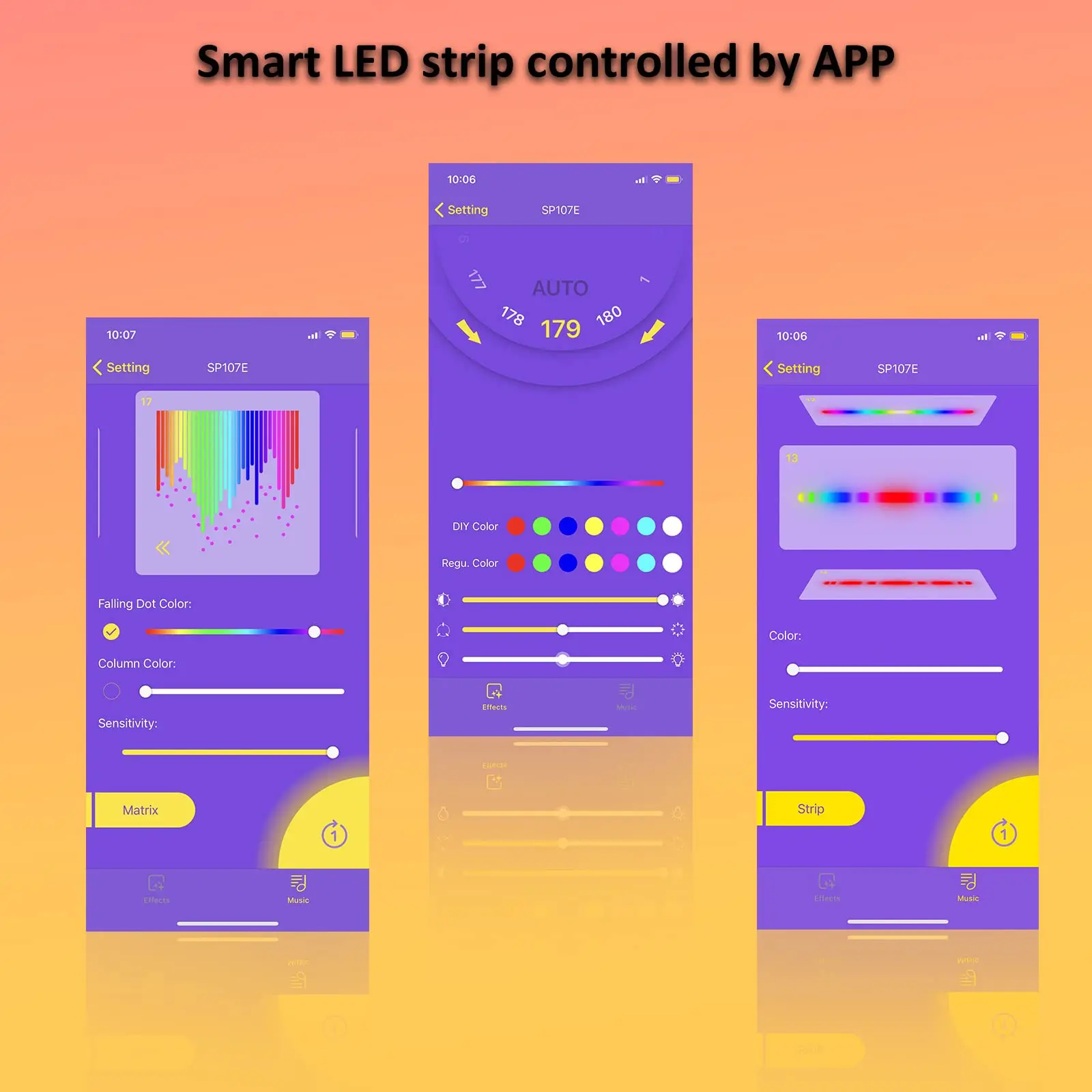

APP Operatings:
1.Make sure you have turn on Bluetooth on your phone;
2.Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller;
3.Select RGB order and IC type;
4.Adjust pixel number;
5.Press ENTER.
Audio Input:
There are two ways to input the audio signal on SP107E, AUX IN and Build-IN microphone;

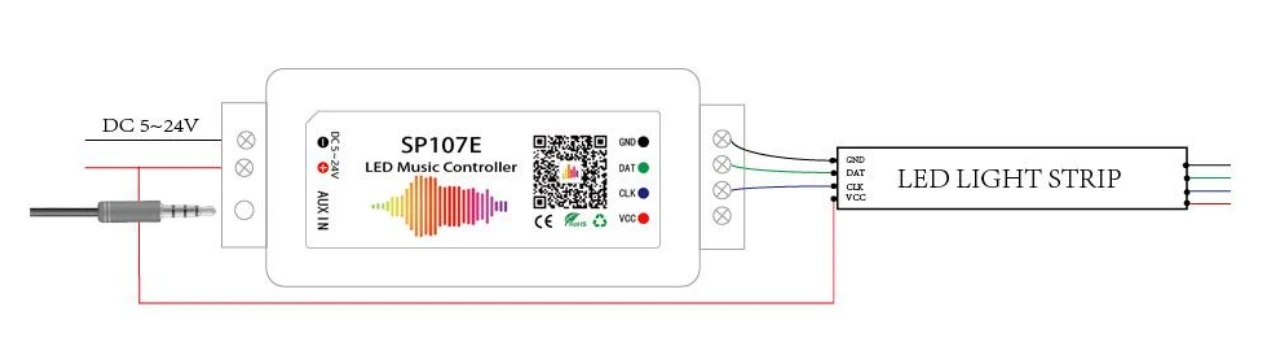

* AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3,Phone or tablet…)and the speaker(or headset), controller will automatically switch into AUX input mode;

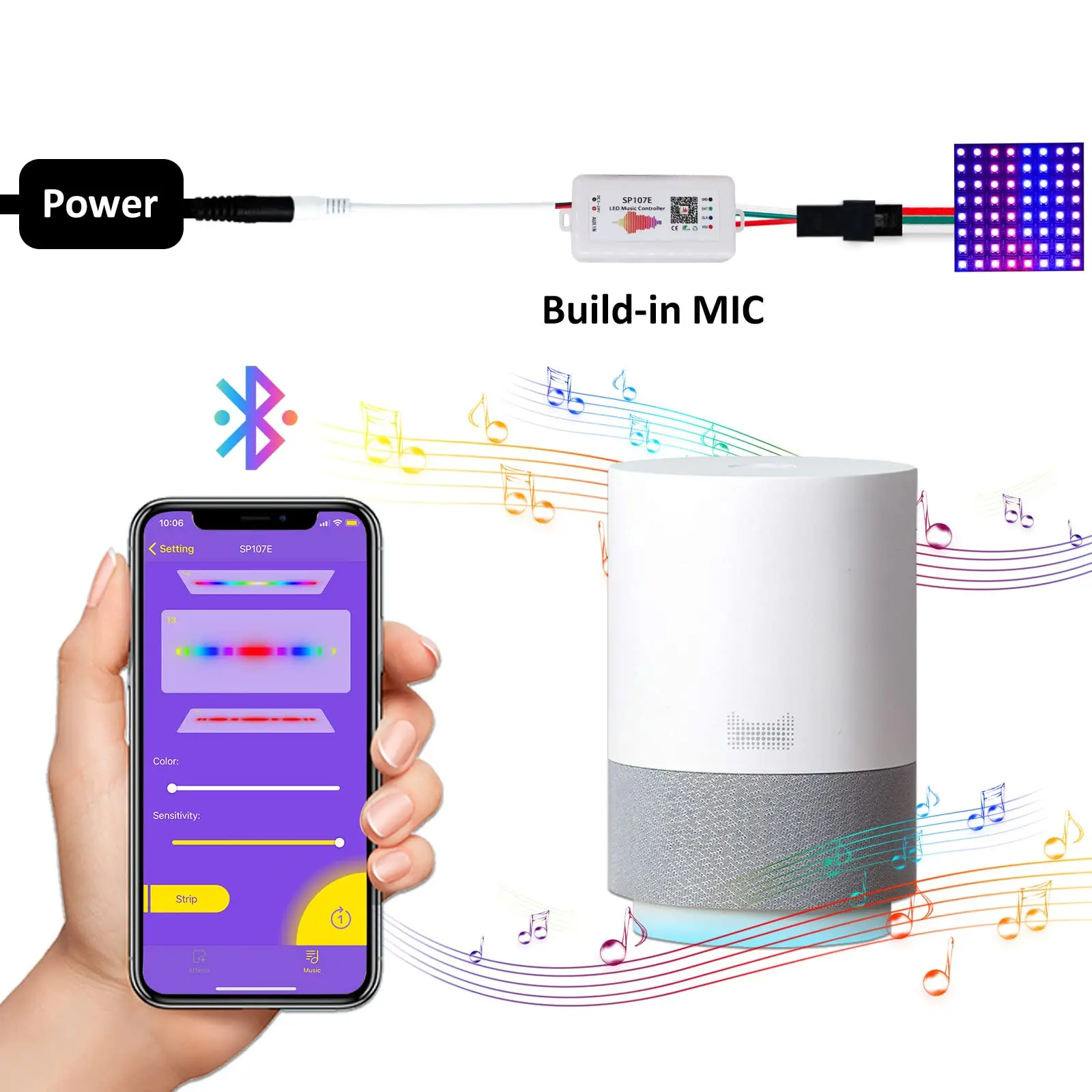

* MIC: Disconnect the audio cable, controller will automatically switch into microphone input mode
1.Make sure you have turn on Bluetooth on your phone;
2.Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller;
3.Select RGB order and IC type;
4.Adjust pixel number;
5.Press ENTER.
Audio Input:
There are two ways to input the audio signal on SP107E, AUX IN and Build-IN microphone;
* AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3,Phone or tablet…)and the speaker(or headset), controller will automatically switch into AUX input mode;
* MIC: Disconnect the audio cable, controller will automatically switch into microphone input mode
Company Profile
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
