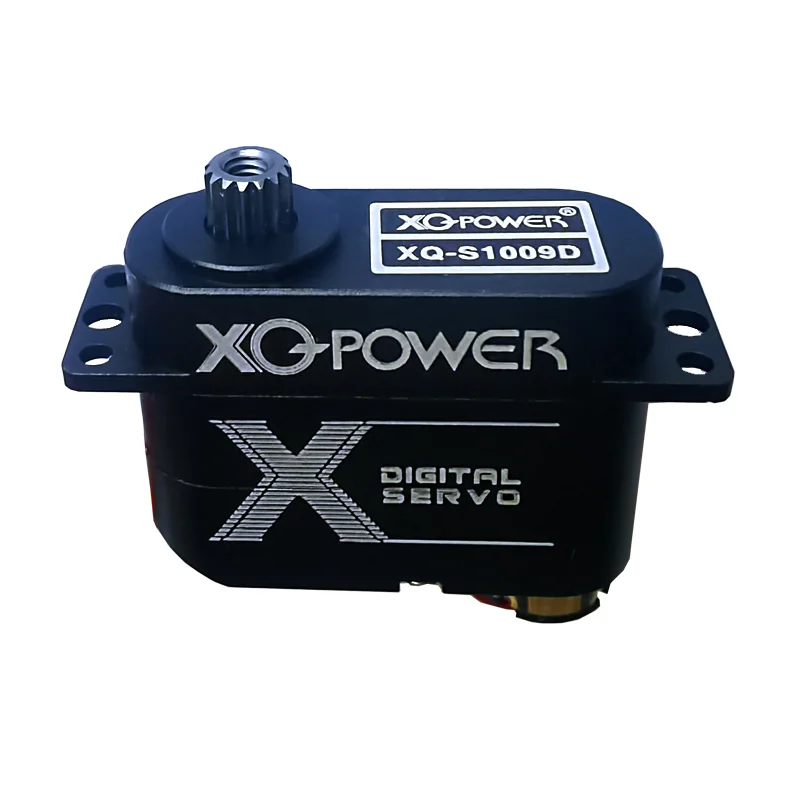

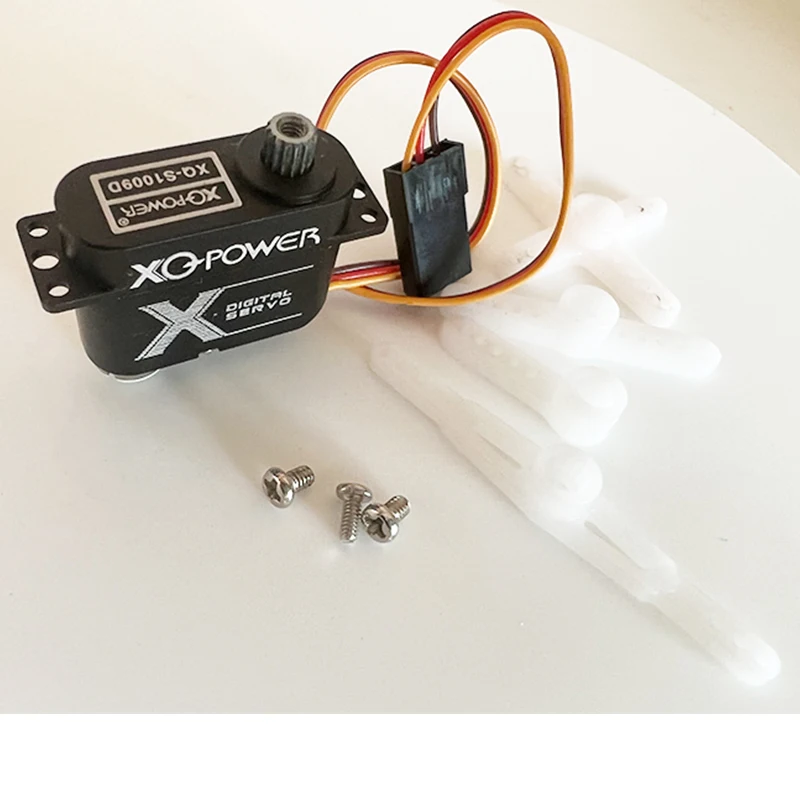

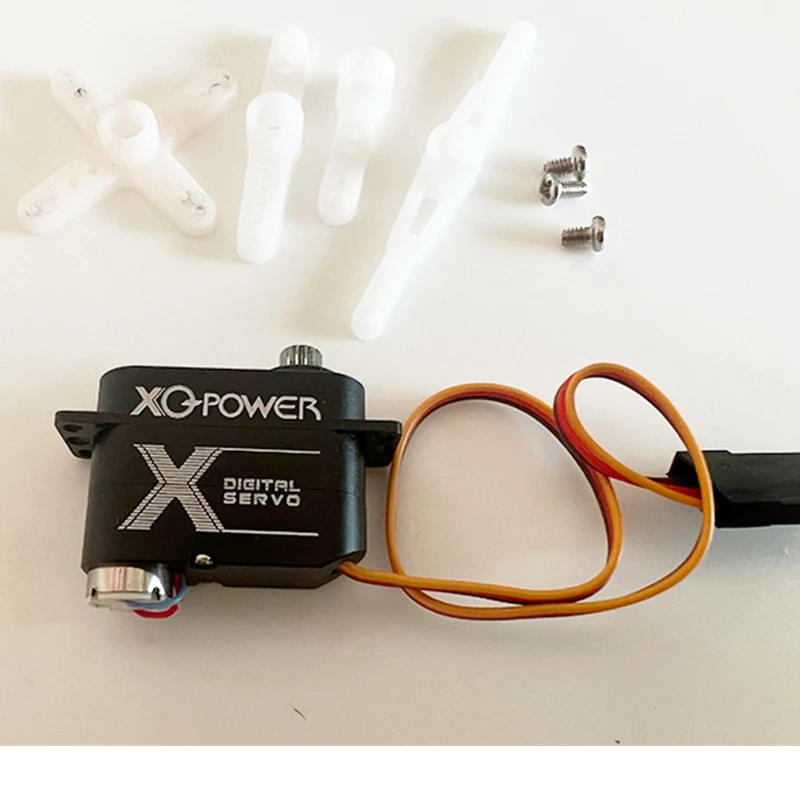

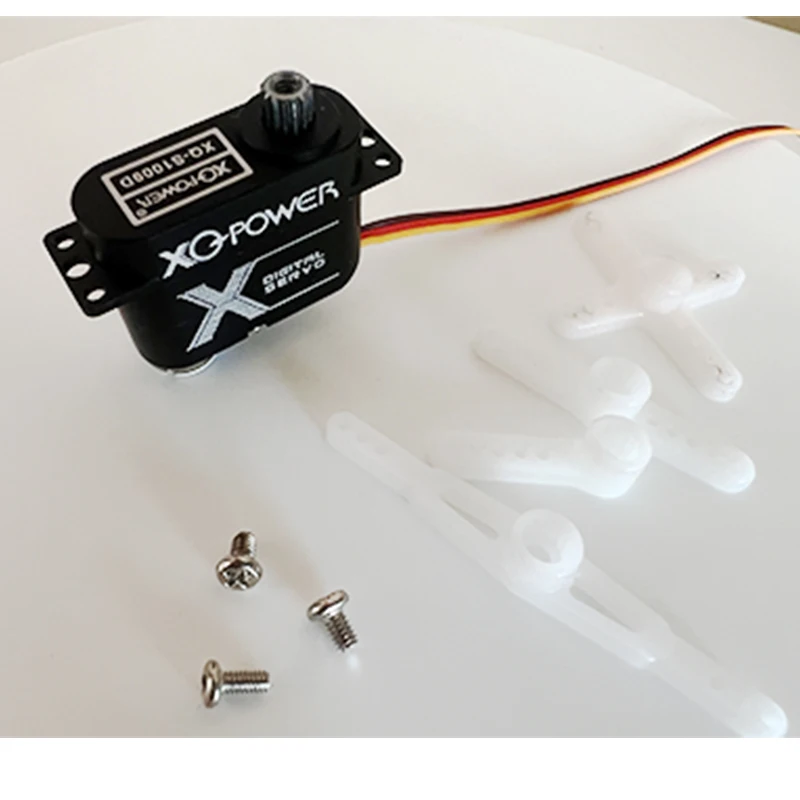

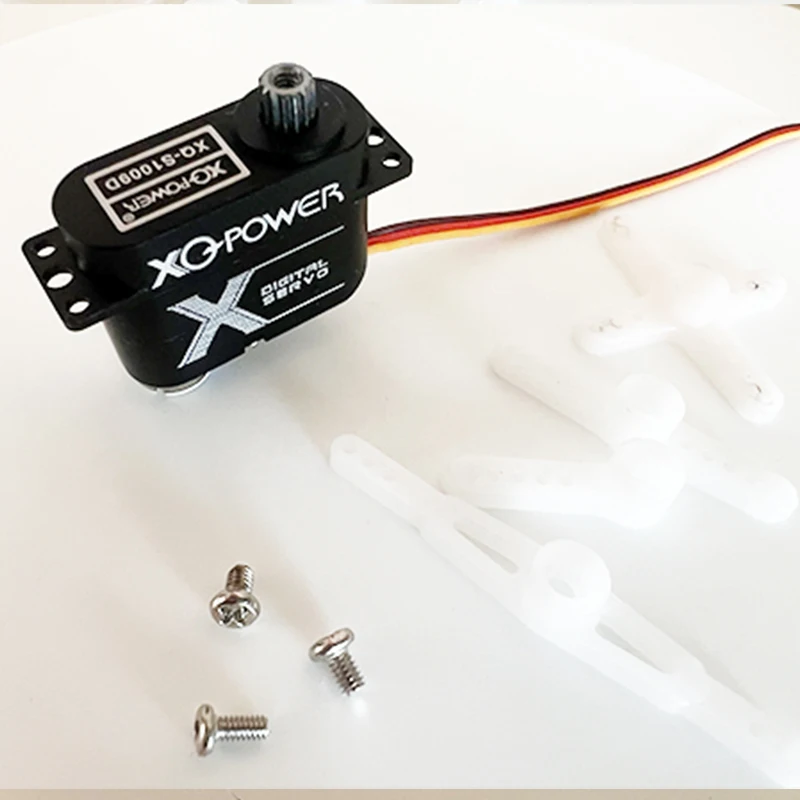

XQS1009D mini servo RC Micro digital servo ROHS standard rc servo for RC Car Parts
- Category: >>>
- Supplier: Shenzhen Xq-Power Technology Co. Ltd.
Share on (1601152982016):
Product Overview
Description
Product Description
Specification
Product Name | 7.4V 3kg-cm XQ-Power Micro Digital Servo XQ-S1009D | |||||
Apply Environmental Condition | ||||||
No. | Item | Specification | ||||
1-1 | Storage Temperature Range | -20°C~70°C | ||||
1-2 | Operating Range | -15°C~65°C | ||||
Standard Test Environment | ||||||
No. | Item | Specification | ||||
2-1 | Temperature range | 25°C±5°C | ||||
2-2 | Humidity Range | 65%±10% | ||||
Mechanical Specification | ||||||
No. | Item | Specification | ||||
3-1 | size | 23.5x9x19.5mm | ||||
3-2 | weight | 7.7g ±0.2(0.27oz); no including accessory | ||||
3-3 | Gear Type | Aluminium | ||||
3-4 | Limited Angle | 360° | ||||
3-5 | Bearing | 2 Ball Bearing | ||||
3-6 | Horn Gear Spline | 15T -φ3.85mm | ||||
3-7 | Horn Type | Plastic, POM | ||||
3-8 | Case | Aluminium CNC | ||||
3-9 | Connector wire | 145mm ±5mm | ||||
3-10 | Motor | Coreless Motor | ||||
3-11 | Splash water resistance | No | ||||
Electrical Specification(Function of the performace) | ||||||
Operating Voltage Range | 6.0V | 7.4V | ||||
No load speed | 0.09sec/60° | 0.07sec/60° | ||||
Running current(at no load) | 150mA | 200 mA | ||||
Peak stall torque | 2.5kg.cm | 3kg.cm | ||||
Stall current | 0.8A | 1.2A | ||||
Control specification | ||||||
No. | Item | Specification | ||||
5-1 | Command Signal | Pulse width modification 333Hz | ||||
5-2 | Amplifier Type | Digital Controller | ||||
5-3 | Pulse width range | 500~2500 µ sec | ||||
5-4 | Neutral position | 1500 µ sec | ||||
5-5 | Running degree | 90° (when 1000～2000 µ sec) | ||||
5-6 | Dead band width | 2 µ sec | ||||
5-7 | Rotating direction | CCW (when 1000～2000 µ sec) | ||||

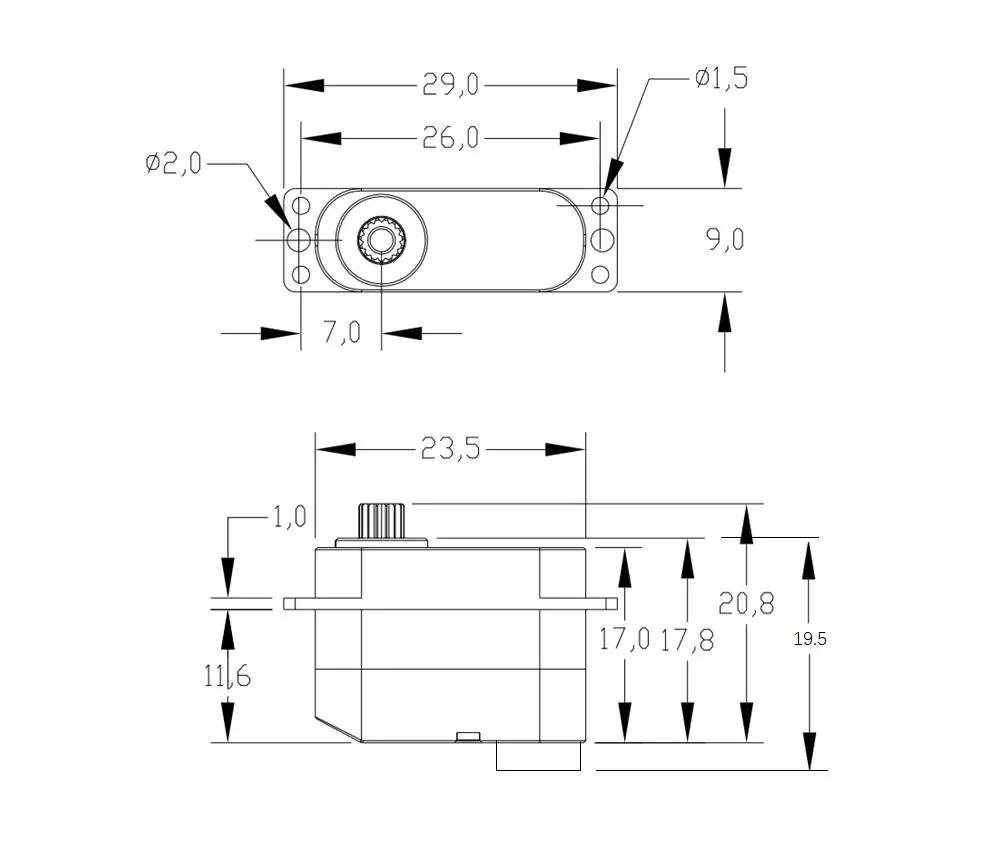

The drawing & Relevant products | ||||||
Product packaging

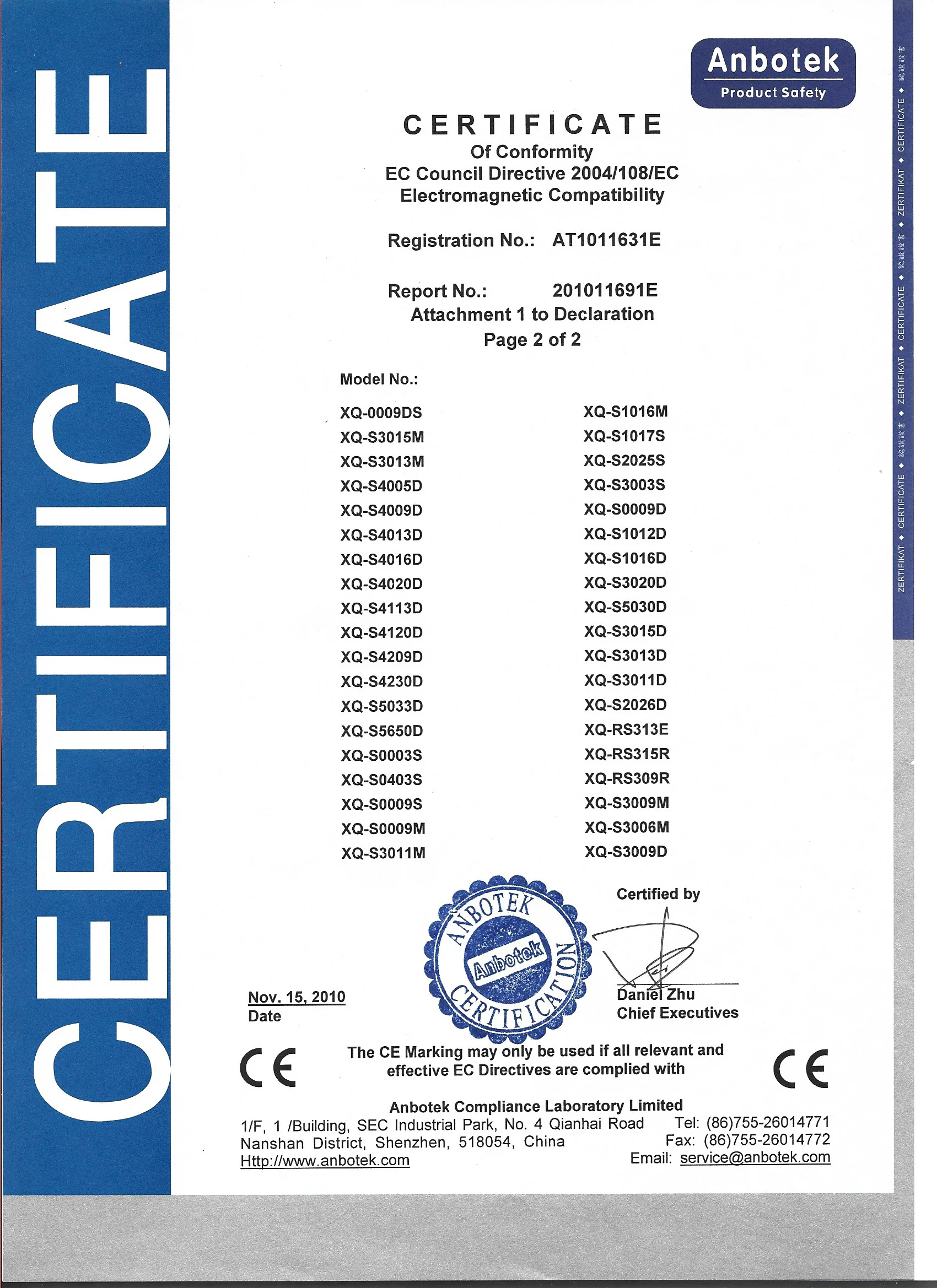

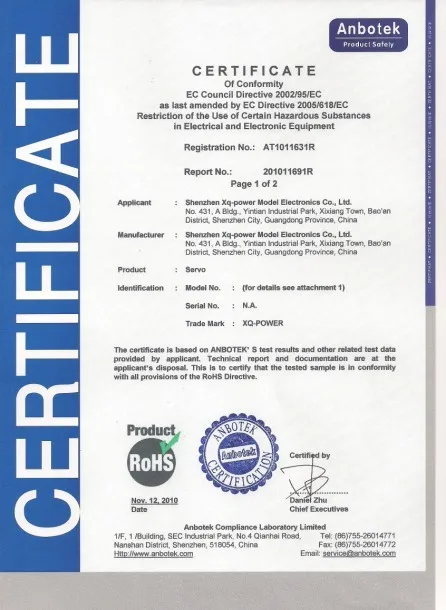

Certifications

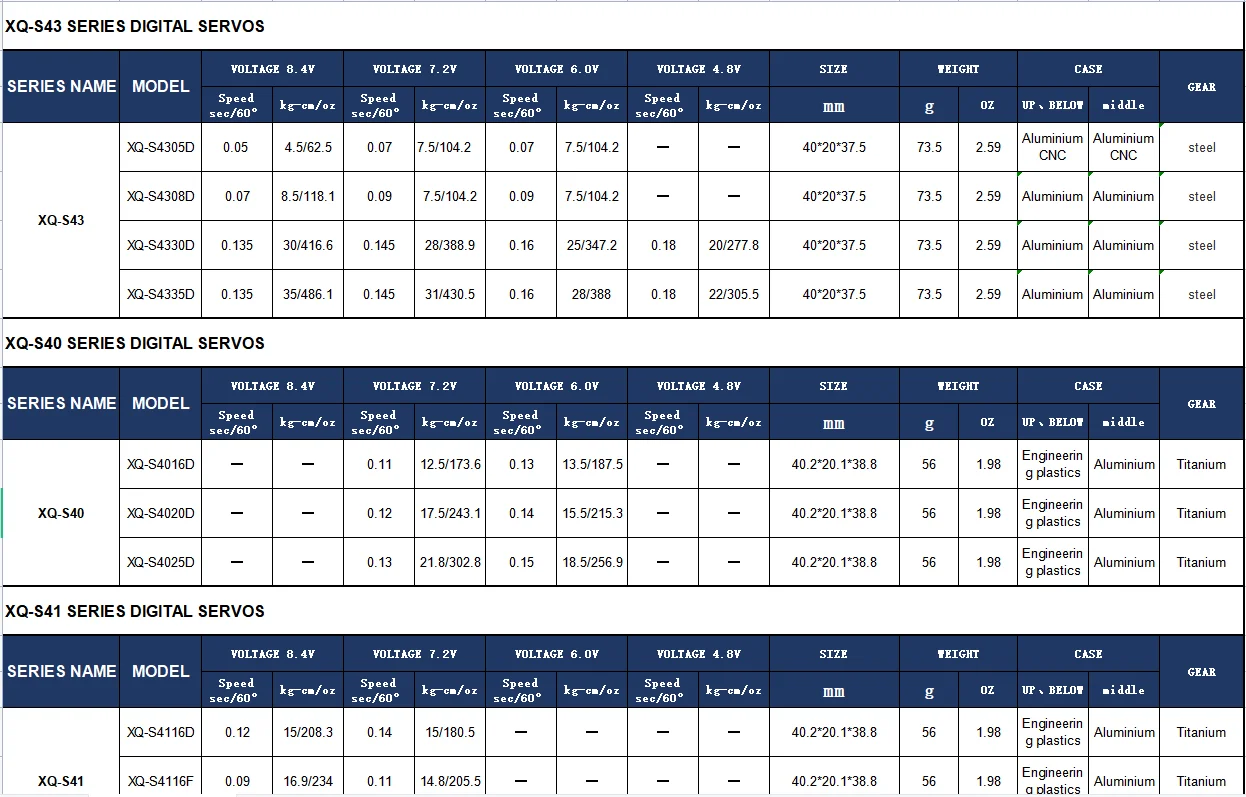

Recommend Products
