High Speed Feetech Servo FT9025M 6V 8.5kg PWM Digital Micro Servo Metal Gear Coreless Motor Servo for 1/10 RC Car/robotyka
- Category: >>>
- Supplier: Shenzhen Feite Model Co. Ltd.Shenzhen Ltd.
Share on (1601153492249):
Product Overview
Description
Product Description

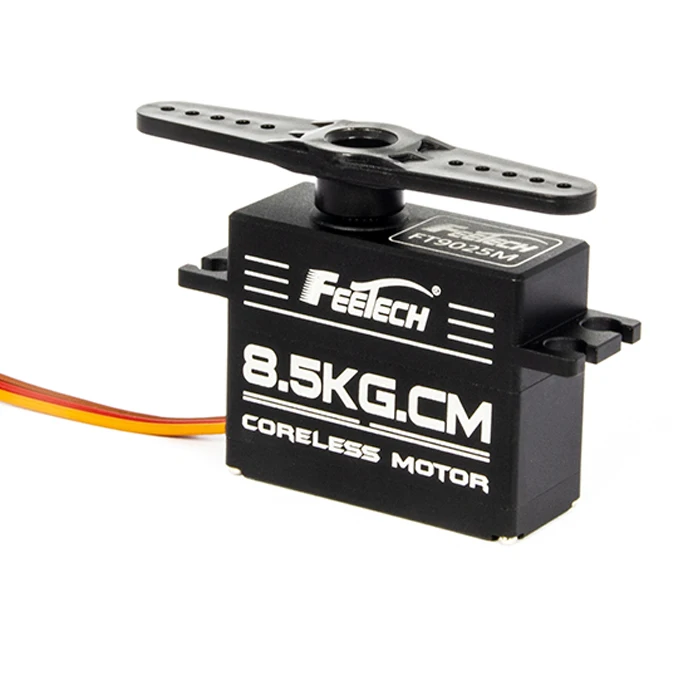

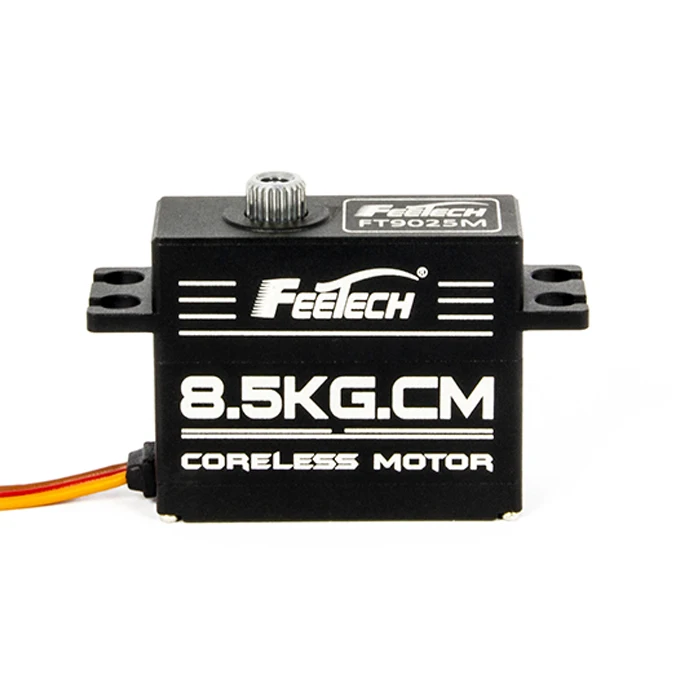

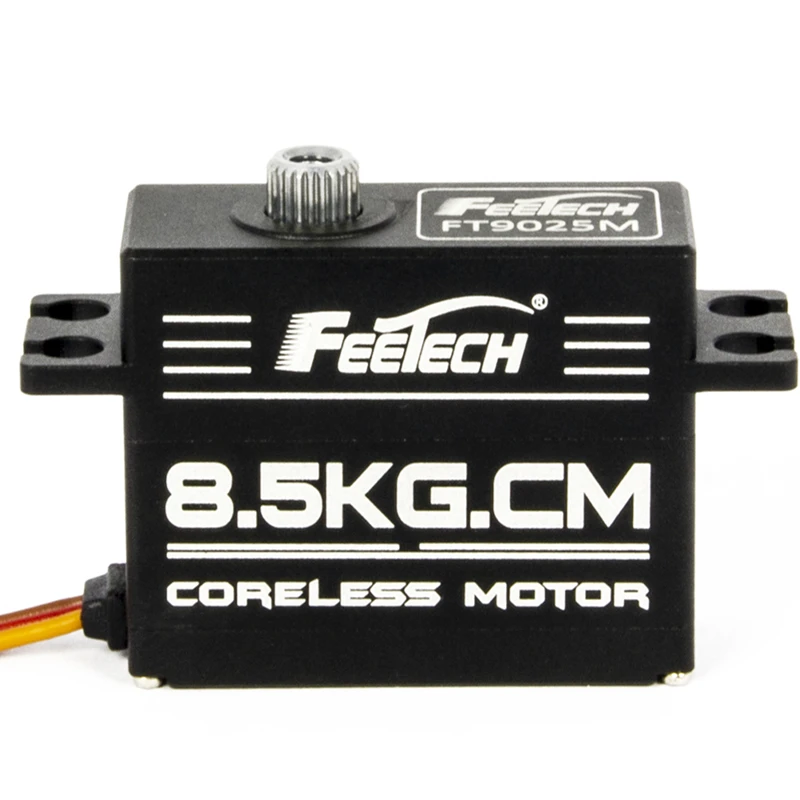

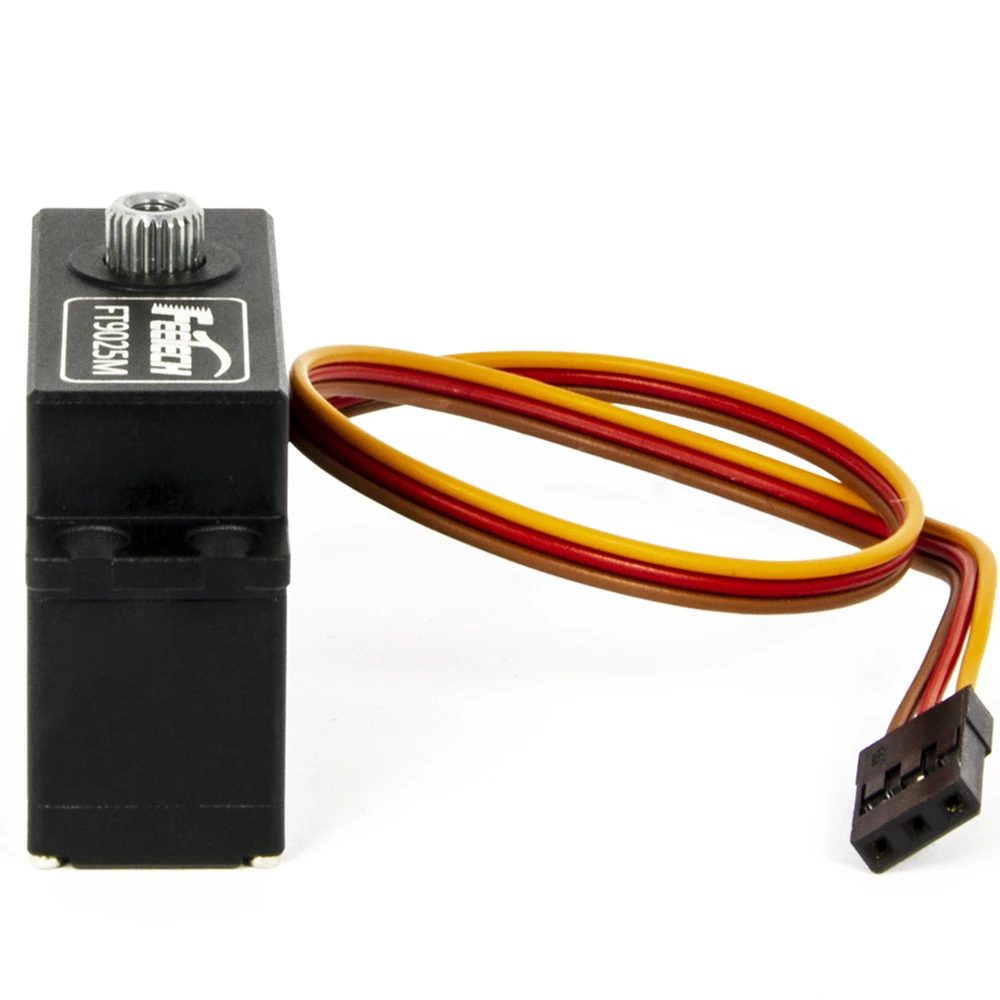

High-Speed Feetech servo FT9025M 6V 8.5kg PWM Digital Micro servo Metal Gear Coreless Motor Servo for 1/10 RC Car/robotyka
Feature:
Small size high torque,8.5 kg/cm (118.25oz.in) @ 6V. Dimension: 36mm*15mm*29.2mm(1.41inch*0.59inch*1.15 inch)
Providing a running angle of approximately 180° over a servo pulse range of around 500 μs to 2500 μs,
Full metal gear significantly improves servo’s accuracy and extend its service time.
The aluminium case enhances the heat dissipation and ensures the servo motor can work properly.
Use high-precision and newly designed potentiometer.
The output shaft is supported by two ball bearings for reduced friction.
It works with standard RC servo pulses,
The cable is terminated with a standard JR-style connector, which is Futaba-compatible
Good choice for RC Hobby,Robotics applications.
Providing a running angle of approximately 180° over a servo pulse range of around 500 μs to 2500 μs,
Full metal gear significantly improves servo’s accuracy and extend its service time.
The aluminium case enhances the heat dissipation and ensures the servo motor can work properly.
Use high-precision and newly designed potentiometer.
The output shaft is supported by two ball bearings for reduced friction.
It works with standard RC servo pulses,
The cable is terminated with a standard JR-style connector, which is Futaba-compatible
Good choice for RC Hobby,Robotics applications.
Specification
Size | 36X15X29.2 | ||
Operating Voltage | 4.8V | 6V | |
No Load Speed | 0.167sec/60°(60RPM) | 0.133sec/60°(75RPM) | |
Running Current ( no load) | 170mA | 200mA | |
Stall Torque (at locked) | 6.5kg.cm | 8.5kg.cm | |
90.43oz.in | 118.25oz.in | ||
Stall Current (at locked) | 1.1A | 1.4A | |
Case material | Aluminum | ||
Gear material | Metal Gear | ||
Weight | 35.2± 1g | ||
Motor | Coreless Motor | ||
Command Signal | Pulse width modification | ||
Operating Travel | 180° (at 500→2500μsec) | ||
Type | JR |
Material | PVC |
Length | 25CM |
1 | Signal |
2 | Vcc |
3 | GND |
Control signal parameter | |
Signal Period | 20ms |
Pulse Width | 500us-2500us |
Signal high Voltage | 2V-5V |
Signal Low Voltage | 0.0V-0.45V |

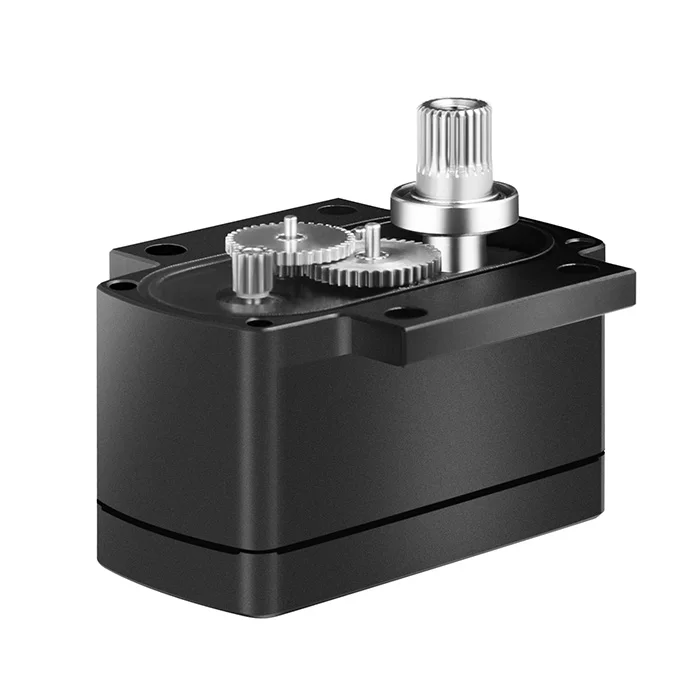

Full Metal gears,improve servo's accuracy and extend its service time
Aluminum Case enhances heat dissipation and ensures servo motor work properly
Use high-precision potentiometer,
Controllable angle range from 0 to 180 degrees
Controllable angle range from 0 to 180 degrees

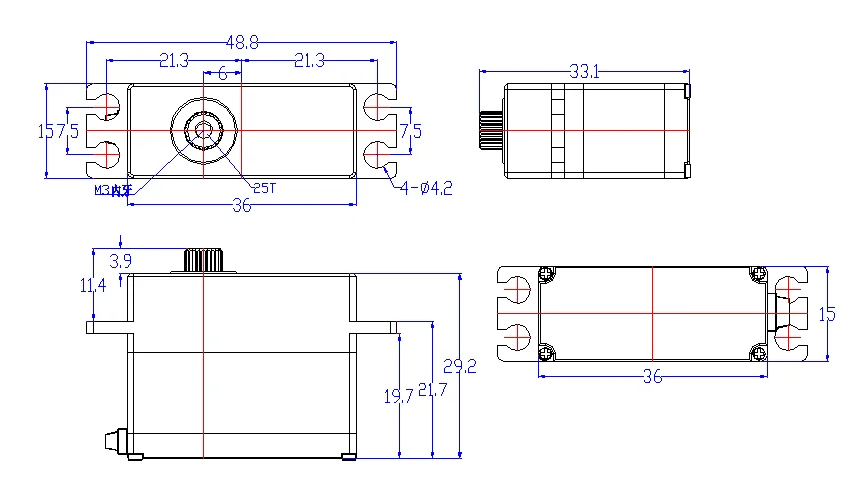

Outside Dimension
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications

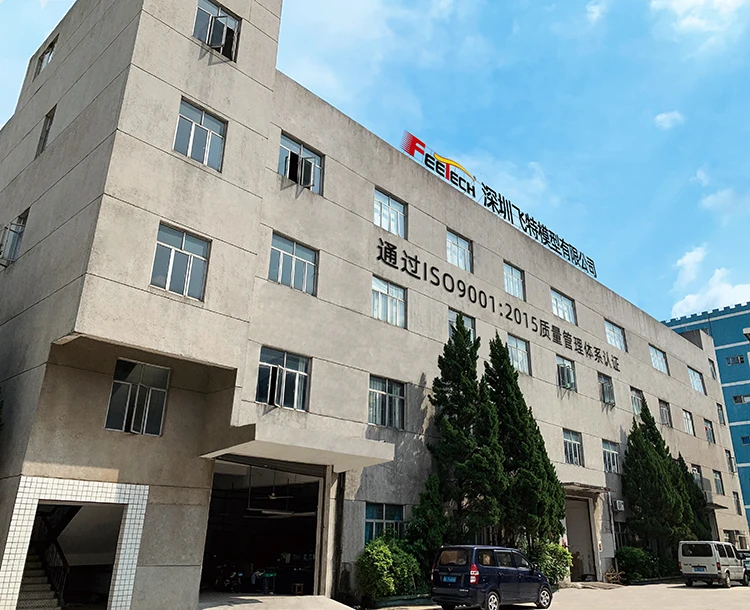

Company Introduction
