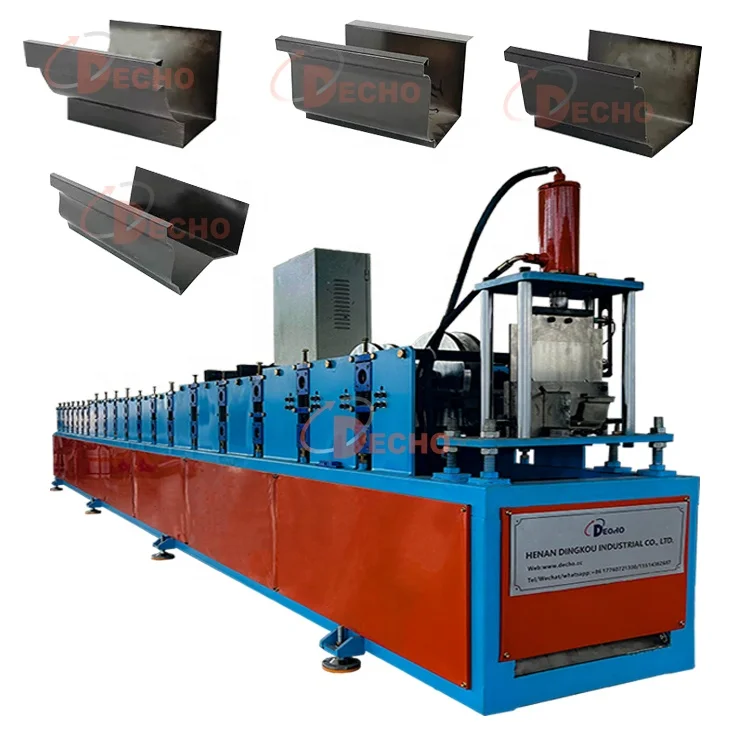

5 inch 6 inch 7 inch 8 inch 9 inch K type size custom rain gutter forming machine seamless gutter machine
- Category: >>>
- Supplier: Henan Dingkou Industrial Co. Ltd.Henan Ltd.
Share on (1601154882587):
Product Overview
Description
1. Product Overview
Stainless steel gutters have the advantages of strong corrosion resistance, good anti-rust performance, easy cleaning and maintenance, high strength, strong load-bearing capacity, environmental sustainability, easy installation, and strong adaptability. In the field of construction, stainless steel gutters are used more and more widely and have become an important part of modern

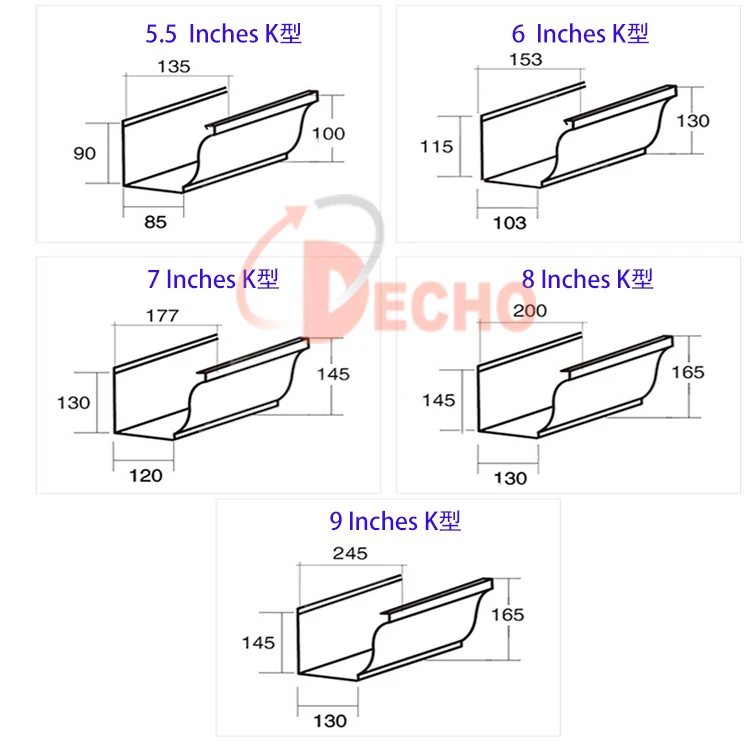

2. Produced Gutter Dimensions

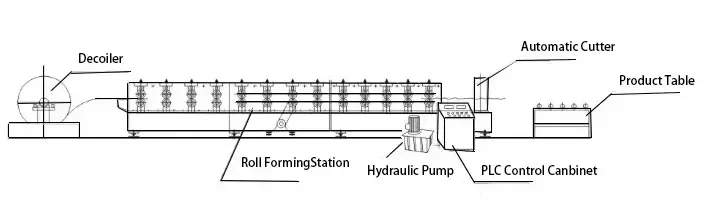

3. Work Flow
Capacity of the entire production line is 10-15 m/min. It consists of 5 parts. Un-coiler→Feeding material →Roll forming→Auto cutting→Products receiving table, but It only takes 1-2 worker.
4.Equipment List
NUM | Equipment Name | Quantity |
1 | Uncoiling Device | 1 set |
2 | Forming Main Machine | 1 set |
3 | Hydraulic Cutting System | 1 set |
4 | Material Receiving Table | 1 set |
5 | PLC Control System | 1 set |
6 | Supporting Accessories | 1 set |
5. Product Specification
Item | Parts | Specification & Description |
1.Raw Material | Type | GI / GL /PPGI / PPGL /Customization |
Thickness(mm) | Typically ranging from 0.3 to 0.8 Can customize according to customer needs. | |
2.Un-coiler Device | Type | Default manual uncoiler, optional electric uncoiler or hydraulic uncoiler. |
Bearing(Tons) | 3T/5T | |
Way of working | Manual / Electric / hydraulic tensioning crank. The center of the four-bar linkage is supported outward. | |
Panel Width（mm） | Typically ranging from 300 to900. Can customize according to customer needs. | |
Coil Inner diameter | φ480-500mm | |
Inner contraction range | φ450-550mm | |
3.Forming Main Machine | Main frame | Material:Galvanized steel square tube, section size:80×80(mm).Material wall thickness:3mmProcessing:Welding box frame |
Middle plate | Material : 45#steel Thickness: 14mm Processing :laser cutting | |
Shaft | Material : 45# steel Chrome Plated (0.05mm) Diameter : 40mm Processing : Precision machining, heat treatment, precision grinding | |

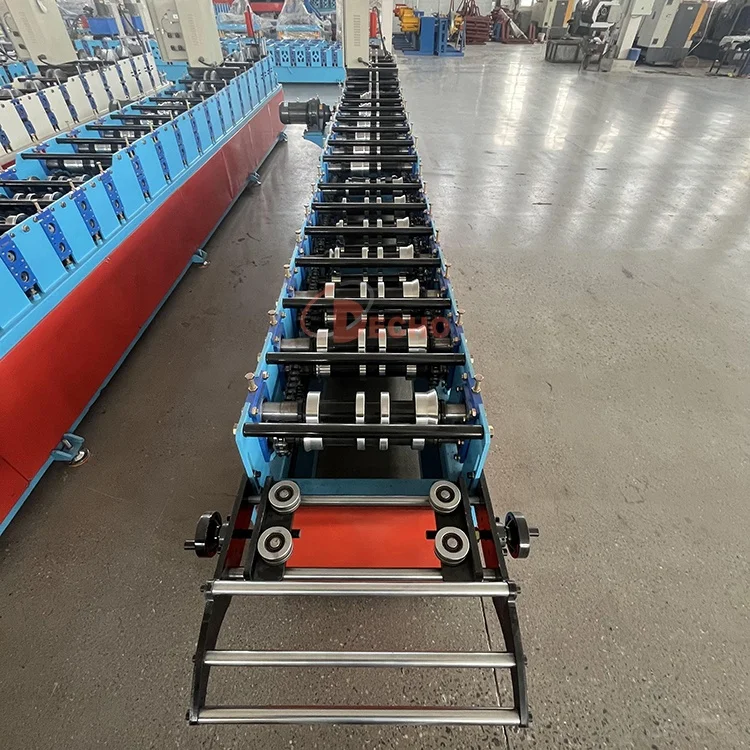

Rollers | Material: 45# steel Chrome Plated (0.05mm) Processing : Quenching, precision turning, polishing treatment | |
Roller Station | 19 stations or Customization | |
Transmission | Specifications:1 inch chain wheel with gear transmission Processing :Quenching heat treatment Gear oil:18 # hyperbolic gear oil | |
Main Motor | Power:4KW Brand：Lichao(optional) Reducer: Cycloidal reducer Protection level:IP55 Explosion-proof level:ExdIICT4 | |

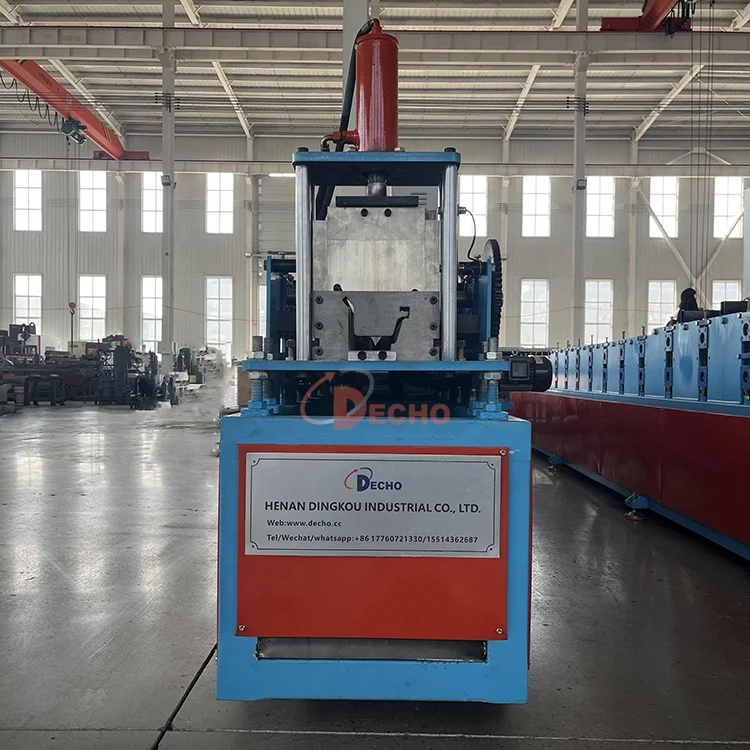

4.Cutting System | Type | Automatic Hydraulic Cutting |
Blade material | Cr12MOV heat treatment process | |
Pump | hydraulic pressure:10-12mpa Hydraulic oil: 46# | |
Pump motor for cutter | Power: 3KW | |
5.Receiving rack | Type | Default manual receiving rack, optional electric receiving rack. |
6.PLC Control System | PLC Control System | Plc brand:Delta(optional) Text control box:Vertical LCD control box Language: English / Chinese / Customized |
Inverter | Rated power:5.5KW |

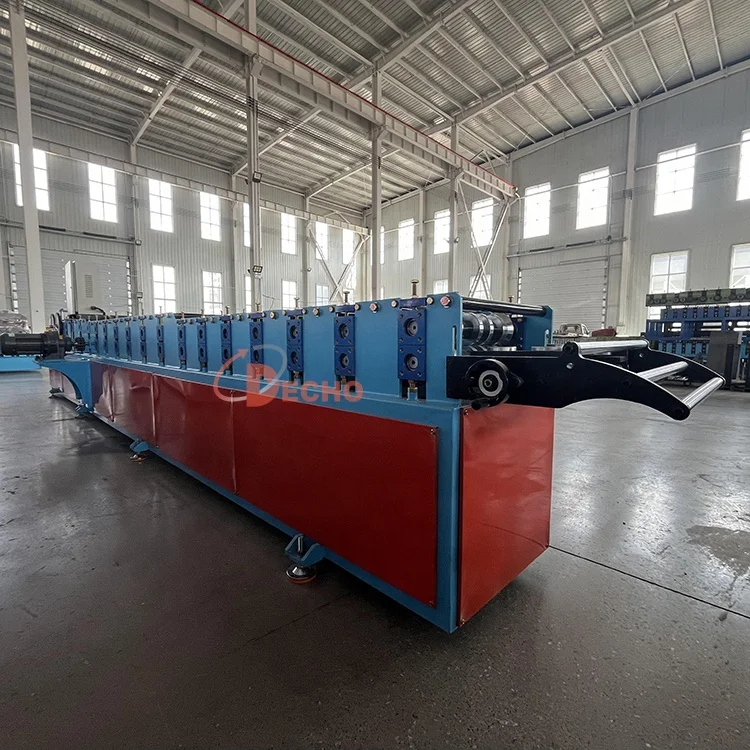

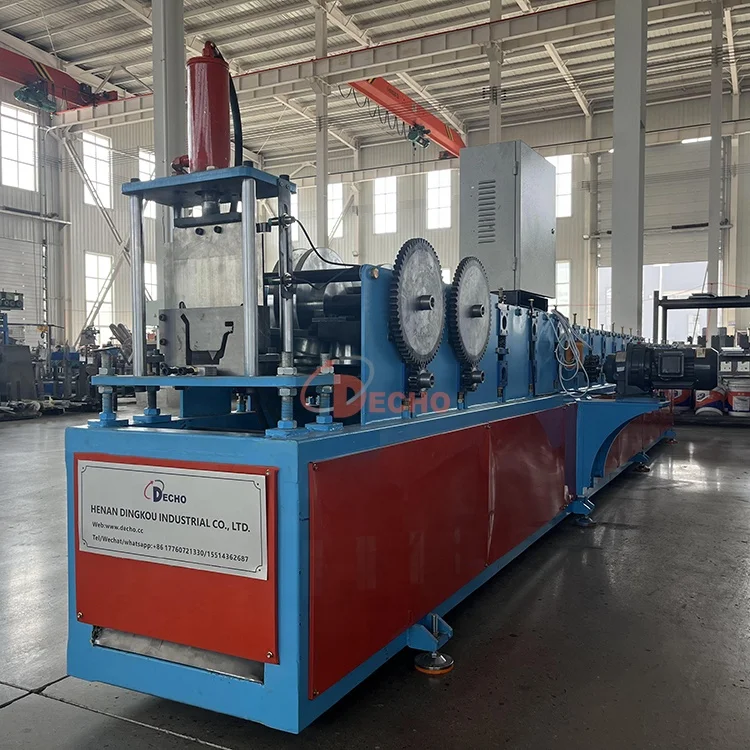

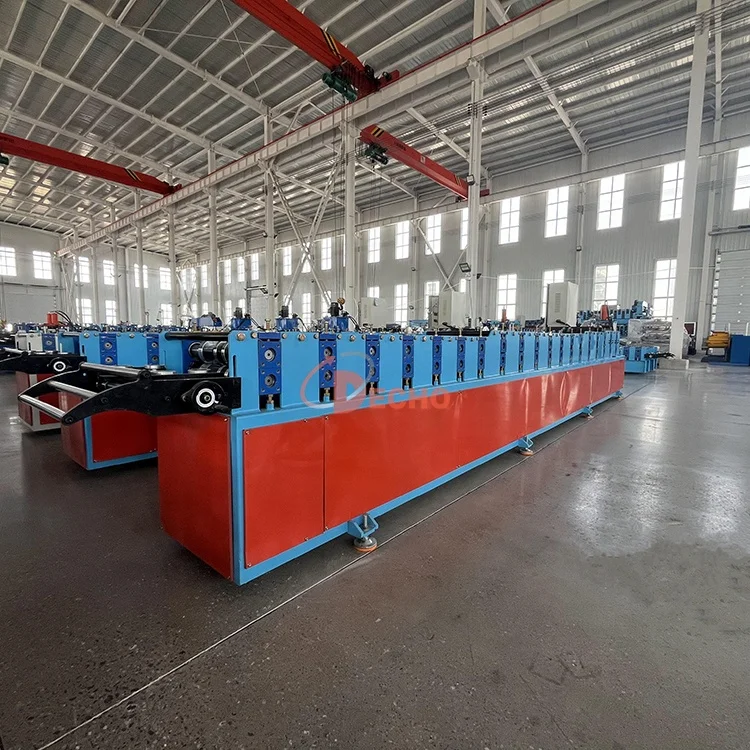

6. Product details
Packaging & Shipping
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
Related Products
About Us

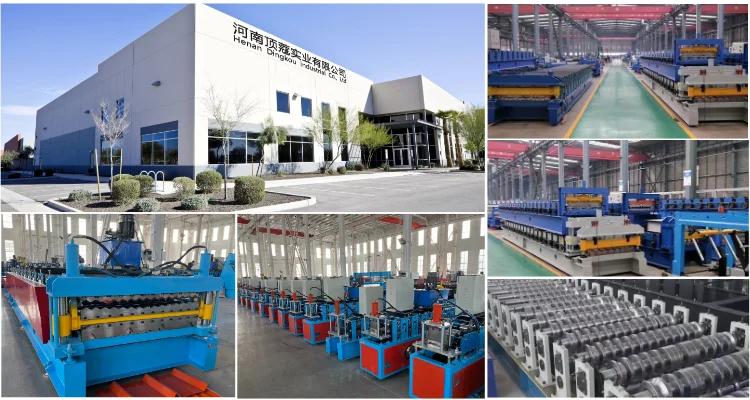

1.About Decho
