NANHUA NHD 1050 Head Light Tester for Automotive Repair and Maintenance Headlight Calibration Tool automatic headlight tester
- Category: >>>
- Supplier: Guangzhou Rui Di Auto Technology Co. Ltd.
Share on (1601156550595):
Product Overview
Description
NHD-1050 Head Light Tester for Automotive Repair and Maintenance
NHD-1050 Semi-automotive Headlight Tester is suitable for manual adjustment and inspection of automotive headlightheight. Equipped with microprocessor, high brightness LED display interface,the angle, light intensity and light height can be display digitally.
Measurement and adjustment areoperated easily with high-brightness deviation indication, standard RS232 communicationport. The instrument is equipped with light-shape observation window, and thelight-shape of the low beam can be projected on the screen. The low beam can bemeasured manually. Software calibration is provided. Laser alignment isalignment of the vehicle being tested.
The instrument is very suitable for usein vehicle inspection stations, repair and maintenance garage.

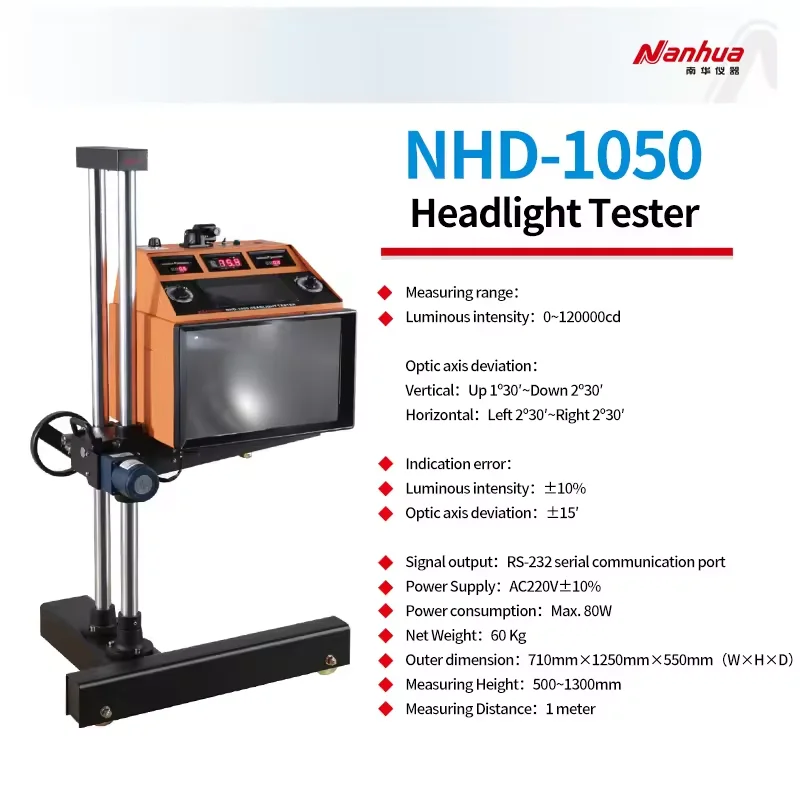

MainTechnical Specifications
MeasuringRange
Light Intensity: 0 ~ 120,000cd
Deviation of Optical Axis:
Up 1 °30′ ~ Down 2°30'
Left 2° 30'~Right 2°30'
InspectionHeight: 500~1300mm
InspectionDistance: 1m
MeasurementAccuracy
Luminous Intensity: ±10%
Optic Axis Deviation: ±15'
PowerSupply: AC220V ±10% 50Hz ±1Hz
Weight: 60Kg
Dimension:
710mm(W) × 1,250mm(H) ×550mm(D)
